Whalen WF60BVJ User manual

2
Maximum load 200 lb. (90.71 kg)
Maximum load 30 lb. (13.6 kg)
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
MODEL #WF60BVJ
VANITY WITH TOP
1
Please call for replacement parts or assistance: 1-866-942-5362
Pacic Standard Time: 8:30 am – 4:30 pm PST Monday to Friday
Or visit our web site: www.whalenfurniture.com
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or install the product.
WARNING
CAUTION
Do not stand on vanity. Use vanity on level ground. Base
vanity supports a maximum weight of 200 lbs. Exceeding
maximum weight limit will compromise the integrity of the
vanity structure and could cause the vanity to fail.
Failure to follow cautions could result in serious injury.
Do not hang from the vanity.
Do not taking o󰀨 the vanity top to avoid damaging the vanity.
Clean all uids from the stone surface to prevent stains. Wipe o󰀨 the soap or toothpaste immediately to prevent
permanent damage to the stone surface.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and
hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 30 minutes
Tools Required (not included): Silicone compound, Phillips screwdriver, Level, Stud Finder, Pencil, Variable Speed Drill.

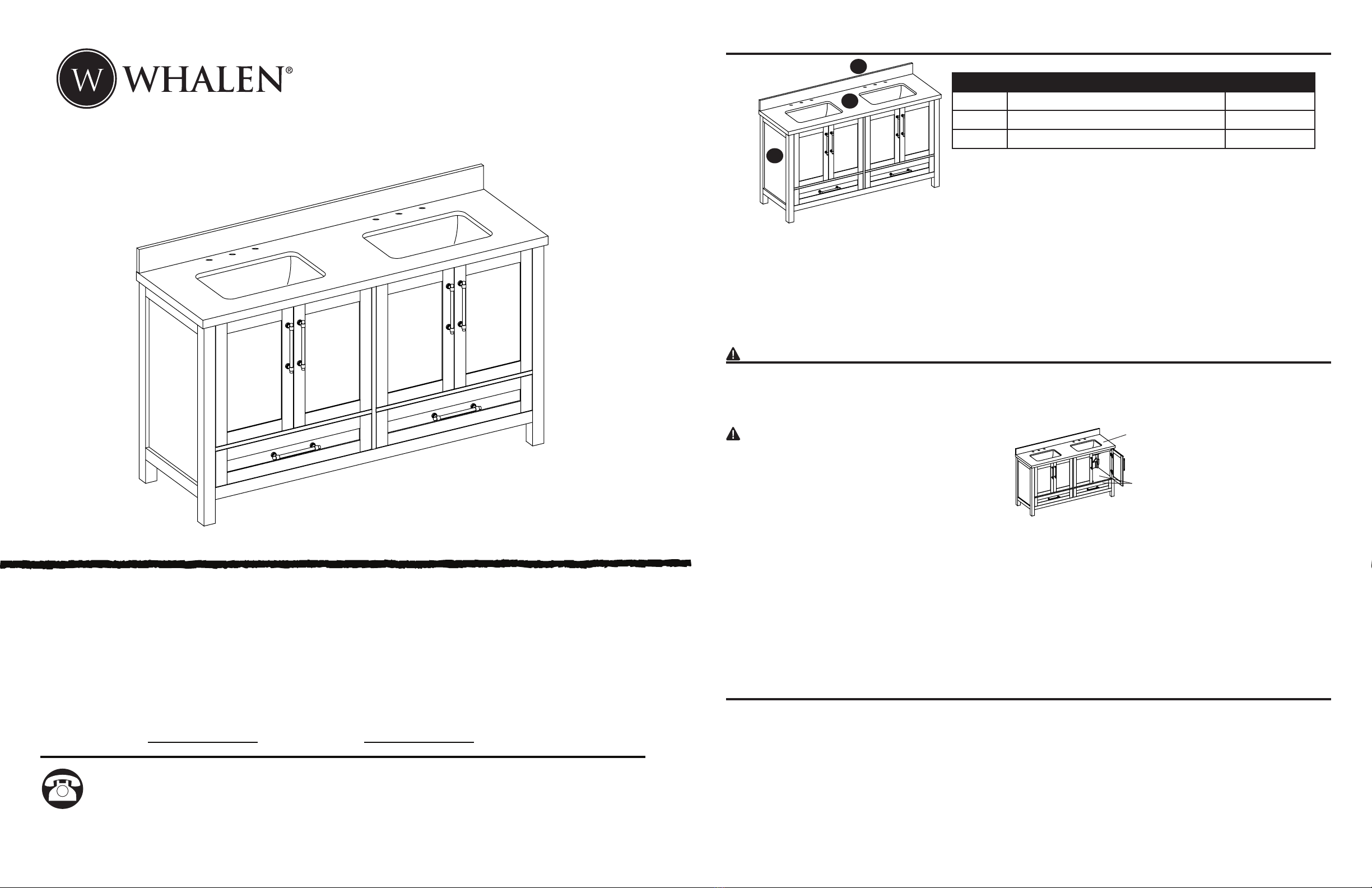

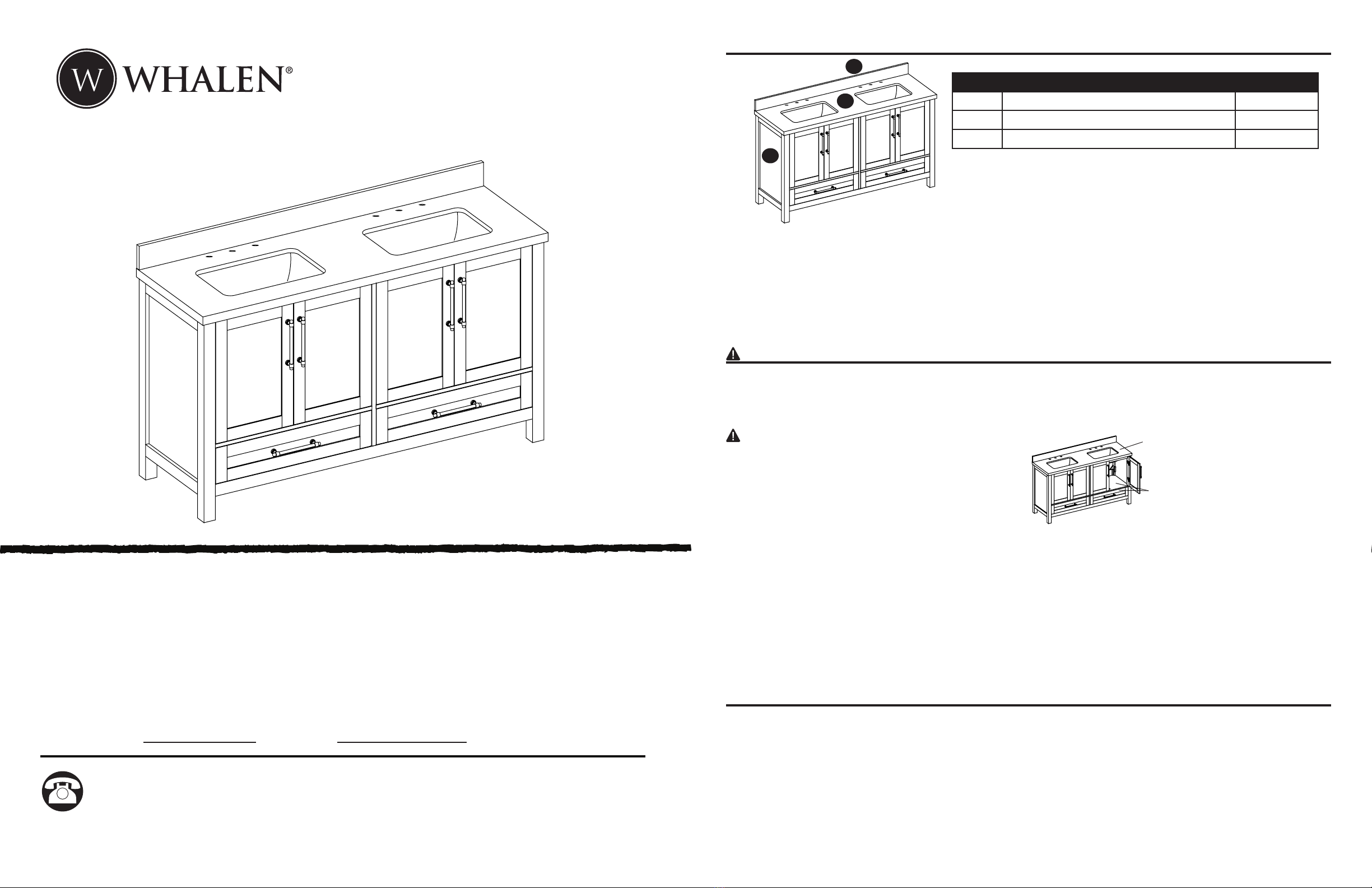

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
AVanity Top 1
BVanity Base 1
C Backsplash 1
Français p. 9
Español p. 17
B
C
A

v
v
3
ASSEMBLY INSTRUCTIONS
v
1
Step 3:
Mark wall for vanity placement and note the location of the
water supply lines and drain on the back panel of vanity.
2
Step 4:
Move vanity (B) into proper place against the wall.
3
4
ASSEMBLY INSTRUCTIONS
v
4
v
6
v
5
Step 5:
Install faucet, drain and supply lines (none included) to
vanity top (A) according to the instructions supplied with
those items.

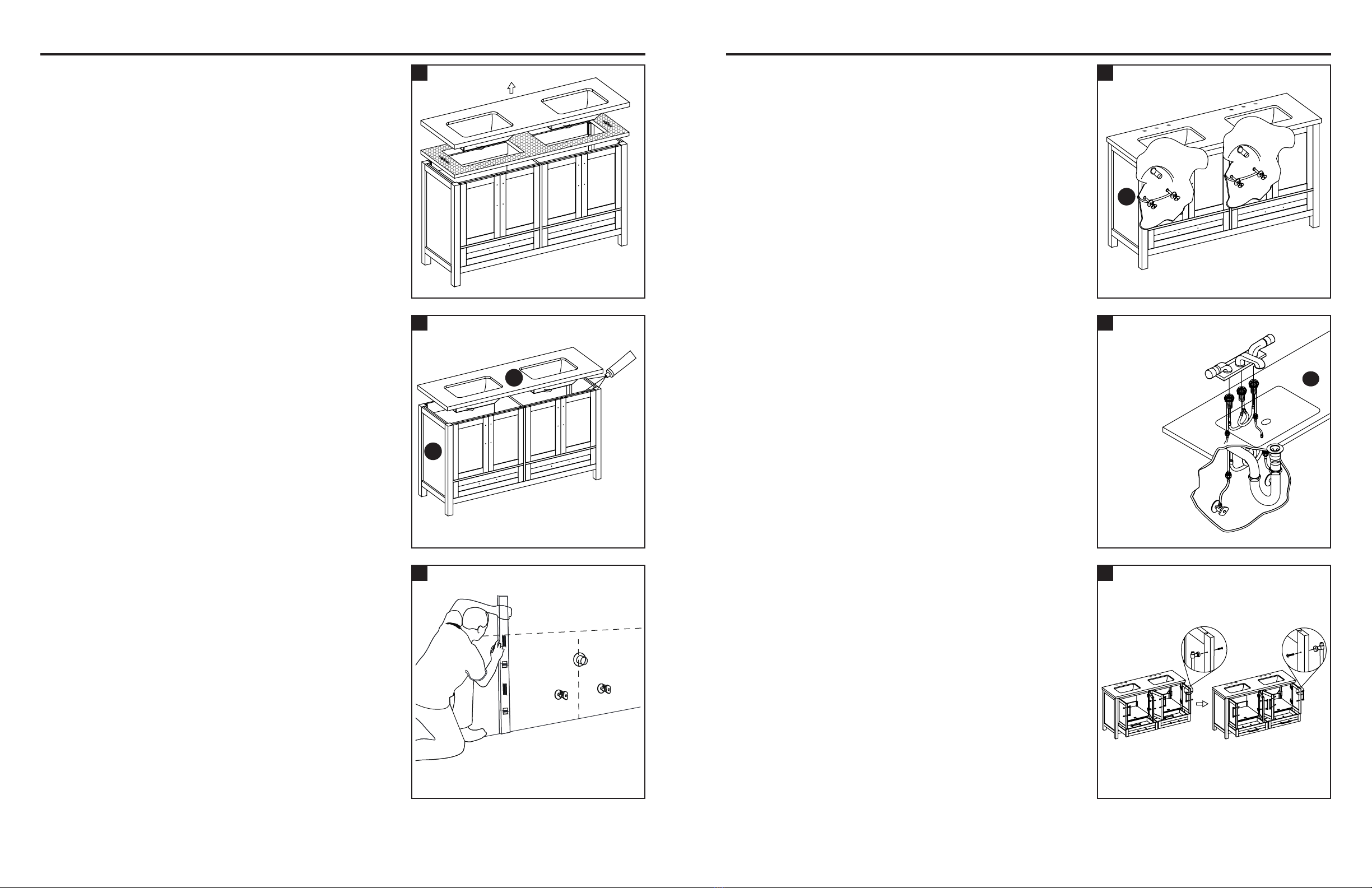

Step 1:
Remove stone top and the packaging material under the
stone top.
Step 2:
a. Apply a thin bead of silicone compound (not included) to
the top of the vanity base (B).
b. Align the back of the vanity base (B) and put the stone
top (A) on the vanity base (B). Silicone
A
B
A
Step 6:
The vanity comes with the knobs pre-assembled to the inside
of drawers and doors. To remove the knob, unscrew the bolts
located on the front of the drawers and doors. Re-install the
knobs to the front of the drawers and doors with the same
bolts.
B

5 6
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
v v
v
v
7 10
8
9

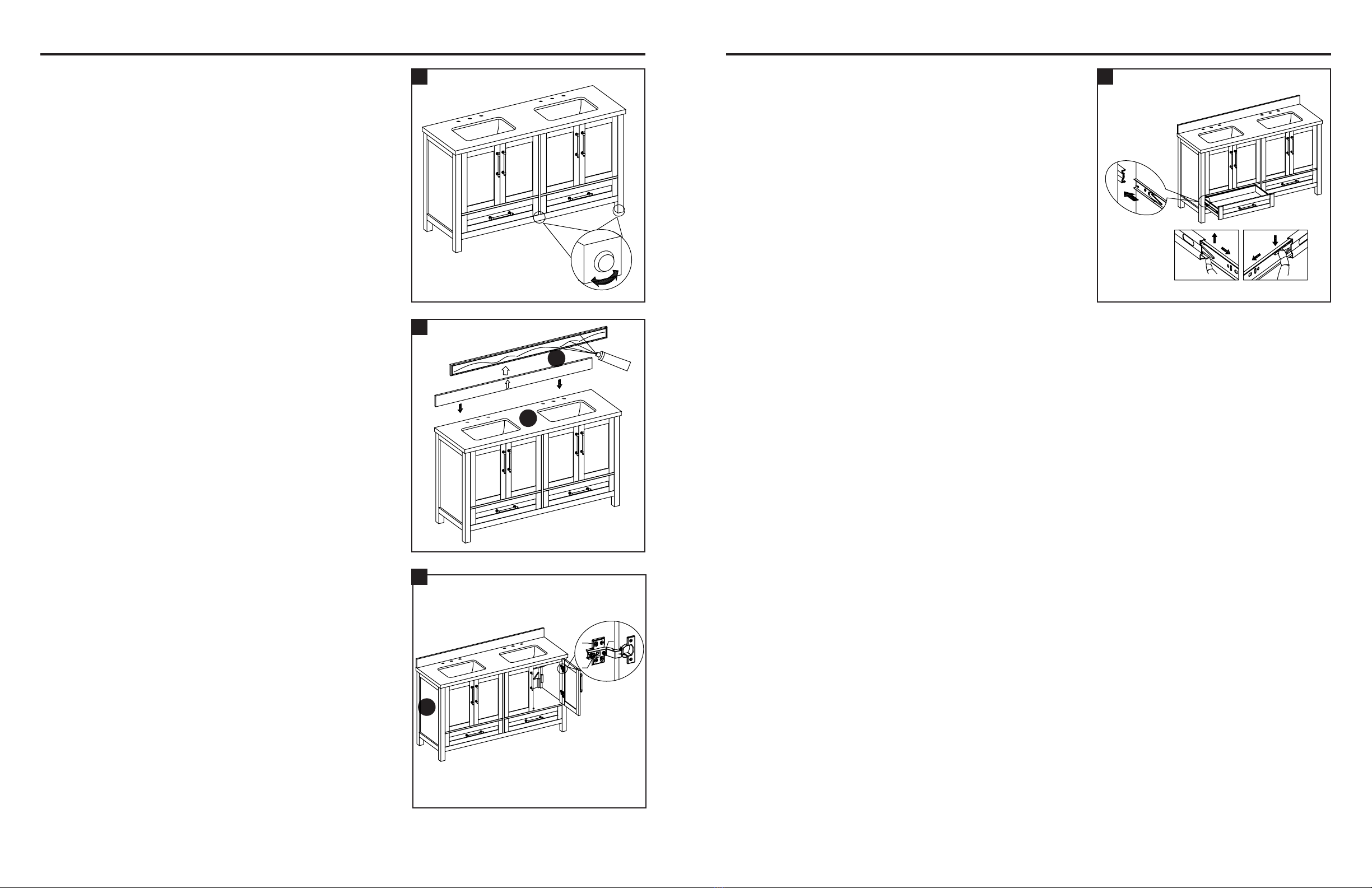

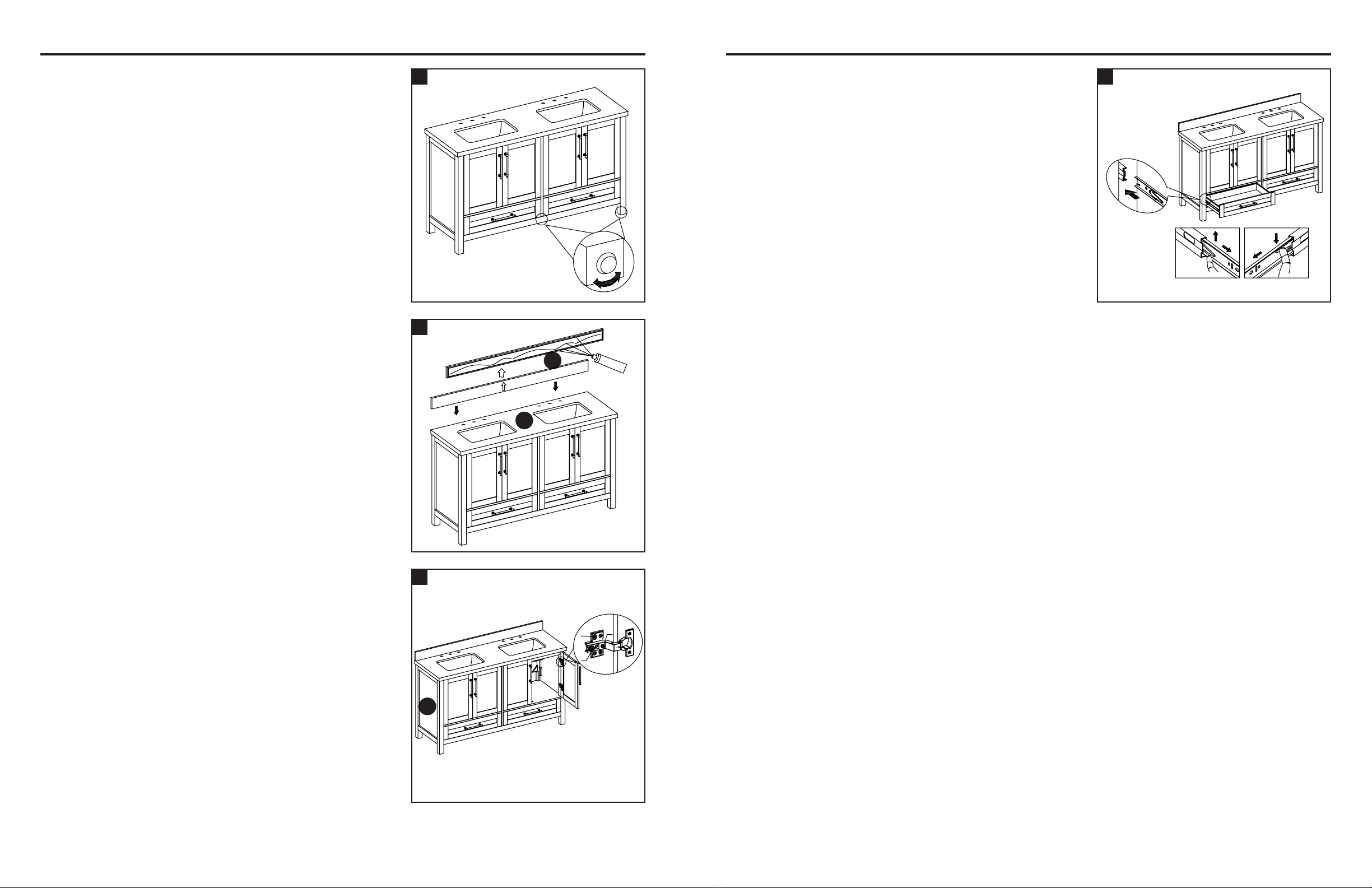

Step 9:
If the door preassembled to vanity base (B) require
adjustment, follow the below options as needed:
To adjust door up or down, loosen screws (a), adjust door
and tighten screws.
To adjust door left and right, turn screw (b) in or out.
To adjust door in and out, loosen screw (c), adjust door
and retighten screw.
B
Step 8:
To mount the backsplash (C) to the wall, apply a thin bead
of silicone compound (not included) to the unpolished
back side and bottom of the backsplash (C). Position
backsplash (C) as shown onto vanity top (A) and against
the wall. Clean any excess silicone compound before
allowing to dry.
Silicone
Step 10:
Removing the Drawer:
a. Unload the contents from the drawer.
b. Slide out the drawer as far as it will go.
c. Press the lever down on the right-hand track and lift the
lever up on the left track to release the drawer. Pull the
drawer out the rest of the way.
Replacing the Drawer:
a. Align the drawer guides with the receiving glides.
b. Hold the receiving glides rmly and insert the drawer guide.
NOTE: It is normal for the drawer to close tightly the rst
time after it has been removed.
c. Push the drawer in completely.
UP
Step 7:
In case of uneven oors, oor levelers are provided at the
bottom of the vanity. If necessary, adjust oor levelers by
hand to correct tilting and/or level doors.
A
C
c
b
a

8
7
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-942-5362, 8:30 a.m. - 4:30 p.m.,
EST, Monday - Friday.

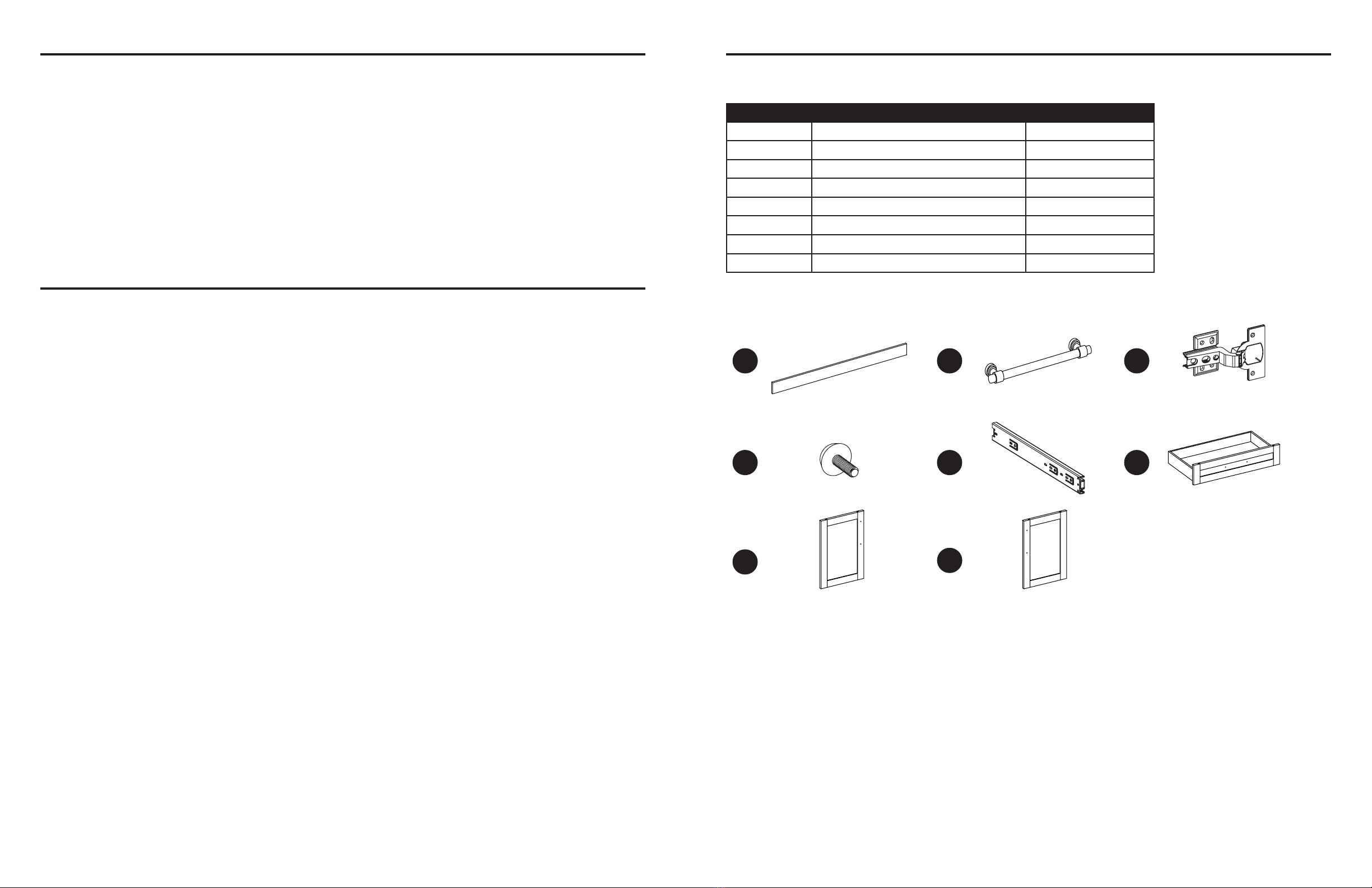

PART DESCRIPTION PART #
C Backsplash 00WF60BVJ-01
AA Knob with Bolt 00WFBVJ-02
BB Hinge with Screws 00WFBVJ-03
CC Floor Leveler 00WFBVJ-04
DD Drawer Slides 00WFBVJ-05
D Drawer Box 00WF60BVJ-06
E Left Door 00WF60BVJ-07
FRight Door 00WF60BVJ-08
Date: 2021-06-03
Rev. 0001-A
Printed in Vietnam
EF
D
CAA BB
DDCC
CARE AND MAINTENANCE
ONE-YEAR LIMITED WARRANTY
This product is warranted to the original purchaser. If there is a failure in this unit due to defects
in materials or workmanship, the manufacturer will repair or replace this item at our discretion
without charge. Warranty is void if product has been assembled incorrectly, misused, abused by
overloading, altered in any way or damaged due to accident. This warranty is not transferable and
does not cover chipping, aking, scratches, rust, dents, or other damages to the surfaces of this
product. Responsibility of the manufacturer is limited to repair or replacement of this product. The
manufacturer is not responsible for consequential, incidental, or other damages or losses resulting
from product failure.
This warranty is in lieu of all other expressed warranties. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation may not apply to you. This
warranty gives you specic legal rights and you may have other rights which vary from state to state.
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner. Make sure to dry the
wood immediately with a soft cloth or towel.
• The engineered stone top can be cleaned using standard engineered stone cleaning agents (sold
separately).
• Tips for using touch-up pen (AA): For scratches, stroke in direction of scratch; for worn areas,
stroke in direction of wood grain. Rub excess colorant promptly with a soft cloth.
• Keep product away from direct sunlight as it may damage the nish.
• Be sure to immediately clean red wine or coke stains within 30 minutes or the top will stain.

9 10
