WIKA CPH7650 User manual

Operating instructions
Betriebsanleitung
EN
DE
Portable pressure calibrator, model CPH7650
Tragbarer Druckkalibrator, Typ CPH7650
Portable pressure calibrator, model CPH7650

2
14261987.02 01/2019 EN/DE
WIKA operating instructions, model CPH7650
EN
DE
Operating instructions model CPH7650 Page 3 - 72
Betriebsanleitung Typ CPH7650 Seite 73 - 141
Further languages can be found at www.wika.com.
© 03/2018 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!

3WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
Contents
1. General information 5
2. Short overview 6
2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Description . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . 7
3. Safety 8
3.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . 8
3.2 Intended use. . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Improper use . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Personnel qualification . . . . . . . . . . . . . . . . . . . 12

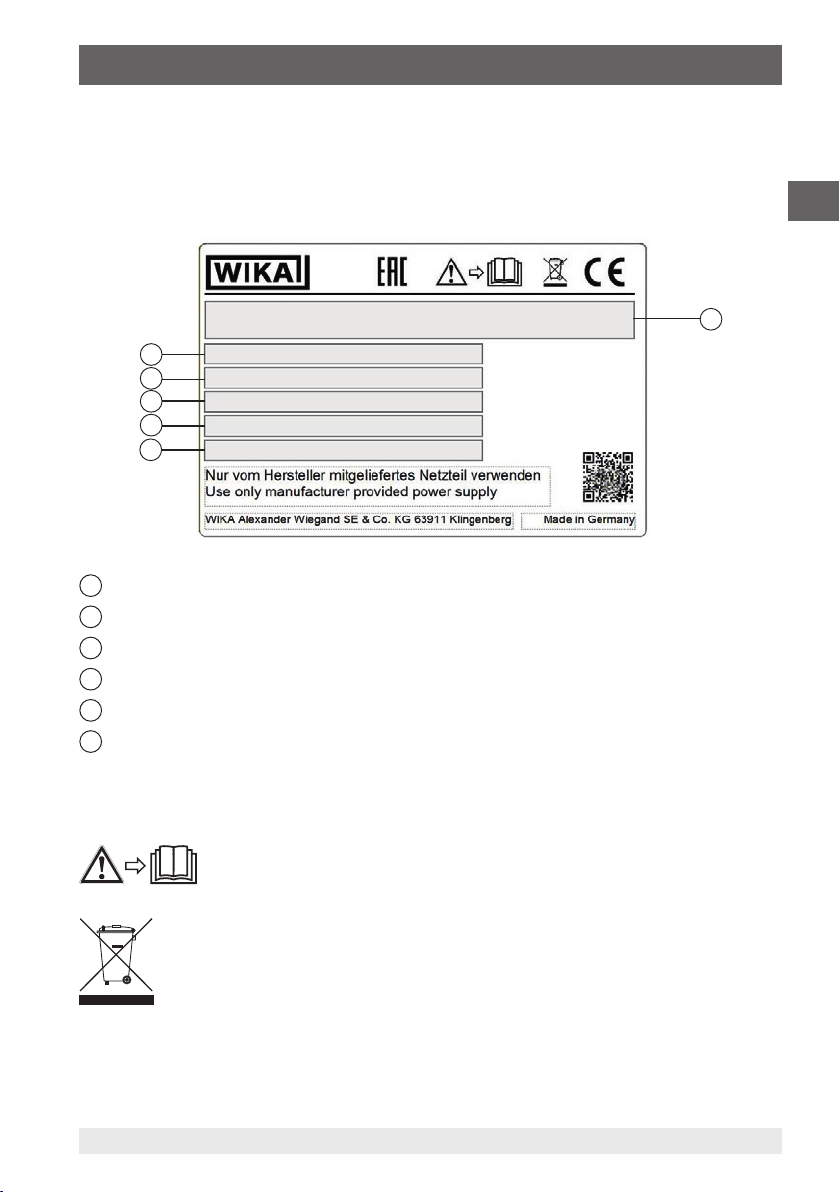

3.5 Labelling, safety marks . . . . . . . . . . . . . . . . . . . 13
4. Design and function 14
4.1 Front . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Voltage supply . . . . . . . . . . . . . . . . . . . . . . 15
4.2.1 Using the power supply unit . . . . . . . . . . . . . . . . 15
4.2.2 Use of lithium-ion rechargeable batteries . . . . . . . . . . . 17
4.2.3 Charging the lithium-ion rechargeable battery. . . . . . . . . . 17
4.3 Electrical connections to the CPH7650 . . . . . . . . . . . . . . 18

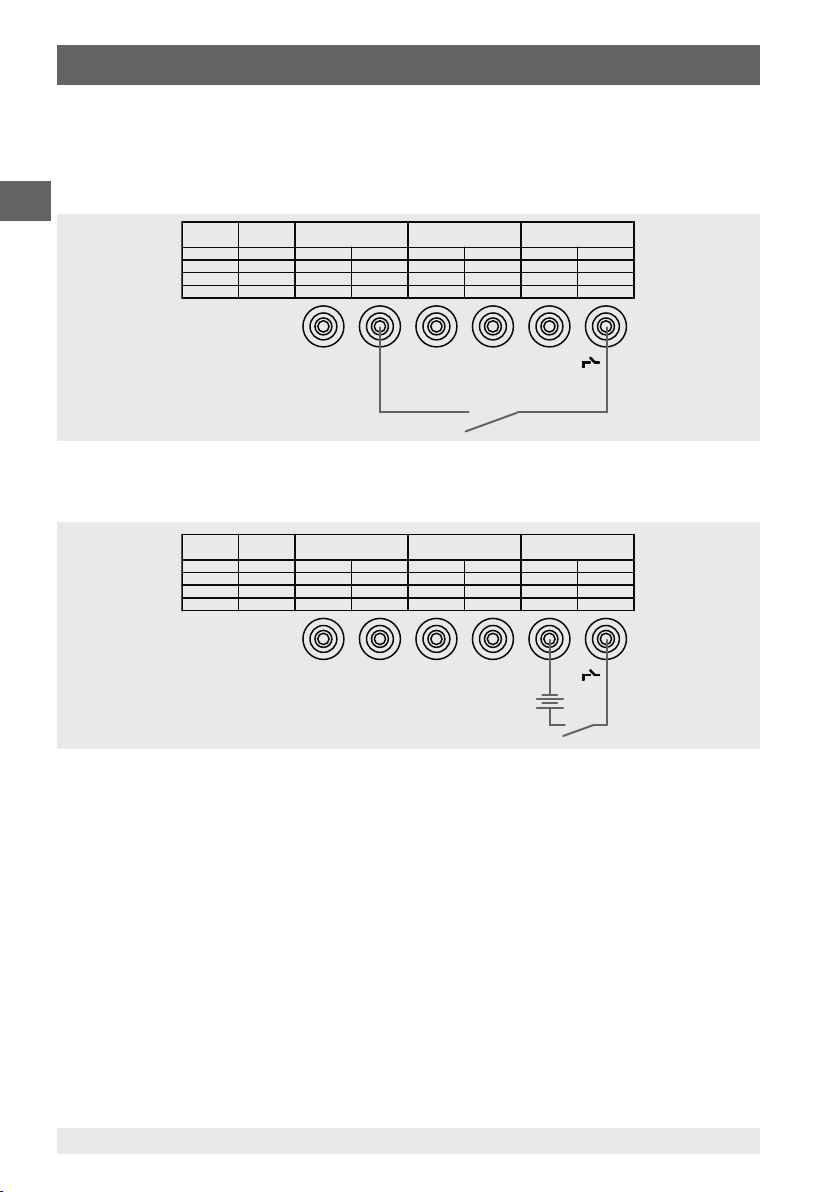

4.3.1 Electrical connection of potential-free pressure switches . . . . . . 20
4.3.2 Electrical connections for a 2-wire test item . . . . . . . . . . 21
4.3.3 Electrical connections for a 3-wire test item . . . . . . . . . . 22
4.4 Reference pressure sensor CPT6000 . . . . . . . . . . . . . . 23
4.4.1 Connection of the model CPT6000 reference pressure sensor to the
CPH7650 . . . . . . . . . . . . . . . . . . . . . . 24
4.4.1.1 Electrical connection . . . . . . . . . . . . . . . . . 24
4.4.1.1 Mechanical connection . . . . . . . . . . . . . . . . 24
4.5 Connection of the test item . . . . . . . . . . . . . . . . . . 25
4.6 User interface . . . . . . . . . . . . . . . . . . . . . . 26
5. Transport, packaging and storage 28
5.1 Transport . . . . . . . . . . . . . . . . . . . . . . . . 28
5.2 Packaging and storage . . . . . . . . . . . . . . . . . . . 28
6. Commissioning, operation 29
6.1 Location . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2 Requirements for test assemblies with the CPH7650 . . . . . . . . . 29
6.2.1 Compensation for height differences . . . . . . . . . . . . . 30
6.2.2 Important instrument settings for calibration using calibration mode . . 30
6.3 Switching on the pressure calibrator . . . . . . . . . . . . . . . 31
6.4 Menu structure (operating modes) . . . . . . . . . . . . . . . 32
6.5 Explanation of the display . . . . . . . . . . . . . . . . . . 33
6.5.1 Instrument status messages shortly after switching on the CPH7650 . . 33
6.5.2 Switching the pressure calibrator off . . . . . . . . . . . . . 34
Contents

4WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
Contents
6.5.3 Display contents of the operating modes . . . . . . . . . . . 34
6.5.4 Content of the SETUP menu . . . . . . . . . . . . . . . 38
6.6 Operating modes . . . . . . . . . . . . . . . . . . . . . 40
6.6.1 MEASURING mode . . . . . . . . . . . . . . . . . . 40
6.6.2 MEASURING mode (with test item) . . . . . . . . . . . . . 42
6.6.3 CALIBRATION mode . . . . . . . . . . . . . . . . . . 44
6.6.4 CALIBRATION mode (preparing the test points of a calibration). . . . 46
6.6.5 CALIBRATION mode (calibration of a pressure transmitter) . . . . . 49
6.6.6 CALIBRATION mode (calibration of a pressure gauge) . . . . . . 50
6.6.7 SWITCH TEST mode . . . . . . . . . . . . . . . . . . 51
6.7 SETUP additional menu items . . . . . . . . . . . . . . . . . 53
6.7.1 SETUP additional menu items: Functions . . . . . . . . . . . 53
6.7.2 SETUP additional menu items: CPH info . . . . . . . . . . . 54
6.7.3 SETUP additional menu items: Reference sensor . . . . . . . . 55
6.7.4 SETUP additional menu items: Reference sensor list . . . . . . . 56
6.7.5 SETUP additional menu items: CPH configuration . . . . . . . . 57
6.7.6 SETUP additional menu items: Interface . . . . . . . . . . . 58
6.7.7 SETUP additional menu items: CLEAR CalProg . . . . . . . . . 58
6.8 Pressure measurement . . . . . . . . . . . . . . . . . . . 58
6.8.1 Zero point setting or offset correction. . . . . . . . . . . . . 59
6.8.2 Media compatibility. . . . . . . . . . . . . . . . . . . 59
6.9 Operation of the integrated pump. . . . . . . . . . . . . . . . 59
6.9.1 Pressure/vacuum generation . . . . . . . . . . . . . . . 61
6.9.2 Reducing the pressure / vacuum . . . . . . . . . . . . . . 61
6.9.3 Venting the system . . . . . . . . . . . . . . . . . . . 61
7. Faults 62
8. Maintenance, cleaning and recalibration 64
8.1 Maintenance. . . . . . . . . . . . . . . . . . . . . . . 64
8.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 64
8.3 Recalibration. . . . . . . . . . . . . . . . . . . . . . . 65
9. Dismounting, return and disposal 65
9.1 Dismounting . . . . . . . . . . . . . . . . . . . . . . . 65
9.2 Return . . . . . . . . . . . . . . . . . . . . . . . . . 65
9.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . 66
10. Specifications 67
10.1 Sensor technology. . . . . . . . . . . . . . . . . . . . 67
10.2 Base instrument . . . . . . . . . . . . . . . . . . . . 68
10.3 Power supply unit . . . . . . . . . . . . . . . . . . . . 68
10.4 Certificates . . . . . . . . . . . . . . . . . . . . . . 69
10.5 Available pressure range and resolution . . . . . . . . . . . . 69
10.6 Dimensions in mm (in) . . . . . . . . . . . . . . . . . . 70
11. Accessories 71
Declarations of conformity can be found online at www.wika.com.

5WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
1. General information
1. General information
■The portable pressure calibrator described in the operating instructions has been
manufactured using state-of-the-art technology. All components are subject to
stringent quality and environmental criteria during production. Our management
systems are certified to ISO 9001 and ISO 14001.
■These operating instructions contain important information on handling the instrument.
Working safely requires that all safety instructions and work instructions are observed.
■Observe the relevant local accident prevention regulations and general safety
regulations for the instrument’s range of use.
■The operating instructions are part of the product and must be kept in the immediate
vicinity of the instrument and readily accessible to skilled personnel at any time. Pass
the operating instructions on to the next operator or owner of the instrument.
■Skilled personnel must have carefully read and understood the operating instructions
prior to beginning any work.
■The general terms and conditions contained in the sales documentation shall apply.
■Subject to technical modifications.
■Factory calibrations / DKD/DAkkS calibrations are carried out in accordance with
international standards.
■Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: CT 17.02
- Application consultant: Tel.: [phone]
Fax: [phone]
[e-mail]

6WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
2. Short overview
2. Short overview

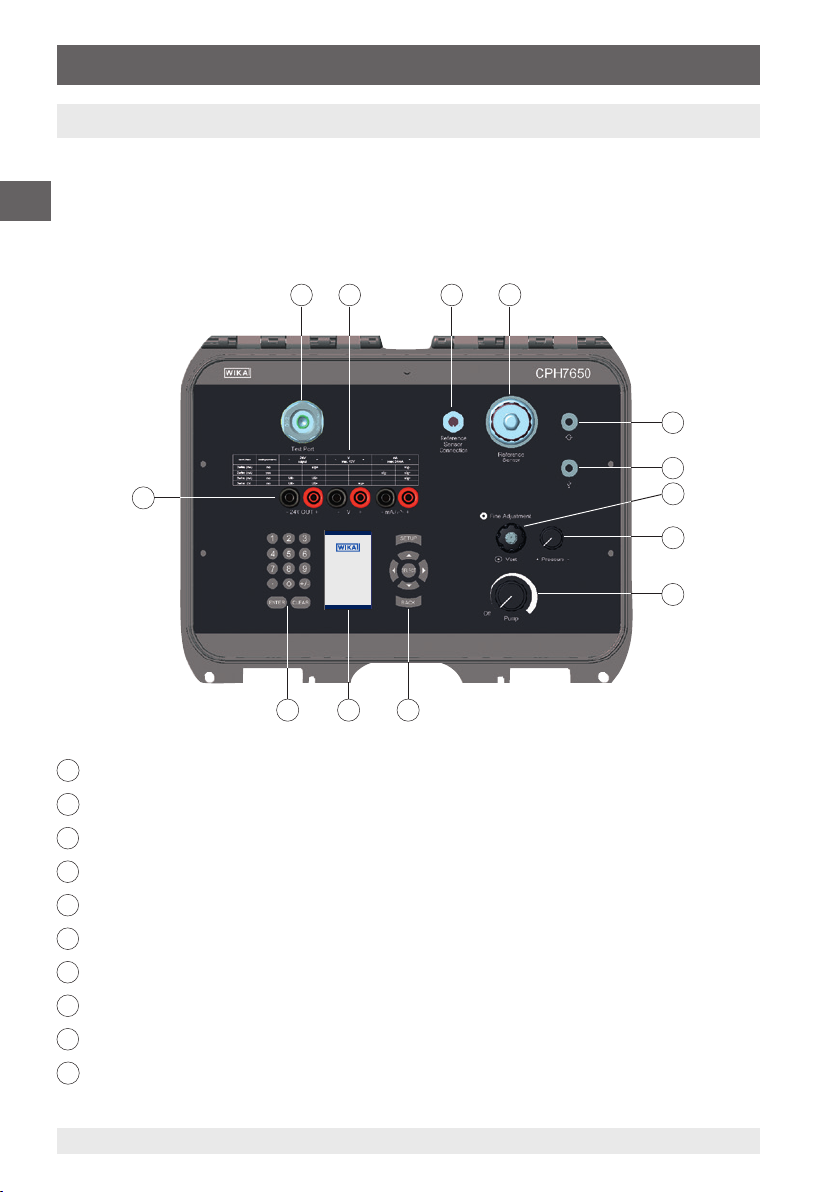

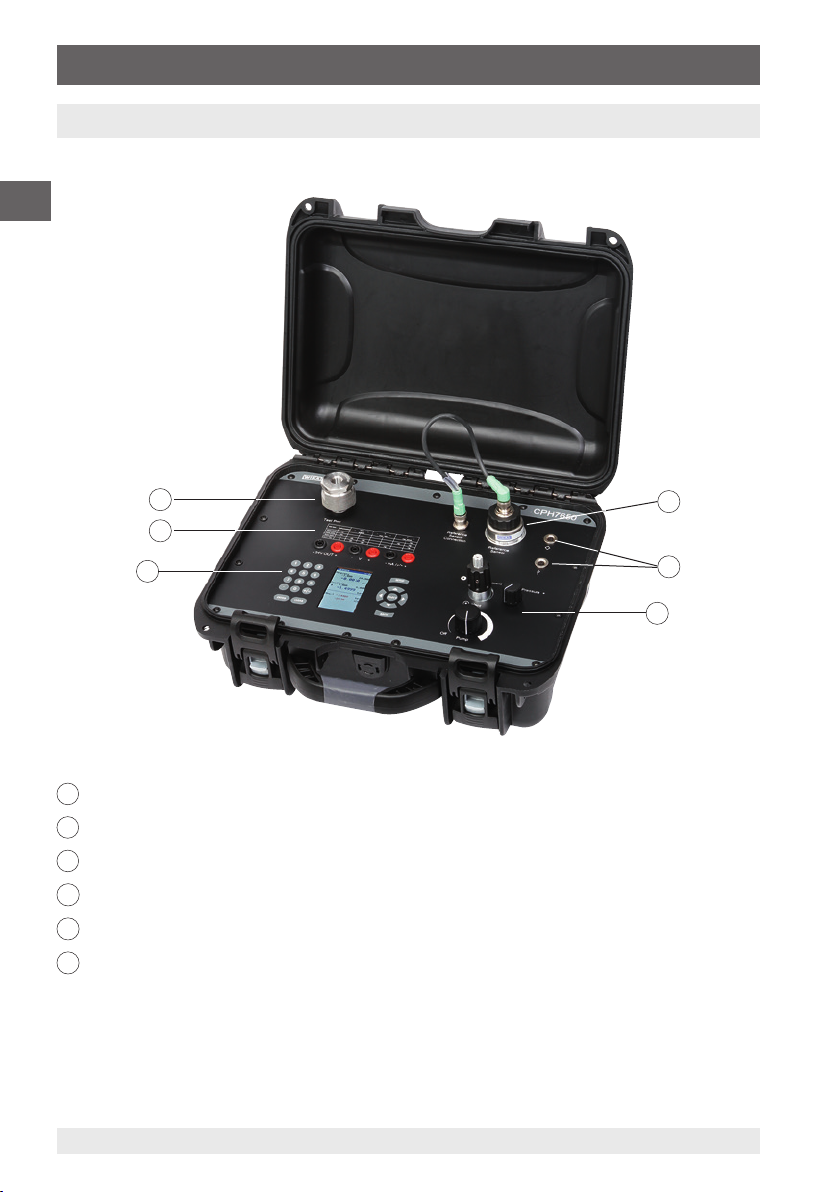

2.1 Overview
1Connections for the reference sensor model CPT6000
2Connection of the power supply unit and interface
3Control for the pump performance
4Display with numeric keypad and navigation panel
5Overview of the electrical connection and pin assignment
6Pressure connection for test item
6
5
4
1
2
3

7WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
2. Short overview
2.2 Description
The CPH7650 is a compact, portable pressure calibrator, which has been designed
for mobile use as well as for stationary workshop and laboratory testing. An integrated
electrical pump enables you to generate pressures up to 20 bar (290 psi) and an
integrated electrical module also enables you to supply transmitters or sensors with
a current of max. 50 mA (voltage (idling) = DC 24 V), in addition to the traditional
measurement of current and voltage signals.
The pressure calibrator can be used to carry out and document a complete calibration
process.The use of the WIKA-Cal software also allows a complete documentation. In
addition to the features of displaying or measuring and calibration, there is also a switch
test.
2.3 Scope of delivery
■Portable pressure calibrator model CPH7650
■Operating instructions
■Test cables
■Power supply unit for charging the rechargeable battery
■Sensor connection cable for CPT6000 reference sensor
■Calibration certificate
Cross-check scope of delivery with delivery note.

8WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
3. Safety
3. Safety

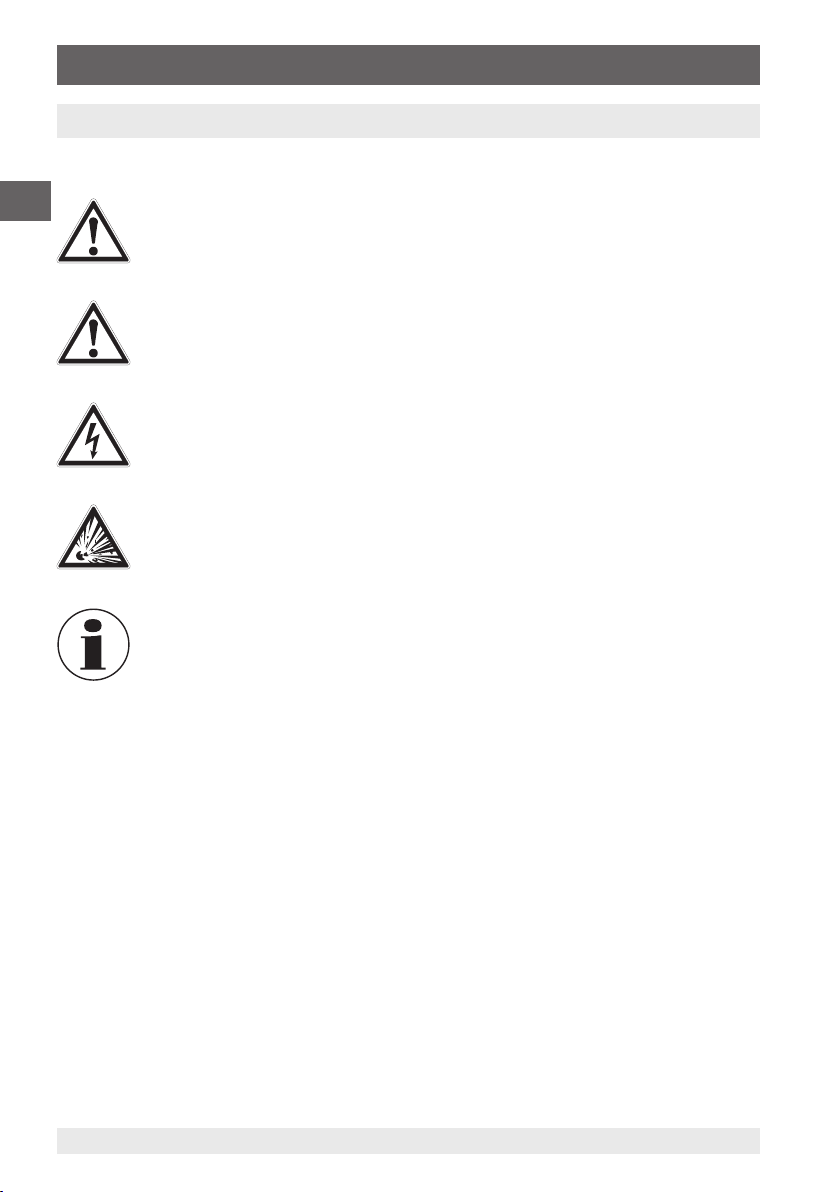

3.1 Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious injury
or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light injuries or
damage to property or the environment, if not avoided.
DANGER!
... identifies hazards caused by electrical power. Should the safety
instructions not be observed, there is a risk of serious or fatal injury.
DANGER!
... indicates a potentially dangerous situation in the hazardous area that can
result in serious injury or death, if not avoided.
Information
... points out useful tips, recommendations and information for efficient and
trouble-free operation.
3.2 Intended use
This portable pressure calibrator serves as a calibration instrument for the widest variety
of pressure measuring instruments and has been designed for mobile use as well as for
stationary workshop and laboratory testing. Through the combination of the integrated
electrical pump and the electrical modules, in addition to the traditional measurement of
current and voltage signals it also enables you to supply transmitters or sensors with a
max. of 50 mA (voltage (idling) = DC 24 V).The pressure calibrator can be used to carry
out and document a complete calibration process.
This instrument is not permitted to be used in hazardous areas!
The instrument has been designed and built solely for the intended use described here,
and may only be used accordingly.
The technical specifications contained in these operating instructions must be observed.
Improper handling or operation of the instrument outside of its technical specifications
requires the instrument to be taken out of service immediately and inspected by an
authorised WIKA service engineer.

9WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
3. Safety
Handle electronic precision measuring instruments with the required care (protect from
humidity, impacts, strong magnetic fields, static electricity and extreme temperatures,
do not insert any objects into the instrument or its openings). Plugs and sockets must be
protected from contamination.
The manufacturer shall not be liable for claims of any type based on operation contrary to
the intended use.
3.3 Improper use
DANGER!
Danger to life from explosion!
Improper use of the pressure calibrator may result in a risk of explosion,
which may lead to serious injury or death, as the built-in lithium-ion
rechargeable battery may explode.
▶Do not throw the pressure calibrator into fire.
▶Never put the pressure calibrator in microwave ovens, high-pressure
containers nor on induction hobs.
▶Never place the pressure calibrator in a hermetically sealed container. In
some cases hydrogen or oxygen may be discharged from the lithium-ion
batteries, which may result in rupture, fire or explosion.
DANGER!
Injuries, material and environmental damage due to an improper use
of the pressure calibrator!
With improper use of the pressure calibrator, an immediate risk to life can
exist, as the built-in lithium-ion rechargeable battery could heat up or ignite.
▶Do not burn or heat up the pressure calibrator.
▶Never store the pressure calibrator close to fire, ovens or other
high-temperature locations.

10 WIKA operating instructions, model CPH7650
EN
14261987.02 01/2019 EN/DE
3. Safety
WARNING!
Injuries, material and environmental damage due to an improper use
of the pressure calibrator!
Improper use of the pressure calibrator causes a direct danger to life.
▶Do not throw the pressure calibrator into water this can result in the
destruction of the safety circuit, in heat generation, in ignition, in the
formation of oxyhydrogen or corrosion and release of electrolytes.
▶The use of incorrect, unsuitable power supply units can lead to
overheating, fire and to the destruction of the rechargeable battery.
WARNING!
Injuries or damage to property through improper use
Improper use of the instrument can lead to hazardous situations and injuries.
▶Refrain from unauthorised modifications to the instrument.
▶Do not open the front panel of the calibrator!
▶Do not use the instrument within hazardous areas.
▶Only use model CPT6000 reference pressure sensors! Using other
sensors could damage both the pressure calibrator and the reference
pressure sensor.
▶There must be no external pressure acting on the CPH7650.
▶Only use dry, clean air as a medium for the CPH7650.
▶Observe the operating parameters in accordance with chapter
10 “Specifications”.
▶Make sure that the test probes never contact a voltage source while the
test cables are connected to the current terminals.
▶Do not use the calibrator if it is damaged. Before using the instrument,
check that there are no cracks on the case or any missing plastic parts.
Pay particular attention to the insulation of the connectors.
▶Select the proper function and correct measuring range for the
measurement.
▶Inspect the test leads for damaged insulation or exposed metal. Check
the continuity of the leads. Damaged test leads should be replaced before
using the instrument.
▶When using test probes, keep fingers away from the test probe contacts.
Keep your fingers behind the test probes' finger guards.
▶First connect the neutral conductor, and then the live lead.When
disconnecting, remove the live test lead first.
▶Disconnect test leads before changing to another measurement or source
function.
▶To avoid false indications, which could lead to possible electric shock or
injuries, charge the integrated rechargeable battery as soon as the battery
indicator appears.
▶To ensure trouble-free operation, only operate the instrument on battery
power. Only use the power supply unit for charging the instrument's
batteries.
