WIKA CPH65I0 User manual

Operating instructions
Betriebsanleitung
GB
D
Intrinsically-safe hand-held pressure calibrator, model CPH65I0
Eigensicherer Hand-Held Druckkalibrator, Typ CPH65I0
Intrinsically-safe hand-held pressure calibrator,
model CPH65I0-S2

2
14061681.02 03/2013 GB/D
WIKA operating instructions, model CPH65I0
GB
D
Operating instructions model CPH65I0 Page 3 - 50
Betriebsanleitung Typ CPH65I0 Seite 51 - 97
© 2013 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA® is a registered trademark in various countries.
WIKA® ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!

3WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
1. General information 4
2. Safety 5
2.1 Intended use 6
2.2 Personnel qualication 6
2.3 Additional safety instructions for instruments per ATEX 7
2.4 Special hazards 9
2.5 Labelling, safety marks 11
3. Specications 12
4. Design and function 17
4.1 Description 17
4.2 Scope of delivery 17

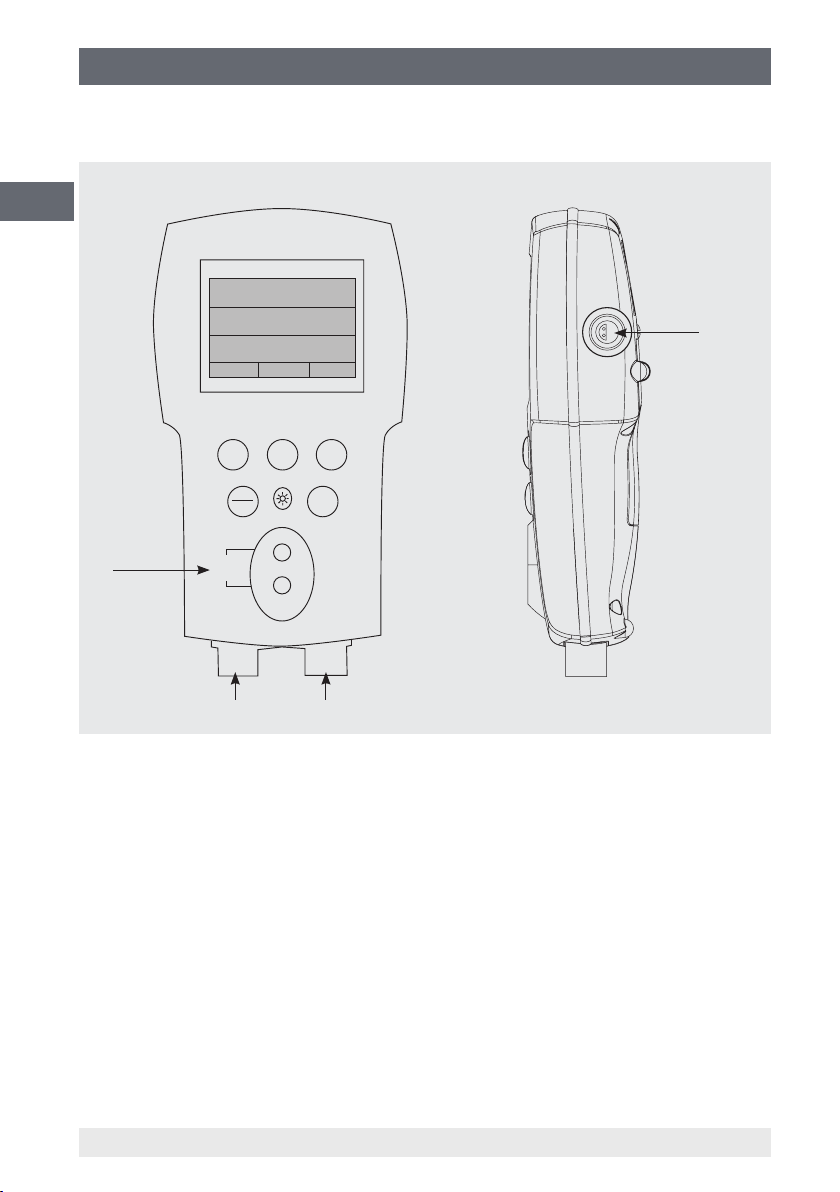

4.3 Pressure and electrical connections 18
4.4 Keypad 19
5. Transport, packaging and storage 20
6. Commissioning, operation 21
6.1 Calibrator display 21
6.2 Using the backlighting 23
6.3 Using of the "ZERO" function 23
6.4 Further menu controlled functions 25
6.5 Factory settings 29
6.6 Menu structure 32
6.8 Measuring pressure 34
6.8 Measuring current 35
6.9 Measuring temperature with a resistance thermometer 36
6.10 Performing a pressure switch test 37
6.11 Calibrating transmitters 39
6.12 MIN/MAX memory 44
7. Maintenance, cleaning and recalibration 44
8. Faults 46
9. Dismounting, return and disposal 47
10. Accessories 48
Appendix: EC Declaration of Conformity for model CPH65I0 49
Declarations of conformity can be found online at www.wika.com.
Contents
Contents

4 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
1. General information
1. General information
■
The model CPH65I0 hand-held pressure calibrator described in the operating
instructions has been manufactured using state-of-the-art technology.
All components are subject to stringent quality and environmental criteria during
production. Our management systems are certied to ISO 9001 and ISO 14001.
■
These operating instructions contain important information on handling the
instrument. Working safely requires that all safety instructions and work instructions
are observed.
■
Observe the relevant local accident prevention regulations and general safety
regulations for the instrument's range of use.
■
The operating instructions are part of the product and must be kept in the immediate
vicinity of the instrument and readily accessible to skilled personnel at any time.
■
Skilled personnel must have carefully read and understood the operating instructions
prior to beginning any work.
■
The manufacturer's liability is void in the case of any damage caused by using
the product contrary to its intended use, non-compliance with these operating
instructions, assignment of insuciently qualied skilled personnel or unauthorised
modications to the instrument.
■
The general terms and conditions contained in the sales documentation shall apply.
■
Subject to technical modications.
■
Factory calibrations / DKD/DAkkS calibrations are carried out in accordance with
international standards.
■
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: CT 14.51
- Application consultant: Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]

5WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
1. General information / 2. Safety

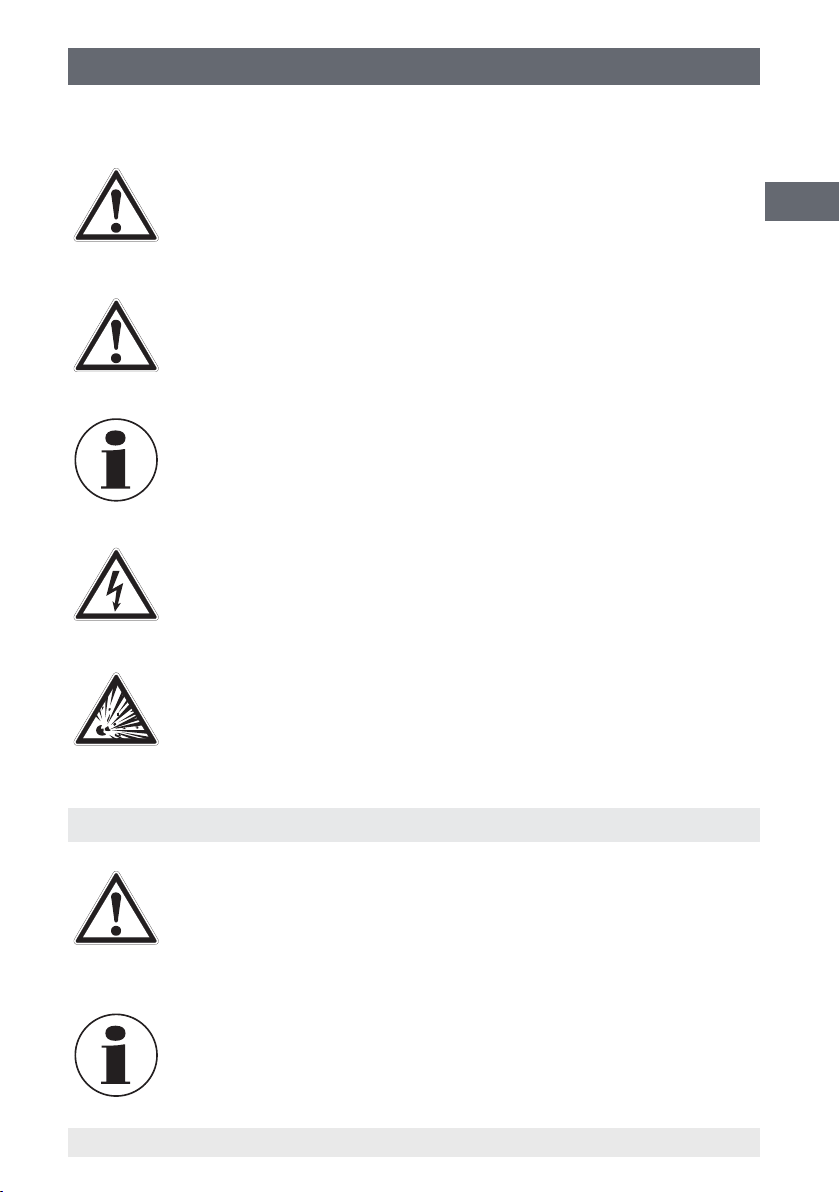

Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious
injury or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light
injuries or damage to equipment or the environment, if not avoided.
Information
... points out useful tips, recommendations and information for ecient
and trouble-free operation.
DANGER!
...identies hazards caused by electric power. Should the safety
instructions not be observed, there is a risk of serious or fatal injury.
WARNING!
... indicates a potentially dangerous situation in the hazardous area that
can result in serious injury or death, if not avoided.
2. Safety
WARNING!
Before installation, commissioning and operation, ensure that the
appropriate hand-held pressure calibrator has been selected in terms of
measuring range, design and specic measuring conditions.
Non-observance can result in serious injury and/or damage to the
equipment.
Further important safety instructions can be found in the individual
chapters of these operating instructions.

6 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
2. Safety
2.1 Intended use
The model CPH65I0 intrinsically-safe hand-held calibrator can be used as a calibration
reference or in any application requiring high-accuracy pressure measurement.
The instrument has been designed and built solely for the intended use described here,
and may only be used accordingly.
The technical specications contained in these operating instructions must be observed.
Improper handling or operation of the instrument outside of its technical specications
requires the instrument to be taken out of service immediately and inspected by an
authorised WIKA service engineer.
Handle electronic precision measuring instruments with the required care (protect from
humidity, impacts, strong magnetic elds, static electricity and extreme temperatures,
do not insert any objects into the instrument or its openings). Plugs and sockets must be
protected from contamination.
If the instrument is transported from a cold into a warm environment, the formation of
condensation may result in instrument malfunction. Before putting it back into operation,
wait for the instrument temperature and the room temperature to equalise.
The manufacturer shall not be liable for claims of any type based on operation contrary
to the intended use.
2.2 Personnel qualication
WARNING!
Risk of injury should qualication be insucient!
Improper handling can result in considerable injury and damage to
equipment.
■
The activities described in these operating instructions may only
be carried out by skilled personnel who have the qualications
described below.
■
Keep unqualied personnel away from hazardous areas.

7WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
2. Safety
Skilled personnel
Skilled personnel are understood to be personnel who, based on their technical training,
knowledge of measurement and control technology and on their experience and
knowledge of country-specic regulations, current standards and directives, are capable
of carrying out the work described and independently recognising potential hazards.
Special operating conditions require further appropriate knowledge, e.g. of aggressive
media.
2.3 Additional safety instructions for instruments per ATEX
WARNING!
Non-observance of these instructions and their contents may result in
the loss of explosion protection.
Battery operation:
■
Use AA alkaline batteries only!
■
Only replace the batteries outside the hazardous area!
■
Only use permitted size AA alkaline batteries as described in the
following table.
Permitted batteries
Battery manufacturer
(alkaline batteries - AA 1.5 V)
Model
Duracell MN1500
Rayovac 815
Energizer E91
Panasonic AM3*
*model AM3 has been replaced by model LR6XWA
Temperature range:
■
Permissible ambient temperature range: -10 ... +45 °C

8 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
2. Safety
Connection values
Max. voltage Uo = DC 7.14 V
Max. current Io = 1.12 mA
Max. power Po = 2 mW
Max. eective internal capacitance Co = 240 µF
Max. eective internal inductance Lo = 1 H
Power supply circuit
Max. voltage Ui = DC 30 V
Max. current Ii = 80 mA
Max. power Pi = 750 mW
Max. eective internal capacitance Ci = 0 nF
Max. eective internal inductance Li = 0 mH
WARNING!
Further hazardous area safety instructions:
Observe the operating information and the relevant state regulations
concerning use in hazardous areas (e.g. EN IEC 60079-14).
The model CPH65I0 intrinsically-safe hand-held pressure calibrator has
been designed for use in hazardous areas. In these areas there is the
possibility of inammable or explosive gases being present.
The model CPH65I0 intrinsically-safe hand-held pressure calibrator has
been designed to be intrinsically safe. This means that connection with
other equipment that is in an intrinsically-safe circuit will not lead to arcs
capable of causing ignition, so long as the parameters are complied with.
Information/Approval for hazardous locations
WARNING!
Hazardous Areas
A hazardous area, as used in these operating instructions, refers to
an area made hazardous by the potential presence of ammable or
explosive vapours. These areas are also referred to as hazardous
locations.

9WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
2. Safety
II 2 G Ex ia IIB T3 Gb (Ta = -10…+45 °C)
DEKRA 12ATEX 0146 X
Ex ia IIB T3 Gb (Ta = -10…+45 °C)
IECEx CSA 11.0019X
WARNING!
The replacement of components may compromise the explosion
protection. Service and repair must be carried out by the manufacturer.
2.4 Special hazards
WARNING!
Observe the information given in the applicable type examination
certicate and the relevant country-specic regulations for installation
and use in hazardous areas (e.g. IEC 60079-14, NEC, CEC).
Non-observance can result in serious injury and/or damage to
equipment.
For additional important safety instructions for instruments with ATEX
approval see chapter 2.3 "Additional safety instructions for instruments
per ATEX".
WARNING!
■
Pressure sensors should only be mounted or dismounted when the
system is free from pressure.
■
Observe the working conditions in accordance with chapter
3 "Specications".
■
Always operate the pressure calibrator within its overload limits. See
chapter 3 "Specications".
■
Do not apply a voltage greater than the specied voltage to the
instrument. See chapter 3 "Specications".
■
Residual media on the dismounted calibrator and/or sensors can
result in a risk to persons, the environment and the equipment. Take
sucient precautionary measures.
■
Only use those accessories available from WIKA for the calibrator.
■
Make sure that the test probes never contact a voltage source while
the test cables are connected to the current terminals.
■
The measurement signal of the reference (or test sample) can be
inuenced by large electromagnetic eects and the display of the
signal may be lost completely.

10 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
2. Safety
WARNING!
■
Do not use the calibrator if it is damaged. Before using the
instrument, check that there are no cracks or missing plastic parts on
the case. Pay particular attention to the insulation of the connectors.
■
The battery cover must be closed and locked in place before the
instrument is operated.
■
Remove the test cables from the instrument before opening the
battery compartment.
■
Inspect the test cables for damaged insulation or exposed metal.
Check the continuity of the leads. Damaged test leads should be
replaced before using the instrument.
■
When using test probes, keep ngers away from the test probe
contacts. Place ngers behind the nger guards on the test probes.
■
Do not use the instrument if it is not working properly. The instrument
protection might be compromised. If in doubt, have the instrument
checked.
■
Only use the instrument in classied areas for which the calibrator is
approved.
■
Disconnect test leads before changing to another measurement or
generation function.
■
To avoid false readings, replace the battery as soon as the battery
indicator appears.
■
Use the correct connection, the proper function and the correct
measuring range for measurements.
■
When screwing an adaptor onto the NPT thread of the calibrator, a
sealing material must also be used (e.g. PTFE tape).
■
When screwing on, use a spanner on the pressure connection for
xing to the calibrator, in order to avoid unnecessary stress on the
case.

11WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
2. Safety
2.5 Labelling, safety marks
Product label
Explanation of symbols
Before mounting and commissioning the instrument, ensure you read the
operating instructions!
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant European
directives.
ATEX European Explosion Protection Directive
(Atmosphère = AT, explosible = EX)
Instruments bearing this mark comply with the requirements of the
European directive 94/9/EC (ATEX) on explosion protection.
This marking on the instruments indicates that they must not be
disposed of in domestic waste. The disposal is carried out by return to
the manufacturer or by the corresponding municipal authorities (see
directive 2002/96/EC).
Date of
manufacture
Serial number
1- or 2-channel
version
For an explanation
of symbols, see
below

12 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
3. Specications
3. Specications
Sensor technology
Measuring range mbar 1) -25 ... +25 -70 … +70 -350 ... +350 -500 … +500
Overpressure limit mbar 70 200 700 1,000
Accuracy % FS 0.1 0.05 0.035
Measuring range bar -1 ... +1 1) -1 ... +2 1) 0 … 1 1) 0 ... 2 1)
Overpressure limit bar 2 4 2 4
Accuracy % FS 0.025
Measuring range bar 0 ... 3.5 2) 0 ... 7 2) 0 ... 10 2) 0 ... 20 2)
Overpressure limit bar 13 13 13 40
Accuracy % FS 0.025
Measuring range bar 0 ... 35 2) 0 ... 70 0 ... 100 0 ... 200
Overpressure limit bar 70 200 200 400
Accuracy % FS 0.025
Measuring range bar 0 ... 350 0 ... 700
Overpressure limit bar 700 1,000
Accuracy % FS 0.035
Measuring range bar abs. 0 ... 1 0 ... 2 0 ... 7 0 ... 10 0 ... 20
Overpressure limit bar abs. 2 4 13 13 40
Accuracy % FS 0.025
Measuring range mbar di. 1) 3) 0 ... 25 0 ... 70 0 ... 350
Overpressure limit mbar di. 70 200 700
Accuracy % FS 0.1 0.05 0.035
Measuring range mbar di. 1) 3) 0 ... 2,000 0 ... 3,500 0 ... 7,000
Overpressure limit mbar di. 4,000 7,000 10,000
Accuracy % FS 0.025
Type of pressure Relative pressure, absolute pressure, vacuum and dierential pressure 4)
Pressure connection ⅛ NPT female (incl. adapter ⅛ NPT male to G ½ B male) 5)
Pressure medium all liquids and gases which are compatible with 316 SS stainless steel 1)
Resolution 5-digit
Current
Measuring range 0 … 24 mA
Resolution 1 µA
Accuracy 0.015 % of measured value ±2 µA
Temperature
Measuring range -40 … +150 °C
Resolution 0.01 °C
Accuracy 0.015 % of measured value ±20 mΩ, or 0.2 °C for complete measuring chain
(Pt100 resistance thermometer and CPH65I0)
1) Non isolated: Only use the pressure measuring ranges marked in this way with clean and non-corrosive gases.
2) Pressure measurement possible in vacuum range to -1 bar.
3) For dierential pressure sensors with a measuring range of 25 mbar, the maximum static pressure is limited to 70 mbar. For the
measuring ranges 70, 350, 2,000, 3,500 and 7,000 mbar the static pressure is limited to a maximum of 10 bar.
4) The dierential pressure sensor is only possible with the CPH65I0-S1 (1-channel version). Both pressure connections for the
dierential pressure measurement are located at the bottom of the calibrator.
5) Adapter not included in delivery for North America.

13WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
3. Specications
Base instrument
Measuring inputs 1 input for CPH65I0-S1
2 inputs for CPH65I0-S2
Pressure connection ⅛ NPT female thread
Pressure medium
all liquids and gases which are compatible with 316 SS stainless steel 1)
Temperature compensation 15 … 35 °C
Temperature coecient 0.002 % of the span/°C outside of the 15 ... 35 °C temperature range
Pressure units psi, bar, mbar, kPa, MPa, kg/cm², mmH2O (4 °C), mmH2O (20 °C),
cmH2O (4 °C), cmH2O (20 °C), inH2O (4 °C), inH2O (20 °C),
inH2O (60 °F), mmHg (0 °C), inHg (0 °C), ft H2O (60 °F)
Indicator
Display 5-digit display; large backlit screen for the display of up to three
measurement parameters
Voltage supply
Power supply DC 6 V, 4 x 1.5 V AA alkaline batteries
Battery life > 35 hours
Permissible ambient conditions
Operating temperature -10 ... +45 °C
Storage temperature -20 ... +60 °C
Relative humidity 5 ... 95 % r. h. (non-condensing)
Case
Material stainless steel and plastic
Dimensions see technical drawing
Weight approx. 570 g
1) Non isolated: Only use the pressure measuring ranges marked in this way with clean and non-corrosive gases. (See sensor
table)
Approvals and certicates
CE conformity
EMC directive 2004/108/EC, EN 61326 emission (group 1, class B) and interference
immunity (portable measurement equipment)
ATEX directive 94/9/EC, category 2G, ignition protection type Ex ia IIB T3 Gb
Certicate
Calibration Standard: 3.1 calibration certicate per EN 10204
Option: DKD/DAkkS calibration certicate
Approvals and certicates, see website

14 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
3. Specications
Types of explosion protection
ATEX directive 94/9/EC, category 2G, ignition protection type Ex ia IIB T3 Gb
II 2 G Ex ia IIB T3 Gb (Ta = -10…+45 °C)
DEKRA 12ATEX 0146 X
IECEx Ex ia IIB T3 Gb (Ta = -10…+45 °C)
IECEx CSA 11.0019X
Connection values
Max. voltage Uo = DC 7.14 V
Max. current Io = 1.12 mA
Max. power Po = 2 mW
Max. eective internal capacitance Co = 240 µF
Max. eective internal inductance Lo = 1 H
Power supply circuit
Max. voltage Ui = DC 30 V
Max. current Ii = 80 mA
Max. power Pi = 750 mW
Max. eective internal capacitance Ci = 0 nF
Max. eective internal inductance Li = 0 mH
LEMO plug connector only for use with LTP100A RTD sensor
For further specications see WIKA data sheet CT 14.51 and the order documentation.
Available measuring ranges and resolutions
Measuring ranges and factors
Measuring range in bar 0 ... 0.025 0 ... 0.07 0 ... 0.35 0 ... 0.5 0 ... 1 1) 0 ... 2 2)
Unit Conversion factor
psi 1 0.4000 1.0000 5.0000 7.2000 15.000 30.000
bar 0.06894757 0.0276 0.0689 0.3447 0.4964 1.0342 2.0684
mbar 68.94757 27.579 68.948 344.74 496.42 1,034.2 2,068.4
kPa 6.894757 2.7579 6.8948 34.474 49.642 103.42 206.84
Mpa 0.00689476 0.0028 0.0069 0.0345 0.0496 0.1034 0.2068
kg/cm² 0.07030697 0.0281 0.0703 0.3515 0.5062 1.0546 2.1092
mmHg (0 °C) 51.71507 20.686 51.715 258.58 372.35 775.73 1,551.5
inHg (0 °C) 2.03603 0.8144 2.0360 10.180 14.659 30.540 61.081
cmH2O (4 °C) 70.3089 28.124 70.309 351.54 506.22 1,054.6 2,109.3
cmH2O (20 °C) 70.4336 28.173 70.434 352.17 507.12 1,056.5 2,113.0
mmH2O (4 °C) 703.089 281.24 703.09 3,515.4 5,062.2 10,546 21,093
mmH2O (20 °C) 704.336 281.73 704.34 3,521.7 5,071.2 10,565 21,130
inH2O (4 °C) 27.68067 11.072 27.681 138.40 199.30 415.21 830.42
inH2O (20 °C) 27.72977 11.092 27.730 138.65 199.65 415.95 831.89
inH2O (60 °F) 27.70759 11.083 27.708 138.54 199.49 415.61 831.23
ftH2O (60 °F) 2.308966 0.9236 2.3090 11.545 16.625 34.634 69.269

15WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
3. Specications
Measuring ranges and factors
Measuring range in bar 0 ... 3.5 0 ... 7 3) 0 ... 10 3) 0 ... 20 3) 0 ... 35
Unit Conversion factor
psi 1 50.000 100.00 150.00 300.00 500.00
bar 0.06894757 3.4474 6.8948 10.342 20.684 34.474
mbar 68.94757 3,447.4 6,894.8 10,342 20,684 34,474
kPa 6.894757 344.74 689.48 1,034.2 2,068.4 3,447.4
Mpa 0.00689476 0.3447 0.6895 1.0342 2.0684 3.4474
kg/cm² 0.07030697 3.5153 7.0307 10.546 21.092 35.153
mmHg (0 °C) 51.71507 2,585.8 5,171.5 7,757.3 15,515 25,858
inHg (0 °C) 2.03603 101.80 203.60 305.40 610.81 1,018.0
cmH2O (4 °C) 70.3089 3,515.4 7,030.9 10,546 21,093 35,154
cmH2O (20 °C) 70.4336 3,521.7 7,043.4 10,565 21,130 35,217
mmH2O (4 °C) 703.089 35,154 70,309 -- 4) -- 4) -- 4)
mmH2O (20 °C) 704.336 35,217 70,434 -- 4) -- 4) -- 4)
inH2O (4 °C) 27.68067 1,384.0 2,768.1 4,152.1 8,304.2 13,840
inH2O (20 °C) 27.72977 1,386.5 2,773.0 4,159.5 8,318.9 13,865
inH2O (60 °F) 27.70759 1,385.4 2,770.8 4,156.1 8,312.3 13,854
ftH2O (60 °F) 2.308966 115.45 230.90 346.34 692.69 1,154.5
Measuring ranges and factors
Measuring range in bar 0 ... 70 0 ... 100 0 ... 200 0 ... 350 0 ... 700
Unit Conversion factor
psi 1 1,000.0 1,500.0 3,000.0 5,000.0 10,000
bar 0.06894757 68.948 103.42 206.84 344.74 689.48
mbar 68.94757 68,948 -- 4) -- 4) -- 4) -- 4)
kPa 6.894757 6,894.8 10,342 20,684 34,474 68,948
Mpa 0.00689476 6.8948 10.342 20.684 34.474 68.948
kg/cm² 0.07030697 70.307 105.46 210.92 351.53 703.07
mmHg (0 °C) 51.71507 51,715 77,573 -- 4) -- 4) -- 4)
inHg (0 °C) 2.03603 2,036.0 3,054.0 6,108.1 10,180 20,360
cmH2O (4 °C) 70.3089 70,309 -- 4) -- 4) -- 4) -- 4)
cmH2O (20 °C) 70.4336 70,434 -- 4) -- 4) -- 4) -- 4)
mmH2O (4 °C) 703.089 -- 4) -- 4) -- 4) -- 4) -- 4)
mmH2O (20 °C) 704.336 -- 4) -- 4) -- 4) -- 4) -- 4)
inH2O (4 °C) 27.68067 27,681 41,521 83,042 -- 4) -- 4)
inH2O (20 °C) 27.72977 27,730 41,595 83,189 -- 4) -- 4)
inH2O (60 °F) 27.70759 27,708 41,561 83,123 -- 4) -- 4)
ftH2O (60 °F) 2.308966 2,309.0 3,463.4 6,926.9 11,545 23,090
1) This data is also valid for the measuring ranges -1 ... +1 bar and 0 ... 1 bar abs.
2) This data is also valid for the measuring ranges -1 ... +2 bar and 0 ... 2 bar abs.
3) This data is also valid for the measuring ranges 0 ... 7 bar abs., 0 ... 10 bar abs. and 0 ... 20 bar abs.
4) Due to the limited screen resolution, no values can be displayed here. The resolution is limited to 5 digits.

16 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
3. Specications
Dimensions in mm
Front view Side view, right

17WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
4. Design and function
4. Design and function
4.1 Description
The model CPH65I0-S1/S2 intrinsically-safe hand-held pressure calibrator has been
designed so that it is simple to handle, but is also a very versatile pressure calibrator.
The two internal reference pressure sensors, combined with current input, pressure
switch function and a resistance thermometer, enable the CPH65I0-S1/S2 to calibrate
practically any pressure instrument.
The model CPH65I0-S1 intrinsically-safe hand-held pressure calibrator has a single
integrated pressure sensor; the model CPH65I0-S2 intrinsically-safe hand-held
pressure calibrator has two integrated pressure sensors. The CPH65I0-S1 uses
connection P1 for all pressure measurements. Connection P2 is only used in the
CPH65I0-S2. Thus, the pressure-related menu selection for the CPH65I0-S1 is limited
to connection P1 only. All other CPH65I0-S1 features and functions are identical to the
CPH65I0-S2.
4.2 Scope of delivery
■
Model CPH65I0-S1/S2 intrinsically-safe hand-held pressure calibrator
■
Operating instructions
■
Test cables
■
4 AA alkaline batteries
■
1 x adapter 1/8 NPT male to G 1/2 B male per pressure connection 1)
■
1x PTFE tape
■
3.1 calibration certicate per DIN EN 10204
1) Adapter not included in delivery for North America
Cross-check scope of delivery with delivery note.

18 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
4. Design and function
4.3 Pressure and electrical connections
Front view Side view, right
1) P1 pressure connection
Connection for internal sensor, P1
2) P2 pressure connection
Connection for internal sensor, P2
3) Input connection
Electrical connections for current and switch test
4) Resistance thermometer
Connection for external resistance thermometer
CPH65I0
F1 F2 F3
ON
OFF ZERO
P1 P2
30V
24mA
max
[P1] 0.000
psi
mA -25.00%
CONF
0.000 mA
UPPER MORE
RTD 72.50 °F
3
1 2
4

19WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
4. Design and function
4.4 Keypad
1) Function keys
Conguration of the instruments
2) ON/OFF button
Turning the instrument on and o
3) Backlighting
Turning the backlighting on and o
4) ZERO key
Zeroing of the pressure measurement
F1 F2 F3
ON
OFF ZERO
3
2 4
1

20 WIKA operating instructions, model CPH65I0
14061681.02 03/2013 GB/D
GB
5. Transport, packaging and storage
5. Transport, packaging and storage
5.1 Transport
Check hand-held pressure calibrator for any damage that may have been caused by
transport.
Obvious damage must be reported immediately.
5.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g. change
in installation site, sending for repair).
5.3 Storage
Permissible conditions at the place of storage:
■
Storage temperature: -20 ... +60 °C
■
Relative humidity: 5 ... 95 % r. h. (non-condensing)
Avoid exposure to the following factors:
■
Direct sunlight or proximity to hot objects
■
Mechanical vibration, mechanical shock (putting it down hard)
■
Soot, vapour, dust and corrosive gases
Store the hand-held pressure calibrator in its original packaging in a location that fulls
the conditions listed above. If the original packaging is not available, pack and store the
instrument as described below:
1. Wrap the instrument in an antistatic plastic lm.
2. Place the instrument, along with shock-absorbent material, in the packaging.
WARNING!
Before storing the instrument (following operation), remove any residual
media. This is of particular importance if the medium is hazardous to
health, e.g. caustic, toxic, carcinogenic, radioactive, etc.
