1Introduction
Thank you for choosing a Wisper electric bicycle.
Before you use your Wisper electric bike it is important that you read this manual carefully. If there
is anything you do not understand completely, please contact us.
Please observe traffic regulations, and do not lend your bicycle to anyone who is unfamiliar with it.
In the UK the bicycle can only legally be used on the road by a person aged fourteen years or older.
We strongly advise you to always wear an approved cycle helmet when riding your bicycle. If you are
unfamiliar with cycling,we advise attending a cycle proficiency course prior to using your new bicycle
on the public highway.
When using any bicycle, it is important that you stay within safe limits; if you feel as if you are
travelling too quickly, you probably are.
Always test your brakes prior to using the bike, and remember the bike will not stop as quickly in the
wetas it would in the dry!
Before you use the bike for the first time, please make absolutely certain that it has been correctly
assembled. You can do this by either taking it to your nearest cycle engineer or if you are proficient
in cycle mechanics, inspecting it yourself. In particular, you must make sure that the pedals, saddle,
handle bars and any self assembled items have been fitted correctly.
Avoid consuming alcohol before you ride your electric bike. The use of alcohol greatly reduces
reflexes and limits your ability to ride safely.
If you need to replace your battery, please either dispose of it properly or preferably send it back to
us at Wisper or one of our distributors and we will make sure it is properly recycled.
Above all, enjoy your Wisper bike, happy cycling!
Amps Electric Bikes Ltd

4
2Caring for your Wisper bike and pre-use checks
Your Wisper bike has been thoroughly tested at the factory prior to delivery, and undergone a pre-
delivery inspection by your Wisper Stockist.
It is very important that you check the bike thoroughly before its first use. Equally important are
frequent and regular spot-checks, as they will protect you and your Wisper bike.
Please read this manual carefully. Only on full understanding all of the functions of this electric
bicycle should you attempt to use it.
2.1 Before you set off for the first time
2.1.1 Check the handlebars and handlebar stem are properly tightened.
2.1.2 Check all other nuts, bolts and fixings are properly tightened.

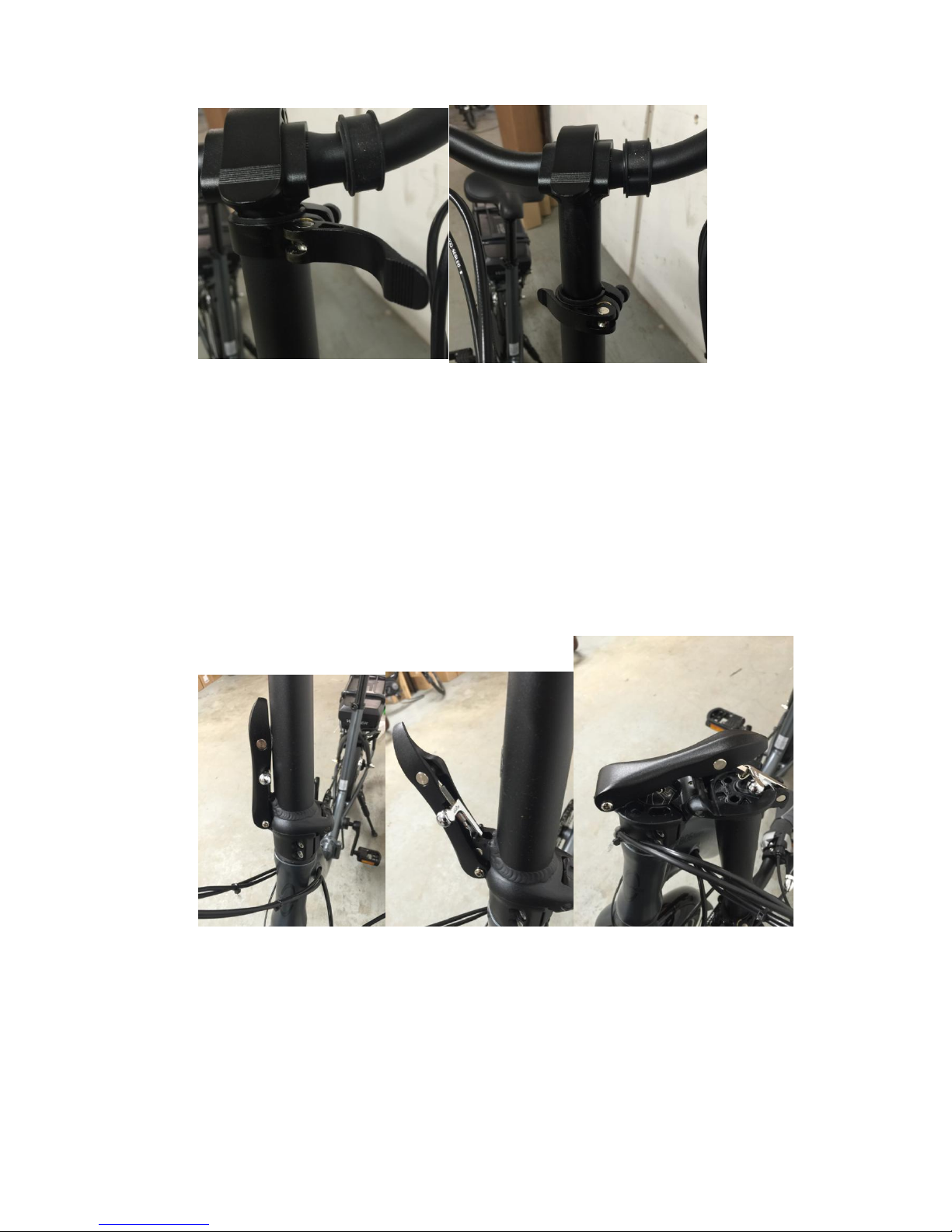

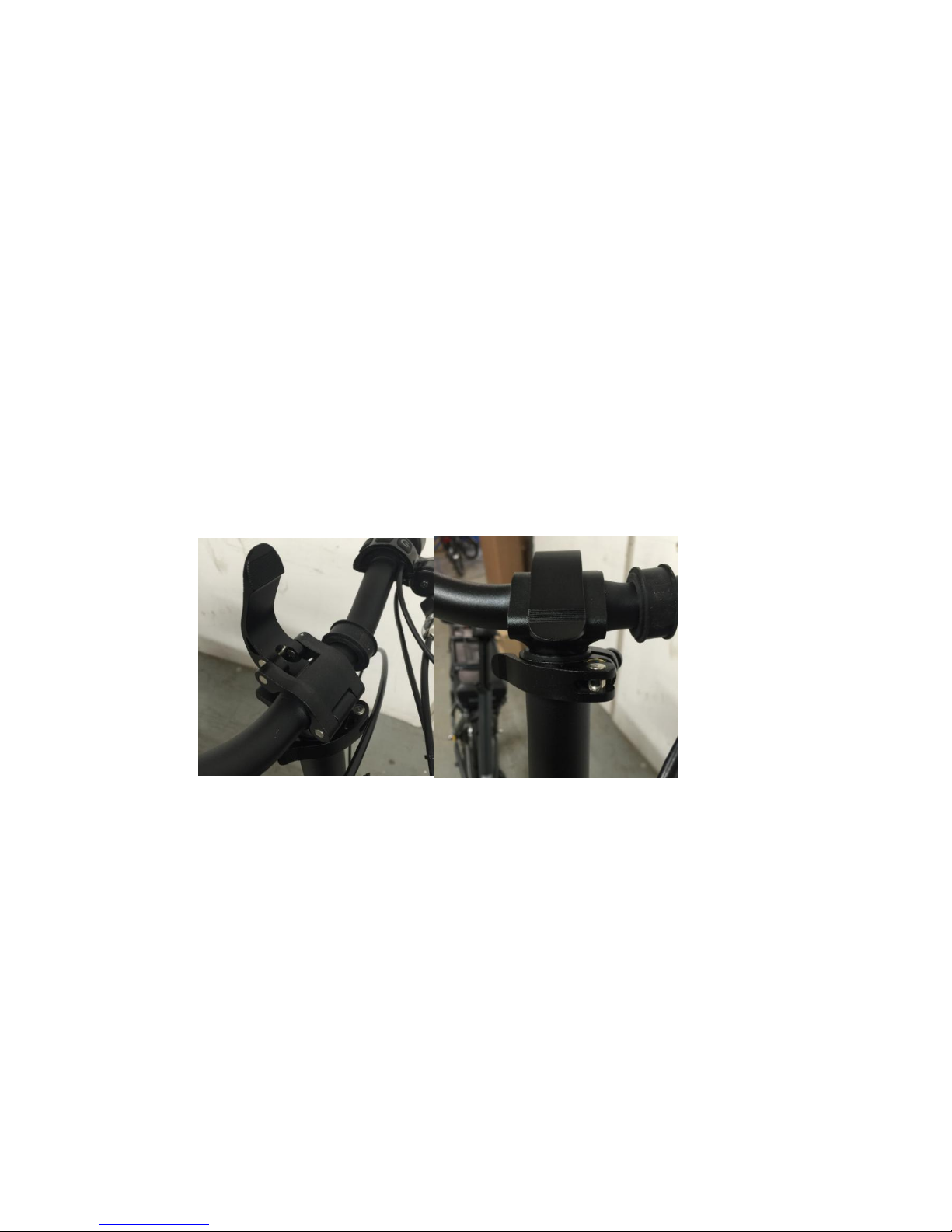

Check all folding mechanism clamps are closed tight and locked.
2.1.3 Check brakes are functioning properly.
2.1.4 Check tyre pressures are correct and tyres are not damaged.
2.1.5 Check reflectors and lights if fitted, are functioning properly.
2.1.6 Make sure the battery is fully charged.
2.1.7 Load the battery into bicycle and turn on with the switch located at the rear right hand side
of the battery. To remove the battery, turn the battery key hold in unlocked position and
slide the battery out. Remove key from battery and keep save during operation of the bike.

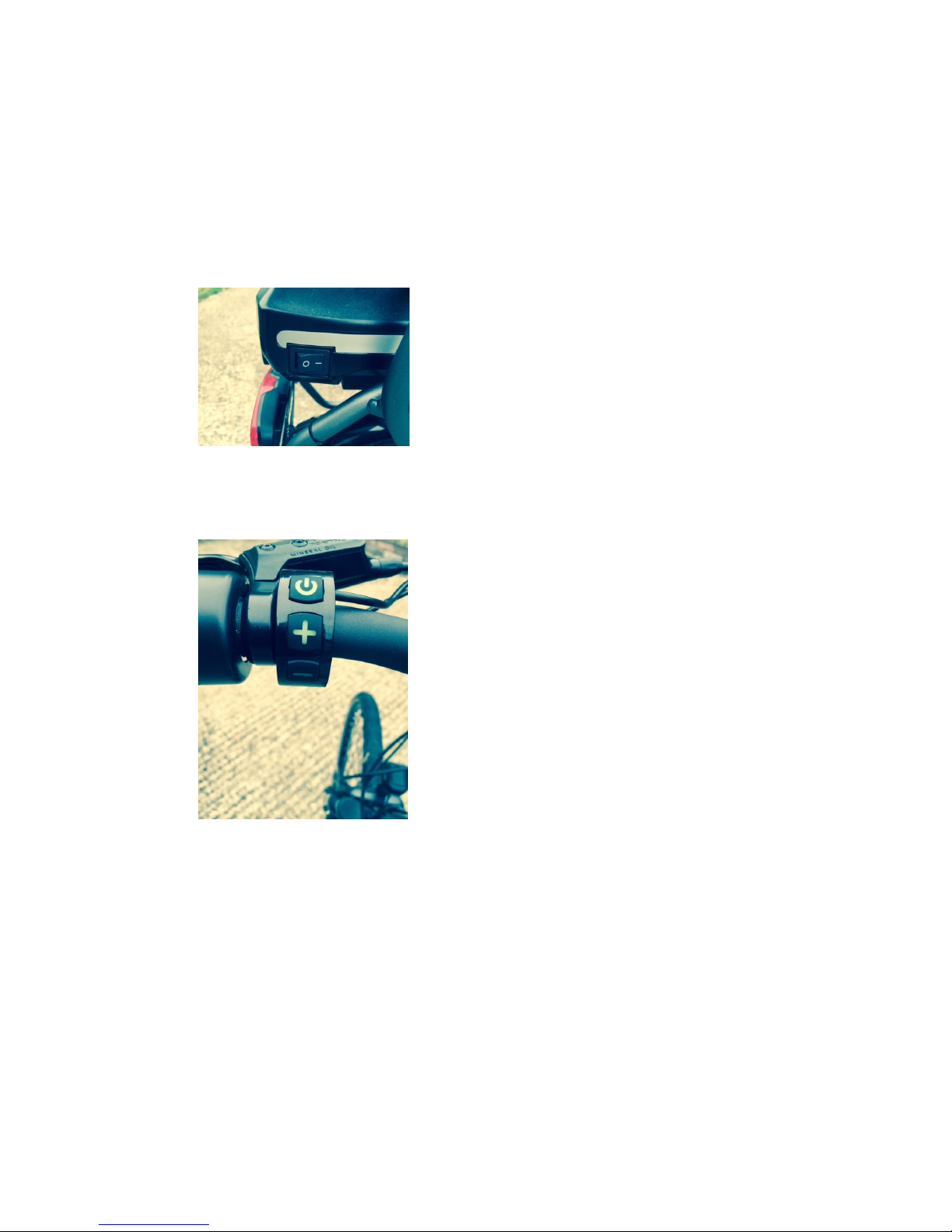

2.1.8 Turn on the bike by pressing the on/off switch adjacent to the left hand grip for two
seconds. (Turn off the bike by repeating the same process).

5

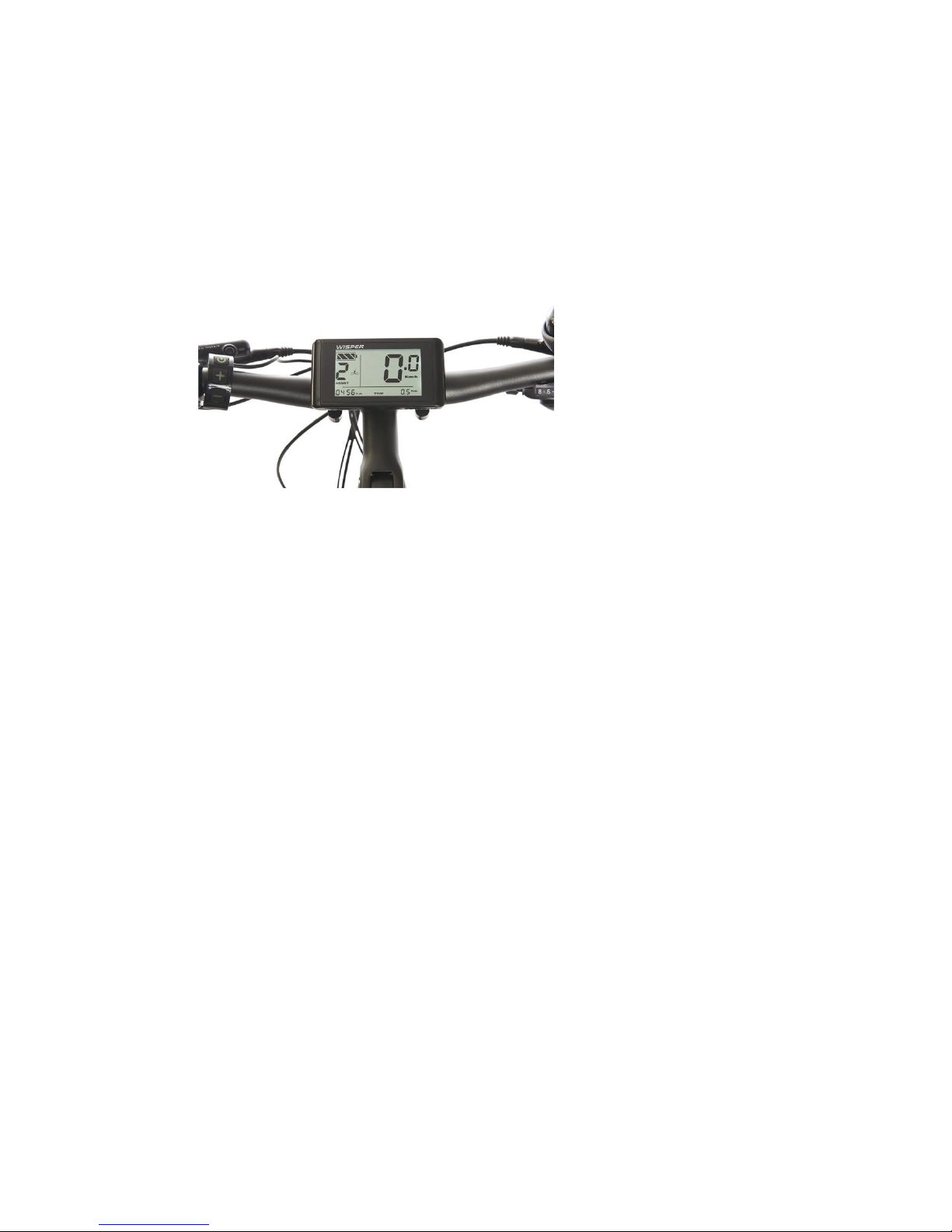

The bike will be ready to ride and the LCD will activate showing battery state, assist level,
time, trip and speed. Exerting pressure on the pedals or twisting the throttle will now
activate the motor.
IMPORTANT: Always start off in level 1 or 2 assistance to avoid the possibility of loss of
control. When you are moving forward then you can change to higher levels of assistance.
2.1.9 To avoid unplanned acceleration, always make sure that the LCD assist level is set to0 when
mounting, dismounting and turn the bike off when leaving it unattended.

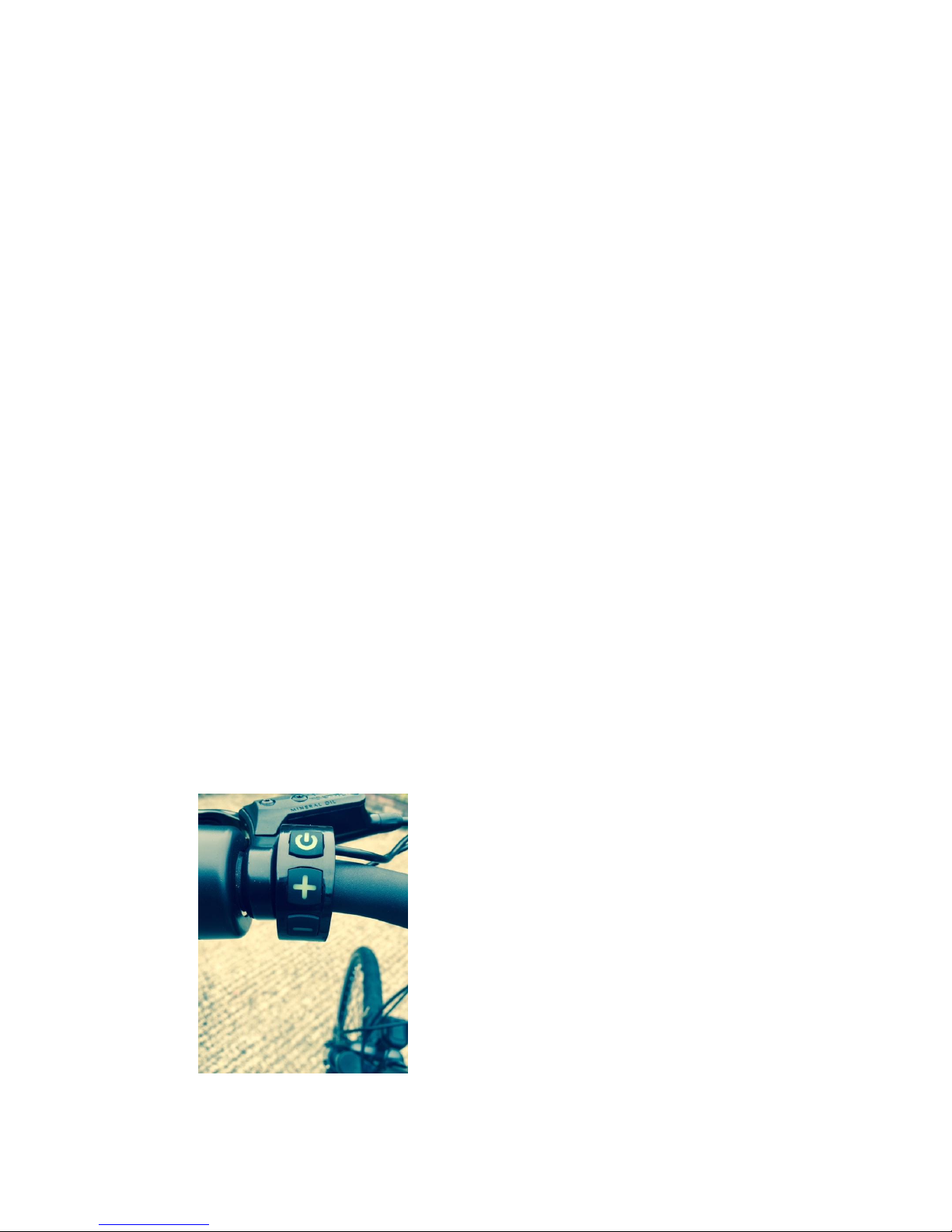

To set the assist levels, toggle with the + and –buttons (see fig 1)
2.1.10 For full information regarding the LCD display please refer to separate hand book available
from Amps Electric Bikes or your retailer.
2.1.11 Remember to validate your warranty by visiting www.wisperbikes.com/mywarranty and
filling in your details.
2.2 Before each use
It is important you check your bike prior to each time you use it.Checks should include the following:
(If you do find any damage or problems, do not use the bike until the problem has been solved or
you have had the faulty item checked by an electric bike mechanic or your retailer).
2.2.1 Check the tyres for any visible damage.
2.2.2 Check the tyre pressures.
2.2.3 Check for any loose nuts, bolts or fixings.Check all folding mechanism clamps are
closed tight and locked.
2.2.4 Check the brake functions.
2.2.5 Check the electronic functions.
2.2.6 Check the reflectors are in place and the lights are working.

6
2.2.7 Check the battery for any visible signs of damage.
2.3 Battery care
2.3.1 Your Wisper bike comes with a high quality lithium ion battery. All lithium batteries need to
be looked after to ensure years of full use. The latest Wisper 575Wh batteries come with
new technology installed to assist you in looking after your battery and will be dealt with
separately. Following these easy steps will ensure the long life of your battery
2.3.2 Recharge your battery after every use if possible.Keeping your battery charged extends its
life and your bike is always ready to go.
2.3.3 You do not have to “condition” your battery by charging and discharging before it’s first use.
This was the case with old lithium ion technology but is not necessary on modern batteries
2.3.4 Never leave your battery completely discharged for more than 24 hours. Voltage dropping
below minimum for any length of time will cause serious damage to your battery cells. *
2.3.5 Recharge your battery every month even if you are not using the bike. Most lithium Ion
batteries will continue to discharge even when the bike and battery are turned off (see
above). If your battery falls below minimum Voltage, it may not be recoverable. *
2.3.6 Do not expose the bicycle or battery pack to fire, heat sources, acid or alkaline substances.
2.3.7 When leaving your bicycle during hot weather, always leave in a shaded well ventilated area.
2.3.8 For best results, always recharge and store the battery at room temperature.
2.3.9 Before unloading the battery, make sure it is turned off and unload the battery using its
handle.
2.3.10 Further information on user responsibilities and battery maintenance are included in the
warranty section of this manual.
* The most common cause of battery failure the owner not keeping to points 4 and 5 above.
This is the most common reason for customers to need to replace batteries. This is
particularly noticeable in the spring when customers are using their bike for the first time in
the new year. We get most calls regarding failing batteries during this period.
IMPORTANT
If your battery is damaged due to your leaving it discharged, or not recharging when
advisedas per this manual your battery is not covered by our warranty.
Battery safety
2.3.11 i. Never leave a battery connected to the charger or mains power over-night.
ii. Never recharge a battery outside, in damp conditions or in temperatures less then 0
degrees centigrade.

7
iii. Never open a battery case, try and fix the battery or give it to any one other
than a registered Wisper Stockist for maintenance. (Failure to comply will void the
warranty)
iv. If a battery is,or appears to be damaged or overheating for any reason, do not use the
bike and immediately return the battery to your retailer for advice and a safety check.
IMPORTANT
Ignoring any of the safety rules above could cause serious injury or fire.
2.3.12 Wisper 575Wh Lithium Batteries
Bikes fitted with the latest Wisper long range batteries (optional) have extra featuresto help
keep it in good health.
i. “Deep sleep” or “hibernation” mode.
Once recharged the new Wisper 575Wh battery does not need recharging for up to 6
months over the winter. We recommend the battery is recharged every 6 months. To put
the battery into deep sleep mode simply press the LED button on the battery for 10
seconds. If the battery is below 29V, deep sleep will be activated automatically after
24 hours of non-use. The battery will automatically wake up when you turn your bike
back on.
ii. Remote Control Service System (RCSS)
Using the very latest technology we can connect the new Wisper 575Wh battery and
charger system directly to the battery manufacturer’s technical department’s computer.
Software updates will be uploaded to the battery and charger and system diagnostics will
take place. The battery manufacturer will make recommendations to resolve any issues.
In some cases, fixes can be made remotely. All Wisper Stockists will be able to check the
condition of both battery and charger. Information such as the charging history, battery
capacity, etc. will be available on screen.
iii. Phone Charger
The socket on the battery used for connection to the RCSS can also be used to charge
a mobile phone.
2.4 Recharging your battery
2.4.1 Before charging, make sure the charger is turned off and connect your battery to the charger
at the charging socket. Plug the charger into a mains socket and turn on the mains socket.
A red lamp will light up on the charger indicate the battery is charging. When thered light
turns green, the battery is fully charged. To optimize battery life, leave the charger
connected for a further hour and then turn off the charger and disconnect it from the
mains after charging. Always disconnect the charger from the mains before disconnecting
the charger from the battery. It is possible that the battery will take up to twelve hours to
charge on the first three charges.

8
2.4.2 When charging the battery, always do so in a well ventilated area.
2.4.3 Do not leave the charger connected to the mains when not in use.
2.5 Water
2.5.1 Your electric bicycle is rain and splash proof and can be used in all weathers.
2.5.2 The electrical components of the bicycle, such as motor, battery, and controller, must not be
submerged in water.
2.6 Maintenance and adjustments
2.6.1 IMPORTANT! Do not attempt to open the casings of the battery, motor or controller. It
could be dangerous and all warrantees will become void. If you experience a problem,
contact our service department or your Wisper retailer.
2.6.2 Wheel spokes should be checked after 300 miles of riding. Handlebar and saddle tubes
should never be raised beyond the maximum permissible, indicated by a safety line around
the tubes. The recommendedtorque (tightness) ofcrucialfixingsisas follows:
Frontaxlenuts. 46N.m
Backaxlenuts. 70N.m
Handlebarand stem clampbolts. 12N.m
Handlebarstemexpanderbolt. 10N.m
Seatpillarclampnut/bolt. 5-8N.m
Seatclampnuts. 24N.m
Crank axleAllen bolts. 40N.m
Gear shifter nuts. 4N.m
Rear carrier nuts. 8N.m
Mudguard bracket nuts. 8N.m
Other general torque settings depend on the thread size. M4: 2.5-4.0N.m,M5: 4.0-6.0N.m,
M6: 6.0-7.5N.m.
2.6.3 Your bike has a cassette 8 speed gear clusterand a derailleur, the chain tension will be
adjusted automatically. However, if the chain becomes loose or frequently comes off the
front chain-wheel, please seek advice from your Wisper dealer.
2.6.4 Brake levers should lock the wheels when compressed half way between their open position
and touching the handle bars.
2.6.5 Warning: Handlebar hand grips or tube end plugs should be replaced ifdamaged, as bare
tube ends can cause injury.
2.6.6 Front brake pads must be replaced if the pad material wears to less than 1mm.

9
IMPORTANT! braking distances increase on wet or icy roads.
2.6.7 Lubrication:
6.7.1. Lubricate all pivot points on the derailleurand chainwith light oil or chain lube on a
regular basis.
6.7.2 Once a year, have your Wisper dealer re-grease the headset bearings,front wheel
bearings and pedal bearings.
2.6.8Recommended tools for proper maintenance:
Torque wrench with lb/in or N/m gradations
2, 4, 5, 6, 8mm Allen wrenches
9, 10, 15 mm open-end spanners and 15mm box end spanner
14, 15, and 19mm socket
T25 Torque wrench
No. 1 Phillips head screwdriver,bicycle tube patch kit and tyre pump
2.7 Technical specifications & performance
Motor High efficiency, 250W ultra hi torque brushless rear wheel drive
Hybrid Torque drive system designed to deliver maximum power to the front wheel smoothly, silently and efficiently.
Battery Lithium with advanced battery management system (BMS)
Medium range 375Wh 2.6kg
Long range Samsung 575Wh 3.4kg
Both batteries use identical battery cases so are interchangeable between
705, 806 or 905 Wisper bikes
Remote Control Service System (RCSS) on 575Wh only
Deep sleep mode. Protects battery during times of non-use on 575Wh only
Battery case Polycarbonate/ABS mix, non conductive for extra safety, conforms to
2013 90cm drop test.
Controller Sine wave controller for quiet running
Mains charger Lithium 42V output intelligent charger communicates with battery
management system (BMS), auto stop when fully charged
2A, Charge time 2.5 to 8hours depending on battery state
Connections All electronic components and motor wheel have individual connectors for
ease of servicing
Assisted range 375Wh battery Average 50miles/80kilometers Max 70miles/115kilometers
575Wh battery Average 70miles/115kilometers Max100miles/150kilometers
Assistance 1. Throttle only: to 4mph/6kph
2. Throttle assist: complete throttle use when pedaling forward
3. Pedelec: with 4 levels of assistance power, F non torque sensor and safe
mode

10
4. Twist throttle to 4mph or 15.5mph when pedals are turning forward.
Maxspeed 15.5mph/25kph with powered assistance
Controls Back lit LCD display panel with bike and light on/off switch
Power assistance: four levels and safety mode.
Speedo, Range, Trip, Battery state, Clock
Bicycle weight 18.5kg without battery
Including battery and all accessories
375Wh: 21kg
575Wh: 22kg
With optional suspension forks add 1kg
Load capacity 135kg/290lb/20st 9lb
Frame Hand welded,6061 Alloy T4 and T6 tempered
Frame size 20” 50cm
Finish Graphite Silk painted and lacquered, three stage oven hardened
Forks Wisper light weight forks
Seat post 400mm black anodised aluminium
Saddle Selle Royal Italy E-Bike Saddle with handle
Handlebars Black anodised alloy with ergo support grips
Stem Black anodised alloy adjustableheight
Kick stand Black anodised alloy
Gears SHIMANO 8 speedcassette with 8 speed quick fireselector
Chain ring 170mm 52 tooth
Chain guard Full, alloy Stealth Black paintwork
Chain KMC Z51RB rust resistant
Cranks Anodised Black alloy
Drop outs Stainless steel cassette
Main Bearing Sealed bearing with torque sensor
Pedals Folding non-slip, sealed bearings
Brakes Tektro 160mm disc brakes front, V brakesrear
Rims Alloy double walled 20” x 1.5”
Spokes 13g black anodised
Tyres Kenda 20” 1.95 high puncture resistance with Kevlar and wall reflector
Mudguards Polycarbonate shatterproof
Lighting Front: 36V 15W LED, power from bike e-system
Rear: 36V light, power from bike e-system
Reflectors: front white, rear red, wheels orange and pedal reflectors
Rear Rack Certified to 25kg
Metal fixings A4 grade stainless steel or alloy
2.8 Simple Trouble shooting
