wiwa DUOMIX PU280 User manual

Operation manual
Translation of the original operation manual
1307_PU280_SV1018DV1020_DB_en • ski
WIWA 2K-DUOMIX PU 280
Type:
❍ 280
❍ 280+
Version:
❍ 400V
❍ 230V
Variants with:
❍ Feed pumps
Serial-No.
_ _ _ _ _ _ _ _

2 Translation of the EC-Declaration of Conformity
•1307_PU280_SV1018DV1020_DB_en•ski
EC-Declaration of Conformity
according to Appendix ll, No. 1 A of the Machinery Directive 2006 / 42 / EC
including last changed by 2009 / 127 / EC
The company WIWA Wilhelm Wagner GmbH & Co. KG
Gewerbestr. 1-3
35633 Lahnau
Germany
herewith declares that the equipment types PU 280
PU 280+
with Serial-No.:
are in conformance with the provisions of the above-mentioned directive.
Documentary authority: WIWA GmbH / Phone: [phone]
Lahnau,
Place, Date Heidrun Wagner-Turczak
Managing Director
Copyright
© 2013 WIWA
Copyright ownership for this user manual remains with
WIWA Wilhelm Wagner GmbH & Co. KG
Gewerbestr. 1-3 • 35633 Lahnau • Germany
Phone: [phone] • Fax: [phone]
E-Mail: [email protected] • Homepage: www.wiwa.de
This operating manual is solely intended for personnel involved in prepa-
ration, operation and servicing.
It is prohibited to pass on this operating manual for reproduction, utilisation
or communication of its contents, unless this has been explicitly permitted.
Infringements incur an obligation to pay damage compensation. All rights
reserved in the event of registration of the patented design, industrial
design or registered design.
This operating manual only applies in conjunction with the machine card
that was given to you with the user manual for your equipment. Please
check that the type plate data is identical with the information on the ma-
chine card. Please notify us immediately if there are discrepancies, if the
user manual has been incorrectly compiled or if the type plate is missing.
10.07.2013

Translation of the original Operation Manual 1
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
Table of Contents
1 Foreword 1-1
1.1 Important for your safety 1-1
1.2 Machinecard 1-1
1.3 Pictogrammes 1-2
1.4 Noticesonthemachine 1-3
2 Safety Information 2-1
2.1 Dangersources 2-1
2.1.1 Dangerscausedbythesprayjet 2-1
2.1.2 Dangertohealth 2-2
2.1.3 Dangerforequipment 2-2
2.1.4 Dangercausedbyelectricvoltage 2-2
2.1.5 Dangercausedbyexplosion 2-3
2.1.6 Dangercausedbydisregardingtheexplosionprotection 2-3
2.2 Operatingpersonnel 2-3
2.2.1 Setup,cleaning,maintenanceandrepairwork 2-3
2.2.2 Protectiveequipment 2-4
2.3 Safetyfeatures 2-4
2.4 Handlingthesystemandauxiliarymaterials 2-5
2.5 Emergencyprocedures 2-5
2.5.1 Leakages 2-5
2.5.2 Injuries 2-5
2.5.3 Fires 2-5
3 Machine Description 3-1
3.1 Intendeduseofthemachine 3-1
3.2 Notesonwarranty 3-1
3.3 Machinesurroundings 3-1
3.3.1 Emissions 3-1
3.3.2 Soundpressurelevel 3-1
3.4 Transportingthemachineandadditionalequipment 3-2
3.5 Placeofinstallationofthemachine 3-2
3.6 Storingthemachineandadditionalequipment 3-3
3.7 Disposalofthemachineandadditionalequipment 3-3

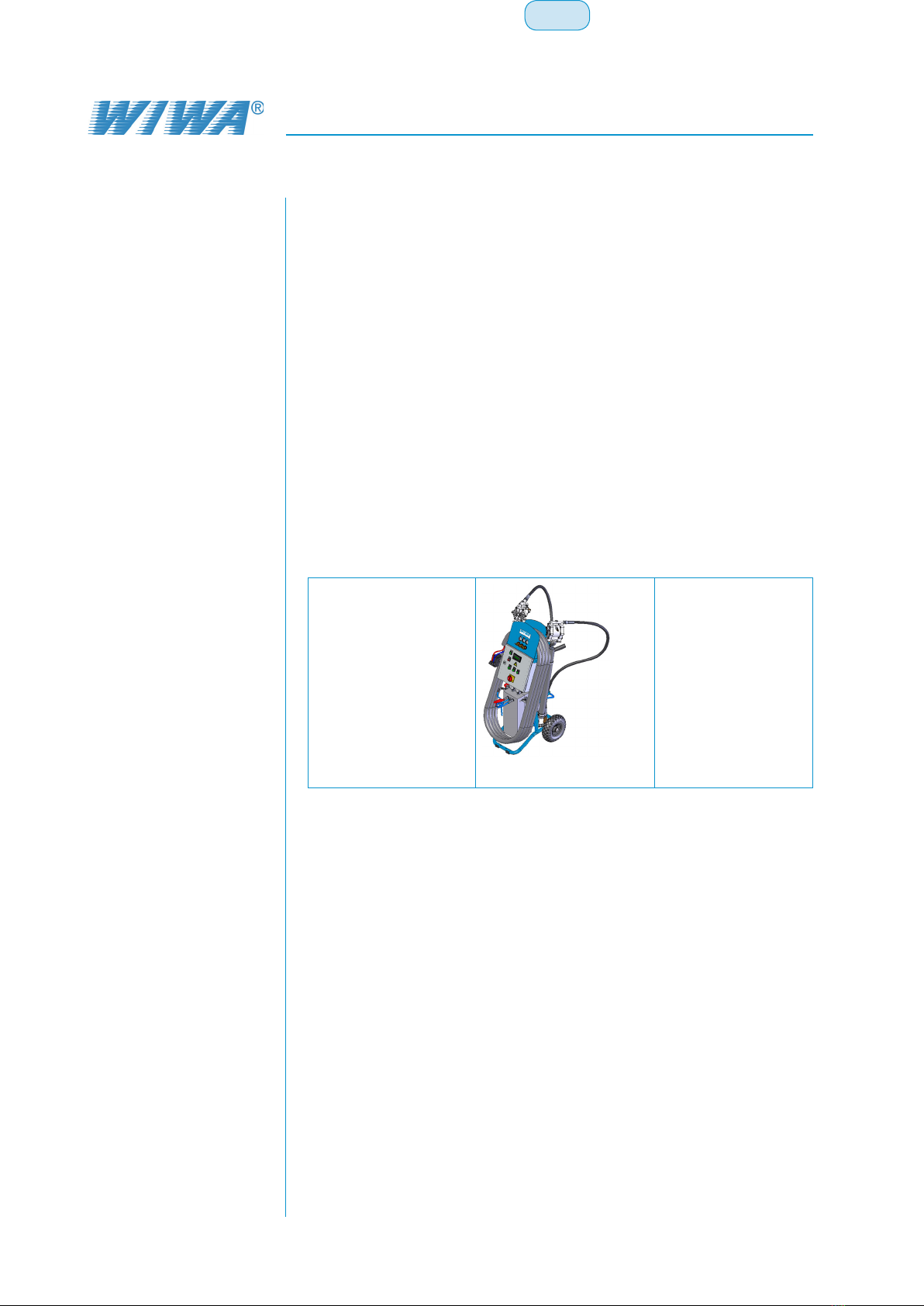

3.8 Systemvariants 3-3
3.9 Systemdescription 3-4
3.9.1 Withoutcirculation 3-4
3.9.2 Withcirculation 3-4
3.9.3 Materialow 3-5
3.9.4 Compressedaircontrol 3-5
3.9.5 Temperaturecontrol 3-5

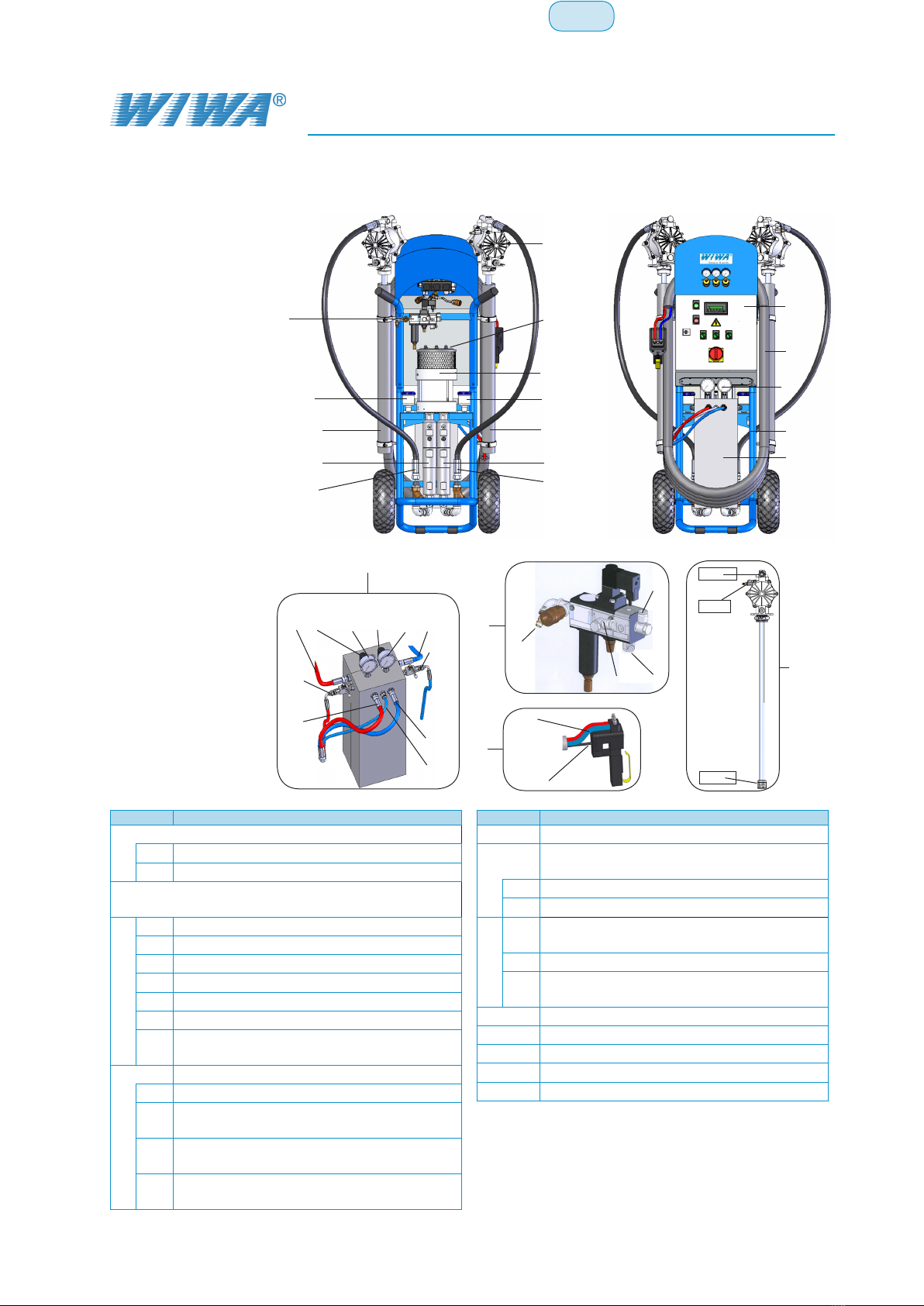

3.10 Systemcomponents 3-6

Translation of the original Operation Manual2
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en

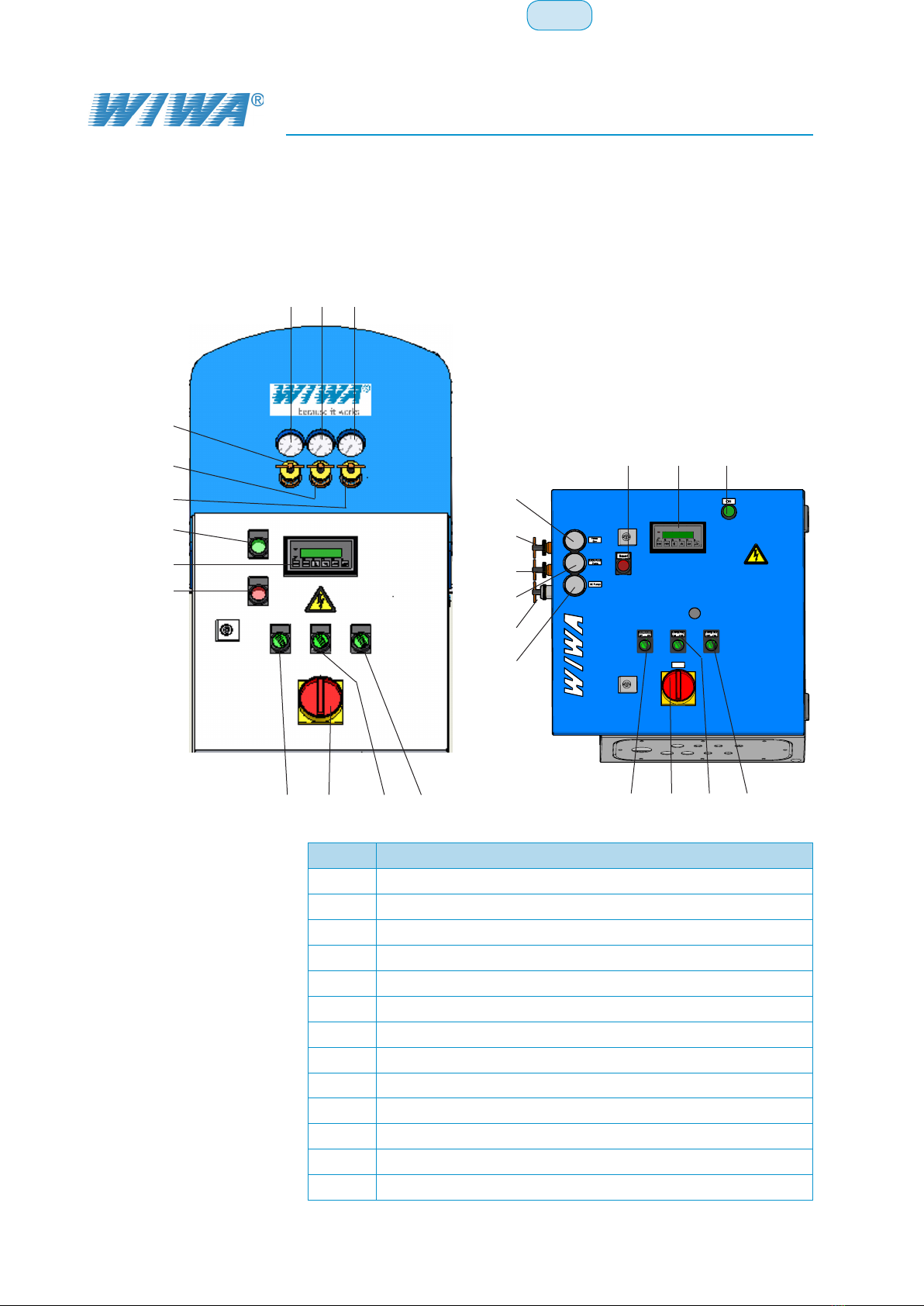

3.11 Controlcabinet 3-7
3.11.1 Componentsonthecontrolcabinet 3-7
3.11.2 Systemcontrol 3-8
3.12 Menu 3-8
3.12.1 Welcomescreen=ACTUALtemperature 3-8
3.12.2 NOMINALtemperature 3-8
3.12.3 Alarm 3-9
3.12.4 Parking 3-9
3.12.5 Softwareversion 3-9
4 Installation and Assembly 4-1
4.1 Settinguptheunit 4-1
4.2 Assemblingattachmentsandaccessories 4-1
4.2.1 Connectionofthehosepackage 4-2
4.2.2 Connectingindividualhosepackagesegments 4-2
4.2.3 Connectionsprayguntothehosepackage 4-2
4.2.4 Connectionfeedpumps 4-3
4.3 Groundthesystem 4-3
4.4 Checktheconditionofthereleaseagent 4-3
4.5 Electricconnection 4-3
4.6 Compressedairconnection 4-4
5 Commissioning 5-1
6 Operation 6-1
7 Decommissioning 7-1
7.1 Activatingparking 7-1
7.2 Deactivatingparking 7-2
7.3 Takethesystemoutofservice 7-2
7.4 Shuttingdowntheequipment 7-4
7.5 Pressurerelief 7-5
7.5.1 Withoutcirculationandwithoutreliefhoses 7-5
7.5.2 Withreliefhoses(optional) 7-5
7.5.3 Withcirculation(optional) 7-6
7.6 Cleaningafterspraying 7-6
7.6.1 Cleaningthesystem 7-6
7.6.2 Cleanspraygun 7-6
8 Barrel change 8-1
8.1 Withoutcirculation 8-1
8.2 Withcirculation(optional) 8-3
9 Material change 9-1

Translation of the original Operation Manual3
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
10 Maintenance 10-1
10.1 Checkcycles 10-1
10.2 Importantnotes 10-1
10.3 Maintenanceunit 10-2
10.4 Drainingthecondensationwater 10-2
10.5 Notesonoilreservoirandwaterseparator 10-2
10.6 Separators 10-3
11.1 Circulation 11-1
11.1.1 Circulationcircuit 11-1
11 Optional equipment 11-1
11.1.2 Circulation/ventilation 11-2
11.2 Silicagellter 11-3
11.3 Spraygun 11-5
11.3.1 Sprayguncomponents 11-5
11.3.2 Safetyfeatures 11-6
11.3.3 Notesonoperation 11-6
11.3.4 Connectthesprayguntothehosepackage. 11-7
11.3.5 Checkspraygun 11-8
11.3.6 Startspraying 11-8
11.3.7 Endspraying 11-8
11.3.8 Dismantlethespraygun 11-9
11.3.9 Spraygunmaintenance 11-9
11.3.10 Cleanspraygun 11-11
12 Malfunctions and Troubleshooting 12-1
12.1 Generaltroubleshooting 12-1
12.2 Troubleshootingonthespraygun 12-3
12.3 Errormessagesonthecontrolcabinet 12-4
13.1 Technicaldata 13-1
13 Appendix 13-1
13.2 Operatingmaterials 13-2
13.3 Tools 13-2
13.4 Accessories 13-3
13.5 InstructionCerticate 13-5

Translation of the original Operation Manual 1-1
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
1 Foreword
Operatingpersonnelshouldalwayshaveaccesstothisusermanual!
Theowneroftheunitmustensurethattheoperatoroftheunitalwayshasan
operatingmanualathis/herdisposalinalanguagehe/sheunderstands!
Allpersonsinvolvedintheset-up,commissioning,operation,maintenance,repair
andservicingofthemachinemusthavereadandunderstoodtheusermanual
beforehand,andthechapteronSafetyinparticular.Werecommendtotheowner
ofthisunittohavethisconrmedinwriting.
Inprincipleyoushouldrefrainfromanyworkmethodthatwouldaffectthesafety
of productsandtheoperatingpersonnel.
Pleasereadandcomplywith:
➤theapplicableguidelinesforyourcountry.
InGermany,thesearethe“RichtlinienfürFlüssigkeitsstrahler”(Guidelinesfor
LiquidJets),
issuedby:theHauptverbandderGewerblichenBerufsgenossenschaften.
➤themanufacturer'sinstructionsandprocessingguidelinesforcoatingortrans-
fermaterialsaretoberespectedatalltimes.
Thismachinehasbeendesignedandmanufacturedunderdueconsiderationof
allsafety-relatedaspects.Itcorrespondstothecurrentstandardoftechnology
andtoapplicableaccidentpreventionregulations.
Themachineleftthefactoryinperfectconditionandguaranteesahighlevelof
technicalreliabilityandsafety.Nevertheless,therearecertainrisksthatcanarise
fromincorrectoperationormisuse:
➤tolifeandlimboftheoperatororthirdparty,
➤tothemachineandothermaterialassetsoftheowner,
➤toefcientworkwiththemachine.
Thisusermanualisonlyvalidincombinationwiththefollowingmachinecard.
Themachinecardcontainsallimportantandsafetyrelevantdataandinforma-
tionaboutthemachine.
➤exactdesignationandmanufacturerdata
➤technicaldataandlimitingvalues
➤Equipmentandtestcerticate
➤Dataofpurchasing
➤Machineidentication(machinecomponentsandaccessorieswitharticleand
sparepartsnumbers)
The data on the machine card must match the data on the type plate.
In case of discrepancies or if the type plate is missing please notify us im-
mediately.
1.1 Important for
your safety
1.2 Machine card

Translation of the original Operation Manual 1-2
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
Foreword

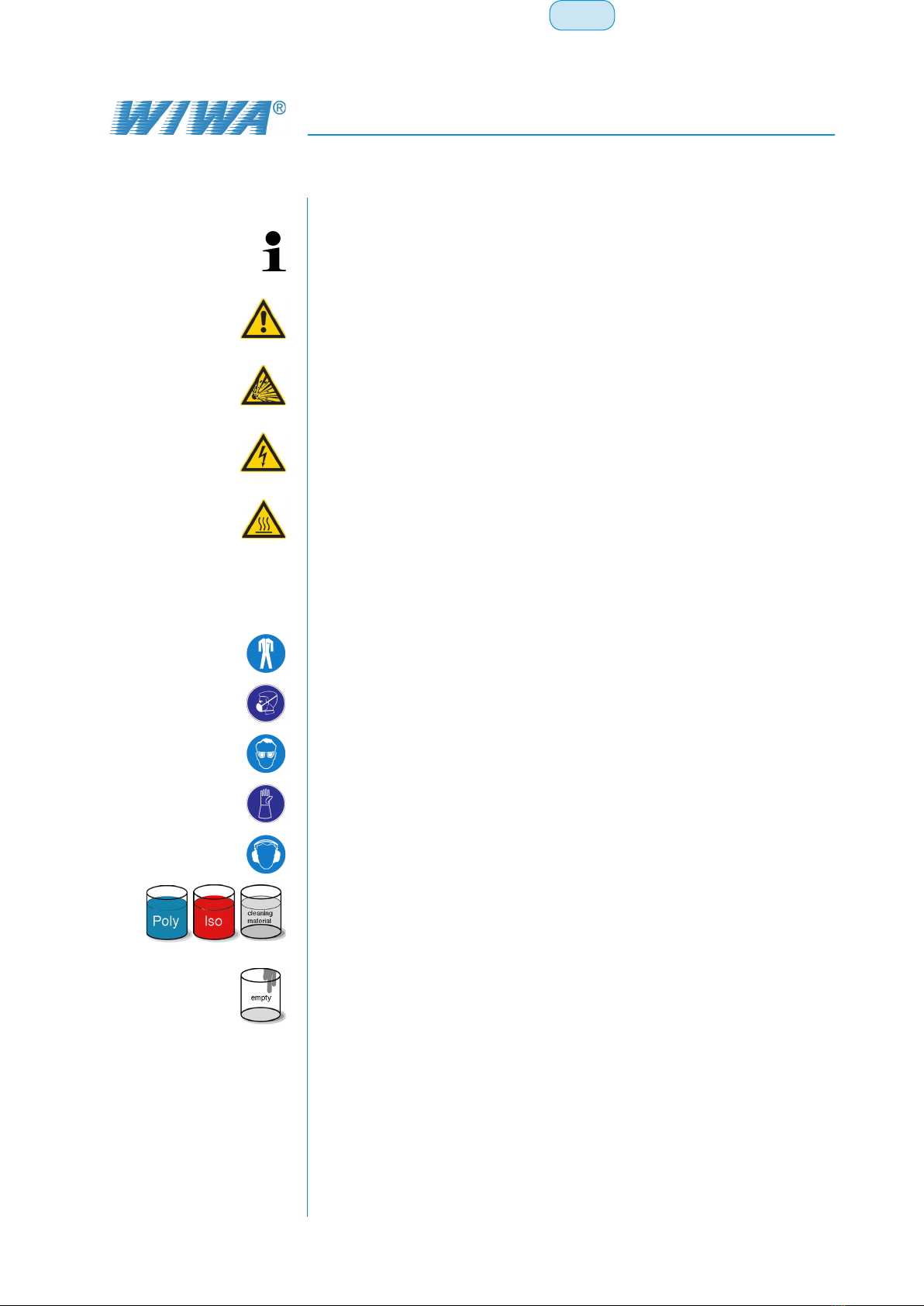

The notices and symbols used in this manual have the following meanings:
NOTICE
Indicatesaninformativetextpassage.
Youshouldpayparticularattentionwhenreadingit.
WARNING
Apotentiallydangeroussituationisindicated.
Non-observancecanleadtodeathorveryseriousinjury.
DANGER OF EXPLOSION
Indicatesasituationwithpotentialdangerofexplosion.
Strictcompliancewiththesenotesismandatory.
VOLTAGE
Asituationshowingdangerofexplosionbyelectrostaticchargeisindicated.
Strictcompliancewiththesenotesismandatory.
HOT SURFACES
Identiesasituationinvolvingthedangerofburningonahotsurface.Donot
touchhotsurfaceswithoutwearinggloves.
Thefollowingsymbolsindicatethatprotectiveequipmentshouldbeworn.With
yourhealthinmindyoushouldalwayscomplywiththerecommendationsofthe
materialmanufacturer.
WEAR PROTECTIVE CLOTHES
USE RESPIRATORY PROTECTION
USE EYE PROTECTION
WEAR PROTECTIVE GLOVES
WEAR HEARING PROTECTION
Drum “Poly” + “Iso” + “Cleaning Agent”
Identiesadrumcontainingthematerialtobeapplied,whichtheuserrequiresat
thecorrespondinglocationinthemanual.
Drum “empty”
Identiesanemptycollectingvesseltobeusedbytheusertocollectcontami-
natedsprayingmaterial.
1.3 Pictogrammes

Translation of the original Operation Manual 1-3
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
Foreword
Appropriateinformationsignsandsymbolsonthemachinerefertopossibledan-
gerareasandmustberespectedatallcosts.
Informationsignsandsymbolsmustnotberemovedfromthemachine.
Damagedandillegibleinformationsignsandsymbolsmustbereplacedimmedi-
ately.
The following signs can be found on the machine:
➤Typeplateonplantcontrolcabinet,(Figure 1.1).
Pleasecheckthatthetypeplatedataareidenticalwiththoseonthemachine
card.
Incaseofdiscrepancies or if the type plate is missing please notify us im-
mediately.
➤Typeplateonplantcontrolcabinet,(Figure 1.2).
Beforeconnectingtheunittothemainssupply,checkwhethertheprescribed
electricaldatacomplieswiththatavailableattheinstallationsite.
➤Warninglabel“Caution!ElectricalVoltage”oncontrolcabinet,(Figure1.3).
➤Warninglabel“Caution!Hotsurface”ondistributor,(Figure 1.4).
1.4 Notices on
the machine
Figure 1.1
Figure 1.2
Figure 1.3
Figure 1.4

Translation of the original Operation Manual 2-1
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
2 Safety Information
Pleaserememberthatdualcomponentsystemsworkwithextremelyhighpres-
suresandmaycauselifethreateninginjuriesifusedinappropriately.
Alwayspayattentiontoandfollowallnotesintheusermanualsfortheoptionally
offeredaccessoryequipment.Payparticularattentiontothechapteronsafety
notesforthecorrespondingcomponents.
Please comply with the following instructions:
➤Neverpointthespraygunatyourself,otherpersonsorotherlivingbeings!
➤Neverholdyourngersorhandinfrontofthespraygunandneverreachinto
thejetspray.
➤Materialhosesmustbeabletowithstandpressuresbeyondthemaximum
workingpressure.
➤Materialhosesmustneverberepaired!
➤Nevertrytosealleakagesonconnectionsandhighpressurehosesbyhand
orbywrappingfabricaroundthem.Incaseofleakagesimmediatelydepres-
surizetheentiresystem(spraygun,hose,pump,etc.).Defectivepartsmust
bereplaced.
➤Securethespraygun(s)eachtimeworkisinterrupted,evenforshortbreaks,
andcheckthatitisproperlysecured,(Figure 2.1).
➤Switchoffthemachinebeforestartingmaintenanceandcleaningworkonthe
unitandthesprayingaccessories,(Figure 2.2).
➤Incaseofmaterialcongestionoragglomerationofmaterialinthespraying
system,residualpressurescanstillbepresentdespitepressuredischarge.
Payfullattentiontothiswhenperformingrepairwork!
➤Materialhosesandsprayguninparticularmustbedisassembledwithgreat-
estcaretoavoidaccidentscausedbyreleasedresidualpressures.
➤Whendisconnectingmaterialhoseswerecommendtocoverthescrewtting
withaclothtocatchanyescapingmaterialsprays.
2.1 Danger
sources
2.1.1 Dangers caused
by the spray jet
Figure 2.1
0/OFF I/ON
Figure 2.2

Translation of the original Operation Manual 2-2
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
SafetyInformation
➤Inclosedroomsorwithpressurizedsystems,inwhichaluminiumcomponents
orgalvanizedpartshavecontactwiththesolvent,hazardouschemicalreac-
tionsmayoccurwhenusing1.1.1-trichloroethane(TCE),methylenechloride
orothersolventscontainingchlorinatedhydrocarbons(CFCs).Ifyouwish
tousetheaforementionedsolventsorvarnishesandpaintscontainingsuch
solvents,weadviseyoutoconsultthe -customerserviceor
directly.
➤Wewouldliketopointoutthatwehaveaseriesofdualcomponentsys-
temsinrustandacidproofdesignavailableforsuchmaterials.
➤DANGEROFBURNING!
Dependingonthesettemperature,theoutersurfaceoftheadaptercanheat
upconsiderably.Youshouldthereforealwayswearprotectivegloveswhen
havingtoworkontheadapter!
➤Changingthemixingratiomaycauseachangeinpressureratioandthus
requiretheadaptationofthemax.permissibleairinletpressure.Inthiscase
theexistingsafetyvalvemustbereplaced.Consultationwith is highly
recommended.
➤Thesystemshouldneverbeoperatedwithoutsafetyvalve!
Ifthesafetyvalveneedstobereplaced,youcanndthecorrespondingorder
numberonthemachinecard.
➤Themaximumoperatingpressurespeciedbyusmustgenerallybeadhered
to for all parts(e.g.pump,heater,hoses,spraygun,safetyvalve).
Atvaryingoperatingpressuresthelowestvalueisalwaysvalidasthemaximum
admissibleoperatingpressurefortheentiresystem.
➤Generalexample:
Pump upto250bar/3625psi
Materialhose upto600bar/8700psi
Spraygun upto240bar/3480psi
Themaximumpermissibleoperatingpressurefortheentiresysteminthisexam-
pleis240bar.
➤Whenusinginatmospherescontainingsolventsthereisthedangerthatthe
powercablecouldbecomeawedorporous.
➤Thereforethepowercablemustbecheckedforexternallyvisibledamage
beforeeachstart-up.
➤Neverrepairapowercable.Damagedpowercablesmustalwaysbecom-
pletelyreplaced.
➤Thisworkmustbecarriedoutbyaprofessionalelectrician.
2.1.2 Danger to health
2.1.3 Danger for
equipment
2.1.4 Danger caused
by electric
voltage

Translation of the original Operation Manual 2-3
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
SafetyInformation
➤Neverspraycleaningagentorcleaningagentcontainingmaterialsintocone-
topcansordrumswithbunghole!
➤Alwaysuseopencontainers.Standthecontainersonagroundedsurface.
Whenusingmetalcontainersavoidcontactbetweenspraygunandcontainer
wall,becauseofpossibleelectrostaticcharging.
ThehighowvelocitiesassociatedwiththeAirlesssprayingmethodmay
causestaticcharging.Staticdischargescancausereandexplosion.
The original DUOMIXPU280isearthedviatheelectricalconnectionas
standard.
➤Neveroperatetheunitoutsideincaseofathunderstorm.
➤Becauseofthegeneratedelectrostaticchargingyoushouldonlyuseconduc-
tivematerialhoses.Alloriginal materialhosesareconductiveandper-
fectlymatchedtoourequipment.Themaximumpermittedworkingpressures
ofthehosesmustbehigherthanorequalthemaximumoperatingpressureof
thecorrespondingdualcomponentsystem.
➤Switchoffallheaterswhenworkingwithcleaningagentsinthematerialcircuit
(e.g.completecleaning).
Completecleaningmustonlybeperformedafterthesystemhascooleddown.
➤The system must NOT be operated in explosion protection zones!
Sprayingequipmentdesignedwithoutexplosionprotectionmustnotbeusedin
workshopsthatcomeundertheexplosionprotectionordinance.
Juvenilesundertheageof16havenopermissiontooperatethisequipment.
Theownerofthemachinemustensurethattheusermanualismadeavailableto
theuserandmakesurethattheuserhasreadandunderstooditscontents.
Activity Qualicationofpersonnel
Setupwork instructeduser
Servicework instructeduser
Cleaningwork instructeduser
Maintenancework personneltrainedbythe -customerservice
Repairwork personneltrainedbythe -customerservice
Beforestartingworkyoumustinterruptthecompressedairsupplytothemachine.
➤Makesurethatthemachineisfreeofresidualpressure,inboththeairandthe
materialside.
➤Afterthecompletionofworkyoumustinanycasecheckthefunctionofall
protectivedevicesandthecorrectfunctionofthemachine.
2.1.5 Danger caused
by explosion
2.1.6 Danger caused
by disregarding
the explosion
protection
2.2 Operating
personnel
2.2.1 Setup, cleaning,
maintenance
and repair work

Translation of the original Operation Manual 2-4
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
SafetyInformation
➤Wewouldliketopointoutthatthevalidguidelinesandstipulationsdepending
ontheworkenvironment(mining,closedrooms,etc.)mustberespectedin
anycase.
➤Alwaysweartheprotectiveclothesspeciedbythematerialmanufacturerto
avoidinjuries.
➤Itisrecommendedthattheoperatorshouldalwaysweararespiratoryprotec-
tionmask,eventhoughthepaintmisthasbeenminimizedinAirlessspray
paintingapplicationswithcorrectpressuresettingandworkingmode.
➤Wearprotectivegogglestoprotectagainsteyeinjuriescausedbymechanical
orchemicalinuences.
➤Wearprotectivegloveswithlowerarmprotectiontoavoidburninjuries.
➤Thesoundpressurelevelofthisunitislessthan85db(A).
However,operatingpersonnelshouldstillbeprovidedwithsuitablenoise
protectionequipment.
Allunitsaredeliveredwiththefollowingsafetyfeatures:
Master switch, (Figure 2.3)
Whenthemasterswitchonthecontrolcabinetisswitchedtoposition“0/OFF”
boththeelectricpowerandcompressedairsuppliedareimmediatelycutoff.
Note:
➤Thecompressedairsupplytothesprayisnotinterrupted!
➤Materialmaystillbeunderpressureinthesystem!
Safety valve, (Figure 2.4)
Thesafetyvalveontheairmotorofthemeteringpumpmakessurethatthemax.
permissibleairinletpressureisnotexceeded.Thesafetyvalvewillopenandvent
offairwhentheairinletpressureexceedsthesetlimitingvalue.
Overtemperature switch, (not shown)
Theseelementsswitchofftheequipmentwhenthemaximumpermissibletem-
peratureinthematerialowheatersisexceeded.Thismalfunctionissignalized
onthecontrolcabinet.
Afterthematerialowheaterhascooleddownandthemalfunctionhasbeen
acknowledged,theplantcanbeoperatedagain.
Material pressure relief valves, (not shown)
Inthefactorybothpressurereliefvalvesweresettothemaximumadmissible
operatingpressure.Whenthisvalueisexceededtheequipment,includingthe
heaters,willswitchoffcompletely.
Thismalfunctionissignalizedonthecontrolcabinet.
Troublefreeoperationcanonlyberesumedafterthepressureonthecorrespond-
ingcomponentshasbeenrelieved.
Air pressure valve on the spray gun, (Figure 2.5.)
Theairpressurevalvemustbelockedforeachbreak,evenforshortinterruptions
ofwork.Slidetheairvalvetoposition“CLOSED/0”todoso.
Withmissingcompressedairthematerialvalveswillstayclosed.
2.2.2 Protective
equipment
2.3 Safety
features
0/OFF I/ON
Figure 2.3
Figure 2.4
 
0 I
Figure 2.5.

Translation of the original Operation Manual 2-5
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
SafetyInformation
Allsafetyfeaturesmustbechecked:
➤beforeeachstart-upoftheequipment!
➤beforestartingworkonorwiththeequipment!
➤aftercompletionofsetupwork!
➤aftercleaningandservicingwork!
➤aftermaintenanceandrepairwork!
Checklisttocheckthesafetyfeaturesonthedepressurizedunit
➤Pleasecheck:
➤theleadsealonthesafetyvalvefordamage.
➤thesafetyvalveforexternaldamage.
➤thecorrectfunctionofthemasterswitch.
➤thefunctionoftheairpressurevalveonthespraygun.
➤Followthesafetynotesanddosinginformationofthemanufacturersandthe
generallyapplicableregulationswhenhandlingsprayingmaterials,cleaning
agents,oils,greasesandotherchemicalsubstances.
➤Incaseofleakagesthesystemmustbeshutdownimmediatelyandthecom-
pletesystemmustbedepressurized:
➤SwitchofftheunitbytheEMERGENCYSTOPswitch .
➤Makesurethatthesystemhasbeendepressurized.
➤Immediatelyreplacethedefectivepartsorhavethesereplaced.
➤Immediatelyconsultaphysicianifinjuredwhenhandlinguidjets(becauseof
theircuttingeffect)!
➤Readandcomplywiththeinstructionsforrealarmandescaperoutes,which
aredisplayedinyourfactoryoratanyworkplace.
➤Onlyusetheextinguishingsubstancesstipulatedbythematerialmanufac-
turer.
Attention!
If any of the safety fea-
turesisnotfullyfunctional
oranyotherfaultisfound
onthemachine,the
systemmustbeshutdown
immediately.
Operationofthemachine
mustonlyberesumed
afterthecorrectfunctional
statehasbeenre-estab-
lished.
2.4 Handling
the system
and auxiliary
materials
2.5 Emergency
procedures
2.5.1 Leakages
2.5.2 Injuries
2.5.3 Fires

Translation of the original Operation Manual 3-1
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
3 Machine Description
The DUOMIXPU280ismostsuitablefortheapplicationofsolventfree
dual-componentplasticmaterials(polyurea).Thissystemenablestheseamless
andjointlessapplicationofcoatingsandlinings
Yourdualcomponentsystemwasdesignedtomeetyourspecialrequirements
(materialtobeapplied,mixingratio,transferquantity,etc.).
Exactmeteringofbothcomponentsisassuredbythexedmixingratio.Themix-
ingratiocanonlybechangedbyexchangingthematerialpumps.
Anyotheruseisdeemedtonotbeinaccordancewithregulations.
Themanufacturer'sapprovalmustbeobtainedbefore unitsareusedfor
anyotherpurposeorwithothermaterials,i.e.notinaccordancewiththeintended
use,otherwisethewarrantywillbecomenullandvoid.
Intendedusealsoincludescompliancewiththetechnicaldocumentationand
adherencetotheprescribedoperating,servicingandmaintenanceguidelines.
Unauthorizedconversionsoralterationsshouldnotbeundertakenonsafety
grounds.
Protectiveequipmentshouldnotbedismantled,convertedorbypassed.
Useofcomponentswhichhavenotbeenmanufacturedordeliveredby
rendersanywarrantynullandvoid.
Theunitshouldonlybeoperatedwithintheprescriptivelimitvaluesandmachine
parameters.
Iforiginalaccessoriesandsparesof WilhelmWagnerGmbH&Co.KG
areused,usabilitywithourunitsisguaranteed.Itis,however,mandatoryto
respectthesafetyregulationsoftheaccessoriesandspareparts.Thesesafety
regulationsarefoundinthecorrespondingusermanualsfortheaccessories.
Ifforeignaccessoriesorsparepartsareused,thecompany cannotguar-
anteethesafetyoftheentiresystem.Similarlyliabilityisnullandvoidfordam-
agesorinjuriesincurredthroughuseofthoseaccessoriesandspareparts.
Dependingonwhichmaterialsareprocessed,hazardousfumesmaybegener-
ated.Forthispurpose,alwaysensureforsufcientaerationandventilationatthe
workplaceforavoidingdamagetoyourhealthandproperty.Youshouldalways
followtheprocessinginformationissuedbythematerialmanufacturers.
Thesoundpressurelevelofthisunitislessthan85db(A).
However,operatingpersonnelshouldstillbeprovidedwithsuitablenoiseprotec-
tionequipment.Theoperatorisresponsibleforadheringtonoiseandvibration
protectionregulations.Forthispurpose,payspecialattentiontotheconditionsof
thesettinguplocation,e.g.willthenoiseexposureincreaseifthesystemisset
upinoronhollowbodies.
3.1 Intended
use of the
machine
3.2 Notes on
warranty
Dangers from accessories
and spares
3.3 Machine
surroundings
3.3.1 Emissions
3.3.2 Sound pressure
level

Translation of the original Operation Manual 3-2
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
MachineDescription
Thesystemsleavethefactoryinawlessconditionandareappropriatelypacked
for transport.
➤Uponarrivalyoushouldchecktheunitforanyapparenttransportdamage.
➤PleasecontacttheWIWAcustomerserviceifyoudetectanydamageonthe
packagingorontheequipment.
➤Disconnecttheentirepowersupplyforthemachine,evenforshorttransport
distances.
➤Emptythemachinebeforetransport.
➤Donottransportanyotherobjects(e.g.materialdrums)whileliftingorloading
themachine.
➤Removeallloosecomponents(e.g.tools)fromtheunit.
➤Cautionwhenloadingwithhoistinggear!
➤Ensuresufcientloadbearingcapacityofliftinggearandliftingtackle
whenloadingthemachine.
➤Neverstandundersuspendedloadsorinsidetheloadingarea.
Thisposesadangertolife!
➤Youwillndthedimensionsandweightsoftheequipmentonthemachine
card.
➤Securetheloadonthetransportvehicleagainstslippingandfallingoff.
➤Partsorequipmentthathavebeenremovedfortransportpurposesmustbe
attachedprofessionallyandinaccordancewiththeintendedusebeforecom-
missioning.
➤The DUOMIXPU280canbeinstalledinsideandoutsidespray
boothsandrooms.However,outdoorinstallationshouldbepreferredinorder
toavoidcontamination.
➤Themachinemustonlybetakenintoserviceunderfrostfreeweathercondi-
tions,toavoidcrystallizationofmaterialandthusdamagetotheequipment.
➤Thissystemrequiresasolidbaseandsufcientfreespaceforsafeoperation.
Theaccesstothesafetyfeaturesmustbekeptclear.
➤Alwayskeeptheworkingarea,especiallyallwalkwaysandstandingareas,
cleanandtidy.Cleanupspilledpaintorcleaningagentsimmediately.
➤Alwaysensureforsufcientaerationandventilationattheworkplacetoavoid
damagetohealthandmaterialobjects.
Alwaysobservetheprocessinginstructionsissuedbythematerialmanufac-
turers.
➤Protectaobjectsadjacenttothesprayingobjectagainstpossibledamage
causedbythepaintmist.
➤Theownermustprotecttheentiresystembyundertakingappropriatelightning
protectionmeasures.
➤Protecttheequipmentagainstrainandwetness.Donotstoreoutside.
➤Strictlycomplywiththevalidaccidentpreventioninstructions.
3.4 Trans-
porting the
machine and
additional
equipment
3.5 Place of
installation of
the machine

Translation of the original Operation Manual 3-3
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
MachineDescription
➤Storethemachineinafrost-free,vibrationfree,dryandpossiblydustfree
environment.
➤Themachineanditsimplementsmustundernocircumstancesbestored
outsideclosedrooms.
➤Cleantheunitthoroughlyofallmaterialresidues.
➤Disassembletheentireunitandseparatethematerials.
➤Takemetalpartstoscrapmetalservices.
➤Plasticpartscanbedisposedofthroughthehouseholdwaste.
➤Restsofsprayingmaterial,cleaningagent,oils,greasesandotherchemical
substancesmustbecollectedinaccordancewithstatutoryprovisionscon-
cerningrecyclingandwastedisposal.
Theofciallocalwastewaterlawsarevalid.
withfeedpumps
➤Diaphragmpumps
(Figure 3.1)
Figure 3.1
for200l/52,80gal
drums
optionallywith:
➤Circulation
➤Relief
3.6 Storing the
machine and
additional
equipment
3.7 Disposal of
the machine
and addition-
al equipment
3.8 System
variants

Translation of the original Operation Manual 3-4
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
MachineDescription



Poly
Iso



















Iso Poly














Figure 3.2



Poly
Iso



















Iso Poly














Figure 3.3
3.9 System
description
3.9.1 Without
circulation
3.9.2 With circulation

Translation of the original Operation Manual 3-5
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
MachineDescription
(Figure 3.2) + (Figure 3.3)
Afeedpumpmustbeplacedintothedelivereddrum(200lbungholebarrels)of
eachcomponent.
WerecommendtoequipthedrumwiththeIso-component(isocyanate)withan
additionalsilicagellter,topreventthematerialfromreactingwithhumidityand
thuscrystallizationofthematerial.

Bothcomponentsarefedtothemeteringpumpandexactlymeteredwiththe
respectivemixingratio(seemachinecard).

Eachcomponentisindividuallyheatedtotherequiredprocessingtemperaturein
amaterialowheater.Thetemperatureisautomaticallyregulatedinaccordance
withthetemperaturesetting.Presettoptemperaturelimitsmakesurethatthema-
terialwillnotbeoverheated.Forshortbreakstheheatingmayremainswitched
on.
Afterthematerialowheater,thematerialarrives:
a) forspraying:tothespraygun
b) toventthesystem:backintothedelivereddrum(onlyoptional).

Whensprayingthematerialisdirectedthroughtheheatedhosepackagetothe
spraygun.Thehosepackagecontainsacompressedairlinetosupplythespray
gunwithcompressedair,aswellasamaterialhoseforeachcomponentwitha
3mwhipend.Thetemperaturesensorisintegratedinthewhipend.

Mixingofmaterialonlytakesplaceinthepneumaticallycontrolledspraygun,the
spraypatterncanbepneumaticallyinuencedwiththejetregulatingscrew,as
required.
Thematerialowiscontrolledbyopeningandclosingthemixingchamber.With
thespraygunclosedthematerialresidueinthemixingchamberismechanically
forcedout.Amaterialplugthatmaypossiblybestuckintheoutletopeningcanbe
removedwiththehelpofcompressedair.
(Figure 3.2) + (Figure 3.3)
Thecompressedairsupplyprovidedbythecustomerisconnectedtothemain-
tenanceunitoftheequipment.Fromtherethecompressedairisdirectedtothe
meteringpump,thefeedpumpsandthespraygun.Therequiredworkingpres-
sureforthefeedpumps,spraygunandmeteringpumpcanberegulatedbythe
pneumaticregulatorsonthecontrolcabinet.Themaximumoperatingpressures
musttherebybecompliedwith(seechapter:“13.1 Technical data”, p. 13-1
(Figure 3.2) + (Figure 3.3)
Thetemperaturesforbothmaterialowheatersandforthehosepackagearead-
justedatthecontrolcabinetoftheequipment.Theautomatictemperaturecontrol
preventsoverheatingofthematerial.
3.9.3 Material ow
Attention!
Ensurecorrectcomponent
allocationatalltimes!
red =
Iso
components
(isocyanate)
blue =
Poly
components
(Polyol)
3.9.4 Compressed air
control
3.9.5 Temperature
control

Original Operation Manual 3-6
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
MachineDescription
42
12
11
4
4.1
4.2 4.3
4.4
1
7Iso
1.1
9Iso
1.2Iso
10Iso
10 Poly
9Poly
1.2Poly
8Iso
8Poly
3
5
6
6.1
6.2
Poly+Iso
7Poly
7.3
7.1
7.2
3
3.1
Iso
3.1
Poly
3.5
Poly
3.5
Iso
3.2
Iso
3.2
Poly
3.3
Iso 3.3
Poly
3.6
Poly
3.6
Iso
3.4
Figure 3.4
3.10 System
components
Position Description
1Metering pump
1.1 Airmotor
1.2 Material pump
2Controlcabinet(seechapter“3.11 Control
cabinet”, p. 3-7)
3Distributor
3.1 Materialhoseconnection
3.2 Material pressure gauge
3.3 Connectionmaterialhose-hosepackage
3.4 Connectioncompressedairhose-spraygun
3.5 Pressureswitch
3.6 Returnow/reliefhosewithmaterialshut-off
valve(optionalforcirculation/relief)
4Maintenanceunit
4.1 Compressedairconnection
4.2 Connectioncompressedairlineforspray
gun
4.3 Connectioncompressedairlineforcontrol
air of air motor
4.4 Connectioncompressedairlineforcontrol
unit(meteringpump+feedpump)
Position Description
5Heatedhosepackage
6Reverseowspraygun(seechapter“11.3
Spray gun”, p. 11-5)
6.1 Connectioncompressedairhose
6.2 Connectionofheatedhosepackage
77.1 Compressedairshut-offvalve/connection
compressedairline
7.2 Materialdischarge
7.3 Materialintakewithcheckvalveandmaterial
screen
8Dirttrap
9Releaseagentcontainer
10 Receptacle
11 MaterialFlowHeater
12 Rack

Original Operation Manual 3-7
•1307_PU280_SV1018DV1020_BAoDB_en•ski
en
MachineDescription
1
2
3
4
5
6
7 8 9 10
1311 12
Figure 3.5 400 V
10987
46 5
1
11
2
3
12
13
Figure 3.6 230V
Position Description
1Compressedairregulatorspraygun
2 Compressedairregulatorfeedpumps
3 Compressedairregulatormeteringpump
4Button“SYSTEMON”
5 Display
6 Buttonresetmalfunction
7 Heatinghosepackage“ON/OFF”
8 Masterswitch
9 Materialowheater“ON/OFF”,componentPoly
10 Materialowheater“ON/OFF”,componentIso
11 Compressedairpressuregaugespraygun
12 Compressedairpressuregaugefeedpumps
13 Compressedairpressuregaugemeteringpump
3.11 Control
cabinet
3.11.1 Components
on the control
cabinet
