Yardistry YM11772 User manual

12’ x 14’ MERIDIAN GAZEBO
with ALUMINUM ROOF
Installaon and Operang Instrucons – YM11772
Yardistry – North America
Toll Free Customer Support: 1.888.509.4382
[e-mail]
www.yardistrystructures.com
Yardistry / Selwood Products – Europe
Customer Support: [phone]
[e-mail]
www.selwoodproducts.com
Revised 09-11-2018
HEIGHT:
10’3” / 3.124m
14’ 1”
4.29 m
12’ 1”
3.69 m

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chimnea for
safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OHSA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
It is important during assembly to closely follow the instructions, complete the assembly
on a solid level surface and that you follow the instruction to square up, level and anchor the
structure, this will reduce the gap at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not affect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
General Information

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacment of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not affect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not affect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• Claw Hammer
• 7/16” & 9/16” Wrench
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Rachet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and efcient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.
Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
Post to Post
10’ 10-3/8”
Plinth to Plinth
9’ 8-7/8”
Post to Post
12’ 10-3/8”
Plinth to Plinth
11’ 8-7/8”
15’ 5-1/4”
Post to Post
(3.58 m)
(2.97 m)(3.31 m) (4.7 m)
(3.92 m)

7 [email protected]
Permanent Installation Examples cont.
Anchoring Hardware not included
Anchoring Hardware not included
Anchoring Hardware (not included)
Post
Mount
Post Mounts have a 1/2” diameter
hole for anchoring hardware.
Concrete Patio [min. 11’ 11” x 13’ 11” (3.63 m x 4.24 m)] with 6” (1.83 m) clearance on all sides
Wood Deck [min. 11’ 11” x 13’ 11” (3.63 m x 4.24 m)] with 6” (1.83 m) clearance on all sides

8 [email protected]
Y70131-696
152.4 x 152.4 x 2336.8mm (6 x 6 x 92")
4pc. (696) - M Post
Y70131-706
34.9 x 190.5 x 1015mm (1-3/8 x 7-1/2 x 40")
4pc. (706) - Gusset Left
38.1 x 139.7 x 780.6mm (1-1/2 x 5-1/2 x 30-3/4")
4pc. (724) - Beam Long End
Y50131-724
Y50131-422
19.1 x 133.4 x 190.5mm (3/4 x 5-1/4 x 7-1/2")
16pc. (422) - Plinth
Y70131-705
34.9 x 190.5 x 1015mm (1-3/8 x 7-1/2 x 40")
4pc. (705) - Gusset Right
38.1 x 139.7 x 2587.5mm (1-1/2 x 5-1/2 x 101-7/8")
2pc. (723) - Beam Long Centre
Y50131-723
Y50131-722
38.1 x 139.7 x 2074.4mm (1-1/2 x 5-1/2 x 81-11/16")
2pc. (722) - Beam Long Right
Y50131-712
38.1 x 139.7 x 558.6mm (1-1/2 x 5-1/2 x 22")
4pc. (712) - Beam Short End
Y50131-714
38.1 x 139.7 x 1769.7mm (1-1/2 x 5-1/2 x 69-11/16")
2pc. (715) - Beam Short Right
38.1 x 139.7 x 1769.7mm (1-1/2 x 5-1/2 x69-11/16")
2pc. (714) - Beam Short Left
Y50131-715
Y50131-713
38.1 x 139.7 x 2422.1mm (1-1/2 x 5-1/2 x 95-3/8")
2pc. (713) - Beam Short Centre
Y50131-721
38.1 x 139.7 x 2074.4mm (1-1/2 x 5-1/2 x 81-11/16")
2pc. (721) - Beam Long Left
Y70131-785
152.4 x 152.4 x 2336.8mm (6 x 6 x 92")
1pc. (785) - Post with Electrical
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly.Actual dimensions may be smaller or larger.

9 [email protected]
Strap
31.8 x 82.6 x 2603.5mm (1-1/4 x 3-1/4 x 102-1/2")
2pc. (437) -
Y50131-437
Y50131-461
31.8 x 88.9 x 2336.8mm (1-1/4 x 3-1/2 x 92")
2pc. (461) - Tie
Strap Brace
31.8 x 82.6 x 574.7mm (1-1/4 x 3-1/4 x 22-5/8")
2pc. (433) -
Y50131-433
Strap Short - Large Roof
31.8 x 82.6 x 2170.9mm (1-1/4 x 3-1/4 x 85-7/16")
2pc. (430) -
Y50131-430
Y50131-432
31.8 x 82.6 x 1605.6mm (1-1/4 x 3-1/4 x 63-3/16")
2pc. (432) - Strap Right - Large Roof
Y50131-431
31.8 x 82.6 x 1605.6mm (1-1/4 x 3-1/4 x 63-3/16")
2pc. (431) - Strap Left - Large Roof
Rafter
31.8 x 76.2 x 1915.4mm (1-1/4 x 3 x 75-3/8")
6pc. (440) -
Y50131-440
Spacer Top
31.8 x 81.6 x 574.7mm
(1-1/4 x 3-3/16 x 22-5/8")
1pc. (463) -
Y50131-463
Y50131-434
31.8 x 93.8 x 577.9mm
(1-1/4 x 3-11/16 x 22-3/4")
2pc. (434) - Top
Rafter Corner Left
25.4 x 88.9 x 2601.9mm
(1 x 3-1/2 x 102-7/16")
4pc. (438) -
Y50131-438
Rafter Short Right
31.8 x 76.2 x 1040.2mm
(1-1/4 x 3 x 40-15/16")
4pc. (442) -
Y50131-442
Rafter Corner Right
25.4 x 88.9 x 2601.9mm (1 x 3-1/2 x 102-7/16")
4pc. (439) -
Y50131-439
Y50131-441
31.8 x 76.2 x 1040.2mm
(1-1/4 x 3 x 40-15/16")
4pc. (441) - Rafter Short Left
Y50131-436
38.1 x 82.6 x 2157.7mm
(1-1/2 x 3-1/4 x 84-15/16")
2pc. (436) - Fascia Right - Large Roof
Fascia Left
38.1 x 82.6 x 1853mm(1-1/2 x 3-1/4 x 72-15/16")
2pc. (443) -
Y50131-443
Fascia Right
38.1 x 82.6 x 1853mm
(1-1/2 x 3-1/4 x 72-15/16")
2pc. (444) -
Y50131-444
Fascia Left - Large Roof
38.1 x 82.6 x 2157.7mm
(1-1/2 x 3-1/4 x 84-15/16")
2pc. (435) -
Y50131-435
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
Strap Short
31.8 x 82.6 x 1561.3mm (1-1/4 x 3-1/4 x 61-7/16")
2pc. (337) -
Y50131-337

10 [email protected]
24pc. Hex Lag Screw 1/4 x 1-15/16" with #12 Shank - (Y06218-219)
8pc. Hex Bolt 5/16 x 1-1/4" - (Y07718-311)
Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
40pc. Wood Screw #7 x 3/4"
(Y06091-003)
4pc. Pan Screw #10 x 2-1/2" - (Y06491-722)
16pc.
3/8 x 1-1/4" Large Washer
(Y05118-811)
16pc. Hex Bolt 5/16 x 3-3/4" - (Y07718-333)
8pc. Hex Bolt 5/16 x 3" - (Y07718-330)
112pc.
1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
1pc. - 1/8" Drill Bit
(Y00400-002)
84pc. Wood Screw #8 x 2 1/2" - (Y06091-522)
1pc. #2 x 2" Robertson Driver (Y00400-005)
60pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
56pc. 5/16 - T-Nut
(Y08518-300)
8pc. - 3/8" Lock Nut
(Y08318-803)
24pc. Hex Bolt 5/16 x 1-1/2" - (Y07718-312)
56pc. 5/16" Lock Washer
(Y05318-300)
8pc. Lag Screw 5/16 x 4-3/4" - (Y06218-343)
3/8 x 9-1/2"
8pc. Hex Bolt
(Y07718-892)
24pc. Pan Screw #8 x 1"
(Y06491-510)
240pc. Hex Roofing Screw #8x 1"
(Y06733-510)
24pc. Sheet Metal Screw
#8 x 3/4"
(Y06433-503)
12pc. 1/4 x 2-3/4 Hex Bolt - (Y07718-223)
42pc. Pan Screw #12 x 1-1/2"
(Y06491-612)
168pc. Wood Screw #8 x 1-1/2"
(Y06091-512)
79pc. Wood Screw #8 x 2 1/4" - (Y06091-521)
1pc. - Hex Driver
(Y00400-004)
12pc. - 1/4" Lock Nut
(Y08318-203)

11 [email protected]
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identification ( )
1pc. - Roof Peak Set
(Y70829-125)
1pc. - Roof To Beam
Bracket Set (14Pk)
(Y70829-123)
2pc. Roof Edge Right 96.2 - (Y01033-136)
2pc. Roof Edge Right 72.2 - (Y01033-135)
4pc. Roof Edge Left 72.2 - (Y01033-134)
1pc.
Peak Cap Long (Y01033-137)
1pc.
1/4" Eye Lag
(Y00218-001)
2pc.
Contoured Washer
(Y05918-211)
1pc. - Post
Mount Set (8Pk)
(Y70819-109)
4pc.
Roof Peak Bracket
(Y00429-125)
1pc.
Tie Wrap Bracket (4Pk)
(Y70829-106)
1pc. - Roof To Post
Bracket Set (4Pk)
(Y70829-070)
2pc. Long Beam Insert - (Y00429-234)
2pc.
Peak Post
(Y01000-094)
2pc.
1/4" Nut
(Y08490-200)
2pc.
Spring Clip
(Y09490-001)
2pc.
Peak Loop
(Y20018-003)
2pc.
Carriage Bolt
(Y07428-260)
1pc. - Weather Seal -
Ridge Clip (8Pk)
(Y70818-074)
1pc. - Gazebo ID Plaque
(Y70800-104)
4pc. - Short Panel Left
(Y01033-126)
4pc. - Long Panel Left
(Y01033-127)
2pc. - 50mm
Hook
(Y00418-050)
1pc. - Corner Cap Set (4Pk)
(Y70833-103)
1pc. - Roof Panel Set
(Y70833-138)
4pc. - Short Panel Right
(Y01033-128)
4pc. - Long Panel Right
(Y01033-129)
2pc. - Middle Panel
(Y01033-130)
4pc.
Ridge Cap Short 25.2
(Y01033-132)
8pc. Ridge Clip 102.5 - (Y01033-133)
4pc.
Ridge Cap Long 81.5
(Y01033-131)

12 [email protected]
PRODUCT NUMBER: YM11772
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI
warnings; notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four
people, DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check
for gas, telephone, other utilities or sprinkler line locations prior to excavating any
holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if
you contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your
assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

13 [email protected]
Step 2: Post Assemblies
HardwareWood Parts
Fig. 2.2
(422) Plinth
Top
Bottom #8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
bottom)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
Post
Mount
Fig. 2.3
16 x #10 x 1-1/4” Pan Screw
80 x #8 x 1-1/2” Wood Screw
8 x Post Mount
8 x 5/16” T-Nut
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer)
Fig. 2.1
Post
Mount
Rounded
Edge on Top
Fig. 2.4
Post
Mount
#10 x 1-1/4” Pan Screws (x 2
per Post Mount, from inside)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4”
Hex Bolt
5/16” T-Nut (x 2
per Post)
Post
Mount
A: At the bottom of four (696) M Posts insert two 5/16” T-Nuts as shown in g. 2.1 and 2.2.
B: At the bottom of each (696) M Post place two Post Mounts tight to the bottom and inside faces as shown in g.
2.1 and 2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16” large washer) per
mount so they connect to the T-Nuts.
C: On each side of the Posts, place one (422) Plinth ush to the bottom and attach with four #8 x 1-1/2” Wood
Screws per plinth. Rounded edges on top. (g. 2.1 and 2.3)
D: From the bottom of each Post Mount attach to posts with two #8 x 1-1/2” Wood Screws per mount and then from
the inside with two #10 x 1-1/4” Pan Screws per mount These screws are installed at a slight angle. Tighten all
bolts. There will be four M Post Assemblies. (g. 2.4)
4 x (696) M Post
16 x (422) Plinth
(696) M Post
(696) M Post
(696) M
Post
(696) M Post

14 [email protected]
5/16”
T-nut
Step 3: Short Beam Assembly
Part 1
HardwareWood Parts
A: Connect one (714) Beam Short Left and one (715) Beam Short Right using two 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 3.1 and 3.2.
B: Connect one (712) Beam Short End to each end of one (713) Beam Short Centre using two 5/16 x 1-1/2” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in g. 3.1 and 3.2.
C: Repeat Steps A and B one more time to make two Short Beam L-R Assemblies and two Short Beam End
Assemblies.
(714) Beam
Short Left
Fig. 3.1
12 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 3.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
(715) Beam
Short Right
(713) Beam
Short Centre
(712) Beam
Short End
5/16” Lock
Washer
(712) Beam
Short End
Make sure bolt heads
are on the outside of
each Beam Assembly
4 x (712) Beam Short End
2 x (713) Beam Short Centre
2 x (714) Beam Short Left
2 x (715) Beam Short Right

15 [email protected]
Hardware
36 x #8 x 2-1/2” Wood Screw
Fig. 3.3
Short Beam
End Assembly
Fig. 3.4
Flush
Short Beam L-R
Assembly
D: Place one Short Beam L-R Assembly tight to one Short Beam End Assembly so the ends are ush. Match
the bolt holes in each (712) Beam Short End with the bolt holes in (714) Beam Short Left and (715) Beam Short
Right. Attach with 18 #8 x 2-1/2” Wood Screws. (g. 3.3 and 3.4)
E: Repeat Step D one more time to make two Short Beam Assemblies.
Flush
Short Beam
End Assembly
Short Beam L-R
Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
(714) Beam
Short Left
(715) Beam
Short Right
(712) Beam
Short End
Match bolt
holes
Step 3: Short Beam Assembly
Part 2
(712) Beam
Short End
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete

16 [email protected]

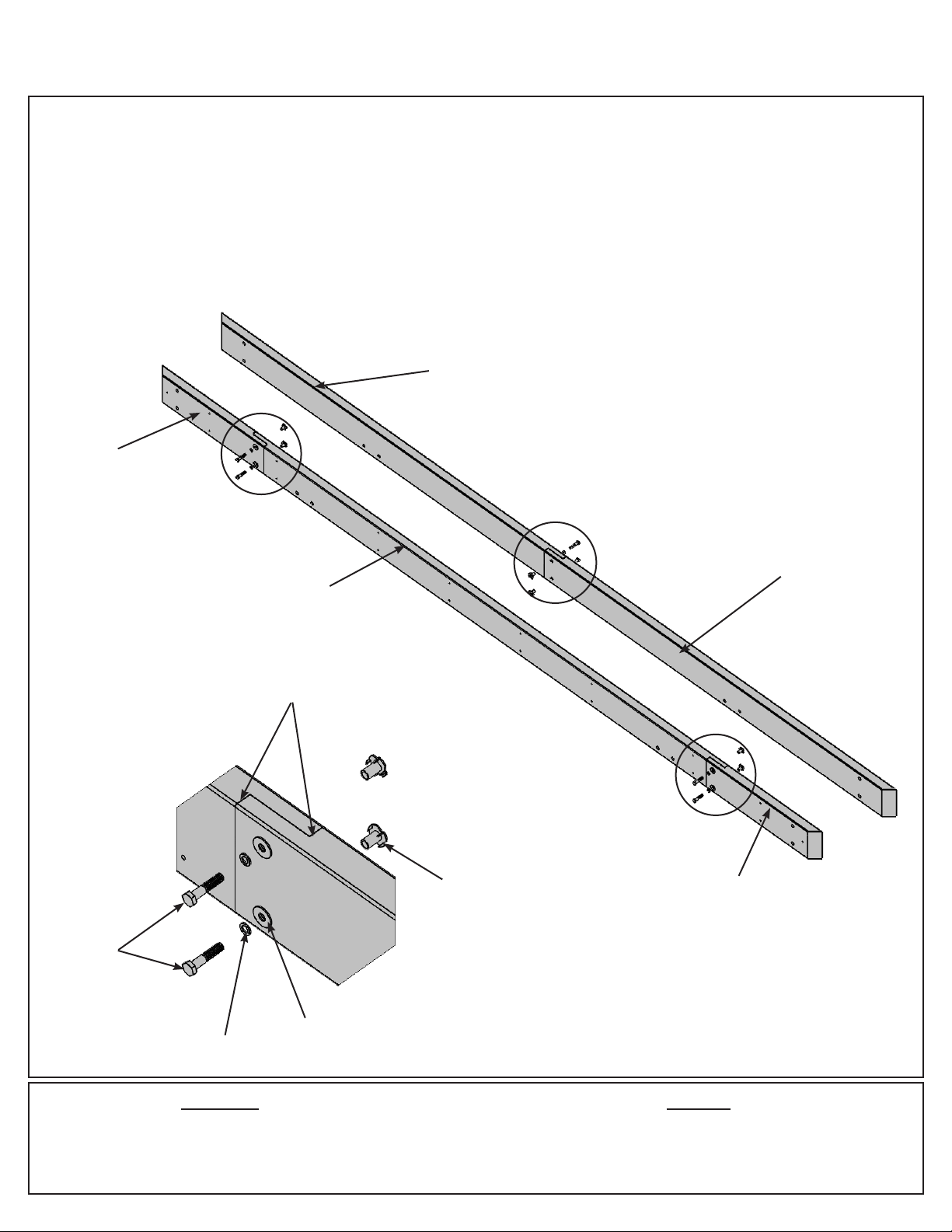

Step 4: Long Beam Assembly
Part 1
A: Connect one (721) Beam Long Left and one (722) Beam Long Right using two 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 4.1 and 4.2.
B: Connect one (724) Beam Long End to each end of one (723) Beam Long Centre using one 5/16 x 1-1/2” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) in the top holes per end as shown in g. 4.1
and 4.2.
C: Repeat Steps A and B one more time to make two Long Beam L-R Assemblies and two Long Beam End
Assemblies.
HardwareWood Parts
4 x (724) Beam Long End
2 x (723) Beam Long Centre
2 x (721) Beam Long Left
2 x (722) Beam Long Right
8 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16”
T-nut
Fig. 4.1
Fig. 4.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
5/16 x 1-1/2”
Hex Bolt
(721) Beam
Long Left
(722) Beam
Long Right
(723) Beam
Long Centre
(724) Beam
Long End
(724) Beam
Long End
Use top
holes
See Part 2
for this piece
Make sure bolt heads
are on the outside of
each Beam Assembly

17 [email protected]
Hardware
32 x #8 x 2-1/2” Wood Screw
8 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
D: Place one Long Beam Insert in between one Long Beam L-R Assembly and one Long Beam End Assembly
then t tight together so the beam assembly ends are ush. Match the bolt holes and wood screw pilot holes in
both beam assemblies and Long Beam Insert. (g. 4.3, 4.4 and 4.5)
E: Attach beam assemblies and Long Beam Insert together with four 5/16 x 3” Hex Bolts (with 5/16” lock washer,
1/4-5/16” large washer and 5/16” t-nut) and 16 #8 x 2-1/2” Wood Screws. (g. 4.5, 4.6 and 4.7)
F: Repeat Step D-E make a second Long Beam Assembly.
Step 4: Long Beam Assembly
Part 2
Align holes in all
3 pieces with 5/16
x 3” hex bolts
Long Beam
End Assembly
Long Beam L-R
Assembly
Long Beam
Insert
Long Beam
End Assembly
Long Beam L-R
Assembly
Long Beam
Insert
Fig. 4.4
Fig. 4.3
Flush
Flush
#8 x 2-1/2”
Wood Screws
(x 16 per
assembly)
Long Beam
End Assembly
Long Beam L-R
Assembly
5/16”
T-nut
1/4-5/16”
Large Washer
5/16 x 3”
Hex Bolt x 4
5/16” Lock
Washer
Long Beam
Insert
Fig. 4.5
Fig. 4.6
Componets:
2 x Long Beam Insert
This bolt was
previously installed
in Step 4, Part 1B
Notice the side the bolts
and screws are installed
in g. 4.3, 4.5, 4.6 and 4.7.
Bolts are on the opposite
side of the screws
Fig. 4.7

18 [email protected]

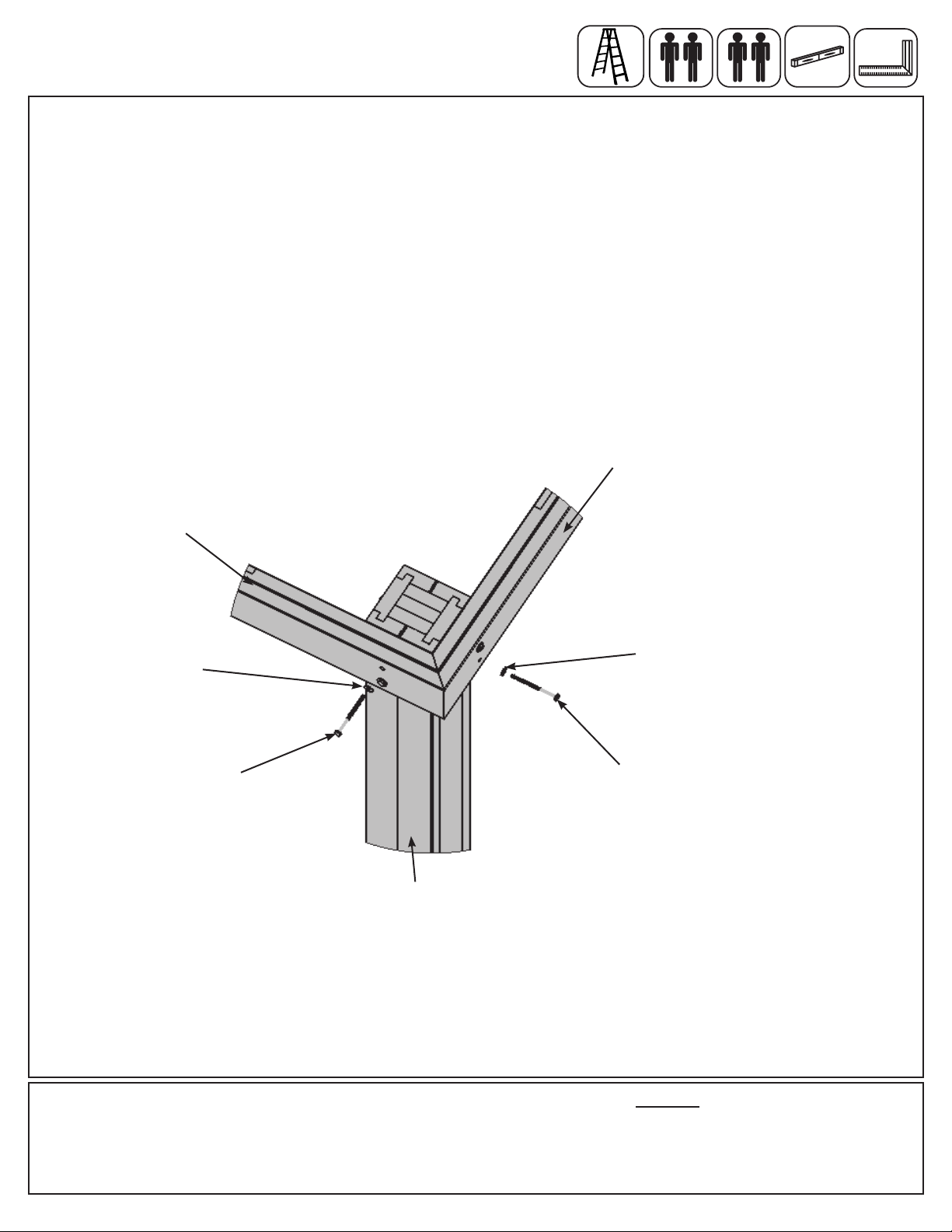

Step 5: Frame Assembly and Anchoring
Part 1
Fig. 5.1
A: Move your Post Assemblies to the nal location.
Make sure the ground is at and level before
continuing assembly.
B: With one person at each Post stand two complete
Post Assemblies. A third person places one Long
Beam Assembly against the outside of two Posts,
ush to the tops and outside corners. Notice bolt
hole orientation on the Long Beam Assembly and
the long side of the Post Assembly is along the Long
Beam Assembly. A fourth person attaches Beam to
Post with one 3/8 x 9-1/2” Hex Bolt (with two 3/8”
large washers and one 3/8” lock nut) per Post. The
distance from the outside of one Post to the outside
of the second Post should be 12’ 10-3/8” (3.92 m).
(g. 5.1, 5.2 and 5.3)
C: Place one Short Beam Assembly against the
outside of two Posts, ush to the tops and outside
corners and tight to Long Beam Assembly. Notice
bolt hole orientation on the Short Beam Assembly
and the short side of the Post Assembly is along the
Short Beam Assembly. Attach Beam to Post with one
3/8 x 9-1/2” Hex Bolt (with two 3/8” large washers and
one 3/8” lock nut) per Post. The distance from the
outside of one Post to the outside of the second Post
should be 10’ 10-3/8” (3.31 m). Continue until all
four Beam Assemblies are attached and the corners
are tight together. (g. 5.1 and 5.2) See g. 5.3 for
accurate positioning of Posts.
Fig. 5.2
Hardware
8 x 3/8 x 9-1/2” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
3/8” Lock
Nut
3/8” Large
Washer
3/8 x 9-1/2”
Hex Bolt
3/8 x 9-1/2”
Hex Bolt
Long Beam
Assembly
Short Beam
Assembly
Post Assembly
Post
Assembly Post
Assembly
Plinth
Short Beam
Assembly
Long Beam
Assembly
Short Beam
Assembly
3/8” Large
Washer
3/8” Lock
Nut
3/8” Large
Washer
Use top
hole
x 3
Long Beam
Assembly
Use bottom
hole
Fig. 5.3
Post to Post
10’ 10-3/8”
Plinth to Plinth
9’ 8-7/8”
Post to Post
12’ 10-3/8”
Plinth to Plinth
11’ 8-7/8”
15’ 5-1/4”
Post to Post
(2.97 m)
(3.31 m) (4.7 m)
(3.92 m)

19 [email protected]
X
X
X
D: Make sure each corner is square and level then attach Beam Assemblies to Post Assemblies with two 5/16
x 4-3/4” Lag Screws (with 1/4-5/16” large washer) per corner. (g. 5.4)
E: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
8 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
1/4-5/16”
Large Washer
5/16 x 4-3/4”
Lag Screw
5/16 x 4-3/4”
Lag Screw
Fig. 5.4 Long Beam
Assembly
Short Beam
Assembly
Post Assembly
Step 5: Frame Assembly and Anchoring
Part 2
x 3
1/4-5/16”
Large Washer

20 [email protected]
Note: The bevelled ends on each gusset should always face away from the wood it is attaching to.
A: Make sure the assembly is still square and level then facing one Long or Short Beam Assembly place one
(705) Gusset Right on the right hand side so the top ts tight to the Beam Assembly and the bottom ts tight to the
Post Assembly. Attach gusset to Beam Assembly with two 5/16 x 3-3/4” Hex Bolts (with 5/16” lock washer, 1/4-
5/16” large washer and 5/16” t-nut). Pre-drill with a 1/8” drill bit then attach gusset to Post Assembly with three 1/4
x 1-15/16” Hex Lags (with 1/4-5/16” large washer). (g. 6.1, 6.2 and 6.3)
B: Repeat Step A on the left hand side with one (706) Gusset Left. (g. 6.1, 6.2 and 6.3)
C: Repeat Steps A and B for each Beam Assembly/Post Assembly. (g. 6.1, 6.2 and 6.3)
D: At each corner, tight to the outside edges of the joining Beam Assemblies attach one Roof to Post Bracket with
two #10 x 1-1/4” Pan Screws. (g. 6.3 and 6.4)
Step 6: Attach Gussets and Roof Brackets
Fig. 6.1
Tight
Hardware
24 x 1/4 x 1-15/16” Hex Lag (1/4-5/16” large washer)
16 x 5/16 x 3-3/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
8 x #10 x 1-1/4” Pan Screw
4 x Roof to Post Bracket
Fig. 6.2
(705) Gusset
Right
Roof to Post
Bracket
#10 x 1-1/4”
Pan Screw
(706) Gusset
Left
Long Beam
Assembly
Post
Assembly
(705) Gusset
Right
(706) Gusset
Left
Long Beam
Assembly
Post
Assembly Short Beam
Assembly
1/4 x
1-15/16”
Hex Lag
5/16”
T-nut
5/16” Lock
Washer
1/4-5/16”
Large Washer
5/16 x 3-3/4”
Hex Bolt
5/16 x 3-3/4”
Hex Bolt
Fig. 6.3
Fig. 6.4
(706)
Gusset
Left (706) Gusset
Left
(706) Gusset
Left
(705)
Gusset
Right
(706) Gusset
Left
Short Beam
Assembly
Long Beam
Assembly
Short Beam
Assembly
1/4-5/16”
Large Washer
1/4-5/16”
Large Washer
1/4 x
1-15/16”
Hex Lag
(705) Gusset
Right
(705) Gusset
Right
(705)
Gusset
Right
4 x (705) Gusset Right
4 x (706) Gusset Left
Wood Parts
