Zcom SP220V2 Series User manual

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
1

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
1
Package Contents
One outdoor access point
One clamp
Waterproof cable gland (*Note)
One ground wire
One mounting bracket
+ Four screws
Waterproof cable gland for
fiber port (*Note)
One quick setup guide
Note: SP220V2 and SP220V2-E both provides two waterproof cable glands, and SP220V2-F
provides one waterproof cable gland and one waterproof cable gland for fiber port.
Installation Requirements
TERMS OF USE: All Ethernet cabling runs must use CAT5e, 24 AWG (or above) Shielded Twisted
Pair (STP) cabling. In addition, please cut the cable into a proper length, strip the cables on both
ends, and crimp the wires into RJ45 connectors. It is the professional installer’s responsibility to
follow local country regulations, including operation within legal frequency channels, output power,
indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.
Mounting the Access Point on the Pole
Place the mounting bracket to the device using
four screws (included in the packaging).
Securely tighten the screws.
Attach the clamp to encircle pole and
the mounting bracket. Securely tighten
the clamp.
Note: Avoid having obstacles or metal plates surround the access point.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
2
Two-dimensional Mounting Kit (Optional accessory_SP-MKM5)
Pole-Mount
Attach the intermediate steel plate to the
device using four M5 screws (included in
the packaging). Securely tighten the
screws.
Attach the two-dimensional mounting bracket
to the intermediate steel plate using four M4
screws (included in the packaging). Securely
tighten the screws.
Attach the pole-supported bracket and align the area where the flat head screws will be
attached. Insert two flat head screws into two-dimensional mounting bracket, and tighten
them approximately.
Note: The pole-supported bracket can accommodate up to 6 cm (2.36”) in diameter.
Wall-Mount
Separate it into two parts: half-mounting
bracket and M-type bracket and unscrew
four hex head machine bolts on the two-
dimensional mounting bracket.
Attach the intermediate steel plate to the device
using four M5 screws (included in the
packaging). Securely tighten the screws.
Attach half-mounting bracket to the
device with intermediate steel plate using
four M4 screws (included in the
packaging). Securely tighten the screws.
Attach M-type bracket to the device onto the
wall, using four M5 screws + screw anchors
(included in the packaging). Securely tighten the
screws.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
3
Attach half-mounting bracket to the M-type bracket, then screw four hex head machine bolts.
Securely tighten the screws.
Anti-theft steel rope (Optional accessory_SP-CBM5)
Insert three anti-theft screws (included in the
packaging) to the device through the mounting
bracket. Securely tighten these three screws.
Attach the clamp to encircle pole and the
mounting bracket. Securely tighten the clamp.
Firstly, encircle the Anti-theft steel rope as
following left diagram, then encircle on the
pole. Secondly, insert the last anti-theft screw
(included in the packaging) to the device with
anti-theft steel rope. Securely tighten the screw.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
4
External 5GHz directional-antennas-15dBi for SP220V2-E
(Optional accessory_ANT-D5G-15)
Attach the antenna above the device and
unscrew two bolts and take pole lock frame off
on the directional-antenna.
Attach the pole lock frame and screw two
bolts back. Tighten them approximately.
Attach two 1.5M N-type cables to the reserved antenna jacks, and connect to the directional
antenna.
Spec: Linear,
±
45°, Horizontal Beamwidth 3dB: 60°, 6dB: 90°, IP55 Waterproof
Note: In order to prevent the radio inflection, it is recommended to power the device
after rotate the antenna.
Note: Before screw the directional-antenna, please reserve 15 cm between the device and
directional-antenna.
Note: The pole lock frame can accommodate 3.81~7.62 cm (1.5’’~3’’) in diameter.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
5
External 5GHz directional-antennas-23dBi for SP220V2-E
(Optional accessory_ANT-D5G-23)
Align the antenna mount with antenna; screw tightly all four screws.
Unscrew the screws on the two U-bolts,
then attach the pole and align two U-bolts
with plates. Screw the screws tightly.
Attach two 1.5M N-type cables to the reserved
antenna jacks, and connect to the directional
antenna.
Grounding Connection & Protect from Lightning
1. Make your device GND port connect to ground wire.
2. The ground wire connects to the earth. In addition, the
grounding wire meets to 6-AWG copper grounding wire.
Spec:
Dual linear,
±
45°, HPBW/Horizontal 10°, HBPW/Vertical
10°, IP65 Waterproof
Note: Before screw the directional-antenna, please reserve 15
cm between the device and directional-antenna.
Note: To prevent radio inflection, it is recommended to power
the device on after rotate the directional-antenna.
Note: Be sure that grounding is available and that it
must comply with local and national electrical codes.
For additional lightning protection, use lightning rods
and lightning arrestors.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
6
Safety Notice
1. Do not install the device close to any electrical grounding device or lightning protection system.
Place the device’s own grounding and lightning protection system apart from any electrical
grounding device and lightning protection system as far as possible.
2. Protect components from electrostatic discharge: Please wear an ESD wrist strap or handle the
power adapter by its edge and do not touch any component or printed circuit boards,
especially for module device.
3. Make sure to keep the temperature and humidity of the installation location at an optimal
level.
4. An excellent grounding system guarantees the stable operation of device, as well as to protect
device from lightning, interference and electrostatic discharges.
5. If installed outdoors, the device may be damaged by lightning. We recommend that you install
additional lightning protection devices if necessary, considering the conditions in your area.
6. Supply stable power to the device. Unstable power may cause the device to malfunction. The
device supports PoE power supply and is recommended if the device is installed near grid lines
within less than 100 meters radius.
Installing a Waterproof Cable Gland for Ethernet Port
(Optional accessory_ SP-WP-CM20)
Dismantle all the components of waterproof cable gland, and plug the
cable through it. Thread and assemble one by one: (1) sealing nut (2)
plastic ring (3) rubber (4) locking nut. Securely tighten all the components.
Installing a Waterproof Cable Gland for Fiber Port of SP220V2-F
(Optional accessory_ SP-WP-CM28SFP)
Dismantle all the components of waterproof
cable gland, and plug the cable through it.
Assemble all the components together;
securely tighten the main unit and the
sealing nut.
Note: For SP220V2-F fiber port version, it is not available for PoE Out function.
Note: For SP220V2-F, it is recommended to purchase 1000BASE-SX SFP transceiver
module, and fiber patch cord for fiber port connection.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
7
Powering the Access Point
Connect the PoE cable into the WAN/PoE IN port of the device.
Warning:Do NOT attempt to connect any non-PoE devices to LAN port and make sure
the input power should comply with PoE Out standard.
LED Indicator
Color
Indicator
Behavior
Description
Red
PWR
Off
Power / system off
Steady
Power / system on
WLAN
Off
2G and 5G WLAN interface disabled
Steady
2G or 5G WLAN interface enabled
Flashing
Sending / receiving data
WAN
Off
No Ethernet connection detected
Steady
Ethernet connection detected
Flashing
Sending / receiving data
Access Point Configuration
In a default access point configuration, the access point default AP mode is TAP mode, and obtains
IP addresses from DHCP Option 43 protocol.
Note: In TAP mode, the AP must be able to go with Wireless LAN Controllers (WLCs) for bulk
configuration and performing other commands of access points. Please refer to WLC QSG for
settings first, then go back to finish the AP configuration.
https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=49
Step 1. Power on the access point. As the status of LED indicator from flashing change to steady
red, the connection is successful.
Note: Please make sure DHCP is enabled on the network once accomplished WLC
settings. The access point must receive its IP address through DHCP.
Note: Switching from DHCP to assign a static IP address or DNS and L2 discovery mode
to the access point, please refer to the user manual for more information.
https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=25
Note: Please wait for 5-10 seconds while powering on.
Note: For PoE Out applications, the LAN port provides DC 48V, Max. 208mA, and up to
10W power supply. The positive side of the 48V is connected to pin 4 and 5, the negative
side is connected to pin 7 and 8.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
8
If the access point cannot connect to the WLC by DHCP broadcast, please refer to the following
optional settings.
Optional: Set up a static IP address
Note: The following procedure assumes that Windows 10 is the operating system.
Procedures for other operating systems are similar.
Step 1. On your computer, configure your network adapter from the “Local Area Connection
“settings as follows:
˙StartControl PanelNetwork & InternetChange Adapter OptionsEthernet
Step 2. Edit the TCP/IPv4 address setting as follows:
˙PropertiesInternet Protocol Version 4 (TCP/IPv4)
Step 3. Select “Use the following IP address”and make the following entries:
˙IP address: 192.168.1.168 (or any available address in the 192.168.1.x network, except
192.168.1.1)
˙Subnet mask: 255.255.255.0
Leave the “Default gateway” and “DNS server” fields empty.
Step 4. Click “OK” to save your changes.
Login into the access point
Step 5. Launch a Web browser; type default URL 192.168.1.1 to connect to the access point.
When a security alert dialog box appears, click OK/Yes to proceed.
Step 6. When login page appears, enter the following: Username: root/Password: password
Step 7. Click login.
Customizing the Wireless Settings
On the Web interface menu, Select StatusGeneral in the menu bar. Check your switchmod item
to select “Connect with via IP”, and setup your WLC IP address on “Wireless Switch Address 1”.
Note: IP address of WLC needs to be assigned (ex. 192.168.1.228) while on operation.
Note: If you need a standalone access point, please change to FAP mode.
FAP Mode
The default AP mode is TAP mode, before FAP configurations please change AP mode.
Step 1. If currently in TAP Mode: On the Web interface menu, click SystemAP mode.
Step 2. Select Fat AP from the drop-down list.
Step 3. Click save & apply to take effect.
Note: For FAP mode, please refer to the user manual for more information.
https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=25

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
9
Mobile APP
Z-COM offers the App for bridge mode settings. Please research and download it to provision.
Technical Specifications
Physical
Dimensions
(L x W x H)
296 x 92 x 283 mm
(11.65 x 3.62 x 11.41 in) Weight 2000 grams (4.4 lbs.)
SP220V2
SP220V2-E
SP220V2-F
WAN/PoE In Port
One 10/100/1000 Mbps
One 10/100/1000 Mbps
One 10/100/1000 Mbps
LAN Port One 10/100/1000 Mbps One 10/100/1000 Mbps One 10/100/1000 Mbps SFP
Antenna
2.4GHz
Embedded 5dBi
omni antennas
Embedded 5dBi
omni antennas
Embedded 5dBi
omni antennas
5GHz
Embedded 6dBi
omni antennas
External
directional antennas
Embedded 6dBi
omni antennas
Power Supply
DC 48V, 0.5A PoE
LAN/PoE Out
48V/10 Watts (Max.), Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power
Consumption Max. 12 Watts
Environmental
Temperature
Humidity
Operating
-40°C to 70°C (-40°F to 158°F)
10% to 90% (Non-condensing)
Storage -40°C to 80°C (-40°F to 168°F) 10% to 90% (Non-condensing)
Compliance
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be located or operating in conjunction with any other
antenna or transmitter.
CE Marking
CE marking on this product represents the product is in compliance with all directives that are
applicable to it.
Note: This device meets Max. TX power limit per ETSI regulations.

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
10
WEEE Compliance Statement
European Directive 2012/19/EU requires that the equipment bearing this symbol on the product
and/ or its packaging must not be disposed of with unsorted municipal waste. The symbol
indicates that this product should be disposed of separately from regular household waste streams.
It is your responsibility to dispose of this and other electric and electronic equipment via
designated collection facilities appointed by the government or local authorities. Correct disposal
and recycling will help prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old equipment, please contact
your local authorities, waste disposal service, or the shop where you purchased the product.
Declaration of Conformity
Hereby, Z-COM, Inc. declares that the radio devices are in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=56
Optional Accessories
PN
Item
SP220V2
SP220V2-E
SP220V2-F
SP-CBM5
Anti-theft steel rope
+ allen wrench + four screws
V V V
SP-MKM5
Two-dimensional mounting kit
• Two-dimensional mounting
bracket
• Pole-supported bracket
• Intermediate steel plate
• Two flat head screws
• Four self-tapping screws
• Four screw anchors
• Four machine screws (M4)
• Four machine screws (M5)
V V V
SP-WP-CM20
Waterproof cable gland
V
V
V
SP-WP-CM28SFP
Waterproof cable gland for
fiber port
V
ANT-D5G-15
15 dBi /5GHz directional-
antenna
+ Two N-type cables
V

SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point QSG
11
PN
Item
SP220V2
SP220V2-E
SP220V2-F
ANT-D5G-23
23dBi /5GHz directional-
antenna
+ antenna Mount
+ Two U-bolts with plates
+ Two N-type cables
V
Contact Information
All information may be changed by Z-COM at any time without prior notice or explanation to the
user. For further information please refer to our website: www.zcom.com.tw
This manual suits for next models
3
Table of contents
Other Zcom Wireless Access Point manuals

Zcom
Zcom AS420 User manual

Zcom
Zcom ZAC Series User manual

Zcom
Zcom XG-580 PLUS User manual

Zcom

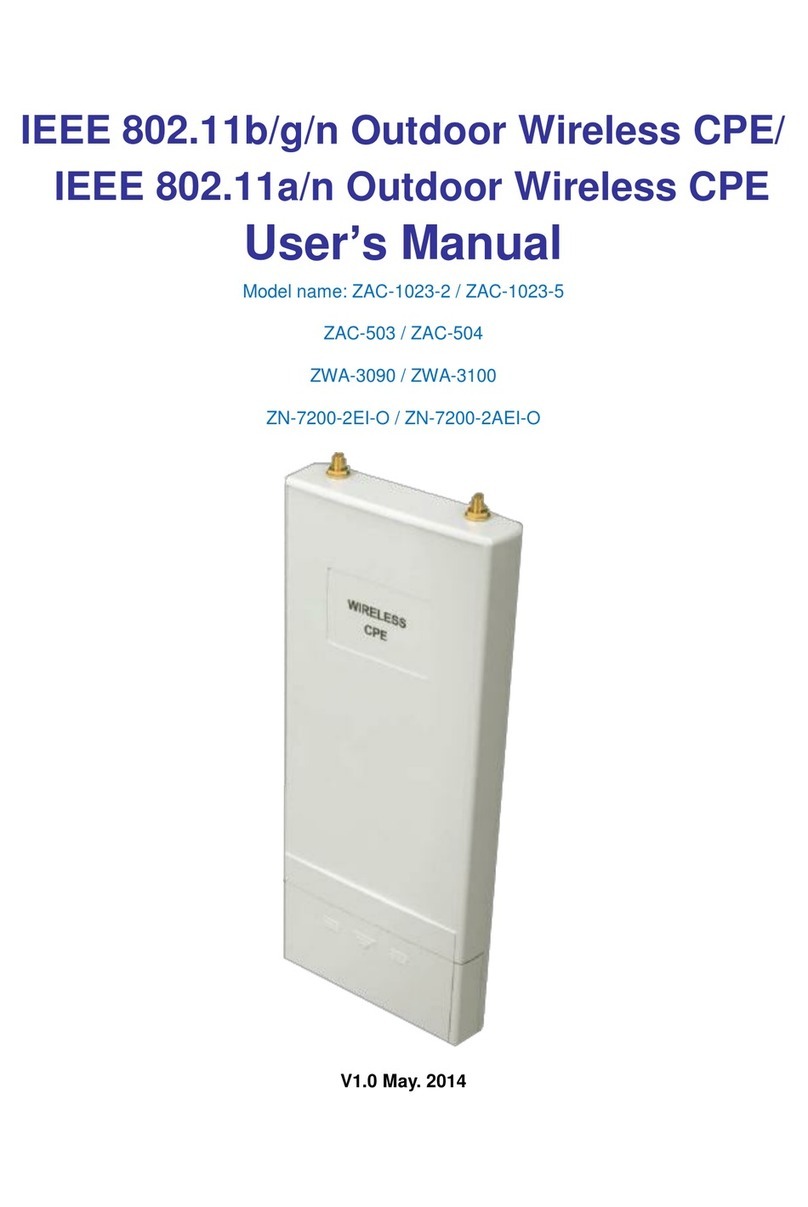

Zcom ZAC-1023-2 User manual

Zcom
Zcom XG-3120 User manual

Zcom

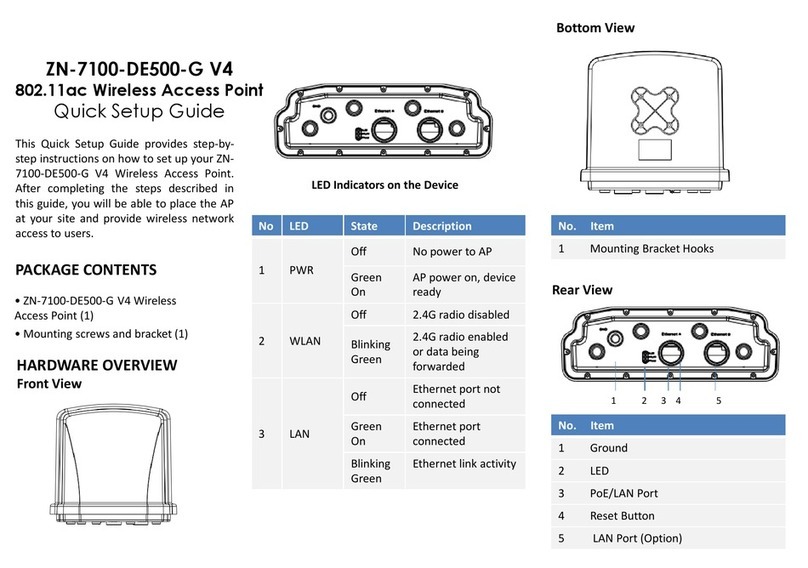

Zcom ZN-7100-DE500-G V4 User manual

Zcom
Zcom AS220V2 User manual

Zcom
Zcom AC-1028 User manual

Zcom
Zcom SP230 Series User manual

Zcom
Zcom AC-1025D User manual

Zcom
Zcom XG-1020 User manual

Zcom
Zcom SP250 User manual

Zcom
Zcom SP420 Series User manual

Zcom
Zcom ZCN-1523H-2-8 User manual

Zcom
Zcom SP230 Series User manual

Zcom
Zcom AS220V2 User manual

Zcom
Zcom XV-5850 User manual

Zcom

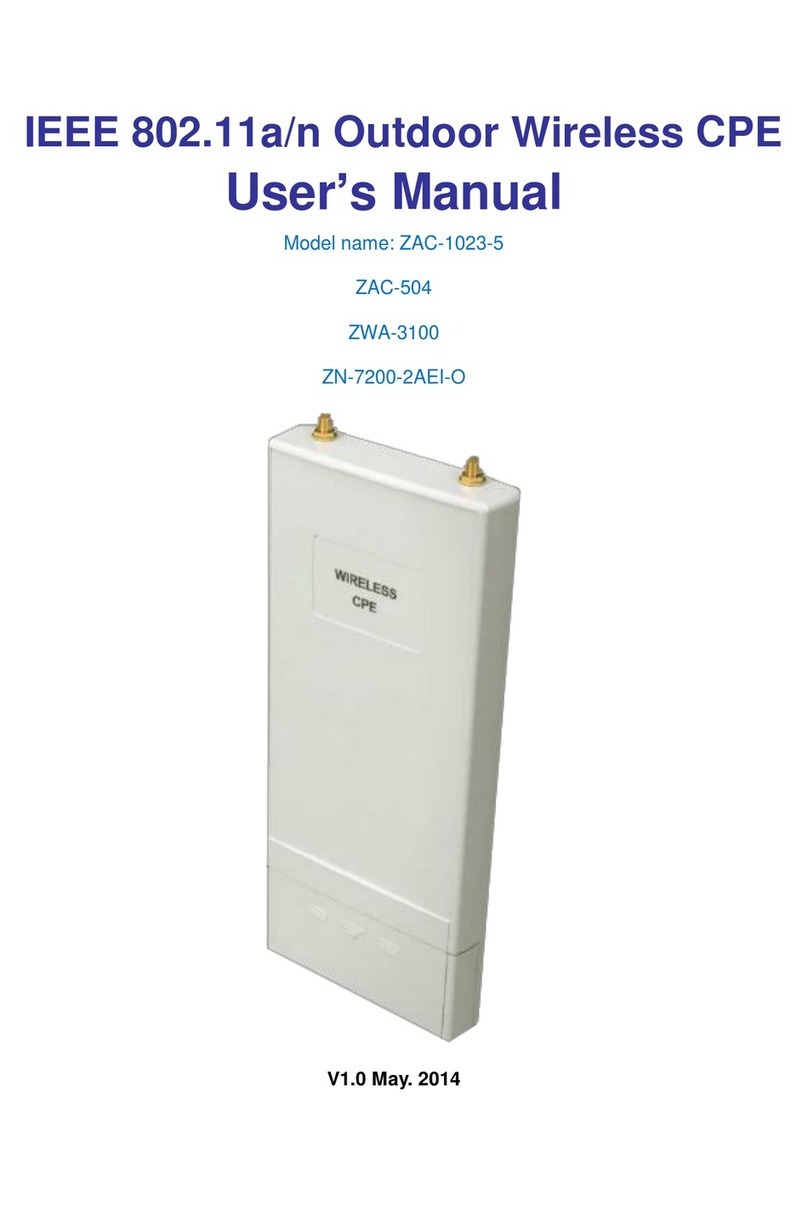

Zcom ZAC-1023-5 User manual

Zcom
Zcom ZAC-1023-2-9 User manual

Zcom
Zcom AS220V2 User manual
