ZCS Azzurro 3000SP User manual

Identificazione: MD-AL-GI-00 Rev. 4.0 del 31.01.18 - Applicazione: GID
Reg. Pile IT12110P00002965 - Capitale Sociale € 100.000,00 I.V.
Reg. Impr. AR n.03225010481 - REA AR - 94189
Azienda Certificata ISO 9001 - Certificato n. 9151 - CNS0 - IT-17778
Zucchetti Centro Sistemi S.p.A. - Green Innovation Division
Via Lungarno, 248 - 52028 Terranuova Bracciolini - Arezzo, Italy
tel. [phone] - fax. [phone]
[e-mail] - [email protected] –www.zcsazzurro.com
3000SP Storage inverter
User Manual
11-06-2019
V1.8 (For firmware version V1.90 or higher)

2 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
Table of Contents
1. Introduction……………………………………………………………………….…………………….….………….………………6
2. Preliminary safety instructions………………………………………...…………………………………….………………..7
2.1 General safety instructions..……………………………………………………..…………..…………….…………….….7
2.2 Instructions on battery installation and maintenance………..………………………..………....………….….8
2.3 Symbols on the inverter…………………………………………….……………………………………….…………..……9
3. Installation………………………………………………………………………...…………………….….……………………..…10
3.1 Product overview……..……………………………………………………………………………………………………….10
3.2 Packing List.…………………………………………………………………………………………………..….……………...11
3.3 Installation environment……………………………………………………………..………………..…..………………12
3.4 Installation tools……………………………….………………………………………….…..…………………………….…12
3.5 Wall installation position..…………………………………………………………………………….……………….…..13
3.6 Mounting instructions………………………………………………………………………………………………..……..14
4. Electrical connections.……………..…………………………………………………………………..………………………..16
4.1 Battery connections…………..……………………………………………………………………….………..…….……...17
4.2 CT / RS485 / NTC Connections…………………………………………..………………………………..…………….17
4.3 Grid Connections……………………………….………………………………..………………………………..…………...20
4.4 Critical Load Connection (EPS function)…………………..…………………….…………………………………..21
5. Indicator lights and buttons.……………………………………………………………………………………..…………...23
5.1 Buttons..……………………………………………………………………………………………………………...…………...23
5.2 Indicator lights.……….………………….…………………………………………………………………………………….23
5.3 Operating Status…………..…………………………………………..………………………………………………...……..24
6. Operation………….…………………………………………………………...………………………………..………..…………..25
6.1 Preliminary checks..…………………………………………………..………….…………………..……….……………..25
6.Procedure for initial set-up…………….……………………………………..……………………..………………………25
6.3 Commissioning….……………………………………………………...……………………………………….……………..30
6.4 Menu.……………………………………………………………………………………………………...………………………..31
6.4.1 Parameter settings……………………..……………………………….…………………………….…………………..31
6.4.2 Event list..……………………………………………………………..………………………………………………………44

3 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
6.4.3 System information…..…………………………………………..……………….………………………..……………..45
6.4.4 Software update……………………………..……………………………………………………………………………..46
6.4.5 Energy statistics.……………………………………………………..…………..…………………………....…………..48
7. Technical specifications.……………………………………………………………………………………………………..…49
8. Troubleshooting and maintenance…………………………………………………………………………….…………..51
Troubleshooting……………………………………………………….………………………….……………………………….51
8.1 Maintenance…...…………………………………………………………………………………….…………………………55
9. Uninstalling…….…………………………………………………………………………………………………….………………56
9.1 Steps for uninstalling the inverter.………………………….…………………………………………………………56
9.2 Packaging……......…………………………………………………………………………………………………….…………56
9.3 Storage…......……..………………………………………………………………………………………………………………56
9.4 Disposal.………………………………………………………………………..……………..…………………….……………56
10. Warranty……………......………………………………………………………………………..………………………………....57

4 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
General instructions
This manual contains important safety instructions that must be followed during installation and
maintenance of the equipment.
Please keep these instructions!
This manual must be considered an integral part of the equipment and must always be available to everyone
who interacts with this equipment. The manual must always accompany the equipment, even when it is
transferred to another user or plant.
Copyright statement
The copyright of this manual belongs to Zucchetti Centro Sistemi S.p.A. No part of this manual may be copied
(including the software), reproduced or distributed in any form or by any means without the permission of
Zucchetti Centro Sistemi S.p.A. All rights reserved. ZCS reserves the right to final interpretation. This manual
is subject to change based on feedback from users, installers or customers. Please check our website at
http://www.zcsazzurro.com for the latest version.
Zucchetti Centro Sistemi
Via Lungarno 305/A
52028, Terranuova Bracciolini (AR)
[phone]
[email protected]
http://www.zcscompany.com

5 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
Preface
General information
Please read this manual carefully before installation, operation or maintenance.
This manual contains important safety instructions that must be followed during installation and
maintenance of the system.
Scope
This manual describes the assembly, installation, electrical connection, commissioning, maintenance and
troubleshooting of the ZCS 3000SP storage inverter.
Keep this manual so that it is accessible at all times.
Recipients
This manual is intended for qualified technical personnel (installers, technicians, electricians, technical
support personnel or anyone who is qualified and certified to operate a photovoltaic system), who are
responsible for installing and starting the inverter in the photovoltaic energy system and for operators of
the photovoltaic system.

6 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
1. Introduction
The 3000SP storage inverter is an AC-connected bidirectional electrical energy inverter developed for
photovoltaic production systems and domestic storage systems. The inverter can be combined with lithium
and lead batteries of different capacities. The system is also compatible with all existing photovoltaic
inverters and modules and can be integrated into an existing system or installed together with a new
photovoltaic system. The 3000SP storage inverter is able to operate even when disconnected from the grid,
i.e. in the event of a power failure.
The product is equipped with an LCD display and keypad, simple and user-friendly interface that records
data on the energy produced and any errors for quick and easy assistance and support.
The 3000SP storage system is the best solution to optimise the use of energy produced by renewable
sources. The system is able to manage the bidirectional flow of electricity, while controlling the power
produced by the photovoltaic modules, the power stored and taken from the battery, the power exchanged
with the electrical grid and the power supplied to utilities.
The inverter can operate in different ways: automatic, forced charging from the grid and the possibility to
charge / discharge the battery according to the customers’ needs. In automatic mode, the 3000SP inverter is
able to independently optimise the use of the renewable energy and batteries, minimising the purchase of
electricity from the national grid. The second mode forces the energy to be drawn from the grid to charge
the battery, when needed. The third option allows programming the battery discharge hours and modes,
giving the customer complete flexibility.

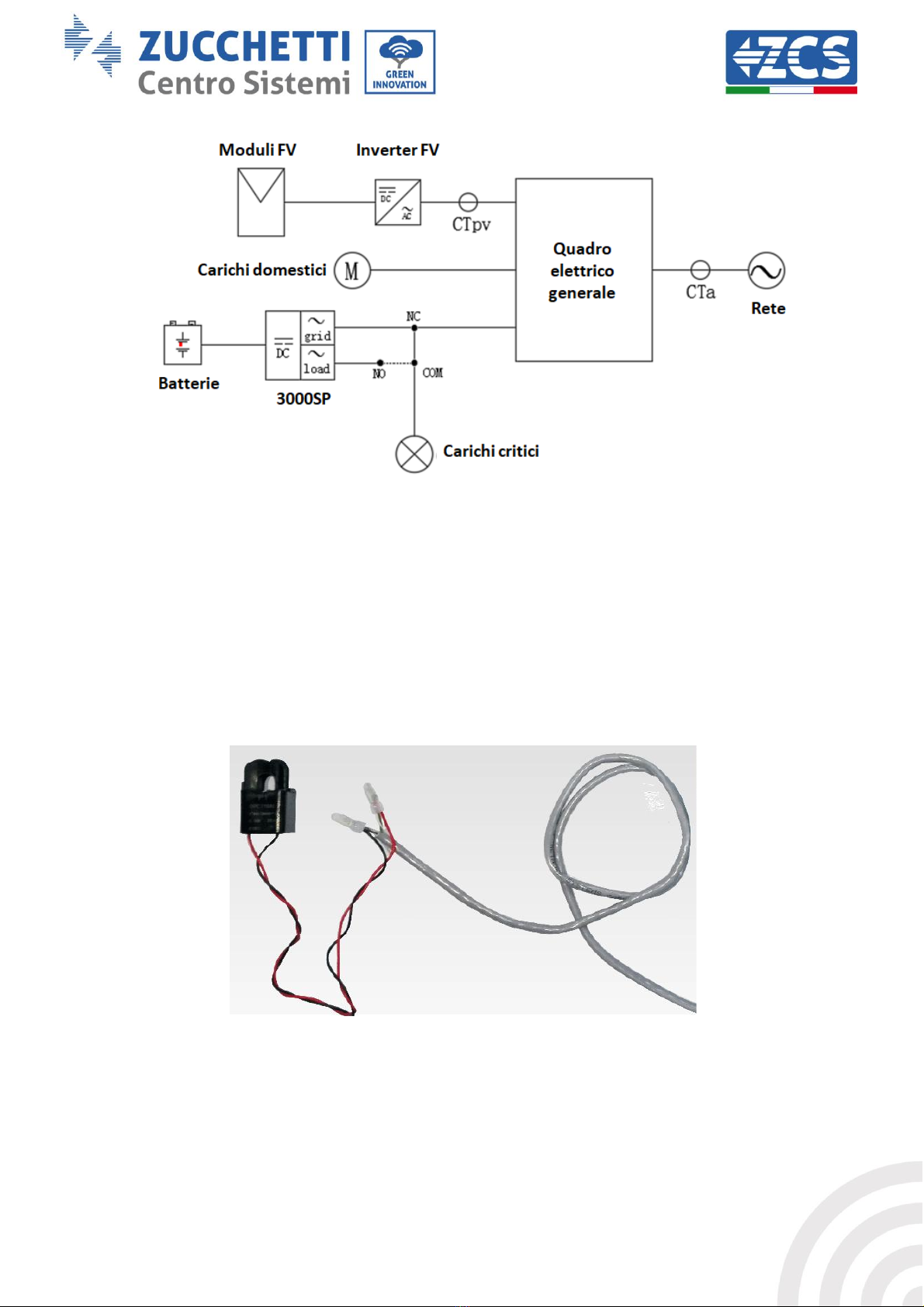

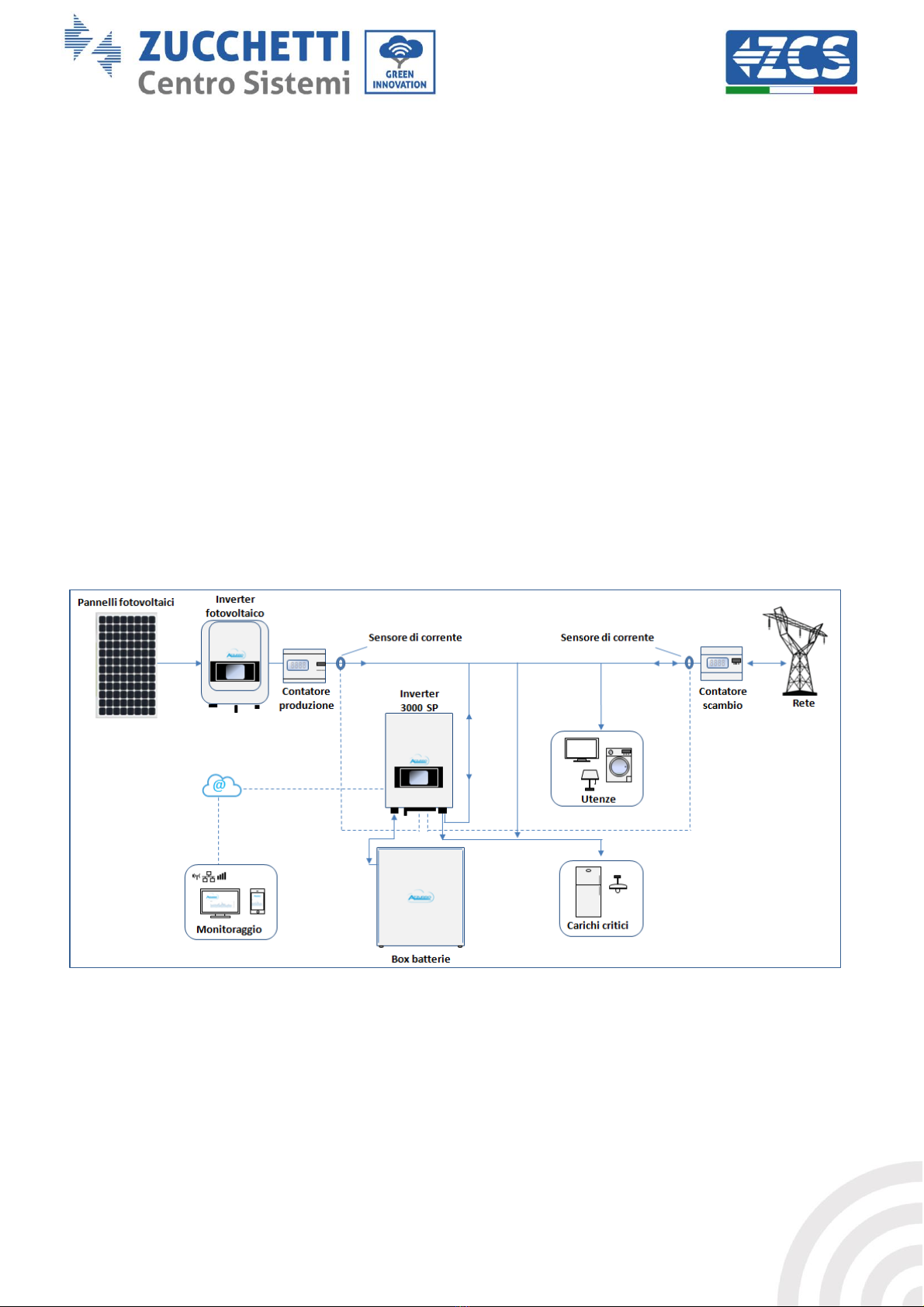

Figure 1 –Diagram of a single-phase system powered by a renewable source and equipped with a 3000SP
storage system

7 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
2. Preliminary safety instructions
Before installation, please read this manual carefully and make sure you fully understand its contents. The
3000SP inverter strictly complies with the safety, design and testing regulations provided for by the national
standards.
During installation, operation and maintenance, operators must carefully observe the local safety standards.
Improper use may result in electrical shock and harm and damage to persons, the equipment and its
components.
Contact the nearest authorised service centre for any repairs or maintenance. Contact your distributor for
information on the nearest authorised service centre. DO NOT carry out repairs yourself, as this may result
in injury or damage.
Ensure that the operator has the necessary skills and training to operate the equipment. Personnel
responsible for the use and maintenance of the equipment must be qualified and capable of performing the
activities described, and must also have appropriate knowledge on how to correctly interpret the contents of
this manual. For safety reasons, this inverter can only be installed by a qualified electrician with the
necessary training and/or skills and knowledge. Zucchetti Centro Sistemi S.p.A. declines all responsibility for
damage to property or personal injury caused by incorrect use of the device.
Install and start the inverter according to the following instructions. Place the inverter on suitable load-
bearing supports with sufficient load capacity (such as walls or racks) and make sure that the inverter is
positioned vertically. Choose a suitable location for the installation of the electrical equipment. Make sure
there is sufficient space for heat dispersion and to accommodate future maintenance. Maintain adequate
ventilation and ensure that there is enough air circulation for cooling.
If you have problems with the packaging that could damage the inverter or if you find any visible damage,
immediately notify the transport company. If necessary, request assistance from an installer of photovoltaic
systems or from Zucchetti Centro Sistemi SpA. Transport of the equipment, especially by road, must be
carried out with vehicles suitable to protect the components (in particular, electronic components) against
violent knocks, humidity, vibrations, etc.
2.1. General safety instructions
Installation and maintenance of the system must be carried out by qualified and certified electricians
in compliance with national regulations.
The 3000SP inverter must only be installed by qualified personnel and only after obtaining the
appropriate authorisations and permits as required by the local regulations.
DO NOT place explosives or flammable materials (e.g. gasoline, kerosene, oil, wood, cotton or similar)
near the batteries or the 3000SP inverter.
Before any maintenance, disconnect the DC (battery) and AC (grid and loads) connections, then wait
at least 5 minutes to allow the capacitors to discharge and to prevent accidental electrical discharges.
The 3000SP inverter must be completed disconnected (DC and AC side) during maintenance.
The 3000SP inverter may reach high temperatures during operation. Switch off the inverter and wait
for it to cool down before maintenance.
Keep children away from the batteries and inverter.
Do not open the front cover of the inverter. This will void the product warranty.

8 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
Damage to the inverter caused by incorrect installation, maintenance or use will not be covered by
warranty.
2.2. Instructions on battery installation and maintenance
At the time of delivery, the battery is charged to at least 60%. Take all appropriate measures to
prevent the battery from short-circuiting during transport and installation.
Place the battery in a well-ventilated place. Do not install in a confined space or areas with poor air
circulation. The battery may be damaged if not properly ventilated.
Do not place the battery in very hot places, in direct sunlight or near heat sources. Overheating of
the battery may damage it or cause it to catch fire.
To prevent voltage drops, the connection wires of the battery must be as short as possible,
depending on the installation requirements.
Use a tester to check the battery voltage and the anode and cathode polarity before switching on
the system. Make sure that the connections are correct as described in this manual and that the
polarity of the connections have not been reversed.
The switched-off battery should be temporarily stored with the battery completely disconnected
from the inverter and the loads, in a cool, dry and ventilated place.
Battery maintenance personnel must have the technical knowledge and skills to service the battery.
Batteries connected in parallel must be of the same model and have the same firmware version.
This requirement must be taken into account by the designer or installer when setting-up the
system or when the batteries are replaced and the storage system is modified. In the case of
parallel connection of multiple Pylontech, Weco or Tawaki Maui batteries, refer to the procedure in
the website www.zcsazzurro.com.
Attention: Do not open or damage the batteries. Electrolytes inside the battery can be toxic and
cause damage to the skin and eyes.
Attention: carefully follow these instructions when installing and servicing the battery.
a) Take off any watches, rings or other metal objects that you may be wearing.
b) Only use tools with insulated handles.
c) Wear rubber gloves and shoes.
d) Do not place tools or metal objects on top of the battery.
e) Switch off the 3000SP inverter and the batteries before connecting or disconnecting the
terminals.
f) Isolate the positive and negative poles of the battery from the ground.

9 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
2.3. Symbols on the inverter
Some safety symbols are located on the inverter. Read and understand the contents of the symbols
before installing the inverter.
Residual voltage may be present on the inverter! Before opening the
inverter, wait 5 minutes to ensure that the capacitors are completely
discharged.
Be careful of high voltage
Be careful of high temperatures
Complies with the European Standards (CE)
Grounding point
Read this manual before installing the inverter.
Indication of the allowable temperature range
Degree of protection of the equipment according to the IEC 70-1
standard (EN 60529 June 1997).

10 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
3. Installation
3.1. Product Overview
Each 3000SP inverter has been rigorously inspected prior to packaging and delivery.
Do not flip over, shake or jerk the packaging during transport.
Before opening the box, please check that the packaging of the product is intact and has not
been damaged or tampered with.
Once the packaging has been opened, please check the condition of the inverter and its
accessories, making sure that they have not been damaged during transport (in particular,
carefully check the mechanical components, display and connections of the terminal board).

11 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”

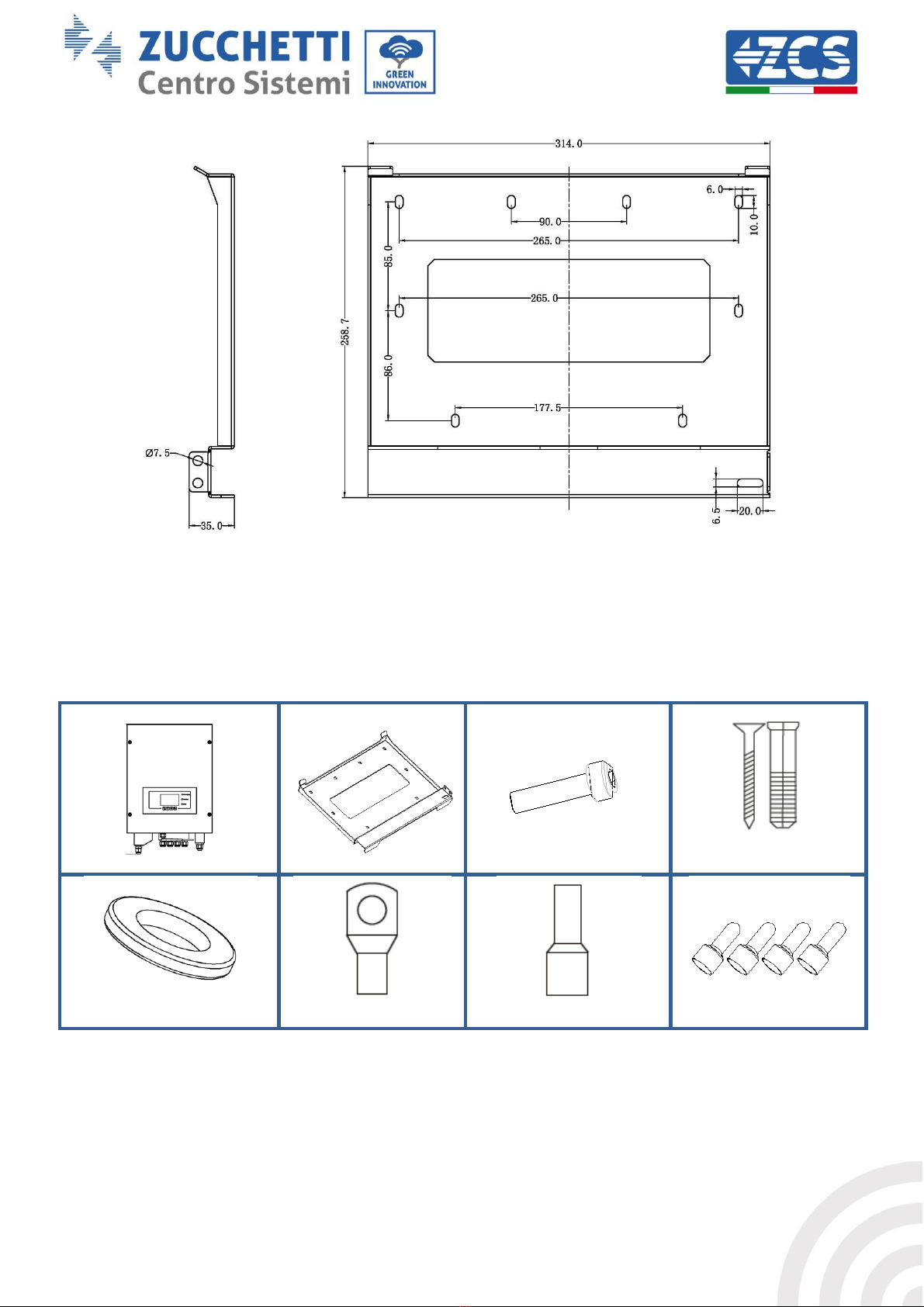

Figure 2 –Views of the 3000SP storage inverter and mounting bracket
3.2. Contents of the packaging
Carefully check the contents of the packaging before installation, making sure that no element
inside the packaging is missing or damaged.
The package should contain the following components:
1 Storage inverter
1 mounting bracket
2 M5 screws
8 expansion plugs and
screws
8 M6 flat washers
2 DC terminals
6 AC terminals
4 terminal caps

12 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
2 current transformers
2 CT terminals
1 communication cable
1 quality certificate
1 warranty certificate
1 user manual
Figure 3 –Components and accessories inside in the packaging
3.3. Installation environment
For correct functioning of the system, the inverter and batteries must be installed in an
environment with the following characteristics:
•Dry, clean and sheltered place.
•Ambient temperature between -25°C and +60°C.
•Relative humidity between 0% and 100% (non-condensing).
•Presence of independent air intakes at the entrance and exit of the room.
•No flammable or explosive materials in the vicinity.
•Altitude below 2000 metres.
•Connection to the electrical grid with over-voltage category CATII and CATIII.
•For further details on installation, please contact technical assistance.
3.4. Installation tools
The following tools are required for installation of the inverter and batteries. Therefore, they
must be prepared before installation.
No.
Tool
Function
1
Drill
Recommended drill bit: 6 mm
To drill holes in the wall for fixing the
bracket

13 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
2
Screwdriver
To screw and unscrew screws for the
various connections
3
Wire stripper
To prepare the cables for wiring
4
4 mm Allen key
To screw the inverter to the wall-
mounting bracket
5
Crimping tool
To crimp the power cables
6
Multi-meter
To check the voltage and current
values
7
Marker pen
To mark the wall for better fixing
precision
8
Measuring tape
To measure distances
9
Level
To make sure the bracket is level
10
ESD gloves
Protective clothing
11
Safety goggles
Protective clothing
12
Protection mask
Protective clothing
Figure 4 –Tools required for installing the 3000SP inverter and batteries

14 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
3.5. Wall installation position
The 3000SP storage inverter must be installed vertically on the wall (to ensure rapid and effective
heat dissipation) or at an inclination not exceeding 15°.
Also make sure that the position where the inverter is installed is not directly exposed to sunlight or
subject to the accumulation of snow so as to prevent damage to the internal components of the
machine.
Figure 5 –Correct installation of the 3000SP inverter
3.6. Assembly instructions
1) Correctly position the mounting bracket on the wall using a level to ensure that it is straight;
mark the eight holes using a suitable marker pen. Drill the eight holes at the points marked on
the wall using a 6 mm drill bit.
2) Insert the plugs horizontally into the holes, paying attention to the force and depth with which
they are inserted.
3) Fix the mounting bracket to the wall using the screws and flat washers supplied.

15 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”

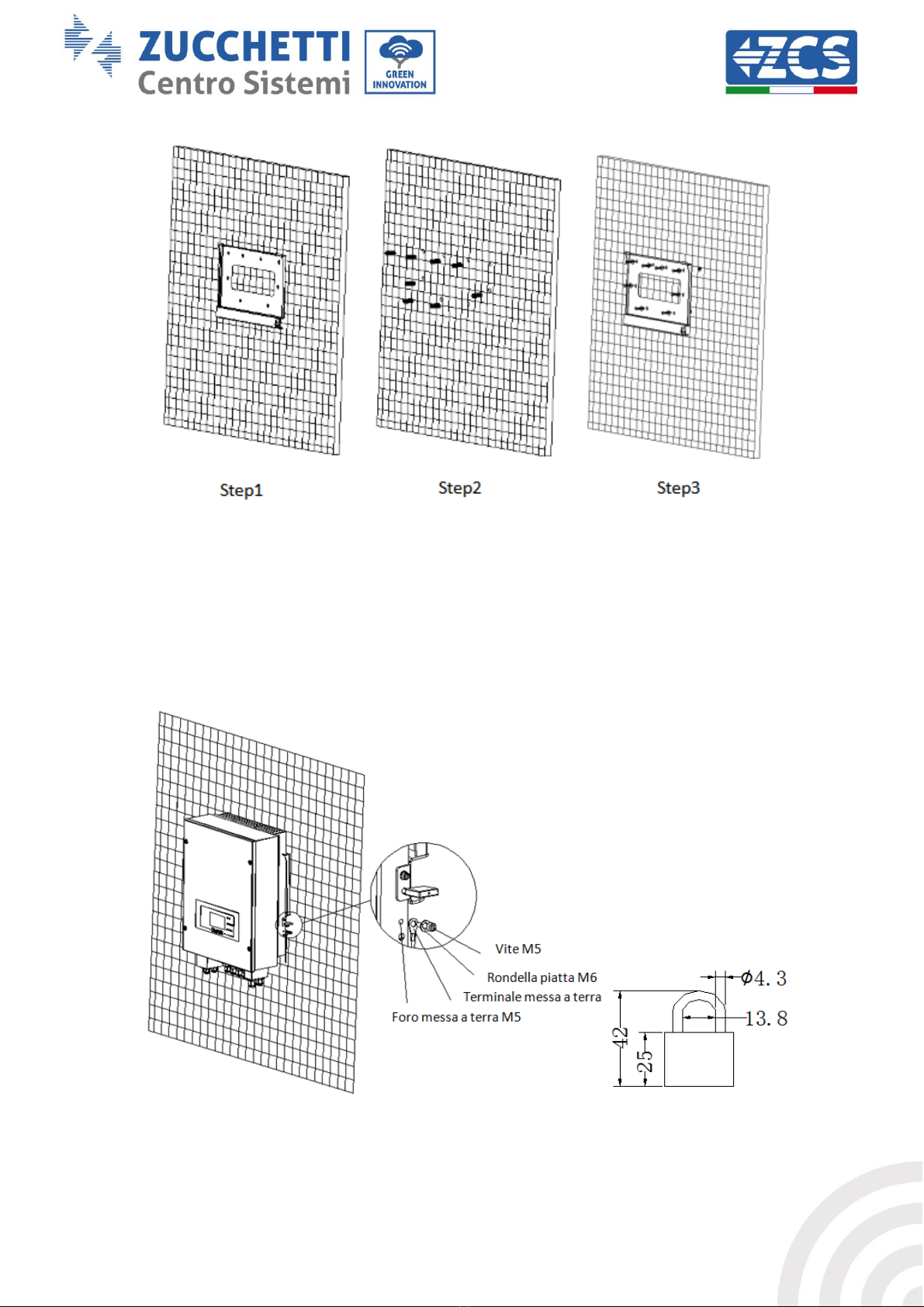

Figure 6 –Instructions for fixing the bracket to the wall
4) Position the 3000SP storage inverter on the mounting bracket and secure it with the mounting
bolt supplied.
5) Secure the grounding connection of the 3000SP by means of the bolt supplied and using the
appropriate hole in the heat sink.
6) (OPTIONAL) Depending on the customer’s requirements, the 3000SP inverter can be locked to
the mounting bracket with a safety lock (not supplied with the kit).
Figure 7 –Possibility of locking the inverter to the staff with a lock

16 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
Note: for safety reasons, ZCS Spa and/or its partners may not carry out any technical repairs or
maintenance work, or move the inverter or battery pack from and to the ground if they are installed at a
height of more than 180 cm from the ground.
Inverters and/or battery packs installed at higher heights must be moved to the ground before they can be
repaired or serviced.
Figure 8 –Instructions for installing the storage inverter and battery pack
4. Electrical connections
•Carefully assess the risks deriving from electric shocks and chemical hazards!
•Use a multi-metre to check the DC polarity of the battery and cables before connecting the power supply
between the batteries and inverter.
NOTE: an inverted polarity connection may cause irreparable damage to the inverter and batteries.
•In order to enable safe connection and disconnection of the inverter during installation and maintenance,
a 100A DC disconnecting device must be installed between the 3000SP inverter and battery. This
operation is not necessary if lithium batteries with BMS are used as they have an internal disconnecting
system, such as Pylontech US2000B and US2000PLUS batteries supplied with the Azzurro ZCS storage
inverter.
Note: the Pylontech US2000B and US2000PLUS batteries, as well as the Tawaki Maui 4 kWh and Weco
HeSU 4K4 batteries do not require a disconnecting device for connecting to the storage inverter. The
Cable kit, which includes crimped power cables for connecting the Pylontech batteries to the 3000SP
storage inverter, is supplied separately. It is recommended to ensure that your storage kit is equipped
with this accessory. In the case of Tawaki and Weco batteries, the connection kit is already inside the
package.
•A 25 AC disconnecting device (circuit breaker) must be installed between the 3000SP inverter and the
power grid. It is also recommended to use a differential with a trip threshold of 30 mA between the
3000SP inverter and power grid.
•For safety and proper functioning of the system, it is important to use a cable of the appropriate type and

17 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
size for the electrical connections.
-Battery connection: DC cable with cross-section of AWG8 or AWG6.
-Grid or load connection: AC cable with cross-section of AWG12
•Make sure that the neutral wire (N) is connected to the ground wire (PE) when the EPS mode
(emergency power supply) is enabled.
Figure 9 –Detailed diagram of the connections of a single-phase system
4.1. Connecting the battery
1) Unscrew the 4 screws of the cover (A) with a star screwdriver (figure 10).
2) Remove the waterproof cover (B), loosen the cable gland (C), and then remove the stopper (G).
3) Route the battery cables (F) through the cable gland, then connect them using the OT terminal (E)
supplied; the terminal must be screwed to the terminal block using the special star screws. The
other end of the cable, which has the quick coupling for the batteries, must be positioned in the
relative positive and negative terminals of the installed battery.
4) Replace the waterproof cover and secure it with the 4 screws; then tighten the cable gland.

18 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
Figure 10 –Connecting the power line of the battery
4.2. CT / RS485 / NTC connections

19 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”

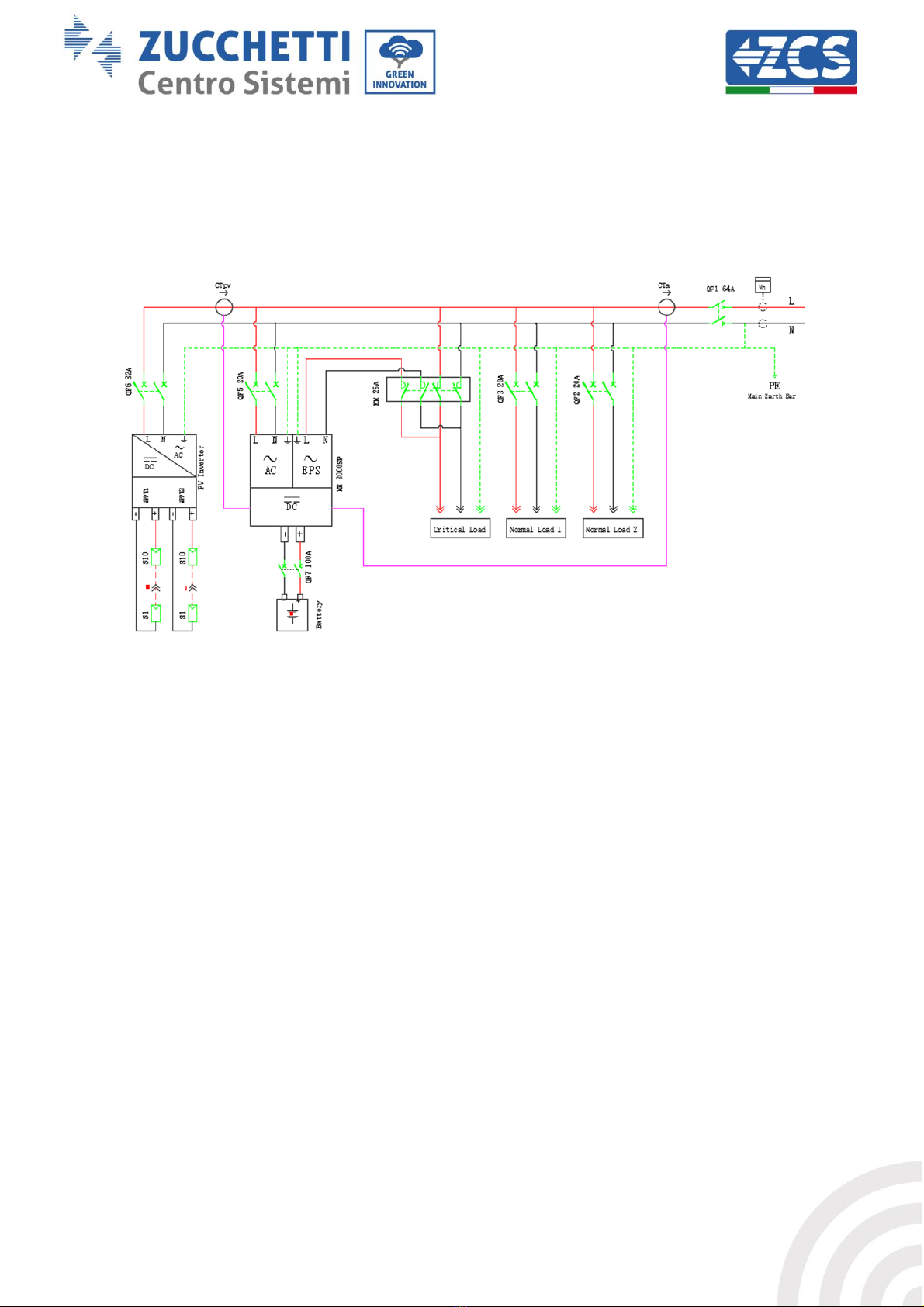

Figure 11 –Wiring diagram of the 3000SP storage inverter in a system powered by renewable energy
1) Correctly position the two current sensors (CT):
-the CTa for measuring the energy exchanged with the grid must be positioned at the output of the
exchange meter (utility side) and must include all the phase cables entering or leaving the meter.
The CTa will therefore measure the energy taken from and fed into the grid by the photovoltaic
system.
-The CTpv for measuring the photovoltaic production must be positioned on the phase cable exiting
the photovoltaic inverter (utility side) or from the production counter, and will only measure the
energy generated by the photovoltaic inverter.
2) Extend the cable of the two sensors with a category 5 network cable (8 pole) using the caps supplied.
The cable can be extended by up to 100 metres with a minimum loss of signal
Figure 12 –Extending the cable of the CT current sensor
Below is a reference for connecting the sensors to the CT terminals supplied.

20 / 58
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Manual of 11/06/2019 Rev. 1.8 “User Manual for 3000SP storage inverter”
CT cable
Extension (network cable)
Connection to 3000SP
Red
orange / orange white /
brown / brown white
CT+
Black
green / green white /
blue / blue white
CT-
Figure 13 –Connecting the CT cables of the current sensors

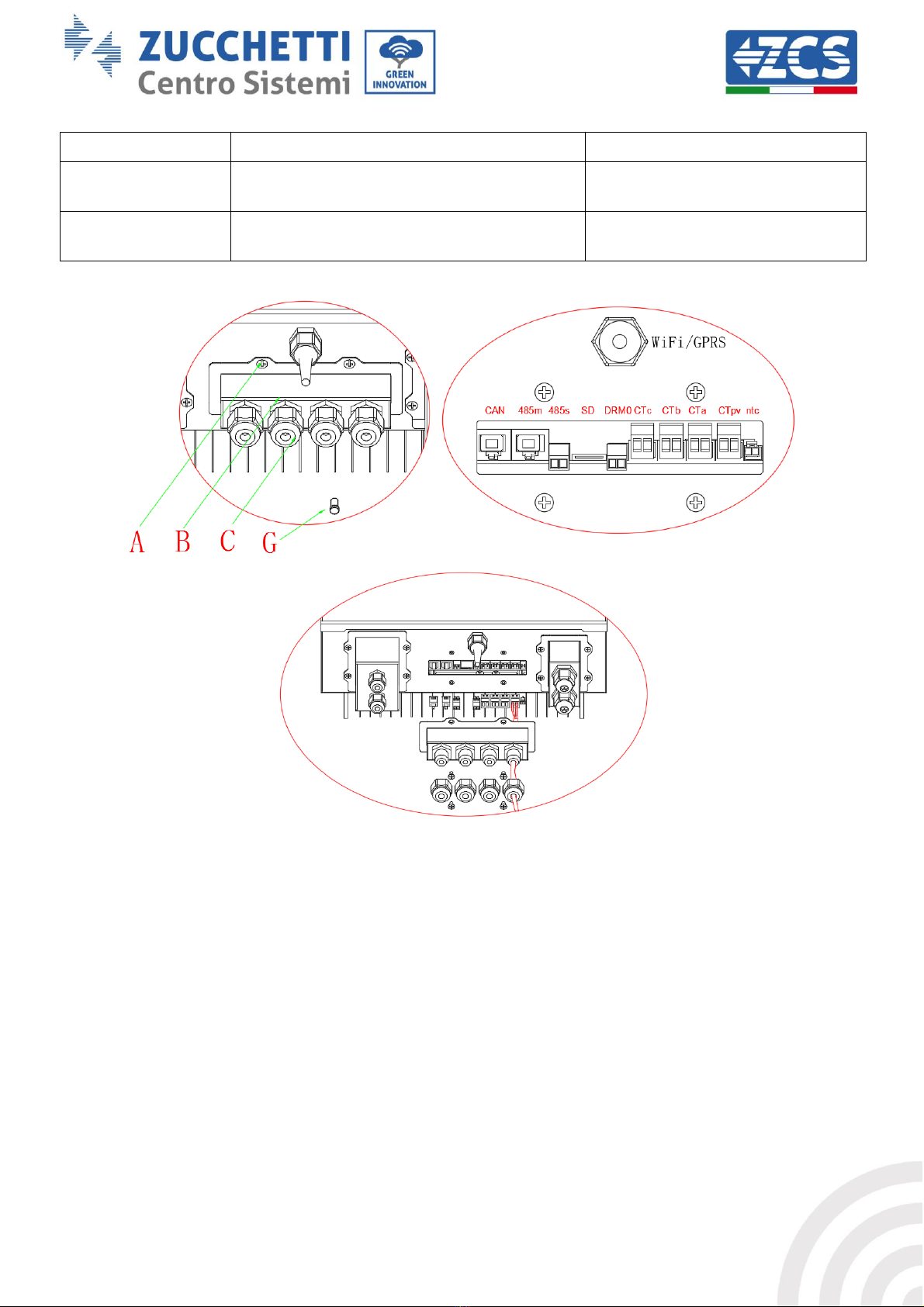

3) Unscrew the 4 screws (A) of the central cover with a star screwdriver (figure 13).
4) Remove the waterproof cover (B), loosen the cable gland (C), and then remove the stopper (G).
5) Route the CT cable through the cable gland to the right of the cover, connect the cable to the CT
terminal supplied, then insert the CT terminals into the corresponding ports (CTa for the exchange
sensor and CTpv for the production sensor).
6) If using Pylontech batteries, the communication cable between the inverter and batteries is supplied
as an accessory inside the transparent bag in the inverter’s packaging. For Tawaki Maui and Weco
ReSu4kWh batteries, the cable is found inside the battery packaging.
Connect one terminal to the battery (BAT), and the other to the inverter (inverter).
Route the communication cable (inverter side) through the cable gland on the left side of the cover,
then insert the connector into the CAN port. Insert the battery-side connector (BAT end) into the
CAN port of the PYLONTECH, Tawaki Maui or Weco battery.
