Hybrid Inverter
1PH HYD3000-HYD6000-ZSS
User Manual

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
2/94
Table of Contents
1. Introduction........................................................................................................................................................................................... 6
2. Preliminary safety instructions ..................................................................................................................................................... 7
2.1. Safety Notes...................................................................................................................................................................................7
2.2. Assembly and maintenance diagram..................................................................................................................................8
2.3. Symbols on the inverter...........................................................................................................................................................9
3. Installation............................................................................................................................................................................................11
3.1. Product overview.....................................................................................................................................................................11
3.2. Contents of the packaging ....................................................................................................................................................11
3.3. Installation environment......................................................................................................................................................12
3.4. Installation tools.......................................................................................................................................................................13
3.5. Wall installation position......................................................................................................................................................14
3.6. Assembly instructions............................................................................................................................................................15
4. Electrical connections......................................................................................................................................................................17
4.1. Connecting the battery ..........................................................................................................................................................18
4.2. Connecting a Pylontech battery.........................................................................................................................................19
4.2.1. Connecting a single battery........................................................................................................................................19
4.2.2. Connecting multiple batteries in parallel.............................................................................................................20
4.3. Connecting a WeCo battery..................................................................................................................................................22
4.3.1. Connecting a single battery........................................................................................................................................22
4.3.2. Connecting multiple batteries in parallel.............................................................................................................22
4.4. Photovoltaic connection........................................................................................................................................................25
4.5. CT / Battery Communication / RS485 Connections..................................................................................................28
4.6. Grid connection.........................................................................................................................................................................32
4.7. Connecting a Critical Load (EPS function).....................................................................................................................33
5. Buttons and indicator lights..........................................................................................................................................................34
5.1. Buttons:........................................................................................................................................................................................34
5.2. Indicator lights and operating status...............................................................................................................................34
6. Operation ..............................................................................................................................................................................................35
6.1. Preliminary checks..................................................................................................................................................................35
6.2. First start-up of the inverter ...............................................................................................................................................35

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
3/94
6.3. Commissioning..........................................................................................................................................................................39
6.4. Main menu ..................................................................................................................................................................................39
6.4.1. Basic settings....................................................................................................................................................................40
6.4.2. Advanced settings ..........................................................................................................................................................46
6.4.3. Event list.............................................................................................................................................................................48
6.4.4. System interface information....................................................................................................................................49
6.4.5. Energy statistics..............................................................................................................................................................50
6.4.6. Software Update .............................................................................................................................................................51
7. Verification of proper functioning..............................................................................................................................................53
7.1. Checking the settings..............................................................................................................................................................56
8. Technical specifications..................................................................................................................................................................58
9. Troubleshooting.................................................................................................................................................................................59
9.1. Maintenance...............................................................................................................................................................................65
10. Uninstalling..........................................................................................................................................................................................66
10.1. Uninstallation steps ................................................................................................................................................................66
10.2. Packaging.....................................................................................................................................................................................66
10.3. Storage..........................................................................................................................................................................................66
10.4. Disposal........................................................................................................................................................................................66
11. Monitoring systems ..........................................................................................................................................................................67
11.1. External Wi-Fi adapter...........................................................................................................................................................67
11.1.1. Installation..................................................................................................................................................................................67
11.1.2. Configuration.............................................................................................................................................................................68
11.1.3. Verification .................................................................................................................................................................................77
11.1.4. Troubleshooting.......................................................................................................................................................................80
11.2. Ethernet adapter ......................................................................................................................................................................84
11.2.1. Installation..................................................................................................................................................................................84
11.2.2. Verification .................................................................................................................................................................................86
11.2.3. Troubleshooting.......................................................................................................................................................................87
11.3. 4G adapter...................................................................................................................................................................................89
11.3.1. Installation..................................................................................................................................................................................89
11.3.2. Verification .................................................................................................................................................................................91
12. Warranty terms and conditions...................................................................................................................................................94

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
4/94
General instructions
This manual contains important safety instructions that must be followed during installation and
maintenance of the equipment.
Please keep these instructions!
This manual must be considered an integral part of the equipment, and must be available at all times to
everyone who interacts with the equipment. The manual must always accompany the equipment, even when
it is transferred to another user or plant.
Copyright statement
Copyright of this manual belongs to Zucchetti Centro Sistemi S.p.A. No part of this manual (including the
software, etc.) may be copied, reproduced or distributed in any form or by any means without the permission
of Zucchetti Centro Sistemi S.p.A. All rights reserved. ZCS reserves the right to final interpretation. This
manual is subject to change based on feedback from users, installers or customers. Please check our website
at http://www.zcsazzurro.com for the latest version.
Technical support
ZCS offers a support and technical consultancy service accessible by sending a request directly from the
website https://www.zcsazzurro.com/it/support.
The following toll-free number is available for the Italian territory: 800 72 74 64.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
5/94
Preface
General information
Please read this manual carefully before installation, operation or maintenance.
This manual contains important safety instructions that must be followed during installation and maintenance
of the system.
Scope
This manual describes the assembly, installation, electrical connections, commissioning, maintenance and
troubleshooting of the 1PH HYD3000-HYD6000-ZSS hybrid inverter.
Keep this manual so that it is accessible at all times.
Recipients
This manual is intended for qualified technical personnel (installers, technicians, electricians, technical support
personnel or anyone who is qualified and certified to operate a photovoltaic system), who are responsible for
installing and starting up the inverter in the photovoltaic and storage energy system and for operators of
photovoltaic and storage systems.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
6/94
1. Introduction
The 1PH HYD3000-HYD6000-ZSS hybrid inverter is used in photovoltaic systems with battery storage. The
system can be combined with WeCo and Pylontech batteries supplied in kit form by ZCS Azzurro.
The energy produced by the photovoltaic system will be optimised for maximum self-consumption.
The 1PH HYD3000-HYD6000-ZSS inverter can operate in automatic mode and in time-of-use charge,
charge/discharge mode. In automatic mode, when the energy produced by the PV field is greater than that
required by the utilities, the 1PH HYD3000-HYD6000-ZSS inverter charges the battery using the photovoltaic
energy in excess, and when the photovoltaic energy is lower than that required, the inverter uses the energy
stored in the battery to supply current to the local load.
In the event of a power failure (or by switching on the inverter in Off-Grid mode), the 1PH HYD3000-HYD6000-
ZSS inverter can operate in Emergency Power Supply (EPS) mode. The 1PH HYD3000-HYD6000-ZSS inverter
will use both the energy created by the photovoltaic panels and the energy stored in the battery to supply
energy to the critical load.

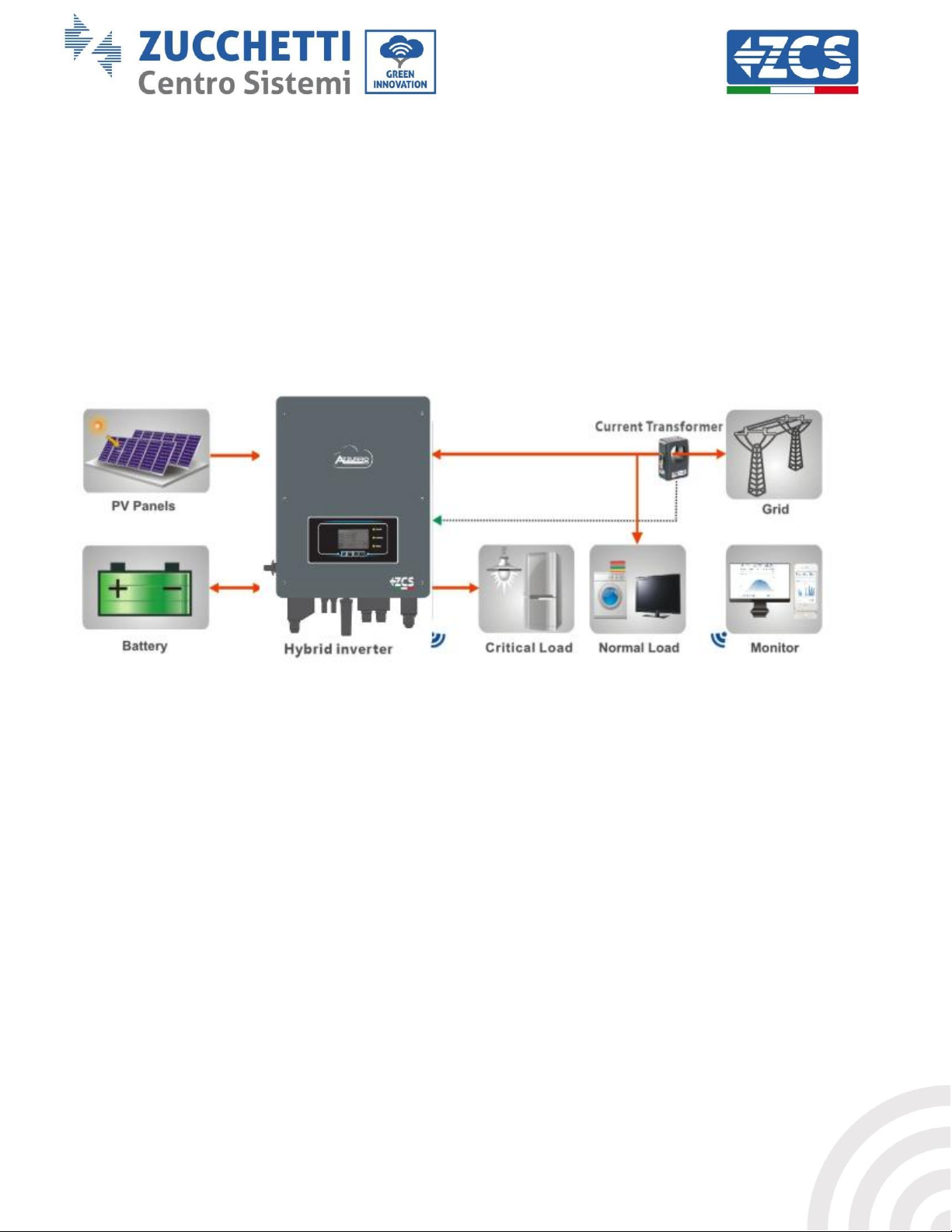

Figure 1 - Diagram of a system on which an 1PH HYD3000-HYD6000-ZSS hybrid is installed

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
7/94
2. Preliminary safety instructions
Before installation, please read this manual carefully and make sure you fully understand its contents. The 1PH
HYD3000-HYD6000-ZSS inverter strictly complies with the safety, design and testing regulations provided for
by the national standards.
During installation, operation and maintenance, operators must carefully observe the local safety standards.
Improper use may result in electrical shock and harm and damage to persons, the equipment and its
components.
Contact the nearest authorised service centre for any repairs or maintenance. Contact your distributor for
information on the nearest authorised service centre. DO NOT carry out repairs yourself, as this may result in
injury or damage.
Ensure that the operator has the necessary skills and training to operate the equipment. Personnel responsible
for the use and maintenance of the equipment must be qualified and capable of performing the activities
described, and must also have appropriate knowledge on how to correctly interpret the contents of this manual.
For safety reasons, this inverter can only be installed by a qualified electrician with the necessary training
and/or skills and knowledge. Zucchetti Centro Sistemi S.p.A. declines all responsibility for damage to property
or personal injury caused by incorrect use of the device.
Install and start the inverter according to the following instructions. Place the inverter on suitable load-bearing
supports with sufficient load capacity (such as walls or racks) and make sure that the inverter is positioned
vertically. Choose a suitable location for the installation of the electrical equipment. Make sure there is sufficient
space for heat dispersion and to accommodate future maintenance. Maintain adequate ventilation and ensure
that there is enough air circulation for cooling.
If you have problems with the packaging that could damage the inverter or if you find any visible damage,
immediately notify the transport company. If necessary, request assistance from an installer of photovoltaic
systems or from Zucchetti Centro Sistemi SpA. Transport of the equipment, especially by road, must be carried
out with vehicles suitable to protect the components (in particular, electronic components) against violent
knocks, humidity, vibrations, etc.
2.1. Safety Notes
Electrical installation and maintenance of the system must be carried out by qualified and certified
electricians in compliance with national regulations.
The 1PH HYD3000-HYD6000-ZSS inverter may only be installed by qualified PERSONNEL and by those who
have the appropriate certification, as required by the local authorities.
DO NOT place materials explosives or flammable (e.g. gasoline, kerosene, oil, wood, cotton or similar) near
the batteries or the 1PH HYD3000-HYD6000-ZSS inverter.
Before maintenance, disconnect the AC connection, then the batteries and the photovoltaic system
(PV1&PV2), wait at least 5 minutes (capacitor discharge time) so as to prevent electric shock.
The 1PH HYD3000-HYD6000-ZSS inverter must be completely disconnected (BAT, PV & AC) during
maintenance.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
8/94
The 1PH HYD3000-HYD6000-ZSS inverter may reach high temperatures and have rotating parts inside
during operation. Switch off the 1PH HYD3000-HYD6000-ZSS inverter and wait for it to cool down before
performing any maintenance.
Keep children away from the batteries and from the 1PH HYD3000-HYD6000-ZSS inverter.
Do not open the front cover of the 1PH HYD3000-HYD6000-ZSS inverter. Opening the front cover will void
the product warranty.
Damage caused by improper installation/operation is NOT covered by the product warranty.
2.2. Assembly and maintenance diagram
The battery must be protected against short circuits during transport and installation.
The inverter 1PH HYD3000-HYD6000-ZSS/batteries must be located in well-ventilated areas. Do not place
the 1PH HYD3000-HYD6000-ZSS inverter/batteries in a cabinet or in an airtight or poorly ventilated
location. This could be extremely hazardous to the performance and life of the system.
Keep the 1PH HYD3000-HYD6000-ZSS inverter and batteries away from direct sunlight. Do not bring the
1PH HYD3000-HYD6000-ZSS inverter and batteries near ovens, flames or other heat sources as the
battery may catch fire and cause an explosion.
The current capacity of the DC power cables (from the battery to the inverter) must be at least 90A. Use
short DC power cables to prevent voltage drops and power losses.
Use a multimeter to check the battery polarity and voltage before turning on the power. Make sure that
the connections are made according to the instructions in this manual.
Use the multimeter to check the PV voltage and polarity before closing the PV switch. Make sure that the
connections are made according to the instructions in this manual.
If you want to store the batteries without using them, disconnect them from the 1PH HYD3000-HYD6000-
ZSS inverter and store them in a cool, dry and well-ventilated area.
Battery maintenance workers must have the skills and knowledge required to carry out this activity.
All the batteries connected in parallel must be of the same model and have the same firmware version.
This problem must be taken into consideration by the designer/installer, especially when replacing the
batteries or when modifying the existing storage system.
The 1PH HYD3000-HYD6000-ZSS inverter does not have an isolation transformer so the positive and
negative polarities of the PV string do NOT have to be grounded, otherwise the inverter may be damaged.
All non-current-carrying metal parts (such as the PV module frame, PV rack, housing of the combiner box,
and housing of the inverter) in the photovoltaic power system must be connected to the ground.
Attention: Do not disassemble or break the battery. The electrolytes in the battery may be toxic and cause
damage to skin and eyes.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
9/94
Attention: during installation and maintenance of the battery, please follow the rules below.
a) Remove watches, rings and other metal objects.
b) Only use tools with insulated handles.
c) Wear rubber gloves and shoes.
d) Do not place tools or metal objects on top of the battery.
e) Turn off the 1PH HYD3000-HYD6000-ZSS inverter and batteries before connecting/disconnecting
the battery terminals.
f) Both the positive and negative polarities must be isolated from the ground.
2.3. Symbols on the inverter
Some safety symbols are located on the inverter. Read and understand the content of the symbols before
installing the inverter.
This symbol indicates a hazardous situation which, if not avoided, will result in
injury.
Risk of electric shock; wait at least 5 minutes before switching off the 1PH
HYD3000-HYD6000-ZSS inverter.
Be careful of high voltage and electric shock.
Be careful of hot surface.
Comply with the European Conformity (EC) certification.
Ground terminal.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
10/94
Read this manual before installing the 1PH HYD3000-HYD6000-ZSS inverter.
This indicates the degree of protection of the equipment in accordance with the
IEC 70-1 (EN 60529 June 1997) standard.
Positive polarity and negative polarity of the DC voltage (Photovoltaic and
Battery).
This side up. The 1PH HYD3000-HYD6000-ZSS inverter must always be
transported, handled and stored in such a way that the arrows are always
pointing upwards.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
11/94
3. Installation
3.1. Product overview
The 1PH HYD3000-HYD6000-ZSS inverter is subjected to strict controls and inspection before packaging and
delivery. Do not turn the 1PH HYD3000-HYD6000-ZSS inverter upside down during delivery.
Carefully check the packaging and product fittings before installation.
Caution

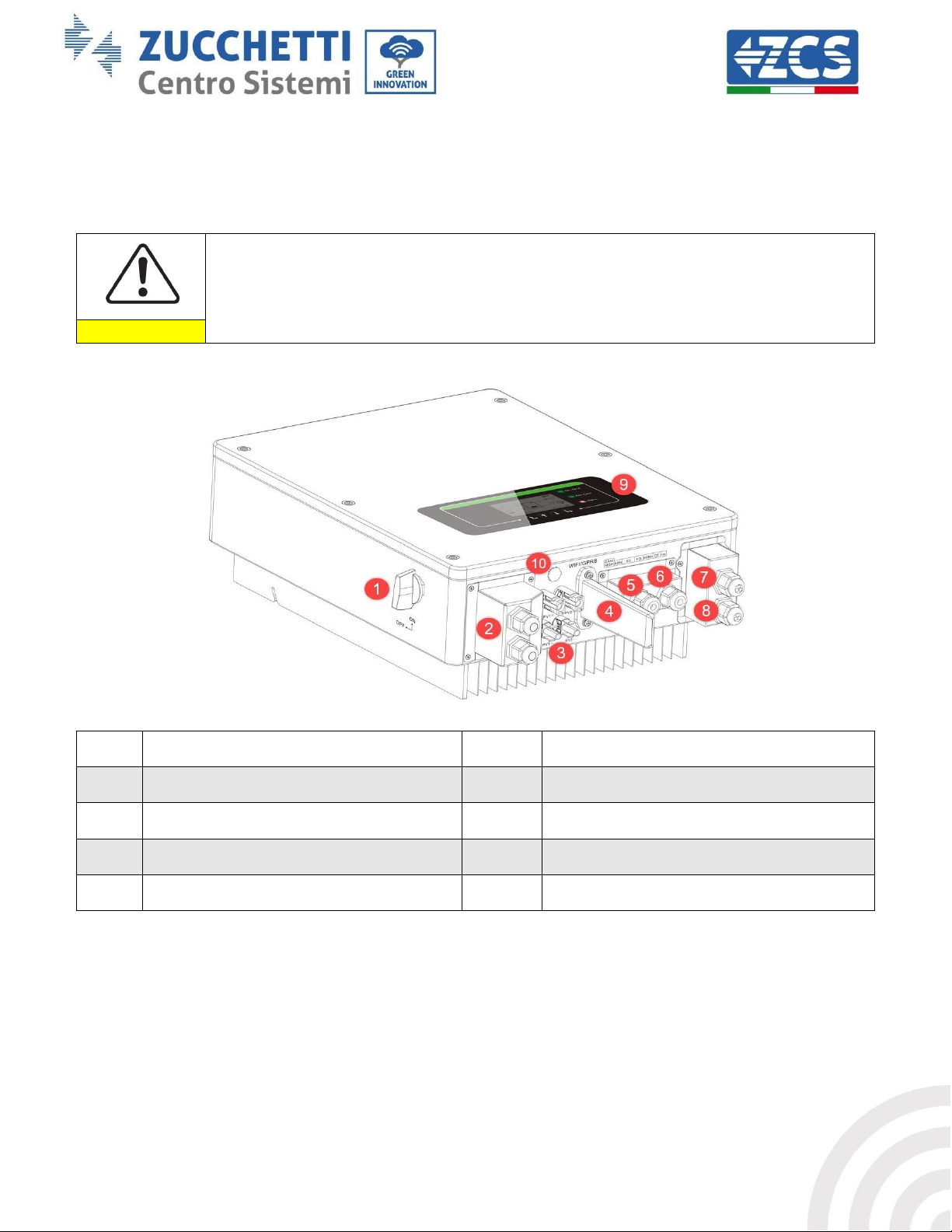

Figure 2 - Diagram of a system on which an 1PH HYD3000-HYD6000-ZSS hybrid is installed
1
DC switch
6
Current transformer port
2
Battery input terminals
7
Critical load connection port
3
PV input terminals
8
Grid connection port
4
Wi-Fi/GPRS adaptor
9
LCD
5
BMS communication interface
10
Vent valve
3.2. Contents of the packaging
Carefully inspect the packaging and accessories before installation. The packaging should contain the following
accessories:

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
12/94
1 mounting bracket
6 AC terminals
2 M5 screws
2 battery terminals
8 M6 flat washers
8 expansion plugs
4 terminal caps
2 CT terminals
1 current transformer
1 user manual
1 warranty
1 quality certificate
1 Pylontech battery
communication cable
2 PV + input terminals
2 PV - input terminals
1 NTC (3M long)
Figure 3 –Components and accessories inside in the packaging
3.3. Installation environment
Choose a dry, clean and orderly place, suitable for installation.
Ambient temperature range: -25°C ~ 60°C.
Relative humidity: 0 ~ 100% (non-condensing).
The 1PH HYD3000-HYD6000-ZSS inverter must be installed in a well-ventilated area.
Do not place flammable or explosive materials near the 1PH HYD3000-HYD6000-ZSS inverter.
The AC overvoltage of the 1PH HYD3000-HYD6000-ZSS inverter belongs to Category III.
Maximum altitude: 2000 m.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
13/94
3.4. Installation tools
Prepare the following tools before installation:
Number
Tool
Model
Function
1
Percussion drill
Recommended diameter: 6 mm
Used to make holes in the wall
2
Screwdriver
Used for the wiring
3
Cable stripper
Used for stripping the wires
4
4mm Allen key
Used for tightening the screws to
connect the rear panel to the
inverter
5
Crimping tools
Used for crimping the power
cables
6
Multi-meter
Used for checking the grounding
connection
7
Marker
Used for marking
8
Tape measure
Used for measuring distances
9
Level
Used for making sure that the rear
panel is installed correctly

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
14/94
10
ESD gloves
Must be worn by operators
11
Safety goggles
Must be worn by operators
12
Dust mask
Must be worn by operators
3.5. Wall installation position
The 1PH HYD3000-HYD6000-ZSS inverter must be mounted vertically (to ensure rapid heat dissipation). Install
the 1PH HYD3000-HYD6000-ZSS inverter in a location protected from direct sunlight and from possible snow
accumulation. Ensure that the installation position is well ventilated.
Figure 4 –Installation position of the 1PH HYD3000-HYD6000-ZSS inverter

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
15/94
3.6. Assembly instructions

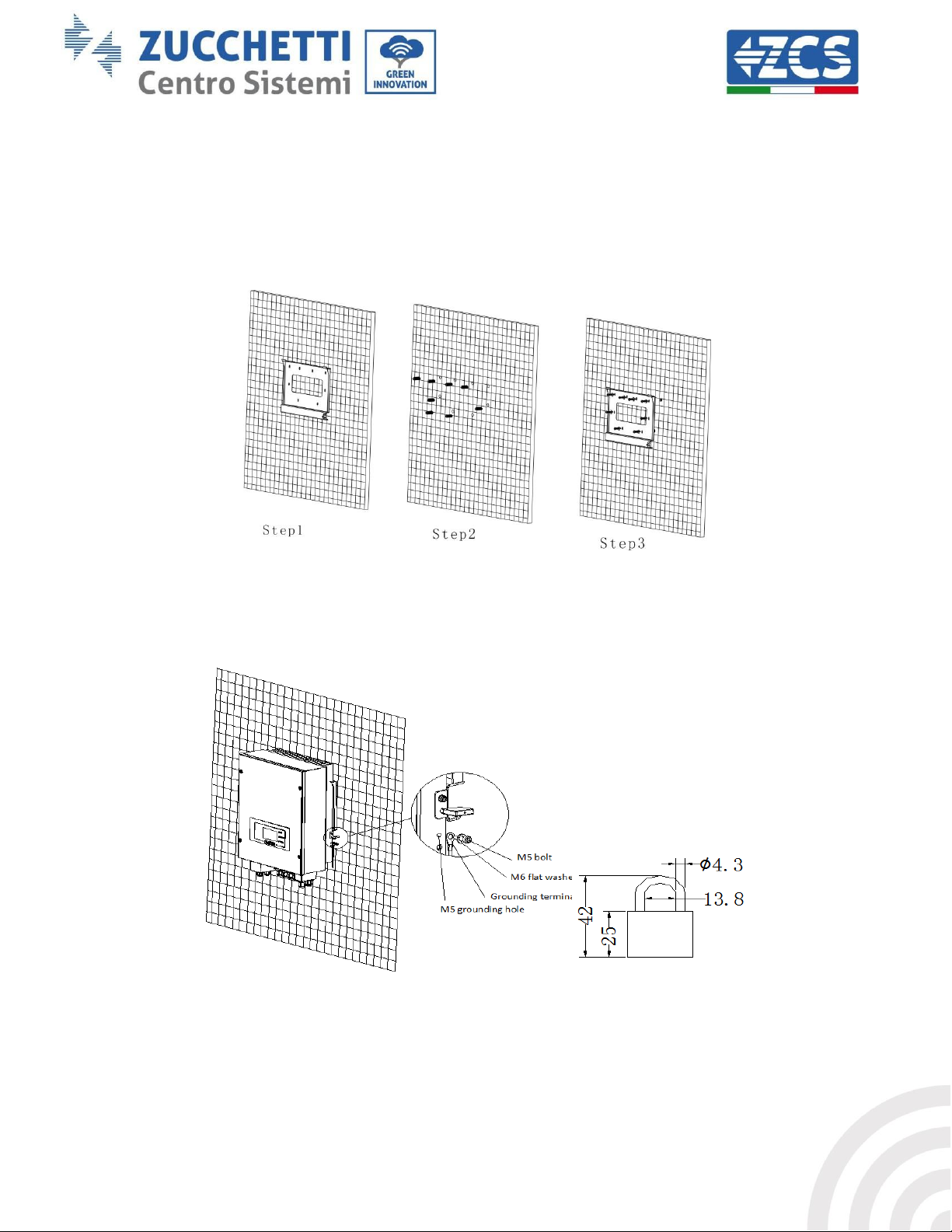

Step 1: Position the mounting bracket on the wall, mark the 8 fixing points using the marker. Drill 8 holes (6 mm
drill bit) in the wall.
Step 2: Insert the expansion screws vertically into the hole, make sure that the insertion depth is neither too
shallow nor too deep.
Step 3: Fix the mounting bracket to the wall using dowels and flat washers.
Step 4: Place the 1PH HYD3000-HYD6000-ZSS inverter on the mounting bracket.
Step 5: Use the grounding hole of the heatsink to ground the 1PH HYD3000-HYD6000-ZSS inverter.
Step 6: OPTIONAL: the 1PH HYD3000-HYD6000-ZSS inverter can be fixed to the mounting bracket.
Note: For safety reasons, ZCS Spa and/or its partners may not carry out any technical repairs or maintenance
work, or move the inverter or battery packs from and to the ground if they are installed at a height of more than
180 cm from the ground.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
16/94
Inverters and/or battery packs installed at higher heights must be moved to the ground before they can be
repaired or serviced.

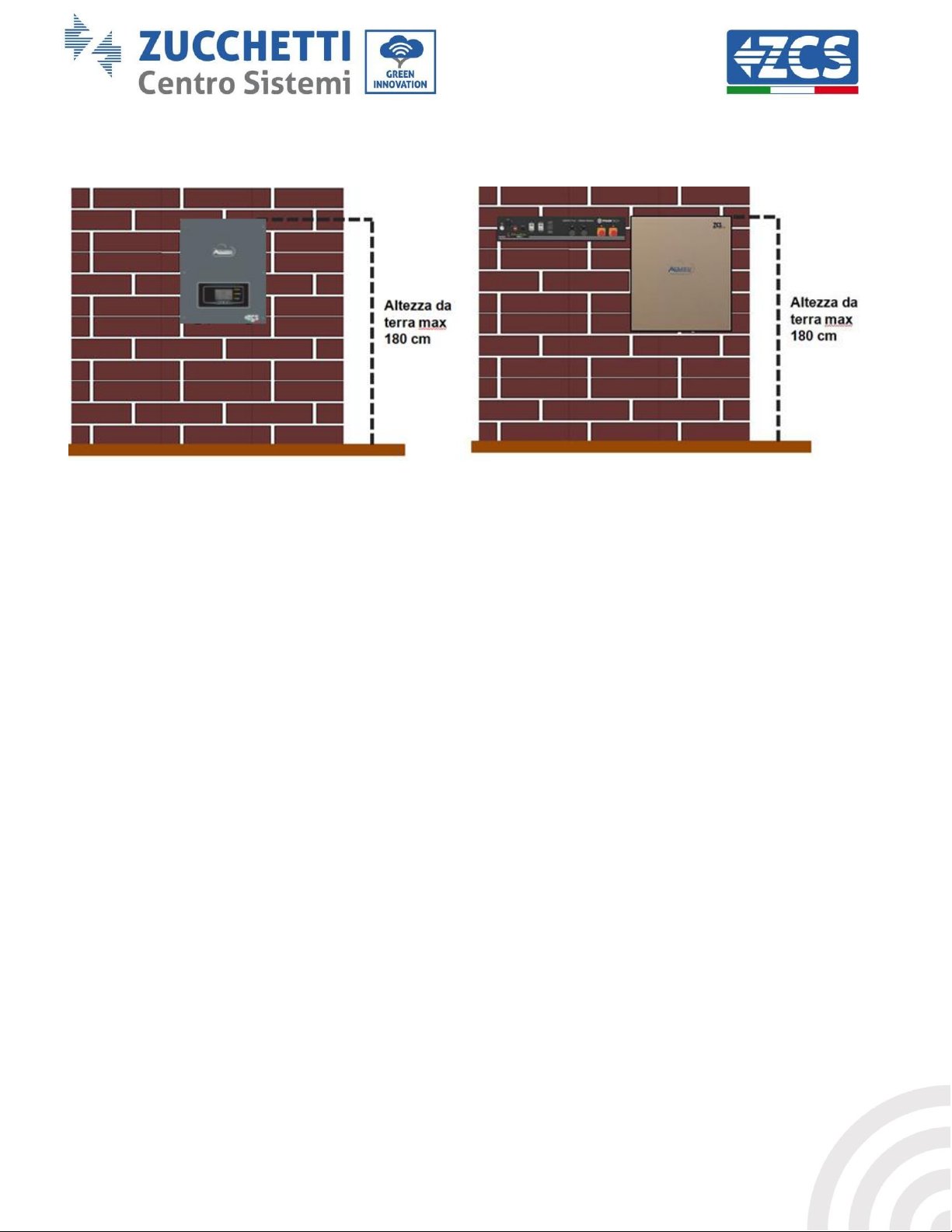

Figure 5 –Instructions for installing the storage inverter and battery pack

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
17/94
4. Electrical connections
Carefully assess the risks deriving from electric shocks and chemical hazards!
Use a multi-metre to check the DC polarity of the battery and cables before connecting the power supply
between the batteries and inverter.
NOTE: an inverted polarity connection may cause irreparable damage to the inverter and batteries.
Note: the Pylontech batteries, as well as the WeCo batteries do not require a disconnecting device for connecting
to the storage inverter. The Cable kit, which includes crimped power cables for connecting the Pylontech
batteries to the 1PH HYD3000-HYD6000-ZSS storage inverter, is supplied separately. Make sure your storage kit
is equipped with this accessory. In the case of WeCo batteries, the connection kit is already inside the package.
A 25A AC disconnecting device (circuit breaker) must be installed between the 1PH HYD3000-HYD6000-
ZSS inverter and the power grid. It is also recommended to use a differential with a trip threshold of 300
mA between the 1PH HYD3000-HYD6000-ZSS inverter and power grid.
For safety and proper functioning of the system, it is important to use a cable of the appropriate type and
size for the electrical connections.
- Battery connection: DC cable with cross-section of AWG8 or AWG6 (supplied).
- Grid or load connection: AC cable with cross-section of AWG12.
!!!PLEASE NOTE!!!
If the storage capacity needs to be increased by adding one or more batteries to an existing system, make sure
that all the batteries (installed and to be installed) are fully charged.
To check the charge status of each battery, connect them one at a time to the inverter and view the charge level
on the display (all the instantaneous information can be accessed by pressing the “Down” key from the main
menu).
The batteries can be recharged from the excess photovoltaic production or by using the forced charge mode
indicated in the “% charge mode” section of this manual.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
18/94
Figure 6 –Electrical Connections
4.1. Connecting the battery
Figure 7 –Connecting the battery (measure polarity/voltage of the battery cables before connection)

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
19/94
Step 1: Unscrew the 4 screws (A) using a screwdriver (Fig. 6).
Step 2: Remove the waterproof cover (B), loosen the cable gland (C), and then remove the cap (G).
Step 3: Pass the battery cables (F) through the cable gland, then connect the battery wires using the OT
terminal (E).
Step 4: Fasten the waterproof cover using the 4 screws.
4.2. Connecting a Pylontech battery
4.2.1.Connecting a single battery
This cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate
connection:
1. In the case of Pylontech batteries, insert the plug into the BMS CAN port of the single battery.

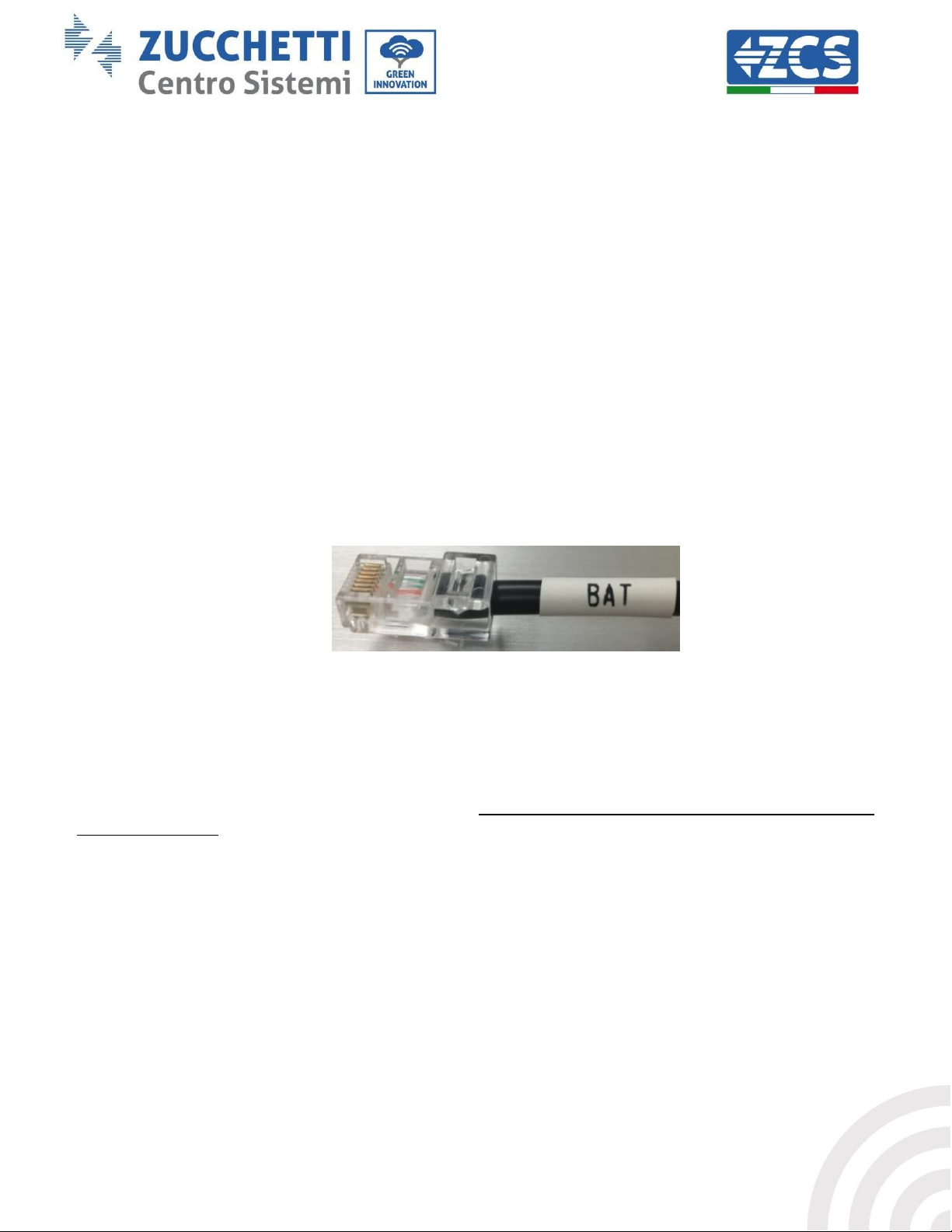

Figure 8 - Pylontech communication cable to be inserted into the battery communication input
2. Ensure that the order of the DIP switches remains at the factory settings (all down in the OFF position).
3. Connect the ground cable to the battery through the threaded hole.
NOTE: When connecting Pylontech batteries, use the communication cable contained in the inverter kit, as
shown in the figure.

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
20/94
Figure 9 - Connecting the communication cable to the Pylontech battery
4.2.2.Connecting multiple batteries in parallel
If multiple batteries are present, check the parallel connections between one battery and another.
a. In the case of Pylontech batteries, connect one of the two power cables (e.g. the positive, orange one) to
the master battery, inserting the fast contact into the appropriate terminal; then connect the other cable
(e.g. the negative, black one) to the last battery of the pack, as shown in the figure below. Finally, run the
batteries in parallel using the short jumpers (supplied with the battery) or those with a length of 0.6 m or
1.5 m (available on request, codes ZST-CABLE-0.6M and ZST-CABLE-1.5M), connecting respectively the
positive and negative polarities of one battery with those of the next battery.
Figure 10 –Connecting three Pylontech batteries in parallel
