ZCS AZZURRO Series User manual

Identification: MD-AL-GI-00 Rev. 4.0 of 02/11/2020 - Application: GID
Pile Reg. IT12110P00002965 - Share Capital € 100,000.00 fully paid up
AR Company Reg. no. 03225010481 - REA AR no. 94189
ISO 9001 Certified Company - Certificate no. 9151 - CNS0 - IT-17778
Zucchetti Centro Sistemi S.p.A. - Green Innovation Division
Via Lungarno, 248 - 52028 Terranuova Bracciolini - Arezzo, Italy
tel. [phone] - fax. [phone]
[e-mail] - [email protected] –www.zcsazzurro.com
GUIDE TO MONITORING OF
AZZURRO ZCS SYSTEMS

2 / 45
Table of Contents
1. Internal Wi-Fi card.......................................................................................................................................................................................3
1.1. Installation ...................................................................................................................................................................................3
1.2. Configuration ..............................................................................................................................................................................5
1.3. Verification................................................................................................................................................................................13
1.4. Troubleshooting......................................................................................................................................................................14
2. External Wi-Fi adapter............................................................................................................................................................................18
2.1. Installation ................................................................................................................................................................................18
2.2. Configuration ...........................................................................................................................................................................19
2.3. Verification................................................................................................................................................................................28
2.4. Troubleshooting......................................................................................................................................................................31
3. Ethernet adapter........................................................................................................................................................................................35
3.1. Installation ................................................................................................................................................................................35
3.2. Verification................................................................................................................................................................................37
3.3. Troubleshooting......................................................................................................................................................................38
4. 4G adapter.....................................................................................................................................................................................................41
4.1. Installation ................................................................................................................................................................................41
4.2. Verification................................................................................................................................................................................43

3 / 45
1. Internal Wi-Fi card
1.1. Installation
The installation of an internal Wi-Fi card is only required for single-phase photovoltaic inverters
from the Azzurro 1PH 1100TL - 3000TL-V1 and 1PH 3000TLM - 6000TLM-V1 range not equipped
with on-board Wi-Fi card.
The 3000SP V1 storage inverter always comes with an internal Wi-Fi card.
In order to monitor the inverter, the RS485 communication address must be set to 01 directly from
the display.
Installation tools:
5-mm Allen key
Internal Wi-Fi card
To view the “Warranty Terms and Conditions” offered by ZCS Azzurro, please refer to the
documentation inside the product box and on the website www.zcsazzurro.com.
1) Switch off the photovoltaic inverter by first disconnecting the AC line via the appropriate
wall switch and then the DC line via the appropriate wall switch.
2) Unscrew and remove the four Allen screws on the front panel of the inverter using a 5 mm
screwdriver.
Figure 1 –Position of the four Allen screws securing the front cover
3) Lift the front cover of the inverter using a screwdriver if necessary to lever the aluminium
casing open; during this operation, be careful not to move the front cover too far from the
body of the inverter, as it is still connected via the flat cable.

4 / 45
4) Lift the cover up as far as the flat cable allows it, and open the hooks connecting the flat
cable to the terminal on the inverter’s communication board, so that both the cable and
front cover can be removed.
Be sure to correctly open both plastic hooks before removing the cable.

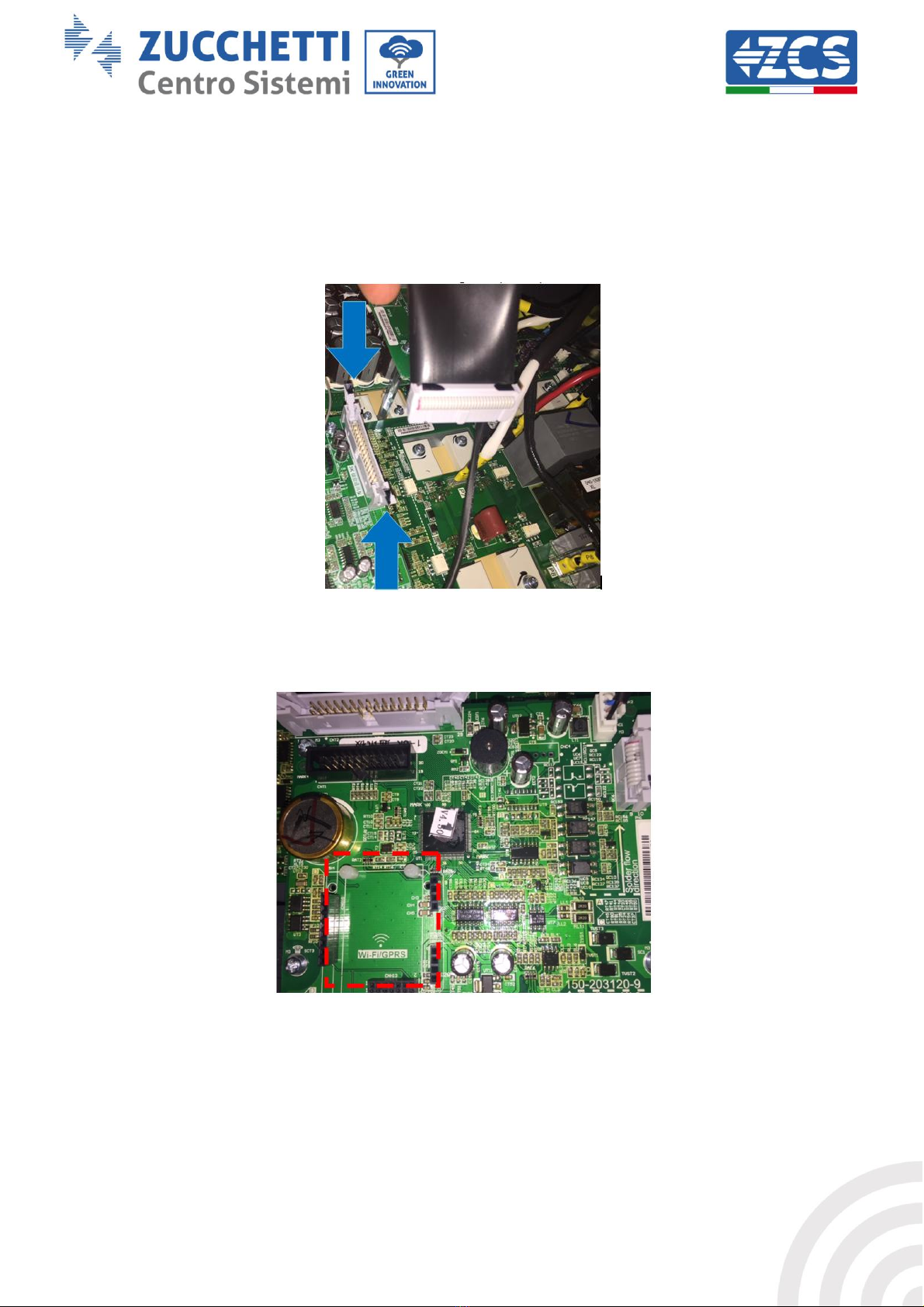

Figure 2 –Opening of the hooks on the slot of the flat connector
5) Insert the Wi-Fi card into the dedicated slot on the communication board, which is also
marked by an outline, as shown in the following image.
Figure 3 –Position of the Wi-Fi card on the communication board
Make sure to first insert the two plastic connectors in the slots positioned at the top, and
then match the pins of the Wi-Fi card to the slots at the bottom. Press the card lightly to
make sure it is mounted properly.

5 / 45
6) Pass the antenna connected to the card through the cable gland on the bottom of the
inverter, after loosening the ring nut and removing the rubber stopper inside; finally, make
sure the antenna is stable by rotating the ring nut in the opposite direction.
If, during this operation, the cable connected to the antenna detaches from the card, connect
it again by placing the two connectors on top, and pressing lightly, as shown in the following
image.
Figure 4 –Correctly installed Wi-Fi card
7) Reconnect the flat cable in its slot and close the two plastic hooks, making sure that they are
closed properly. Place the front cover in its original position and secure by rescrewing the
four Allen screws that were previously removed.
8) Start the inverter in the regular way as described in the manual, first supplying DC voltage
and then AC voltage using the wall-mounted switches.
1.2. Configuration
Configuration of the Wi-Fi card requires the presence of a Wi-Fi network near the inverter in order
to achieve stable transmission of data from the inverter card to the Wi-Fi modem.
Tools required for configuration:
Smartphone, PC or tablet
Go to front of the inverter and search for the Wi-Fi network using a smartphone, PC or tablet,
making sure that the signal from the home Wi-Fi network reaches the place where the inverter is
installed.
If the Wi-Fi signal is present at the location where the inverter is installed, the configuration
procedure can begin.
If the Wi-Fi signal does not reach the inverter, a system must be installed to amplify the signal and
bring it to the installation location.

6 / 45
1) Activate the search for the Wi-Fi networks on your telephone or PC so that all the networks
visible by your device are displayed.
Figure 5 - Search for Wi-Fi networks on iOS smartphone (left) and Android smartphone (right)
Note: Disconnect from any Wi-Fi networks to which you are connected by disabling automatic
connection.
Figure 6 - Disabling automatic reconnection to a network
2) Connect to a Wi-Fi network generated by the inverter's Wi-Fi card (i.e. AP_*******, where
******* indicates the serial number of the Wi-Fi card shown on the left side of the inverter),
which operates as an access point.

7 / 45
3) Note: To ensure that the card is connected to the PC or smartphone during the configuration
procedure, enable automatic reconnection of the AP_******* network.

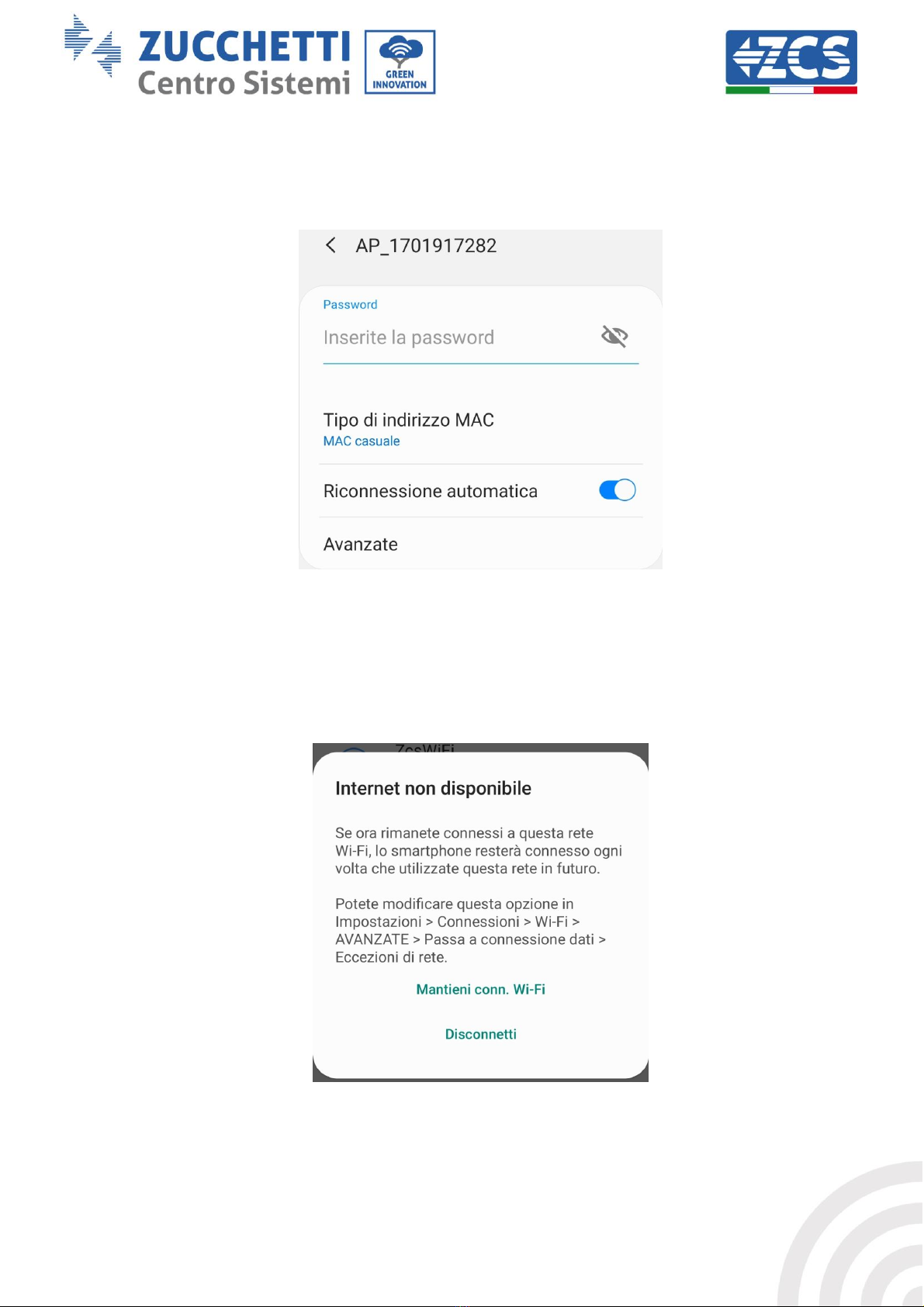

Figure 7 - Password entry prompt
Note: the Access Point is not able to provide internet access; confirm to maintain the Wi-Fi
connection, even if the internet is not available.
Figure 8 - Screen indicating that the Internet cannot be accessed

8 / 45
4) Open a browser (Google Chrome, Safari, Firefox) and enter the IP address 10.10.100.254 in
the address bar at the top of the screen.
In the box that appears, enter “admin” as both the Username and Password.

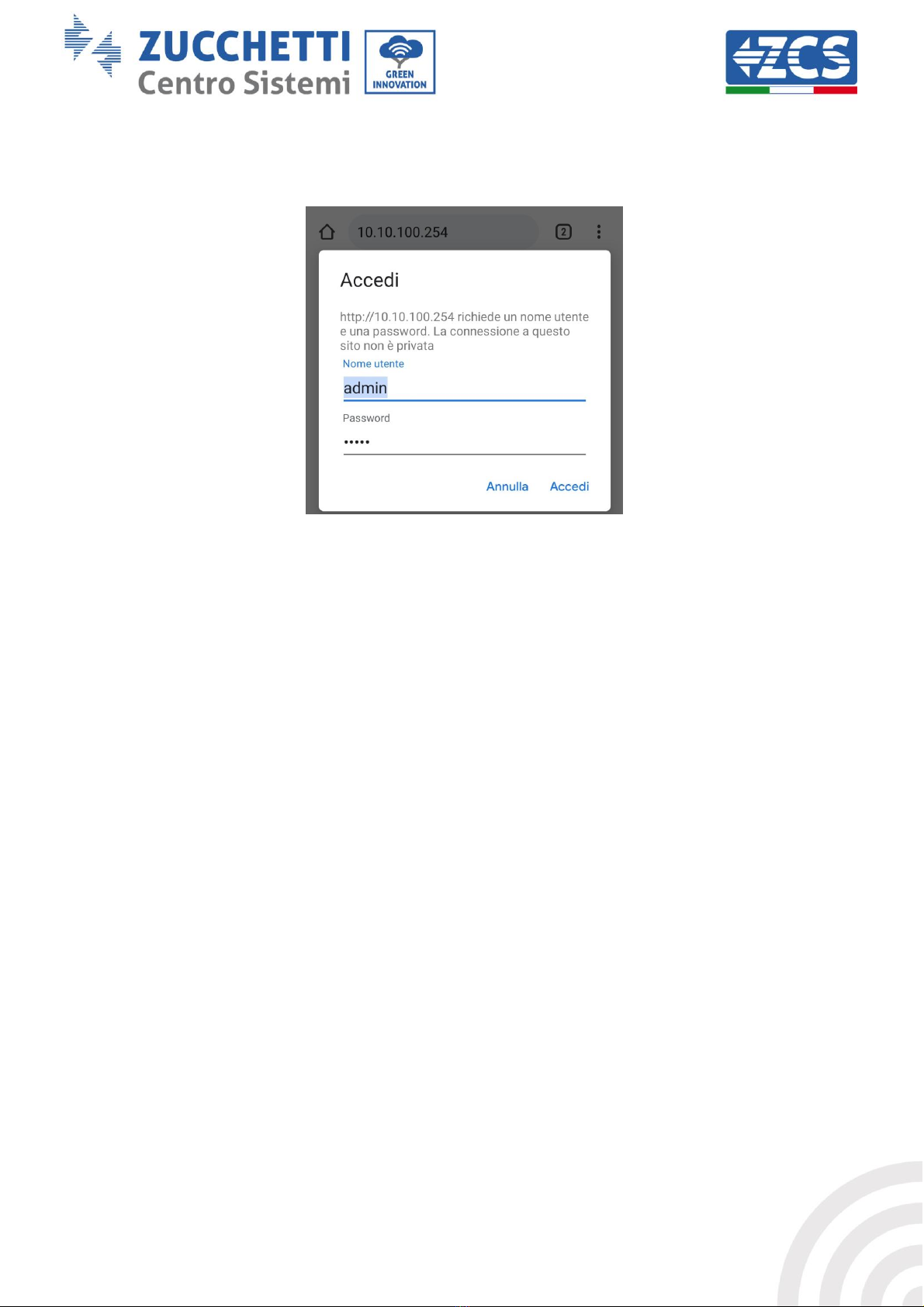

Figure 9 –Screen for accessing the web server to configure the Wi-Fi card
5) The status screen will open, showing the logger information such as the serial number and
firmware version.
Check that the Inverter Information fields are filled in with the inverter information.
The language of the page can be changed using the command in the top right-hand corner.

9 / 45
Figure 10 –Status screen
6) Click on the Wizard setup button in the left-hand column.
In the new screen that opens, select the Wi-Fi network to which you want to connect the Wi-
Fi card, making sure that the Received Signal Strength Indicator (RSSI) is greater than 30%.
If the network is not visible, press the Refresh button.
Note: check that the signal strength is greater than 30%; if not, make sure the antenna has
been fully extracted by following the three steps shown in the figure.
If the antenna has been correctly extracted, bring the router closer or install a repeater or
signal amplifier.
Click Next.

10 / 45
Figure 11 –Screen for selecting the available wireless network (1)
7) Enter the password of the Wi-Fi network (Wi-Fi modem), clicking on Show Password to
make sure it is correct; the password should not contain special characters (&, #, %) and
spaces.
Note: During this step, the system is not able to ensure that the password entered is the one
actually requested by the modem, therefore please make sure you enter the correct
password.
Also check that the box below is set to Enable.
Then click “Next” and wait a few seconds for verification.

11 / 45
Figure 12 –Screen for entering the password of the wireless network (2)
8) Click “Next” again without ticking any of the options relating to the card security.
Figure 13 - Screen for setting the security options (3)

12 / 45
9) Click “OK”.
Figure 14 –Final configuration screen (4)
10) If the configuration procedure is successful, the following screen will appear.
If this screen does not appear, try refreshing the browser page.
The screen will prompt you to manually close the page; close the page from the background
of your telephone or from the close key on your PC.
Figure 15 –Successful configuration screen

13 / 45
1.3. Verification
Wait two minutes after completing the card configuration.
Enter the IP address 10.10.100.254 again, and the login credentials (“admin” for both username
and password). Once logged in, the following screen will appear; from here, check the following
information:
Wireless STA mode
-Router SSID > Router name
-Signal Quality > other than 0%
-IP address > other than 0.0.0.0
Remote server information
-Remote server A > Pingable
Figure 16 - Main screen of status and verification of correct configuration

14 / 45
If the Remote Server A item in the Status page is still “Unpingable”, the configuration was not
successful, i.e. the wrong router password was entered or the device was disconnected during
connection.
It is necessary to reset the card:
-Select Reset in the left-hand column.
-Press OK to confirm.
-Close the web page and enter the Status page again. At this point, the configuration
procedure can be repeated again.
Figure 17 –Reset screen
1.4. Troubleshooting
1. The AP_******** Wi-Fi network generated by the card installed on the inverter is not
visible
-Check the Modbus address set on the inverter:
Enter the main menu with the ESC key (first key on the left), go to System Info and press
ENTER to enter the submenu. Scroll down to the Modbus address parameter and make
sure it is set to 01 (and in any case, other than 00).
If the value set is different from 01, go to Settings and enter the Modbus Address menu
where the 01 value can be set.

15 / 45
-Check that the card is correctly connected to the mechanics of the inverter.
If necessary, disconnect the card from its slot and insert again.
-Check that the Wi-Fi symbol is present in the top right-hand corner of the inverter's
display (steady or flashing).
Figure 18 –Icon on the display of inverters
2. The Signal Quality is 0% and the IP Address is 0.0.0.0
-Check that the configuration procedure has been carried out correctly and that the
correct network password has been entered.
-Reset the card as described in the previous section and configure again.
3. The Remote Server A item is Unpingable
-When searching for the Wi-Fi network using a smartphone or PC, make sure that the Wi-
Fi signal is strong enough (a minimum RSSI signal strength of 30% is required during
configuration). Check that you have correctly extracted the Wi-Fi antenna and, if
necessary, increase the signal strength by using a network extender or a router
dedicated to monitoring the inverter.
-Check that the router has access to the network and that the connection is stable; check
that it is possible to access the Internet from a PC or smartphone.
-Check that port 80 of the router is open and enabled to send data
-Reset the card as described in the previous section and configure again.
-If, at the end of the previous checks and subsequent configuration, Remote server A is
still configured to “Unpingable”, then there may be a transmission problem at the home
network level and, specifically, that data between the router and server is not being
transmitted correctly. In this case, it is advisable to carry out checks at the router level in
order to ensure that there are no obstructions on the output of data packets to our
server.
-To make sure that the problem lies in the home router and to exclude problems with the
Wi-Fi card, configure the card using the Wi-Fi hotspot function on your smartphone as a
reference wireless network.

16 / 45
Using an Android mobile phone as a modem
a) Check that the 3G/LTE connection is active on your smartphone. Go to the Settings menu
of the operating system (the gear icon on the screen with a list of all the apps installed on
the phone), select “Other” from the Wireless and networks menu and make sure that the
Network type is set to 3G/4G/5G.

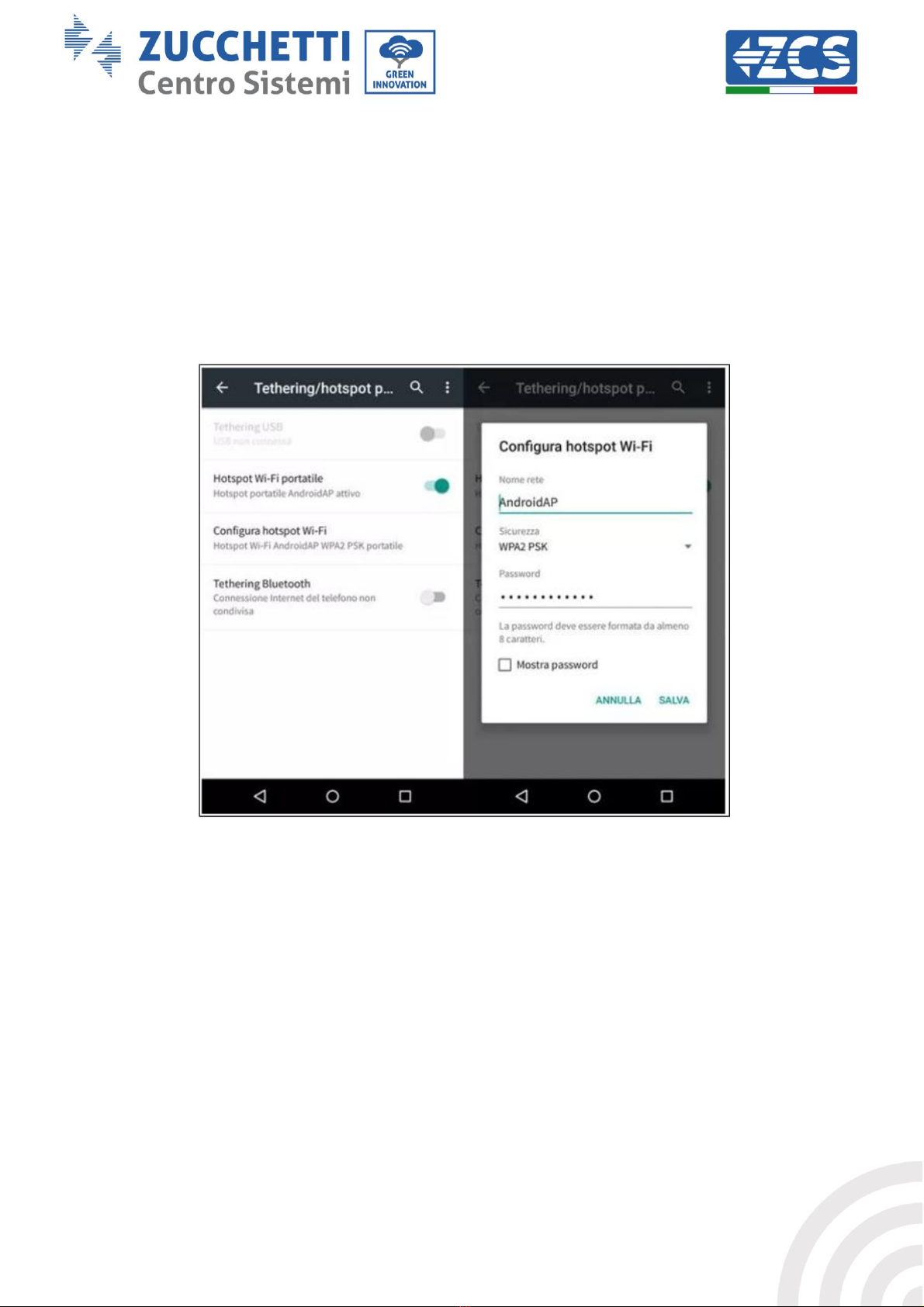

b) In the Android settings menu, go to Wireless & networks > Other. Select Mobile
Hotspot/Tethering, and then enable the Wi-Fi mobile hotspot option; wait a few seconds
for the wireless network to be created. To change the name of the wireless network
(SSID) or your password, select Configure Wi-Fi hotspot.
Figure 19 –Configuration of an Android smartphone as a hotspot router
•Using an iPhone as a modem
a) In order to share the iPhone connection, verify that the 3G/LTE network is active by
going to Settings > Mobile Phone, and making sure that the “Voice and data” option is set
to 5G, 4G or 3G. To enter the iOS settings menu, click the grey gear icon on the home
screen of your phone.
b) Go to the Settings menu > Personal Hotspot and turn on the Personal Hotspot option.
The hotspot is now enabled. To change the password of the Wi-Fi network, select Wi-Fi
password from the personal hotspot menu.

17 / 45
Figure 20 - Configuration of an iOS smartphone as a hotspot router
At this point, it is necessary to re-configure the Wi-Fi card using a PC or smartphone other
than the one used as a modem.
During this procedure, when asked to select the Wi-Fi network, choose the one activated by
the smartphone and then enter the password associated with it (which can be changed from
the personal hotspot settings). If at the end of the configuration the word “Unpingable”
appears next to “Remote Server A”, then the problem depends on the home router.
It is therefore advisable to check the brand and model of the home router you are trying to
connect to the Wi-Fi card; some router brands may have closed communication ports. In this
case, contact the customer service of the router’s manufacturer and ask them to open port
80 (direct from the network to external users).

18 / 45
2. External Wi-Fi adapter
2.1. Installation
Unlike the internal Wi-Fi card, the external adapter must be installed for all compatible inverters.
However, the procedure is quicker and easier as there is no need to open the front cover of the
inverter.
In order to monitor the inverter, the RS485 communication address must be set to 01 directly from
the display.
Installation tools:
Cross screwdriver
External Wi-Fi adapter
1) Switch off the inverter following the procedure described in this manual.
2) Remove the cover for accessing the Wi-Fi connector on the bottom of the inverter by
unscrewing the two cross-head screws (a), or by unscrewing the cover (b), as shown in the
figure.
(a)
(b)
Figure 21 –Port for external Wi-Fi adapter
3) Connect the Wi-Fi adapter to the appropriate port, making sure to follow the direction of the
connection and ensure correct contact between the two parts.

19 / 45
(a)
(b)
Figure 22 –Inserting and securing the external Wi-Fi adapter
4) Switch on the inverter by following the procedure described in the manual.
2.2. Configuration
Configuration of the Wi-Fi adapter requires the presence of a Wi-Fi network near the inverter in
order to achieve stable transmission of data from the inverter adapter to the Wi-Fi modem.
Tools required for configuration:
Smartphone, PC or tablet
Go to front of the inverter and search for the Wi-Fi network using a smartphone, PC or tablet,
making sure that the signal from the home Wi-Fi network reaches the place where the inverter is
installed.
If the Wi-Fi signal is present at the location where the inverter is installed, the configuration
procedure can begin.
If the Wi-Fi signal does not reach the inverter, a system must be installed to amplify the signal and
bring it to the installation location.

20 / 45
1) Activate the search for the Wi-Fi networks on your telephone or PC so that all the networks
visible by your device are displayed.
Figure 23 - Search for Wi-Fi networks on iOS smartphone (left) and Android smartphone (right)
Note: Disconnect from any Wi-Fi networks to which you are connected by removing automatic
access.
Figure 24 –Disabling automatic reconnection to a network
2) Connect to a Wi-Fi network generated by the inverter's Wi-Fi adapter (i.e. AP_*******,
where ******* indicates the serial number of the Wi-Fi adapter shown on the label of the
device), which operates as an access point.
