Zcs Zcs 1.1k-3ktl User manual

PV Grid-Connected Inverter

Product Model: ZCS 1.1K~3KTL Document Version 1.1(2016.07.13)

User manual

Zucchetti Centro Sistemi S.p.A.

ADD:Via Lungarno 305/A - 52028 Terranuova Bracciolini (AR)，Italy

innovation@zcscomany.com

http://www.zcscompany.com

Tel : +39 055 91971 Fax :+39 055 9197515

C

The copyright of this manual belongs to Zucchetti Centro Sistemi S.p.A. Any corporation or

individual should not plagiarize, partially copy or fully copy it (including software, etc.), and

reserves the right of final interpretation. This manual is subject to change according to user’s

or customer’s feedback. Please check our website at for

latest version.

http://www.zcscompany.com

Zucchetti Centro Sistemi S.p.A.

ADD:Via Lungarno 305/A52028 Terranuova Bracciolini (AR), Italy

http://www.zcscompany.com

innovation@zcscomany.com

This product manual describes the installation, electrical connections, commissioning,

maintenance and troubleshooting of ZCS 1.1K~3KTL inverters:

1100TL 1600TL 2200TL 2700TL 3000TL

Keep this manual where it will be accessible at all times.

44

47

49

50

51

52

60

62

66

C

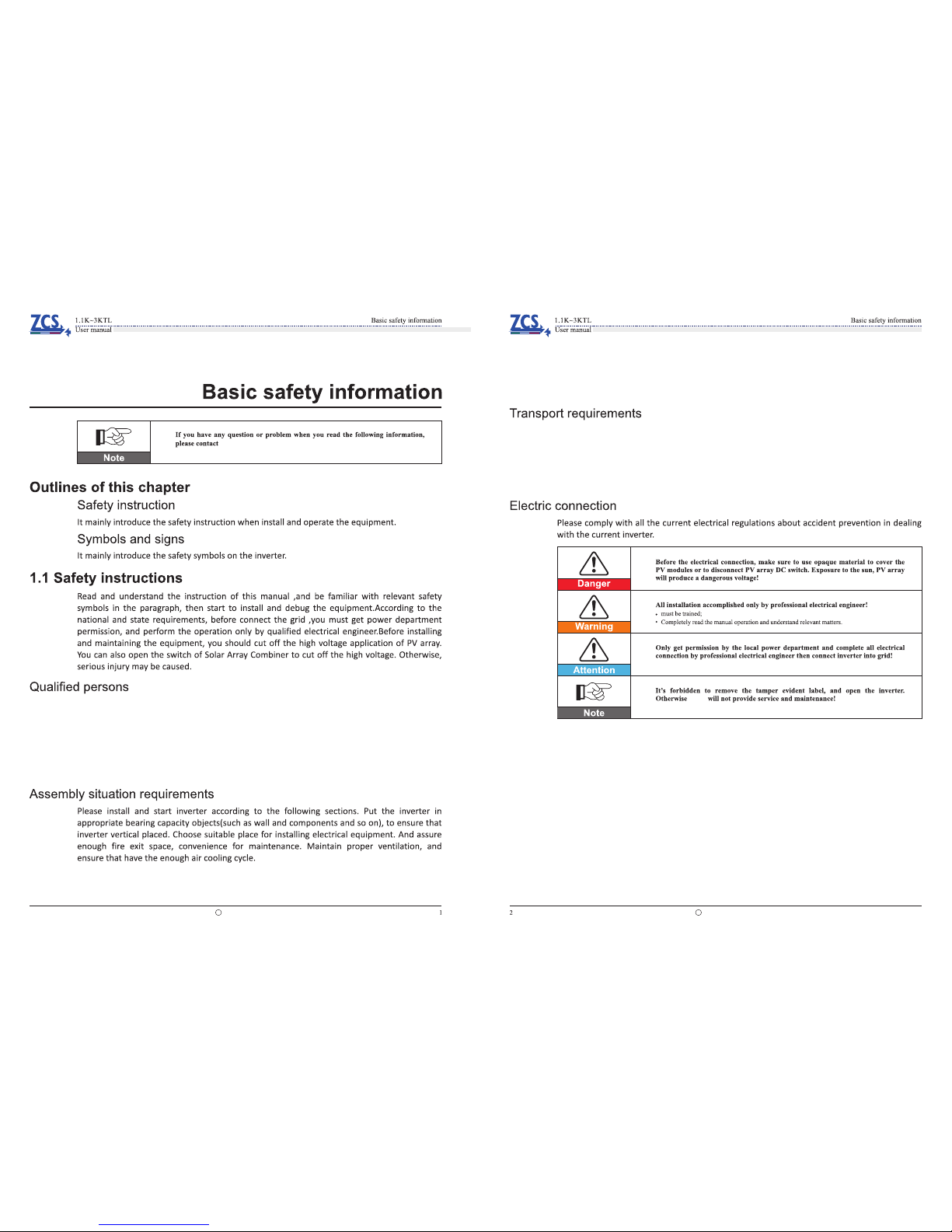

1

If you find packing problems that may cause the damage of the inverter, or find any visible

damage, please immediately notice the responsible transportation company. You can ask

syour solar system installer or Zucchetti Centro Sistemi S.p.A. for help if necessary. Transport

of the equipment, especially by road, must be carried out with suitable means for protecting

the components (in particular, the electronic components) from violent shocks, humidity,

vibration, etc.

Make sure the operator has the necessary skill and training to do his/her job. Staff in charge

of using and maintaining the equipment must be skilled, aware and mature for the described

tasks and must have the reliability to correctly interpret what is described in the manual. For

Safety reasons only a qualified electrician, who has received training and / or has

demonstrated skills and knowledge in construction and in operation of this device, can install

this inverter. Zucchetti Centro Sistemi S.p.A. does not take any responsibility for the property

destruction and personal injury caused by any incorrect use.

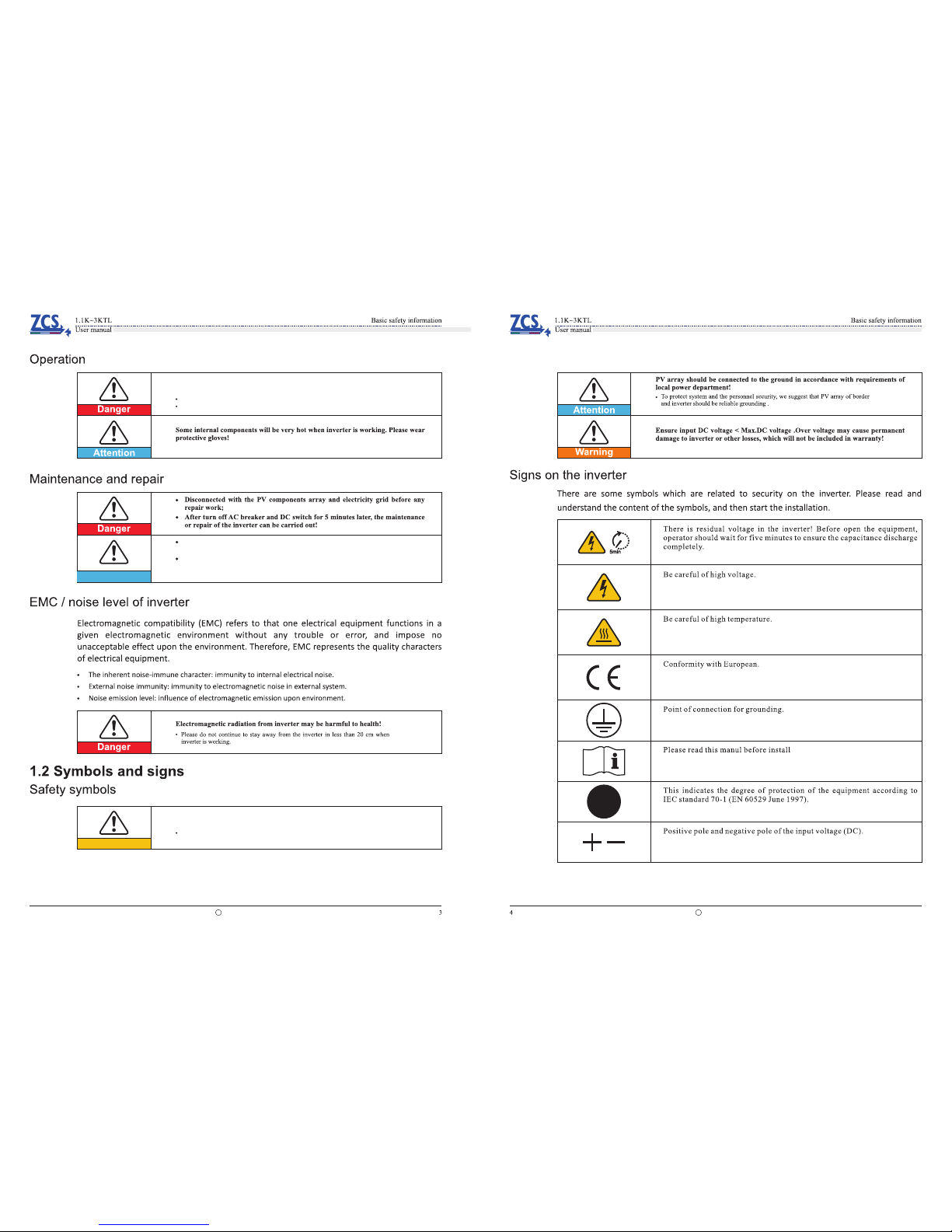

ZCS

Zucchetti Centro Sistemi S.p.A.

Touching the power grid or the terminal of equipment may lead to die of electric

shock or fire!

Don’t touch the terminal or conductor which connect to the power circuit;

Pay attention to anything about grid connection and security document.

IP65

Caution

Caution of burn injuries due to hot enclosure parts!

During working only can touch the display and key parts of inverter.

C

Attention

Inverter should work again after removing any faults. If you need any repair

work, please contact with the local authorized service center;

Do NOT disassemble the inverter without authorization. It will void the

warranty and Zucchetti Centro Sistemi S.p.A. will not take any responsibility

for the losses caused by that.

the inverter

C

2

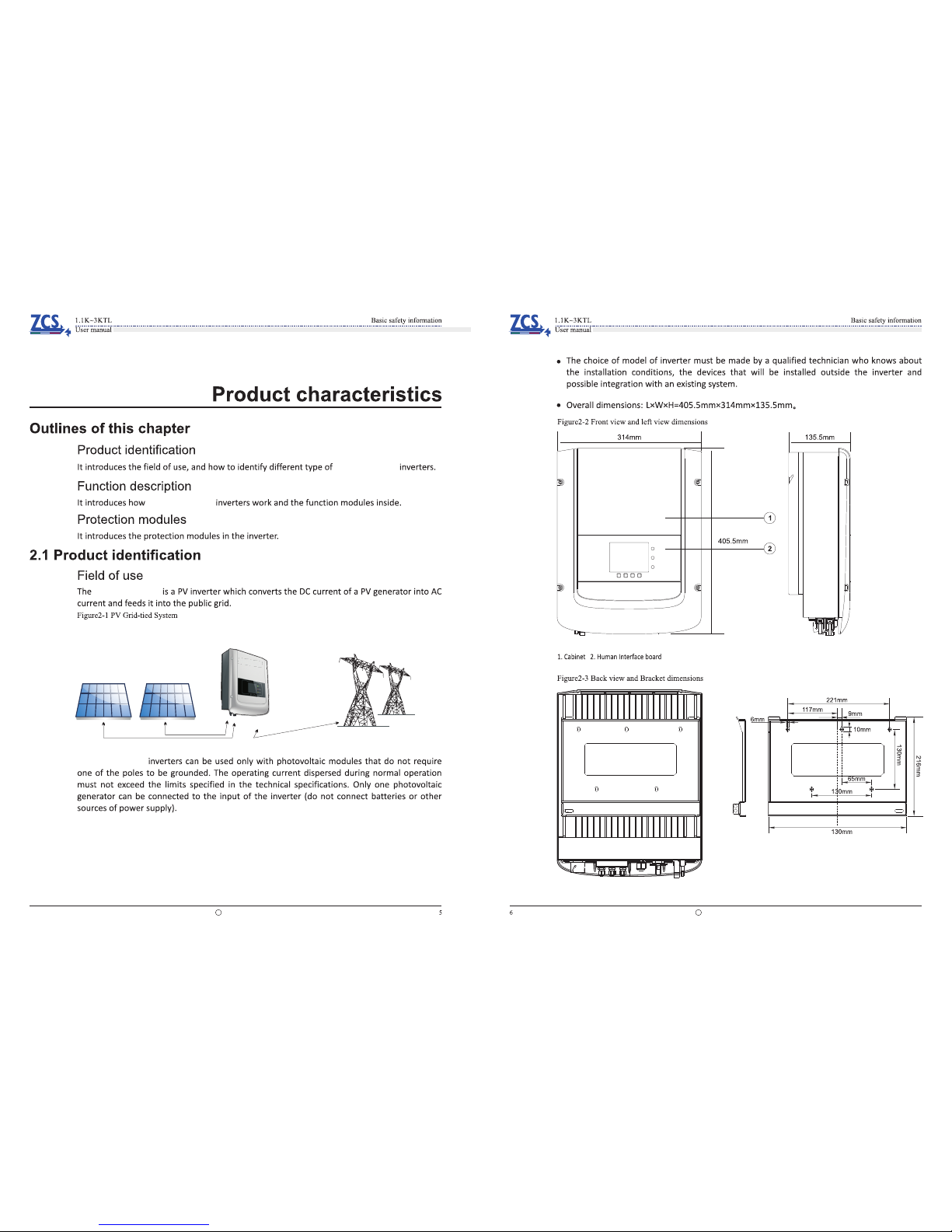

ZCS 1.1K~3KTL

The labels must NOT be hidden with

objects and extraneous parts (rags,

boxes, equipment, etc.); they must

be cleaned regularly and kept visible

at all times.

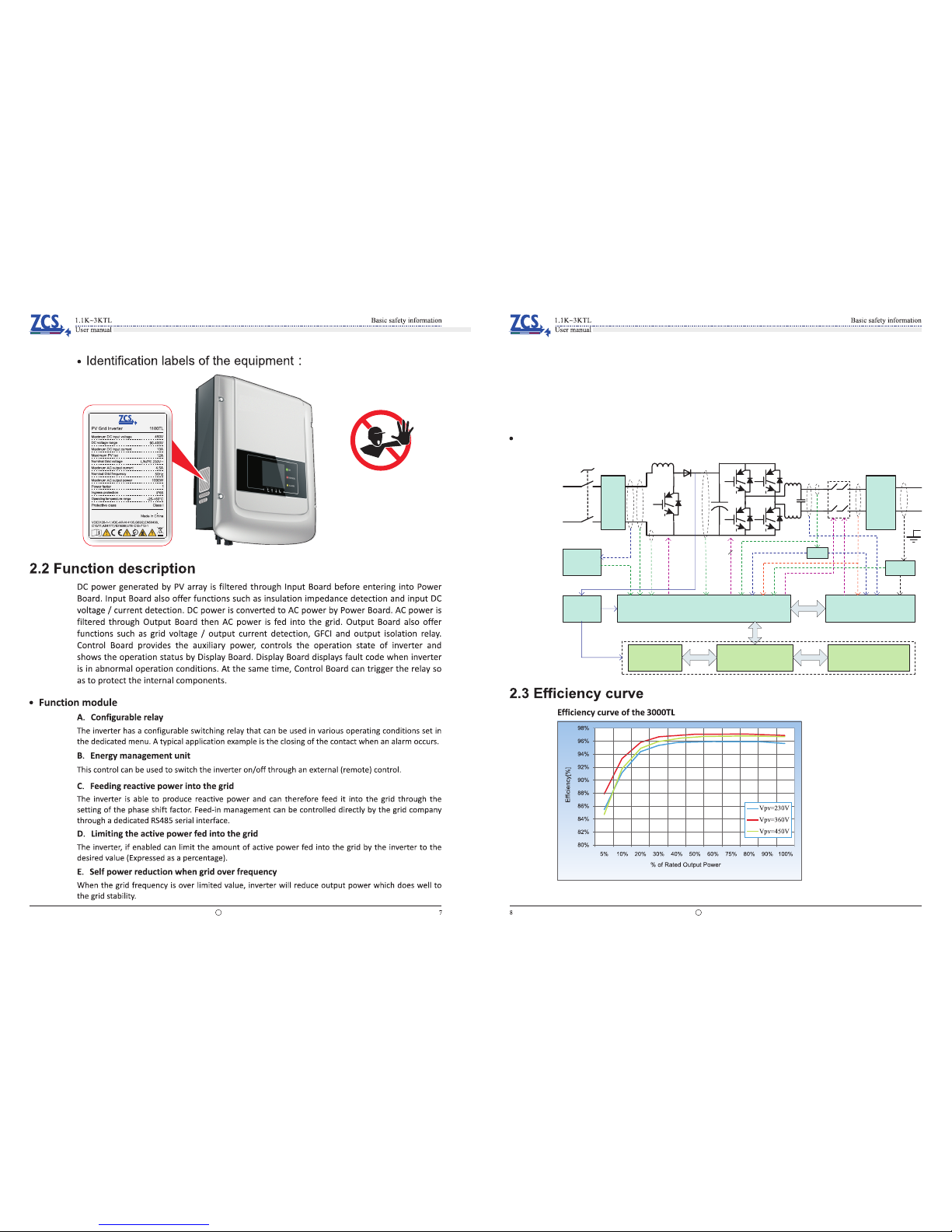

Electrical block diagram

Figure2-4 Electrical block diagram

PV+

PV-

DC-Switch

(optional)

Input

EMI

Filter

Output

EMI

Filter

PV-

insulation

AUX-

Power Main-DSP Slave-DSP

DCI

GFCI

L

N

PE

LCD Display ARM Controller RS-485,Dry-relay,

Wi-Fi optional

R 232

S

SPI

V.ISO

V.PV

I.PV

Boost.PWM

V.BUS

INV.PWM

4

I.GRID

M.DCI

M.V-GRID&FREQ

M.GFCI

M.RELAY

S.RELAY

S.V-GRID&FREQ

S.DCI

S.GFCI

V INV.

F. Data transmission

The inverter or a grid of inverters may be monitored remotely through an advanced communications

system based on an RS-485 serial interface, or remotely via the WIFI.

G. Software update

SD card is used for updating the firmware.

C

Zuc chett i Centr o Siste mi S.p. A.

6

Metal terminals secured

to PV- input power

cables

7

8

9

11

12

M5 Hexagon screws

Expansion bolts

M6 flat washer

Self-tapping screw

Manual

The warranty card

1

2

3

4

5

Rear panel

PV+ input terminal

PV-input terminal

Metal terminals secured

to PV+ input power

cables

1 pcs

Table3-1 shows the components and mechanical parts that should be delivered

No. Pictures Description Quantity

13

Registration Form

1 pcs

2 pcs

7 pcs(spare 2pcs)

7 pcs

5 pcs

1 pcs

10

C

Outlines of this chapter

This topic describes how to install the ZCS 1.1K-3KTL inverter.

Installation notes

Caution

Danger

Attention

Do NOT install the ZCS 1.1K-3KTL on a flammable material.

Do NOT install the ZCS 1.1K-3KTL in an area used to store flammable or

explosive materials.

The enclosure and heat sink are very hot while the inverter is working, therefore

do NOT install the ZCS 1.1-3KTL in places where you might touch them

inadvertently.

Consider the weight of ZCS 1.1K-3KTL when transporting and moving the

ZCS 1.1-3KTL inverters.

Choose an appropriate mounting position and surface.

Assign at least two persons to install the ZCS 1.1-3KTL inverter.

Packing materials and components may be damaged during transportation. Therefore, check

the outer packing materials before installing the inverter. Check the outer packing materials

for damage, such as holes and cracks. If any damage is found, do not unpack the ZCS 1.1k-

3KTL and contact the dealer as soon as possible. You are advised to remove the packing

materials within 24 hours before installing the ZCS 1.1k-3KTL inverter.

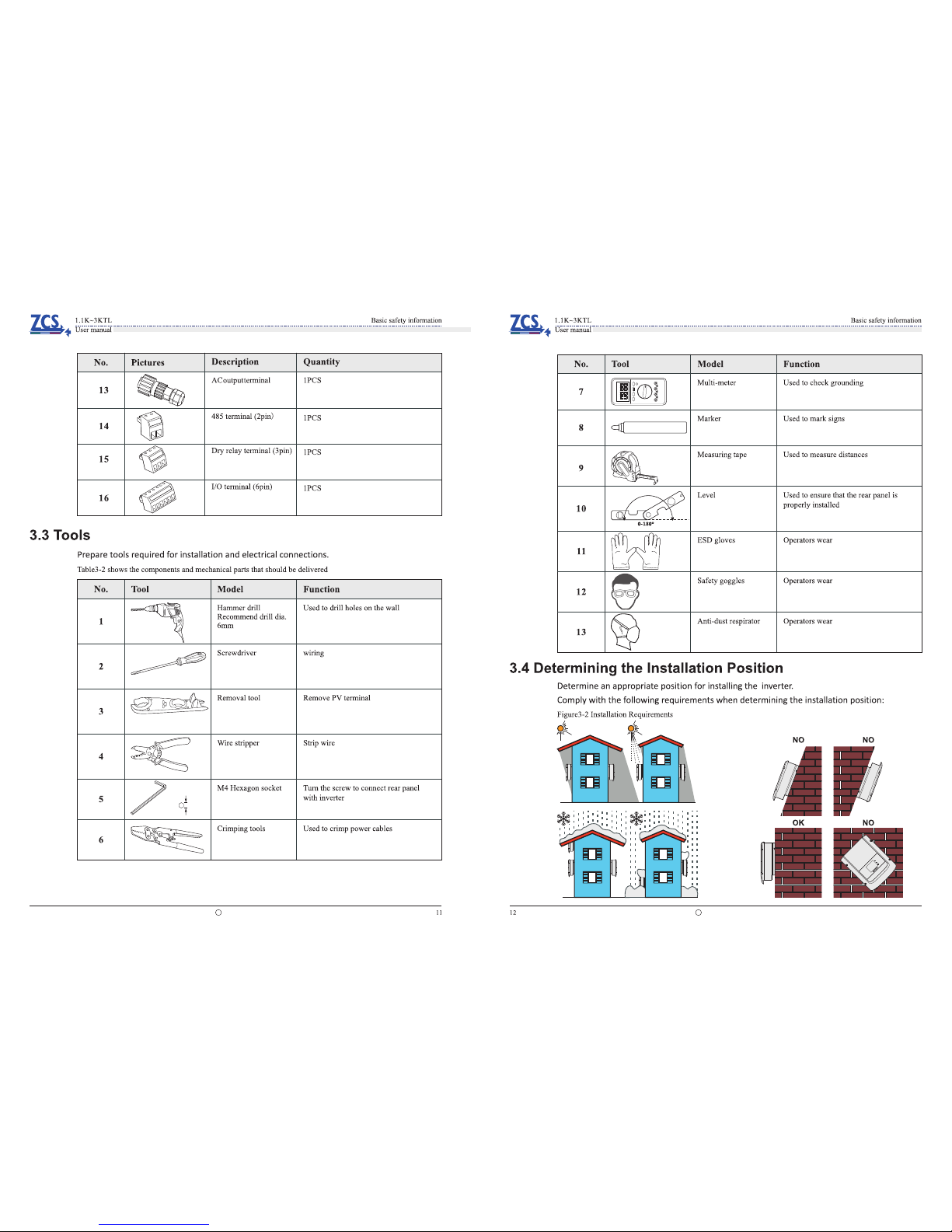

ZCS 1.1K~3KTL

4.0

OK OK NO OK

OK OK NO

NO

C

max 15º3.5 inverterMoving the

This topic describes how to move the to the installation position horizontallyinverter

Step 1 Opening the packing, insert hands into the slots on both sides of the inverter and hold

the handles, as shown in Figure 3-3 and Figure 3-4.

Figure 3-3 Moving the (1)inverter

Figure 3-4 Moving the (2)inverter

Step 2 Lift the from the packing case and move it to the installation position.inverter

End

Attention

To prevent device damag and personal injury, keep balance when moving the

inverter because the inverter is heavy.

Do not put the inverter with its wiring terminals contacting the floor because

the power ports and signal ports are not designed to support the weight of the

inverter. Place the inverter horizontally.

When placing the inverter on the floor, put foam or paper under the inverter

to protect its shell.

C

Minimum Installation distance for single inverter

Installation of multiple inverters

C

ZCS 1.1K~3KTL

inverter

ZCS 1.1K~3KTL

C

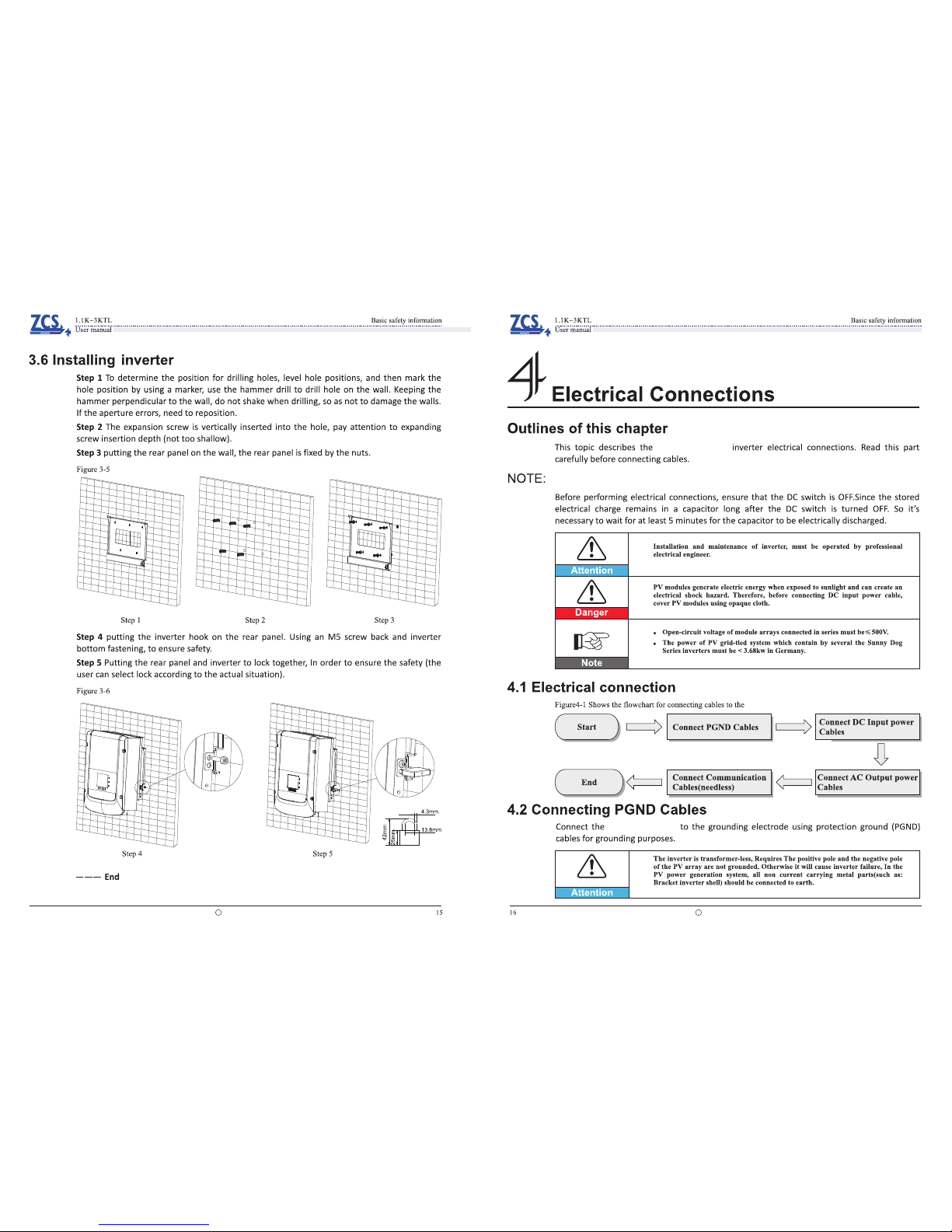

For Italy, single phase solar inverter can NOT be used in 3-phase power supply

system.

C

inverter

Multi core copper wire mm²≥4

0m 10m 20m 30m 40m 50m 60m 70m 80m 90m 100m

1.4%

1.2%

1.0%

0.8%

0.6%

0.4%

0.2%

0.0%

Loss

Length

2.5mm² 4.0mm² 6.0mm²

8.0mm²

10.0mm²

A

B

C

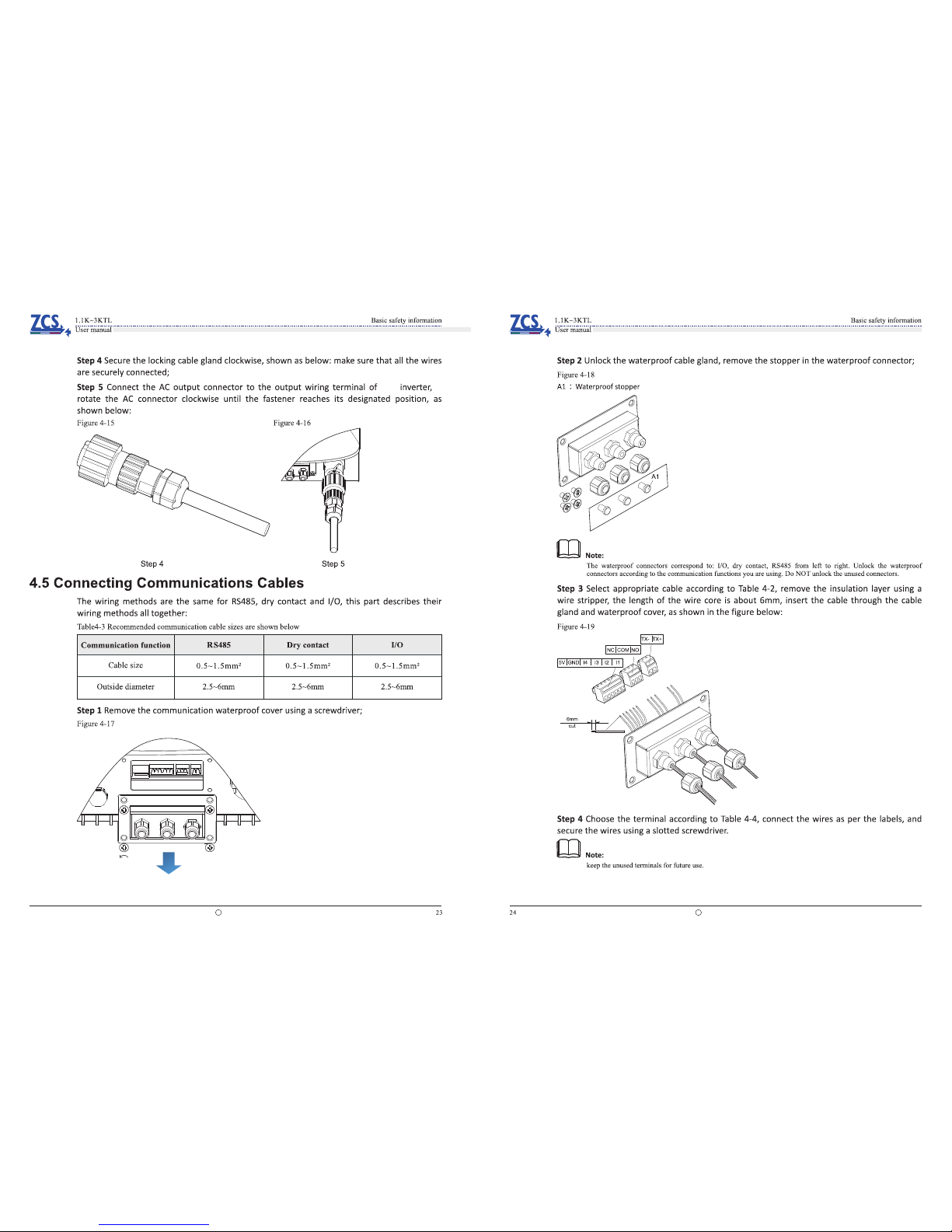

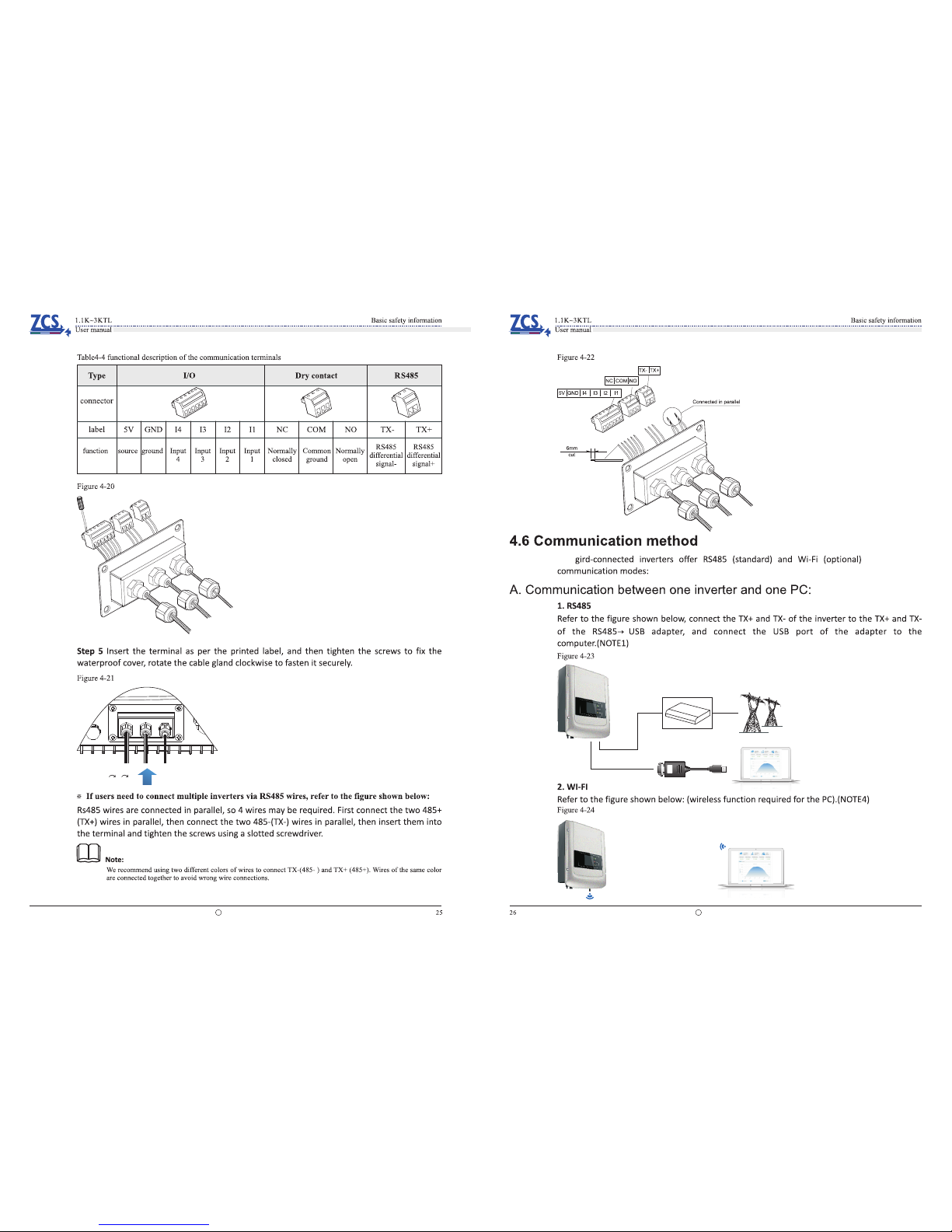

ZCS

C

ZCS

USB

RS-485

R 485/USB

S

R 485

S

Radio ripple

control receiver

Publlc Grid

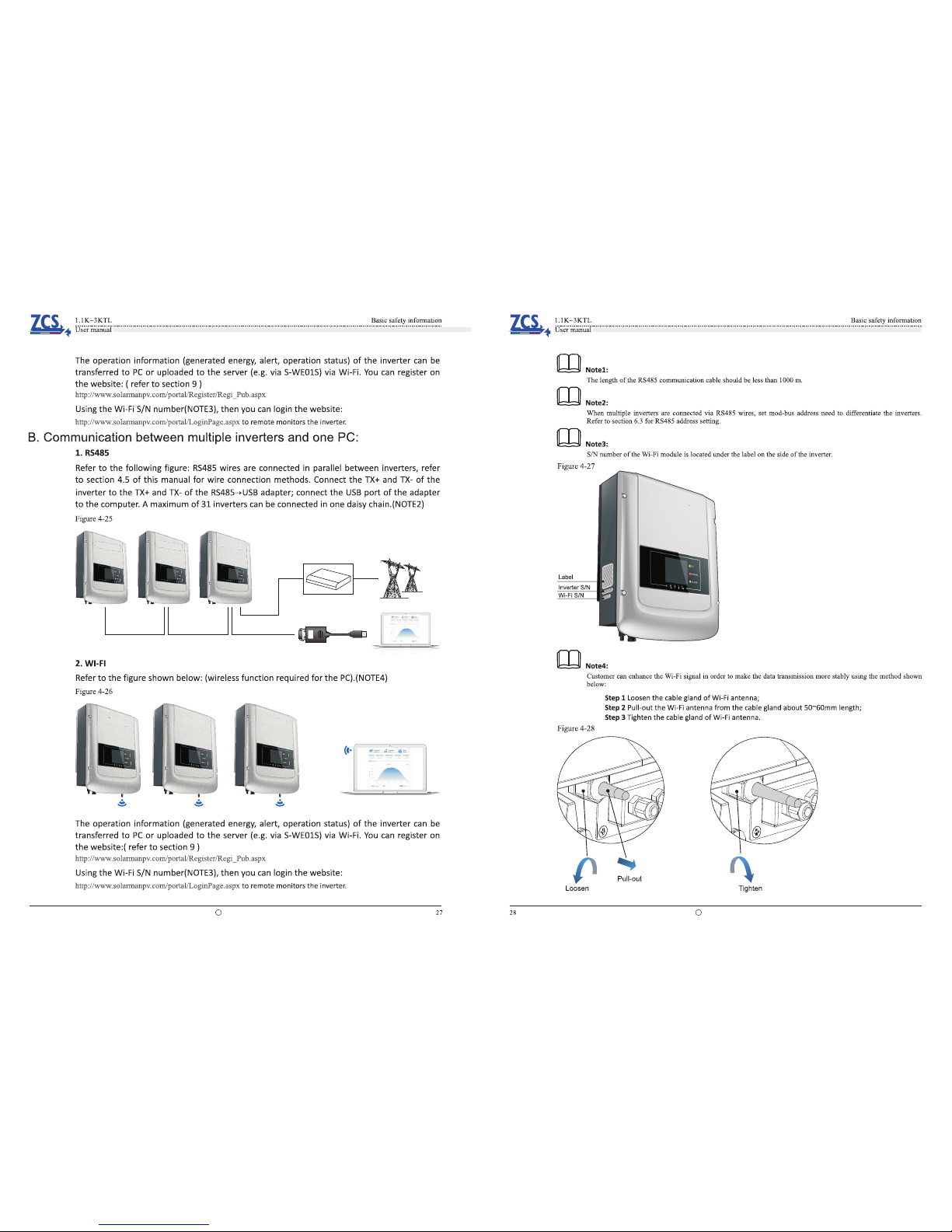

C

ZCS

USB

RS-485

R 485/USB

S

R 485

SR 485

S

Radio ripple

control receiver

Publlc Grid

C

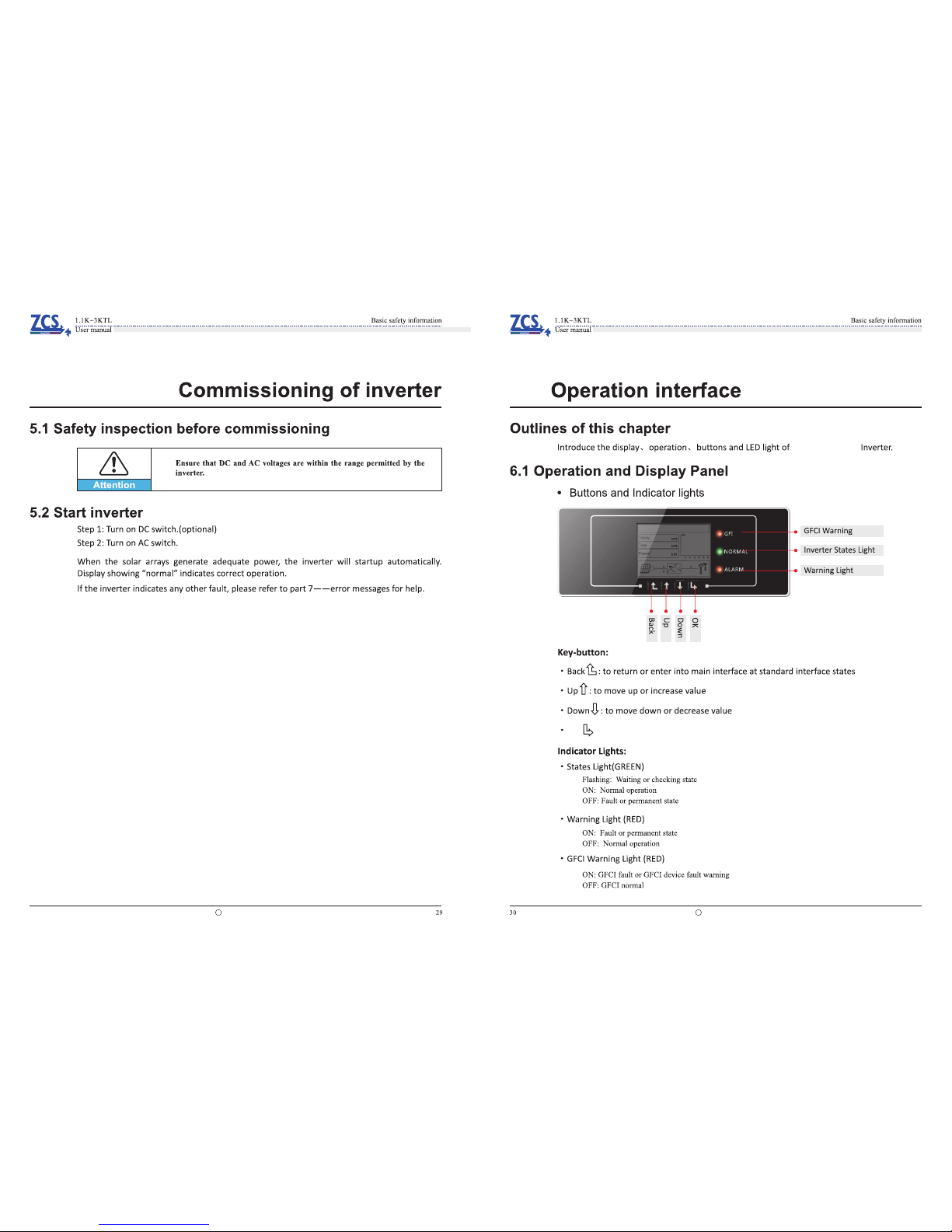

OK :to confirm selection

C

5 6

ZCS 1.1K~3KTL

C

1.Enter Setting

1. Set time

2. Clear Energy

3. Clear Events

4. Set Country

5. Remote Control

6. Relay Command

7. Enable Set Country

8. Set Energy

10. Set Language

11. Start Parameter

12. Safety Voltage

13. Safety Frequency

14. Insulation Resistance

15. Relay Test

16. Reactive Power

17. Power Derate

18. Reflux Power

19. Autotest Fast

20. Autotest STD

21.Set P(f)

22.Set Q(v)

23.Control 81.S1

1. Set Time

This allows users to set time (year, month, day, hour, minute and second). Press "Up"and

"Down" to change the number, press "OK" to go to next digit. "success" is displayed if

the time setting is correct, otherwise "fail" will be displayed.

2. Clear Energy

3. Clear Events

This allows users to set total energy to zero. Press "OK" to clear the energy.

This allows users to clear events in the event list. Press "OK" to clear the events.

4. Set Country

This allows users to change the country setting.

If "Set Disable" is displayed, you need to enable it in "7. Enable Set Country" first.

If "Set Country ?" is displayed, press "OK" and input country code to change the

country setting. Press "Up" and "Down" to change the number, press "OK" to go to next

digit.

Table6-1 country code

24 Cyprus

Germany VDE

AR-N4105

Denmark

CEI0-21 Internal

Australia

Spain RD1699

Turkey

Greece Continent

00

01

02

03

04

05

06

Netherland

07

Belgium

UK-G59

08

09

China

France

Poland

Germany BDEW

10

11

12

13

Germany VDE

0126

14

Italy CEI0-16

15

UK-G83

Greece island

EU EN50438

IEC EN61727

16

17

18

19

Korea

20

21 Sweden

Europe General

CEI0-21 External

22

23

code code code

country country country

5. Remote Control

Press "OK", press "Up" and "Down" to select "1. Remote: ON ?" or "2. Remote OFF?".

Press "OK" to turn ON or turn OFF remote control.

Press “Back” button in standard interface to enter main interface:

9. Set Mod-bus Address

Press “OK”

Press “Back”

Up

Down

Up

Down

6. Relay Command

This allows users to configure multi-functional relay.

Note: for our inverters with built-in export limiter, we removed the multi-functional

relay to make room for the current transformer ports.

25 India
