ZKTeco SBT1000S User manual

1
Swing Barrier Turnstile User Manual
Applicable Models: SBT1000S
Version: 1.2Date: May. 2018

1
Contents
Chapter 1 Product Introduction.............................................................................................................................................................. 1
1.1 Model number and access control....................................................................................................................................... 1
1.2 Chassis and dimensions............................................................................................................................................................... 1
1.3 Mechanical system .......................................................................................................................................................................... 1
1.4 Electronic control system............................................................................................................................................................ 1
1.5 The working principle of swing barrier turnstile system........................................................................................ 2
1.6 Product related parameters....................................................................................................................................................... 2
Chapter 2 The Installation of the Product......................................................................................................................................... 3
2.1 Installation notes............................................................................................................................................................................... 3
2.2 Installation position of the swing barrier turnstile...................................................................................................... 3
2.3 Cables installation and fixation................................................................................................................................................ 3
Chapter 3 Menu Operation......................................................................................................................................................................... 5
3.1 Function introduction................................................................................................................................................................... 5
3.2 Menu introduction........................................................................................................................................................................... 5
3.3 Wiring diagram and function ................................................................................................................................................... 7
Chapter 4 Product Maintenance............................................................................................................................................................. 8
4.1 Chassis maintenance...................................................................................................................................................................... 8
4.2 Movement maintenance............................................................................................................................................................. 8
4.3 Power maintenance........................................................................................................................................................................ 8
Chapter 5 Troubleshooting ........................................................................................................................................................................ 9

1
Chapter 1 Product Introduction
1.1 Model number and access control
Access
Model NO C3-200 with two KR800 reader inBIO260 with two FR1500/ID reader
SBT1000S √
SBT1011S √
SBT1022S √
1.2 Chassis and dimensions
SBT1000S series, with stainless steel housing, provide simple and beautiful design with anti-corrosion.
It is provide orderly and civilized passage to people while eliminating illegal personnel access. In case
of emergency, it ensures timely evacuation channel smoothly and convenient personnel.

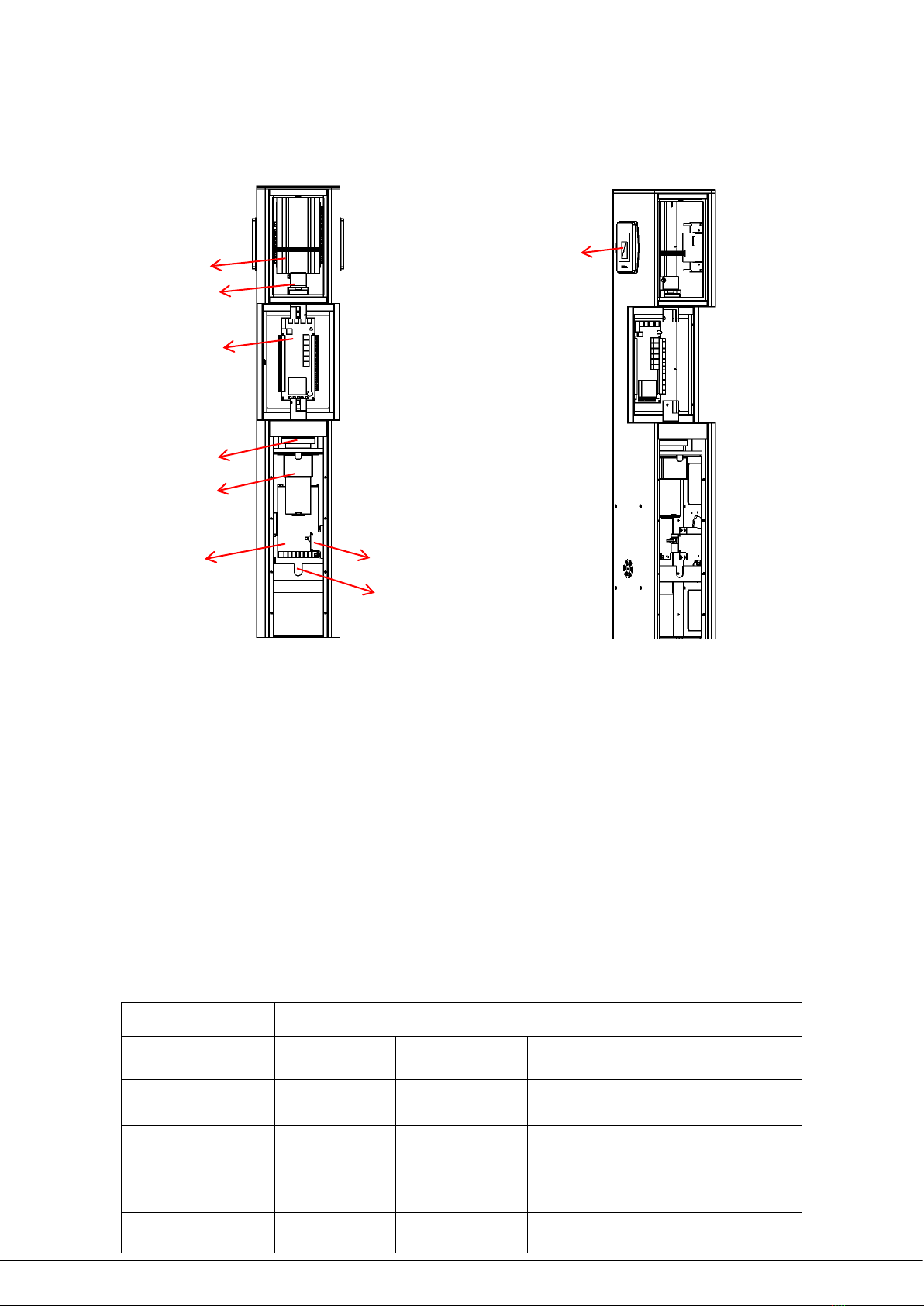

SBT1000S’s appearance and dimensions are as shown in Figure 1-2A:
Figure1-2A
1.3 Mechanical system
The mechanical system of a swing barrier turnstile includes the chassis and the core component. The
chassis is a carrier where the reader, the sensor, and the lock are installed. The core component
mainly consists of the motor, the frame and the swing arm.
1.4 Electronic control system
The electronic control system of a swing barrier turnstile is mainly composed of the reader, the
control panel, the access controller, the sensor and the transformer.

2
Reader: The reader reads the data in the card and sends it to the controller.
Control panel: The control panel is the system’s control center that receives signals from the access
controller, performs logical judgment and processing of these signals, and sends executive
commands to the electric motor.
IR sensor: anti-pinch function.
1.5 The working principle of swing barrier turnstile system
1) After powered on, the system performs self-check. If no failure is detected, the machine starts to
operate normally. If a failure is detected, the system displays related messages on the LCD
display screen so that the user can have a quick knowledge of and solve the problem.
2) When the reader detects a valid card, the buzzer will give a nice audible prompt to the
pedestrian, indicating that the card is being read successfully. And then, the reader sends signals
to the access controller to request permission to pass through the passage. If the signal is legal,
the access controller will send the open signal to the master control panel.
3) After receiving the signal from the access controller, the control panel sends valid control signals
to the electric motor and opens the barrier.
1.6 Product related parameters
Dimension(mm) SBT1000S: L=200, W=185, H=1100
Input voltage AC100-120V/200-
240V,50-60Hz Output voltage DC 24V
Input control signal Switching signal Relative humidity 20%-93%
temperature -28℃-60℃Pass speed Maximum: 30/minute
Infrared sensor 1 Working
environment Indoor/Outdoor（If shelter）
Air switch
Access controller
IR Sensor
24V power supply
Motor
Encoder
Control board
Clutch
Reader

3
Chapter 2 The Installation of the Product
2.1 Installation notes
1) It is recommended that the swing barrier turnstile be installed on a horizontal solid platform
with 50mm to 100mm in height.
2) It is recommended that the swing barrier turnstile should not be used in corrosive environment.
3) Make sure the protective earth wire of the system is reliably connected to avoid personal injuries
or other accidents.
4) After installation, check whether connection is reliable at the connecting points of the
protective earth wire, at the connector assemblies and wiring points of the circuits, as well as at
each movable part of the swing barrier turnstile. Any loose nuts, screws and other fasteners
should be tightened in time to avoid swing barrier turnstile failures caused by long-time
operations.
2.2 Installation position of the swing barrier turnstile
The installation position depends on the size of the swing barrier.If the swing barrier turnstile is
installed near a wall, a distance of 100mm between the swing barrier turnstile and the wall needs to
be reserved for ease of installing the device. The SBT1000S swing barrier turnstile may form a
channel, or form two channels with a SBT1000S swing barrier turnstile,as shown in figure 2-2A;
Figure2-2A SBT1000S Single channel and dual channel
2.3 Cables installation and fixation
For the outlets of the concealed cables, please refer to the drawing showing the mounting holes.
The input voltage for this swing barrier turnstile is AC100-120V/200-240V. The PVC conduits are
buried 100mm under the ground, with the height of the exposed part about exceeding 100mm. In
addition, the conduit outlet is bent back to prevent ingress of water into the conduit.
SBT1000S installation holes and cabling positions as shown in Figure 2-3A.

4
Figure 2-3A
Mark out the screw hole centers of the stand, and the edge of the chassis base on the ground
according to the sizes as shown on the figure 2-3A. Use a hammer drill to perforate M12 screw holes
and then install the screws. Place the swing barrier turnstile according to the sizes and positions as
shown in the figure before installation and fixation. Connect to the power and test. If the test is OK,
tighten the screws. It is recommended that a warning line be marked out on the ground after the
machine is installed, so as to prompt the pedestrian to stand behind the warning line when swiping
the card. As shown in Figure 2-3B.
Figure 2-3B

5
Chapter 3 Menu Operation
3.1 Function introduction
There are 4 keys on the control panel, including "UP", "DOWN", "ENT" and "ESC".
UP: to move up menu item or increase the value.
DOWN: to move down menu item or increase the value.
ENT: to enter setting menu item or confirm the current modified value.
ESC: to return the previous menu or cancel the current operation.
Operation and instruction of menu
Press the ENT button, enter the password input interface, the default password is: UP, UP, DOWN,
DOWN, DOWN, DOWN. If any step fails, please press the ESC button to get back. After entering the
menu press UP or DOWN to choose a menu item and then press ENT to enter the interface and
adjust function or value.
3.2 Menu introduction
1. Correct barrier position
1) Zero position
2) Left opening position
3) Right opening position
Press “ENT” key to modify. Press “UP/DOWN” to select correction type. Press “ESC” to exit. Default
value is Zero position.
2. Open duration time
After the gate is open, it will automatically close if no one passes.
Press ''ENT'' key to modify. Press “UP/DOWN” to select open duration time, press ''ESC'' to exit.
Adjustable range from 5 to 60, default value is 10 seconds.
3. Speed of gate
1) low speed
2) medium speed
3) high speed
Press ''ENT'' key to modify, press “UP/DOWN” to select speed, press ''ESC'' to exit.
Setting succeeds, device running 10 times will change effect, default value is medium speed.

6
4. Opening mode setting
1) Bi-direction swiping card
2) Left direction swiping card
3) Right direction swiping card
4) Bi-directional prohibition
Press ''ENT'' key to modify, press “UP/DOWN” to select opening mode, press ''ESC'' to exit.
The default value is Bi-direction swiping card.
5. Min speed compensation
Adjustable range from 0 to 20.
Press ''ENT'' key to modify, press “UP/DOWN” to select compensation, press ''ESC'' to exit.
The default value is 0.
6. Delay closing gate time
Adjustable range from 2 to 10.
After pedestrian passes through the last infrared sensor, the gates will keep opening the time
what you set, then close immediately.
Press ''ENT'' key to modify, press “UP/DOWN” to select delay closing gate time, press ''ESC'' to exit,
default value is 5 seconds.
7. Brake starting angle
Adjustable range from 3 to 10 degrees.
Press ''ENT'' key to modify, press “UP/DOWN” to select brake angle, press ''ESC'' to exit.
The default value is 3 degrees.
8. Unlock brake method.
About the method of unlocking, it uses delay release. The time of the delay is affected by the
times of lock. The first lock takes 2s, second lock takes 2s, third lock takes 4s, and then it's all 4s. In
this process, if the swing arm is back where it should have been before, it will reset the time.
9. Firefighting signal setting
1) Open
2) Close
Press ''ENT'' key to modify, press “UP/DOWN” to select fighting signal, press ''ESC'' to exit.
The default value is open; it is required firefighting device connection with fire port.
10. System working mode
1) Work mode
2) Auto test
3) System initialization
Press ''ENT'' key to modify, press “UP/DOWN” to select system working mode, press ''ESC'' to exit,
default value is work mode.
11. Volume setting
1) Adjustable range from 1 to 16, default value is 5.
2) Close sound
Press ''ENT'' key to modify, press “UP/DOWN” to select volume level, press ''ESC'' to exit.
The default value is 5.

7
12. IR anti-pinch setting
When the gate closes, if the infrared sensors is triggered, the swing arm stops moving.
13. Version
V2.1.2

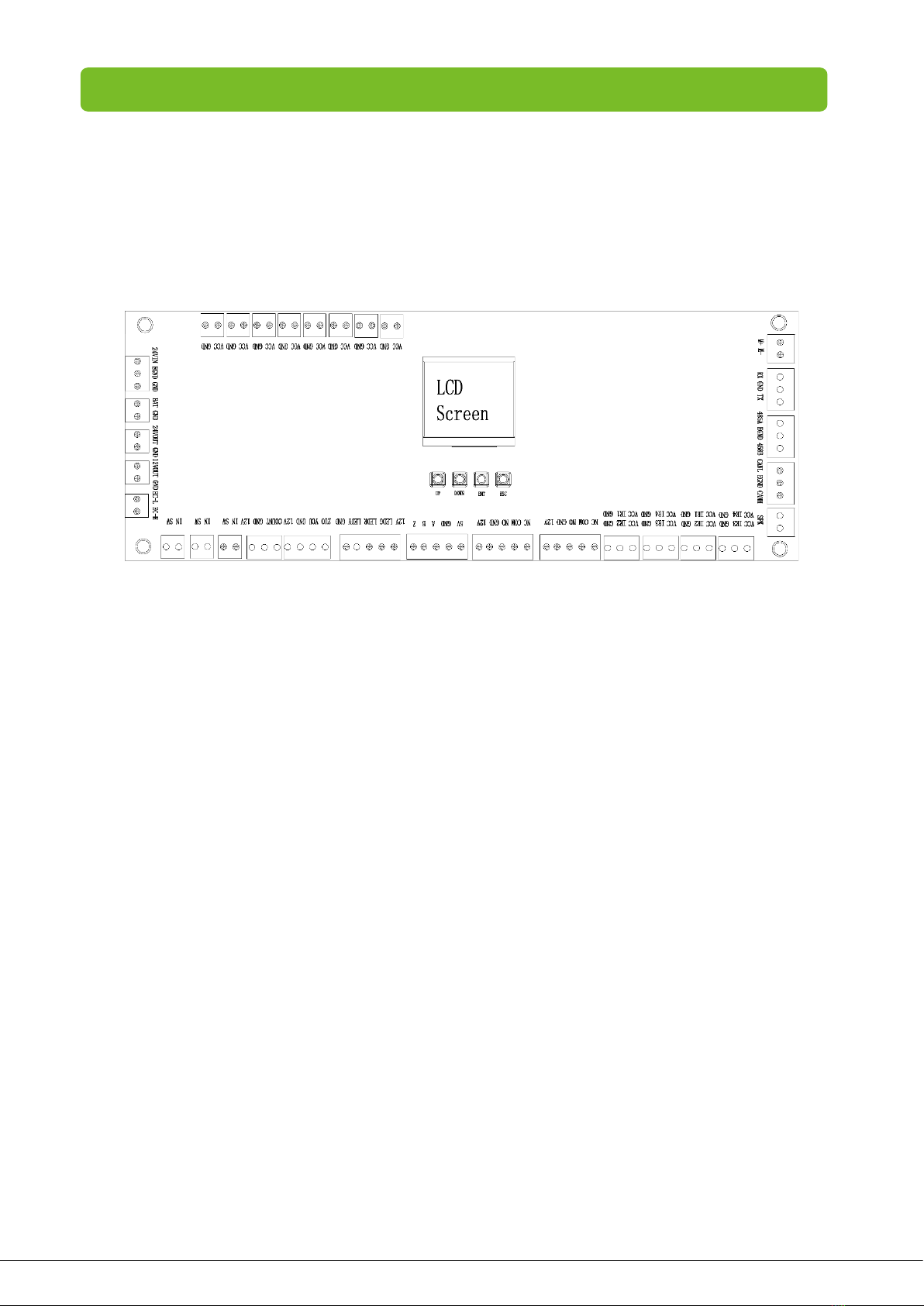

3.3 Wiring diagram and function
Check circuit according to the following wiring diagram:
Functions of terminals at each zone:
Power input 24V: The voltage is changed by a transformer to 24V and supplied to the control panel.
Firefighting port: During emergencies ensuring users fast unencumbered exit to safety.
Right open (DOWN button), left open (UP button): Controls the barrier to open to left or right
side.
Access control power supply: Supplies power for the access board.
RS485 communication port: Receiving external signals.
Electromagnetic clutch: It is connected to the electromagnet inside the core component to
prevent collision and pinch.
Connecting cable of the motor: It is connected to the motor and supplies power to the motor.
LED light: Connect to the light belt on the top of the device.
IR Sensor: It is connected to the infrared sensor to achieve anti-pinch function.
Encoder: It is connected to the encoder to determine the position of the barrier.
C
o
nt
r
o
l
l
e
r
UP DOWN ENT ESC
Reader
R
e
ad
e
r
1
Reader 2
485 Reader
GND
1
2
V
Lock1
Lock2
1
2
V
PO
W
E
R
M
+
M
-
RX
G
ND
T
X
485A EGND 458B C
AN
L
E
GN
D
CA
NH
IR7
IR8
IR6
IR5
IR3
IR4
IR2
IR1
NC
C
OM
NO
G
ND
1
2VN
C
CO
M
N
O
GN
D
12
V5V
G
ND
A
B
Z
1
2V
LE
DG
L
ED
R
L
ED
Y
GN
D
ZUO YOU GND 12V
EC
_L
1
G
ND
E
C_
H1
IN SW IN SW IN SW
E
C-
L
EC
-H
24VOUT GND BA
T
GN
D
2
4V
IN
E
GN
D
G
ND
V
CC
GN
D
VC
C
GN
D
V
CC
GN
D
V
CC
GN
D
VC
C
GN
D
VC
C
GN
D
V
CC
G
ND
V
CC
G
ND
Encoder
E
lectromagne
ticclutch
VC
C
G
NDVC
C
G
ND
VCC GND VCC GND
V
CC
GN
DV
CC
G
N
DVC
C
G
ND
VCC GND
AP-R：IR3
IR3 on the top
SPK
C
OM
N
O
CO
M
NO
12
V
OU
T
GN
D
24V
Po
we
r
Firefighting port
SBT1000S series
Wiring diagram
C
o
n
t
r
o
l
b
o
a
rd
Firefightingboa
rd
LED light
KR800
Infrared sensor
Motor

8
Chapter 4 Product Maintenance
4.1 Chassis maintenance
The chassis is made up of 304 stainless steels. There may be rust stains on its surface after using for a
long time. Regularly sand the surface along the grain softly and carefully, Coat the surface with
anti-rust oil, do not cover the infrared sensor.
4.2 Movement maintenance
Cut off power supply before maintenance. Open the door, clean surface dust, apply butter to the
transmission mechanism. Check and tighten others connection parts.
4.3 Power maintenance
Cut off power supply before maintenance. Check whether the plug is loose, if loose need to tightly it,
do not replace the connection position at random, check whether the external power supply is
exposed, timely wrapped, whether there is any leakage, timely treatment. Check the technical
parameters of interface is normal, the aging of electronic components to be replaced.
(Attention: Above swing barrier maintenance must be maintained by professional personnel.
Especially the movement and the electric control part, first cut off the power supply, ensure the
operation safety.)

9
Chapter 5 Troubleshooting
Number Failure description Analysis and solution
1Gate open, but it is not in place
Motor resistance may be too large,
Increase the value of minimum
compensation speed.
2No sound 1. Check if the speaker wire is loose.
2. Check if voice is turned off.
3Swing arm is not centered Enter the menu of "Swing arm zero
correction" to adjust the zero position.
4The control panel LCD shows
"Encoder wiring error"
Please check if the wiring of encoder A, B
phase is reversed, If yes, replace it.
5 The direction of gate open is
inconsistent with swiping card.
Access controller left and right gate
signal line is reversed, right and left can
be adjusted
6Swipe card, but gate does not
open.
1. Check if the menu setting interface
does not exit.
2. Check if the gate signal of the access
controller is connected to the gate
controller.
3. Enter menu to see if current mode is
set to card unavailable.
