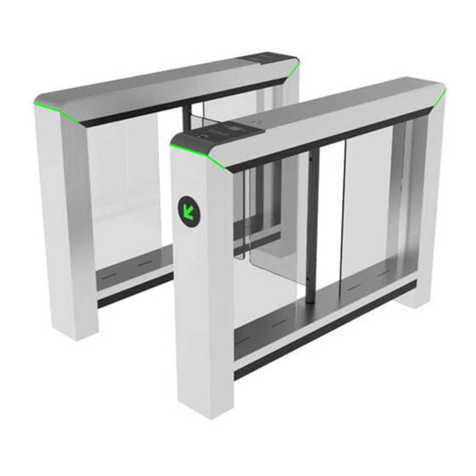

ZKTeco Mars-B1011 User manual

Installation Guide
Mars-B1000 Series
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.
Version: 1.0
Applicable Models: Mars-B1000/1011/1022/1200/1211/1222

1
1 Installation Requirements
The installation position of the swing barrier turnstile depends on its size. A distance of 100mm between
the swing barrier turnstile and the wall needs to be reserved for ease of opening the top cover of the
machine to perform maintenance and adjustment. The reference figure is shown below:
2 Installation Position
It is recommended that the swing barrier turnstile must be installed on a horizontal solid platform
with a height of 50mm to 100mm.
1.
After installation, check if the connection is done correctly at the connecting points of the ground
wire, at the connector assemblies and wiring points of the circuits, as well as at each movable part
of the swing barrier turnstile. Any loose nuts, screws and other fasteners should be tightened in
time to avoid any failures caused by long-time operations.
4.
3. Make sure the ground wire of the system is reliably connected to avoid personal injuries or other
accidents.
2. It is also recommended that the swing barrier turnstile should not be used in the corrosive
environment.

3 Preparation
2
To install the Mars-B1000 Series you must have:
A Screwdriver: To remove or install the screw on the device.
A Pencil: To mark the device size and the screw hole.
A Electric Drill: To drill holes according to the marked screw holes.
A Wrench: To secure the M12 expansion screw on the device.
4 Installation
1. Place the turnstile to the installation site.
1010.00
1355.00
A Tapeline: To measure the dimensions that need to be measured during the installation of the device.

4 Installation
Remove the screws fixing the top lid, and remove the top lid.
2.
3
Remove the side lid that hang on the device.
3.
②
①

4
Mark the floor following the periphery of the legs.
4.
710.00
120.00 120.00
1253.00

Take the turnstile aside and use the electric drill according to the drawn screw holes.
5.
5
6. Clean up the soil and dust after the drilling is completed, place the turnstile to the installation site
again.
Insert the M12 expansion screw and tighten it with a wrench.
7.

8. Connect the online cables and perform the power-on test. If the test is OK, install the side lid and
top lid of the device.
6
9. It is recommended that a warning line be marked on the ground after installing the device, so as to
prompt the pedestrian to stand behind the warning line when verification.
100.00
180.00
1010.00
180.00
650.00
300.00 300.00
238.50
1010.00
50.00
600.00 600.00
M12Expansion
Screw Tether Cable Power Line

7
10. If you need to assemble the swing arm by yourself, please refer to the diagram below for
installation.
Note: The swing arm is already installed in the factory.
①
②
