TS2000 Pro: Tripod Turnstile.
TS2011 Pro: Tripod Turnstile with Controller and RFID Reader.
TS2022 Pro: Tripod Turnstile with Controller and Fingerprint Reader with RFID function.
Please read this document carefully before installation and using the device.
1Technical Specications
Input Voltage
AC 100~120V /200~240V,
50Hz /60Hz Max. Tolerance of Arms Center: 80 kg
End: 40 kg
Rated Power 60 W Ingress Protection Degree IPX4
Operating
Environment
Indoor and Outdoor
(shelter) Arm Length (mm) 500
Operating
Temperature -28ºC ~ 60ºC Net Weight 42kg
Operating Humidity 5% ~ 85% Gross Weight 48kg
Flow Rate Max 30 passages / minute Dimension(mm) Figure 1 L = 1110, W = 280, H = 990
Input Control Signal Dry contact Package Size (mm) L = 1175, W = 370, H = 1070
Figure 1

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 7 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
2Arm Installation and Equipment Testing
Arm Installation Method2.1
In order to keepthe arm won’t be damaged during the transportation. The arm wasn’t install on device.
Installation procedure
Put arm kit into the hole of cabinet, make sure the screw holes match with mechanism core, then tighten 3
hex screws, as shown in Figure 2-1.
Figure 2-1
Power-on Test before the Installation of Device2.2
1. Please make sure that the power requirements are strictly met to avoid permanent damage to the
unit. Input voltage: AC 100~120V/200~240V.
Note: The tripod turnstile must be connected to the ground (earth).
2. Power on and wait 30s for the tripod turnstile to nish the self-check program.
3. Lift the armsmanually, as shown in Figure 2-2.
4. Check whether the tripod turnstile and the LED indicators work properly.
If there is any problem, please contact the supplier.

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 8 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Figure 2-2
3Equipment Installation
Installation Conditions3.1
The equipment must be installed on concrete ground, ensuring that expansion bolts can be secured rmly.
You are suggested to install an assistant framework or fence to form a passageway, as shown in Figure 3-1.
Figure 3-1
Lift upwards
There is a power switch inthe side
direction of this power supply.
Earth wiringterminal

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 9 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Notes:
1. When installing the tripod turnstile against the wall, please reserve at least 100 mm space in order to
open the cover for future adjustment and maintenance.
2. The space at the end of the arm shall not be greater than 80 mm (see Figure 3-1).
3. Setting a warning line for card swiping (see Figure 3-2). A warning line is suggested to prompt users
to swipe cards in a distance, which would greatly reduce the probability of equipment failure caused
by improper operations.
Figure 3-2
Cabling3.2
There are inlets in the bottom plate for cabling, as shown in Figure 3-3, the unit is millimeter. Power supply
and communication wire should go through the inlet. Cable protection covers are suggested to use if it is
surface mounted.
Warning: The tripod turnstile must be connected to the ground (earth), there is wiring interface near the
power switch.

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 10 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Figure 3-3
Installation3.3
1. Drill holes.
Drill holes based on the locations of holes as shown in Figure 3-3.
2. Fix the mounting plate toits original position.
Placing the mounting plate properly and apply screw securing glue on the surface and the threads of
the expansion bolts, install four expansion bolts to secure the mounting plate, and use a horizontal
ruler to test the levelness of the mounting plate. If the mounting plate is not level, adjust it by the
gaskets provided. Note that all the four expansion bolts must be installed properly, as shown in Figure
3-4.
Figure 3-4
3. Put the turnstile on the mounting plate and tighten the screws. Apply screw securing glue before
using and putting gaskets on the screws to adjust the direction of the turnstile. If the tripod turnstile is
not level, you can place gasketsto adjust, as shown in Figure 3-5.

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 11 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

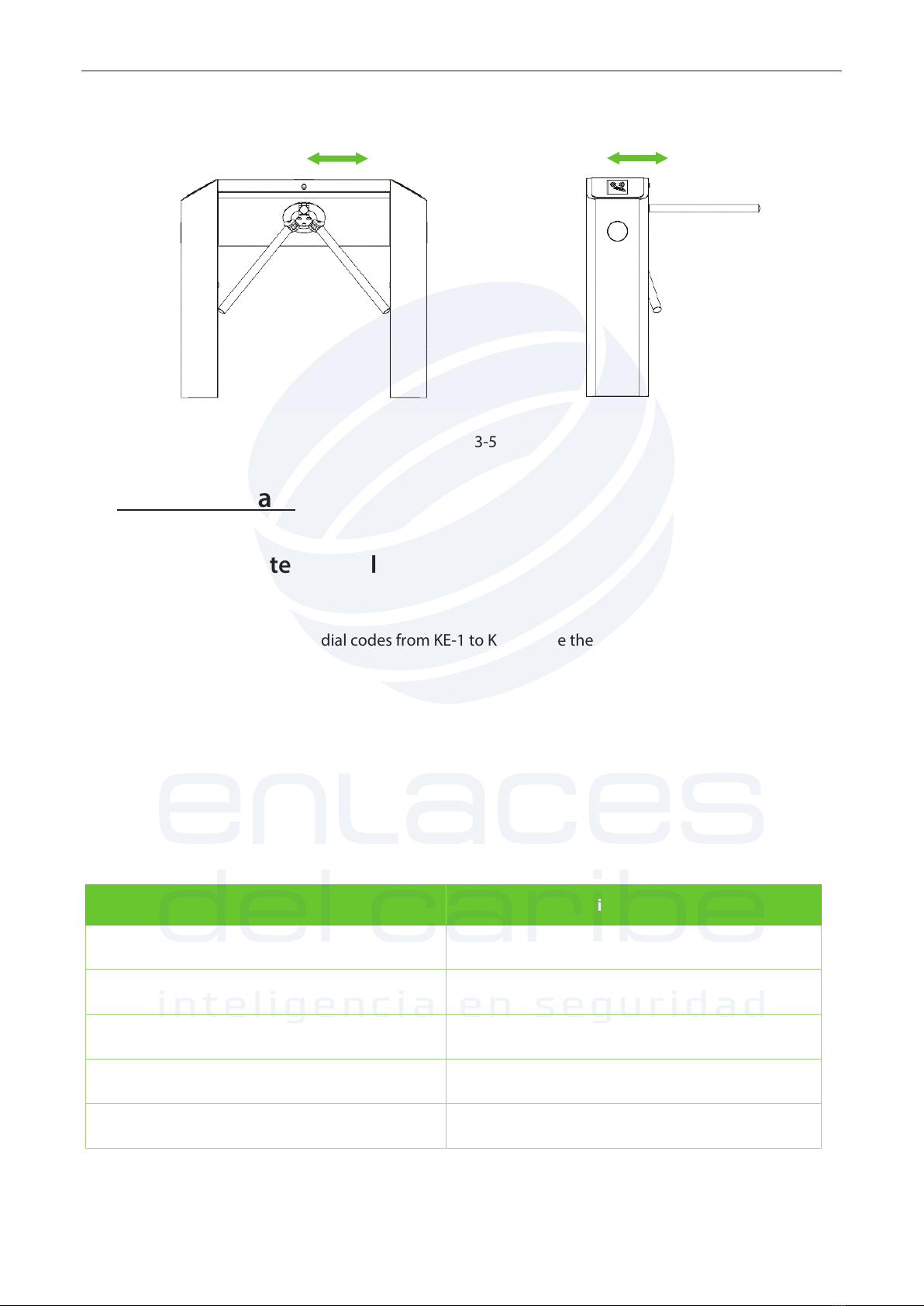

Installation levelness Installation levelness
Figure 3-5
4Cable Diagram
Wired Remote Control4.1
Dial code description:
The DIP switch is divided in eight dial codes from KE-1 to KE-8. Move the switch up to turn ON and down to
OFF.
Description of function Setting:
*Dial 0 to turn o
*Dial 1 to turn on
Dial code function item:
Unmanned passagetime(KE-1,KE-2,KE-3):
Switch Status Time Period
000 (OFF OFF OFF) 5S (Default)
001 (OFF OFF ON) 10s
010 (OFF ON OFF) 15s
011 (OFF ON ON) 20s
100 (ON OFF OFF) 30s

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 12 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
101 (ON OFF ON) 40s
110 (ON OFF ON) 50s
111 (ON ON ON) 60s
Memory Swipe Mode(KE-6): Turn on Alarm Mode (KE-8)
Dial 1(ON) to tun on. Dial 1(ON) toturn on.
Dial 0(OFF) toturn o. Dial 2(OFF) to turn o
Wireless Remote Control4.2
To code:
1. First, powerthe controller of the tripod turnstile.
2. Short press the learning button on the controller, and a light corresponding to the button will ash
slowly. Then press any switch on the remote control for acquiring the information. After the successful
operation, the light turns o.
Clear mode:
Long press the learning button on the three roller gate controller for 3 seconds. The learning light stays on
for a while then turns o indicatingthe code is cleared successfully. The original learning remote control
cannot be used again and cam only be remote-controlled by the code again.
Please read the Remote Control of Tripod Turnstile User Manualto get more information about the two
types of remote controls.

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 13 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
5Equipment Precautions and Maintenance
Precaution5.1
1. It is recommended to purchase optional accessories to use in outdoor environment.
1) It shall install optional cooling fans for the equipment if the working temperature is often above
50 ºC.
2) It is equivalent to IP54 waterproof under proper installation. However, it cannot work in the
region that may suer typhoon.
3) If the temperature is -30ºC, a heating plate is suggested to install. It might need multiple times to
power on while gettinghot automatically through the self-check program.
4) The service life of this equipment may be shortened if it works outdoors in coastal areas or a
region prone to acid rain.
2. If the power and signal cables are connected properly, this equipment can be immersed in water of
250 mm deep, but itmust not be powered on for operating whenit is immersed in water.
3. It is highly recommended that a card swiping warning line to set for prompting passers-by to swipe
cards properly and a reasonable passage width shall be set to prevent passers-by from squeezing in
illegally.
4. It is recommended that a warning sign is placed at a conspicuous position, and prompt: "Please
swipe your card outside the warning line and pass in order. Thank you!”

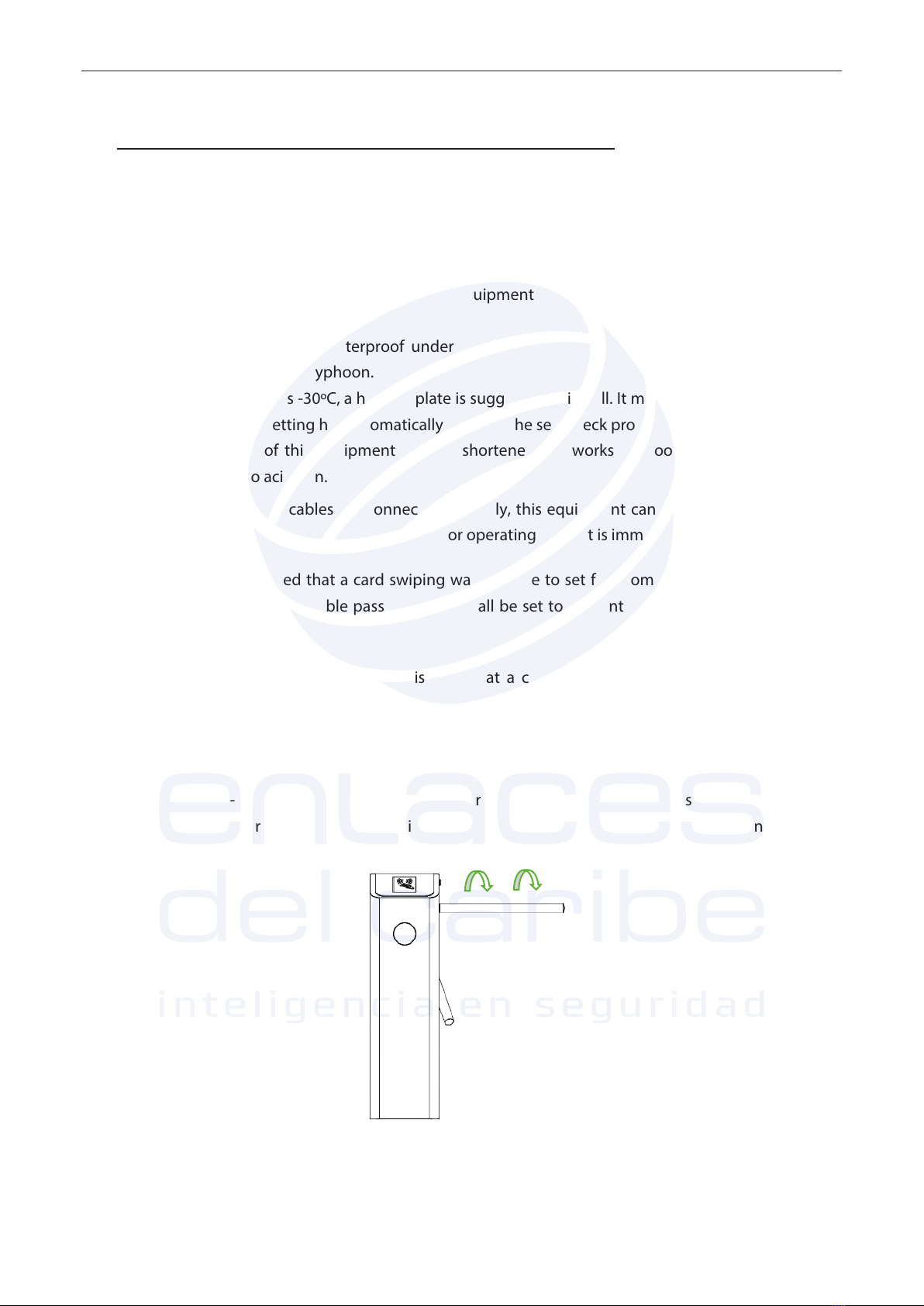

The maximum tolerance of the tripod turnstile's arms
Please note that the maximum stress tolerance at the center of the arm is 80kg and at the ends of the arm
is 40kg (See Figure 5-1).When the impact force on the tripod turnstile reaches the designed limit, the arms
break down rst to ensure that the whole equipment is not damaged and the passer-by is not injured.
Figure 5-1
Maximum stress tolerance: 80 kg
Maximum stress tolerance: 40 kg

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 14 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
In case of emergencies
This equipment is designed to drop down arms automatically if there is power failure thus make the
passage being open to the public. And there is interface in the turnstile control board to connect an
emergency switch (J6 Drop Arm) which would make the tripod turnstile keep open in case of emergencies.
Note after power restoration, wait for more than 6s and then lift the arms manually.
Maintenance5.2
Forming maintenance consciousness
The tripod turnstile needs to be maintained regularly and repaired once it is damaged. It is recommended
that warning signs being placed at conspicuous positions for prompting passers-by to pass in a proper
way and in good order. Reasonable maintenance consciousness helps to guarantee long-term usage of
the tripod turnstile.
Regular maintenance
Cleaning and protection liquid dedicated for stainless steel are recommended to wipe the outer shell of
the equipment regularly. The tripod turnstile used outdoors or in an environment with lots of dust must
be maintained once a year at least, for example, clean up the dust and add appropriate lubricating oil to
Disk Wheel. Note regular maintenance should be performed after power o the equipment, as shown in
Figure5-2.
Figure 5-2
Turnstile-opening Solenoid
Lock Rod
Drop-arm
Solenoid
Position Sensor
Disk Wheel

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 15 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
6Troubleshooting
Symptom Troubleshooting
The indicator is not lighted
when the equipment is
powered on.
It may be caused by the power supply or circuit.
Check whether the connection cable and power cable between are
damaged, or the wiringis loose.
The arms of the tripod turnstile
cannot be lifted manually after
the equipment is powered on.
It may be caused by the problem of relative components or drop-arm
solenoid.
Check whether the drop-arm solenoid is operating, and check the work
status of the solenoid, as shown in Figure 5-2.
The tripod turnstile does not
open after authentication.
It may be caused by lack of permission or a circuit problem.
1. Check whether the user has the permission to open the turnstile.
2. Use a multimeter to check whetherthe NO and COM ports of the
access control system has a relay signal output.
3. Short-circuit the ports "K1, GND" and "K2, GND", ifthe turnstile is
successfully opened, it would be the problem of controller. Inthis
case, please refer to Attachment 2 Connection Diagram of Control
Board and Access Control Panel to check the cable connection of the
controller.
The turnstile allows people
continue passing one-way side
duringtheuse.
1. Check the Turnstile-opening Solenoid.
2. Check the access controller ‘Lock driving duration’, whether set to 1s.
3. Check whether the Turnstile-opening solenoid is operating and check
whether the Turnstile-opening solenoid is stuck, as shown in Figure 5-
2.
Attachment 1 Default Factory Settings
No.
Function
Default
1
Lock Driving Duration
5s
2
Door Sensor
None
3
Verication Interval
1s
4
Controller Communication
TCP/IP: 192.168.1.201
5
Turnstile OpeningDuration
5s
6
Passing Direction Indicator
Passing is allowed in both directions
7
Continue Passing Function
Disabled
8
Alarm Function
Disabled
Note: The Lock Driving Duration is default 5 seconds, please set to 1 second. Forbidden using an
electrically charged objects to connect to any one port of Opening Signal Input, otherwise will damage the
control board.

TS2000 Pro Series TripodTurnstile User Manual
P a g e | 16 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Attachment 2 Connection Diagram of Control Board and
Access Control Panel
Warning: This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.

ZKTeco Industrial Park, No. 32, Industrial Road,
Tangxia Town, Dongguan, China.
Phone : +86 769 - 82109991
Fax : +86 755 - 89602394
www.zkteco.com
Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
