Tina 1A Blanking plug
Product Manual

2TLC172117M0201 Rev.E 2
Read and understand this document
Please read and understand this document before using the products. Please consult ABB
with any questions or comments.
Suitability for use
ABB shall not be responsible for conformity with any standards, codes, or regulations that
apply to the combination of products in the customer’s application or use of the product.
Third party certificates for the products are available at https://new.abb.com/low-
voltage/products/safety-products. This information by itself is not sufficient for a complete
determination of the suitability of the products in combination with the end product,
machine, system, or other application or use.
The following are some examples of applications for which particular attention must be
given. This is not intended to be an exhaustive list of all possible uses of the products, nor is
it intended to imply that the uses listed may be suitable for the products:
•Outdoor use, uses involving potential chemical contamination or electrical
interference, or conditions or uses not described in this document.
•Nuclear energy control systems, combustion systems, railroad systems, aviation
systems, medical equipment, amusement machines, vehicles, and installations
subject to separate industry or government regulations.
•Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE ABB PRODUCT IS PROPERLY RATED AND INSTALLED FOR
THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
Descriptions and examples show how the product works and can be used. It does not mean
that it fulfills the requirements for all types of machines and processes. The buyer/user is
responsible for installing and using the product according to applicable standards and
regulations. We reserve the right to make changes to the product and the documentation
without prior notice.

2TLC172117M0201 Rev.E 3
Table of Contents
1Introduction ............................................................................................................................... 4
1.1 Purpose of document................................................................................................................ 4
1.2 Intended audience...................................................................................................................... 4
1.3 Reading prerequisites................................................................................................................ 4
1.4 Special notes................................................................................................................................ 4
2Safety ...........................................................................................................................................5
2.1 Safety precautions ......................................................................................................................5
3Product description................................................................................................................... 6
4Installation...................................................................................................................................7
4.1 Installation precautions .............................................................................................................7
4.2 Testing safety functions ............................................................................................................7
5Connections ............................................................................................................................... 8
5.1 Connection examples ................................................................................................................ 8
6Functions .....................................................................................................................................9
6.1 LED indications ........................................................................................................................... 9
6.2 Information output signal attributes..................................................................................... 9
7Maintenance ..............................................................................................................................10
7.1 Maintenance precautions ........................................................................................................10
8Troubleshooting ....................................................................................................................... 11
8.1 LED indications .......................................................................................................................... 11
9Dimensions................................................................................................................................12
10 Technical data ...........................................................................................................................13
11 Declaration of conformity .......................................................................................................15

2TLC172117M0201 Rev.E 4
1Introduction
1.1 Purpose of document
The purpose of this document is to describe the functions and to provide instructions for
installation, operation, maintenance and troubleshooting of the product.
1.2 Intended audience
This document is intended for authorized personnel.
1.3 Reading prerequisites
It is assumed that the reader of this document has knowledge of the following:
•Basic knowledge of ABB safety products
•Knowledge of machine safety
1.4 Special notes
Pay attention to special notes in the document:
Warning!
Risk of severe personal injury!
An instruction or procedure which, if not carried out correctly, may result in
injury to the technician or other personnel.
Caution!
Risk of damage to the equipment!
An instruction or procedure which, if not carried out correctly, may damage
the equipment.
Note!
Important or explanatory information.

2TLC172117M0201 Rev.E 5
2Safety
2.1 Safety precautions
The safety precautions must be followed during installation, operation, maintenance and
troubleshooting.
It is the responsibility of the user to ensure the correct overall functionality.
Warning!
Carefully read through the entire product manual before using the device.
Warning!
The devices shall be installed by authorized personnel following applicable
Safety regulations, standards and the Machinery directive.
Warning!
Failure to comply with instructions, operation that is not in accordance
with the use prescribed in the instructions, improper installation or
handling of the device can affect the safety of people and the plant.
Warning!
For installation and prescribed use of the product, the special notes in the
instructions must be carefully observed and the technical standards
relevant to the application must be considered.
Warning!
In case of failure to comply with the instructions or standards, especially
when tampering with and/or modifying the
product, any liability is
excluded.

2TLC172117M0201 Rev.E 6
3Product description
Tina 1A is a unit intended for use with connection blocks Tina 4A or Tina 8A, where Tina 1A is
used as a blanking plug in unused M12 connections.
The Tina 1A blanking plug is intended for use in safety circuits in accordance with EN 60204-1.
Warning!
To
maintain safety, this unit shall never replace any other unit than another
Tina 1A
.

2TLC172117M0201 Rev.E 7
4Installation
•Attach Tina 1A to the connection block.
•See max. tightening torque in chapter “Technical data”.
4.1 Installation precautions
Warning!
All safety functions shall be tested before starting up the system.
4.2 Testing safety functions
After each step the status of the input can be read on the monitoring device.
Steps for testing
LED indication
DYNlink signal output
1. Interrupt the DYNlink safety
circuit before the unit to be
tested
Green/red flashing
Shall go low
2. Close the DYNlink safety
circuit
Green
Shall generate a DYNlink
signal

2TLC172117M0201 Rev.E 8
5Connections
M12 5-pole male connector, A-coded
1
+24 VDC
2
DYNlink signal input
3
0 VDC
4
DYNlink signal output
5
Information output
5.1 Connection examples
Caution!
All cable colors according to ABB standard cables
.
ABB
M12 5-pole male connector

2TLC172117M0201 Rev.E 9
6Functions
6.1 LED indications
LED indication
Description
DYNlink state
Green
DYNlink input signal
OK
Green/
red flashing
DYNlink input open or 0
VDC
Interrupted before this
unit
6.2 Information output signal attributes
Information output is toggling with a nominal frequency of 1 Hz and duty cycle of 50 %. If
DYNlink input signal is +24 VDC the Information output is low.

2TLC172117M0201 Rev.E 10
7Maintenance
Maintenance shall be done in accordance with a risk assessment for the individual
application.
7.1 Maintenance precautions
Warning!
The safety functions and the mechanics shall be tested regularly
, at least once
every year to confirm that all the safety functions are working properly
(EN 62061:2005+A1:2013+A2:2015, EN ISO 13849-1:2015).
Warning!
In
case of breakdown or damage to the product, contact ABB. Do not try to
repair the product yourself since it may accidentally cause permanent
damage to the product, impairing the safety of the device which in turn could
lead to serious injury to personnel.

2TLC172117M0201 Rev.E 11
8Troubleshooting
8.1 LED indications
LED indication
Probable cause
Action
Red
+24 VDC connected to
DYNlink signal input
Check if there is +24
VDC on
DYNlink signal input. If yes, check
cable connections or the unit
before.
No LED light
Loss of power supply
Check +24 VDC / 0 VDC power
supply.
Green (but no DYNlink
output detected)
Defective DYNlink signal
input to unit
Check the DYNlink input or the unit
before.
Weak lights
Unit is defective
Replace the unit.

2TLC172117M0201 Rev.E 12
9Dimensions
All dimensions are in mm.

2TLC172117M0201 Rev.E 13
10 Technical data
Further information about the product and accessories is found at:
new.abb.com/low-voltage/products/safety-products
Stated technical data apply when power supply voltage is +24 VDC and ambient temperature
is +25 °C, unless stated otherwise.
Manufacturer
Address
ABB
Electrification Sweden AB
SE
-721 61 Västerås
Sweden
Order code/Ordering data
2TLA020054R0000: Tina 1A Blanking plug
Power supply
Required power supply type
PELV/SELV, n
ot intended to be connected to a DC
distribution network.
Note:
A DC distribution network is defined in
IEC
61326-3-1:2017 as “Local DC electricity supply
network in the infrastructure of a certain site or
building intended for connection of any type of
equipment”.
Operating voltage
+24 VDC +15 %, -25 %
Total
current consumption
Maximum:
25 mARMS
Note:
Total current consumption is the internal supply current when there is no
information output current
. Valid over the operating voltage and ambient temperature
range.
DYNlink signal
DYNlink Input signal
voltage
Minimum: 8 V
RMS
Maximum: 15 VRMS
DYNlink
Output signal voltage
Minimum: 8 V
RMS
Maximum: 15 VRMS
Note:
The purpose of stating the voltage in RMS is to facilitate the measurement of the
square-wave DYNlink signal with a multimeter.
Time
delay between DYNlink
input and output signal (TDELAY)
Maximum:
60
µ
s
Information output
Output voltage high
low
Nominal: Operating voltage
- 2 VDC
Maximum: 2 VDC
Output current
Maximum: 10 mA
General
Protection class
IP67
Ambient temperature
Operation:
-10 to +55 °C
Storage: -30 to +70 °C
Humidity range
35 to 85 % (with no icing or condensation)
Housing material
TPU
Connectors
M12 5
-pole male connector
Tightening
torque
M12 connector: 0.
6 Nm
Size (L x W x H)
47 x 25 x 15 mm

2TLC172117M0201 Rev.E 14
Weight
~ 20 g
Color
Black
Directives / Harmonized standards
Conformity
European Machinery Directive 2006/42/EC
EN ISO 12100:2010
EN 62061:2005+Cor.:2010+A1:2013+A2:2015
EN ISO 13849
-1:2015
EN 60204-1:2018
IEC/EN 61508-1…7
SIL3, PFHD = 4.50·10-9
EN 62061
SIL3
EN ISO 13849-1
PL e, category 4
Certificates
TÜV Nord, cCSAus
Information for use in USA/Canada
Pollution degree
2
Altitude
2000 m (max)
Humidity
80% max for temperatures up to 31
°C
Indoor use statement
For indoor use only

2TLC172117M0201 Rev.E 15
11 Declaration of conformity
EC Declaration of conformity

2TLC172117M0201 Rev.E 16

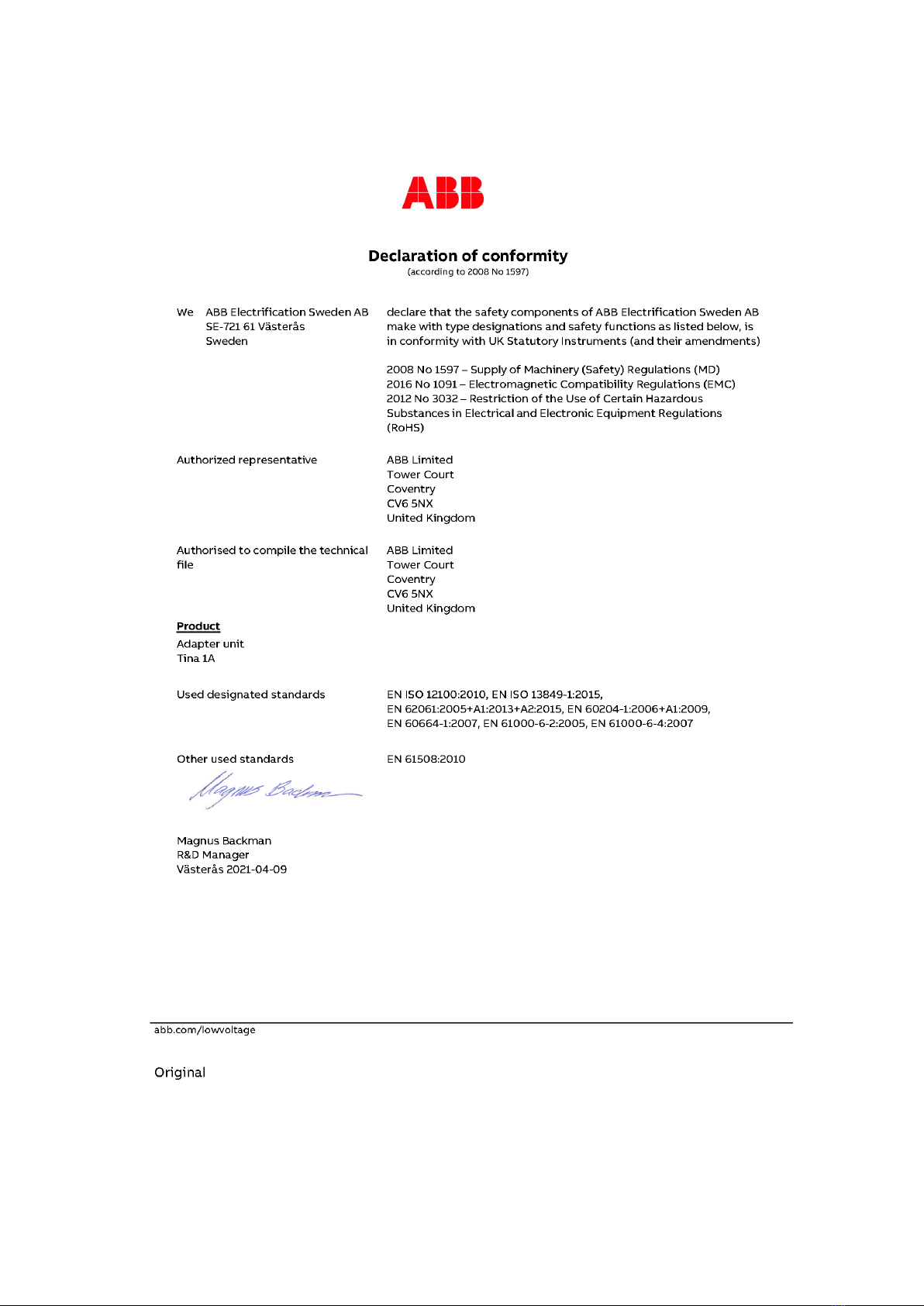

UK Declaration of conformity
