Abilica HT Rower 6.0 User manual

1
HT Rower 6.0

2
INNHOLD/INNEHÅLL/CONTENTS
DELETEGNING/EXPLODED MAP
3
DELELISTE/DELLISTA/PARTS LIST
5

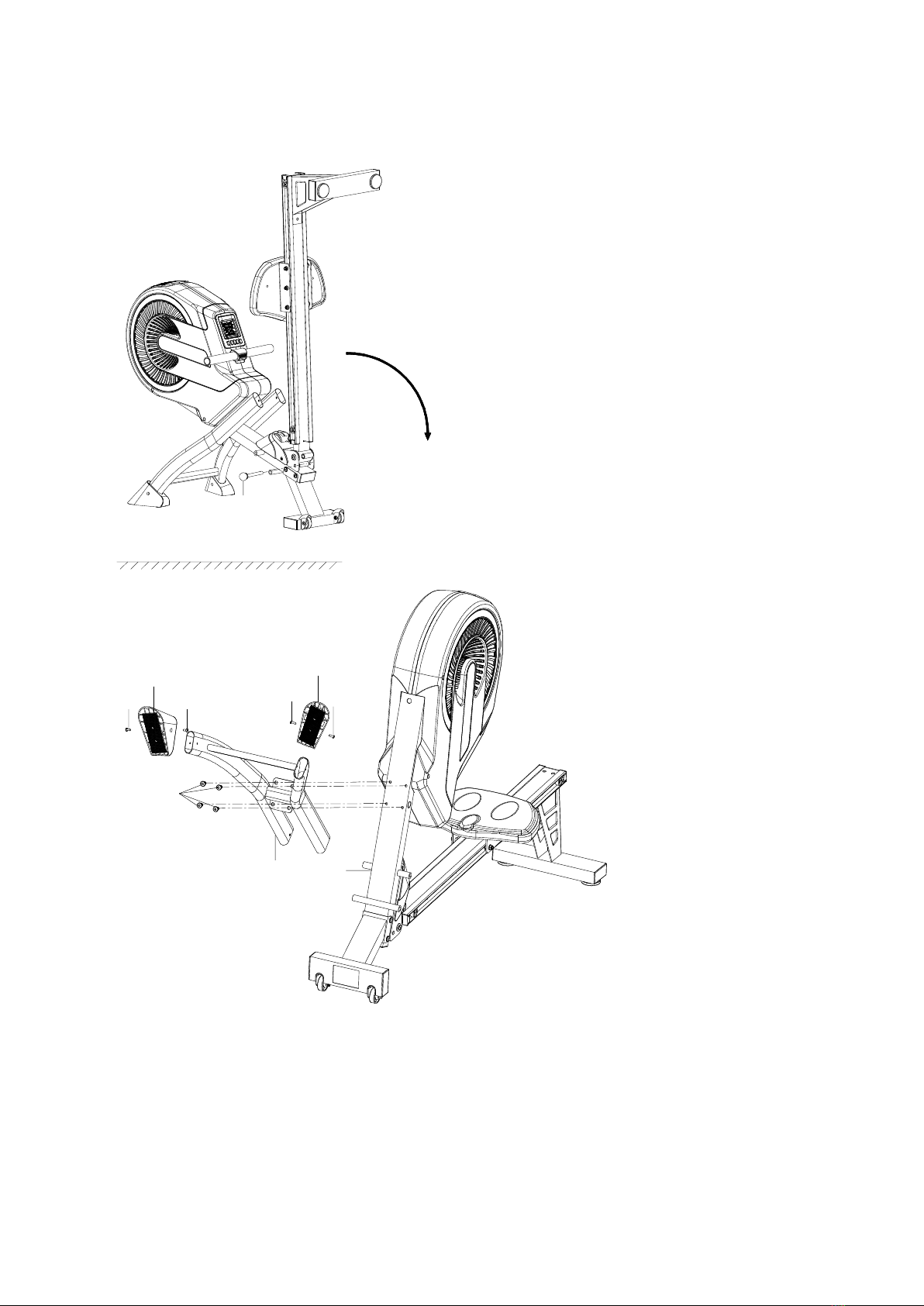

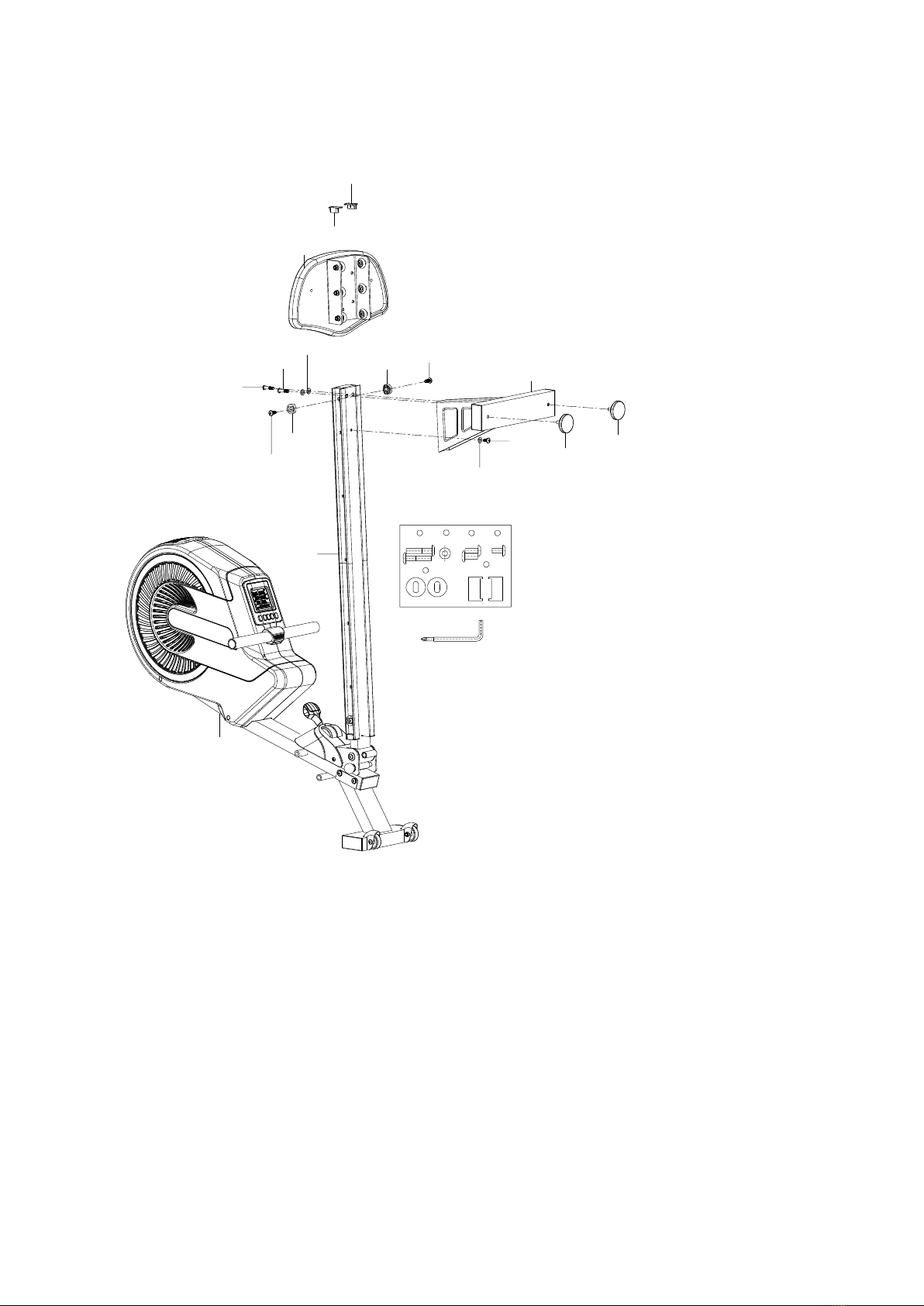

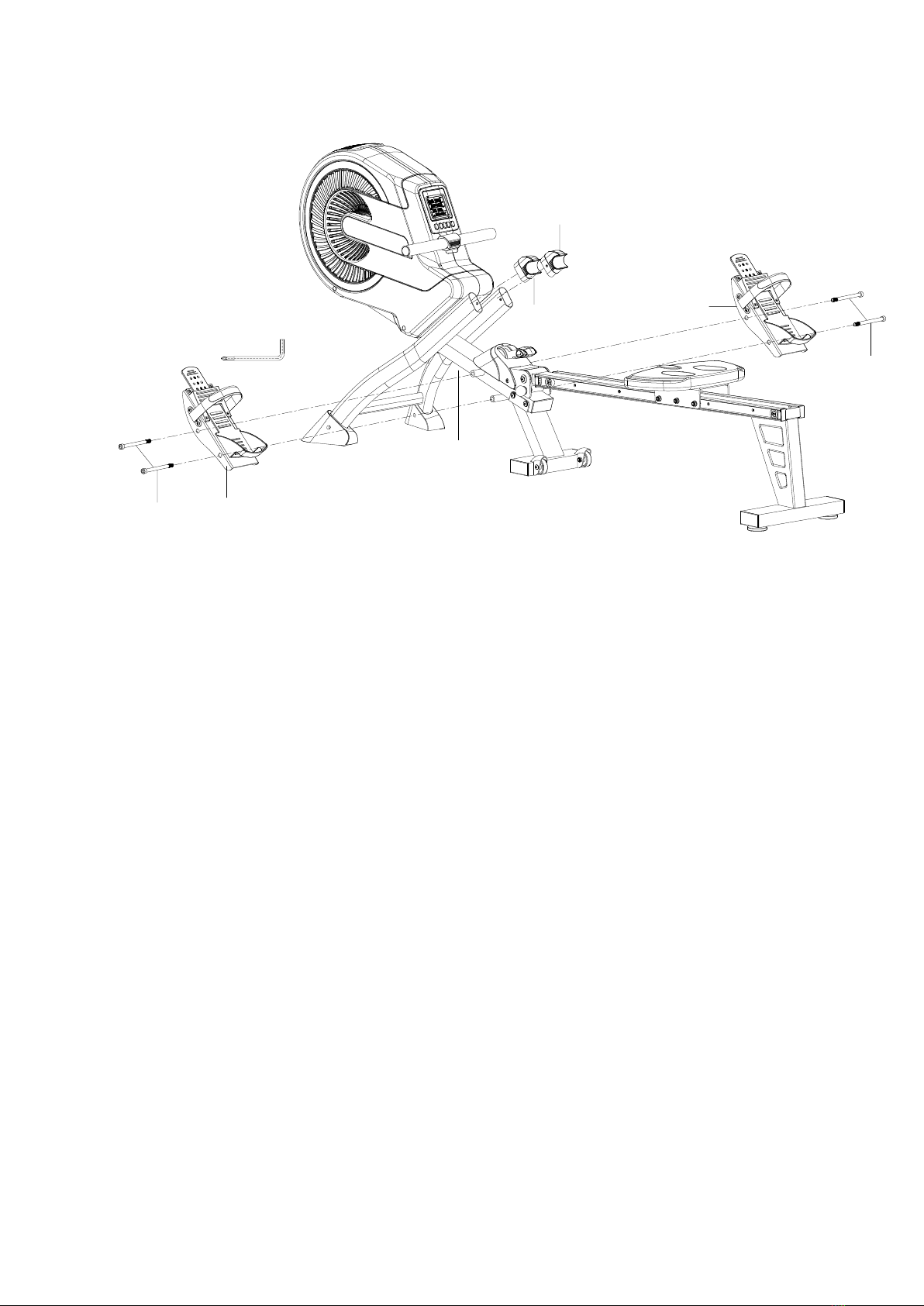

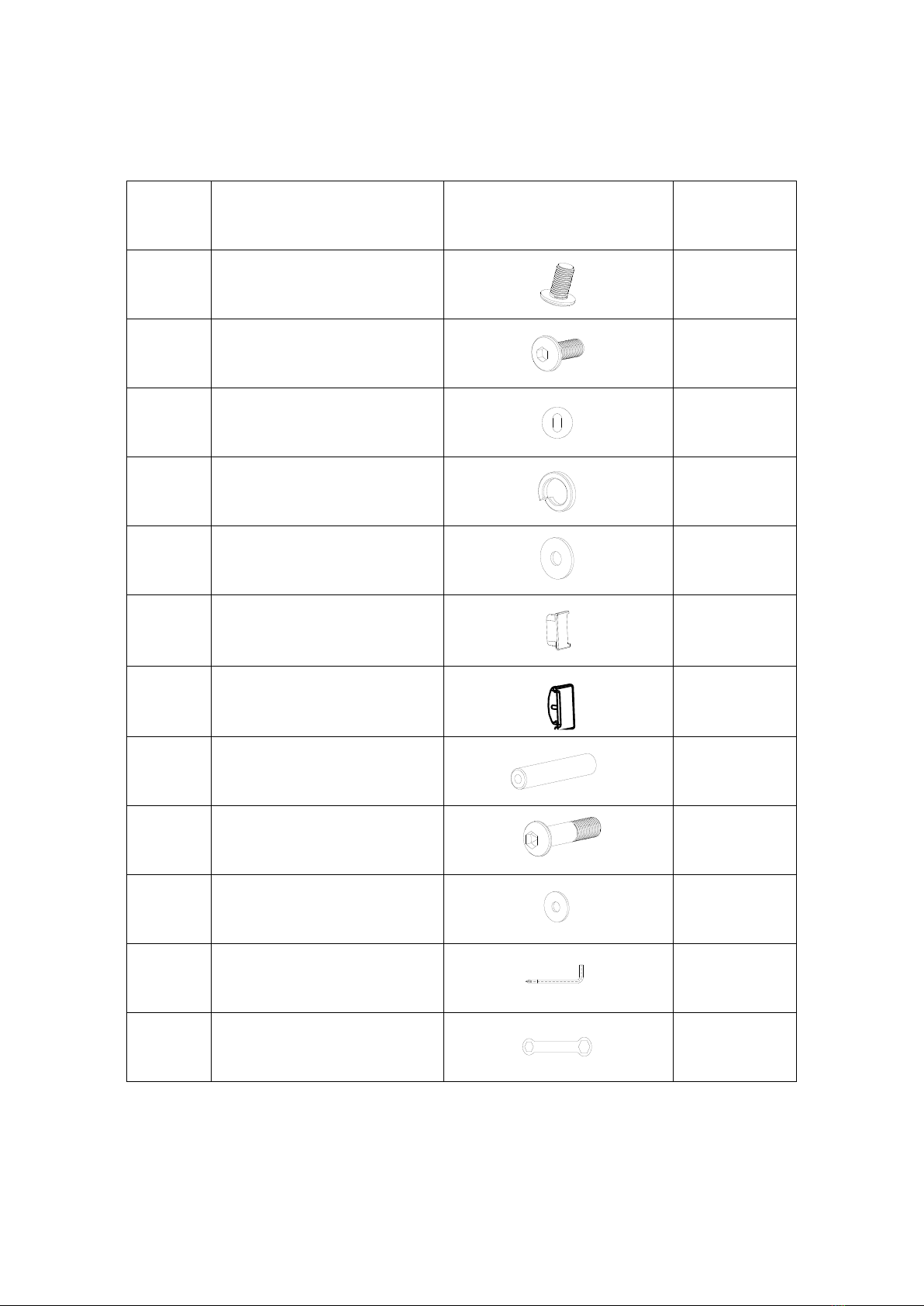

MONTERING/ASSEMBLY
8
VIKTIG INFORMASJON
16
TEKNISKE PARAMETRE
17

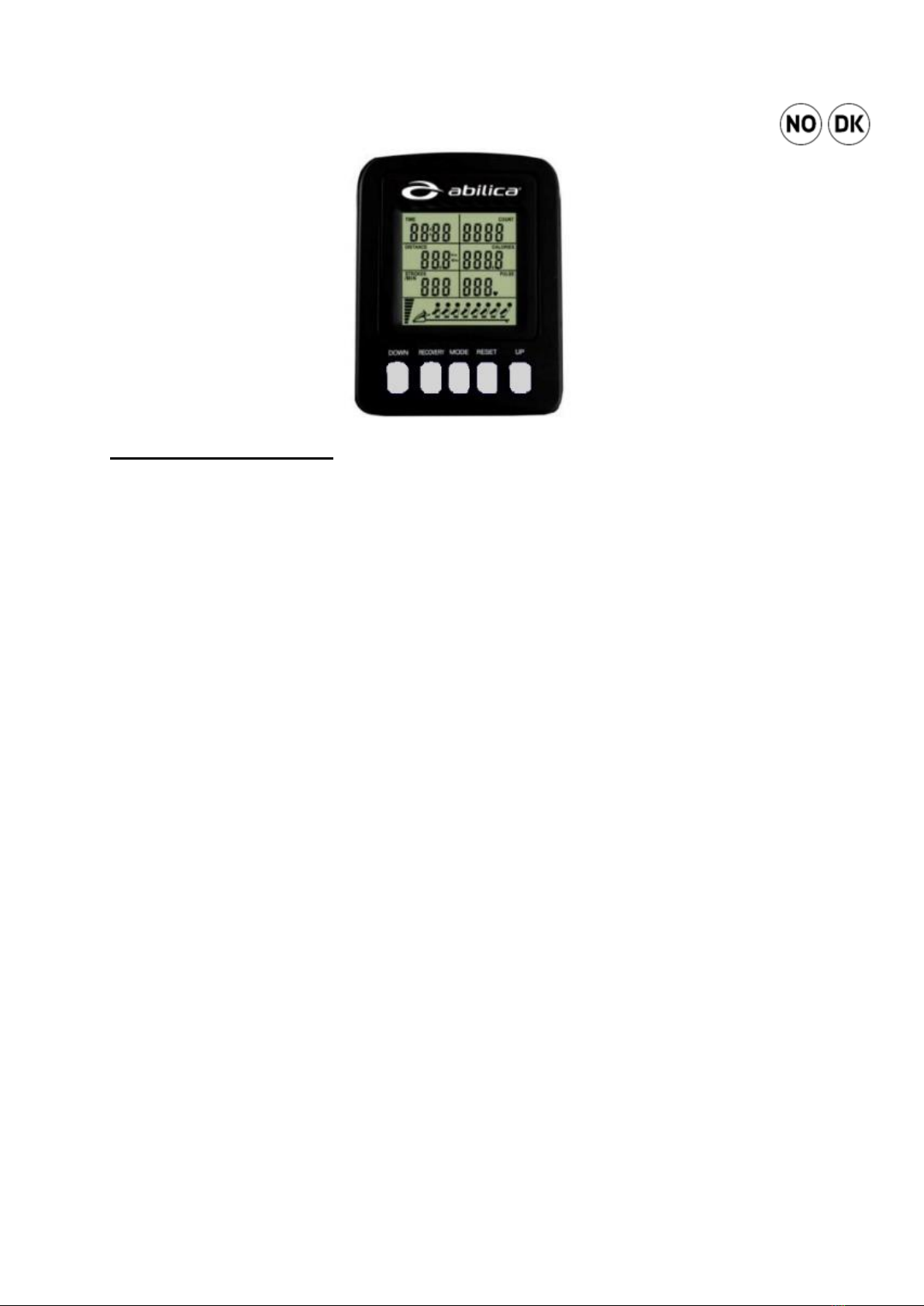

BETJENING AV COMPUTER
18
VEDLIKEHOLD
20
KONTAKTINFORMASJON
23
VIKTIG INFORMATION
24
TEKNISKA PARAMETRAR
25
DATOR INSTRUKTIONER
26
UNDERHÅLL
28
KONTAKTINFORMATION
31
IMPORTANT INFORMATION
32
TECHNICAL PARAMETERS
33
COMPUTER INSTRUCTIONS
34
MAINTENANCE
36
CONTACT INFORMATION
39
TÄRKEITÄ OHJEITA
40
TEKNISET PARAMETRIT
41
TIETOKONEED HUOLTO
42
HULTO
44
YHTEYSTIEDOT
47
WICHTIGE INFORMATIONEN
48
TECHNISCHE PARAMETER
50
BEDIENUNG DES COMPUTERS
51
INSTANDHALTUNG
53
INFORMATIONEN ZUN SERVICE
56
ERROR CODE AND TROUBLESHOOTING
57

3

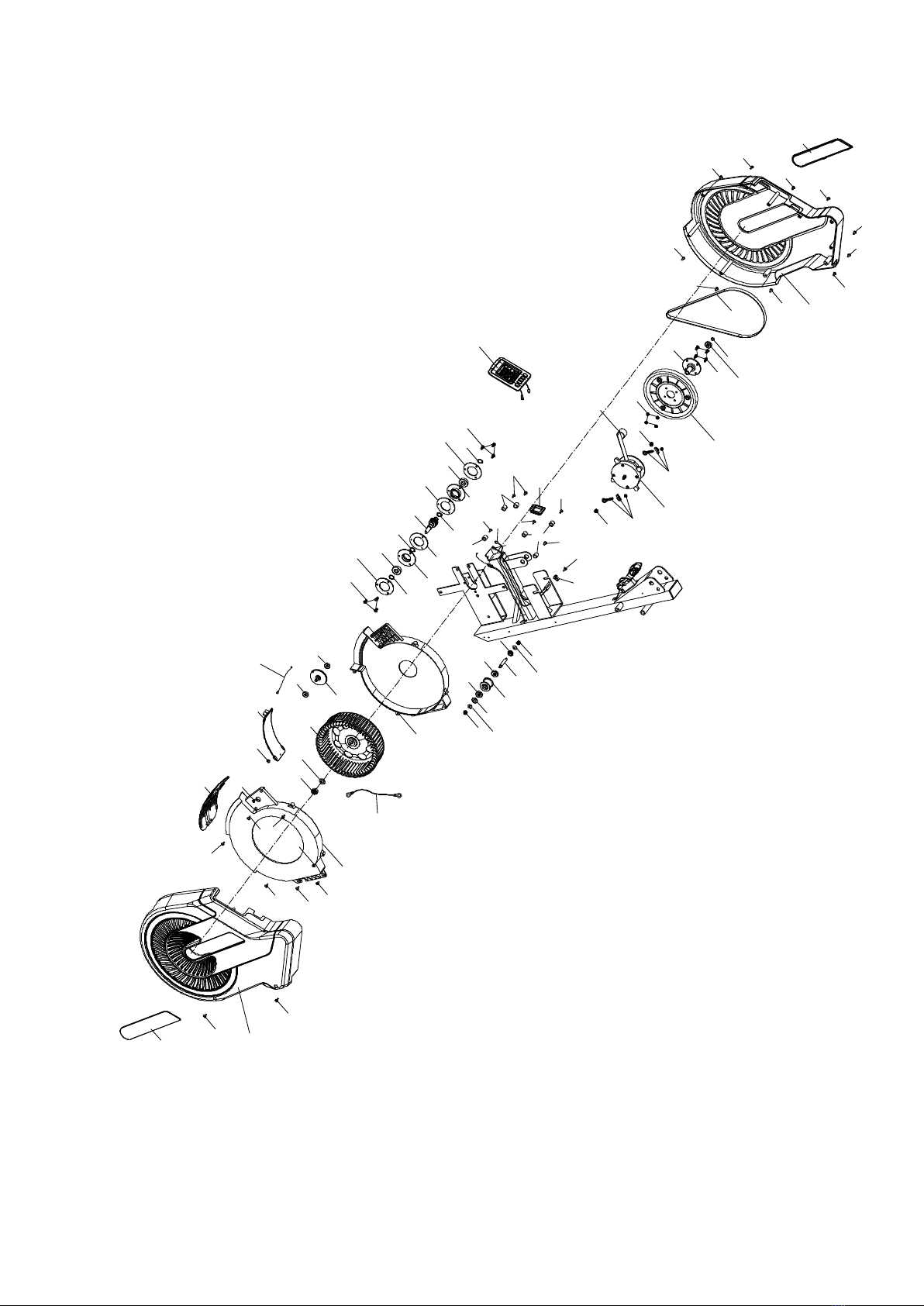

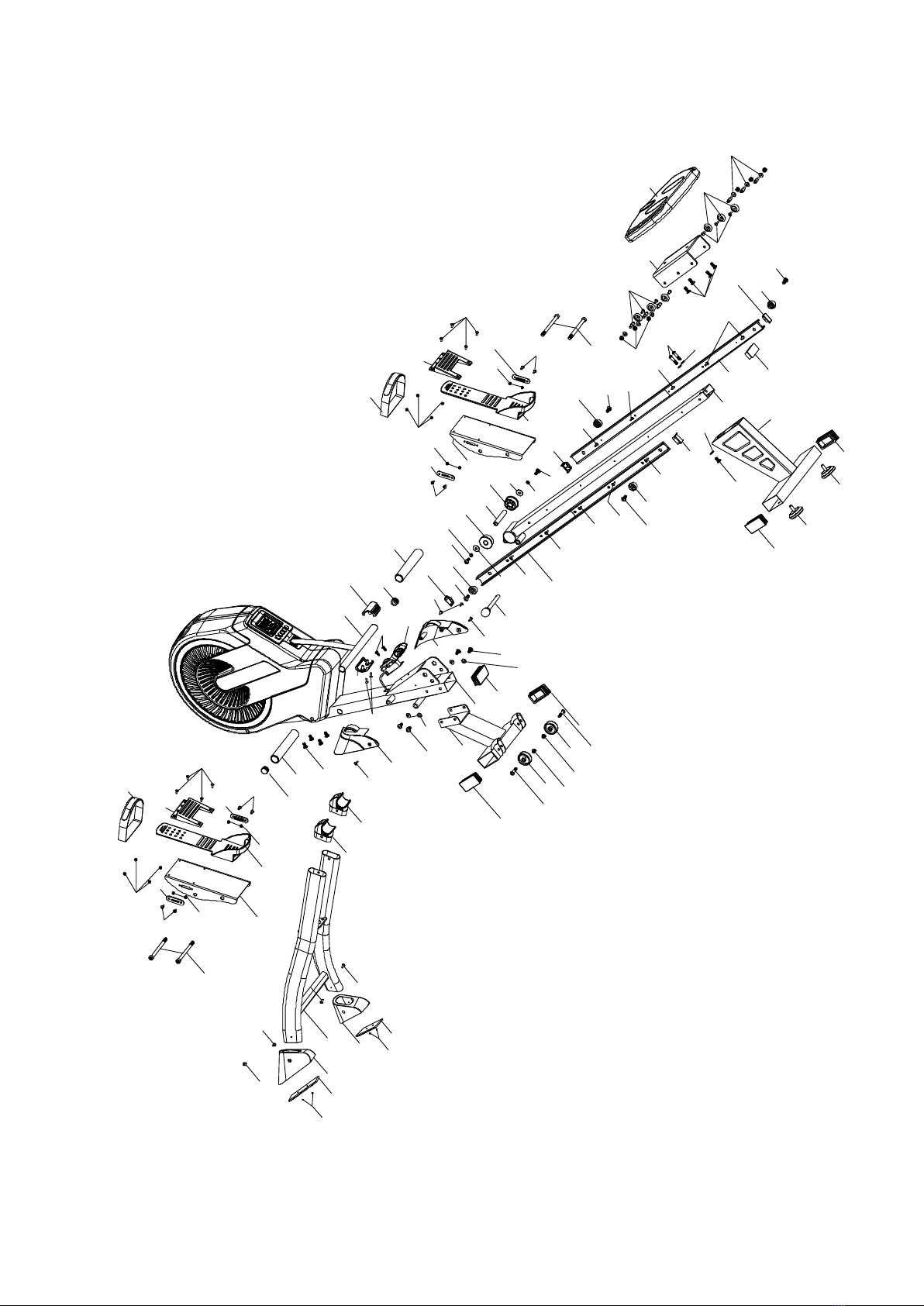

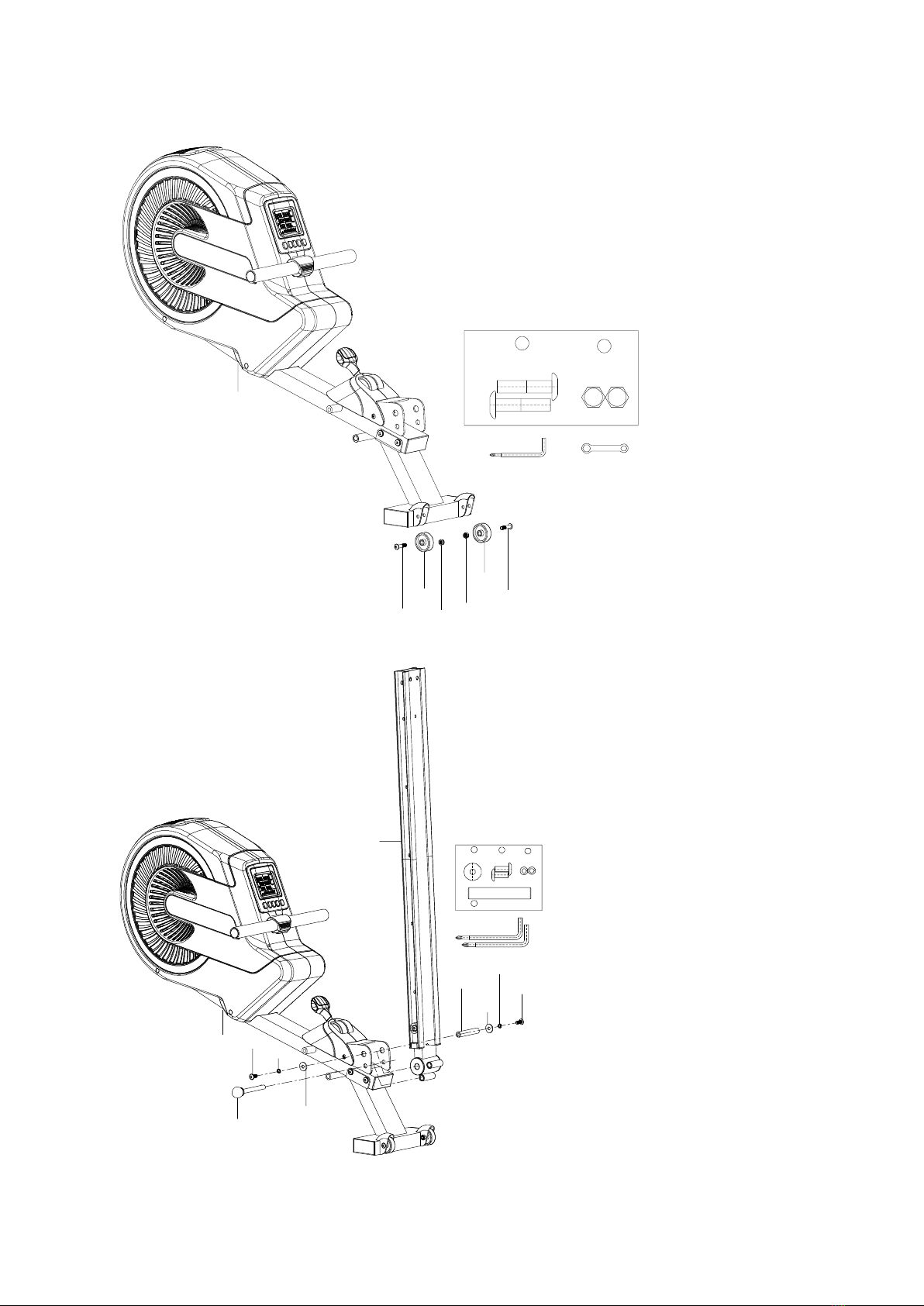

DELETEGNING/SPRÄNGSKISS/PARTS DRAWING
5
5
66
7
7
8L 8R
9
10
10 10
10
11L 11R
12
13
12 13
14L
15
14R
15
16
16
16
16
16
16
17
17 17
17
17 17
18 18
18
18
19
19
20L
16
16
10
21
21
22
22
28
29
30 31
32
33
20R
34
34 34
34
34
35
36
36 34 36
36
37
38
39 40L
40R 41 40R
40L
3938
37
42 43
43
43
44
45
46L
46R
47 47 47 47 47
47 47 47 47
2
48 49
50
51
52
53
54
55
55
56
56
1
2
3
4234
55
19 19
543
43
91

4
10
10
10 10
10
10
10
10
10
10
10
10
10
65
64 22
43 43
89L
89R
57L
57R
88
88 88
88
88
87 58
5960 61
62 62
63
2
231
31
31
66
66
67
68
69
67
70
71
67
70
69
68 67
72
72
72
73
74 75 75
76 77
78 79
80
81
82
83
83
83 83
83
83
83
84
80
85
80
86
84
90
27 83
26
25
24
23

5
DELELISTE/DELLISTA/PARTSLIST
PART NO.
DESCRIPTION
QUANTITY
1
Main frame
1
2
Nylon nut M8
12
3
Roller
2
4
Allen bolt M8*35
2
5
Square end cap 80*40
5
6
Non-slip pad
2
7
Self-tapping screw ST4*15
4
8L
End cap for front stabilizer tube (L)
1
8R
End cap for front stabilizer tube (R)
1
9
Front support tube
1
10
Self-tapping screw ST5*20
18
11R
Fixed bracket for handlebar (R)
1
11L
Fixed bracket for handlebar (L)
1
12
U type bracket for pedal
2
13
Allen bolt for pedal M12*140
4
14 R
Pedal (R)
1
14 L
Pedal (L)
1
15
Fixed bracket for pedal
2
16
Cross-head screw M5*12
18
17
Nylon nut M5
16
18
Fixed plate for strap
4
19
Allen bolt M8*16
9
20R
Decorative cover for tension control knob (R)
1
20L
Decorative cover for tension control knob (L)
1
21
Foam grip
2
22
Round end cap 25.4
2
23
Sensor wire 1
1
24
Meter
1
25
Decorative plate for left chain cover
1
26
Decorative plate for right chain cover
1
27
Sensor wire 2
1
28
Decorative cover for handlebar (Upper)
1
29
Handlebar
1
30
Decorative cover for handlebar (Lower)
1
31
Allen bolt M6*15
12
32
Self-tapping screw ST4*20
2
