Abus TVAC80000B User manual

TVAC80000B
User manual
Instrukcja obsługi
Brugerhåndbog
E Manual del usuario
You can find important information and FAQs about
this and other products on the website
www.abus.com/plug-and-play
Version 04/2013

This user guide contains important information on starting operation and using the
device.
Make sure that this user guide is handed over when the product is given to other
persons.
Keep this user guide to consult later!
For a list of contents with the corresponding page numbers, see page 4.
Niniejsza instrukcja obsługi zawiera ważne wskazówki dotyczące uruchamiania i
obsługi.
Pamiętaj o tym, także przekazując produkt osobie trzeciej.
Zachowaj instrukcję do wykorzystania w przyszłości!
Wykaz treści znajdziesz w spisie treści z podaniem odpowiednich liczb stron na
stronie 15.
Denne betjeningsvejledning indeholder vigtige henvisninger til idriftsættelse og
håndtering.
Vær også opmærksom på dette, hvis produktet gives videre til en tredje person.
Opbevar derfor denne betjeningsvejledning til senere brug!
I indholdsfortegnelsen på side 26 findes der en liste over indholdet med angivelse af de
pågældende sidetal.
Este manual de instrucciones contiene indicaciones importantes para la puesta en
funcionamiento y para la utilización.
Tenga esto en cuenta, también cuando transfiera este aparato a terceras personas.
Por este motivo, guarde este manual para poder consultarlo cuando lo necesite.
El listado de los contenidos figura en el índice junto a las páginas correspondientes en la
página 37.
English
Polski
Dansk
Español

TVAC80000B
User manual
Version 04/2013
Original user guide in English.
Retain for future reference.

2
English
Introduction
Dear customer,
Thank you for purchasing this product.
This device complies with the requirements of the applicable EU directives. The declaration of conformity can
be ordered from:
ABUS Security-Center GmbH & Co. KG
Linker Kreuthweg 5
86444 Affing
GERMANY
To maintain this status and to guarantee safe operation, it is your obligation to observe this user guide.
Read the entire user guide carefully before starting operation of the product, and pay attention to all
operating instructions and safety information.
All company names and product descriptions are trademarks of the corresponding owner.
All rights reserved.
In the event of questions, please contact your local maintenance specialist or dealer.
Data storage is subject to national data privacy guidelines.
Disclaimer
This user guide has been produced with the greatest of care. Should you discover any missing
information or inaccuracies, please contact us under the address shown on the back of the manual.
ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and
reserves the right to make changes to the product and user guide at any time and without prior warning.
ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the
equipment, performance and use of this product. No forms of guarantee are accepted for the contents
of this document.

3
English
Explanation of symbols
The triangular warning symbol indicates important notes in this user guide which must
be observed.
This symbol indicates special tips and notes on the operation of the unit.
Important safety information
All guarantee claims are invalid in the event of damage caused by non-compliance
with this user guide. We cannot be held liable for resulting damage.
In the event of material or personal damage caused by improper operation
or non-compliance with the safety information, we cannot be held liable.
All guarantee claims are voided in such cases.
This device has been manufactured in accordance with international safety standards.
Please read the following safety instructions carefully.
Safety information
1. Liquids
Make sure that no liquids of any type are able to enter the device.
2. Cleaning
Only use a damp cloth to clean the device. Do not use corrosive cleaning materials.
Disconnect the device from the power supply while doing so.
3. Installation position
This device is designed for indoor use only.
The product may be damaged if it is dropped, even from a low height.
Pay attention to the installation instructions in the corresponding section of this user guide.
4. Data storage
The use of surveillance equipment may be forbidden or regulated by law in some countries.
Before using this equipment, make sure that all your surveillance activities are completely legal.
It is prohibited to make images of people public without the consent of the people filmed.
Pay attention to the special regulations for video surveillance in commercial and public areas.
Video surveillance is not a substitute for your duty to exercise due care, foresight, and supervision.
Warnings
Observe all safety and operating instructions before putting the device into operation for the first time.
Avoid the following adverse conditions during operation:
Moisture or excess humidity
Temperatures outside the permitted range
Direct sunlight
Dust or flammable gases, vapors, or solvents
Strong vibrations
Strong magnetic fields (e.g. next to machines or loudspeakers)
Unpacking the device
Handle the device with extreme care when unpacking it.
If the original packaging has been damaged, inspect the device. If the device shows
signs of damage, return it in the original packaging and inform the delivery service.

4
English
Contents
1. Intended use ...............................................................................................................................................5
2. Scope of delivery........................................................................................................................................5
3. Features and functions..............................................................................................................................5
4. Information and FAQs................................................................................................................................5
5. Device description .....................................................................................................................................6
6. Installation...................................................................................................................................................6
6.1 Inserting a micro SD card.....................................................................................................................6
6.2 Inserting the batteries...........................................................................................................................6
6.3 Installation............................................................................................................................................7
7. Operation.....................................................................................................................................................8
7.1 Live view...............................................................................................................................................8
7.2 Setting the date and time.....................................................................................................................8
7.3 Zooming ...............................................................................................................................................9
7.4 Taking photos on the micro SD card....................................................................................................9
7.5 Viewing micro SD card photos.............................................................................................................9
8. Maintenance and cleaning.......................................................................................................................10
8.1 Maintenance.......................................................................................................................................10
8.2 Cleaning.............................................................................................................................................10
9. Disposal.....................................................................................................................................................10
10. Tips for troubleshooting..........................................................................................................................11
11. Technical data ..........................................................................................................................................11

5
English
1. Intended use
The digital door viewer is a modern enhancement of the classic door viewer model. It is easily fitted to the
existing 12 to 14 mm door viewer. Alternatively, a 14 mm door viewer is also supplied which is suitable for
all doors with a thickness of between 35 and 53 mm.
At just the press of a button, you can see who is at your door and what is going on there at a viewing angle
of approximately 180 degrees. The door viewer also has a recording function: press the power button to
save three photos on a micro SD card. After 20 seconds the camera switches off to save energy. Press
the power button to activate the camera once again.
Above all, the view to the outside is also ideal for people wearing glasses, children and smaller people as
the internal display can also be seen from below.
For a detailed description of functions, refer to Section 3, “Features and functions”.

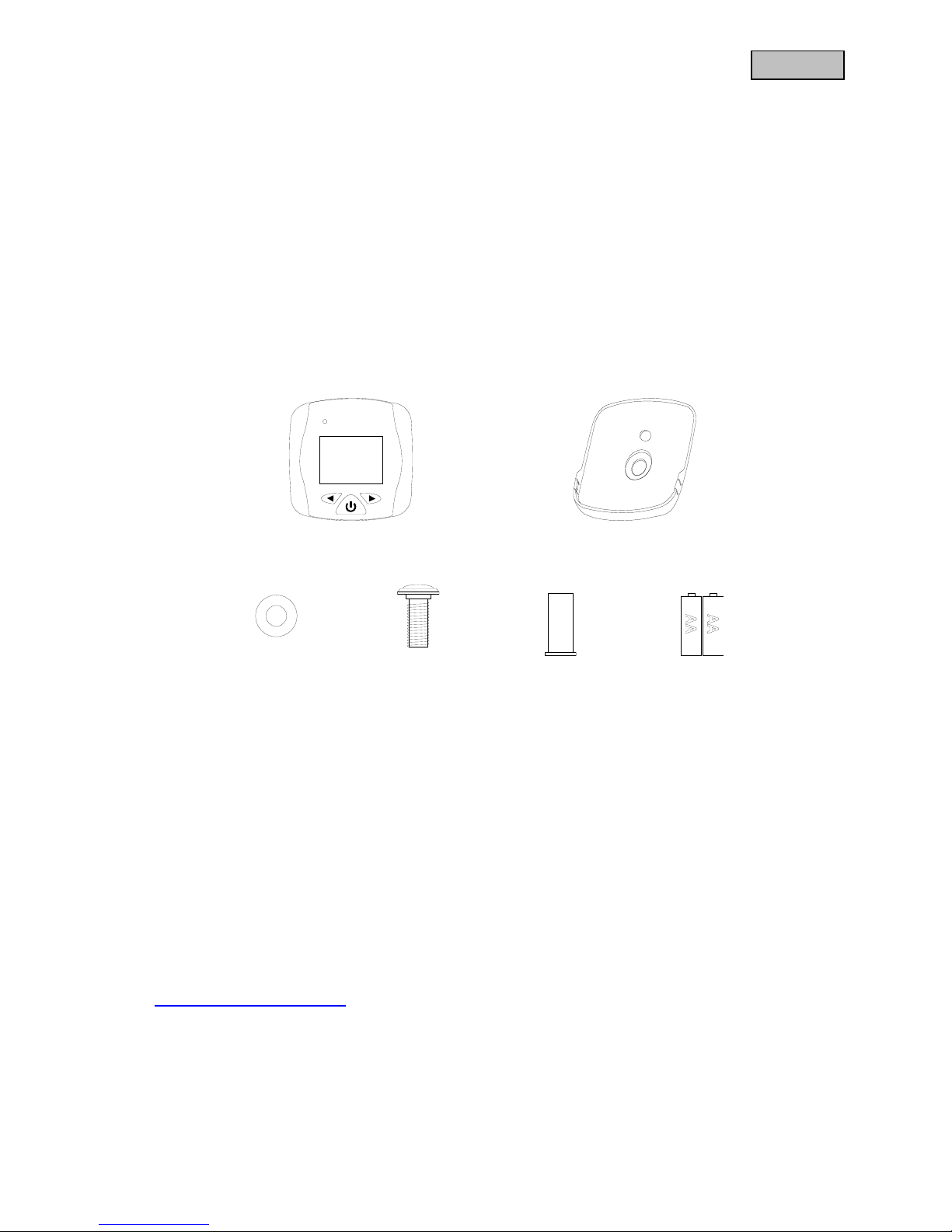

2. Scope of delivery
Digital door viewer
Fixing bracket
Tightening device
(washer)
Door viewer lens
Door viewer
cylinder
2 AA batteries
3. Features and functions
Convenient 2.4" TFT LCD color monitor and door viewer
A modern enhancement for the classic door viewer
Suitable for all doors between 35 and 53 mm in thickness and viewer bores of 12 to 14 mm
Wireless and uncomplicated installation thanks to battery power (2 x AA batteries included)
When activated, three photos are recorded on a micro SD card (not included) in HD quality
Zoom function
2 megapixel CMOS image sensor
4. Information and FAQs
You can find important information and FAQs about this and other products on the website
www.abus.com/plug-and-play. You will find information for troubleshooting under item 10 of these
instructions.

6
English
5. Device description
6. Installation
6.1 Inserting a micro SD card
1. Open the rubber cover.
2. Insert a micro SD card.
6.2 Inserting the batteries
1. First remove the battery covers.
2. Insert two AA batteries. Make sure the polarity is correct when you do this.
3. Change the batteries as soon as you get the information on the display.

Power LED
Device status display
Light, illumination
No light
Device switched on
Device switched off

◄►
Navigate between recordings
Zoom function

Power button
Switch on monitor

Micro SD card slot
Slot for using a micro SD card with a max. capacity of 32 GB

Battery compartment
2 AA batteries






7
English
6.3 Installation

Remove your existing door peephole from the
peephole bore or drill a new hole if required.
The included peephole requires a 14 mm hole.
Please note: According to DIN 68706, the
standard height for a peephole (spy hole) in
apartment doors is 1,400 mm (measured from the
bottom edge of the door leaf).
Then insert the door peephole lens from the
outside.

For 14 mm drill holes:
Push the door peephole cylinder through the fixing
bracket and then through the hole on the inside of
the door.
Tighten the door peephole by hand.

For 12 mm drill holes:
If you want to use a smaller peephole, you can
use the existing tightening device as a washer for
stabilization.
Push the door peephole cylinder through the
washer and then through the hole on the inside of
the door.
Tighten the door peephole by hand.

Then tighten the peephole with the included
tightening device (washer).
If you have already used the tightening device as
a washer for a small peephole, you need to
tighten it with a suitable object.

Now place the digital door peephole onto the
bracket.

You can now use the door peephole.

8
English
7. Operation
7.1 Live view
7.2 Setting the date and time
1. To set the date and time, hold down the “>” button for three seconds when switched off.
2. Then press the power button as well until you get to the
“Date & Time” menu item.
3. Set the date and time using the arrow buttons. Confirm your input with the power button.
Your photos are now saved with the correct date and time on the micro SD card.

Battery display

Micro SD card recognized

No micro SD card available

SD Full…
Micro SD card full
Please note:
The screen switches off automatically after 20 seconds if no further changes are made.







