ACME Sandane User manual

- 1 -
CONTENTS
01/ Safety Instructions.................................................................................................. 2
02/ Technical Specifications ........................................................................................ 4
03/ Control Panel........................................................................................................... 6
04/ Fixture Installation.................................................................................................. 7
05/ How To Set The Unit.............................................................................................. 9
5.1 Main Functions................................................................................................ 9
5.2 Home Position Adjustment ......................................................................... 20
06/ Control By Universal DMX Controller.............................................................. 22
6.1 DMX512 Connection................................................................................... 22
6.2 Address Setting..............................................................................................23
6.3 DMX512 Configuration............................................................................... 23
07/ Error Information .................................................................................................. 30
08/ Troubleshooting ....................................................................................................31
09/ Fixture Cleaning....................................................................................................31

- 2 -
01/ Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before
using the unit.
This product is suitable for wet locations. Do not immerse in water.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do
not operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Unit’s surface temperature may reach up to 65 ℃. DO NOT touch the housing
bare-handed during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.

- 3 -
off the mains power immediately.
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 0.5 meters.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any
repairs yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have
the damaged parts replaced by an authorized technician at once.

- 4 -
02/ Technical Specifications
Power Voltage
100-240V~ 50/60Hz
Power Consumption
230W
Light Source
54x6W RGBW LED
Beam Angle
19°, 23°, 30°, 40°, 58°
Field Angle
37°, 45°, 59°, 74°, 100°
Dimmer/Strobe
0-100% smooth dimming; outstanding strobe effect with variable
speed
Control
DMX Channel
10/8/5/4/6 Channels
Control Mode
DMX512
RDM
Primary/Secondary Mode
Firmware Upgrade
Firmware Upgrade via DMX link
Construction
Display
OLED display
Data In/Out
3-pin IP XLR (5-pin IP XLR is optional)
Power In/Out
Waterproof Power Connector in/out
Protection Rating
IP66
Features
Compact design, small size, light in weight
High output, low energy consumption
Variable CTO
Double hanging brackets
IP66 protection rating, which can be used outdoors all the year
round
1 x fixed clamp for 50mm truss
Optional Half or Full size anti-glare snoot (optional)
Dimensions
272x128x300mm
10.7"x5"x11.8"in
Weight
5.7kgs
12.6lbs

- 5 -

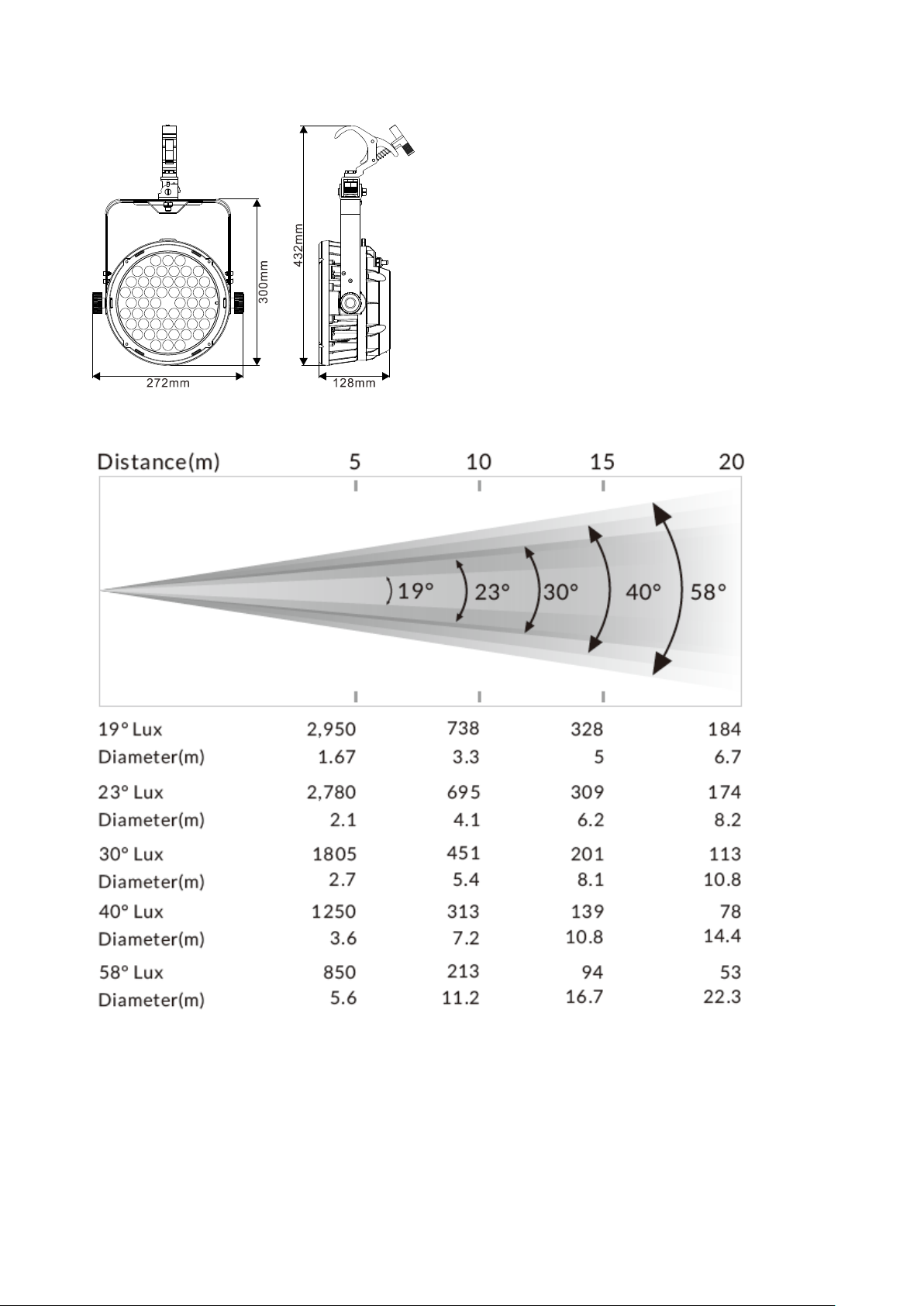

Photometric Diagram:

- 6 -

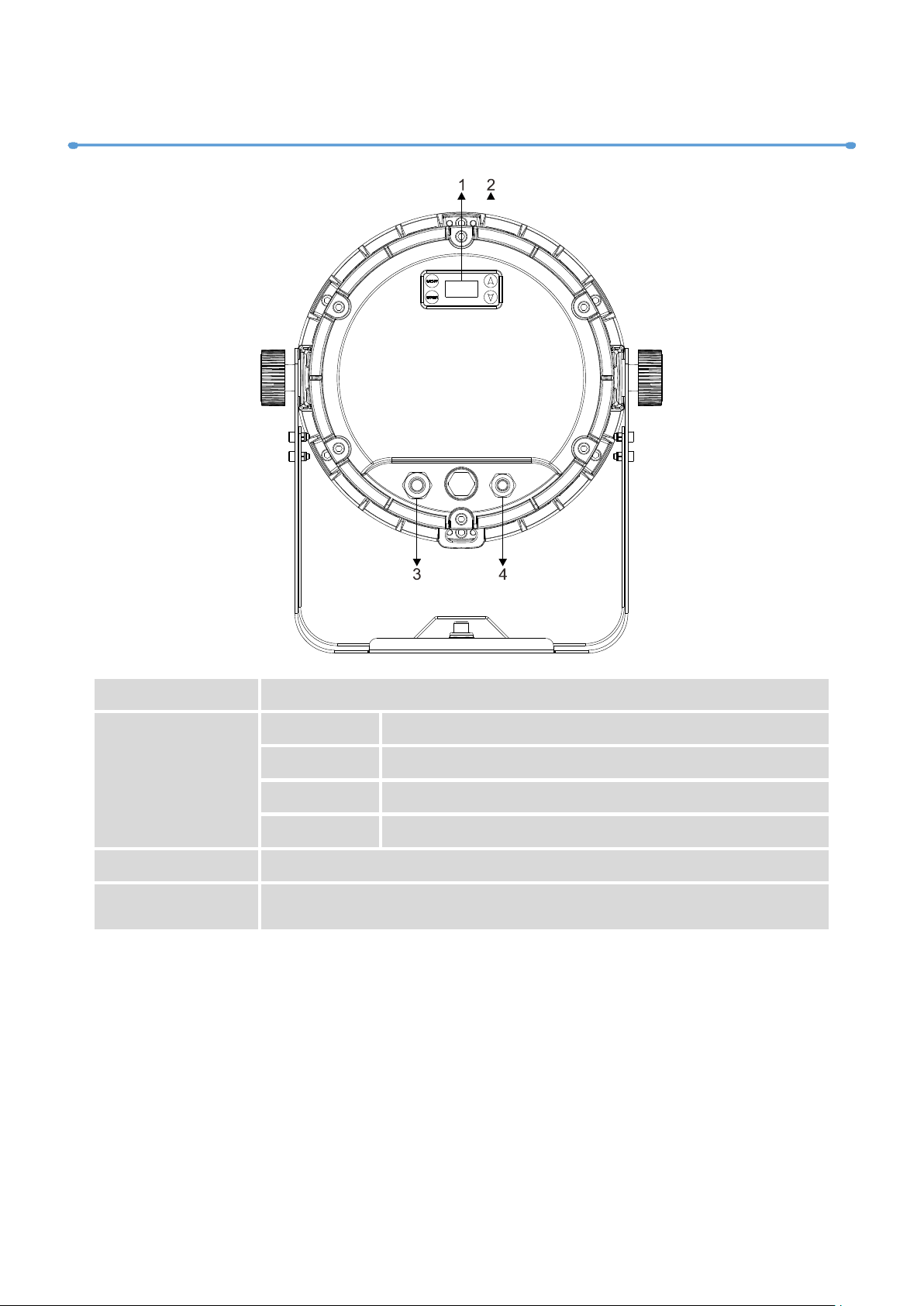

03/ Control Panel
1. Display
To show the various menus and the selected function
2. Buttons
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. POWER
To connect to supply power
4. DMX
For DMX512 link, use 3-pin XLR cable to link the unit and DMX
controller to transmit DMX signal (5-pin XLR cable is optional)

- 7 -
04/ Fixture Installation
DO install and operate by qualified operator. Fixture(s) should be installed in areas
outside walking paths, seating areas, or away from areas were unauthorized personnel
might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging,
removing or servicing.
Always ensure that the unit is firmly fixed to avoid vibration and slipping off during
operation. Ensure that the trussing or area of installation must be able to hold 10 times
the weight without any deformation. Always attach a safety cable that can hold at least
12 times the weight of the fixture whenever installing this fixture in a suspended
environment to ensure that the fixture will not fall if the clamp fails.
This fixture is fully operational in three different mounting positions: hanging on trussing,
mounted sideways on trussing, or set on a flat level surface. Always use and install the
supplied safety cable as a safety measure to prevent accidental damage and/or injury in
the event the clamp fails.

- 8 -

- 9 -
05/ How To Set The Unit
5.1 Main Functions
To access the control menus, press the [MENU] button.
Navigate the menu structure, using the [ENTER], [UP] and [DOWN] buttons.
To select a menu option or to confirm a selection, press the [ENTER] button.
To return to a higher level in the menu structure without making a change, press the
[MENU] button, or wait 30 seconds.
The main functions are shown below:
MENU
SUBMENU
OPTIONS
DMX Settings
DMX Address
1-503 (10 CH)
(Default=1)
1-505 (8 CH)
1-508 (5 CH)
1-509 (4 CH)
1-507 (6 CH)
Channel Mode
Mode 1 (10)
Mode 2 (8)
Mode 3 (5)
Mode 4 (4)
Mode 5 (6)
No DMX Status
Hold
Blackout
Program
Manual
View DMX Value
Fixture Settings
Dimmer Curve
Linear
Square Law
Inv SQ Law
S Curve
Dimmer Speed
Fast
Smooth
The screen will be automatically locked if there is no operation for a long time, and can
be unlocked by long-pressing the [MENU] button.

- 10 -
MENU
SUBMENU
OPTIONS
White Balance
Red
125-255
Green
125-255
Blue
125-255
Pri/Sec Mode
Secondary
Primary
Display Settings
Display Invert
No
Yes
Temperature Unit
°C
°F
Language
English
Chinese
Auto Test
Manual Test
Clear
No/Yes
Red
0-255
Green
0-255
Blue
0-255
White
0-255
Strobe
0-255
Dimmer
0-255
CTO
Null
8000K~2500K
Color Macro
Null
Color 1~Color 32
Slow Speed
Medium Speed
Fast Speed
Show Program
Set Scene Totals
0-50
Edit Scene Color
1-50
Red
0-255
Green
0-255
Blue
0-255
White
0-255
Fade Time
0-255
Hold Time
0-255

- 11 -
MENU
SUBMENU
OPTIONS
Information
Fixture Use Hour
LED Use Hour
Total LED Hour
LED On Hour
LED Hours Reset
No
Yes
Password=050
Temperature
Current
Max temp
LED
PCBA
Firmware Version
RDM UID
Error Logs
Fixture Errors
Reset Error Log
No
Yes
Password=050
Factory Restore
No
Yes
DMX Settings
Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button
to select DMX Address, Channel Mode, No DMX Status or View DMX Value.
DMX Address
Select DMX Address, press ENTER.
Use UP/DOWN button to select an address, confirm your selection with
ENTER.
CHANNEL MODE
DMX ADDRESS
Mode 1 (10)
1-503
Mode 2 (8)
1-505
Mode 3 (5)
1-508
Mode 4 (4)
1-509
Mode 5 (6)
1-507
To exit the menu, press MENU, or wait 30 seconds.

- 12 -
Channel Mode
No DMX Status
View DMX Value
Select View DMX Value, press ENTER.
Use UP/DOWN button to select the desired DMX channel, for which the
value is to be displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select No DMX Status, press ENTER.
Use UP/DOWN button to select one of the following status:
Hold (The device continues to operate in the current mode with the last
active DMX values until the signal returns)
Blackout (Fixture blacks out if DMX signal stops)
Program (The device accepts the DMX value stored in the ‘Show
Program’menu)
Manual (The device accepts the DMX value stored in the ‘Manual Test’
menu)
Confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Channel Mode, press ENTER.
Use UP/DOWN button to select between Mode 1 (10), Mode 2 (8),
Mode 3 (5), Mode 4 (4) and Mode 5 (6), confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 13 -
Fixture Settings
Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button
to select Dimmer Curve, Dimmer Speed, White Balance or Pri/Sec Mode.
Dimmer Curve
Dimmer Speed
White Balance
Select White Balance, press ENTER.
Use UP/DOWN button to select Red, Green or Blue, confirm your
selection with ENTER.
Use UP/DOWN button to select a value between 125 and 255, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Dimmer Speed, press ENTER.
Use UP/DOWN button to select Fast or Smooth, confirm your selection
with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Dimmer Curve, press ENTER.
Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S
Curve, confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 14 -
Pri/Sec Mode
Display Settings
Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button
to select Display Invert, Temperature Unit or Language.
Display Invert
Temperature Unit
Language
Select Pri/Sec Mode, press ENTER.
Use UP/DOWN button to select Secondary or Primary, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Language, press ENTER.
Use UP/DOWN button to select English or Chinese, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Temperature Unit, press ENTER.
Use UP/DOWN button to select °C or °F, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Display Invert, press ENTER.
Use UP/DOWN button to select No (display normal) or Yes (display
inverted), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 15 -
Auto Test
Manual Test
Show Program
Enter the control menu and select Show Program, press ENTER. Use the UP/DOWN button
to select Set Scene Totals, Edit Scene Color, Fade Time or Hold Time.
Set Scene Totals
Select Set Scene Totals, press ENTER.
Use UP/DOWN button to select a value between 0and 50, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Manual Test, press ENTER.
Use UP/DOWN button to select the channel for which the manual test
is to be performed, confirm your selection with ENTER.
Use UP/DOWN button to select a value, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
(The device returns to its original DMX state after the manual test. The
test values are saved automatically when the device is switched off.)
Select Auto Test, press ENTER.
The device immediately performs an automatic self-test.
To end the automatic self-test and exit the menu, press MENU, or wait
30 seconds.

- 16 -
Edit Scene Color
Fade Time
Hold Time
Information
Enter the control menu and select Information, press ENTER. Use the UP/DOWN button to
select Fixture Use Hour, LED Use Hour, Temperature, Firmware Version, RDM UID or Error
Logs.
Fixture Use Hour
Select Hold Time, press ENTER.
Use UP/DOWN button to select a value between 0and 255, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Fade Time, press ENTER.
Use UP/DOWN button to select a value between 0and 255, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Edit Scene Color, press ENTER.
Use UP/DOWN button to select a value between 1and 50, confirm your
selection with ENTER.
Use UP/DOWN button to select Red, Green, Blue or White, confirm your
selection with ENTER.
Use UP/DOWN button to select a value between 0and 255, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Fixture Use Hour, press ENTER.
The operating hours is displayed.
To exit the menu, press MENU, or wait 30 seconds.

- 17 -
LED Use Hour
Temperature
Firmware Version
RDM UID
Select RDM UID, press ENTER.
The RDM UID is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Firmware Version, press ENTER.
The firmware version is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Temperature, press ENTER.
The device temperature is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select LED Use Hour, press ENTER.
Use UP/DOWN button to select Total LED Hour (total time) or LED On
Hour (current switch-on time), confirm your selection with ENTER.
The total time or current switch-on time is displayed.
Use UP/DOWN button to select LED Hours Reset, confirm your
selection with ENTER.
If you wish to reset the LED operating hours, select Yes. If you do not
wish to reset anything, select No. Confirm your selection with ENTER.
If you select Yes, use UP/DOWN button to set the password 050,
confirm your selection with ENTER. The LED operating hours is reset.
To exit the menu, press MENU, or wait 30 seconds.

- 18 -
Error Logs
Factory Restore
Select Factory Restore, press ENTER.
If you wish to reset the device to the factory settings, select Yes. If you
do not wish to reset anything, select No. Confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Error Logs, press ENTER.
Use UP/DOWN button to select Fixture Errors, confirm your selection
with ENTER.
The error list is displayed.
Use UP/DOWN button to select Reset Error Log, confirm your selection
with ENTER.
If you wish to reset the relevant error logs, select Yes. If you do not wish
to reset anything, select No. Confirm your selection with ENTER.
If you select Yes, use UP/DOWN button to set the password 050,
confirm your selection with ENTER. The relevant error logs are reset.
To exit the menu, press MENU, or wait 30 seconds.

- 19 -
RDM functions: Certain menus of the device and functions can be called up via the RDM
protocol.
The parameter IDs are implemented as follows for different commands:
Parameter ID
Command
‘Discovery’
Command
‘Set’
Command
‘Get’
DISC_UNIQUE_BRANCH
√
DISC_MUTE
√
DISC_UN_MUTE
√
DEVICE_INFO
√
SUPPORTED_PARAMETERS
√
SOFTWARE_VERSION_LABEL
√
DMX_START_ADDRESS
√
√
IDENTIFY_DEVICE
√
√
DEVICE_MODEL_DESCRIPTION
√
PARAMETER_DESCRIPTION
√
MANUFACTURER_LABEL
√
DEVICE_LABEL
√
√
FACTORY_DEFAULTS
√
√
BOOT_SOFTWARE_VERSION_ID
√
BOOT_SOFTWARE_VERSION_LABEL
√
DMX_PERSONALITY
√
√
DMX_PERSONALITY_DESCRIPTION
√
SLOT_INFO
√
SLOT_DESCRIPTION
√
SENSOR_DEFINITION
√
SENSOR_VALUE
√
DEVICE_HOURS
√
RESET_DEVICE
√
√-Command implemented for the respective parameter ID
