ACME LS-1005 User manual

LS-1005 RGB

1C
MENU
1. Safety Instructions ........................................................................................................................... 2
2. Technical Specifications ................................................................................................................... 3
3. Installation ....................................................................................................................................... 3
4. How to Set the Unit ......................................................................................................................... 4
4.1 Control Panel ................................................................................................................................. 4
4.2 Main Function................................................................................................................................ 4
5. How to Control the Unit .................................................................................................................. 6
6. DMX512 Configuration .................................................................................................................... 6
7. DMX512 Connections ...................................................................................................................... 8
8. Troubleshooting............................................................................................................................... 9
9. Fixture Cleaning ............................................................................................................................. 10

2C
1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces.
Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by
taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher than
this.
Unit surface temperature may reach up to 65℃. DO NOT touch the housing bare-hand during its
operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing
or serving.
In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact
the nearest authorized technical assistance center. Always use the same type spare parts.
Please read carefully the instruction, which includes important
information about the installation, usage and maintenance.

3C
DO NOT touch any wire during operation as high voltage might be causing electric shock.
2. Technical Specifications
Four control modes: ILDA / DMX/Sound Active/Auto Play;
Voltage: AC100V~240V，50/60Hz
Laser power consumption: 5W
Power consumption: 80W
Scanning system：40K Scanner
Scanning angle: ±40°
Fuse: T 3.15A
Dimension/Weight:
373X370X193mm, 12.5Kg
14.7"x14.6"x7.6"in, 27.6lbs
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are
attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always
use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people and has no one pass by or under it.

4C
4. How to Set the Unit
4.1 Control Panel
○
1OLED Display ○ 2Knob
○
3 SD Card Port ○ 4 Key Switch: The unit works when set RUN.
○
5 Power Input/output ○ 6 Fuse
○
7 MIC ○ 8 ILDA Port
○
9 DMX Input/Output ○ 10 Power Indicator (Red); Laser Indicator (Green)
○
11 Light Output
4.2 Main Function
Turn the knob PUSH/DIAL, select any of the given functions, press the knob until the required function is
showing on the display. The main functions are shown overleaf:

5C
DMX Functions
Press the knob when the DMX FUNCTIONS show on the display, use the knob to select DMX Address,
DMX state or Exit. Enter DMX Address, turn the knob to change the address, press the knob to confirm.
Enter DMX State, select the HOLD/Black Out/Show Mode, when select Show Mode, the unit preference
to sound active. If the sound active function is closed, the unit will auto run built-in show. ILDA signal
control prior to DMX signal control. Press EXIT to back to the menu.
Show Functions
Press the knob when the Show Functions show on the display, use the knob to select Show or Exit. Enter
Show, turn the knob to select show 0 to show 9, press the knob to confirm. (Show function only is valid
when select Show Mode in DMX functions.) SD card show prior to built-in show. Press EXIT to back to
the menu.
Sound Functions
Press the knob when the Sound Functions show on the display, use the knob to select Sound Mode or
Sound Sense or Exit. Enter Sound Mode, use the knob to select On or off, press the knob to confirm.
ILDA signal and DMX signal control prior to sound active mode. Press EXIT to back to the menu.

6C
SD Functions
Press the knob when the SD Functions show on the display, use the knob to select SD Mode, SD File or
Exit. Enter SD Mode, use the knob to select ILD Show, PRG Show or No SD, press the knob to confirm.
Enter SD File, select the file or folder, press the knob to confirm. Press EXIT to back to the menu.
Figure Functions
Press the knob when the Figure Functions show on the display, use the knob to select Size, Phase Set or
Exit. Enter Size, use the knob to select figure size from 10 to 100, press the knob to confirm. Enter Phase
Set, set the positon of the figure. Press EXIT to back to the menu.
Fixture Functions
Press the knob when the Fixture Functions show on the display, use the knob to select Back Lights,
Fixture Hours, Defaults, Version or Exit. Enter Back lights, use the knob to select on or off, press the
knob to confirm. Enter Fixture Hours, the running time of the unit will be show on the display. Enter
Defaults, use the knob to select Yes or no to restore factory settings or not. Enter Version, the version of
the software will be show on the display. Press EXIT to back to the menu.
5. How to Control the Unit
1. By ILDA;
Connect the unit to the computer with ILDA wire and control the software by computer laser;
Priority to control the unit: ILDA﹥DMX﹥Sound active﹥Auto play
2. By universal DMX controller;
Set the DMX address, the unit will be ready to receive DMX signal.
3. Sound active;
The unit will run show by the sound active.
4. Auto play;
The unit will auto play when no signal.
6. DMX512 Configuration
DMX Channel:

7C
Channel
Value
Function
1
Choose
Mode
0-9
Blackout
10-49
PRG Mode
50-99
ILD Mode
100-149
Sound active Mode
150-199
Auto play Mode
200-255
Manual Mode
2
Pattern/File
Select 0-255
Manual Mode
PRG/ILD Mode
Pattern change
(Change pattern every
3 values)
Select file
3
Strobe/File
Select
0-10
No strobe
Auto Play File Select
11-255
Auto strobe
4
Pan Moving
0-125
Position select
126-155
Repeat moving from left to right
156-185
Repeat moving from right to left
186-225
Repeat moving from left to right
226-245
Auto play
246-255
Sound active play
5
Tilt Moving
0-125
Position select
126-155
Repeat moving from left to right
156-185
Repeat moving from right to left
186-225
Repeat moving from left to right
226-245
Auto play
246-255
Sound active play
6
Zoom
0-10
No effect
11-87
Manual adjust
188-150
Zoom in
151-200
Zoom out
201-255
Repeat zooming
7
Pan
Rotation
0
No rotation
1-128
Manual adjust
129-255
Auto rotation
8
Tilt
Rotation
0
No rotation
1-128
Manual adjust
129-255
Auto rotation
9
Centre
Rotation
0
No rotation
1-128
Manual adjust
129-192
Counter-clockwise rotation
193-255
Clockwise rotation
10
Slow
Drawing
0-11
No function
12-74
Manual adjust
75-104
Auto slow drawing from slow to fast
105-144
Auto slow drawing from fast to slow

8C
145-184
Repeat slow drawing
185-224
Repeat slow drawing from slow to fast end to end
225-255
Repeat slow drawing from fast to slow end to end
11
Pan Waving
0-10
No function
11-69
Small wave
70-129
Middle wave
130-189
Big wave
190-255
The biggest wave
12
Tilt Waving
0-10
No function
11-69
Small wave
70-129
Middle wave
130-189
Big wave
190-255
The biggest wave
13 Show Mode
0-63
Normal Show Mode
64-127
Light spot Show Mode
128-191
Division Show Mode
192-255
Spot Show Mode
14
Color
RGB
0-16
White
17-33
Red
34-50
Green
51-67
Blue
68-84
Yellow
85-101
Purple
102-118
Cyan
119-135
White/Red/Green/Blue division
136-152
Blue/Yellow/Purple/Cyan division
153-169
White/Red/Green/Blue/Yellow/Purple/Cyan
division
170-186
White/Red/Green/Blue flow
187-203
Blue/Yellow/Purple/Cyan flow
204-220
White/Red/Green/Blue/Yellow/Purple/Cyan
flow
221-237
Division show according to the breakpoint
238-255
Sound active change color
15
R
Dimmer
0-5
Full light
6-255
Bright to dim
16
G
Dimmer
0-5
Full light
6-255
Bright to dim
17
B
Dimmer
0-5
Full light
6-255
Bright to dim
7. DMX512 Connections

9C
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.

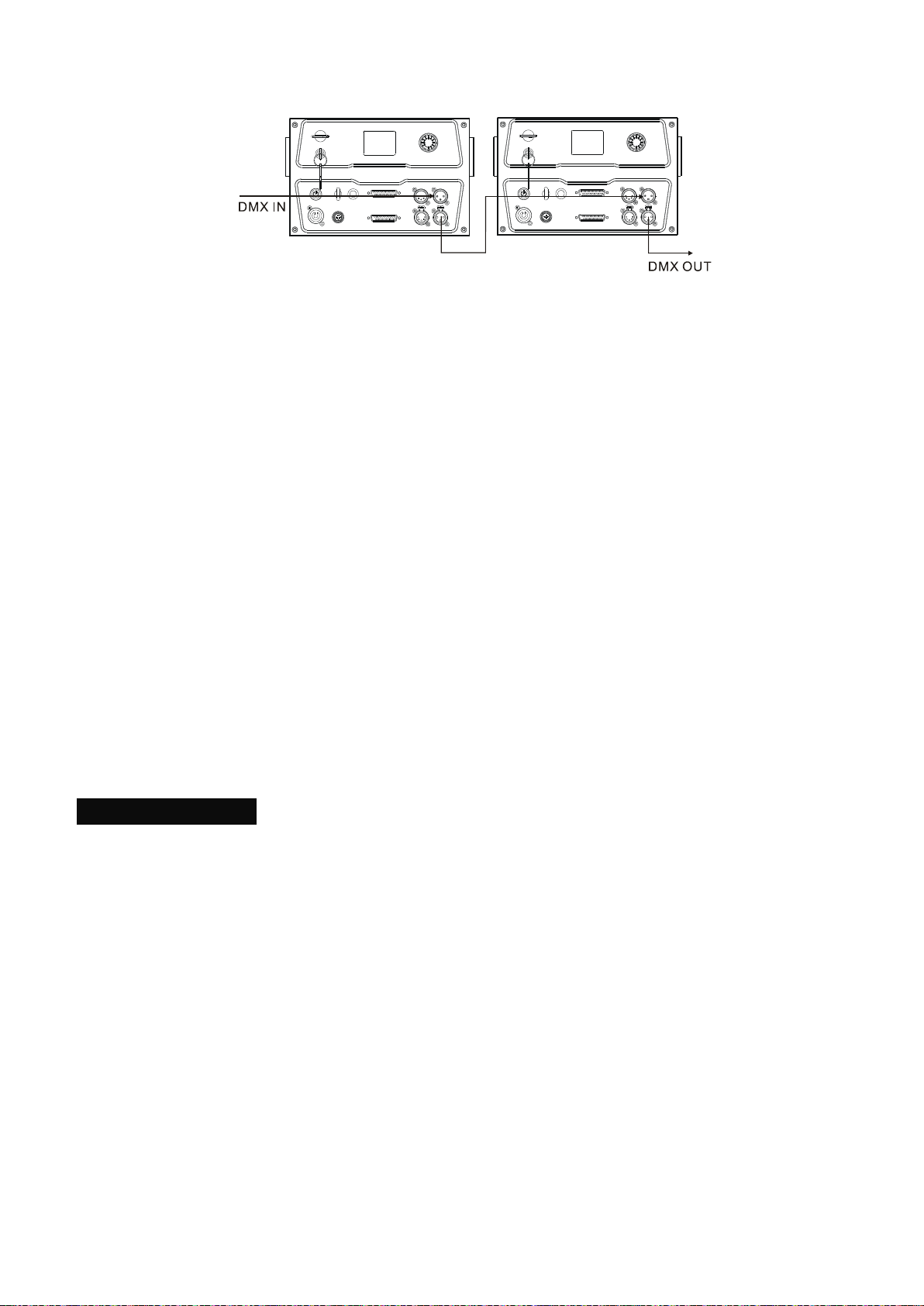

2. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of
the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very high-speed signal.
Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal
and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of
the units’ power is disconnected.
4. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some suggestions
for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.

10C
2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit
or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or
interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
9. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s
optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

11C
Innovation, Quality, Performance
Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55103-1: 2009+A1:2012; EN55103-2: 2009;
EN61000-3-2: 2014; EN61000-3-3: 2013.
&
Harmonized Standard
EN 60598-1:2015; EN 60598-2-17:1989 + A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
