ACME Splendor 220 II User manual

User Manual
Please read the instruc on carefully before use
CM-220 II
2019.05.13
审核
受控正本

TABLE OF CONTENTS
1. Safety Instruction..........................................................................2
2. Technical Specification.................................................................3
3. Change Beam Angle....................................................................4
4. How To Set The Unit....................................................................4
4.1 Control Panel........................................................................4
4.2 Main Function.......................................................................5
4.3 Home Position Adjustment...................................................9
5. How To Control The Unit............................................................ 10
5.1 Master/Slave Built-in Preprogram Function........................10
5.2 DMX Controller................................................................... 10
5.4 DMX 512 Configuration...................................................... 11
5.5 DMX512 Connection.......................................................... 12
6. Troubleshooting..........................................................................13
7. Fixture Cleaning......................................................................... 14
1E

1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire
hazard.
Use safety cable when fixes this unit.
Maximum ambient temperature is TA: 40℃. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always
use the same type spare parts.
Do not touch any wire during operation as high voltage might be causing electric shock.
Warning
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
Do not open the unit within five minutes after switching off.
The housing, the lenses must be replaced if they are visibly damaged.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or attempt
Please read carefully the instruction, which includes important
information about the installation, usage and maintenance.
2E

any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Installation
The unit should be mounted via its metal hole on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a 10 times
weight of the unit.
2. Technical Specification
Splendor 220 II features 22 high-power LEDs with the capability of producing full
range of color mixing. Its compact, lightweight design and powerful output make it
ideal for all kinds of applications.
◆DMX Channels:9/16 channels
◆2 operation modes: DMX, Master/Slave
◆Great built-in lighting shows under Master/Slave mode
◆Blue LCD display for easy navigation
◆Perfect for stage, theatre, TV, production, rental and discotheques.
Voltage
:
AC 100-240V~50/60Hz
Power consumption: 180W
Light Source: 22x5W RGBW LED (4 in 1)
Fuse: T 3.15A
Beam angle: 20°
Dimension/Weight: 326 x 243.5 x 350 mm,9.2kgs
12.8"x9.6"x13.8"in,20.3lbs
3E

3. Change Beam Angle
If you want to change the beam angle of the fixture, you can change lens of the
fixture refer to the photo below:
4. How To Set The Unit
4.1 Control Panel
Wire Version
:
12345678
POWERCON Version
:
Turn off the mains power
first, or high voltage may
cause electric shock!
4E

1.LED
DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
POWER On Power input present
2. Display
To show the various menus and the selected functions
3.Button
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
4. POWER SWITCH (Wire Version):
Turns On/Off the power
5. Mains input
Connect to supply mains power.
6. Fuse(T3.15A):
For over current protection.
7. DMX IN:
DMX 512 link, use 3-pin XLR cable to link the unit and DMX controller
8. DMX OUT:
DMX 512 operation, use 5-pin XLR cable to link the next units

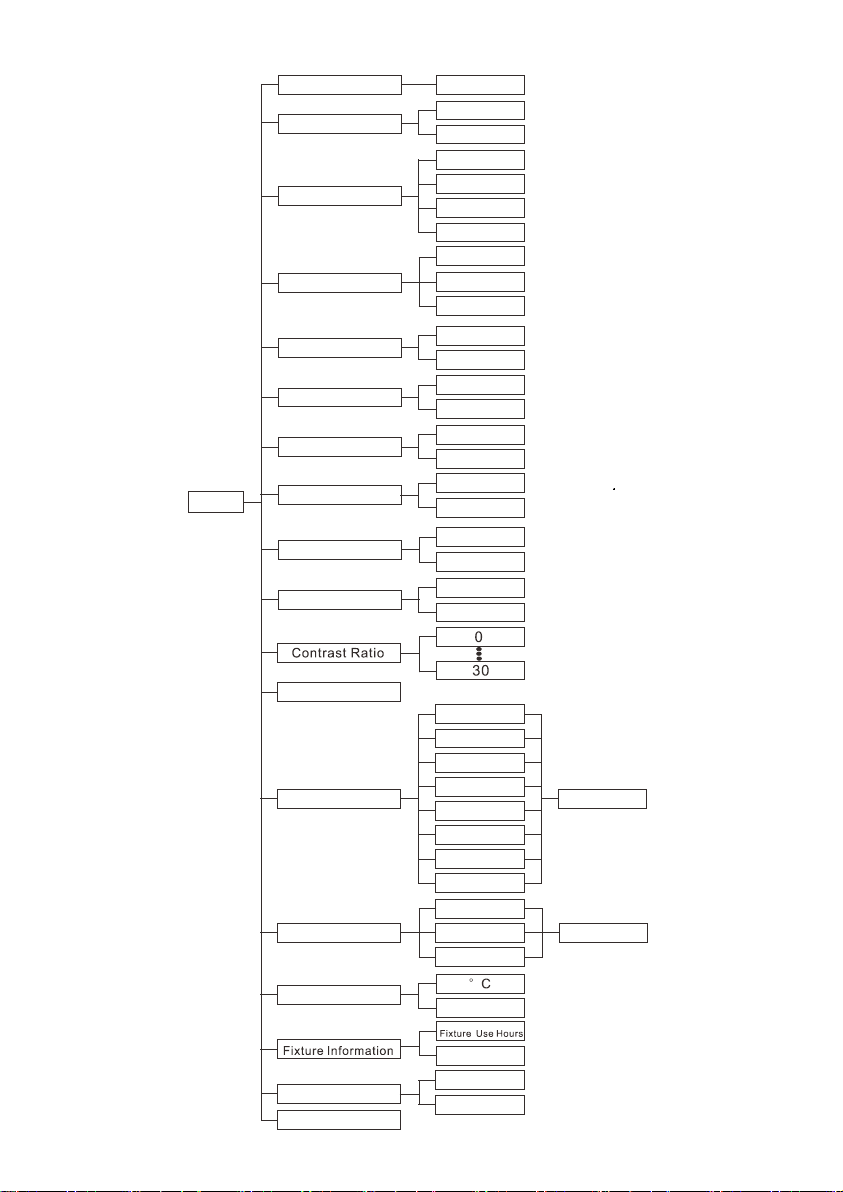

4.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
Press ENTER button to store. Back to the main functions without any change press the
MENU button or wait for one minute.
Hold MENU button to quit menu mode, the unit will run the built-in program you selected.
The main functions are shown below:
5E

AutoTest
Fixture Settings
Show1
Show2
Show3
Show4
Show Mode
Slave 1
Slave 2
Slave Mode
No
Yes
Black Out
No
No
Yes
Yes
Pan Inverse
Tilt Inverse No
Yes
Back Light Off
On
No
Yes
Display Inverse
Temperature Unit
DmxAddress 1~512
Channel Mode Mode 1 (9)
Mode 2 (16)
MENU
Pan
Tilt
Red
Green
Blue
White
Strobe
Dimmer
ManualTest 0~255
White Balance
Red
Green
Blue
125~255
Master
Reset
No
Yes
DimmerSpeed
°F
CPU-A
6E

DMX Address
Press the MENU button up to when the DMX Address is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to change the DMX512
address. Once the address has been selected, press the ENTER button to store. Back to
the main functions without any change press the MENU button or wait for one minute.
Channel Mode
Press the MENU button up to when the Channel Mode is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to select the Mode 1 (9)
or Mode 2 (16). Once selected, press the ENTER button to store. Back to the main functions
without any change press the MENU button or wait for one minute.
Show Mode
Press the MENU button up to when the Show Mode is showing on the display. Press
ENTER button, the display will blink. Press DOWN and UP button to select Show 1 or Show
2 or Show 3 or Show 4, once selected, press the ENTER button to store. Back to the main
functions without any change press the MENU button or wait for one minute.
Slave Mode
Press the MENU button up to when the Slave Mode is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to select the Master or
slave 1 or slave 2 mode. Once selected, press the ENTER button to store. Back to the main
functions without any change press the MENU button or wait for one minute.
Black Out
Press the MENU button up to when the Black Out is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the yes (yes
blackout) or no (no blackout) mode. Once selected, press the ENTER button to store. Back
to the main functions without any change press the MENU button or wait for one minute.
Pan Inverse
Press the MENU button up to when the Pan Inverse is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the No
(Normal) or Yes (pan inverse) mode. Once selected, press the ENTER button to store. Back
to the main functions without any change press the MENU button or wait for one minute.
Tilt Inverse
Press the MENU button up to when the Tilt Inverse is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the No
(Normal) or Yes (pan inverse) mode. Once selected, press the ENTER button to store. Back
7E

to the main functions without any change press the MENU button or wait for one minute.
Dimmer Speed
Press the MENU button up to when the Dimmer Speed is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the No
(Normal) or Yes (dimmer speed) mode. Once selected, press the ENTER button to store.
Back to the main functions without any change press the MENU button or wait for one
minute.
Back Light
Press the MENU button up to when the Back Light is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the on (back
light on) or off (back light off 1 minute after auto show) mode. Once selected, press the
ENTER button to store. Back to the main functions without any change press the MENU
button or wait for one minute.
Contrast Ratio
Press the MENU button up to when the Contrast Ratio is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to adjust value 0 to 30.
Once selected, press the ENTER button to store. Back to the main functions without any
change press the MENU button or wait for one minute.
Display Inverse
Press the MENU button up to when the Display Inverse is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the No
(Normal) or Yes (display inverse) mode. Once selected, press the ENTER button to store.
Back to the main functions without any change press the MENU button or wait for one
minute.
Auto Test
Press the MENU button up to when the Auto Test is showing on the display. Pressing
ENTER button and the display will show Test… and the unit will run self-test by built-in
program. To go back to the functions press the MENU button.
Manual Test
Press the MENU button up to when the Manual Test is showing on the display. Press
ENTER button and Pan will blink, use UP and DOWN button to choose Tilt or Red or Green
or White or Strobe or Dimmer, press ENTER button to enter, then press UP and Down
button to adjust the value and press ENTER button to set next optional. Back to the main
functions without any change please press the MENU button.
8E

White Balance
Press the MENU button up to when the White Balance is showing on the display. Press
ENTER button and the Red will blink, press UP and Down button to adjust the value, press
ENTER button to store and Green will blink on the display, press UP and Down button to
adjust the value, press ENTER button to store and Blue will blink on the display, press UP
and Down button to adjust the value, and press ENTER button to store. Back to the main
functions without any change please press the MENU button.
Temperature Unit
Press the MENU button up to when the Temperature Unit is showing on the display.
Pressing ENTER button and the display will blink. Use DOWN and UP button to select ℃
or ℉. Once selected, press the ENTER button to store. Back to the main functions without
any change press the MENU button or wait for one minute.
Fixture Information
Press the MENU button up to when the Fixture Information is showing on the display.
Pressing ENTER button and the display will blink. Use DOWN and UP button to select
Fixture Use Hours or CPU-A. Once selected, press the ENTER button to store. Back to the
main functions without any change press the MENU button or wait for one minute.
Fixture Settings
Press the MENU button up to when the Fixture Settings is showing on the display. Use
DOWN and UP button to select Yes (the fixture will restore to factory settings) or No, and press
ENTER button to store. Back to the main functions without any change press the MENU
button or wait for one minute.
Reset
Press the MENU button up to when the Reset is blinking on the display. Pressing ENTER
button and all motors will back to their home position. To go back to the functions press the
MENU button.
4.3 Home Position Adjustment
Press the MENU button into menu mode, then press and hold the ENTER button for about 3
seconds into offset mode to adjust the home position. Select the function by the ENTER
button. Use the UP/DOWN button to select the submenu, press the ENTER button to store
and automatically return to the last menu. Press the MENU button to exit.
9E

Offset Menu
Pan
-127~127
Enter offset mode, select Pan or Tilt, press the ENTER button to confirm. Use the
UP/DOWN button to offset the value from -127 to 127, press the ENTER button to store.
Press the MENU button to exit.
5. How To Control The Unit
You can operate the unit in three ways:
1. By master/slave built-in preprogram function
2. By universal DMX controller
5.1 Master/Slave Built-in Preprogram Function
By linking the units in master/slave connection, the first unit will control the other units to
give an automatic, synchronized light show. This function is good when you want an instant
show.
2-light show
In slave mode, slave 1 means the unit run as the master unit and slave 2 means 2-light show.
In order to create a great light show, you can set slave 2 on the second unit to get contrast
movement to each other, even if you have two units only.
5.2 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to
512 channel so that the units can receive DMX signal.
Press the MENU button up to when the DMX Address is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to change the DMX512
address. Once the address has been selected, press and keep ENTER button to store when.
To go back to the functions without any change press the MENU button or wait for one
minute.
Please refer to the following diagram to address your DMX512 channel for the first 4 units:
Channel Mode Unit 1 Unit 2 Unit 3 Unit 4
9 channels 1 10 19 28
16 channels 1 17 33 49
10E

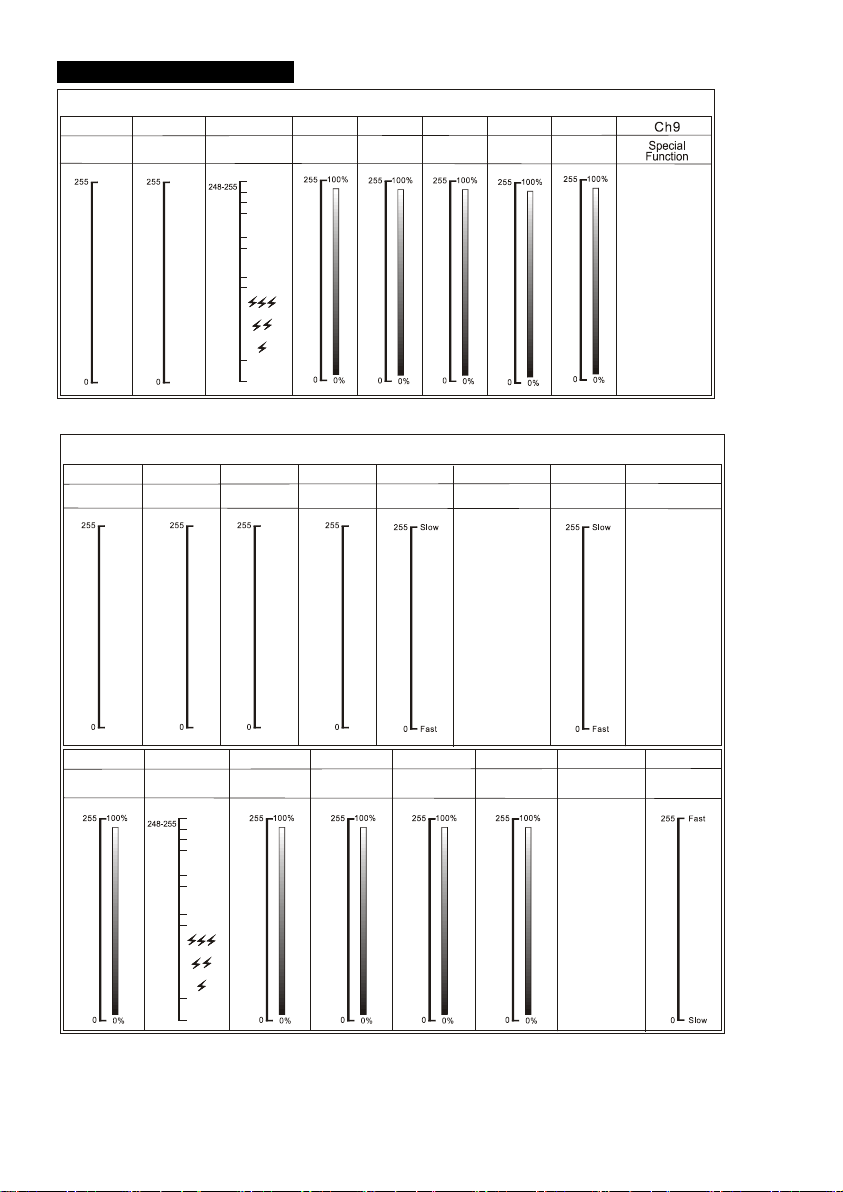

5.4 DMX 512 Configuration
Ch1 Ch2 Ch3
Green Blue
9 Channel DMX512 Configuration(Mode 1)
Ch4 Ch5 Ch6
RedPan Tilt
Ch8
Dimmer
Open
Open
Slow open
fast close
Slow close
Fast open
Open
Random Strobe
Open
0-15
16-131
132-139
140-181
182-189
190-231
240-247
232-239
Open
White
Ch7
70-79
Enable blackout
while pan or tilt move
80-89
Disable blackout
while pan or tilt move
200-209
Reset
240-255
Stand alone
540°
0°0°
200°
Strobe
Ch1 Ch2 Ch3
Pan/Tilt
Macro
16 Channel DMX512 Configuration(Mode2)
Ch4 Ch5 Ch6
Pan Tilt
Ch8
Function
Macro
Speed
Ch7
Ch9 Ch10 Ch11
Green Blue
Strobe
Ch12 Ch13 Ch14
RedDimmer
Ch16
Color
Open
Open
Slow open
fast close
Slow close
Fast open
Open
Random Strobe
Open
0-15
16-131
132-139
140-181
182-189
190-231
240-247
232-239
Open
White
Ch15
Pan Fine Tilt Fine
000-015
016-035
036-055
056-075
076-095
096-115
116-135
136-155
156-175
176-195
196-215
216-235
236-255
Macro1
Macro2
Macro3
Macro4
Macro5
Macro6
Macro7
Macro8
Macro9
Macro10
Macro11
Macro12
Stop
Fade
Speed
0-7
Normal
8-127
Color 1-32
128-191
Color Macro 1-16
192-255
Color Fade 1-16
70-79
Enable blackout
while pan or tilt move
80-89
Disable blackout
while pan or tilt move
200-209
Reset
240-255
Stand alone
540
°
0°0°
200
°
Pan/Tilt
Speed
11E

5.5 DMX512 Connection
3
2
DMX -
1
COMMON
DMX +
31
2
DMX INPUT DMX OUTPUT
23
1
Termination reduces signal errors and avoids signal
transmission problems and interference. It is always
advisable to connect a DMX terminal.
(Resistance 120 ohm 1/4W)between pin2(DMX-)and
pin3(DMX+) of the last fixture.
DMX controller DMX Out
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a
120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin
XLR-plug and plug it in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the
unit to the input of the next unit. The cable can not branched or split to a `Y`
cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables,
12E

soldered joints or corroded connectors can easily distort the signal and shut
down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX
circuit, when power is disconnected to the unit.
5. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to
1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
Pin 4/5: Not used.
6. Troubleshooting
Following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The cable connected to the PCB may broken.
13E

7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried
out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least
every 30/60 days.
14E

Declaration of Conformity
We declare that our products (lighting equipments) comply
with the following specification and bears CE mark in
accordance with the provision of the Electromagnetic
Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3:
2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 +
A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance
This manual suits for next models
1
Table of contents
Other ACME Lighting Equipment manuals

ACME
ACME LED-MTX6S-8W User manual

ACME
ACME Beluga User manual

ACME
ACME Oxygen User manual

ACME
ACME Uploader II User manual

ACME
ACME IP Cabin AR-01 User manual

ACME
ACME LED-212RGB User manual

ACME
ACME BF-1500ND B User manual

ACME
ACME DOT User manual

ACME
ACME CP-18TC User manual

ACME
ACME LED-WAV-10W User manual
Popular Lighting Equipment manuals by other brands

Varytec
Varytec FLATBEAM DUO 48x8W RGBW user manual

IKEA
IKEA VAPPEBY manual

Inspire
Inspire Symi Assembly, Use, Maintenance Manual

Brightz
Brightz Canopy Series instructions

Qubo
Qubo MICRO MINI MEDIUM MAXI HP Assembly and operating instructions

JETStream
JETStream TREVI Installation and operating instructions
