ACME STORM User manual

- 1 -
CONTENTS
01/ Safety Instructions.................................................................................................. 2
02/ Technical Specifications ........................................................................................ 6
03/ Control Panel........................................................................................................... 8
04/ Fixture Installation.................................................................................................. 9
05/ How To Set The Unit............................................................................................12
5.1 Main Functions..............................................................................................12
5.2 Home Position Adjustment ......................................................................... 26
06/ Control By Universal DMX Controller.............................................................. 29
6.1 DMX512 Connection...................................................................................29
6.2 Address Setting..............................................................................................30
6.3 DMX512 Configuration...............................................................................30
07/ Error Information ..................................................................................................69
08/ Troubleshooting ....................................................................................................72
09/ Fixture Cleaning....................................................................................................73

- 2 -
01/ Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before
using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do
not operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Unit’s surface temperature may reach up to 65 ℃. DO NOT touch the housing
bare-handed during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.

- 3 -
off the mains power immediately.
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 0.5 meters.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any
repairs yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have
the damaged parts replaced by an authorized technician at once.

- 4 -
01/ Consignes de sécurité
ATTENTION
Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez
l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel
d'instructions.
Important:
Les dommages causés par le non-respect de ce manuel d'utilisation ne sont pas couverts par la
garantie. Le revendeur n'acceptera aucune responsabilité pour les défauts ou problèmes qui en
résultent.
Déballez et vérifiez soigneusement qu'il n'y a pas de dommages dus au transport avant
d'utiliser l'appareil.
Ce produit est destiné à un usage intérieur uniquement. Il doit donc être utilisé
uniquement dans un endroit sec.
L’installation et la mise en fonctionnement doit être effectué par un opérateur qualifié.
NE PAS permettre aux enfants d'utiliser l'appareil.
Utilisez une chaîne de sécurité lors de la fixation de l'unité. Manipulez l'appareil en
portant sa base au lieu de la tête uniquement.
L'unité doit être installée dans un endroit avec une ventilation adéquate, à au moins
50cm des surfaces adjacentes.
Assurez-vous qu'aucune fente d'aération du luminaire n'est obstruée, sinon il risque de
surchauffer.
Avant toute utilisation, assurez-vous que vous connectez ce luminaire à la tension
appropriée conformément aux spécifications que vous trouverez dans ce manuel ou sur
l'étiquette des spécifications collée sur la base du luminaire.
Il est important de relier le file jaune/vert à la terre afin d'éviter tout choc électrique.
Température ambiante minimale TA: 0℃. Température ambiante maximale TA: 40℃.
N'utilisez pas ce luminaire à des températures inférieures ou supérieures.
NE PAS connecter le luminaire à un pack de gradateurs.
Gardez les matériaux inflammables à l'écart du luminaire pendant le fonctionnement
Veuillez lire attentivement les instructions qui contiennent des informations
importantes sur l'installation, l'utilisation et l'entretien.

- 5 -
pour éviter tout risque d'incendie.
Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le
immédiatement s'il est endommagé.
La température de surface de l'unité peut atteindre 65℃. NE PAS toucher les capots à
mains nues pendant son fonctionnement.
Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si
cela se produit, coupez immédiatement l'alimentation secteur.
NE PAS utiliser le luminaire dans un environnement sale ou poussiéreux. Cette appareil
doit être nettoyer régulièrement.
NE touchez AUCUN file pendant le fonctionnement car il pourrait y avoir un risque de
choc électrique.
Évitez l'enchevêtrement du cordon d'alimentation avec d'autres fils.
La distance minimale de projection sur des objets ou sur des surfaces doit être supérieure
à 0.5 mètres.
En cas de problème de fonctionnement grave, arrêtez immédiatement d'utiliser l'appareil.
N'allumez et n'éteignez jamais ce luminaire à maintes reprises.
Le boîtier, les lentilles ou le filtre ultraviolet doivent être remplacés s'ils sont visiblement
endommagés.
NE PAS ouvrir le boîtier car il ne contient aucune pièce réparable par l'utilisateur.
NE PAS mettre ce luminaire en fonctionnement s'il est endommagé. N'effectuez pas de
réparations vous-même. Les réparations ne doivent être effectuées par des personnes
non qualifiées, cela peut entraîner des dommages ou des dysfonctionnements. Veuillez
contacter le centre d'assistance technique agréé le plus proche si nécessaire.
Débranchez ce produit du secteur avant de procéder à l'entretien.
Utiliser l'emballage d'origine si l'appareil doit être transporté.
Évitez une exposition directe des yeux à la source lumineuse lorsque le produit est
allumé.
N'utilisez PAS ce produit si vous constatez des dommages sur le boîtier, les blindages ou
les câbles. Faites remplacer immédiatement les pièces endommagées par un technicien
agréé.

- 6 -
02/ Technical Specifications
Power Voltage
100-240V~ 50/60Hz
Power Consumption
1025W
Light Source
10x100W LED
10x6x0.5W LED (RGB)
10x24x0.5W LED (RGB)
Beam Angle
4°
Field Angle
6°
Dimmer/Strobe
0-100% smooth dimming; outstanding strobe effect with variable
speed
Movement
Pan
540°
Tilt
244°
Pan/Tilt Resolution
16 bit
Automatic pan/tilt position correction
Fixation
Pan/Tilt lock
Control
DMX Channel
16/88/37/100 Channels
Control Mode
DMX512
RDM
Art-Net
sACN
Firmware Upgrade
Firmware Upgrade via DMX link
Construction
Display
LCD display
Battery backup for user setup without mains connection
Data In/Out
5-pin XLR (3-pin XLR is optional)
RJ45 Connector
Power In/Out
Power Connector in/out
Protection Rating
IP20
Description for power cord set should be used: Listed SJT flexible cord with rating: 300V,
105°C, 16AWGx3C, molded with 5-15P attachment plug and terminated with cord
connector model SAC3FX with rating 250V, 16A by Ningbo Seetronic Electronic
Technology Co Ltd. The power cord shall be at least 914mm (It is to be measured from the
face of attachment plug to the face of connector).

- 7 -
Features
Unique tungsten effect
Multi-point surface light and multi-point back light with pixel
control and rainbow effect
Excellent high output beam with sharp effect
High output, low energy consumption, good heat dissipation, long
service life
Applied to concert, TV stations, variety shows and other
professional performance
2 x fixed clamps for 50mm truss; Screw holes for installing clamps
are reserved for 70mm truss (version with fixed clamps)
Dimensions
(version without
fixed clamps)
971.5x352x522.7mm
38.2"x13.9"x20.6"in
Dimensions
(version with
fixed clamps)
971.5x352x526.7mm
38.2"x13.9"x20.7"in
Weight
(version without
fixed clamps)
43.5kgs
95.9lbs
Weight
(version with
fixed clamps)
43.5kgs
95.9lbs
version without fixed clamps version with fixed clamps
Photometric Diagram:

- 8 -

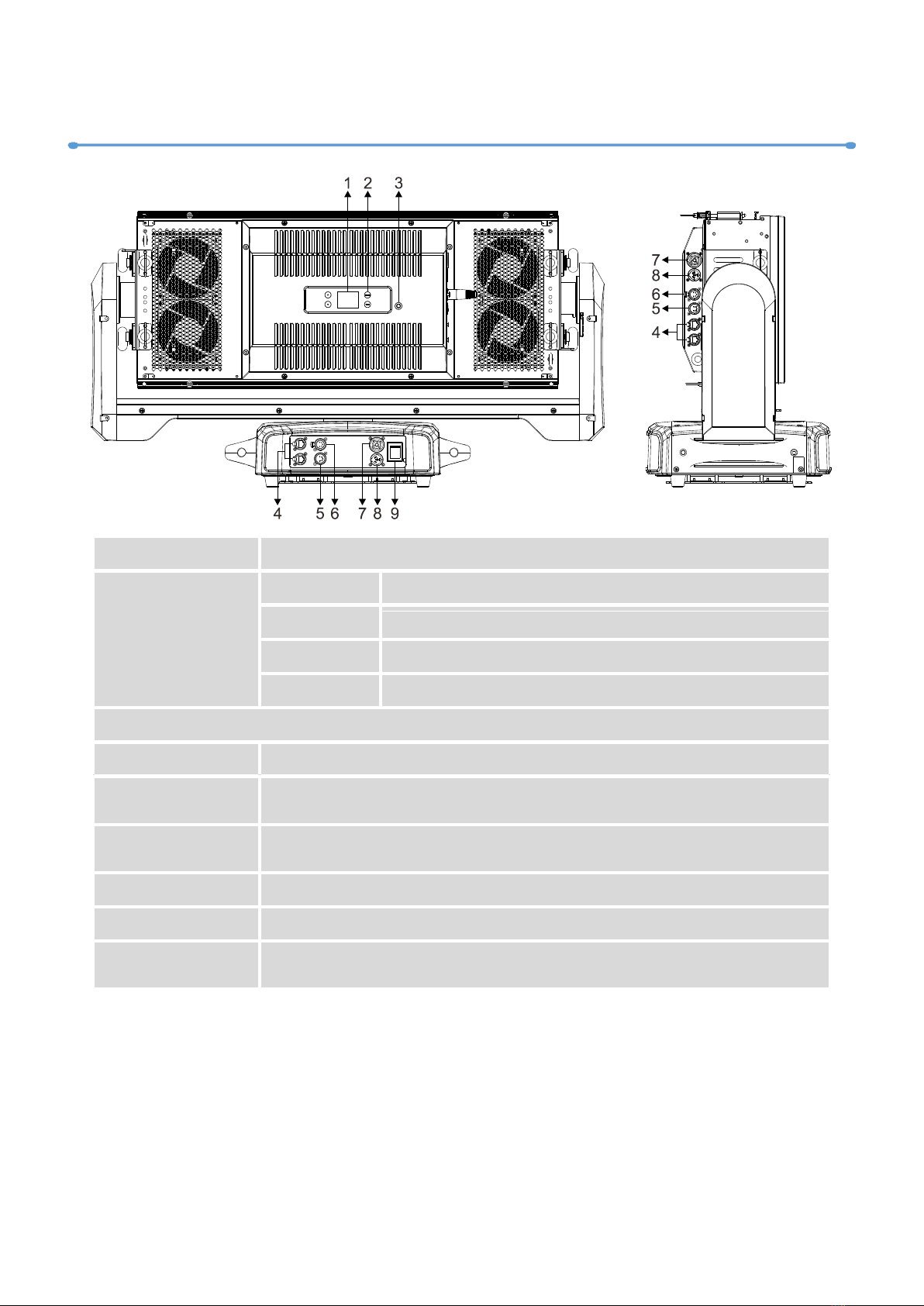

03/ Control Panel
1. Display
To show the various menus and the selected function
2. Buttons
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. BATTERY DISPLAY
4. ETHERNET
Transfers fixture’s information to a main controller
5. DMX IN
For DMX512 link, use 5-pin XLR cable to link the unit and DMX
controller to input DMX signal (3-pin XLR cable is optional)
6. DMX OUT
For DMX512 link, use 5-pin XLR cable to link the next units to
output DMX signal (3-pin XLR cable is optional)
7. POWER OUT
To connect to the next fixture
8. POWER IN
To connect to supply power
9. POWER
SWITCH
Turns on/off the power

- 9 -
04/ Fixture Installation
DO install and operate by qualified operator. Fixture(s) should be installed in areas
outside walking paths, seating areas, or away from areas were unauthorized personnel
might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging,
removing or servicing.
Always ensure that the unit is firmly fixed to avoid vibration and slipping off during
operation. Ensure that the trussing or area of installation must be able to hold 10 times
the weight without any deformation. Always attach a safety cable that can hold at least
12 times the weight of the fixture whenever installing this fixture in a suspended
environment to ensure that the fixture will not fall if the clamp fails.

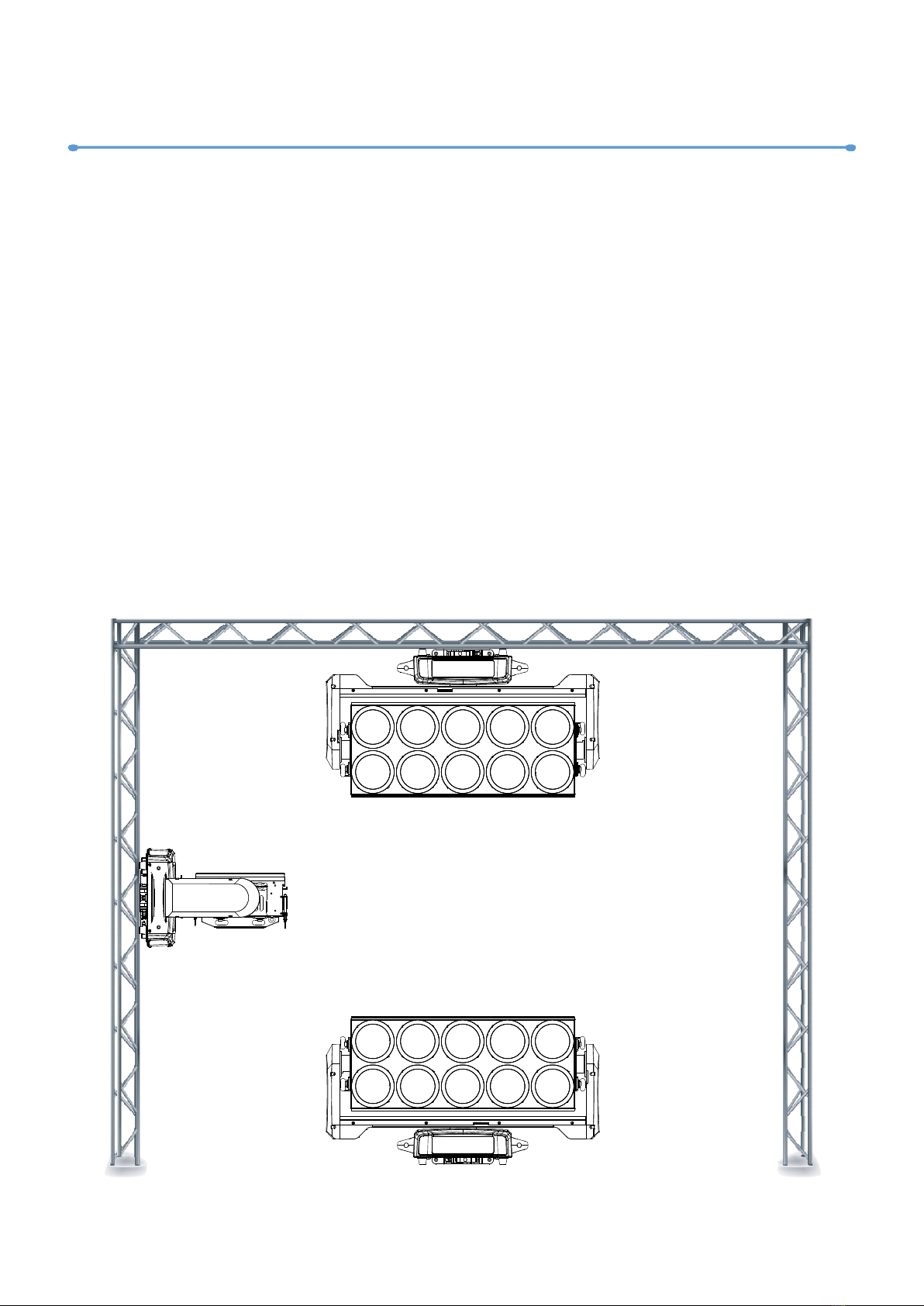

This fixture is fully operational in three different mounting positions: hanging
upside-down, mounted sideways on trussing, or set on a flat level surface. Always use
and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.

- 10 -
Installation for version without fixed clamps:

- 11 -

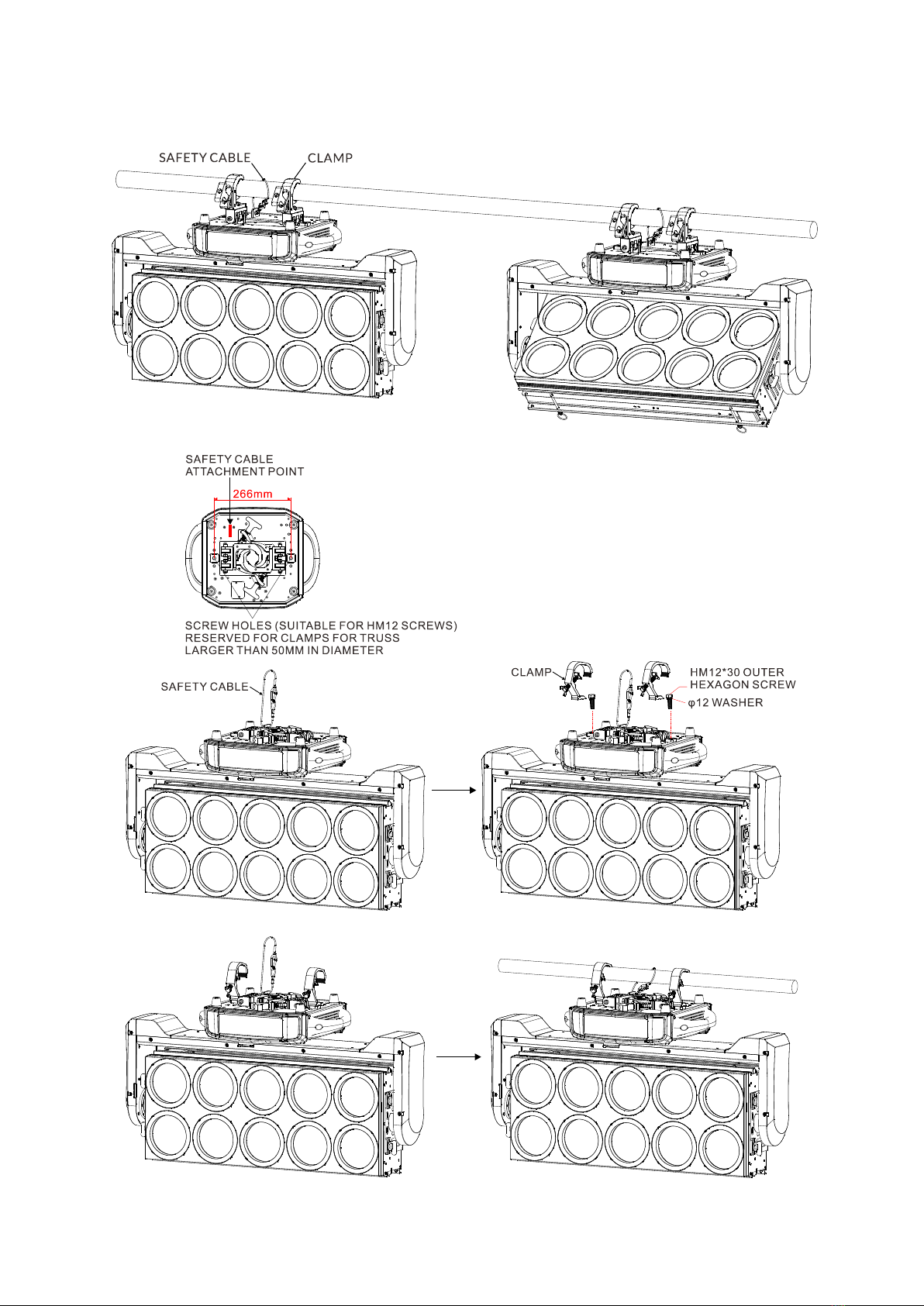

Installation for version with fixed clamps:

- 12 -
05/ How To Set The Unit
5.1 Main Functions
To access the control menus, press the [MENU] button.
Navigate the menu structure, using the [ENTER], [UP] and [DOWN] buttons.
To select a menu option or to confirm a selection, press the [ENTER] button.
To return to a higher level in the menu structure without making a change, press the
[MENU] button, or wait 30 seconds.
The main functions are shown below:
MENU
SUBMENU
OPTIONS
DMX Settings
DMX Address
1-497 (16 CH)
(Default=1)
1-425 (88 CH)
1-476 (37 CH)
1-413 (100 CH)
DMX Channel Mode
Mode 1 (16)
Mode 2 (88)
Mode 3 (37)
Mode 4 (100)
No DMX Status
Blackout
Hold
Manual
View DMX Value
Connect Option
Auto
DMX
Art-Net
sACN
Network
IP Address
Default 1
Default 2
Manual
Subnet Mask
XXX.XXX.XXX.XXX
Art-Net Settings
Net
0-127
(Default=0)
Sub-Net
0-15
(Default=0)
Universe
0-15
(Default=0)
sACN Settings
sACN Universe
1-32000
(Default=1)
sACN Priority
0-200
(Default=100)

- 13 -
MENU
SUBMENU
OPTIONS
Artnet to DMX
Off
On
Fixture Settings
Pan Invert
No
Yes
Tilt Invert
No
Yes
P/T Feedback
No
Yes
Dimmer Curve
Linear
Square Law
Inv SQ Law
S Curve
Dimmer Speed
Fast
Smooth
Tungsten
Power Mode
Standard
Quiet
LED Refresh Rate
900Hz
1000Hz
1100Hz
1200Hz
1300Hz
1400Hz
1500Hz
2500Hz
4000Hz
5000Hz
6000Hz
10KHz
15KHz
20KHz
25KHz
Amber Glow
0-100
(Default=20)
Invert Pixel Order
No
Yes

- 14 -
MENU
SUBMENU
OPTIONS
Display Settings
Display Invert
No
Yes
Backlight Intensity
1-10
(Default=10)
Temperature Unit
°C
°F
Language
English
Chinese
Fixture Test
Auto Test
Manual Test
Mode 1
Mode 2
Clear
No/Yes
Clear
No/Yes
Dimmer
0-255
Dimmer
0-255
Strobe
0-255
Strobe
0-255
LED. W1
0-255
Pixel
0-255
Back. R1
0-255
LED. W
0-255
Back.G1
0-255
Back
Red
0-255
Back. B1
0-255
Back
Green
0-255
……
0-255
Back
Blue
0-255
LED. W10
0-255
Ring R
0-255
Back. R10
0-255
Ring G
0-255
Back. G10
0-255
Ring B
0-255
Back. B10
0-255
Ring Pixel
0-255
Ring R1
0-255
Ring G1
0-255
Ring B1
0-255
Ring
Pixel 1
0-255
……
0-255
Ring R10
0-255
Ring G10
0-255
Ring B10
0-255
Ring
Pixel 10
0-255

- 15 -
MENU
SUBMENU
OPTIONS
Fixture Information
Fixture Use Hour
LED Use Hour
Total LED Hour
LED On Hour
LED Hours Reset
Password=050
Temperature
Current
Max
LED 1
LED 2
LED 3
LED 4
LED 5
Fan State
H_FAN 1
H_FAN 2
H_FAN 3
H_FAN 4
H_FAN 5
H_FAN 6
H_FAN 7
Firmware Version
RDM UID
Error Logs
Fixture Errors
Reset Error Log
No
Yes
Password=050
Reset Function
All Reset
No
Yes
Special Function
Factory Settings
No
Yes

- 16 -
DMX Settings
Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button
to select DMX Address, DMX Channel Mode, No DMX Status, View DMX Value, Connect
Option, Network, Art-Net Settings, sACN Settings or Artnet to DMX.
DMX Address
DMX Channel Mode
No DMX Status
Select No DMX Status, press ENTER.
Use UP/DOWN button to select one of the following status:
Blackout (Fixture blacks out if DMX signal stops)
Hold (The device continues to operate in the current mode with the last
active DMX values until the signal returns)
Manual (The device accepts the DMX value stored in the ‘Manual Test’
menu)
Confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select DMX Channel Mode, press ENTER.
Use UP/DOWN button to select between Mode 1 (16), Mode 2 (88),
Mode 3 (37) and Mode 4 (100), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select DMX Address, press ENTER.
Use UP/DOWN button to select an address, confirm your selection with
ENTER.
CHANNEL MODE
DMX ADDRESS
Mode 1 (16)
1-497
Mode 2 (88)
1-425
Mode 3 (37)
1-476
Mode 4 (100)
1-413
To exit the menu, press MENU, or wait 30 seconds.

- 17 -
View DMX Value
Connect Option
Network
Art-Net Settings
sACN Settings
Artnet to DMX
Select Artnet to DMX, press ENTER.
Use UP/DOWN button to select Off or On, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select sACN Settings, press ENTER.
Use UP/DOWN button to select sACN Universe or sACN Priority,
confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Art-Net Settings, press ENTER.
Use UP/DOWN button to select Net, Sub-Net or Universe, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Network, press ENTER.
Use UP/DOWN button to select IP Address or Subnet Mask, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Connect Option, press ENTER.
Use UP/DOWN button to select Auto, DMX, Art-Net or sACN, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select View DMX Value, press ENTER.
Use UP/DOWN button to select the desired DMX channel, for which the
value is to be displayed.
To exit the menu, press MENU, or wait 30 seconds.

- 18 -
Fixture Settings
Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button
to select Pan Invert, Tilt Invert, P/T Feedback, Dimmer Curve, Dimmer Speed, Power Mode,
LED Refresh Rate, Amber Glow or Invert Pixel Order.
Pan Invert
Tilt Invert
P/T Feedback
Dimmer Curve
Select Pan Invert, press ENTER.
Use UP/DOWN button to select No (pan invert deactivated) or Yes (pan
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select P/T Feedback, press ENTER.
Use UP/DOWN button to select No (pan/tilt feedback deactivated) or
Yes (pan/tilt feedback activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Tilt Invert, press ENTER.
Use UP/DOWN button to select No (tilt invert deactivated) or Yes (tilt
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

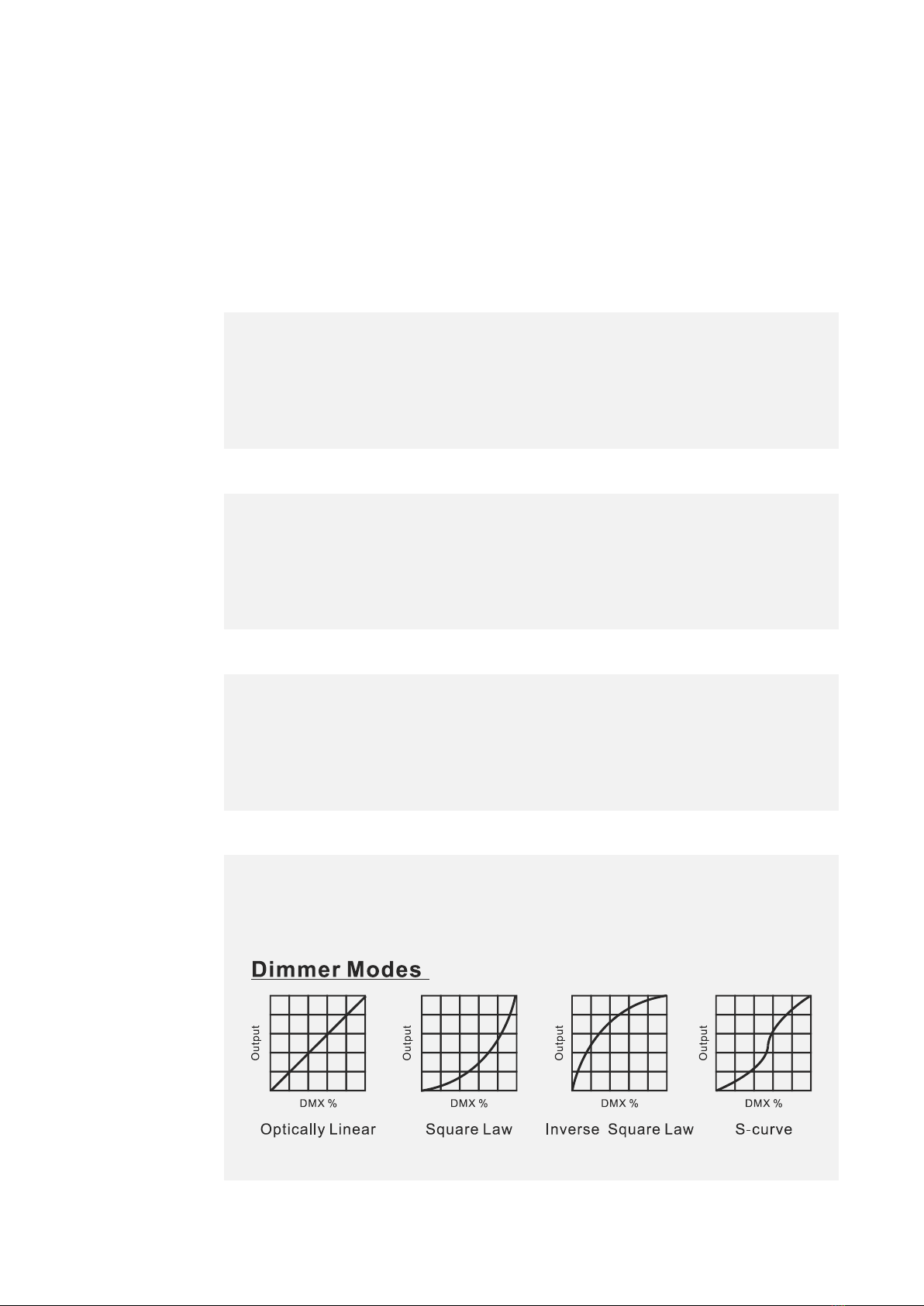

Select Dimmer Curve, press ENTER.
Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S
Curve, confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 19 -
Dimmer Speed
Power Mode
LED Refresh Rate
Amber Glow
Invert Pixel Order
Select Amber Glow, press ENTER.
Use UP/DOWN button to select a value between 0and 100, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Power Mode, press ENTER.
Use UP/DOWN button to select Standard or Quiet, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Invert Pixel Order, press ENTER.
Use UP/DOWN button to select No or Yes, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select LED Refresh Rate, press ENTER.
Use UP/DOWN button to select 900Hz, 1000Hz, 1100Hz, 1200Hz,
1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, 10KHz,
15KHz, 20KHz or 25KHz, confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Dimmer Speed, press ENTER.
Use UP/DOWN button to select Fast, Smooth or Tungsten, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
