ACME Energy Spot PRO User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 4
3. Control Panel ................................................................................................. 6
4. Color/Gobo .................................................................................................... 7
5. How To Set The Unit....................................................................................... 7
5.1 Main Function.......................................................................................... 7
5.2 Home Position Adjustment .................................................................... 14
6. Control By Universal DMX Controller ........................................................... 18
6.1 DMX512 Connection.............................................................................. 18
6.2 Address Setting ...................................................................................... 19
6.3 DMX512 Configuration........................................................................... 19
7. Error Information......................................................................................... 30
8. Troubleshooting........................................................................................... 33
9. Fixture Cleaning ........................................................................................... 34
1F

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head
only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
DO NOT connect the device to any dimmer pack.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 50℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.
2F

off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 2
meters.
Disconnect mains power before fuse replacement or servicing.
Replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
DO NOT look directly at the light while the LED is on.
DO NOT start on the unit without LED enclosure or when housing is damaged.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of the
fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when
installing.
The equipment must be installed by professionals. It must be installed in a place where is out of
the reach of people and no one can pass by or under it.
3F

2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
450W
Light Source:
HL-270-B
Color Temperature:
8000K
Zoom Range:
8°~45°
Movement:
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16 bit
Fixation: Tilt lock
Color Wheel:
1 color wheel with 9 colors plus white
Gobo Wheel:
1 static gobo wheel with 9 gobos plus open
1 rotating gobo wheel with 7 gobos plus open, convenient replacement
Control:
DMX Channel: 18/22/25 channels
Control Mode: DMX512, RDM
Firmware Upgrade via DMX link or USB disk
Construction:
Display: Color display
Data In/Out: 3-pin & 5-pin XLR
Power In/Out: Power Connector in/out
4F

Protection Rating: IP20
Features:
Motorized focus
Linear CMY color mixing
Motorized linear iris
3 x facets prism rotating in both directions
Independent frost effect
Various strobe speeds
Dimension/Weight:
369x253x625mm, 20.8kgs
14.5"x9.9"x24.6"in, 45.9lbs
5F

3. Control Panel
567
124 3
1. LED:
POWER On Power On
DMX On DMX input present
2. Button:
MENU To enter into move backward or leave the menu
UP To go backward in the selected functions
DOWN To go forward in the selected functions
ENTER To confirm the selected functions
3. Display:
To show the various menus and the selected function
4. FIRMWARE UPGRADE:
Used to upgrade the unit’s firmware
5. DMX IN/OUT:
For DMX512 link, use 3/5 pin XLR cable to link the unit and the DMX controller
6. FUSE(T 10A):
Protect the unit from damage of the overcurrent
7. POWER IN/OUT:
Used to connect to supply power/Used to connect to the next fixture
6F

4. Color/Gobo
DANGER!
Install the color wheel/gobo wheels with the device switched off only.
Unplug from mains before changing the color wheel/gobo wheels!
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.
The main functions are shown below:
7F

8F

DMX Functions
To select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, DMX Channel Mode, DMX State or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 495/491/488, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.
DMX Channel Mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Mode1(18), Mode2(22) or Mode3(25), press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle 30 seconds to exit menu mode
DMX State
To select DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Blackout(fixture blacks out if DMX signal stops) or Hold(fixture continues to obey the last
command it received Via DMX if DMX signal stops), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30
seconds to exit menu mode.
Fixture Setting
To select Fixture Setting, press the ENTER button to confirm, use the UP/DOWN button to select
Pan Invert, Tilt Invert, P/T Feedback,Dimmer Curve, Dimmer Speed or Focus Compensate.
Pan Invert
To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select
No(normal) or Yes(pan invert), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle 30 seconds to exit menu mode.
9F

Tilt Invert
To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select
No(normal) or Yes(tilt invert), press the ENTERbutton to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No(Pan or tilt’s position will not feedback while out of step) or Yes(Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to confirm. Use the DOWN/UP button to select
Linear, Square Law, Inv SQ Law or S Curve, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Optically Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law:Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to confirm. Use the DOWN/UP button to select
Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
10F

Focus Compensate
To select Focus Compensate, press the ENTER button to confirm. Use the DOWN/UP button to
select Disable, Near,Medium or Far, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.
Display Setting
To select Display Setting, press the ENTER button to confirm, use the UP/DOWN button to select
Display Invert, Backlight Intensity, Temperature Unit or Language.
Display Invert
Select Display Invert, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select No(normal display) or Yes(inverse display), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to
exit menu mode.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1(dark) to 10(bright), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30
seconds to exit menu mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Language
To select Language, press the ENTER button to confirm, present mode will blink on the display, use
the UP/DOWN button to select English or Chinese, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
11F

F ixture Test
To select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select
Auto Test or Manual Test.
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, color, gobo, gobo rotation, prism, prism rotation, iris, frost, focus, zoom,
dimmer, etc. Press the MENU button back to the last menu or exit menu mode after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode
idling 30 seconds.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to
select Fixture Use Time, Temperature, USB Upgrade File, Firmware Version, RDM UID or Error
Logs.
Fixture Use Time
Select Fixture Use Time, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Temperature
Select Temperature, press the ENTER button to confirm, fixture temperature will show on the
display, press the MENU button to exit.
USB Upgrade File
Select USB Upgrade File, press the ENTER button to confirm, USB upgrade file will show on the
display, press the MENU button back to exit.
12F

Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
RDM UID
Select RDM UID, press the ENTER button to confirm, RDM UID will show on the display, press the
MENU button back to exit.
Error Logs
Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture
Errors or Reset Error Log, press the ENTER button to store. Select Reset Error Log, press the ENTER
button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store.
Select Yes, press the ENTER button to confirm. Use the UP/DOWN button to set the password 050,
press the ENTER button to reset error log. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Reset Functions
To select Reset Functions, press the ENTER button to confirm, use the UP/DOWN button to select
Pan/Tilt, Effect or All.
Pan/Tilt
Select Pan/Tilt, press the ENTER button to confirm, use the UP/DOWN button to select No(normal)
or Yes(the unit will run built-in program to reset pan and tilt to their home positions), press the
ENTER button to store. Press the MENU button to exit.
Effect
Select Effect, press the ENTER button to confirm, use the UP/DOWN button to select No or
Yes(the unit will run built-in program to reset effect to their home positions), press the ENTER
button to store. Press the MENU button to exit.
All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes(the
unit will run built-in program to reset all motors to their home positions), press ENTER button to
store. Press the MENU button to exit.
13F

Special Functions
Factory Setting
Select Factory Setting,press the ENTER button to confirm, use the UP/DOWN button to select
No(normal) or Yes(the fixture will reset to factory settings), press ENTER button to store. Press the
MENU button to exit.
RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (18/22/25 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
Select the PAN INVERT menu and the fixture will run the pan invert mode.
Select the TILT INVERT menu and the fixture will run the tilt invert mode.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When
WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.

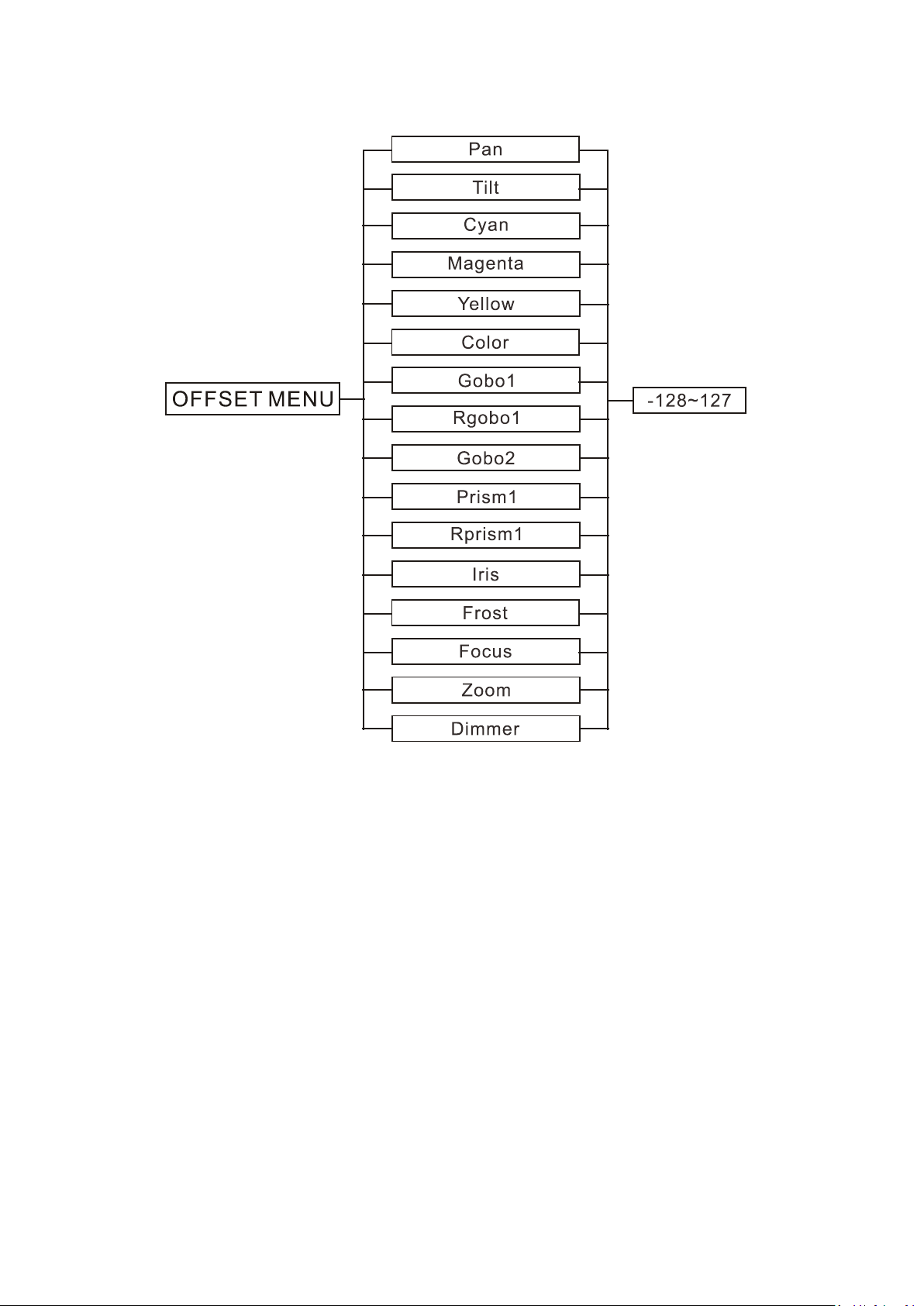

5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
14F

Pan
Enter offset menu, select Pan, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Tilt
Enter offset menu, select Tilt, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Cyan
Enter offset menu, select Cyan, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
15F

Magenta
Enter offset menu, select Magenta, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Yellow
Enter offset menu, select Yellow, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Color
Enter offset menu, select Color, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Gobo 1
Enter offset menu, select Gobo 1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
RGobo 1
Enter offset menu, select RGobo 1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Gobo 2
Enter offset menu, select Gobo 2, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Prism 1
Enter offset menu, select Prism 1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
16F

R-Prism 1
Enter offset menu, select R-Prism 1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Iris
Enter offset menu, select Iris, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Frost
Enter offset menu, select Frost, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Focus
Enter offset menu, select Focus, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press theENTER
button to store. Press the MENU button to exit.
Zoom
Enter offset menu, select Zoom, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Dimmer
Enter offset menu, select Dimmer, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
17F

6. Control By Universal DMX Controller
6.1 DMX512 Connection
DMX Out
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
18F

6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blinking the display, use the UP/DOWN button to adjust the address from 001
to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
18 channels 1 19 37 55
22 channels 1 23 45 67
25 channels 1 26 51 76
6.3 DMX512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding
function will take into effect.
18 Channels Mode (Mode 1):
Channel Value Function
1
000-255
Pan
0°

540°
2
000-255
Tilt
0°

270°
3 000-019
020-024
Shutter
Blackout
Open
19F
