ADF Web HD67750-A1 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 1 of 32
User Manual
Revision 1.000
English
IEC 61850 Server / PROFIBUS Master -
Converter
(Order Code: HD67750-A1)
For Website information:
www.adfweb.com? roduct=HD67750
For rice information:
www.adfweb.com? rice=HD67750-A1
Benefits and Main Features
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
For other IEC 61850 Server products see also the following link:
Converter IEC 61850 Server to
www.adfweb.com? roduct=HD67733 (Modbus Master)
www.adfweb.com? roduct=HD67734 (Modbus Slave)
www.adfweb.com? roduct=HD67735 (Modbus TCP Master)
www.adfweb.com? roduct=HD67736 (Modbus TCP Slave)
www.adfweb.com? roduct=HD67737 (BACnet Master)
www.adfweb.com? roduct=HD67738 (BACnet Slave)
www.adfweb.com? roduct=HD67739 (CAN)
www.adfweb.com? roduct=HD67740 (CANopen)
www.adfweb.com? roduct=HD67741 (DeviceNet Master)
www.adfweb.com? roduct=HD67742 (DeviceNet Slave)
www.adfweb.com? roduct=HD67743 (EtherNet/IP Master)
www.adfweb.com? roduct=HD67744 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67745 (J1939)
www.adfweb.com? roduct=HD67746 (KNX)
www.adfweb.com? roduct=HD67747 (MQTT)
www.adfweb.com? roduct=HD67748 (NMEA 0183)
www.adfweb.com? roduct=HD67749 (NMEA 2000)
www.adfweb.com? roduct=HD67751 (PROFIBUS Slave)
www.adfweb.com? roduct=HD67752 (PROFINET Slave)
www.adfweb.com? roduct=HD67753 (SNMP Manager)
www.adfweb.com? roduct=HD67754 (SNMP Agent)
www.adfweb.com? roduct=HD67755 (Serial)
www.adfweb.com? roduct=HD67756 (Ethernet)
www.adfweb.com? roduct=HD67B82 (PROFINET Master)
www.adfweb.com? roduct=HD67C65 (EnOcean)
Do you have your customer protocol? Then go to:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 2 of 32
INDEX
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ROFIBUS 10
ETHERNET 11
USE OF COM OSITOR SW67750 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SOFTWARE O TIONS 14
SET COMMUNICATION 15
ROFIBUS NETWORK 16
MASTER ROFIBUS O TIONS 17
ROFIBUS DEVICE 18
-M ODULE S ELECTION 19
-U SER ARAMETERS 21
-M ODULE ARAMETERS 22
-C A ABILITIES 23
- O TIONS 24
IEC 61850 ACCESS 25
TLS KNOWN CERTIFICATE 26
U DATE DEVICE 27
MECHANICAL DIMENSIONS 29
ORDERING INFORMATIONS 30
ACCESSORIES 30
DISCLAIMER 31
OTHER REGULATIONS AND STANDARDS 31
WARRANTIES AND TECHNICAL SU ORT 32
RETURN OLICY 32
UPDATED DOCUMENTATION
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST
WARNING
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 18/09/2019 Ff All First Release

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 3 of 32
SECURITY ALERT
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 4 of 32
EXAMPLES OF CONNECTION

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 5 of 32
CONNECTION SCHEME
Figure 1: Connection scheme for HD67750-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 6 of 32
CHARACTERISTICS
The HD67750-A1 is IEC 61850 Server / ROFIBUS Master - Converter.
It allows for the following characteristics:
Triple isolation between ROFIBUS - ower Supply, ROFIBUS - Ethernet, Ethernet - ower Supply;
Two-directional information between IEC 61850 bus and ROFIBUS bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION
You need Compositor SW67750 software on your C in order to perform the following:
Define the parameters of IEC 61850 line;
Define the parameters of ROFIBUS line;
Define IEC 61850 variables that contains the data read from ROFIBUS side;
Define IEC 61850 variables that contains the data to write to ROFIBUS side;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 7 of 32
POWER SUPPLY
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67750-A1 3.5
HD67750-A1
Caution
Do n
ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 8 of 32
FUNCTION MODES
The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 9 of 32
LEDS
The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON Device powered
OFF Device not powered
ON Device powered
OFF Device not powered
2: Device State (green) Blinks slowly (~1Hz) Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in progress
3: ROFIBUS communication
(green) It blinks when ROFIBUS communication is running Blinks quickly Boot state Blinks very slowly (~0.5Hz) update in progress
4: IEC 61850 communication
(green) It blinks when a IEC 61850 request is received Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in progress
5: Ethernet1 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in progress
6: Ethernet2 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 10 of 32
PROFIBUS
The ROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined
like in the right figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/S -50
ROFIBUS Cable;
Siemens: 6XV1830-0EH10 - Overlapped aluminum-clad foil, sheathed
in a braided screen of tinplated copper wires;
Here some codes of connectors:
VI A: 972-0D 30 - EasyConn B 0°;
Siemens: 6GK1500-0FC10 - ROFIBUS FC bus connector RS 485 180°.
ETHERNET
IEC 61850 connection and the updating of the converters must be made using Connector3 and/or Connector4 of the HD67750-A1 with at
least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative
to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a C/ LC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 11 of 32
USE OF COMPOSITOR SW67750
To configure the Converter, use the available software that runs with Windows called SW67750. It is downloadable on the site
www.adfweb.com and its operation is described in this document. This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).

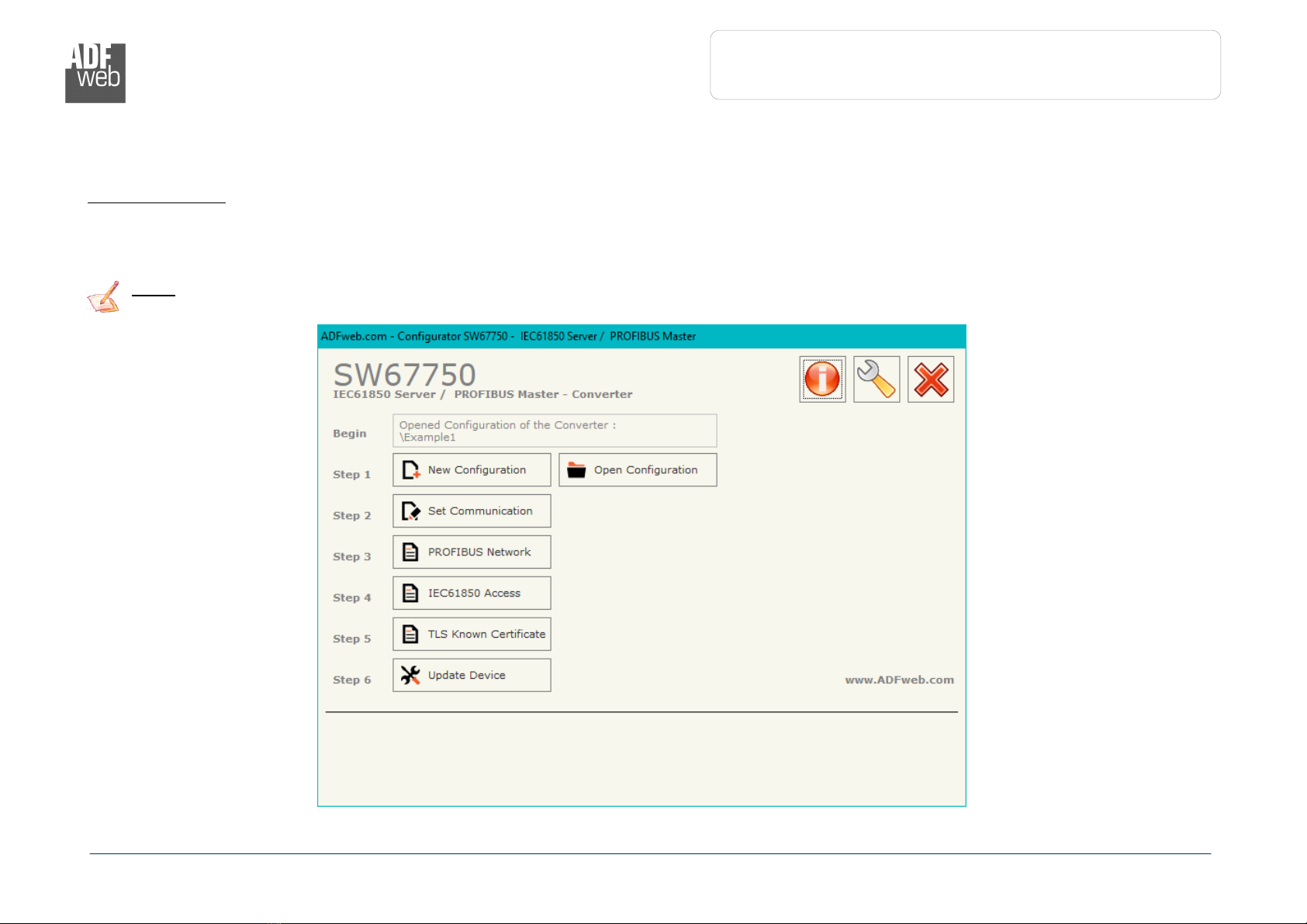

When launching the SW67750, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW677
5
0

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 12 of 32
NEW CONFIGURATION / OPEN CONFIGURATION
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “IEC 61850 Server / ROFIBUS Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 13 of 32
SOFTWARE OPTIONS
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67750 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 14 of 32
SET COMMUNICATION
This section defines the fundamental communication parameter of two buses, ROFIBUS and IEC 61850.
By pressing the “Set Communication” button from the main window of SW67750 (Fig. 2) the window
“Set Communication” appears (Fig. 3).
The means of the fields for “ ROFIBUS” are:
In the field “ID Dev.” the address of the ROFIBUS side is defined;
In the field “Baud rate” the baud rate for the ROFIBUS side is defined.
The means of the fields for “IEC61850 Server” are:
In the field “IP Address” the I address of the converter is defined;
In the field “SubNet Mask” the Subnet Mask of the converter is defined;
In the field “Gateway” the default gateway of the net is defined. This feature can be enabled or
disabled pressing the Check Box field. This feature is used for going out of the net.
In the field “Port” the port number used for IEC 61850 communication is defined;
If the field “Password” the password used for accessing to IEC 61850 variables is defined.
The means of the fields for “TLS Server” are:
If the field “Enable TLS” is checked, the TLS protocol for secure connection is enabled;
In the field “Key” the key for the authentication is defined;
In the field “Key Password” the password for decrypting the key is defined;
In the field “Server Certificate” the certificate for the server is defined;
In the field “Root Certificate” the root of the server is defined;
If the field “Enable Only Known Certificates” is checked, the converter will accept just
connection from known Clients (defined in the section “TLS Known Certificate”).
Figure 3: “Set Communication”
window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 15 of 32
PROFIBUS NETWORK
By pressing the “PROFIBUS Network” button from the main window for SW67750 (Fig. 2) the window “ ROFIBUS Network” (Fig. 4)
appears.
In this window is possible to:
Modify the ROFIBUS Master Options (“Master PROFIBUS Options”);
Add a ROFIBUS Slave in the Network of the Master (“Add Slave PROFIBUS”);
Modify a ROFIBUS Slave in the Network (“Modify Slave PROFIBUS”);
Remove a ROFIBUS Slave from the Network
(“Remove Slave PROFIBUS”).
Figure 4: “PROFIBUS Network” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 16 of 32
MASTER PROFIBUS OPTIONS
By pressing the “Master PROFIBUS Options” button from the “ ROFIBUS Network” window (Fig. 4) the “ ROFIBUS Master Options”
window appears (Fig. 5).
In this window is possible to set the WatchDog Time for the ROFIBUS Slaves.
Note:
Fact1 and Fact2 could be write in decimal o hexadecimal (with prefix “0x” or “$”) and the values must between 1 and 255
Warning:
The WatchDog time must be between 200 and 650250 milliseconds.
Figure 5: “PROFIBUS Master Options” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 17 of 32
PROFIBUS DEVICE
By pressing the “Add Slave PROFIBUS” and “Modify Slave PROFIBUS” button (or double click above an existent ROFIBUS Slave) from
the “ ROFIBUS Network” window (Fig. 4) the “ ROFIBUS Device” window appears (Fig. 6).
In this window is possible to:
Set the ROFIBUS Slave ID
(“ID Slave PROFIBUS”);
Select the Modules present
in the ROFIBUS Slave
from the Available Modules
in GSD file (“Module
Selection”);
Modify the User arameters
(if present) of the
ROFIBUS device (“User
Parameters”);
Modify the arameters (if
present) of the Module
Selected (“Module
Parameters”);
Watch Features and
Baudrate supported from
the ROFIBUS device
(“Capabilities”);
Select the Sync, Freeze
and Reset of Data Options
(“Options”).
Figure 6: “PROFIBUS Device” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 18 of 32
M ODULE S ELECTION
The section “Module Selection” is used to select which
Modules are present in the Slave (Fig. 7).
In this section is possible to:
Check the list of the Modules selected (“Select
Modules”) (Fig. 7, point (1)) and the list of Modules
Available in GSD file (“Available Modules") (Fig. 7,
point (7));
Add a Module from the list of GSD file (Fig. 7, point
(6));
Remove a Module from selected list (Fig. 7, point
(5));
Add all Modules present in the GSD file (Fig. 7, point
(4));
Remove all Modules from selected list (Fig. 7, point
(3));
Insert a Module not present in the GSD file (“Manual
Module”) (Fig. 7 point (2)). For more info see the
section “Manual Module” below.
Figure 7: “PROFIBUS Device – Module Selection”
window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 19 of 32
By pressing the “Manual Module” button from the “ ROFIBUS Device” window (Fig. 6) the “Add Module Manually” window appears (Fig. 8).
In this window is possible to add a Module manually, i.e. writing the configuration of the module (in hexadecimal).
The means of the fields are:
In the field “Description of Module” a name of the Module is defined;
In the field “Insert the Configuration of Module (HEX)” the
configuration of the module is defined. The configuration must be write in
hexadecimal mode (without prefix “0x” o “$”).
To modify a Module inserted manually, is neccessary to do a double click on the
module to change in the “Select Module” list (Fig. 7, point (1)). It is possible to
change only the module inserted manually.
Note:
The Values inserted in the table must between 00 and FF.
Figure 8: “Add/Modify Module Manually” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
PROFIBUS M
aster
Document code: MN67750_ENG Revision 1.000 age 20 of 32
U SER P ARAMETERS
The section “User arameters” is used to modify the parameters of the ROFIBUS slave (Fig. 9).
In this section there are:
The List of all arameters available for the
ROFIBUS device (“User arameters”) (Fig. 9,
point (1));
The Configuration of all parameters in RAW
(“ arameters in RAW (Hex)”) (Fig. 9, point(2));
The “Use Parameter Inserted Manually”,
enable this option is possible to insert manually
the parameters of Device and also of the Modules.
Using the “Modify User Parameters Manually”
button is possible to insert/modify the
parametrization of the device (and/or modules).
For more info see below. (Fig. 9, point(3));
The admited value for the selected parameter. It is
possible to select the value desired and confirm it
with the “Apply” button. If no value appears in
this table, the “Min Value” and “Max Value” are the
limit of the parameter. (Fig. 9, point(4));
The “Apply” button is used to confirm the new
value of the parameter, the “Default” button is
used to load the factory value for the parameter.
In “New Value” edit box it is possible to set the
new value. (Fig. 9, point(5)).
Figure 9: “PROFIBUS Device – User Parameters” window
