Advantech FPM-3190 Series User manual

i
FPM-3190
Industrial Flat Panel
Monitor with 19" LCD in
VGA/Video
User’s Manual

FPM-3190 User’s Manual ii
Copyright
This document is copyrighted by Advantech Co., Ltd.
All rights are reserved. Advantech Co., Ltd. reserves the right to make
improvements to the products described in this manual at any time. Spec-
ifications are thus subject to change without notice.
No part of this manual may be reproduced, copied, translated, or transmit-
ted in any form or by any means without the prior written permission of
Advantech Co., Ltd. Information provided in this manual is intended to
be accurate and reliable. However, Advantech Co., Ltd., assumes no
responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.
All brand and product names mentioned herein are trademarks or regis-
tered trademarks of their respective holders.

iii
FCC Class B
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a residential environment. This
equipment generates, uses and can radiate radio frequency energy. If not
installed and used in accordance with this user's manual, it may cause
harmful interference to radio communications. Note that even when this
equipment is installed and used in accordance with this user’s manual,
there is still no guarantee that interference will not occur. If this equip-
ment is believed to be causing harmful interference to radio or television
reception, this can be determined by turning the equipment on and off. If
the interference is occurring, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment to a power outlet on a circuit different from that
to which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help
Part No. 2003319000 1st Edition
Printed in Taiwan July 2003

FPM-3190 User’s Manual iv
Packing List
Before installing your equipment, make sure that the following materials
have been received:
•FPM-3190 Series flat panel monitor
•Accessory pack, including:
- AC/DC adapter
- Power Cord
- VGA Cable
- Component bag
- Screw bag
- HMI Products, Drivers, Utilities CD
- RS-232 cable (FPM-3190TV-TC only)
If any of these items are missing or damaged, contact your distributor or
sales representative immediately.
Additional Information and Assistance
1.Visit the Advantech web site at www.advantech.com where you can
find the latest information about the product.
2.Contact your distributor, sales representative, or Advantech's customer
service center for technical support if you need
additional assistance. Please have the following information ready before
you call:
•Product name and serial number
•Description of your peripheral attachments
•Description of your software (operating system, version, application
software, etc.)
•A complete description of the problem
•The exact wording of any error messages

v
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User's Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or let-
ting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to
the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW
-20° C (-4° F) OR ABOVE 60° C (140° F). THIS MAY DAMAGE THE
EQUIPMENT.
The sound pressure level at the operator's position according to IEC 704-1:1982 is
no more than 70dB(A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advan-
tech disclaims all responsibility for the accuracy of any statements contained
herein.

FPM-3190 User’s Manual vi
W i c h t i g e S i c h e r h e i s h i n w e i s e
1. Bitte lesen sie Sich diese Hinweise sorgfältig durch.
2. Heben Sie diese Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie
Keine Flüssig-oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur
Reinigung.
4. Die NetzanschluBsteckdose soll nahe dem Gerät angebracht und leicht
zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen
oder Fallen könnte Verletzungen hervorrufen.
7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor überhit-
zung schützt. Sorgen Sie dafür, daB diese Öffnungen nicht abgedeckt werden.
8. Beachten Sie beim. AnschluB an das Stromnetz die AnschluBwerte.
9. Verlegen Sie die NetzanschluBleitung so, daB niemand darüber fallen kann. Es
sollte auch nichts auf der Leitung abgestellt werden.
10. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu
beachten.
11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom
Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung
vermieden.
12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten
in das Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag aus-
lösen.
13. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen
Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.
14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen
und von einer qualifizierten Servicestelle zu überprüfen:
a - Netzkabel oder Netzstecker sind beschädigt.
b - Flüssigkeit ist in das Gerät eingedrungen.
c - Das Gerät war Feuchtigkeit ausgesetzt.
d - Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder
Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
e - Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f - Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt
70dB(A) oder weiger.
DISCLAIMER: This set of instructions is given according to IEC704-1. Advan-
tech disclaims all responsibility for the accuracy of any statements contained
herein.

vii Table of Contents
Contents
Chapter 1 Introduction ......................................................2
1.1 Introduction ....................................................................... 2
1.2 Specifications .................................................................... 2
1.2 1.3 LCD Specification ................................................... 3
1.2 1.4 Connectors ............................................................... 4
1.2 1.5 Dimensions .............................................................. 5
Figure 1.1:FPM-3190 Dimensions 444 x 377 mm
(17.48" x 14.81")......................................... 5
Chapter 2 System Setup.....................................................8
2.1 Mounting the Monitor ....................................................... 8
2.1.1 Wall Mounting................................................................ 8
Figure 2.1:Wall Mounting .............................................. 8
2.1.2 Panel Mounting............................................................... 9
Figure 2.2:Panel Mounting
(cut out dimension: 444 mm x 377 mm)..... 9

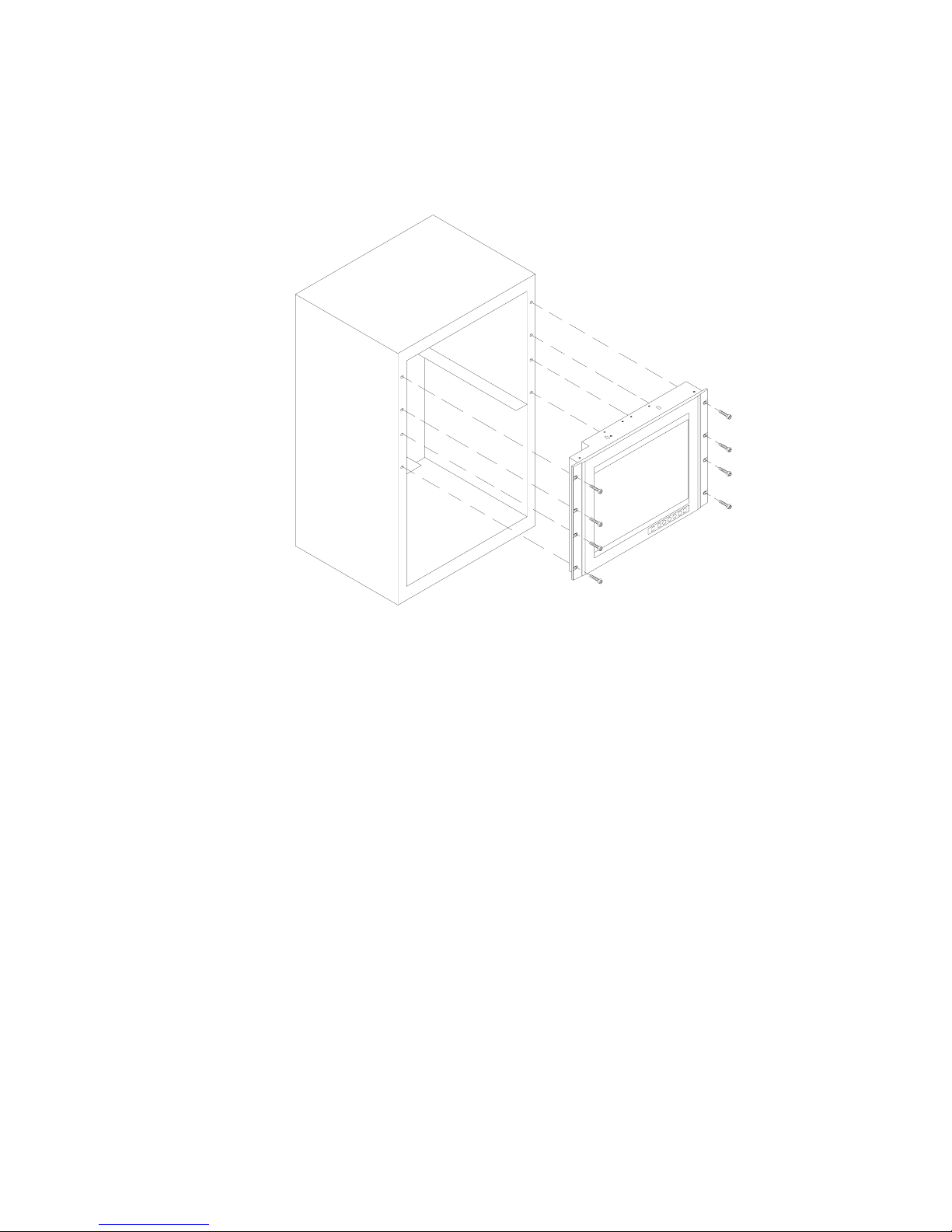

2.1.3 Rack Mounting ............................................................. 10
Figure 2.3:Rack Mounting............................................ 10
2.2 Desktop, Swingarm mounting......................................... 11
2.2.1 Desktop Stand............................................................... 11
Figure 2.4:Desktop Stand for the FPM-3190 series ..... 11
2.2.2 Swing-ARM.................................................................. 12
Figure 2.5:Swing-ARM for the FPM-3190 series ........ 12
Appendix A Touchscreen Driver Installation ...................14
A.1 Introduction ..................................................................... 14
A.2 Touchscreen specifications ............................................. 14
A.3 Installation of Touchscreen Driver.................................. 16
Appendix B Supported Input Timing Modes ..................18
B.1 Supported Input Timing Modes ...................................... 18
Appendix C OSD Operation Keypad................................20
C.1 OSD Operation Keypad .................................................. 20
C.2 OSD Function.................................................................. 21
Figure C.1:OSD Menu.................................................. 21
C.2.1 Feature Descriptions ..................................................... 21
C.2.2 FPM-3190TV Input select operation process ............... 23

FPM-3190 User’s Manual viii

CHAPTER
1
Introduction
This chapter includes:
• Introduction
• Specifications
• LCD Specification
• Connectors
• Dimensions

FPM-3190 User’s Manual 2
Chapter 1 Introduction
1.1 Introduction
Advantech's FPM-3190 Series is a 19" color TFT LCD flat panel monitor
built specifically for industrial applications. With the optional touch-
screen, the FPM-3190 Series is an excellent and user-friendly system
control interface.
In addition to its usual application as an LCD panel monitor, the FPM-
3190 comes standard with Direct-VGA and Video interface, which not
only could directly connect to popular PC VGA cards, but also could con-
nect to devices with video output, like cameras. With the FPM-3190,
Advantech is taking a more aggressive initiative to penetrate the indus-
trial HMI market. Its OSD (On Screen Display) function allows you to
adjust the display factors and turn the backlight on and off for the front
view, functions which become critical as more and more industrial HMI
users become aware of the benefits of flat panel monitors. The whole
chassis is of stainless steel, and the front panel is of aluminum with
NEMA4/IP65 compliance.
The FPM-3190 provides a touchscreen version (FPM-3190TV-TC) for
option. With a capacitive type touchscreen, the monitor can be immedi-
ately transformed into a remote control system.
1.2 Specifications
General
•Control: OSD (On Screen Display) control pad on front side
•Mounting: Rackmount, panelmount, wallmount and VESA arm
mounting
•I/O port: VGA, DVI, Video, S-Video, DC power input, power
switch, and RS-232 port (Touchscreen version only)
•Power Adaptor: External Power Adapter AC 110 V/220 V, +12 V
@ 5 A output
•Operating temperature: 0 ° ~ 50 ° C
•Storage temp: -20 ° ~ 60 ° C
•Storage humidity: 5% ~ 95% non-condensing

3 Chapter1
•Vibration (operating): 5 ~ 17 Hz, double-amplitude displacement
17 ~ 500 Hz, 1.0 G peak to peak
•Dimensions: (W x H x D):482 x 399 x 66 mm (19" x 15.7" x 2.6")
•Weight: 10 kg (22 lb)
• CE, FCC, BSMI, CCC compliant
Touchscreen (Optional)
•Type: capacitive sensor
•Resolution: 1024 x 1024
•Light transmission: 88%
•Operating Pressure: 30 ~ 45 gram for stylus pen, contact bounce <
10 ms
•Controller: RS-232 interface
•Power Consumption: +5 V @ 200 mA
•OS support: MS-DOS, Windows 3.1/95/98/NT/2000/XP
•Life span: 225 million touches
1.3 LCD Specification
•Display type: SXGA TFT LCD
•Display size: 19"
•Max colors: Full color (16.7 million)
•Max resolution: 1280 x 1024
•Dot pitch: 0.294 x 0.294 mm
•View Angle: 85° (H), 85° (V)
•Luminance: 250 cd/m24 CCFL
•Storage Temperature: -20° ~ 60° C
•Operating Temperature: 0° ~ 50° C
•Backlight Lifetime: 50,000 hrs
•Contrast Ratio: 600:1

FPM-3190 User’s Manual 4
1.4 Connectors
The following connectors are situated on the left hand side of the
FPM-3190 Series:
VGA Port (DB-15)
This DB-15 connector can be connected to the system via the external 15-
pin DB-15 connector located on the left side of the system unit.
DVI Port
Digital Visual Interface
Video Port (RCA Jack)
Support NTSC and PAL B, D, G, K, J.
S-Video port (Main DIN 4-Pin)
The video port/S-video port supports NTSC and PAL B/D/G/K/J.
The video/S-video port has been tested with a DVD player.
The video/S-video port is not compatible with Video camera input.
Touchscreen Connector (DB-9) (optional)
This connector will be present only if a touchscreen is installed. It must
be connected to the RS-232 port of the PC. The touchscreen cable is
included with all orders which include the touchscreen option.
DC 12 V Power in
This connector will be connected to the DC 12V Switching Power Sup-
ply.

5 Chapter1
1.5 Dimensions
Figure 1.1: FPM-3190 Dimensions 444 x 377 mm (17.48" x 14.81")

FPM-3190 User’s Manual 6

CHAPTER
2
System Setup
This chapter includes:
•Mounting the Monitor
- Wall/Panel/Rack Mounting
- Desktop Stand/Swing-ARM Mounting

FPM-3190 User’s Manual 8
Chapter 2 System Setup
2.1 Mounting the Monitor
The FPM-3190 Series can be placed as you require. The versatility of
the FPM-3190 mounts enable it to be mounted on your desk or anywhere
else.
2.1.1 Wall Mounting
With wall brackets, the FPM-3190 can be mounted directly to a wall.
If you need to install the FPM-3190 in different ways, release the mount-
ing brackets by detaching the four screws on the rear side.
Figure 2.1: Wall Mounting

9 Chapter2
2.1.2 Panel Mounting
If you need to install the FPM-3190 series on a panel mount, please
release the mounting brackets by detaching four screws on rear side and
fix them on up and bottom side by screws.
Figure 2.2: Panel Mounting (cut out dimension: 444 mm x 377 mm)

FPM-3190 User’s Manual 10
2.1.3 Rack Mounting
FPM-3190 series products could be directly mount to the industrial stan-
dard 19" rack. There are four screw holes on each side of the panel.
Figure 2.3: Rack Mounting

11 Chapter2
2.2 Desktop, Swingarm mounting
The FPM-3190 Series can be mounted in other ways. You can place the
desktop stand for desktop use or attach it on a swing-arm bracket.
2.2.1 Desktop Stand
The desktop stand bracket is attached to the rear of the FPM-3190. Sim-
ply detach the small bracket at the top of the monitor by unscrewing the
two screws. The lower bracket now becomes the desktop stand bracket.
Figure 2.4: Desktop Stand for the FPM-3190 series

FPM-3190 User’s Manual 12

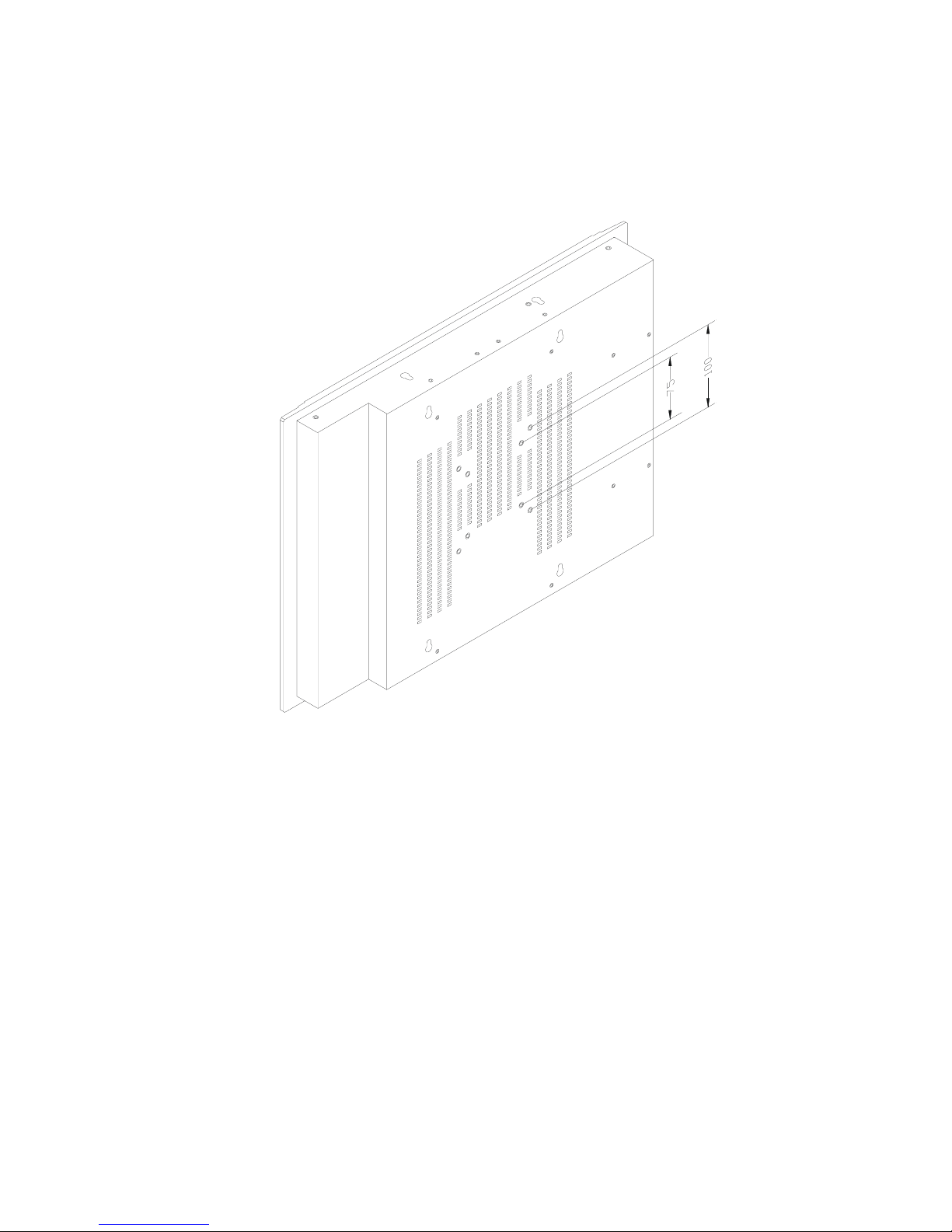

2.2.2 Swing-ARM
Detach the mounting brackets on the rear side, then attach the FPM-3190
series onto the Swing-ARM mount (75mm or 100mm square bracket).
Figure 2.5: Swing-ARM for the FPM-3190 series
