Advantech IDS31-320W User manual

Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 1of 20
Preliminary
USER MANUAL
TITLE
Industrial Monitor / Monitor
MODEL NAME
IDS31-320W
Signature Date Prepared by Date
Please return 1 copy for our
confirmation with your signature
and comments
SERIAL NAME IDS31-320WC35DVA1E
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 2of 20
Preliminary
TABLE OF CONTENTS
NO
ITEM
PAGE
Ⅰ
Overview
3
Ⅱ
General Description
4
Ⅲ
Electrical Specifications
5-8
1
Electrical Characteristics
2
Interface Connections
Ⅳ
OSD Function
9
Ⅴ
Environment Specifications
10
Ⅵ
Reliability
Ⅶ
Visual Inspection Standard
11-13
Ⅷ
Accessory
12~18
Ⅸ
Mechanical Characteristics
19
Ⅹ
Packing
20
BSMI 甲類
警告使用者這是甲類資訊產品, 在居住的環境中使用時, 可能會造成射頻干擾,
在這種情況下, 使用者會被要求採取某些適當的對策.
警告 : 使用過度恐傷害視力
(1) 使用30分鐘請休息10分鐘。
(2) 2歲以下幼兒不看螢幕, 2歲以上每天看螢幕不要超過1小時。
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 3of 20
Preliminary
Ⅰ. OVERVIEW
The IDS31-320WC35DVA1E is designed 32.0 inch monitor
- Support the monitor with 1920 × 1080 resolution.
- Brightness - 350 cd/㎡(without Touch)
- Contrast Ratio : 3000:1
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 4of 20
Preliminary
Ⅱ. General Description
Display Type
TFT LCD Panel (32.0 inch) - P320HVN01.0_AUO
Pixel Pitch
0.3637(H)mm X 0.3637(V)mm
Pixel Format
1920 Hor. By 1080 Ver. Pixels RGB vertical stripe
Display Colors
16.7M colors
Brightness
350 cd/㎡(Typical)
Contrast Ratio
3000 : 1 (Typical)
Response Time
8 ms ( G to G )
Viewing
Angle
Horizontal
178˚
Vertical
178˚
Life Time
50,000 Hr (Typical)
Input Signal
Analog RGB, DVI-D
OSD Controls
Soft Power(On/Off), Menu, Select, Up, Down
Power Saving
(LED Display)
VESA DPMS,
On (Green), Stand-By (Green blinking),
Suspend (Green blinking), Off
Dimension
805.0(H) x 495.0(V) x 73.0(D)
Weight
13.0 kg
Operating Temp.
0℃~+50℃
Storage Temp.
-20℃~ +60℃
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 5of 20
Preliminary
Ⅲ. Electrical Specifications
1-1. Electrical Characteristics
Power
DC Input Voltage
24VDC/5.0A±10%
Standby power
2.0 W
Power consumption
48 W
Analog
Video
Signal
Type
Analog RGB
Gain Level
0.714 ±5%
Input impedance
75ohm ±5%(terminated)
Pixel frequency
Max. 165MHz
Resolution
Max. 1920×1080 / 60Hz
Input
Sync
Signal
Type
H/V, Separate only
Gain Level
TTL level
(High ≥2.0V, Low ≤0.8V)
Polarity
Positive or Negative
Maximum Duty
Max. 25%
Frequency Range
Horizontal
31.43 ~ 88.8KHz,
Vertical
56.25 ~ 75.03Hz
DVI
Differential output
150 ~ 1200 mVp-p
Input clock freq
20 ~ 135 MHz

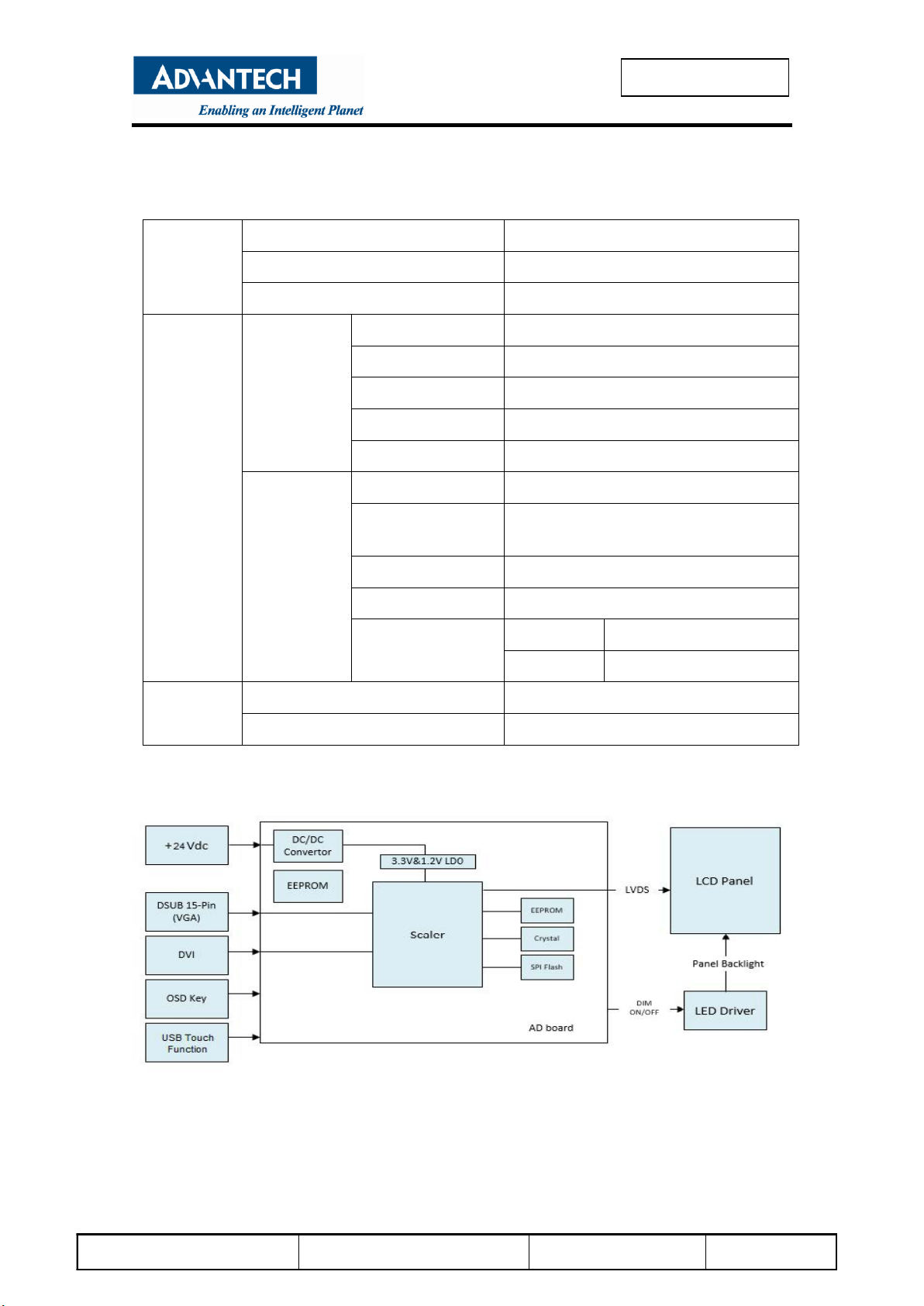

1-2 Board Block Diagram
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 6of 20
Preliminary
2. I/O Port (Interface Connections)
2-1. Analog RGB Pin Assignment
Connector
P/No.
Symbol
Description
VGA Input
connector For 15P D-sub
1
Red
Red, analog input
2
Green
Green, analog input
3
Blue
Blue, analog input
4
N.C
Not connected
5
DGND
Digital ground
6
Red GND
Ground for Red return
7
Green GND
Ground for Green return
8
Blue GND
Ground for Blue return
9
N.C
Not connected
10
DGND
Detect connector
11
N.C
Not connected
12
DDC Data
DDC Data
13
H-sync
Horizontal sync, input
14
V-sync
Vertical sync, input
15
DDC Clk
DDC Clk
2-2. DVI Jack Pin Assignment
Connector
P/No.
Symbol
Description
DVI
1
RX2N
TMDS Data 2-
2
RX2P
TMDS Data 2+
3
GND
TMDS Data 2/4 Shield
4
NC
TMDS Data 4-
5
NC
TMDS Data 4+
6
SCL-DVI-1
DDC Clock
7
SDA-DVI-1
DDC Data
8
VSYNC
Analog Vertical Sync
9
RX1N
TMDS Data 1-
10
RX1P
TMDS Data 1+
11
GND
TMDS Data 1/3 Shield
12
NC
TMDS Data 3-
13
NC
TMDS Data 3+
14
+5V Power
DVI+5V
15
GND
Ground
16
HPD
Hot Plug Detect
17
RX0N
TMDS Data 0-
18
RX0P
TMDS Data 0+
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 7of 20
Preliminary
19
GND
TMDS Data 0/5 Shield
20
NC
TMDS Data 5-
21
NC
TMDS Data 5+
22
GND
TMDS Clock Shield
23
RXCP
TMDS Clock +
24
RXCN
TMDS Clock -
C1
NC
Analog Red
C2
NC
Analog Green
C3
NC
Analog Blue
C4
HSYNC
Analog Horizontal Sync
2-3. Input Signal format
Character
Mode
Pixel
Freq.
Horizontal
Timing
Vertical
Timing
Sync
Polar
Freq.
Total
Activ
e
Sync
Polar
Freq.
Total
Active
MHz
KHz
Pixel
Pixel
Hz
Line
Line
640x480
@60Hz
25.175
-
31.47
800
640
-
59.94
525
480
800x600
@60Hz
40.000
-
37.88
1056
800
-
60.32
628
600
1024x768
@60Hz
65.000
-
48.36
1344
1024
-
60.00
806
768
1680x1050@60Hz
119.000
-
64.72
1840
1680
-
60.02
1080
1050
1920x1080@60Hz
148.500
-
66.60
2160
1920
-
60.00
1235
1080
Sync : H/V Separated LVDS
2-4. Touch Glass / Touch Controller
Surface Capacitive Touch (W1-31832APA-G0_Dano Touch)
Input Method
Finger
Light Transmittance
92 ± 3% per ASTM D1003
Thickness
2.8 mm ±10% typical (glass only, not including tape, wires and solder if used)
Haze(AG)
≦7%
Gloss R’60 (AG type)
110±20 GU
Operating Temperature
‐40℃~ 85℃(Sensor Only)
Storage Temperature
-40℃~ 85℃(Sensor Only)
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 8of 20
Preliminary
Controller Board (ESCAP7000)
Circuit Board Dimension
62 mm x 33 mm
Power Requirements
D.C. +5V
External power
5~12VDC unRegulated Power
(max. 65mA, typical 55mA, 50mV peak to peak Max ripple)
Operating Temperature
-40 to 80 ℃
Storage Temperature
-40 to 90 ℃
Interface
USB: 2.0 compliant, Full Speed
Report rate
Max. 180 points/sec
Response Time
Max. 25ms
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 9of 20
Preliminary
Ⅳ. OSD Function
1) Button
Button
Function
Notes
POWER
Power on/off button
- Turn power on or off
MENU
Main menu on/off
- Show OSD menu on the screen
- Exit the main menu or sub menu
RIGHT
Adjust button
- Moves the bar right to increase the adjustment
- Moves the main menu or sub menu
LEFT
Adjust button
- Moves the bar left to decrease the adjustment
- Moves the main menu or sub menu
SELECT
Menu select/Mode select
- Moves the highlighted area to select one of the function
- Analog or DVI select
2) Menu
BRIGHTNESS
/CONTRAST
Sub Menu : Brightness, Contrast)
Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting
COLOR
Sub Menu : Color Temp. (Red, Green, Blue),Auto color
Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting
POSITION
Sub Menu : Horizontal, Vertical, Clock, Phase, Auto Adjust
Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting
SETUP
Sub Menu : OSD Position, OSD Time, OSD Language, Input Source,
Scale Ratio, Recall, XGA/WXGA Sel.
Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting
EXIT
Select one of the seven language
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 10 of 20
Preliminary
Ⅴ. Environment Specifications
Parameter
Values
Units
Notes
Min.
Max.
Operating Temperature
0
+50
℃
Storage Temperature
-20
+60
℃
Operating Humidity
5
90
%RH
Storage Humidity
5
90
%RH
Ⅵ. Reliability
No.
Test Item
Conditions
1
High temperature operating test
Ta : 50℃, 120Hr
2
Low temperature operating test
Ta : 0℃, 120Hr
3
High temperature storage test
Ta : 60℃, 120Hr
4
Low temperature storage test
Ta : -20℃, 120Hr
5
High humidity operating test
Ta : 50℃, 80%RH, 120Hr
6
High humidity storage test
Ta : 50℃, 90%RH, 120Hr
7
Thermal shock operation test
Ta : 0℃, 60min 0℃~50℃, 30min
50℃, 60min, 50Cycle
8
Thermal shock storage test
Ta : -20℃, 60min -20℃~60℃, 30min
60℃, 60min, 50Cycle
9
ESD
Contact
8KV,1sec/cycle
Air
15KV,1sec/cycle
10
Vibration
(Non-Operation)
Wave form: random
Vibration level : 1.0G RMS
Bandwidth : 10-300Hz
Duration : X,Y,Z 10min per axes X,Y,Z:
Horizontal, face up
11
Shock
(Non-Operation)
Shock level
50G ,20ms ±X,Y,Z axis
Waveform: half sine wave
Direction: One time each direction
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 11 of 20
Preliminary
Ⅶ.Inspection standard
1. Description
These inspection standards shall be applied to LCD monitor supplied by GTT.
2. The condition of inspection
2.1 Inspection Environment
1) Ambient temperature : 15~25℃
2) Humidity : 25~75%RH
3) Ambient Illumination :
400~600Lux for external appearance inspection
100~200Lux for light on inspection
2.2 Inspection condition
- Viewing Distance : 30~50㎝from the surface of the monitor.
- Viewing Angle : 90 degree to the front surface of display panel.
- Viewing Distance : 30㎝from the surface of the monitor.
- Viewing Angle : 90 degree to the front surface of display panel.
- Inspection time for 15seconds.
- while the monitor is on the display and while running the Color
patterns(White/Red/Green/Blue)
- Under the inspection condition above, we judge a failure in the inspection
if stain or finger print are detected by naked eyes .
2.3 Inspection resolution
1920×1080, 60Hz
3. Visual inspection
3.1 Packing inspection
Item
Standard
Inspection equipment
Carton label
The character(Model, P/N, S/N
etc…) can be discerned.
* Visual
Box
No broken and dirty
3.2 Appearance inspection of monitor
Item
Standard
Inspection equipment
Rear & side
No crack, Broken and Distortion
* Visual
* Calipers
* Steel scale
Scratch
Noticeable scratch and exfoliation
coating are not permitted
Mounting hole
No omission
Rear label
The character(Model, P/N, S/N
etc…) can be discerned.
Dimension and hole size
Tolerance : ±0.2mm
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 12 of 20
Preliminary

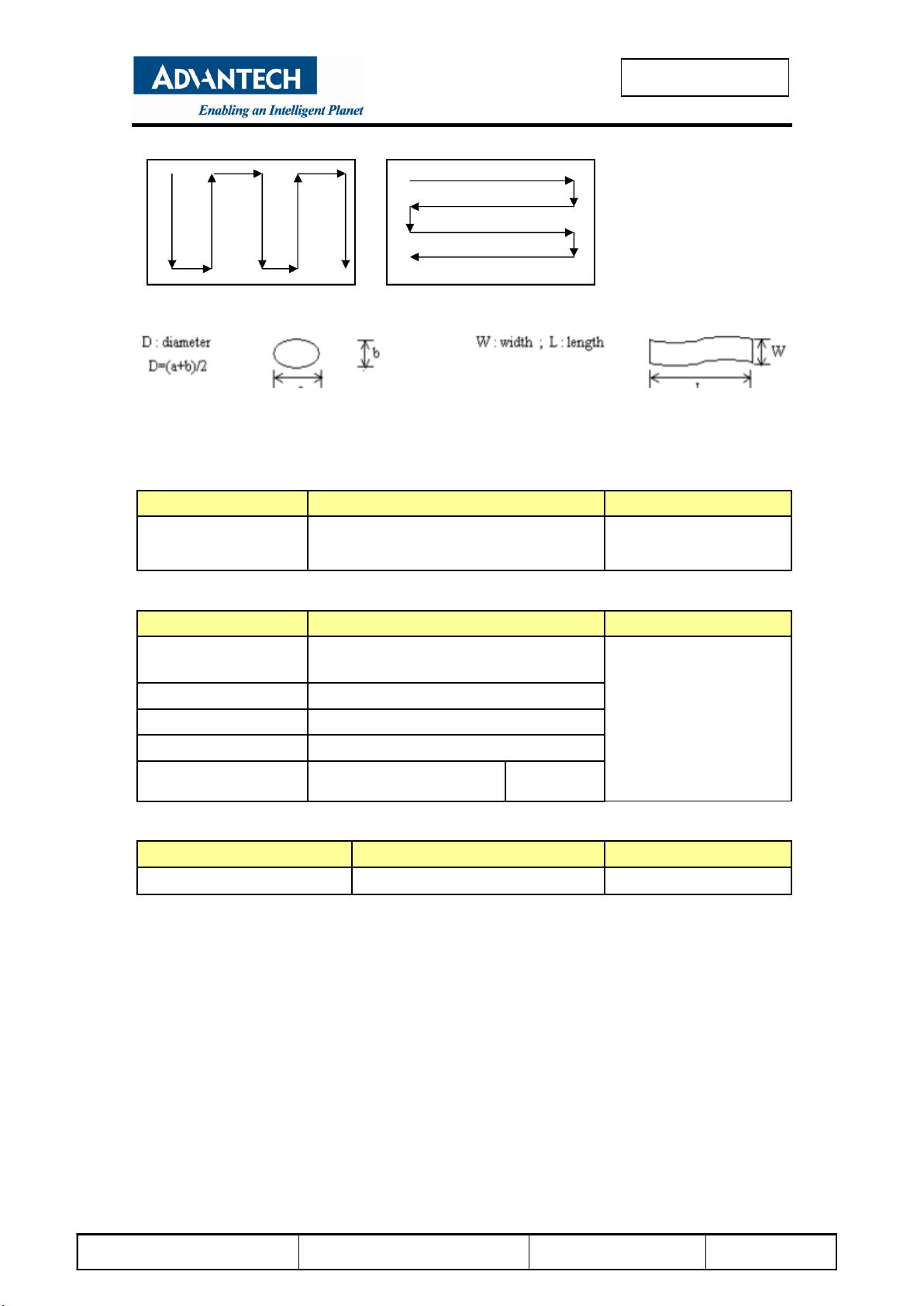

3.3 LCD visual inspection
[unit : mm]
Item
Standard
Inspection equipment
Dot
(Bright & Dark)
Random
N≤ 10
* PC for inspection
* Pattern generator
* Lupe : ×10
* N-test program
* ND Filter
2 adjacent
N≤ 5 (Note 1)
3 adjacent or more
N≤ 2
Total
N≤ 14
Mura(Note 4)
Judged by 2% ND filter in gray pattern
Line defect
Not allowed
* D : Diameter, W : Width, L : Length, N : Count
Note (1) Two dot adjacent
Note (4) The inspection method of ND filter –holding ND filter in front of the panel around
1cm
and examine the panel from 35±5cm in the front view for 3 seconds.
3.4 Touch glass & LCD Panel visual inspection
[unit ; mm]
Item
Defect size
Q’ty
Inspection equipment
Circular defect
D<2.0
Ignore
* Visual
* Lupe ; ×10
D≥2.0
0
Liner defect
(Scratch,Foreign
object)
W<0.5, L<20
Ignore
W≥0.5, L≥20
0
*out-of-box cosmetic criteria within the viewing area while the touch sensor is on the
display and while running the “Colors” program
* Inspection method
- Position front of touch screen 50cm form your eye.
- Inspection for 15seconds.
- Use one of the following patterns to aid eye.
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 13 of 20
Preliminary
4. Function inspection (Resolution 1920*1080 at 60Hz)
4.1 OSD key function inspection
Item
Standard
Inspection equipment
Key function
Function normally each key button on
the PC mode.
* PC
4.2 Display inspection
Item
Standard
Inspection equipment
Color
No strange color displaying
* PC
* Pattern generator
Flicker
No flicker
Noise
No critical noise
Jittering
No critical jittering
Power LED indicator
Power & signal on
Green
4.3 Function inspection of touch screen
Item
Standard
Inspection equipment
Accuracy
97%
* Finger
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 14 of 20
Preliminary
Ⅷ.Accessory

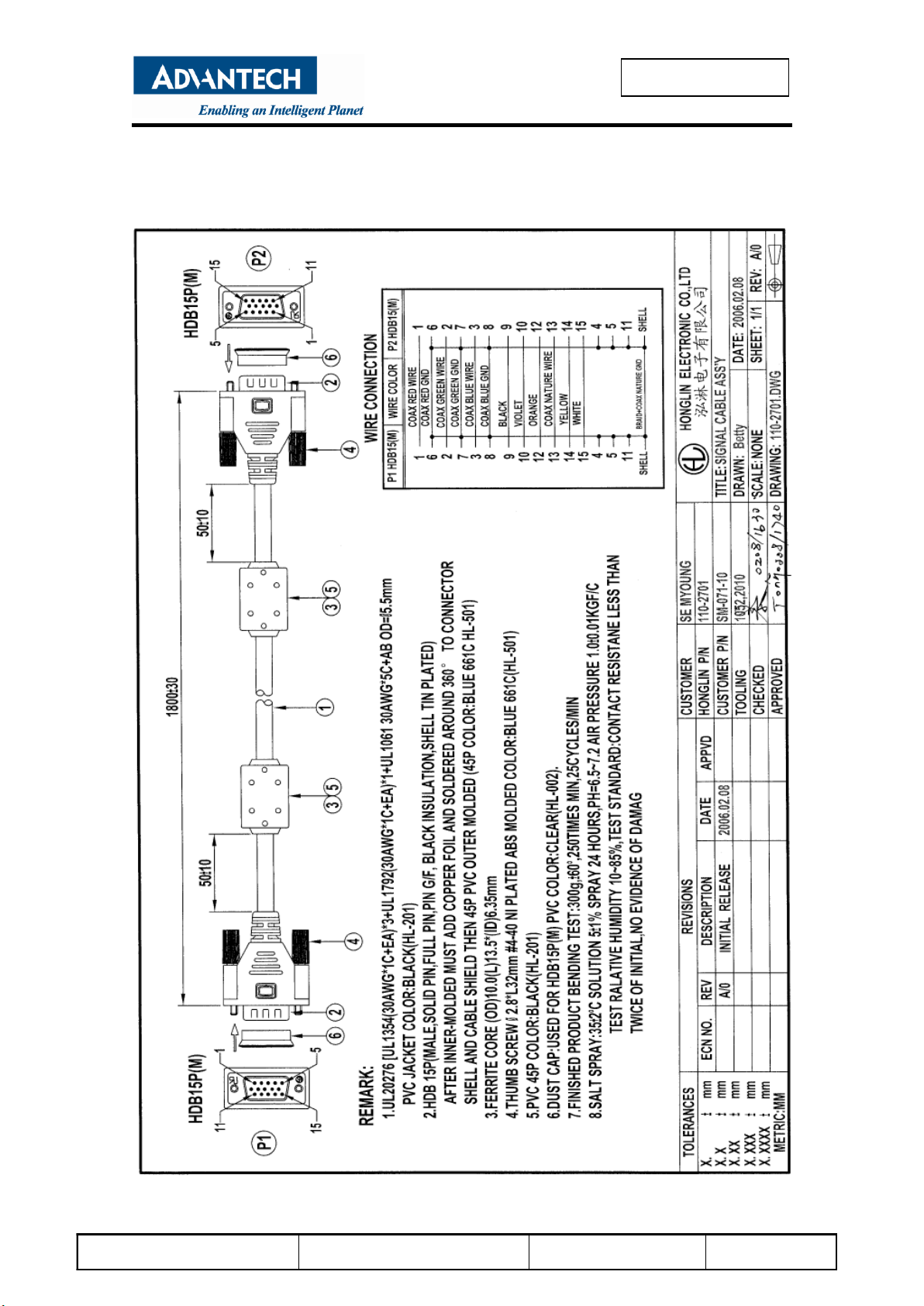

1) VGA Cable
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 15 of 20
Preliminary

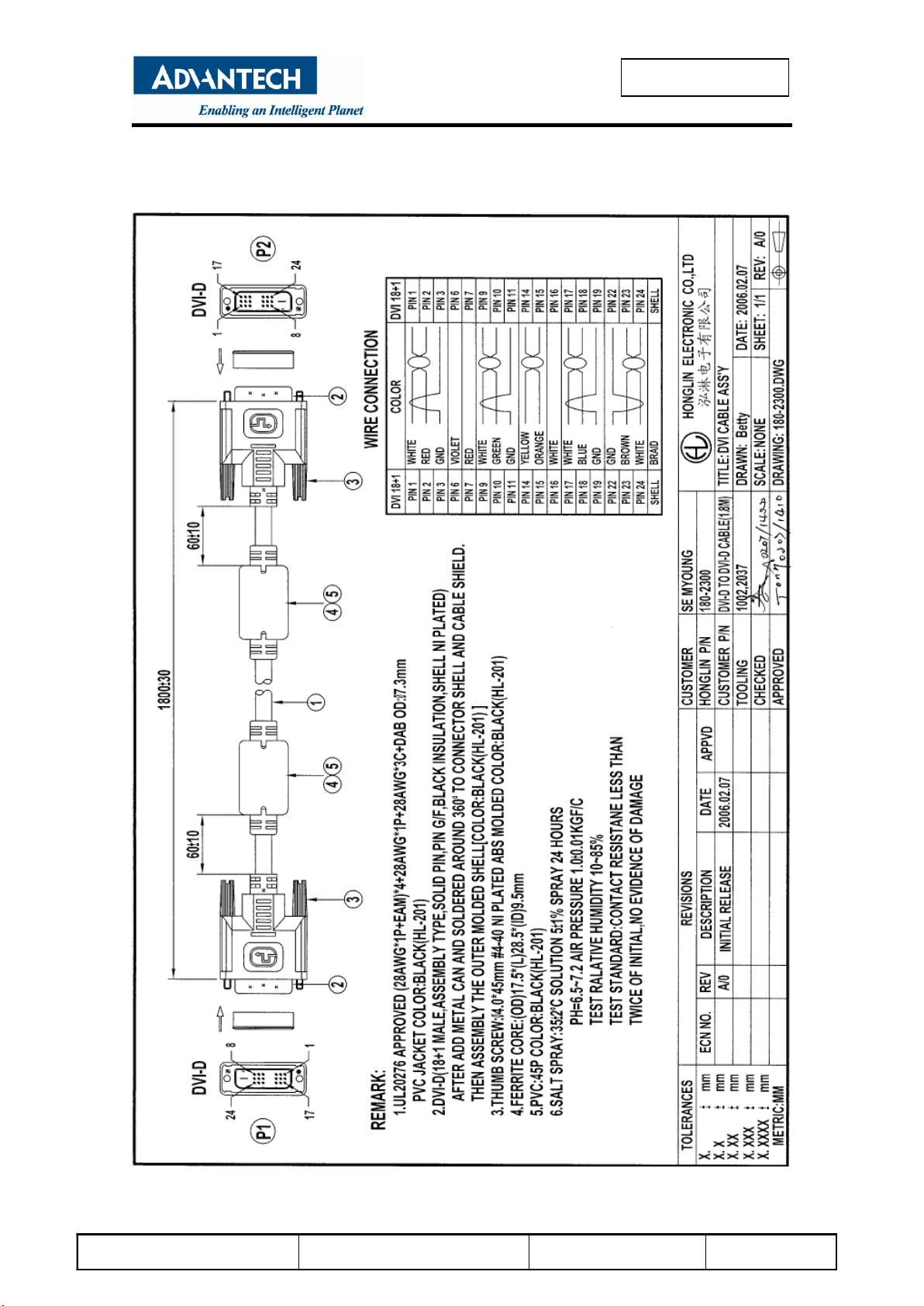

2) DVI Cable
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 16 of 20
Preliminary
3) AC Cord
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 17 of 20
Preliminary

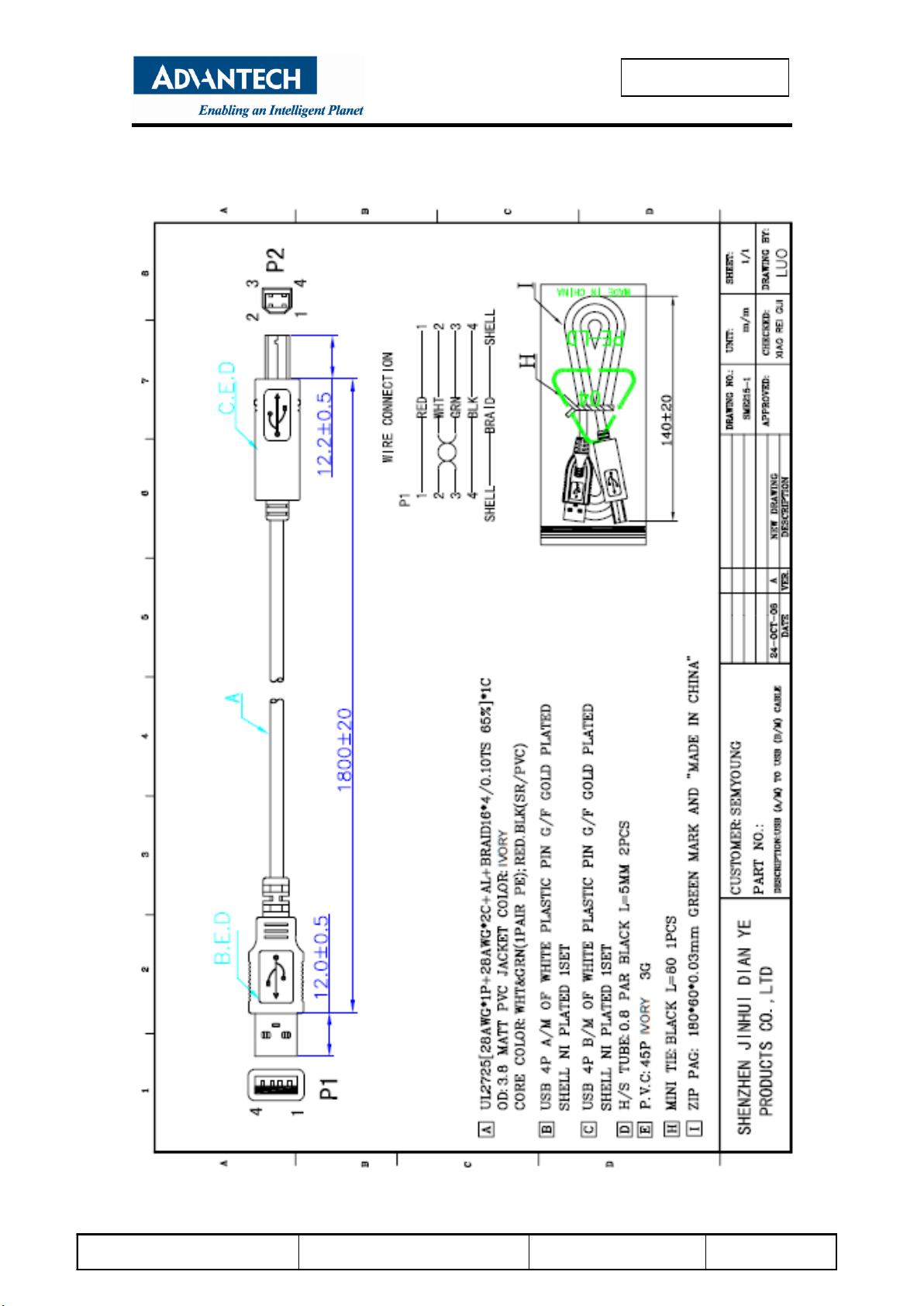

4)USB Cable
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 18 of 20
Preliminary
5) Adaptor
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 19 of 20
Preliminary
Ⅸ. Mechanical Characteristics
Model :IDS31-320WC35DVA1E
Rev. No : Ver. 0.90
Date :15/APR/2015
Page 20 of 20
Preliminary
Ⅹ. Packing
1) Packing Method
Gift Box ( 1 monitor )
Pallet (Gift box X 12 or ~14)
Standard packing
- 1 pallet
: 12 Gift boxes
(or 13~14 Gift boxes)
875
610
210
1
3
4
0
1
7
6
0
1
5
5
0

Other manuals for IDS31-320W

1

This manual suits for next models

1

Other Advantech Industrial Monitor manuals

Advantech IDS-3219 Series User manual

Advantech

Advantech IDS-3219 Series User manual

Advantech IDK-1115WP-45FHA1 User manual

Advantech

Advantech IDK-1115WP-45FHA1 User manual

Advantech FPM-7181W Series User manual

Advantech

Advantech FPM-7181W Series User manual

Advantech IDS-3319 Series User manual

Advantech

Advantech IDS-3319 Series User manual

Advantech FPM-212 Series User manual

Advantech

Advantech FPM-212 Series User manual

Advantech EPD Series User manual

Advantech

Advantech EPD Series User manual

Advantech IDK-1121WP Series User manual

Advantech

Advantech IDK-1121WP Series User manual

Advantech FPM-7211W Series User manual

Advantech

Advantech FPM-7211W Series User manual

Advantech FPM-212 Series User manual

Advantech

Advantech FPM-212 Series User manual

Advantech FPM-7000T Series User manual

Advantech

Advantech FPM-7000T Series User manual

Advantech IDS-3112 Series User manual

Advantech

Advantech IDS-3112 Series User manual

Advantech FPM-3190G Series User manual

Advantech

Advantech FPM-3190G Series User manual

Advantech IDK-1115WP Series User manual

Advantech

Advantech IDK-1115WP Series User manual

Advantech IDS-3315 Series User manual

Advantech

Advantech IDS-3315 Series User manual

Advantech FPM-3060G Series User manual

Advantech

Advantech FPM-3060G Series User manual

Advantech FPM-7151W Series User manual

Advantech

Advantech FPM-7151W Series User manual

Advantech FPM-2120G Series User manual

Advantech

Advantech FPM-2120G Series User manual

Advantech FPM-3190 Series User manual

Advantech

Advantech FPM-3190 Series User manual

Advantech FPM-5151G Series User manual

Advantech

Advantech FPM-5151G Series User manual

Advantech FPM-3150G Series User manual

Advantech

Advantech FPM-3150G Series User manual

Advantech FPM-5171G Series User manual

Advantech

Advantech FPM-5171G Series User manual

Advantech FPM-3191G Series User manual

Advantech

Advantech FPM-3191G Series User manual

Popular Industrial Monitor manuals by other brands

Acnodes APH 8170 user manual

Acnodes

Acnodes APH 8170 user manual

Hope Industrial Systems HIS-RL15- ***D Series user manual

Hope Industrial Systems

Hope Industrial Systems HIS-RL15- ***D Series user manual

Hitachi P50X901/DW3D Service manual

Hitachi

Hitachi P50X901/DW3D Service manual

C-MORE EA1-S6ML quick start guide

C-MORE

C-MORE EA1-S6ML quick start guide

tecnoelettra AT206 user manual

tecnoelettra

tecnoelettra AT206 user manual

Chauvet F4 IP user manual

Chauvet

Chauvet F4 IP user manual

TAC VISTA Xenta OP Handbook

TAC

TAC VISTA Xenta OP Handbook

Sahara 1090010 user manual

Sahara

Sahara 1090010 user manual

Amit AIPDB1215WA81/01 Operation manual

Amit

Amit AIPDB1215WA81/01 Operation manual

HEIDENHAIN ND 261 Series manual

HEIDENHAIN

HEIDENHAIN ND 261 Series manual

B&R Industries MAPPT-ENG user manual

B&R Industries

B&R Industries MAPPT-ENG user manual

ACU-RITE 300S Reference manual

ACU-RITE

ACU-RITE 300S Reference manual

Oriental motor VEXTA BX Series operating manual

Oriental motor

Oriental motor VEXTA BX Series operating manual

Pro-face AGP-3500T installation guide

Pro-face

Pro-face AGP-3500T installation guide

I-Tech HRM819TR user manual

I-Tech

I-Tech HRM819TR user manual

Cincoze CV-100/M1101 Series user manual

Cincoze

Cincoze CV-100/M1101 Series user manual

WAGO WAGO-PERSPECTO 762 Series Operating and assembly instructions

WAGO

WAGO WAGO-PERSPECTO 762 Series Operating and assembly instructions

Sanyo LMU-TK12A Service manual

Sanyo

Sanyo LMU-TK12A Service manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
