Advantech IDK-1121WP Series User manual

User Manual
IDK-1121WP Series
21.5" FHD Industrial Display Kit
with Touch Solution

IDK-1121WP User Manual ii
Copyright
The documentation and the software included with this product are copyrighted 2018
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. How-
ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-
ments of the rights of third parties, which may result from its use.
A Message to the Customer
Advantech Customer Services
Each and every Advantech product is built to the most exacting specifications to
ensure reliable performance in the harsh and demanding conditions typical of indus-
trial environments. Whether your new Advantech equipment is destined for the labo-
ratory or the factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name Advantech has come to be
known.
Your satisfaction is our primary concern. Here is a guide to Advantech’s customer
services. To ensure you get the full benefit of our services, please follow the instruc-
tions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions,
you can easily find answers in your product documentation. These answers are nor-
mally a lot more detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the answer, gather all the
information or questions that apply to your problem, and with the product close at
hand, call your dealer. Our dealers are well trained and ready to give you the support
you need to get the most from your Advantech products. In fact, most problems
reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from Advantech engineers every busi-
ness day. We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products.
Part No. 2006112110 Edition 1
Printed in China October 2018

iii IDK-1121WP User Manual
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of pur-
chase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defec-
tive, it will be repaired or replaced at no charge during the warranty period. For out-
of-warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.

IDK-1121WP User Manual iv

v IDK-1121WP User Manual
Contents
Chapter 1 Overview...............................................1
1.1 General Description .................................................................................. 2
1.2 Specifications ............................................................................................ 2
1.2.1 LCD Panel..................................................................................... 2
1.2.2 Touch Screen................................................................................ 2
1.2.3 Environment.................................................................................. 3
1.3 LCD Functional Block Diagram ................................................................. 3
Figure 1.1 Function block diagram .............................................. 3
1.4 Mechanical Characteristics ....................................................................... 3
1.5 Touch Screen driver.................................................................................. 4
1.6 Absolute Maximum Ratings ...................................................................... 5
1.6.1 TFT LCD Module .......................................................................... 5
1.6.2 Absolute Environment Ratings...................................................... 5
Chapter 2 Electrical Characteristics...................7
2.1 TFT LCD Module....................................................................................... 8
2.1.1 Electrical Characteristics............................................................... 8
Table 2.1: Electrical Characteristics ............................................ 8
2.2 Backlight Unit (LED Driver) ....................................................................... 9
Table 2.2: Backlight driving conditions ........................................ 9
2.3 Interface Connections ............................................................................. 10
2.3.1 LCD Module ................................................................................ 10
Table 2.3: MODULE CONNECTOR(CN1) PIN CONFIGURATION
10
Chapter 3 Signal Characteristics.......................13
3.1 Pixel Format Image ................................................................................. 14
3.2 The Input Data Format ............................................................................ 14
3.3 Signal Timing Specifications ................................................................... 15
Table 3.1: TIMING TABLE......................................................... 15
3.4 Signal Timing Waveforms ....................................................................... 16
3.5 Color Input Data Reference .................................................................... 16
3.6 Power Sequence..................................................................................... 17
3.7 VLCD Power Dip Condition..................................................................... 18
Chapter 4 Touchscreen & Touch Controller.....19
4.1 Touch Characteristics ............................................................................. 20
4.2 Optical Characteristics ............................................................................ 20
4.3 Mechanical Characteristics ..................................................................... 20
4.4 Electrical Specifications .......................................................................... 20
4.5 Pin Assignment and Description ............................................................. 21
4.5.1 USB interface connector and pin assignment............................. 21
Appendix A LCD Optical Characteristics .............23
A.1 LCD Module Optical Characteristics ....................................................... 24
Table A.1: Optical Characteristics.............................................. 24

IDK-1121WP User Manual vi
Appendix B Handling Precautions ....................... 27
B.1 Handling Precautions.............................................................................. 28

Chapter 1
1Overview

IDK-1121WP User Manual 2

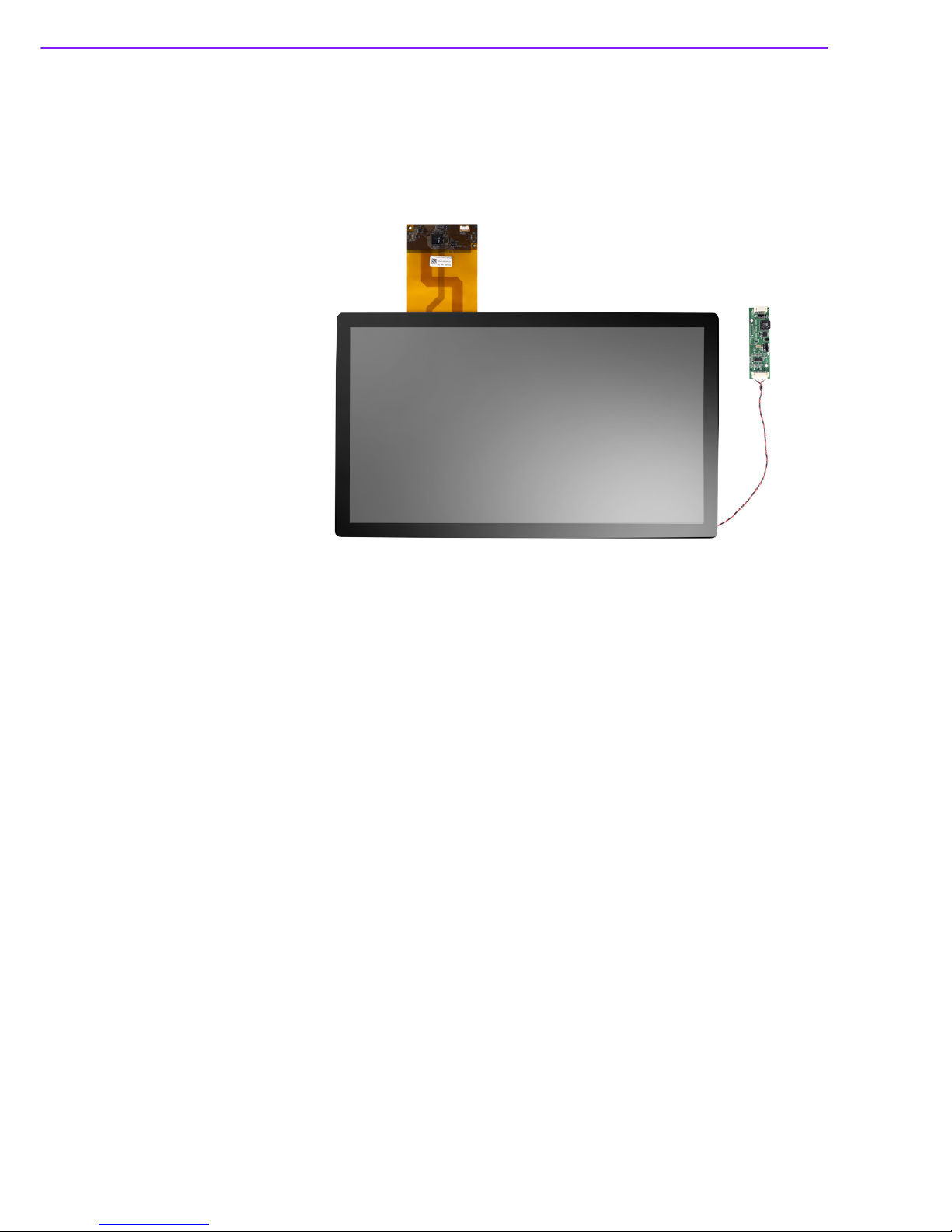

1.1 General Description
The Advantech IDK-1121WP series comes with a 21.5" industrial grade IPS LCD dis-
play with Projected Capacitive touch. IDK-1121WP series supports Projected Capac-
itive touch with low power consumption. IDK-1121WP series is ideal for embedded
applications needing maximum flexibility for mechanical design.
1.2 Specifications
1.2.1 LCD Panel
Display Size: 21.5" LED backlight panel
Resolution: 1920 x 1080
Viewing Angle: 178°/178°
Brightness: 250 cd/m2
Contrast Ratio: 1000:1
Response Time (ms): 14
Colors: 16.7M (6bit + FRC)
Nominal Input Voltage: 5V
Power Consumption: 11.05 W
Signal Interface: 2 channel LVDS
Display Mode: Normally Black
Weight: 1685g
Dimensions (W x H x D): 497.6 x 292.2 x 10.5 mm
1.2.2 Touch Screen
Touch Screen: Projected Capacitive
Light Transmission: 87 2%
Interface: USB
Surface Treatment: Clear
Black Print: Yes

3 IDK-1121WP User Manual
Chapter 1 Overview
1.2.3 Environment
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C

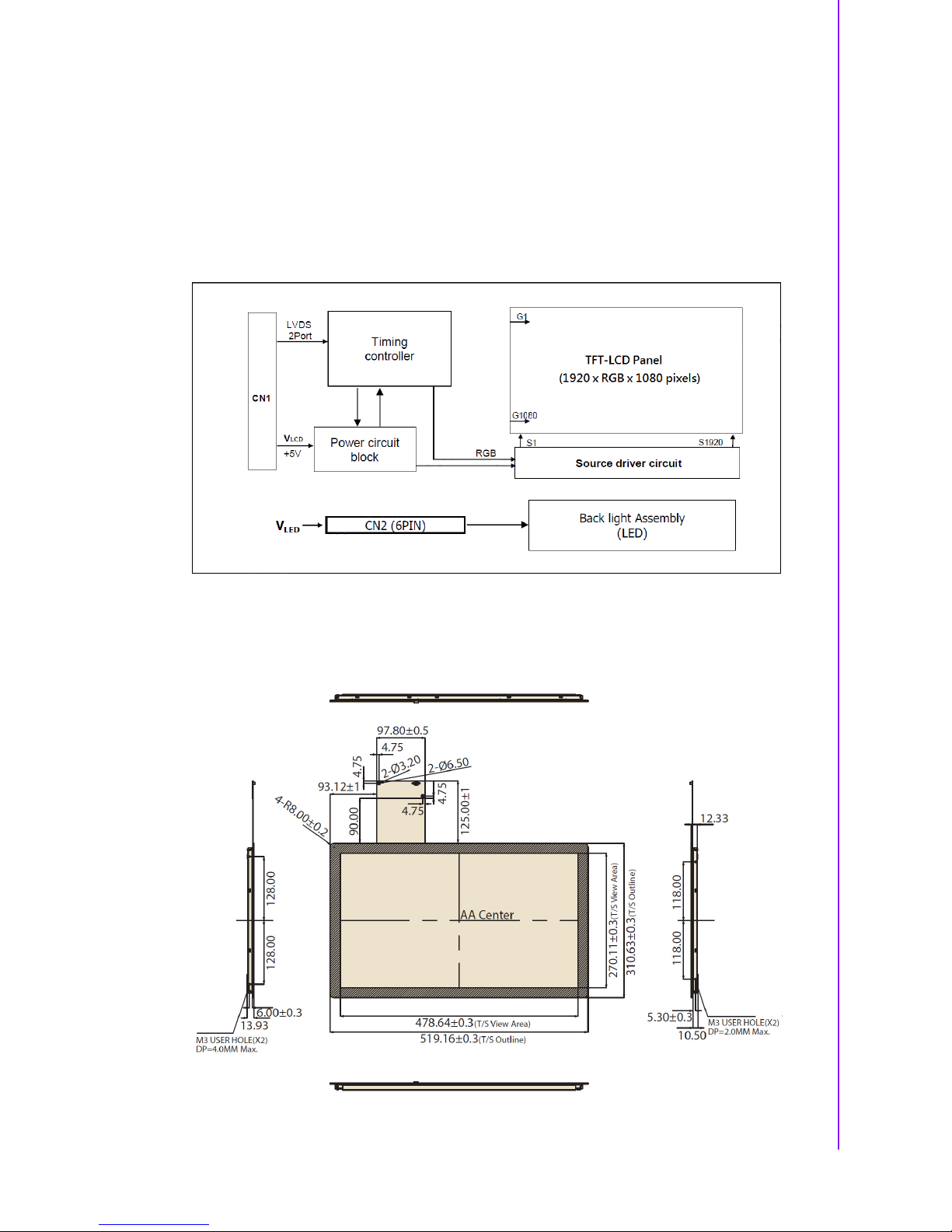

1.3 LCD Functional Block Diagram
The following diagram shows the functional block of the 21.5 inch Color TFT-LCD
Module:
Figure 1.1 Function block diagram
1.4 Mechanical Characteristics
Front View

IDK-1121WP User Manual 4

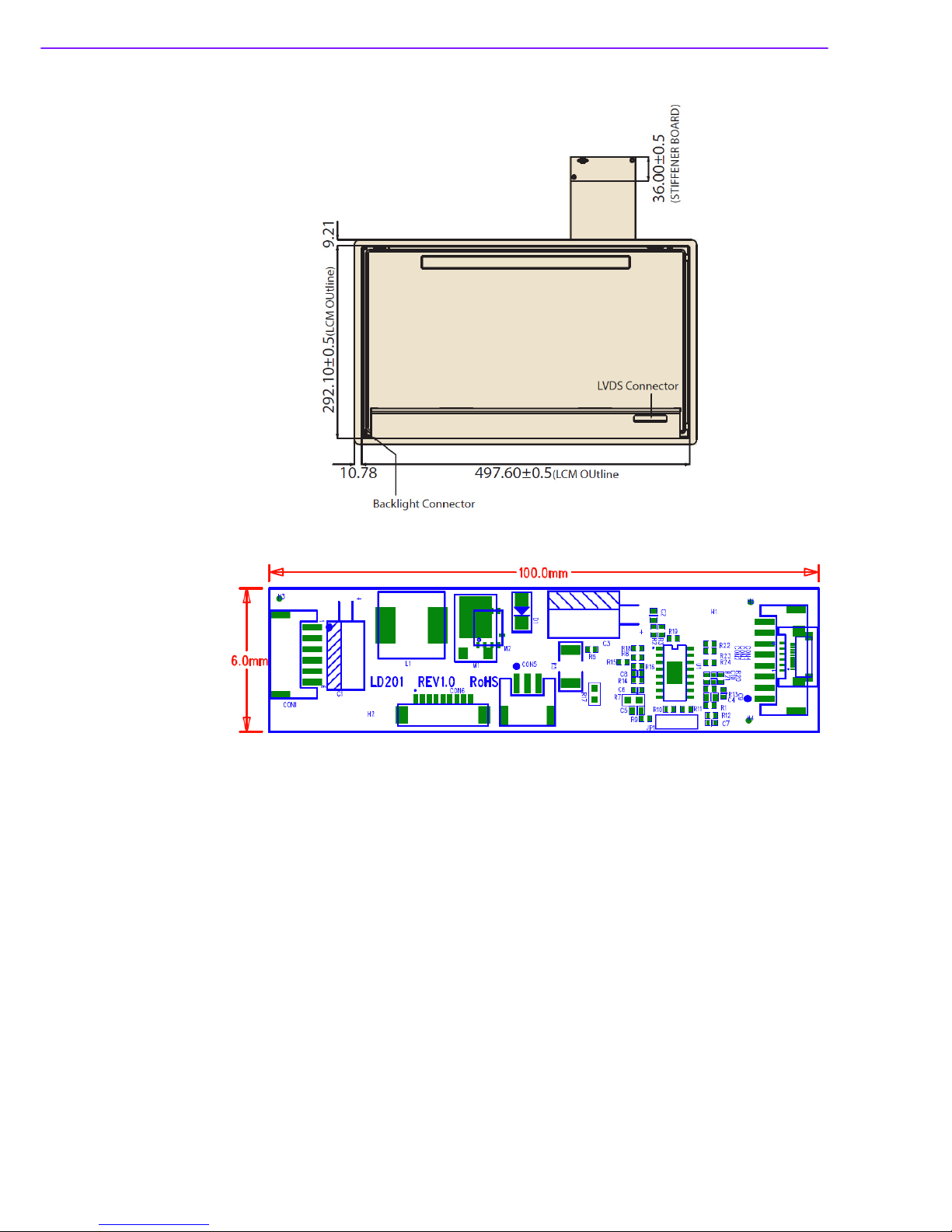

Rear View
LED Driver Board
1.5 Touch Screen driver
Please down load the touchscreen driver from the Advantech website.

5 IDK-1121WP User Manual
Chapter 1 Overview
1.6 Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or
damage to the unit.
1.6.1 TFT LCD Module
1.6.2 Absolute Environment Ratings
Item Symbol Min. Max. Unit Note
Logic/LCD Drive Voltage VCC -0.3 6.0 [Volt] 25 2°C
Item Symbol Min. Max. Unit Note
Operating Temperature TOP 0 50 [oC]
1, 2, 3Storage Temperature TST -20 60 [oC]
H u m i d i t y 1 0 9 0 [ % R H ]

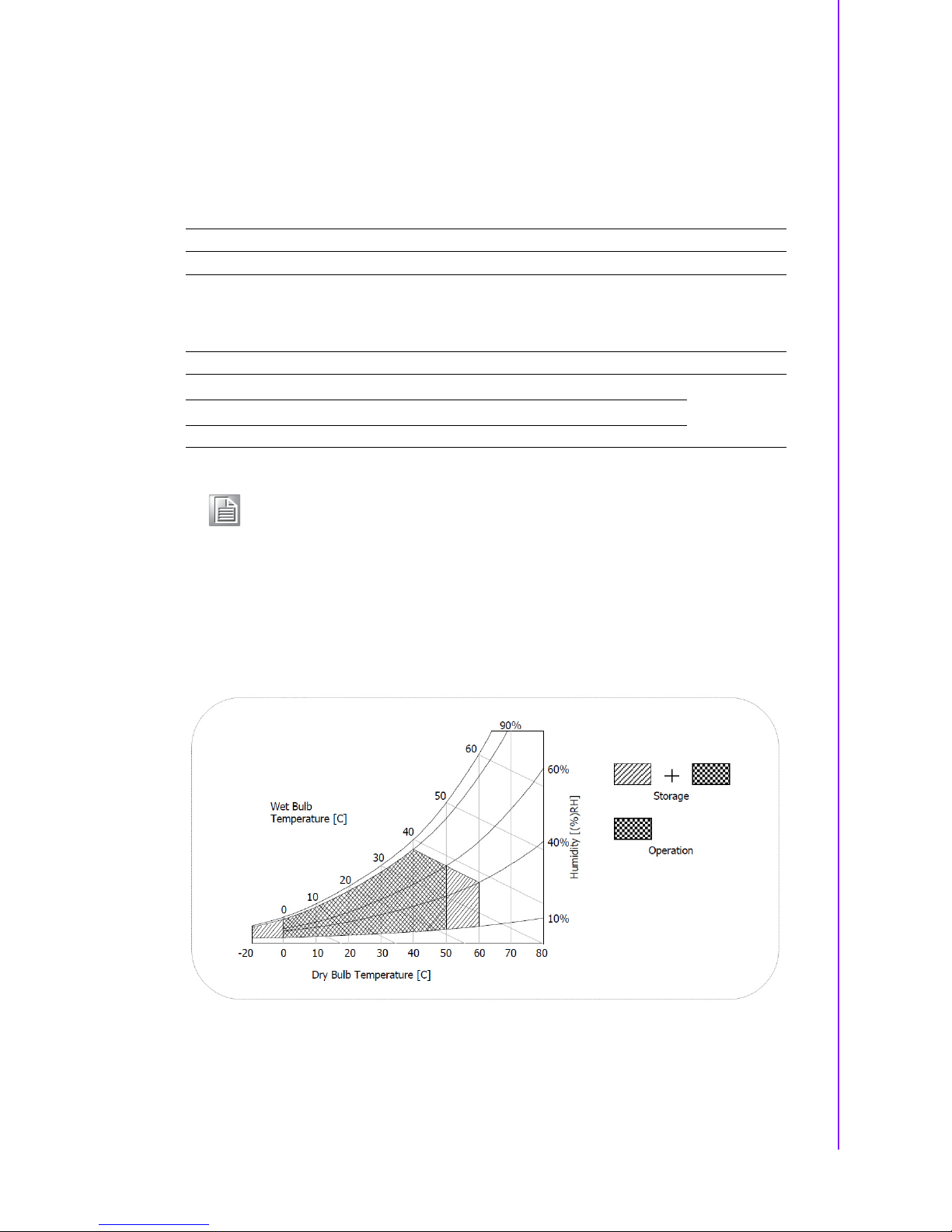

Note! 1. Temperature and relative humidity range are shown in the figure
below. Wet bulb temperature should be 39°C Max, and no conden-
sation of water.
2. Maximum Storage Humidity is up to 40°C, 70% RH only for 4 cor-
ner light leakage Mura.
3. Storage condition is guaranteed under packing condition
4. LCM Surface Temperature should be Min. 0°C and Max. 65°C
under the VLCD=5.0V, fV=60Hz, 25°C ambient Temp. no humidity
control and LED string current is typical value.

IDK-1121WP User Manual 6

Chapter 2
2Electrical
Characteristics

IDK-1121WP User Manual 8
2.1 TFT LCD Module
Requires two power inputs, one is employed to power the LCD electronics and to
drive the TFT array and liquid crystal. The second power input is for the LED/Back-
light, typically generated by a LED Driver. The LED Driver is an external unit to the
LCDs.
2.1.1 Electrical Characteristics
Permissive Power input ripple (VLCD =5.0V, 25°C, fv (frame fre-
quency)=MAX condition)
Table 2.1: Electrical Characteristics
Parameter Symbol Values Unit Notes
Min Typ Max
Power Supply Input Voltage VLCD 4.5 5 5.5 Vdc 5
Permissive Power Input Ripple VdRF -- 350mVp-p1
Power Supply Input Current
ILCD_Mosaic -750940mA2
ILCD_White - 920 1150 mA 3
Power Consumption Pc_Mosaic - 3.75 4.7 Watt 2
Pc_White - 4.6 5.75 Watt 3
Rush current IRUSH -- 3A 4
Note! 1. Permissive power ripple should be measured under VLCD =5.0V,
25°C, fV (frame frequency)=MAX condition and At that time, we
recommend the bandwidth configuration of oscilloscope is to be
under 20Mhz. See the next page.
2. The specified current and power consumption are under the
VLCD=5.0V, 25± 2°C,fV=60Hz condition whereas Typical Power
Pattern [Mosaic] shown in the [ Figure 3 ] is displayed.
3. The current is specified at the maximum current pattern.
4. Maximum Condition of Inrush current:
The duration of rush current is about 5ms and rising time of power
Input is 500us 20%.(min.).
5. VLCD level must be measured at two points on LCM PCB -
between VLCD (test point) and LCM Ground.
The measured results need to meet the Power supply input voltage
spec.
(Test condition : maximum power pattern, 25± 2°C, fV=60Hz)

9 IDK-1121WP User Manual
Chapter 2 Electrical Characteristics

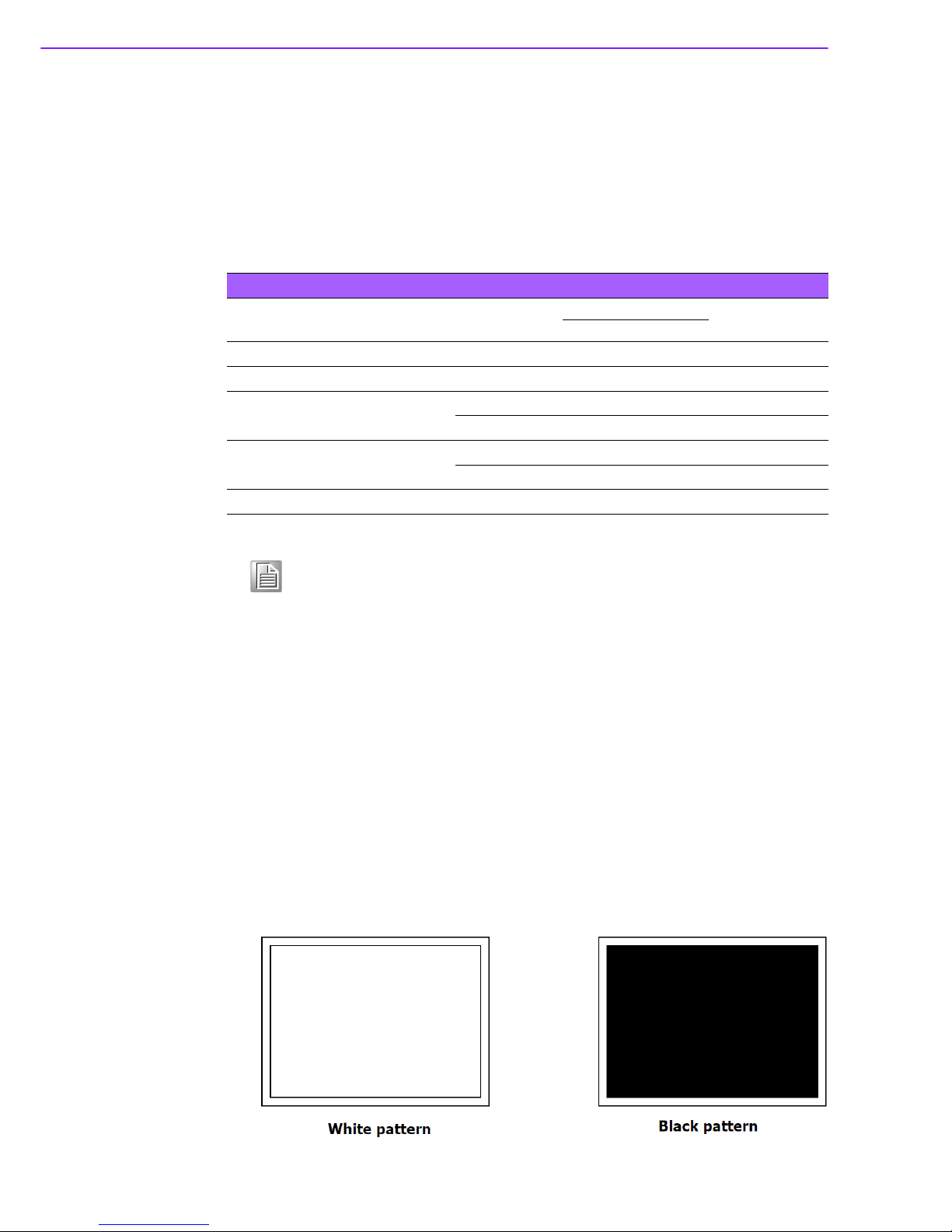

Power consumption (VLCD =5V, 25°C, fV (frame frequency=60Hz condition)
2.2 Backlight Unit (LED Driver)
The following characteristics are measured under stable conditions at 25°C:
Table 2.2: Backlight driving conditions
Item Symbol Values Unit Condition
Min. Typ. Max.
Input Voltage VLED 7 - 30 [Volt]
Input Current ILED -0.24-[A]
PWM Dimming Frequency FPWM 100 - 20K [Hz]
PWM Control Level 0 - 5.0 V
On Control Voltage VLED ON/OFF
-5.0-[Volt]
Off Control Voltage - 0 - [Volt]
LED Life Time - 30,000 [Hrs] Note 3

IDK-1121WP User Manual 10
2.3 Interface Connections
2.3.1 LCD Module

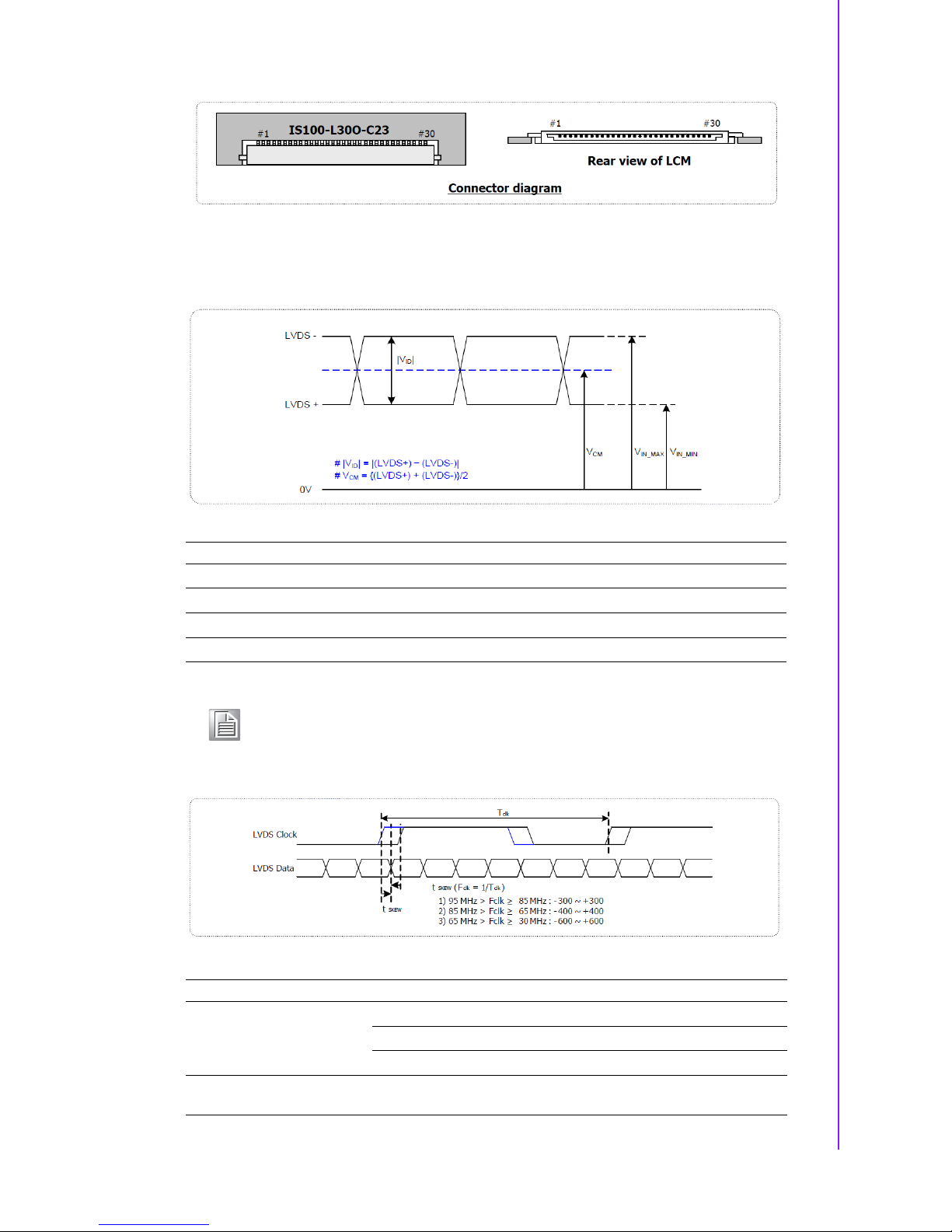

LCD Connector (CN1) : IS100-L30O-C23 (UJU) , GT103-30S-HF15 (LSM),
GT103-30S-HF15-M (LSM)
Mating Connector : FI-X30C2L (Manufactured by JAE) or Equivalent
Table 2.3: MODULE CONNECTOR(CN1) PIN CONFIGURATION
No Symbol Description No Symbol Symbol
1 FR0M Minus signal of odd channel
0 (LVDS)
16 SR1P Plus signal of even channel 1
(LVDS)
2 FR0P Plus signal of odd channel 0
(LVDS)
17 GND Ground
3 FR1M Minus signal of odd channel
1 (LVDS)
18 SR2M Minus signal of even channel
2 (LVDS)
4 FR1P Plus signal of odd channel 1
(LVDS)
19 SR2P Plus signal of even channel 2
(LVDS)
5 FR2M Minus signal of odd channel
2 (LVDS)
20 SCLKINM Minus signal of even clock
channel (LVDS)
6 FR2P Plus signal of odd channel 2
(LVDS)
21 SCLKINP Plus signal of even clock
channel (LVDS)
7 GND Ground 22 SR3M Minus signal o f even channel
3 (LVDS)
8 FCLKINM Minus signal of odd clock
channel (LVDS)
23 SR3P Plus signal of even channel 3
(LVDS)
9 FCLKINP Plus signal of odd clock
channel (LVDS)
24 GND Ground
10 FR3M Minus signal of odd channel
3 (LVDS)
25 NC No Connection (I2C Serial
interface for LCM)
11 FR3P Plus signal of odd channel 3
(LVDS)
26 NC No Connection.(I2C Serial
interface for LCM)
12 SR0M Minus signal of even chan-
nel 0 (LVDS)
27 ITLC Interlace mode selection
13 SR0P Plus signal of even channel
0 (LVDS)
28 VLCD Power Supply +5.0V
14 GND Ground 29 VLCD Power Supply +5.0V
15 SR1M Minus signal of even chan-
nel 1 (LVDS)
30 VLCD Power Supply +5.0V
Note! 1. All GND (ground) pins should be connected together and to Vss
which should also be connected to the LCD’s metal frame.
2. All VLCD (power input) pins should be connected together.
3. Input Level of LVDS signal is based on the IEA 664 Standard.
4. Always make sure LVDS signal and clock inputs should be 4 chan-
nels and synchronized.
5. Basically Panels cannot support “Interlaced Scan Method” and
ITLC is Interlace Image Sticking Reduction Mode selection pin.
(L: Normal Mode, H: Interlace Image Sticking Reduction Mode)
If you don’t use this pin, it should be connected to GND.
(Low level Input Voltage : GND ~ 0.4V, High level Input Voltage :
1.6 ~ 3.6V)

11 IDK-1121WP User Manual
Chapter 2 Electrical Characteristics
LVDS Input characteristics
1. DC Specification
2. AC Specification
Description Symbol Min Max Unit Notes
LVDS differential voltage |VID| 200 600 mV -
LVDS common mode voltage VCM 1.0 1.5 V -
LVDS input voltage range VIN 0.7 1.8 V -
Change in common mode voltage VCM -250mV-
Note! Does not have any noise & peaking in LVDS signal.
Description Symbol Min Max Unit Notes
LVDS Clock to Data Skew
Margin
tSKEW - 300 + 300 ps 95MHz > Fclk ≥85MHz
tSKEW - 400 + 400 ps 85MHz > Fclk ≥65MHz
tSKEW - 600 + 600 ps 65MHz > Fclk ≥30MHz
LVDS Clock to Clock Skew
Margin (Even to Odd)
tSKEW_EO - 1/7 + 1/7 Tclk -

IDK-1121WP User Manual 12

Chapter 3
3Signal Characteristics

IDK-1121WP User Manual 14

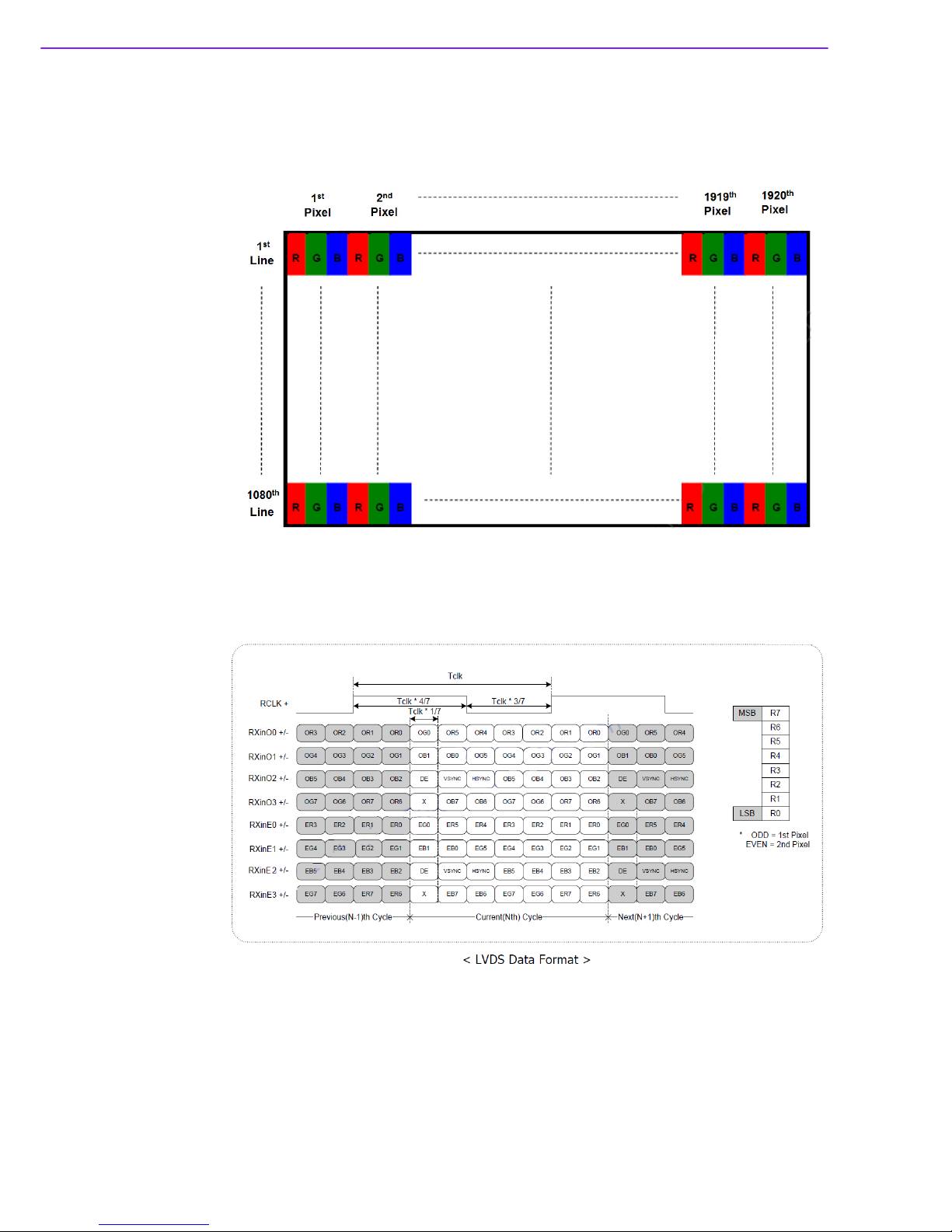

3.1 Pixel Format Image
Following figure shows the relationship between input signal and LCD pixel
format.
3.2 The Input Data Format
LVDS 2 Port
