AEG A18FCN18GA User manual

A18FCN18GA
A18FCN18GANZ
Original instructions

Important!
It is essential that you read the instructions in this manual before
assembling, operating and maintaining the product.
6XEMHFWWRWHFKQLFDOPRGL¿FDWLRQV

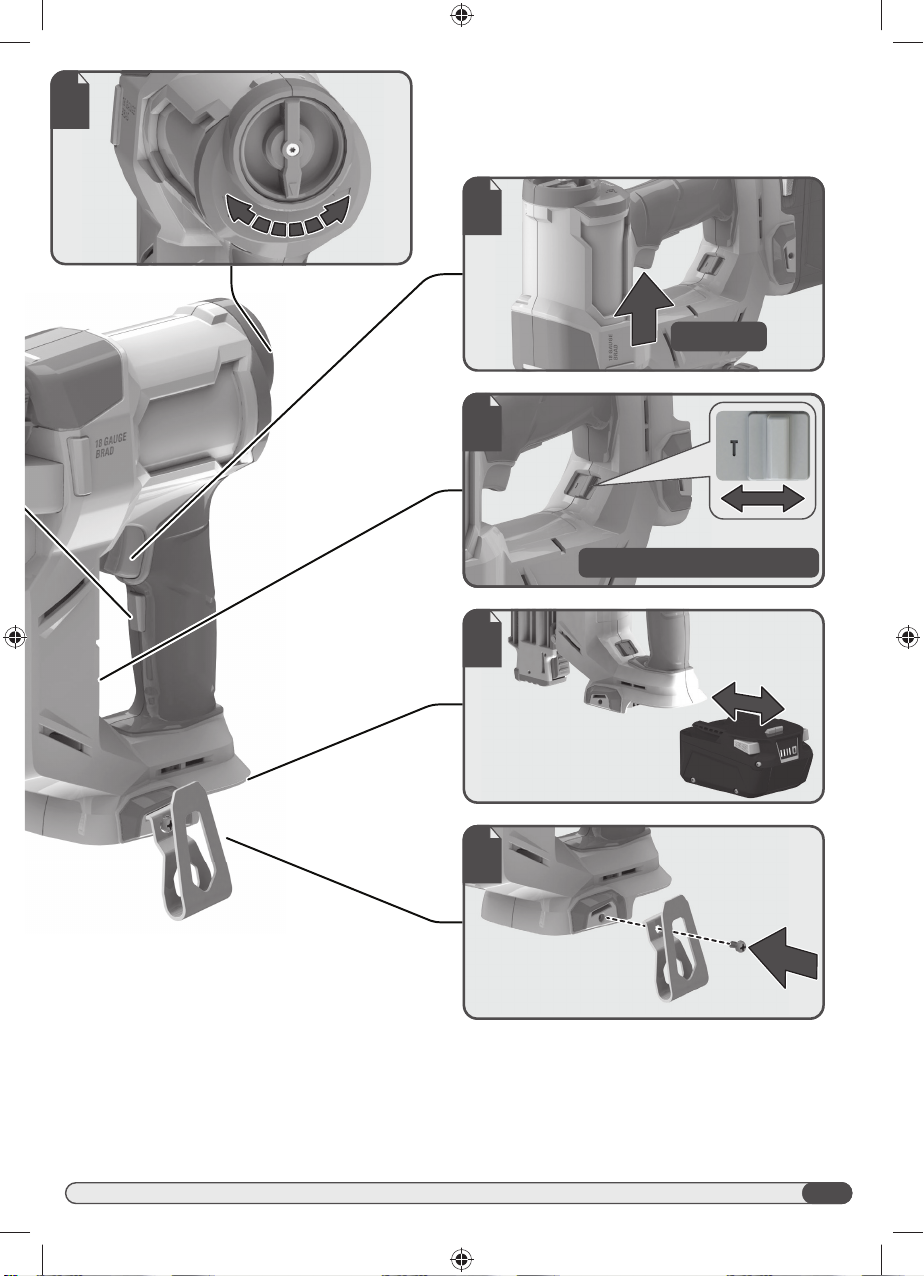

Handle,
insulated gripping surface
Battery port
Belt clip screw hole
Air pressure dial
Mode selector
(for A18FCN18GA)
LED light button
Trigger switch
Pusher
Depth-of-drive adjustment
Jam release
LED light
No-mar pad
Belt clip
No-mar pad
Rear loading magazine
Nails
Belt clip screw

4
10
12
11
8
11

5
START
9
9
10
10
6
For A18FCN18GA only

6
1
1
1
1
1
1
1
1
1
1
1
1
11
1
11
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
111
1
1
1
111
1
1
1
1
1
1
11
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2

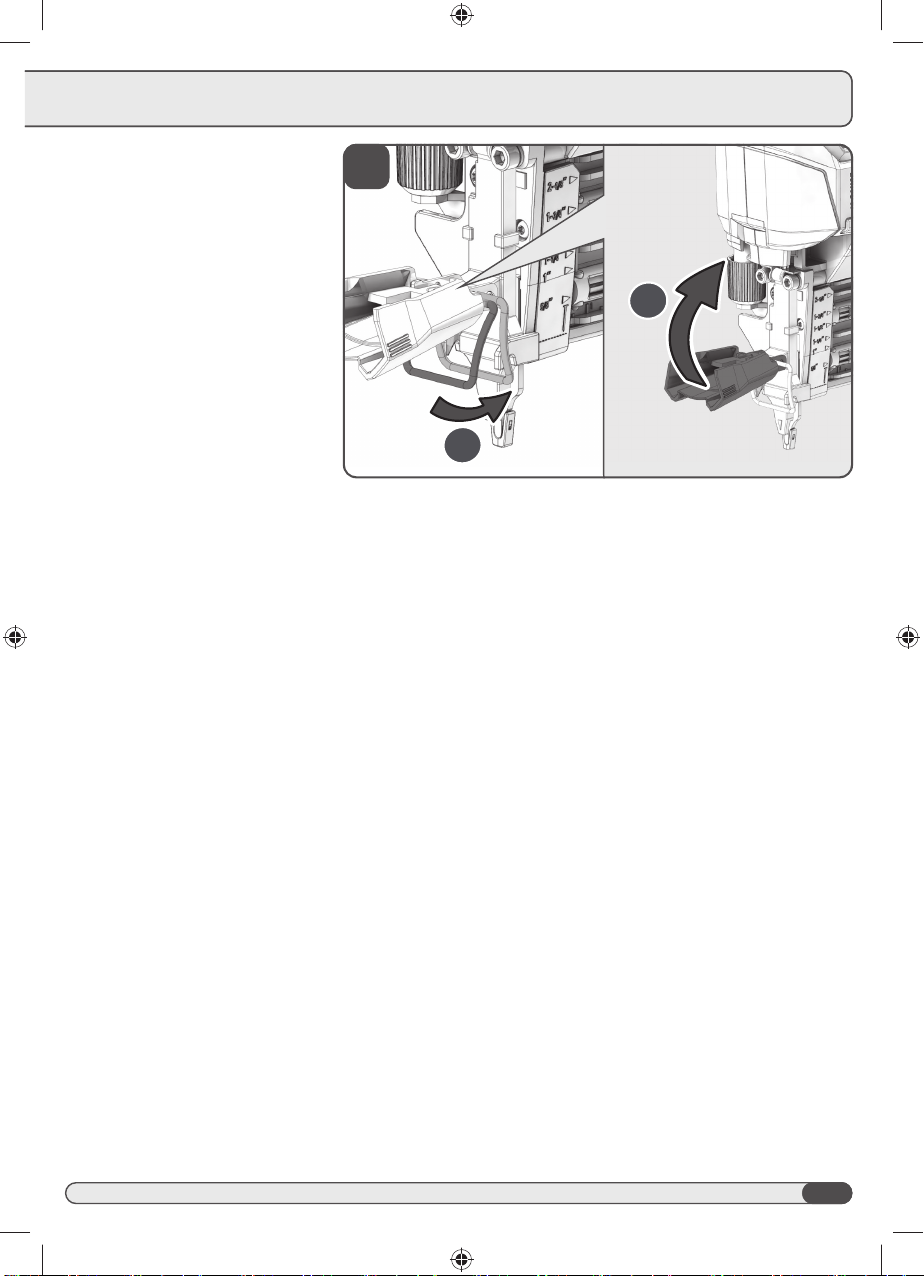

click

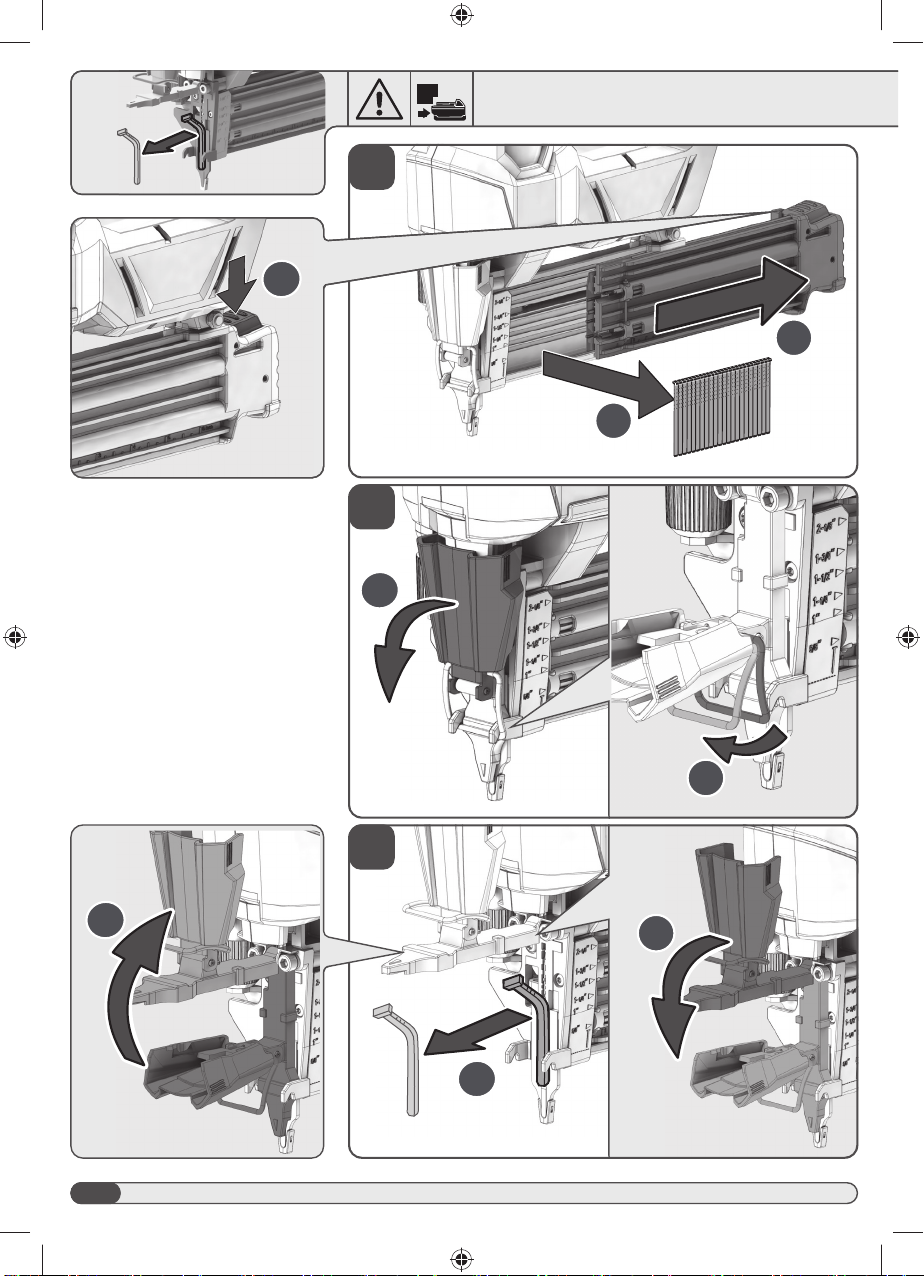

Remove the battery pack before
starting any work on the product.

7

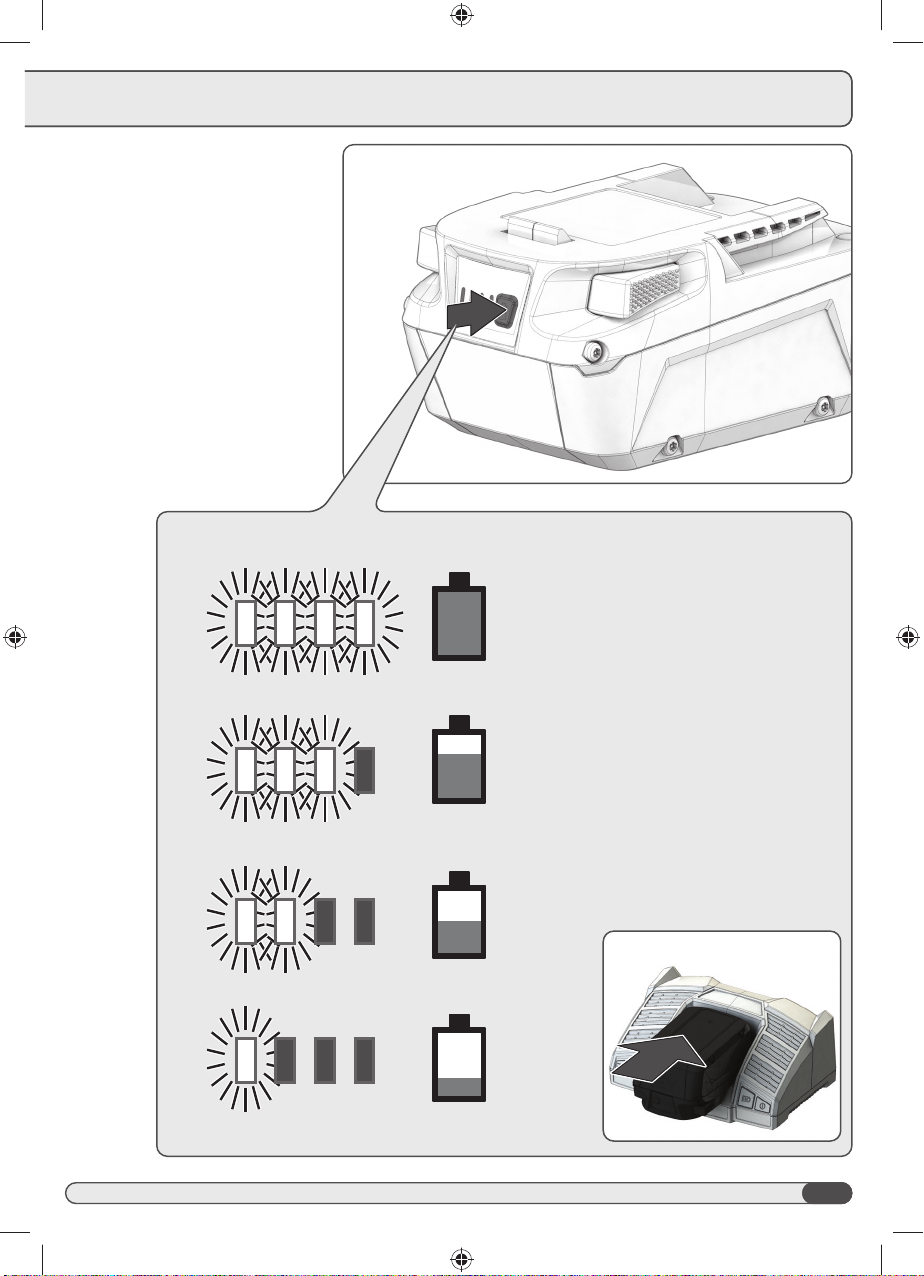

75-100 %
50-75 %
25-50 %
0-25 %

8
2
1
2
2
1
1

9
1
2
2
1
1
START
2
34
For A18FCN18GA only

10
1
1
2

11
1
23

12
1
2
2
3
1
3
2
1
2
3
1

13
2
4
1

14
TECHNICAL DATA A18FCN18GA / A18FCN18GANZ
Type Brad nailer
Battery voltage 18 V
Fastener type 18GA Brad nails
Diameter 1.2 mm
Length min./max 15.9 - 54 mm
Recommended Cycle rate 900 / hour
%XUVWF\FOHUDWH$)&1*$±EXPS¿UHPRGH 1 / second
Burst cycle rate (A18FCN18GANZ) 1 / second
Magazine capacity 105 nails
Fastener range 15.9 to 54 mm
Weight without battery pack 2.45 kg
Noise Information
Measured values determined according to EN 60745. Typically, the A-weighted noise
levels of the tool are:
Sound pressure level / Uncertainty
Sound power level / Uncertainty
Wear ear protection!
LpA=85.5 dB (A) / KpA=3 dB(A)
LWA=96.5 dB (A) / KWA=3 dB(A)
Vibration Information
Vibration total values (triaxial vector sum) determined according to EN 60745.
Vibration emission value / Uncertainty ah=2.5 m/s2 / K=1.5 m/s2
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of
exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different
applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may
VLJQL¿FDQWO\LQFUHDVHWKHH[SRVXUHOHYHOVRYHUWKHWRWDOZRUNLQJSHULRG
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is
UXQQLQJLGOH7KHVHFRQGLWLRQVPD\VLJQL¿FDQWO\UHGXFHWKHH[SRVXUHOHYHORYHUWKHWRWDOZRUNLQJSHULRG
Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case of vibration), and organising work patterns.
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
L1840R
A18FB4
L1850R
A18FB5
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only
WARNING! Read all safety warnings, instructions,
LOOXVWUDWLRQVDQGVSHFL¿FDWLRQVSURYLGHGZLWKWKLVSRZHUWRRO
Failure to follow all instructions listed below may result in electric
VKRFN¿UHDQGRUVHULRXVLQMXU\6DYHDOOZDUQLQJVDQGLQVWUXFWLRQ
for future reference.
NAILER SAFETY WARNINGS
$OZD\VDVVXPHWKDWWKHWRROFRQWDLQVIDVWHQHUVCareless
KDQGOLQJRIWKHQDLOHUFDQUHVXOWLQXQH[SHFWHG¿ULQJRIIDVWHQHUVDQG
personal injury.
'RQRWSRLQWWKHWRROWRZDUGV\RXUVHOIRUDQ\RQHQHDUE\
Unexpected triggering will discharge the fastener causing an injury.
'RQRWDFWXDWHWKHWRROXQOHVVWKHWRROLVSODFHG¿UPO\DJDLQVW
WKHZRUNSLHFH If the tool is not in contact with the workpiece, the
IDVWHQHUPD\EHGHÀHFWHGDZD\IURP\RXUWDUJHW
'LVFRQQHFWWKHWRROIURPWKHSRZHUVRXUFHZKHQWKHIDVWHQHU
MDPVLQWKHWRRO While removing a jammed fastener, the nailer may
be accidentally activated if it is plugged in.
8VHFDXWLRQZKLOHUHPRYLQJDMDPPHGIDVWHQHU The mechanism
may be under compression and the fastener may be forcefully
discharged while attempting to free a jammed condition.
'RQRWXVHWKLVQDLOHUIRUIDVWHQLQJHOHFWULFDOFDEOHVIt is
not designed for electric cable installation and may damage the
LQVXODWLRQRIHOHFWULFFDEOHVWKHUHE\FDXVLQJHOHFWULFVKRFNRU¿UH
hazards.
ADDITIONAL SAFETY WARNINGS
The product is designed for single-hand use. Do not hold the
product by the front of the magazine. Do not put hands, head, or
other parts of your body near the bottom of the magazine where
the fastener exits the product, as serious personal injury could be
caused.
Always ensure that the workpiece contact is fully positioned above
the workpiece. Positioning the workpiece contact only partially
above the workpiece could cause the fastener to miss the workpiece
completely and result in serious personal injury.
Do not drive fasteners near edge of material. The workpiece may
split causing the fastener to ricochet, injuring you or a coworker. Be
aware that the fastener may follow the grain of the wood, causing
it to protrude unexpectedly from the side of the work material or
GHÀHFWSRVVLEO\FDXVLQJLQMXU\
Keep hands and body parts clear of immediate work area. Hold
workpiece with clamps when necessary to keep hands and body out
of potential harm. Be sure the workpiece is properly secured before
pressing the fastener against the material. The workpiece contact
may cause the work material to shift unexpectedly.
Keep face and body parts away from back of the tool cap when
working in restricted areas. Sudden recoil can result in impact to the
body, especially when nailing into hard or dense material.
During normal use the product will recoil immediately after driving a
fastener. This is a normal function of the product. Do not attempt to
prevent the recoil by holding the nailer against the work. Restriction
to the recoil can result in a second fastener being driven from the

15
QDLOHU*ULSWKHKDQGOH¿UPO\OHWWKHSURGXFWGRWKHZRUNDQGGRQRW
place second hand on top of product or near exhaust at any time.
Failure to heed this warning can result in serious personal injury.
Do not drive fasteners on top of other fasteners or with the product at an
RYHUO\VWHHSDQJOHDVWKLVPD\FDXVHGHÀHFWLRQRIIDVWHQHUVZKLFKFRXOG
cause injury.
Always check the work area for hidden wiring, gas lines, water lines,
etc., before using the product on such work area.
After using the product in the contact actuation mode, switch it back
to the full sequential mode.
The driving depth of the fastener may be adjusted beyond air
pressure. It is advisable to test the depth on a scrap workpiece to
determine the required depth for the application.
2QO\IDVWHQHUVPDWFKLQJWKHGHVFULSWLRQLQWKHSURGXFWVSHFL¿FDWLRQV
table can be used with this product. Using incorrect fasteners may
lead to jamming or other malfunctions.
Always remove the battery before adjusting the depth of drive.
Do not press the trigger while adjusting the depth of drive.
$OZD\VVHOHFWIXOOVHTXHQWLDO¿ULQJPRGHEHIRUHDGMXVWLQJWKHGHSWK
of drive.
Do not point the product towards yourself or anyone nearby when
adjusting the depth of drive.
The product will restart automatically if stalled. Switch off the product
immediately if it stalls. Do not switch on the product again while it
is still stalled, as doing so could trigger a sudden recoil with a high
reactive force. Determine why the product stalled and rectify this,
paying heed to the safety instructions.
Ambient temperature range for tool during operation is between 0°C
and 40°C.
Ambient temperature range for tool storage is between 0°C and
40°C.
The recommended ambient temperature range for the charging
system during charging is between 10°C and 38°C.
%HIRUH¿UVWXVHWHVWWKHQDLOHUIXQFWLRQZLWKVFUDSZRRG
7KLVZLOOHQVXUHFRUUHFWSHUIRUPDQFHRIWKHQDLOHU,IWKH
QDLOHUH[SHULHQFHVSHUIRUPDQFHLVVXHVUHLQÀDWHWKHDLUWDQN
IROORZLQJWKHLQVWUXFWLRQVJLYHQ
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING!7RUHGXFHWKHULVNRI¿UHSHUVRQDOLQMXU\DQG
product damage due to a short circuit, never immerse your tool,
EDWWHU\SDFNRUFKDUJHULQÀXLGRUDOORZDÀXLGWRÀRZLQVLGHWKHP
&RUURVLYHRUFRQGXFWLYHÀXLGVVXFKDVVHDZDWHUFHUWDLQLQGXVWULDO
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG Distributors offer to retrieve old batteries to
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System AEG chargers for charging System AEG battery
packs. Do not use battery packs from other systems.
No metal parts must be allowed to enter the battery section of the
charger (short circuit risk).
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it off immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
Ambient temperature range for battery during use is between 0°C
and 40°C.
Ambient temperature range for battery storage is between 0°C and
20°C.
SPECIFIED CONDITIONS OF USE
The nailer is intended to drive nails in soft materials such as wood.
7KLVSURGXFWLVQRWVXLWDEOHIRU¿[LQJHOHFWULFFDEOHV
Do not use the product for any other purpose.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
)RUEDWWHU\SDFNVWRUDJHORQJHUWKDQGD\V
• Store the battery pack where the temperature is below 27°C and
away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
• The user can transport the batteries by road without further
requirements.
• Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
:KHQWUDQVSRUWLQJEDWWHULHV
• Ensure that battery contact terminals are protected and insulated
to prevent short circuit.
• Ensure that battery pack is secured against movement within
packaging.
• Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION LI-ION BATTERY
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch off the machine automatically. To restart,
switch the machine off and then on again. If the machine does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
MAINTENANCE
Clean the product and guarding system with clean cloths or brushes.
The ventilation slots of the machine must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
7HFKWURQLF,QGXVWULHV$XVWUDOLD3W\/WG
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
7HFKWURQLF,QGXVWULHV1=/LPLWHG
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand

16
MAINTENANCE
Use only AEG accessories and spare parts. Should components
that have not been described need to be replaced, contact one
of our AEG service agents (see our list of guarantee/service
addresses).
If needed, an exploded view of the product can be ordered. State
the product type and the serial number printed on the label,
and order the drawing at your local service agents or directly
at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364
Winnenden, Germany.
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
Accessory - Not included in standard equipment,
available as an accessory.
Wear eye protectors.
Keep hands away.
Do not dispose of electric tools, batteries/rechargeable
batteries together with household waste material.
Electric tools and batteries that have reached the end
of their life must be collected separately and returned
to an environmentally compatible recycling facility.
Check with your local authority or retailer for recycling
advice and collection point.
No-load speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Product does nothing or
operates sluggishly
Inadequate lubrication.
Worn or damaged O-ring seals or bumper.
Exposure to low temperatures.
Exposure to high temperatures.
Contact Authorised Service Centre for tool
lubrication.
Contact Authorised Service Centre for repair.
Allow product to warm to proper operating
temperature.
Allow product to cool to proper operating
temperature.
Product jams frequently
Incorrect fasteners
Damaged fasteners
Loose magazine
Dirty magazine
Worn or damaged driver
Verify that fasteners are of the correct size.
Replace fasteners.
Tighten screws.
Clean magazine.
Contact Authorised Service Centre for repair.

Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trade mark used under
license from AB Electrolux (publ).
961096826-01A
