AGFA Drystar 5302 User manual

Drystar 5302
User manual

22831A EN 20041201
DRYSTAR 5302 USER MANUAL
This product is registered in China under the registration number:
For more information on Agfa products and Agfa HealthCare products, please visit www.agfa.com, your Point
of Knowledge.
© Agfa-Gevaert N.V. 2004.
No parts of this document may be reproduced, copied, adapted or transmitted in any form or by any means
without the written permission of Agfa-Gevaert N.V.
Agfa-Gevaert N.V. makes no warranties or representation, expressed or implied, with respect to the accuracy,
completeness or usefulness of the information contained in this document and specifically disclaims warran-
ties of suitability for any particular purpose. Agfa-Gevaert N.V. shall under no circumstances be liable for any
damage arising from the use or inability to use any information, apparatus, method or process disclosed in this
document.
Agfa-Gevaert N.V. reserves the right to make changes to this document without prior notice.
Agfa-Gevaert N.V., Septestraat 27, B-2640 Mortsel, Belgium.
Drystar 5302 is a trademark of Agfa-Gevaert N.V., Belgium.
Agfa and Agfa-Rhombus are trademarks of Agfa-Gevaert AG, Germany.
SFDAlabelDS5302
ToBedefined

3
2831A EN 20041201
DRYSTAR 5302 USER MANUAL
Table of contents
Chapter 1: Introducing the Drystar 5302 ..................................................5
Drystar 5302 features.....................................................................................6
Safety precautions ..........................................................................................9
Security precautions.....................................................................................12
Safety compliance.........................................................................................13
Privacy and security .....................................................................................15
Operating modes ..........................................................................................17
Control modes (local and remote) ...............................................................19
The user interface.........................................................................................20
Switching on the Drystar 5302.....................................................................30
Switching off the Drystar 5302 ....................................................................32
Chapter 2: Basic operation (Operator mode) ..........................................33
Overview of operator functions ...................................................................34
Managing the print queue ............................................................................35
About Drystar 5302 consumables ................................................................37
Loading films ................................................................................................38
Chapter 3: Advanced operation (key-operator mode) ..........................45
Overview of key-operator functions.............................................................46
Quality Control .............................................................................................47
Preventive maintenance schedule ................................................................59
Cleaning the exterior....................................................................................60
Cleaning the print head................................................................................61
Troubleshooting checklist ............................................................................65
Appendix A: Equipment information sheet..............................................67
Specifications ...............................................................................................68
Viewing the System info area on a film........................................................72
Options and accessories ...............................................................................73
Connectivity..................................................................................................74
Appendix B: Quality Control Charts ..........................................................75

42831A EN 20041201
DRYSTAR 5302 USER MANUAL

Introducing the
Drystar 5302
This chapter introduces the Drystar 5302 to the user and
draws attention to important safety precautions.
!Drystar 5302 features
!Safety precautions
!Security precautions
!Safety compliance
!Privacy and security
!Operating modes
!Control modes (local and remote)
!The user interface
!Switching on the Drystar 5302
!Switching off the Drystar 5302
Chapter 1

62831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Drystar 5302 features
The Drystar 5302 is a dry digital tabletop printer for producing medical
diagnostic images. It can print multiple formats (8x10” up to 14x17”) of blue-
based and clear-based film and offers crisp, dense grayscale images.
The Drystar 5302 offers the following features:
"Dry technology for printing diagnostic quality hardcopies in full daylight offers
important advantages: no chemistry, no wet processing, simple cleaning proce-
dures, no time-consuming adjustments, no darkroom and no chemical disposal
costs. The consumables can be loaded in full daylight.
"With its compact design, the Drystar 5302 needs little work space and allows
easy customer access. Maintenance and service activities are reduced to a mini-
mum.
"The direct thermal printing system provides grayscale images with high quality:
320 pixels per inch resolution, each pixel with 12 bit contrast resolution and an
optical density ranging from 0.2 up to 3.1 (measured with an X-Rite 310 densit-
ometer).
"Multiple film formats (8x10”, 10x12”, 11x14”, 14x14” and 14x17”) can be used.
Any combination of two film formats can be used “online”. Both input trays can
be adjusted for all film formats.
"The input trays of the Drystar 5302 are equipped with an RF-tag reader, which
automatically traces the films used in the printer and protects the printer when
detecting non-identified media.
"Number of input trays.
The Drystar 5302 is equipped with 2 input trays. Both input trays can use multiple formats
(8x10” up to 14x17”).
The Drystar 5302 is a Dicom-only network printer.

7
2831A EN 20041201 Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
"Number of output trays.
The Drystar 5302 is equipped with 1 output tray, which is suitable for the
multiple formats without any adjustment.
"Integrated A#sharp technology
A#sharp is a technology that enhances image sharpness for the Drystar 5302.
An A#sharp label on the lower tray shows that the imager has been upgraded
with this technology.
Network features
"The modular design offers optimal application functionality for your specific
networking requirements.
In a network configuration, the Drystar 5302 is fully compatible with Agfa’s
diagnostic imaging systems, including the ADC Compact and ADC Quality
System software, the Paxport and the entire line of Impax Review Systems,
Storage Stations and Transmitting Stations. For more information, contact
your Agfa representative.
"The functionality of the Drystar 5302 is completely controlled via the network.
"You can control the working of the Drystar 5302 via the local keypad or via a
remote PC with a functioning web browser.
1A#Sharp label
1

82831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Customizable features
"Consumables.
The Drystar 5302 can handle Drystar DT 2B and Drystar DT 2C consumables,
both in multiple formats (8x10” up to 14x17”).
Software license information
"The Drystar 5302 uses software developed by the Apache Software Foundation
(http://www.apache.org/licenses/LICENSE).

9
2831A EN 20041201 Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Safety precautions
When operating or maintaining the Drystar 5302, always observe the
following safety guidelines:
•Have electrical or mechanical defects repaired by qualified personnel only!
•Do not override or disconnect the integrated safety features.
•Ventilation openings should not be covered.
•Always switch off the Drystar 5302 and disconnect the power cord from
the outlet before carrying out any maintenance work.
Always take into account the markings provided on the inside and outside of
the printer. A brief overview of these markings and their meaning is given
below.
The Drystar 5302 must only be operated according to its specifications and its
intended use. Any operation not corresponding to the specifications or intended use
may result in hazards, which in turn may lead to serious injuries or fatal accidents
(for example electric shocks). AGFA will not assume any liability whatsoever in
these cases.
All images created using any image technology can show artifacts which could be
mixed up with diagnostic relevant information. If there is any doubt that the
diagnostic information could not be absolutely true, additional investigations must
be performed to get a clear diagnostic.
Film jam removal or cleaning the printer thermal head can be done without
switching the power off. Nevertheless, care should be taken and the following
instructions should be respected:
Safety warning, indicating that the Drystar 5302 manuals should be
consulted before making any connections to other equipment. The
use of accessory equipment not complying with the equivalent safety
requirements of this printer may lead to a reduced level of safety of
the resulting system. Consideration relating to the choice of
accessory equipment shall include:
• Use of the accessory equipment in the patient vicinity,
• Evidence that the safety certification of the accessory equipment
has been performed in accordance with the appropriate IEC 601-1
and IEC 601-1-2 harmonized national standard.
In addition all configurations must comply with the medical
electrical systems standard IEC 601-1-2. The party that makes the
connections acts as system configurator and is responsible for
complying with the systems standard.
If required contact your local service organization.

10 2831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Transport after installation
Before moving the printer, always switch off the machine. The Drystar 5302
should be transported by 3 persons or if not possible with 2. Refer to ‘Remove
Drystar 5302 from pallet’ on page 5of the Installation manual. When doing
this, the stability and the structure of the table top have to be taken into
account. The printer should not be placed on a soft surface, since this might
prevent appropriate ventilation and cause overheating. The printer must only
be transported with all covers closed. The appliance may not be transported
Caution hot:
Keep hands clear from the thermal print head.
In order to reduce the risk of electric shock, do not remove any
covers.
Type B equipment:
Indicates that the Drystar 5302 complies with the limits for type B
equipment.
Supplementary protective earth connector:
Provides a connection between the Drystar 5302 and the potential
equalization busbar of the electrical system as found in medical
environments. This plug should never be unplugged before the
power is turned off and the power plug has been removed.
Intergrounding connector:
Provides a connection between the printer and other equipment
which might exhibit minor ground potential differences. These
differences may degrade the quality of communication between
different equipment. Never remove connections to this terminal.
Protective earth (ground):
Provides a connection between the printer and the protective earth
of the mains. Do not remove this connection, because this will have a
negative influence on the leakage current.
Power button:
Note that the power cord has to be disconnected from the wall outlet
in order to disconnect the unit entirely from the mains.
Precautions for use in USA only:
Make sure that the circuit is single-phase center-tapped, if the printer
is connected to a 240 V/60 Hz source instead of a 120 V/60 Hz
source.

11
2831A EN 20041201 Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
continuously from one location to the other. Do not lift the printer by the
output tray.
Waste disposal and environmental regulations
In most countries Drystar film is considered industrial waste and
consequently it is not allowed to be disposed as household waste. Please
consult your local waste disposal regulations. Agfa recommends having waste
Drystar film collected by a licensed company.
After its life span, do not dispose of the Drystar 5302 without consideration of
local waste disposal regulations. Please consult your local service
organization.

12 2831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Security precautions
U.S. Law restricts this device to sale to or on the order of a licensed physician.
Printed images should be treated as patient records and should only be
viewed by authorized personnel.
If the power to the printer is unexpectedly interrupted, ensure that
unprinted images are not deleted from the modality prior to printing. To
avoid loss of images in such conditions, a UPS (Uninterruptable Power
Supply) needs to be supplied to the printer.

13
2831A EN 20041201 Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Safety compliance
EMC issues
•USA: This equipment has been tested and found to comply with the limits
for a class A digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
Drystar 5302 Reference manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to
correct the interference at its own expense.
If required, contact your local service organization.
•Canada: This class A digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
•EC: This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Compliances
The Drystar 5302 has been tested and found to comply with the following
international standards and regulations:
•the Medical Devices Directive 93/42/EEC
•CFR Part 21
Safety standards
•IEC 60601-1 + A1 + A2
•EN 60601-1 + A1 + A2
•UL 60601-1
•CSA 22.2 No. 601.1-M90
•GB4943-2001 (for CCC-Mark)

14 2831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Radio-interference regulations (interference suppression)
•FCC Rules 47 CFR part 15 subpart B
•IEC 60601-1-2
•CISPR 11, class A
•CISPR 22, class A
•IEC 61000-4-3
•IEC 61000-4-4
•IEC 61000-4-5
•IEC 61000-4-6
•IEC 61000-3-2
•IEC 61000-3-3
•IEC 61000-4-11
•ETSI 300330
•GB9254-1998(Class A) (for CCC-Mark)
•GB17625.1-2003 (for CCC-Mark)
Labels
The Drystar 5302 carries the CE, TÜV, cULus and CCC labels.
1CCC label
2CE, TÜV and cULus label
2
1

15
2831A EN 20041201 Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Privacy and security
Within the healthcare industry, several standardization efforts are ongoing as
a response to Privacy and Security legislation and regulations. The purpose of
this standardization for hospitals and vendors is to enable information
sharing, interoperability and to support the workflow of hospitals in a
multiple vendor environment.
In order to allow hospitals to comply with HIPAA regulations (Health
Insurance Portability and Accountability Act) and to meet the IHE standards
(Integrated Healthcare Enterprise) some security features are included in the
user interface of the Drystar 5302 (available via the web pages only: under
‘Security tools’. Refer to Chapter 4, ‘Controlling the Drystar 5302 via a remote
PC (with browser)’ of the Drystar 5302 Reference manual):
•User authentication. The administrator can configure different user
accounts. Each account consists of a user name and a password.
•Audit logging. This implies logging to a central log server of specific
Drystar 5302 ‘actions’, e.g. startup/shutdown, user authentication
(failures), received print job ID information, etc.
•Node authentication, using certificates. Working with SSL (Secure Sockets
Layer) allows secure communications over an insecure network. SSL is the
security layer on top of TCP/IP.
The first two functions are available when access to the Administrator is
granted (i.e. when the Administrator password has been correctly entered).
To activate the SSL, please contact your Agfa representative.
Node authentication, certificates and Certification Authority
Each device - connected to a network - will receive a unique identifier: the
X.509 certificate, a digital passport. Any device on the network is only
allowed to communicate with another node of which it is holding the
certificate in a ‘communication allowed’ table.
A Certification Authority (CA) is responsible for creating a certificate. The CA
can be the hospital, Agfa or a third party.

16 2831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
This CA distributes the certificate to the hospital security responsible or
service technician, who for his part:
•Imports the device certificate, created by the CA.
•Imports the certificates of all peer devices with which communication is
authorized, i.e. creates the list of ‘communication allowed’ device
certificates.

17
2831A EN 20041201 Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Operating modes
The Drystar 5302 can be operated in five modes: Operator mode, Key-
operator mode, Service mode, Specialist mode and Administrator mode.
Operator mode
The Operator mode groups all basic functions that are intended for
radiographers without special technical skills:
•Producing diagnostic usable hardcopies;
•Loading consumables;
•Ensuring normal operation of the printer.
All functions of the Operator mode are described in both User and Reference
manuals. Refer to Chapter 2, ‘Basic operation (Operator mode)’.
Key-operator mode
The Key-operator mode groups advanced functions that are intended for
technically skilled operators such as X-ray operators, network managers and
service and hospital technicians.
The Key-operator mode is menu-driven. The Key-operator functions are
described in the Drystar 5302 Reference manual only. Refer to Chapter 3,
‘Advanced operation (Key-operator mode)’.
Service mode
The Service mode functions are reserved for trained Service personnel. The
Service mode is password protected and is only accessible by browser via a
remote PC.
Specialist mode
The specialist mode functions are reserved for trained service personnel of
the Agfa Customer Support Center. The specialist mode is password protected
and is only accessible by browser via a remote PC.

18 2831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Administrator mode (also known as Security)
The Administrator mode functions are reserved for the System Administrator.
The Administrator mode is password protected and is only accessible by
browser via a remote PC.

19
2831A EN 20041201 Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
Control modes (local and remote)
You can control the working of the Drystar 5302 via the local keypad or via a
network remote PC.
The table below gives an overview of the operating modes you can access
locally and/or via the remote PC.
The manual describes the controlling of the Drystar 5302 via the local
keypad. The menus for controlling the Drystar 5302 via a remote PC are
structured in the same way and sometimes they offer even more possibilities.
Refer to Chapter 4, ‘Controlling the Drystar 5302 via a remote PC (with
browser)’ of the Drystar 5302 Reference manual.
Local Password
protected Remote Password
protected
Operator mode No ––– –––
Key-operator mode No Key-operator mode Yes
––– ––– Service mode Yes
––– ––– Specialist mode Yes
––– ––– Administrator Yes

20 2831A EN 20041201Introducing the Drystar 5302
DRYSTAR 5302 USER MANUAL
The user interface
The Drystar 5302 interfaces with the user via the following controls:
•Power/Reset button;
•a keypad and a display;
•a status indicator LED;
•audio signals.

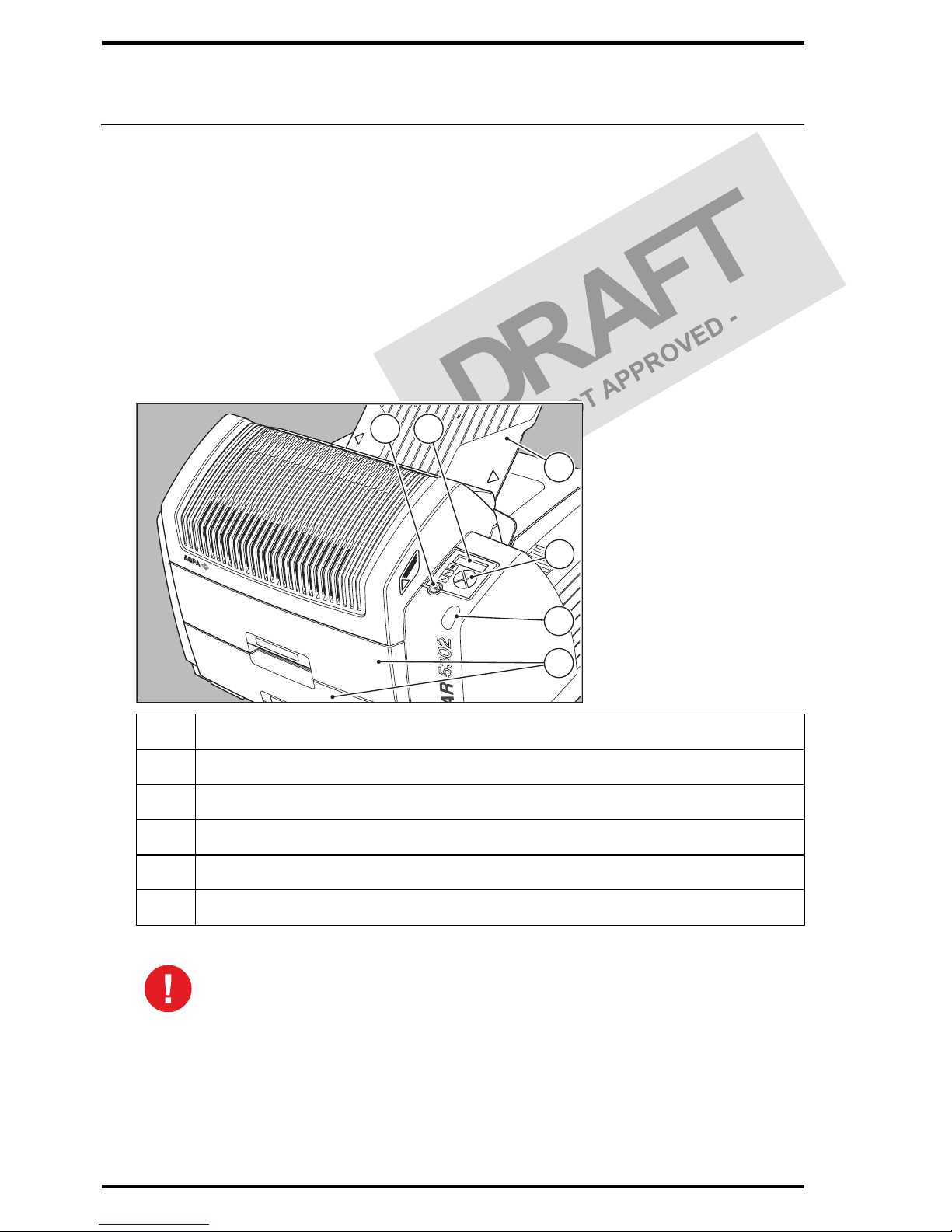

Overview of user interface controls
1Power/Reset button
2Display
3Keypad
4Status indicator LED
5Film input trays
6Film output tray
Never try to open the printer when the Drystar 5302 is printing a film.
Always follow the instructions on the display!
1 2
3
4
6
5
