AGPtek A125 User manual

www.agptek.com
[e-mail]
Hello
AGPTEK MUSIC PLAYER
MADE IN CHINA

1-10 AGPTek A125 Music Player User Manual
11-21 AGPTek A125 Music Player Bedienungsanleitung
22-32 AGPTek A125 Music Player Guía rápido de inicio
33-43 AGPTek A125 Music Player Guida Rapida
44-52 AGPTek A125 Music Player Guide Rapide
53-63 AGPTek A125 音楽プレーヤー 取扱説明書
Index
Buttons and controls............................................................................................................. 1
Charge the Player................................................................................................................... 2
Power On/Off...........................................................................................................................2
Lock Screen.............................................................................................................................. 2
Volume Adjustment...............................................................................................................2
Music..........................................................................................................................................3
Recordings................................................................................................................................5
Radio.......................................................................................................................................... 6
E book........................................................................................................................................ 6
Set............................................................................................................................................... 7
Last Played(Now Playing)..................................................................................................... 8
Help and Troubleshooting...................................................................................................8
Specifications...........................................................................................................................9

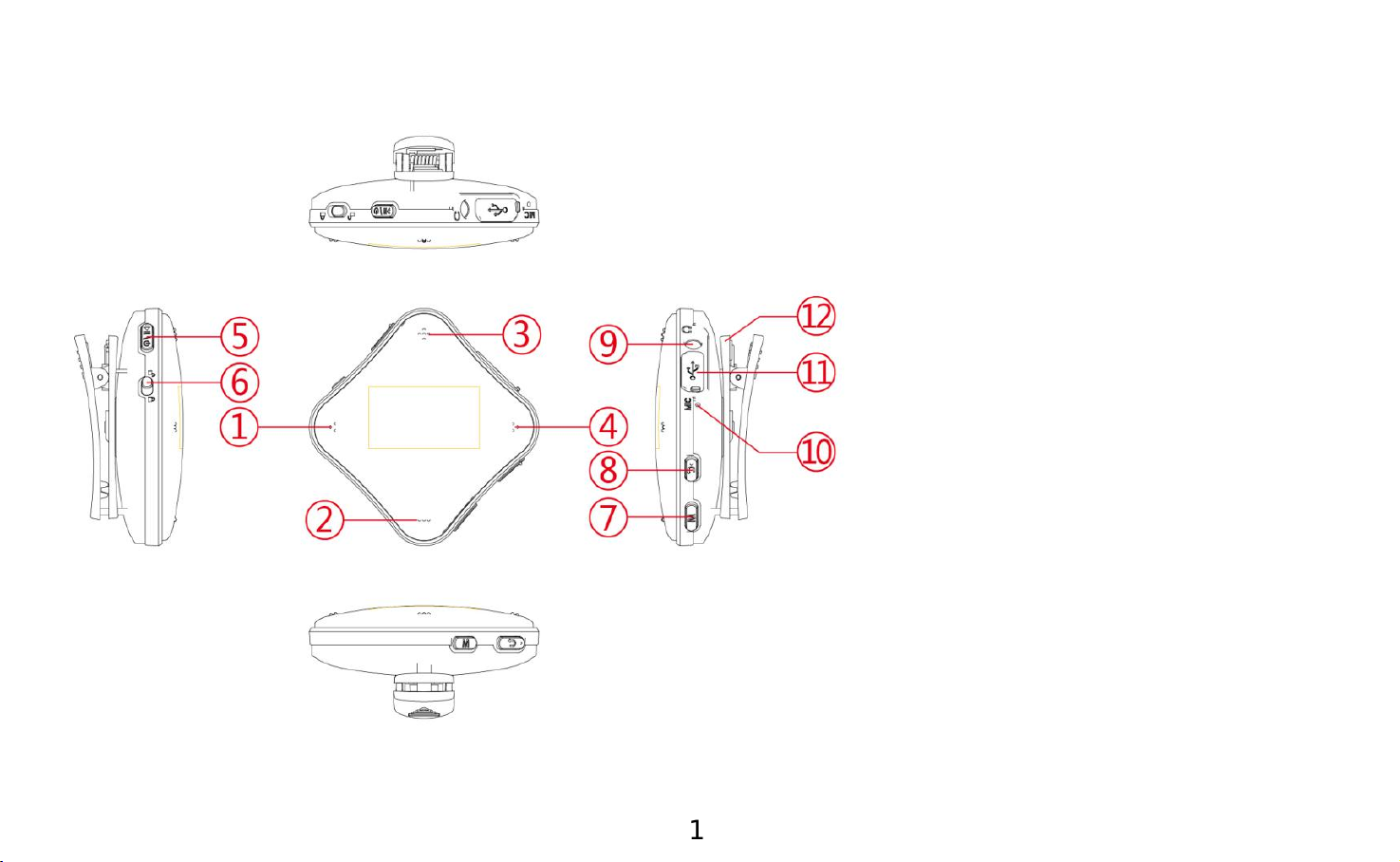

Buttons and controls
1. Previous/Fast
backward
button//Move up
2. Volume -
3. Volume +
4. Next/Fast forward
button/Move down
5. Power button/Play/
Pause/Enter
6. Lock/unlock
7. Menu button
8. Return button
9. Earphone jack
10. MIC hole
11. USB port
12. Clip
1

Charge the Player
Use 5V/500mA charger for charging.
Plug one end of the micro USB cable into the USB port of a computer, the other
end to the port on your device. While it is fully charged, disconnect the cable
from your device by pulling it straight outward.
Power On/Off
Hold button \ for 3 seconds to switch on/off the player.
Lock Screen
Slide the lock button to lock the screen. Repeat to unlock.
Volume Adjustment
Click volume button / to increase/decrease the volume.
Return
Always click button to go back.
Main interface
Each time you press the button / , it will bring you to one of its 7 different
functions, including Music, Recordings, radio, Ebook, Folder View, Set, Now
playing(Last played).
2

Music
When there is a icon in the main interface, click button \ to access to its
function. The related list will show, including: All songs, Artists, Albums,
Genres, Playlists, Update music library.Choose from the menu, and click \
button to enter and play the music. Click button to return.
All songs: all of the songs in the player will be listed here;
Playlists: all of the playlists created will be listed here(up to 50 playlists
can be created);
Genres/Artists/Albums: all of the songs will be listed by
genres/artists/album;
When it is on music list, click button M to access to its submenu. Choose from
(Now playing)Last played, Play, Add to playlist.
Rewind/Forward
While it’s on music playing interface, hold the button to fast forward, short
press to next music file; hold the button to rewind, short press to the
previous song files. Click the \ button to play/pause.
Submenu
While it’s on music playing interface, click button M to access to the submenu.
3

The related list will show, including“Equalizer”, “Repeat”, “Variable Speed
Playback”, “Repeat settings”,“Delete”.
1. Equalizer
Click button M >“Equalizer”>” Off”, “Rock”, “Funk”, ”Hip hop”, “Jazz”,
“Classical”, “Techno”.
2. Repeat
There will be 4 options, including Repeat off, Repeat 1, Repeat all, Shuffle .
3. Repeat settings(only available when the music is playing)
Repeat mode(A-B): choose the option Replay mode, click button to confirm
the starting time A when A is flashing.
Then click the button to set the ending time B when B is flashing. The audio
from time A to B will be repeated automatically. The icon for A-B indication will
appear on the screen.
Replay times: Set the replay times from 1 to 10.
Replay intervals: Set the replay interval for 1 to 10 (seconds).
4. Variable Speed Playback
Click button M >“Variable Speed Playback”to adjust speed from -8(Slowest) to
4

+8(Fastest). Set the playing speed as you need.
Note: While the music is still playing in the backstage, and you switch off the
player, then next time you turn it on, it will start playing from where you left off.
Recordings
When there is a icon in the main interface, click the \ button to access
to its function. The related list will show, including: Start voice recording,
Recordings library, Record Format, Recording settings.
- Click the \ button to start voice recording, click again to pause/resume.
- Click button and choose yes to save the recording.
- Find the saved recordings in Recordings >Recordings library.
Click the button / to select from all the recording files you have saved.
Click button M to choose delete or not.
Then click the \ button to play the recording files you just saved.
Record format: MP3/WAV Rec
set rec bitrate: Select from 512/768/1024/1536kbps for WAV format;
32/64/128/192kbps for MP3 format;
Set recording scene: Choose from the 5 different scenes.
5

Radio
Find on main screen with the \ button to access to its function.
Insert the earphone, then select FM frequency from 87.5 to 108.0MHz.
While in the FM radio interface, press button M to enter the submenu: Auto
tune, Presets, Save to preset, Clear preset, FM recording, Tuner region.
Choose FM recording to start recording the radio. Click the \ button to
pause/resume. Click and choose yes to save the recording and it will back
to the FM radio interface automatically.
Find the radio recordings in Recordings > Recordings library.
E book
Please kindly note the device only can recognize the article in “txt.” format.
Click the button \ to enter;
Click button / to turn the page up and down;
While on text playing interface, click the button \ to play
automatically, click again to back to normal playing;
Click button M and choose Playsetting to set the interval, delete ebook,
page select, add/delete/go to bookmark;
6

Click button to return.
Folder View
Find on main screen with the \ button to access to its function.
Click button / to choose from the different folders/files. Click button M
to delete. Click the \ button to play/view.
Note: Always put the lyric file and the music file in the same folder.
Set
When there is a icon in the main interface, click the \ button to access
to its function. The related list will show, including: Backlight timer, Brightness
Adjustment, Poweroff timer, Sleeptimer, Language, Information, Format device,
Factory settings. Click the button \ to save your settings.
Backlight timer: set the time at 10(seconds)/20(seconds)/ 30
(seconds)/Always on.
Poweroff timer: Set the time to turn off the player automatically within
0-120 seconds when there is no operation.
Note: The player will not shutdown when it is playing music, radio, Ebook.
Sleep timer: Choose off to turn off this function. Select on and set the time
between 1-99(minutes), when it reaches the time you set, the player will
7

power off automatically;
Language: Choose your language;
Information: See Player information/Disk Space about your player;
Format device/Factory settings: Format the device or restore to factory
setting according to your need.
Last Played(Now Playing)
Find the icon in the main interface, click the \ button to get a quick
access to the music playing interface. It will resume playing the music from
where you left off if there is music playing at the backstage.
Help and Troubleshooting
● Can’t turn on the player
- Please check whether the player is run out of battery, connect the player to a
adapter and try again after charging.
● Can’t hear any sound from the player
- Please check if the volume is set to 0;
- Please check if the earphone is in poor contact with the player.
● Heavy noise when playing music
