AGPtek A29 User manual

User Manual
A29 Music Player

CONTENTS
01/03
04/06
07/07
08/10
11/12
13/14
English
Deutsch
Italiano
Español
Français
日本語

Thank you for purchasing AGPtek MP3 Player. Please read
the manual carefully before using the product.
Specifications are subject to change without prior notice.

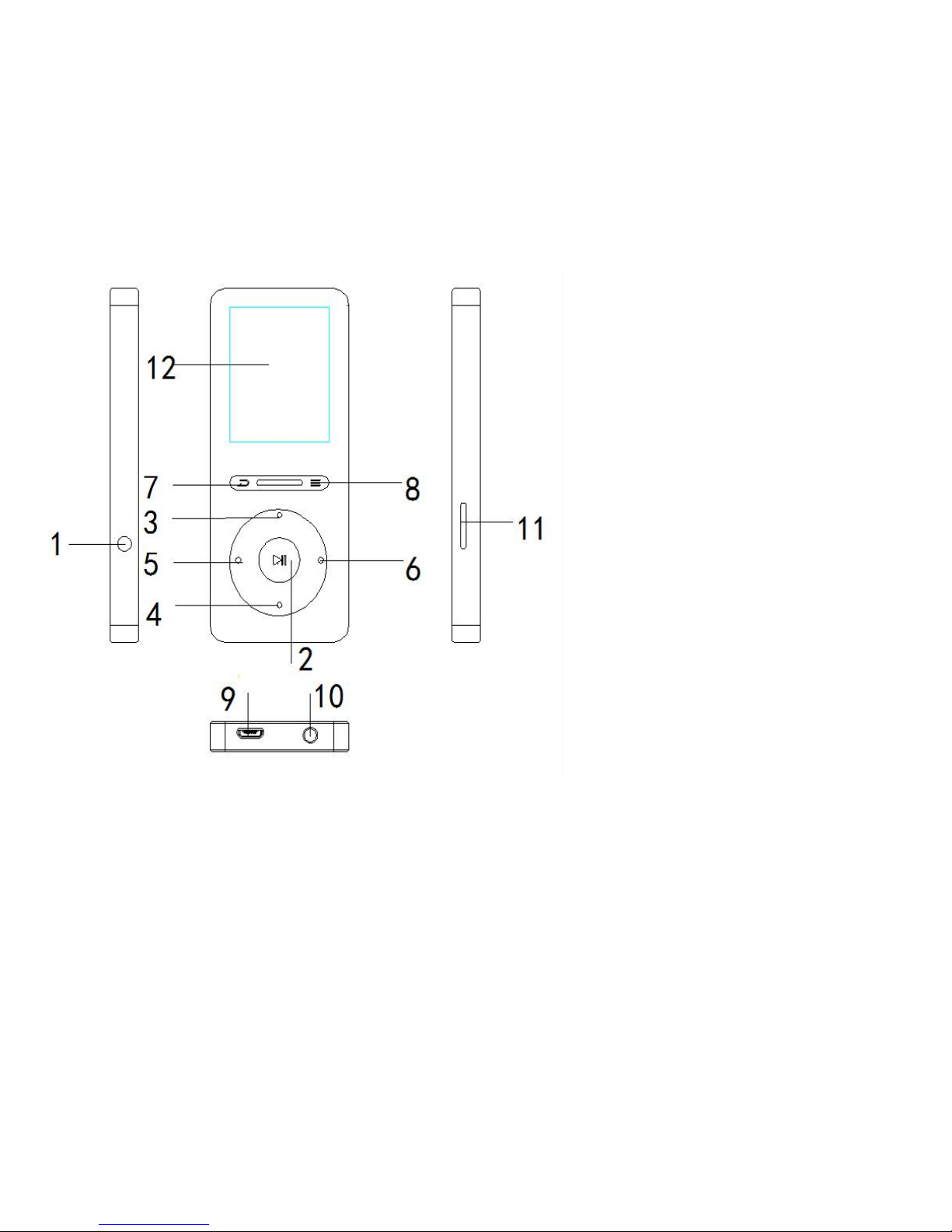

Buttons and Controls
Data Transfer
You can transfer music from your computer to the player
using the drag-and-drop method or using music
management software such as Windows Media Player.
You can simply plug it into your computer and copy over
media files as if it were a hard drive.
Charge the Player
1. By connecting to a computer with the included USB
cable
1.Power button
2.Play/Pause/Enter
3.Scroll up/Volume +
4.Scroll down/
Volume -
5.Previous/Rewind
6.Next/Fast forward
7.Back button
8.Menu button
9.USB port
10.Earphone jack
11.Card slot
12.Display

The USB cable can both be used for data transfer and
charging the player.
2. By connecting to a charger(Not included)
Please note: The specifications of the charger must meet
the following requirements or any accident or failure
happened will be regarded as man-made damage.
Input: AC110-240V 50/60Hz Max:100mA
Output: DC5.0-5.5V 500mA-800mA
Power On/Off
1. Power On: Slide the power switch to "On" position. If
the switch is already at "On" position, just press the play
button for 3 seconds.
2. Power Off:
1) Slide the power switch to "Off" position.
2) Press play button for 3 seconds when the switch is
at "On" position.
Note:
1) Please put the power button to "Off" position if you
won’t use it for a long time.
2) If you cannot switch on the player, please make sure
the slider switch is on the right side.
3) When the player is on the music playing interface, if
you hold button to turn off it, next time you switch
on the player, it will start from the last position it left off.
Main interface
Each time you press the button ▲/▼/ / , it will bring
you to one of its 9 different functions, including Music,
Radio, Folder, Setting, Record, Tools, Pictures, EBook and
Video.
While it’s on the main interface, press button to

enter.
Play Music
Find "Music" on main menu, click button to access to
its function. Click button▲/▼to choose from the songs,
click button to play.
- All songs — play by name sequence
- Nowplaying — take you back to the song or audio file
that you are playing now.
- (Resume) — Choose "Resume" to start playing from
where you left off last time.
- Artists —Displays Tracks sorted by Artist
- Albums — Displays all Tracks sorted by Album
- Genres — Displays all Tracks sorted by Genre
- Playlists —3 playlists
- Update card data — Update local and card folder
- Local folder — Internal memory
- Card folder — External Micro SD memory card
Volume Adjustment
When it’s on music playing interface, press ▲/▼to
increase/decrease the volume.
Fast Rewind/ Forward
When it’s on music playing interface:
-Hold button / for fast backward/forward. Click to
go to previous/next song;
-Click button to play or pause.
Return
In any interfaces, click button to back to the previous
menu; hold to back to main interface.
Submenu

While it’s on music playing interface, press the button
to access to the submenu.
Then a related list will show, including:
"Home", go back to main interface.
"Repeat", choose to repeat 1, repeat all, and view playing
or turn off repeat function.
"Shuffle", choose to turn on/off shuffle mode.
"Play from…", choose to play songs from all
songs/artist/album/genre.
Please note: you can also find "Repeat"/"Shuffle"/"Play
from…" in "Setting">"Play mode", whether you make
changes in "submenu" or "settings", the setting will work
in Music, but not in video.
"Equalizer", choose from the 7 sound effects, or choose
"off" to turn off equalizer
Please note: you can also find "Equalizer" in
"Setting">"Sound settings", whether you make changes in
"submenu" under Music or "settings", the setting will
both work.
"Speed", adjust speed from -8(Slowest) to +8(Fastest).
"Language learning"(only available when the music is
playing),
1) Choose the option "A-B Repeat", click button to
confirm the starting time A(A is flashing).
2) Then click button again to set the ending time B(B
is flashing). Click button again and the audio from
time A to B will be repeated automatically. The icon for
A-B indication will appear on the screen.
3) Click button again to back to normal playback.

Replay Times, choose to replay passage A-B for 1-10
times.
Replay Interval, choose to set the playing intervals for
1-10 seconds.
"Sleep timer", choose "Off" to turn off timer, or choose to
set the sleep timer in 1-99 minutes.
"Bookmarks", choose to add, delete or go to bookmark.
"Delete", choose to delete the song that is playing now.
"Add to playlist"/"Remove from Playlist", choose to add to
or remove from the 3 playlists.
• To shuffle your music
You can shuffle your songs from the music playing screen
by pressing the button > "Shuffle", and you can also
Shuffle by pressing "Setting"> "Play mode" > "Shuffle".
• To repeat your songs
You can repeat your songs from the music playing screen
by pressing the button > "Repeat", and you can also
repeat by pressing "Setting"> "Play mode" > "Repeat".
The player would only play the first 10 seconds of a track
and then skip if you select option "View playing" under
"Repeat".
Please note: if you play songs through "Music", it will only
repeat in the folder which your songs is included.
Video
Find "Video" on main menu, click button to access to
its function. You will need to choose from local folder or
card folder if the card is inserted. In the video list, click
button to go to its submenu:
"Home", go back to main interface.
"Repeat", choose to repeat 1, repeat all or turn off repeat

function.
"Delete video", choose to delete the video.
"Update Card Data", update the videos in the card.
Fast Rewind/Forward
When it’s on video playing interface:
-Press ▲/▼to increase/decrease the volume.
-Hold the button / for fast backward/forward. Click
to the previous/next video;
-Click button to play or pause.
-Click button to back to the previous menu; hold to
back to main interface.
Please note: This player can only support the .amv format
in 160*128, you should convert video files by format
conversion software first.
Radio
Select "Radio" on main menu, click button to access
to its function. A related list will show including "Station
list", "Manual tune", "Auto tune" and "FM recording". Click
▲/▼to select.
Manual tune and Auto tune
You can adjust the radio by "Manual tune" or "Auto tune",
Choose "Manual tune", click button / to rewind or
forward search one by one, and hold button / to
search automatically, press the button to stop.
Choose "Auto tune" to search and save the radio stations
automatically.
Set the FM radio with the button
While on radio playing screen, press button to go to
its submenu, including "Start FM radio recording", "Save",

"Clear preset", "Auto tune", "Tuner region" and "FM
recording".
- Choose the item "Home" to main interface(You can
also press continually or hold button to back
to the main interface.)
- Choose "Previous menu" to back to the last menu.
- Choose "Start FM radio recording" to save the
radio you want to record, find the saved recordings in
the "FM recording".
Please note:
1. You can only listen to mono radio station on this player.
2. The saved recordings can be saved in WAV (in default)
/MP3/ACT format, choose to set the format in "Record" >
"Record Settings">"Record Format".
3. You can choose to store your radio in local folder or
card folder under "FM recording" when the card is
inserted.
Pictures
-Click to enter and choose to play photos from local
folder or card folder;
-Click / to go to the previous/next picture.
Record
Select "Record" on main interface, click button to
access to its function, then a related list will show as "Start
Voice Recording", "Recordings library", "Storage"(only
available with card inserted) and "Record Settings".
-Select "Start Voice Recording" and click to start your
recording. Click and then choose "Yes" to save your
recording;
-When it’s on recording interface, click the button to

pause or start;
-See your recording files in Recordings library. Click
button to play the recordings. Click / to go to
the previous/next recording.
-Storage (only available when an expandable card is
inserted), choose to store your recordings in internal or
external memory. Confirm your selection with button .
Record Settings
"Record Format", Select a format among MP3, WAV and
ACT;
"Set rec bitrate", Select from 512/768/1024/1536kbps for
WAV format; 32/64/128/192 kbps for MP3 format; 8
kbps for ACT format;
"Track AVR mode": Choose Normal/AVR mode;
Note: When it is in AVR mode and you choose to start
recording, the player will not record until sound is
detected and stop recording when no sound detected.
"Set recording scene", choose from different scenes.
Folder
Select "Folder" on main menu, click button to access
to its function. All of the files in the player will be listed. If
the Micro SD card is inserted, you can choose to go to
Local folder or Card folder. Click ▲/▼to select and choose
to play.
Tools
Select "Tools" on main interface, click button to access
to its function. A related list will show "Calendar",
"Stopwatch" and "Alarm".
Select Stopwatch and click button to enter, click
