Assa Abloy Corbin Russwin ED4000 Series User manual

FM209 10/20
Installation Instructions
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Available on the following devices:
Rim
Mortise
SecureBolt
Concealed Vertical Rod
*Surface Vertical Rod
*Rod Guards Required (made by other manufacturers)
ED4000, ED5000 Series Exit Device
Delayed Egress
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information
go to www.P65warnings.ca.gov.

2
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
TOC Table of Contents
1 Panic and Fire Rated Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
a Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
b Required Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
c Optional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
d Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 End Cover and PC Board Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3 DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Installation of End Cover Asssembly to Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Device Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Wiring Layout: Input/Output Wiring Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7 ElectroLynx Connector System for All Electrical Installation. . . . . . . . . . . . . . . . . . . . . 10
8 ElectroLynx Wiring Options Overview with QC8 Hinge . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Installing Delayed Egress Exit Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10 ElectroLynx Wiring Options Overview with QC12 Hinge. . . . . . . . . . . . . . . . . . . . . . . . 13
11 ElectroLynx Wiring Deed: M93 Trim Monitor Option and QC12 Hinge . . . . . . . . . . 14
12 ElectroLynx Wiring Deed: Electrified Trim (ET) Option and QC12 Hinge . . . . . . . . . 15
13 ElectroLynx Wiring Deed: M91 Latchbolt Monitor Option and QC12 Hinge . . . . . 16
14 Non-ElectroLynx Door Prep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
15 Wiring Diagram: Single Door Exit Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3
Delayed Egress
Installation Instructions
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
ED4000, ED5000 Series Exit Device
TOC Table of Contents

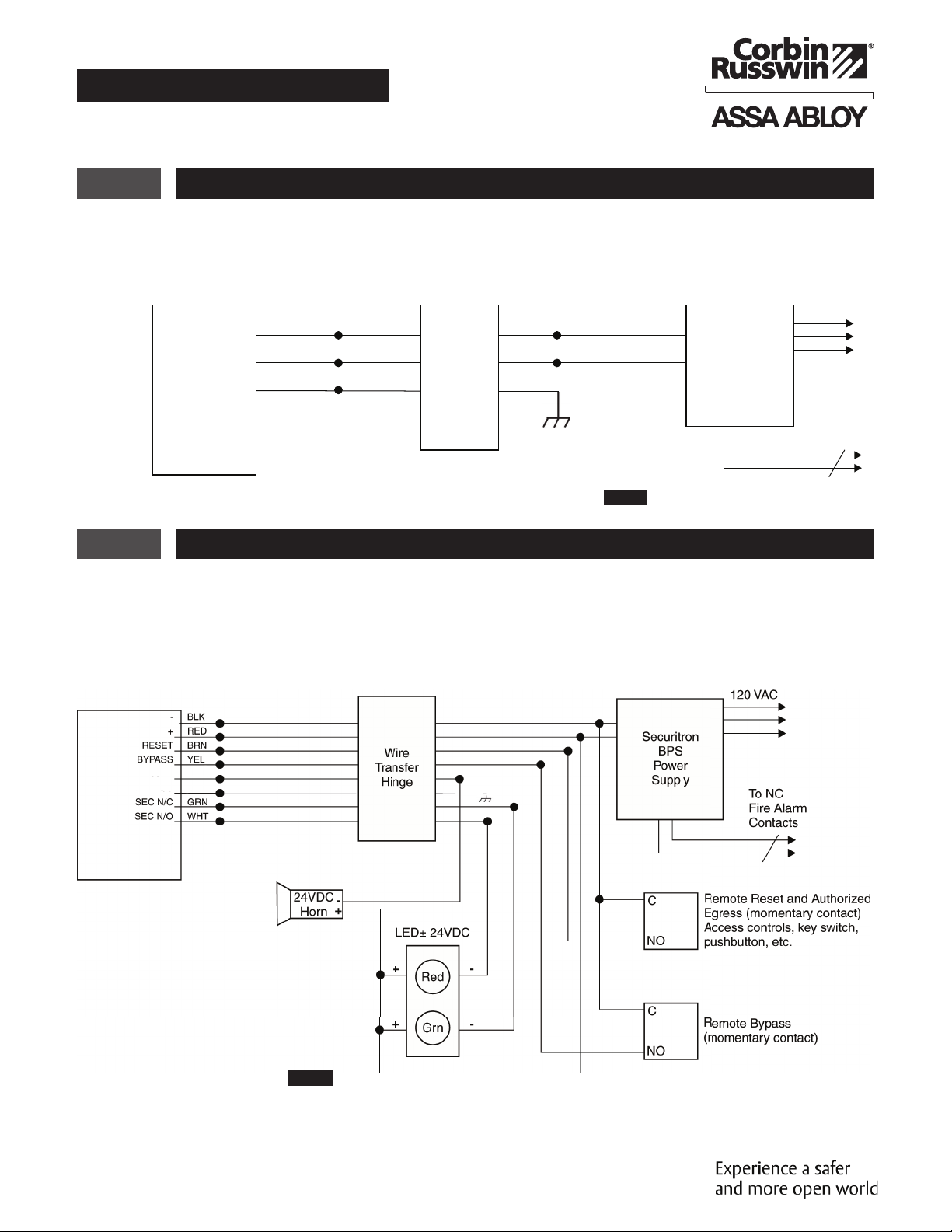

16 Wiring Diagram: Single Door with Remote Inputs & Monitoring Outputs . . . . . . . 18

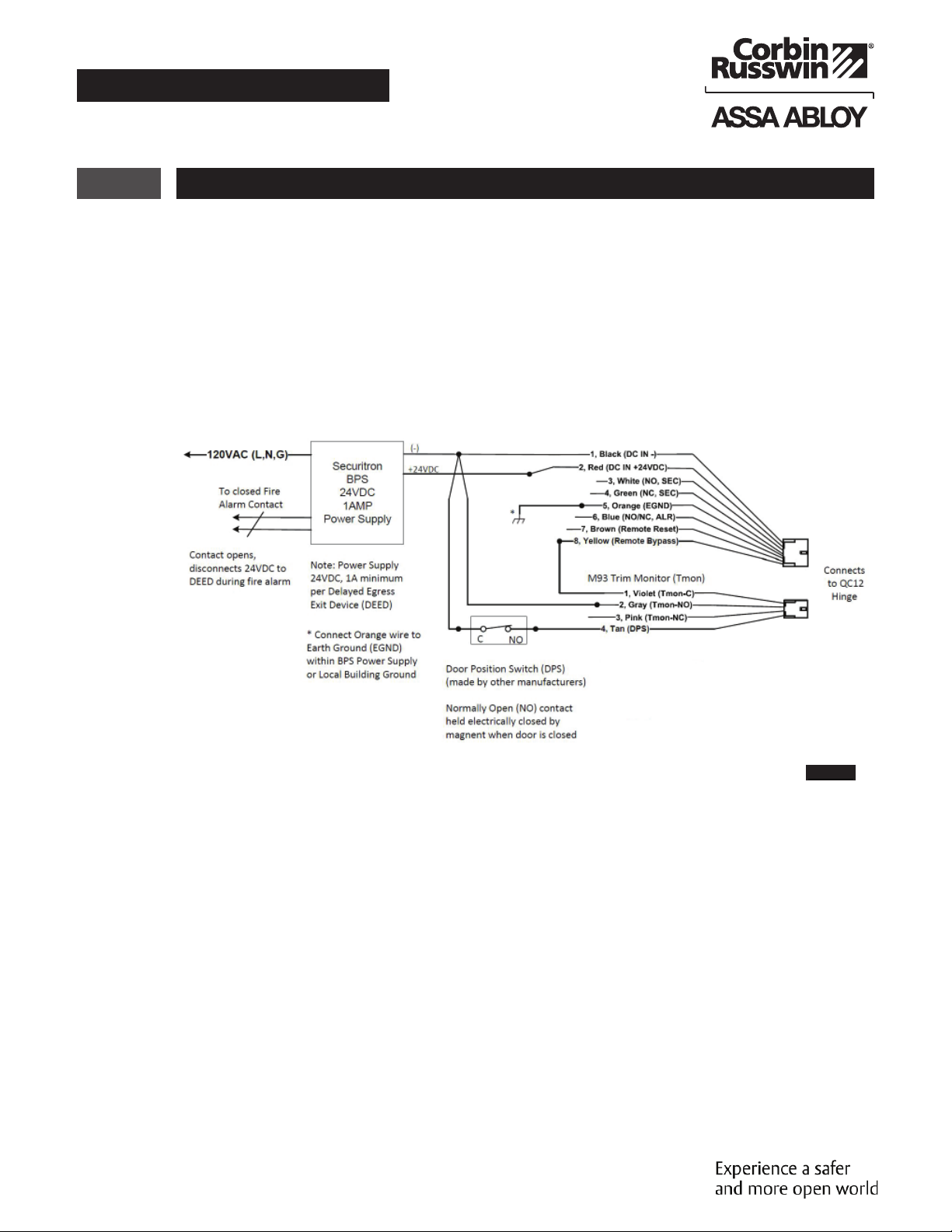

17 Wiring Diagram: M93 Trim Monitor Entry with External Door Position Switch . . 19
18 Wiring Diagram: 9903 Electrical Trim Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
19 Wiring Diagram: 9905 Electrical Trim Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
20 Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
21 Additional Options Non ElectroLynx Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
22 BOCA 15 Second Delay M89 & BOCA 30 Second Delay M90 . . . . . . . . . . . . . . . . . . . . 22
23 NFPA 101 Requirements: 30 Second Delay M88 Suffix. . . . . . . . . . . . . . . . . . . . . . . . . . 22
24 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
25 Appendix: Legacy Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]

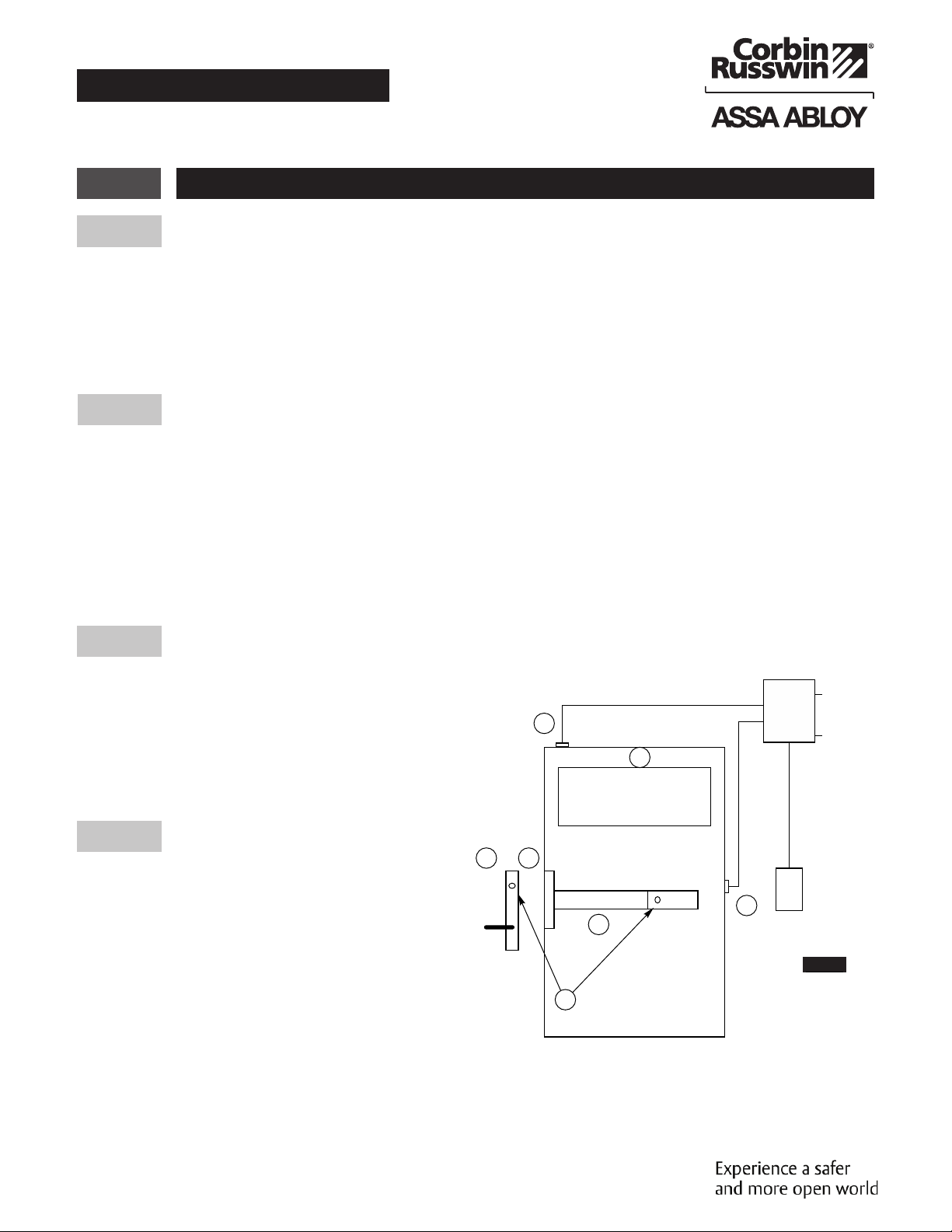

1Panic and Fire Rated Devices
1. Check device for shipping damage prior to installation and make sure all parts are on hand.
2. Identify options provided with device.
3. Identify model, type and hand of trim if applicable (see exit device and trim instructions for reversing
hands).
4. Contact hardware supplier if device is damaged or missing parts.
aChecklist
bRequired Components (Numbered list correlates with numbers in Figure 1)
cOptional Components (Numbered list correlates with numbers in Figure 1)
1. Delayed Egress Exit Device
2. 24VDC UL Listed Regulated and Filtered Power Supply with Fire Alarm Interface (recommend
Securitron BPS 24-1 or 24-2 (UL294 Listed), depending on requirements). Power supply is NOT to be
used in UL603 Burglar Alarm System.
3. Power transfer UL or ULC listed (2-10 wire depending on system)-Securitron (EPT) or equivalent.
4. Sign (MUST BE INSTALLED ON DOOR ABOVE DEVICE).
NOTE: The delayed egress system is to be installed in accordance with NFPA 101.
5. Remote Annunciator
6. Door Position Switch (DPS)
7. Standard Trim
8. Electrified Trim
9. Device and Trim Cylinder
dElectrical Specifications*
Input Voltage 24VDC (+/-10%)
Wire Size:
18 AWG Min (up to 100')
Signal or Control 22AWG Min
Power Consumption:
Standard Device - 500mA
Device with Safe/Secure Electric Mortise or
Electric Trim Control - 1.5A
*Follow Local Electrical Codes for Wiring.
NOTE: Components shown do not reflect all possible applications. Consult
manufacturer for special applications.
Figure 1
6.
4.
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
3.
5.
1.
8.
7.
9.
115 VAC
800 mA
60 Hz
Fire
Alarm
Circuit
Req’d
Or
2.

5
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]

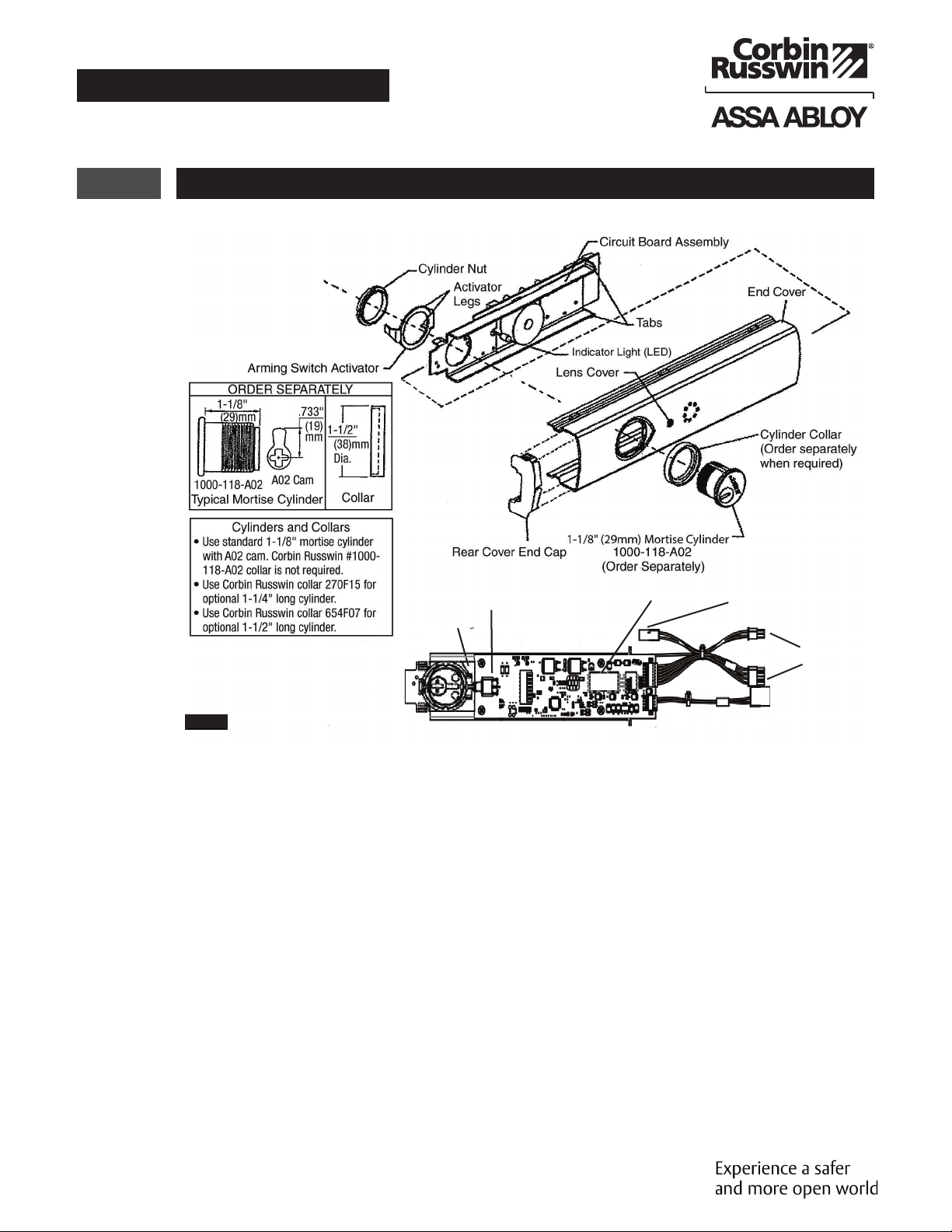

2 End Cover and P.C. Board Assembly
NOTES:
• Factory keyed orders will be shipped assembled.
• Prior to end cover assembly, device must be
cut to proper length to prevent damage to
circuit board. 36" Device cannot be field cut. A
maximum of 6" can be cut from a 48" device.
1. Slide circuit board assembly into end cover.
Front of assembly must be pulled away from
cover to prevent damage to LED indicator
light. Housing assembly is in correct position
when LED can be inserted in lens cover on
end cover. (Figure 2)
2. Insert cylinder (mortise and collar) into end
cover with keyway horizontal and toward
closest end of end cover.
Activator Legs
Arming Switch Activator
Circuit Board
Label
To Power Transfer
To Device Connection
To Device Connection
g
Circuit Boar
d
T
o Device
Figure 2
3. Slide arming switch activator over cylinder
so activator legs are on each side of switch.
4. Secure parts in place with cylinder nut. Be
certain flange on cylinder nut inserts into
arming switch activator to allow rotation of
activator.
5. Verify assembly by rotating key counter-
clockwise and clockwise. Key should move
freely and arming switch should trip for
both rotation directions. If key does not
rotate freely, verify cylinder nut is in correct
orientation. If arming switch does not trip,
activator legs on arming switch activator
can be bent to reduce or increase rotational
travel.

6
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
3DIP Switch Settings
* S2-8: When an external DPS is used and switch S2-8 ON, and 40 second reset delay (S2-4 and S2-5) are set
ON, after activation of momentary egress by cylinder key switch or external remote reset signal, if the Door/DPS
is open beyond 40sec the device will remain in momentary egress mode indefinitely and shall not enter alarm
mode; then once the Door/DPS is closed it will rearm immediately.
** With S2-8 OFF (S2-4 and S2-5 set for 5, 10, 20 or 40sec), if door/DPS is open after selected time the alarm will
sound. Close door to reset and rearm device using cylinder key or remote reset signal.
If door/DPS is opened then closed before selected time expires, the device will rearm immediately.
If DPS is not used, is bypassed with S2-7 ON, the door will rearm immediately after 5, 10, 20 or 40 sec whether
the door is open or closed, with either S2-8 ON or OFF.
Ensure eight S2 Dip Switches are set per application before moving on to the next page of instructions.
S2-1: Nuisance Audible may be selected ON (default) or OFF.
S2-2 and S2-3: Nuisance Delay time may be selected 0 (Im-
mediate), 1, 2, or 3 (default) seconds.
S2-4 and S2-5: Reset Delay time may be selected 5, 10 (de-
fault), 20 or 40 seconds.
S2-6: Whether an external LBM is used for not used for this
product, the switch must be set ON (default) to Bypass. S2-6
OFF position is not used.
S2-7: Switch must be set ON (default) to Bypass when an
external Door Position Switch (DPS) is NOT used, and OFF
when an external DPS is used.
S2
Nuisance Audible
Nuisance Delay
(Special) RAC
Nuisance Delay
Reset Delay
Reset Delay
LBM Bypass
DPS Bypass
Nuisance Delay (seconds)
0123
S2-2 OFF OFF ON ON
S2-3 OFF ON OFF ON
Reset Delay (seconds)
5102040
S2-4 OFF OFF ON ON
S2-5 OFF ON OFF ON
PCBA DIP SWITCH VIEW

7
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
4 Installation of End Cover Assembly to Device
1. Turn end cover assembly over to circuit board side.
2. Ensure eight S2 Dip Switches are set for application (see previous page).
3. Slide end cover assembly into device, making sure not to pinch or crimp wires.
4. Connect device lock assembly harness to connector J1. Place wire connectors and excess wire
between end cover and P.C. board. (Figure 3, Device End View)
5. Check all connections before proceeding.
6. Proceed to device mounting (see packed instructions). Figure 3
See DIP Switch settings on previous page
Connector J2
To power transfer
Connector J1
Plugs into device
Circuit Board
To Power Transfer
Device Assembly Harness
J5 detail view NO C NC for 2-pin jumper selection. NO is default position.
NOTE: Review J5 Alarm Relay NO or NC selection above. If NC contact is required, remove PBCA/cover
assembly from rail, move 2-pin jumper to NC, then re-install PCBA/cover on rail.

8
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]

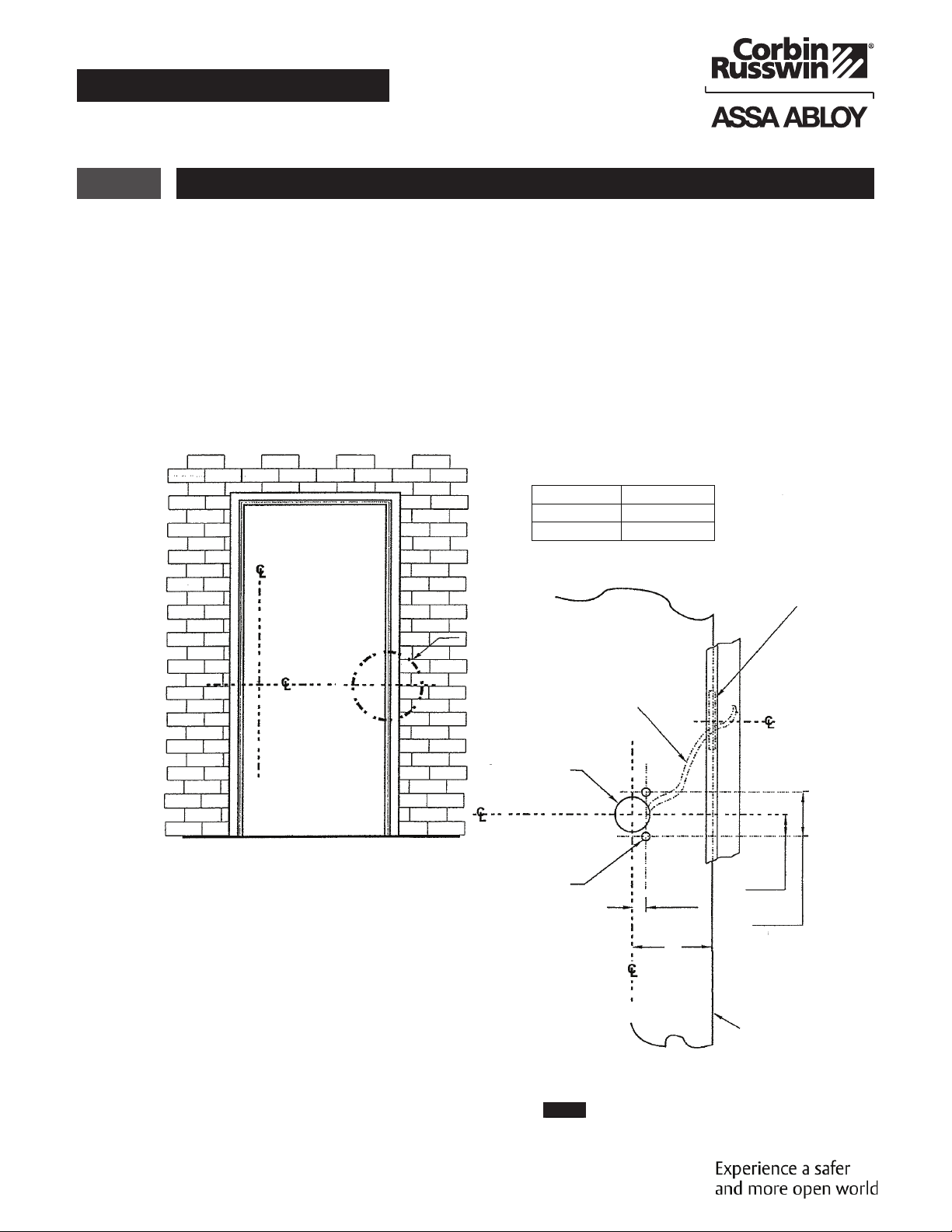

5Device Mounting
1. Refer to installation instructions included with device and trim for complete door and frame
preparations. Refer to template #T30890 for wire access hole location.
2. Feed wires from power transfer through wire access hole in door. (Figure 4)
3. When required, mount outside trim to door (see trim installation instructions).
4. Mount device to door (see device installation instructions).
5. Do not install end cap until device has been wired and tested for operation (See wiring diagrams).
6. Check mechanical operation and proceed to wiring diagrams.
NOTE: Wire nuts can be inserted into wire access hole after making connections. Quick disconnect can be used
without removing wire nuts.
NOTE: For QC8 and QC12 ElectroLynx wiring, refer to Sections 8 and 10. ElectroLynx has pluggable connectors,
wire nuts are not needed.
LHR Installation Shown
End Clamp
Power Transfer
Hinge
End Cover
Installed
Wire Nuts Included
(Recommended for use with
Transfer Hinges)
1. Strip Wire 1/2"
2. Twist Wire
3. Insert Wire
4. Tighten
Wire Access
1" (25mm) dia. hole on
same centerline as
device. Inside face only.
Connector J2
Disconnect for Wiring
to Power Transfer
Figure 4
Non-ElectroLynx Wiring
NOTES:
• Wires must be protected from abrasion.
• For use with Class II circuits only.

9
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
6Wiring Layout: Input/Output Wiring Descriptions
Pin Number Input/Output Wire Color Description Pin Number
10 Input Black 24VDC Power Supply (-Circuit Ground) 1
12 Input Red 24VDC Power Supply (+Positive) 2
11 Output White
Secure Relay Output - Normally Open (NO)
contact. Power off - contact is open
Powered/armed - Relay energizes contact
closes. After 15 or 30 seconds delay when
device releases, the relay de-energizes, contact
opens (same as Power off state).
3
13 Output Green
Secure Relay Output - Normally Closed (NC)
contact. Power off - contact is closed.
Powered/armed - Relay energizes, contact
opens. After 15 or 30 seconds delay when
device releases, relay de-energizes, contact is
closed (same as Power off state).
4
NC EGND Orange Earth Ground connection to PCB mounting plate
via ring terminal 5
3Output Blue
Alarm Relay Output - J5 jumper Selectable
NO/NC contact that changes state when alarm
cycle has been activated. Default shipped
position - jumper is on NO contact setting.
Power off - contact is NO or NC as per jumper
selection.Powered/armed - Relay energizes
contact reverses state. When alarm cycle is
activated - Relay de-energizes (same as Power
off state).
6
8 Input Brown
Remote Reset Input - Momentary input from
key switch, pushbutton, etc. Will release device
for 5, 10, 20, or 40 seconds for egress or
ingress and also reset device when in bypass or
alarmed state.
7
6 Input Yellow
Remote Bypass Input - Momentary input
from key switch, pushbutton, etc. Will maintain
device in an unlocked state for normal device
operation. Device must be rearmed by resetting
from key switch on device or remote reset.
8
J2 Connector
(See Figure 5 on next page)
8-Pin
ElectroLynx
Connector
NOTE: ElectroLynx QC8 Hinge is only required if all eight wires are used. When DPS and any
other wiring options are on the 4-pin connector, the hinge is NOT required.
NOTE: Secure and Alarm Relay contacts are rated max load 1A @24VDC.

10
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]

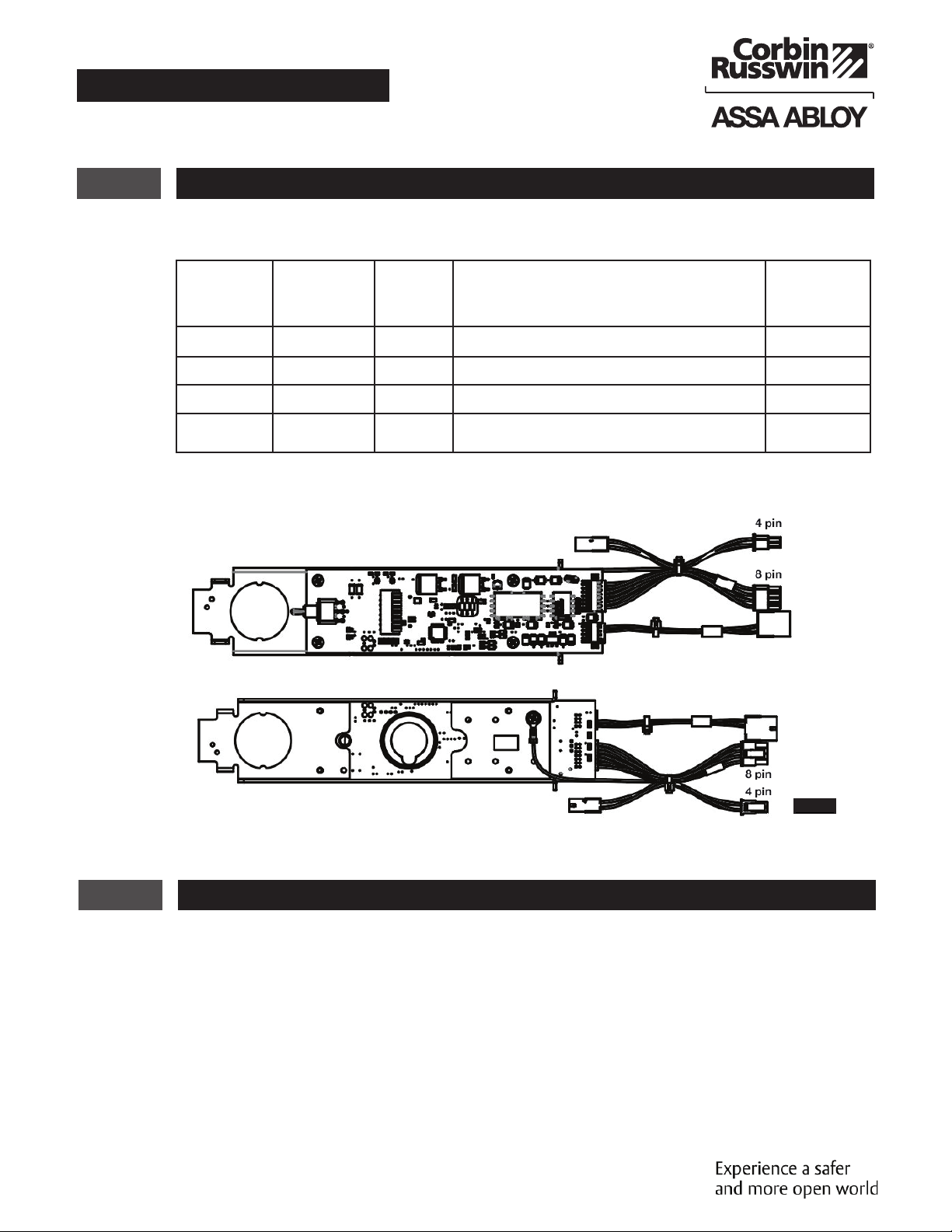

Figure 5
Pin Number Input/Output Wire
Color Description Pin Number
NC Input/Output Violet C, LBM or C, Trim Mon. or ET(-) 1
NC Input/Output Gray NO, LBM or NO, Trim Mon. or ET(+) 2
NC Input/Output Pink NC, LBM or NC, Trim Mon. 3
2 Input Tan Door Position Switch Input-Input sense for DPS
switch option
4
J2 Connector (See Figure 5 below.)
7 ElectroLynx Connector System for All Electrical Installation
1. Mount exit device per instruction sheet provided.
2. Plug exit device connector into raceway connector in door. Feed through 1" (25mm) hole in door.
Install rail mounting end clamp bracket with two (2) screws supplied. Install end cap.
3. Plug raceway connector from edge of door into electric hinge connector and feed wires back
through door prep. Mount electric hinge to door.
A. If wiring now, wire frame side wires, to wires on pigtail harness, on hinge as required by using
connectors allowed by local code. Plug pigtail harness connector into electric hinge connector.
Feed harness through frame prep and mount electric hinge.
B. If wiring later, plug pigtail harness connector into electric hinge connector. Feed harness through
frame prep and mount electric hinge.
NOTE: ElectroLynx QC12 Hinge is required if DPS and/or any options shown are required.
NOTE: Refer to Section 25 if replacing legacy PCBA/wiring with new PCBA/wiring.
Top View
Bottom
View
4-Pin ElectroLynx Connector
6Wiring Layout: Input/Output Wiring Descriptions, continued

11
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
8 ElectroLynx Wiring Options Overview with QC8 Hinge
7 ElectroLynx Connector System for All Electrical Installation, continued
Installation Notes:
1. Wiring to pigtail harness is per facility wiring requirement.
2. For an ElectroLynx system, go to function or monitor page(s) with your device.
3. Combinations of certain monitors can be used in each device. These instructions detail installation of
each monitor separately.
ElectroLynx Connector System Notes:
System is designed to be installation friendly, with plug connectors from electric hinge through door to
device. The only wiring required is loose wires on pigtail harness assembly on frame side of electric hinge
(included with QC Hinge). Combinations of certain switches and monitors can be used.
The plug and receptacle connectors are designed to mate and lock together. Plug connectors into each
other with locking mechanism aligned. Do NOT force connectors together any other way.

12
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
(Provided with exit device or QC8 hinge)
9 Installing Delayed Egress Exit Device
Figure 6
Refer to Figure 6 for delayed egress exit device installation wiring.
NOTE: For ElectroLynx Hinge Connector System: Follow Section 6 wiring instructions.
For non-ElectroLynx door:
Remove connector at end of exit device and connect to incoming wires from power source using wire
nuts, butt splices, etc. See Section 14 for hole locations and sizes.
(EGND)
(NO/NC Alarm)
(NO/NC Alarm)
(EGND)
Electric Hinge - QC8 with
8-Pin Connectors
3” Typical

13
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Note:
New wiring shown.
Items followed by *
indicate NEW PCBA
wiring OR NEW
DEVICE wiring that
differs from Legacy
wiring. Pluggable
4-pin connections
from Device Harness
to Main Harness is
for new QC12 hinge
wiring method.
QC12 Hinge -
Wiring Options
Wiring to 8-pin and
4-pin connectors are
REQUIRED (12 wires
max)
- If external DPS
wiring is REQUIRED
(Set PCBA Dip
Switch S2-7 OFF)
- If LBM, Trim Mon-
itor, OR Electrified
Trim Options are
REQUIRED.

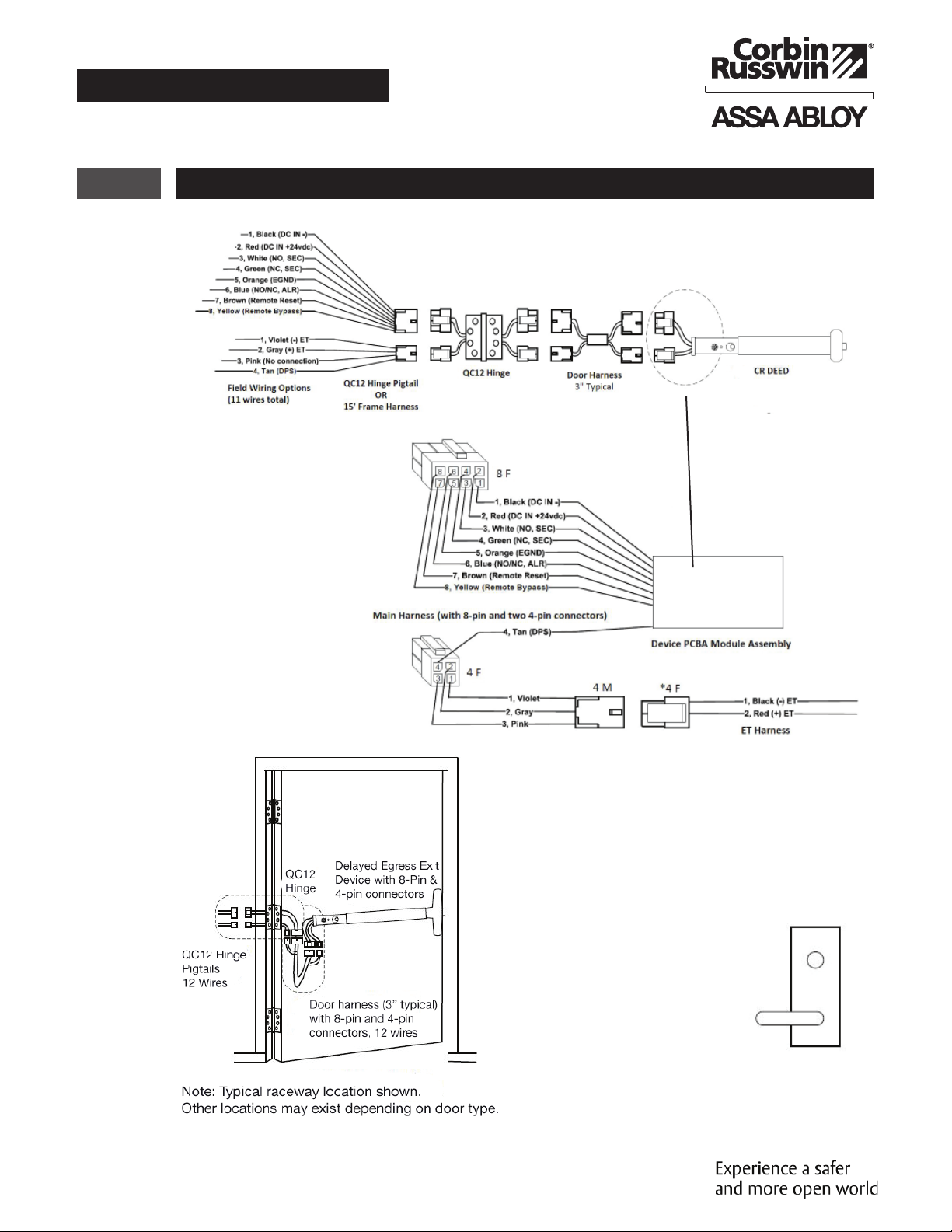

10 ElectroLynx Wiring Options Overview with QC12 Hinge
Refer to Figure 7 for M93 Monitor - Trim Actuated SPDT Switch wiring.
NOTE:
• Switch wiring max load: 2A @28VDC.
• Wire must be protected from abrasion.
• For use with Class II circuits only.
• For ElectroLynx QC12 Hinge Connector System: Follow Sections 11, 12, and 13 wiring instructions.
• For non-ElectroLynx door:
Remove connector at end of exit device and connect to incoming wires from power source using
wire nuts, butt splices, etc. See Section 14 for hole locations and sizes.
Figure 7
After routing two
wires from ET
through the chassis
and the wire chan-
nel in back of rail
then Install Molex
Female 4-pin con-
nector (supplied)
onto pre-crimped
female terminals on-
toBlack wire pin 4-1,
Red wire pin 4-2

14
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
11 ElectroLynx Wiring Deed with M93 Trim Monitor Option and QC12 Hinge
QC12 Hinge - Field Wiring
Options
Wiring to 8-pin and 4-pin
connectors is REQUIRED
(12 wires max).
• If external DPS wiring
is NOT REQUIRED, set
PCBA Dip Switch S2-7
ON.
• If external DPS wiring
is REQUIRED, set PCBA
Dip Switch S2-7 OFF.
Mechanical Trim
Supplied with DEED when ordered with M93
Trim Monitor (Tmon) Option

15
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
12 ElectroLynx Wiring Deed with Electrified Trim (ET) Option and QC12 Hinge
QC12 Hinge - Field Wiring
Options
Wiring to 8-pin and 4-pin
connectors is REQUIRED
(12 wires max).
• If external DPS wiring
is NOT REQUIRED, set
PCBA Dip Switch S2-7
ON.
• If external DPS wiring
is REQUIRED, set PCBA
Dip Switch S2-7 OFF.
Supplied with DEED when ordered Fail Safe or
Fail Secure Electrified Trim (ET)
*Requires field to route two wires from ET through
the chassis and the wire channel in back of rail then
install loose Molex Female 4-pin(*4F) connector
(supplied) onto pre-crimped female terminals onto
Black wire pin 4-1, Red wire pin 4-2.
9903 Electrified Trim (ET) (SAF)
Fail Safe
Or
9905 Electrified Trim (ET) (SEC)
Fail Secure

16
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
13 ElectroLynx Wiring Deed with M91 Latchbolt Monitor Option and QC12 Hinge
QC12 Hinge - Field Wiring Options
Wiring to 8-pin and 4-pin
connectors is REQUIRED (12 wires
max).
•If external DPS wiring is NOT
REQUIRED, set PCBA Dip
Switch S2-7 ON.
•If external DPS wiring is
REQUIRED, set PCBA Dip
Switch S2-7 OFF.
Mechanical Trim

17
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Vertical
Reference
Horizontal
Reference
Hinge Edge Detail
INSIDE FACE OF DOOR
Clear Channel Access
Required for Wire
Connection Hinge
1" (25mm) Dia.
(Wiring Access)
Horizontal Reference
Device Centerline
(See Note 5)
Exit Device End Clamp Mounting
Holes (For reference only)
HINGE EDGE DETAIL
Hinge Edge
Of Door
5/16" Ref
(8mm)
5/8" Ref
(16mm)
A
1-1/4" Ref
(32mm)
Exit Device
ED4000 Series
ED5000 Series
Dim. A
1-11/16" (43mm)
2-5/16" (59mm)
Conducting Hinge or
Approved Power Transfer
(made by other manufacturers)
14 Non-ElectroLynx Door Prep
Figure 8
Refer to Figure 8 for non-ElectroLynx Door preparation.
NOTE:
• Do not scale drawing.
• Dimensions are in inches (") and millimeters (mm).
• LHR H.M. opening shown. Details are typical for all opening materials (both hands).
• This preparation is an addition to preparation shown on device template.
• See device template to locate centerline.
• Shields for wiring access recommended for insulated and composite doors.
• Locate and prepare wiring access holes when installing device.

18
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
15 Wiring Diagram - Single Door Exit Only
Operation:
Mechanical trim can be added for entry. Ingress by trim without touching device push bar rim will not
affect alarm if a door position switch is not being used. Refer to DPS wiring if necessary.
Figure 9
To NC
Fire Alarm
Contacts
120 VAC
Securitron
BPS
Po wer
Supply
Wire
Transfer
Hinge
Connector
J2
(Device)
QC8
(-)
+24VDC
*Connect to EGND
*Connect to EGND
(-)
+24VDC
ALR NO/NC BLU
EGND ORG
QC8
*Connect EGND within
BPS Power Supply or
Local Building Ground
16 Wiring Diagram - Single Door With Remote Inputs & Monitoring Outputs
Operation:
Monitoring: Red LED indicates device is armed and secure. Activating device will sound alarm. (Figure 10)
Green LED will illuminate after 15 seconds. Device will release for exit (unsecure).
NOTE: If dry contacts are needed for signaling or monitoring, a 24VDC relay is recommended.
Figure 10

19
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
17 Wiring Diagram - M93 Trim Monitor Entry with External Door Position Switch
Figure 11
* Door Position Switch (DPS) made by other manufacturers.
Operation:
Door Position Switch (DPS)* is used to activate alarm when door has been forced open. It also prevents
device from being armed when door is propped open.
M93 trim monitor switch, when activated, will bypass unit and allow entry. Unit must be manually reset
for rearming with cylinder key. (Figure 11)
NOTE: Requires M93 trim monitor switch on device for alarm shunting.
Figure 11

20
Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Figure 12
18 Wiring Diagram - 9903 Electric Trim Control
Operation:
Fail Secure (SAF) Trim allows normal access control for entry, and also allows entry during power failure
or fire alarm activation. (Figure 12)
Electric trim operation will not affect armed device.
19 Wiring Diagram - 9905 Electric Trim Control
Operation:
Fail Secure (SEC) Trim allows access control for entry. Outside trim will remain locked during power
failure or fire alarm activation. (Figure 13)
Electric trim operation will not affect armed device.
Figure 13
