American Standard SpaLet Advanced Clean 2.5 Instruction Manual

Thank you for purchasing this product.
After reading this manual, please keep it in a place where you can refer to it easily.
BE SURE TO FOLLOW THE SAFETY PRECAUTIONS.
Failure to follow the safety precautions may result in serious accidents in some circumstances.
Each of these items are extremely important for safety, and should be strictly observed.
In the event that an accident occurs as a result of improper usage, American Standard
will assume no responsibility for damages.
©2017 AS America Inc.
SPALET is a trademark of AS America, Inc.
INSTALLATION & USER MANUAL
Advanced Clean 2.5
SpaLet®
760295-100 EN

INSTALLATION
TABLE OF CONTENTS
1. Important Safeguards........................................................... 3
2. Product Description ............................................................. 5
3. Installing This Product ......................................................... 6
Installation Requirements....................................................................6
Contents.............................................................................................................. 6
Ground Fault Circuit Breaker ..........................................................................7
Power Supply.................................................................................................. 7
Grounding....................................................................................................... 7
Installation Location........................................................................................ 7
Water Supply ..................................................................................................7
Checking the Bathroom ..................................................................................7
Measure the size of the Toilet ......................................................................... 8
Conditions for using Water Supply Hose ........................................................8
Illustrated Parts Breakdown ................................................................9
Overview.........................................................................................................9
Strainer........................................................................................................... 9
Remote ......................................................................................................... 10
Installation .......................................................................................... 11
Operational Check..............................................................................16
4. Operation Manual / Table of Contents................................17
2 - EN -

1. IMPORTANT SAFEGUARDS
When using electrical products, especially when children are present, the basic safety precautions should
always be observed.
READ ALL THE INSTRUCTIONS BEFORE USING THIS PRODUCT
The following safety terms are used in this manual to warn against different
hazardous situations:
DANGER– To reduce the risk of electrocution:
1. Do not place or store product where it can fall or be pulled into a tub or sink.
2. Do not place in or drop into water or other liquid.
3. Do not reach for a product that has fallen into water. Unplug immediately.
WARNING
To reduce the risk of burns, electrocution,
fire or injury to persons:
1. When small children, elderly persons, persons with limited mobility or people with
illness are using this product, ensure that the proper operating procedures are
followed at all times to ensure the user's safety.
2. When you are using this product for a long period of time, set the seat
temperature to "Off".
For the following persons, be sure to set the seat temperature to "Off" when they are
using this product.
(Children, elderly persons, persons with illness, persons with limited mobility, persons
with sensitive skin, persons who are taking medicines that cause drowsiness,
persons who are intoxicated, or persons who are extremely fatigued.)
* Using the toilet for a long period of time without setting the seat temperature to "Off"
may result in low temperature burns.
Low Temperature Burns
A low temperature burn may occur when the skin has been in contact for some time
with an object at relatively low temperature (about 104 °F [40 °C]). Susceptibility to
burns also depends on an individual's skin sensitivity and other factors.
3. This product should be used only as described in this manual. Do not use
attachments that are not recommended by the manufacturer.
4. Never operate this product if it has a damaged cord or plug, if the plug is loose in the
outlet, if it is not working properly, or if it has been dropped or damaged. If the plug
is inserted or disconnected by holding the cord, the plug or cord may be damaged
resulting in fire or electric shock.
5. Keep the cord away from heated surfaces.
continued on page 4
3 - EN -

44 - EN -
6. Never block the air openings of the product. If lint or hair, etc. is stuck in the air
openings, remove it immediately.
7. Never use while sleeping or feeling drowsy.
8. Never drop or insert any object into any opening or hose.
9. Connect this product to a properly grounded outlet only. See Grounding Instructions.
10. This product should only be connected to a potable water supply line. Failure to do so
will cause problems in the operation.
11. Do not pull out or insert the power plug with wet hands.
12. Disconnect the power plug periodically and clean it with a dry cloth.
Dust accumulated on the power plug may cause fire.
13. Do not use outdoors or operate where aerosol (spray) products are being used or
where oxygen is being administered.
To reduce the risk of minor injury or property damage:
1. This product should only be connected to a 120 V AC, 60 Hz GFCI-protected outlet.
2. For care of the plastic parts, our company recommends the use of a mild liquid or an
all-purpose cleaner. Avoid using abrasive products (such as powdered cleansers) and
chlorine-based products (such as bleach), as these products can damage the
anti-bacterial properties of the plastic components.
3. If the toilet seat or the body cover is damaged, pull the power plug out of the outlet.
4. Do not stand on the toilet seat lid, as it may break.
5. Do not lean back against the lid during use, as this may damage or break the lid.
6. Install this product according to this installation manual. Improper installation may
result in electrocution, fire, or a water leak.
7.
Do not forcefully pull on the bidet nozzle or turn it as this may cause it to fail.
8. Do not apply unnecessary force to the water supply hose as it could result in
damage and cause water to leak
9. To prevent the toilet seat and toilet seat lid from slamming down, a slow close seat
mechanism is provided to lower them gradually. If the toilet seat or toilet seat lid is
closed abruptly or too forcefully, this product could be damaged or fail.
SAVE THESE INSTRUCTIONS

5 - EN -
This product incorporates a set of features to improve personal toilet hygiene and comfort. These
features include back cleansing, front cleansing and a seat heater as well as the required controls for
these features.
This product includes a seat unit (with heated toilet seat, toilet seat lid, and power cord), hardware for
installing the seat unit on a toilet and connecting it to the water supply and this installation and user
manual.
This product incorporates the following features:
• back cleansing with water flow strength controls
• front cleansing with water flow strength controls
• seat heater with heat level control
• back and front cleansing water temperature control
• seat and water temperature indicators
• back and front nozzle self-cleaning
• stop button for back cleansing, front cleansing
2. Product Description
Note:
• When transporting the product, take care not to inadvertently bump or drop it.
• This product has been already inspected using tap water. A small amount of water
may be detected when installing the unit; this should not be a cause for concern.

6 - EN -
Remove the parts from the box and make sure all the parts in the parts list (below) are present. Inspect
the parts carefully to make sure they are in good condition.
If any part is damaged or missing, do not install this product. Contact a customer service representative
for the part(s) you need.
The following parts are included:
• Seat unit (with heated toilet seat, toilet seat lid and power cord)
• Mounting plate
• Manual
• Mounting bolts, brackets, and bushings (2 pieces each)
• Seat unit water supply hose (with 1 clip and 1 washer)
• Remote control
• Bracket
• Batteries
• Wood screw
• Plastic anchors
3. Installing This Product
Installation Requirements
Before installing this product, ensure that each of the following installation
requirements are met.

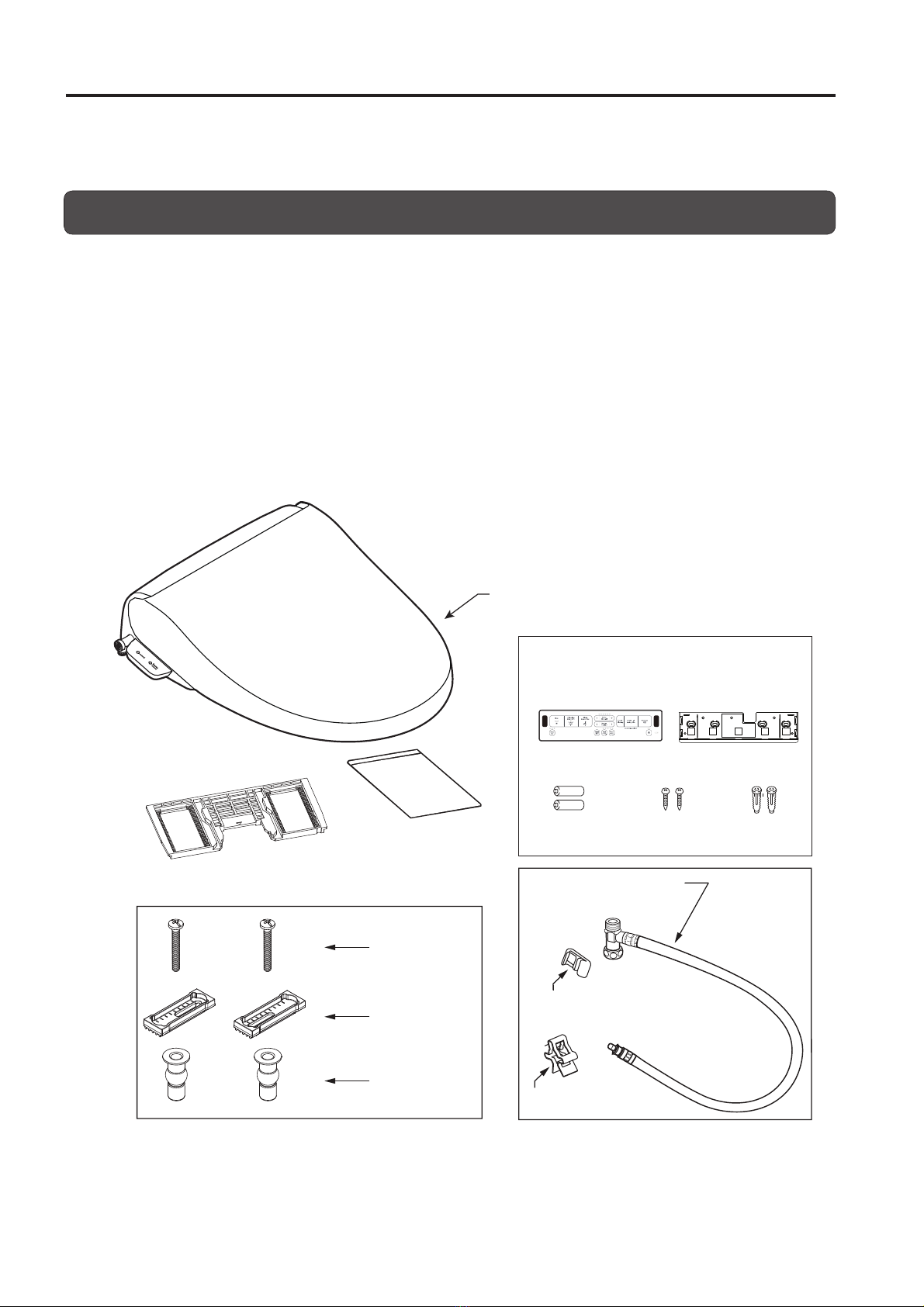

Contents
Seat unit
Manual
Mounting plate
(This plate attaches to the seat unit.)
Mounting bolt
Bracket
Bushing

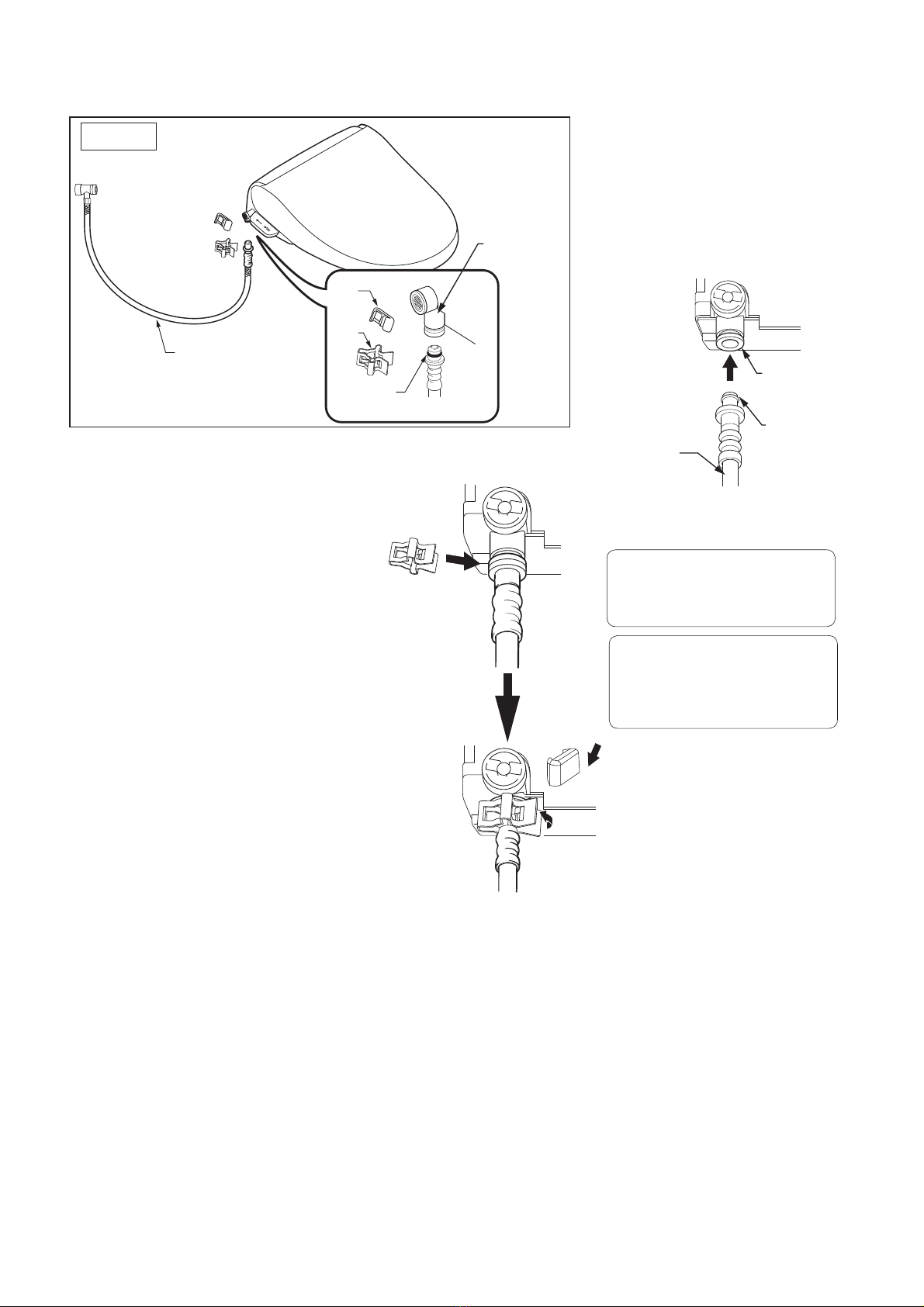

Water supply hose
(w/ T-junction)
Clip
Plastic
Clip
Batteries (2)
Plastic
anchors
Wood
screws
Bracket
Remote control unit
*Remote control unit and bracket are
packed in the box.
For remote control unit

7 - EN -
GROUNDING INSTRUCTIONS
Installation Location
Water Supply
Checking the Bathroom

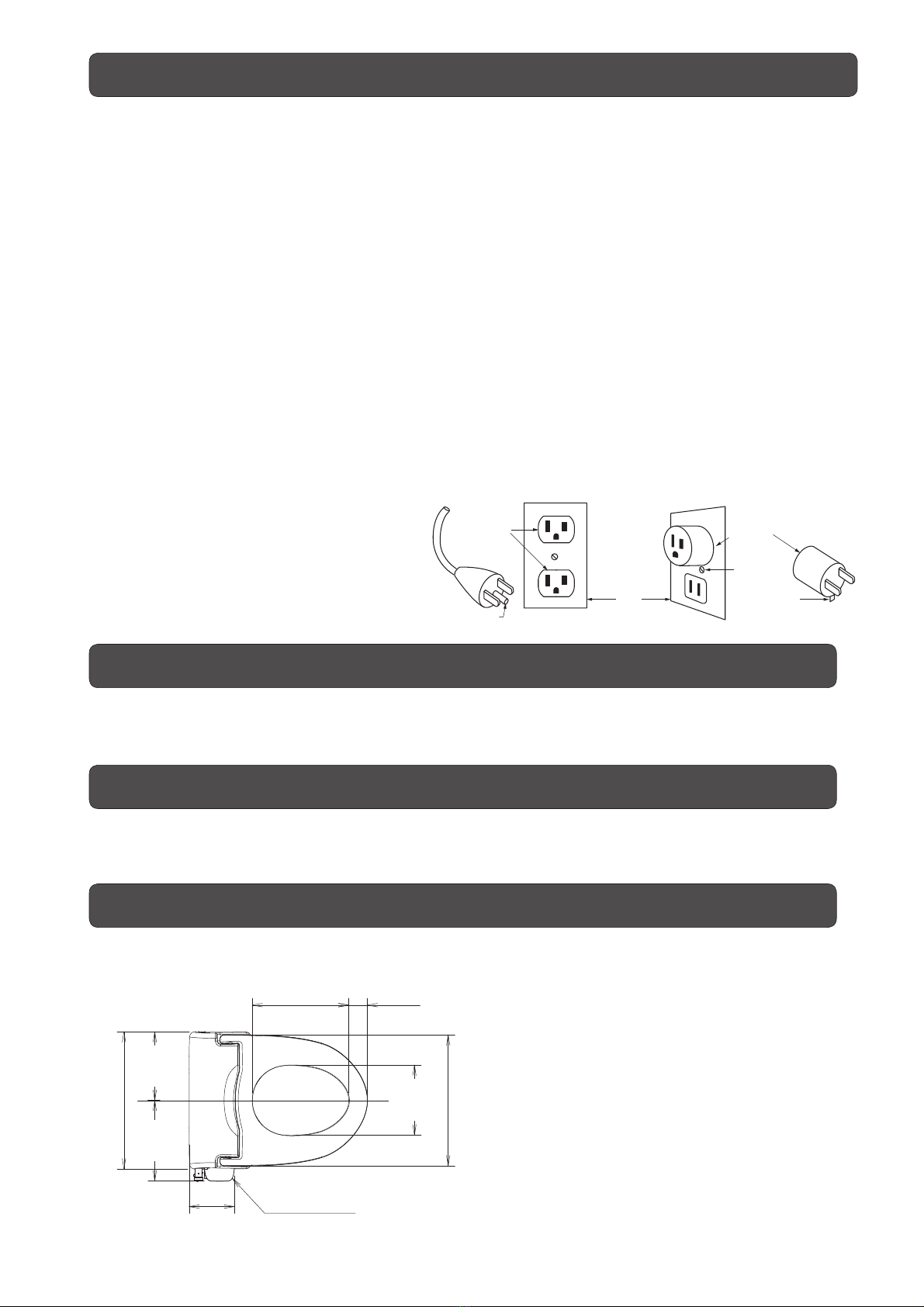

The dimensions required for mounting this product on a toilet are shown in the gure below. Check to
make sure there is sufficient space inside the bathroom and that there are no obstructions.
Use only the tap water line to supply water to this product. The use of any other type of water i.e. ground
water or well water may reduce functionality of product.
The tap water pressure must be 8.5 to 106.7 psi
(0.06 to 0.74 MPa, 0.6 to 7.5 kgf/cm
2
).
In order to prevent damage to the electronic components, install this product at a location that
minimizes the possibility of it getting wet. In extremely humid conditions, provide adequate ventilation by
operating an exhaust fan or opening a window or door.
Remote receiver
11-1/4˝
(285mm)
2-3/16˝
(55mm)
14-7/8˝
(378mm)
5-1/4˝
(133mm)
7-15/16˝
(202mm)
7-13/16˝
(199mm)
15-5/8˝
(397mm)
9-3/16˝
(233mm)
This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for the electric current. This product is equipped with a
cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded.
DANGER– Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either
at blade terminal. The wire with insulation having an outer surface that is green with or without yellow
stripes is the grounding wire.
Check with a qualified electrician or serviceman if the grounding instructions are not completely
understood, or if in doubt as to whether the product is properly grounded.
This product is for use on a nominal 120 V circuit, and has a grounding plug that looks like the plug
illustrated in sketch A. A temporary adapter, which looks like the adapter illustrated in sketches B and
C, may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded
outlet is not available. The temporary adapter should be used only until a properly grounded outlet
(sketch A) can be installed by a qualied electrician. The green colored rigid ear, lug, and the like
extending from the adapter must be connected to a permanent ground such as a properly grounded
outlet box cover. Whenever the adapter is used, it must be held in place by the screw.
GROUNDING
METHODS
ABC
GROUNDED
OUTLET
BOX
METAL
SCREW
TAB FOR
METAL SCREW
ADAPTER
GROUNDED
OUTLET
GROUNDING PIN

8 - EN -
Conditions for using Water Supply Hose
1. Measure the size of the toilet.
Depending on the size of the toilet, it may not be
possible to mount this product on it.
Make sure the toilet's dimensions are as shown in
the gure on the right.
2. Conditions for using water supply
hose (included)
The length of the water supply hose included with this
product is 37-3/8" (950 mm), but a length of 31-1/2"
(800 mm) from the junction tting to the seat unit's
water supply socket is appropriate. (Refer to the gure
on the right)
17-5/16"-19-5/8"
(440-500 mm)
5-1/8" to 8-1/2"
(130 to 215 mm)
1-1/8" (30 mm)
or more
Seal washer
Water shut
off valve
Water supply hose
(w/ T junction)
Toilet Water
supply hose
Installation Figure

9 - EN -

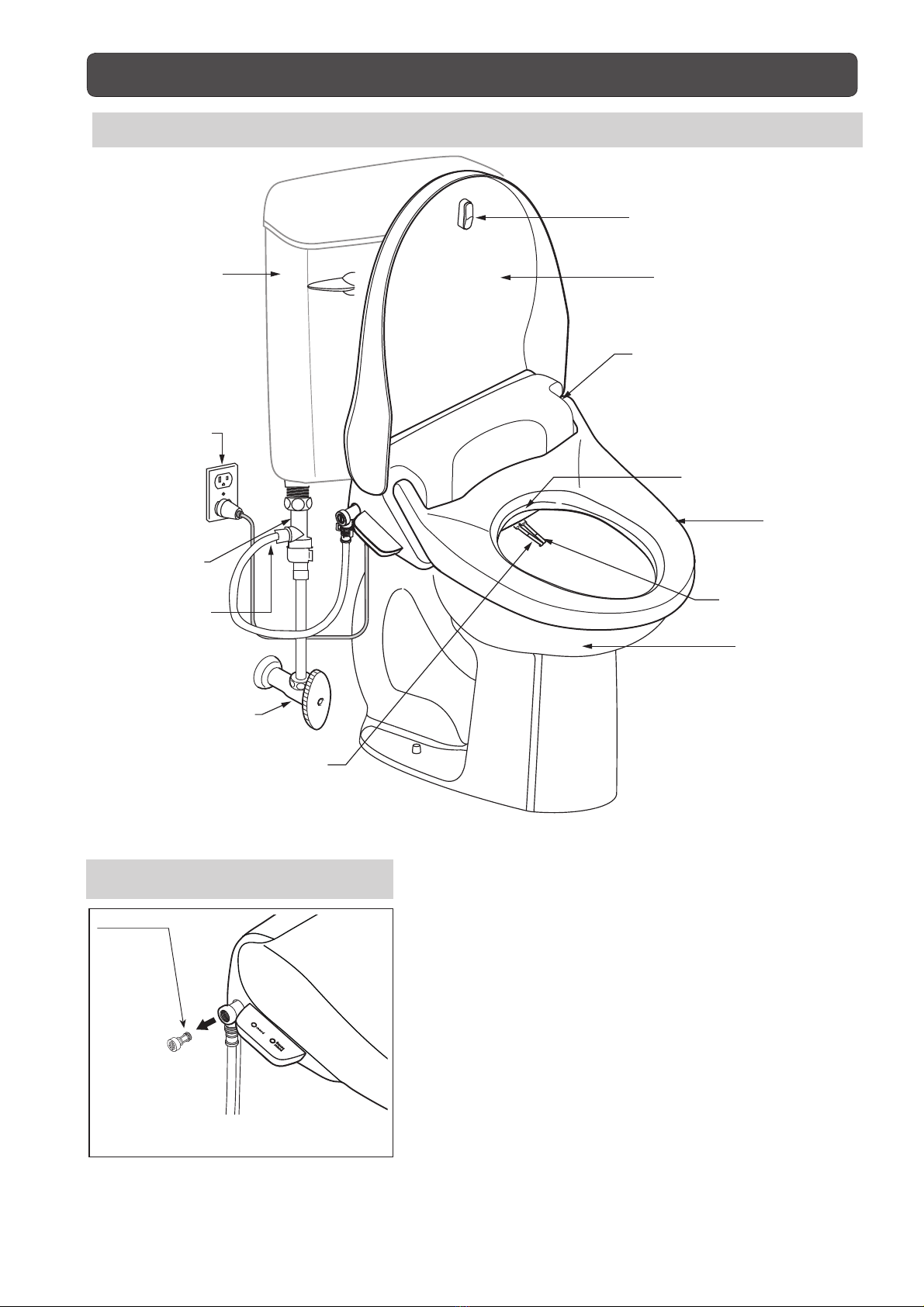

Bowl
Power Plug
T-Junction
Lid Bumper
Lid
Seat Sensor
(built-in)
Seat
Nozzle Shutter
Nozzle
(Front Cleansing)
Nozzle
(Back cleansing)
Toilet
Tank
Water shut
off valve
Water Hose
(with T-Junction)
Overview
Strainer
Strainer
* The strainer removes impurities
and debris from the tap water.
Illustrated Parts Breakdown

10 - EN -
MASSAGE
Massage cleaning
(only for back cleansing)
SEAT
TEMPERATURE
WATER
TEMPERATURE
Adjusts seat
temperature Adjusts water
temperature
BIDET
Use for Front
Cleansing.
NIGHT LIGHT
Use to turn on
or off the Night
Light
DRY
Use to Dry wet
part after cleaning
POWER
Controls POWER
to the seat
NOZZLE
POSITION
There are 5 modes
for nozzle position
adjustment
SPRAY
STRENGTH
Adjusts Front and
Back spray strength
ECO
Power saving
ECO
functions
Stops cleansing
STOP
Cleansing.
Use for Back
CLEANSING
Remote

11 - EN -
1. Required tools
Have the following tools for installing this product:
adjustable end wrench, Phillips head screwdriver,
flat-blade screwdriver.
2. Install the junction fitting
1) Close the water shutoff valve fully.
2) Flush the toilet and empty all the water from the
tank.
3) Place a wash bowl or other container
underneath the tank water supply hose. Then
loosen the box nut on the tank inlet side and
remove it.
4) Place the packing in the junction fitting box nut
and connect the tank inlet to the junction fitting.
5) Insert the packing in the tank water supply hose
box nut and connect the tank water supply hose
to the junction fitting.
CAUTION
• Do not overtighten the nut.
CAUTION
• Do not overtighten the nut.
CAUTION
• Be careful not to damage the water supply hose.
Tank Water
Supply Hose
Water Shutoff Valve
Close
Bowl Cock Side
Box Nut
Water Shutoff
Valve
Tank Water
Supply Hose
Packing
Junction
Fitting
Tank Inlet
Box Nut
Packing
Installation

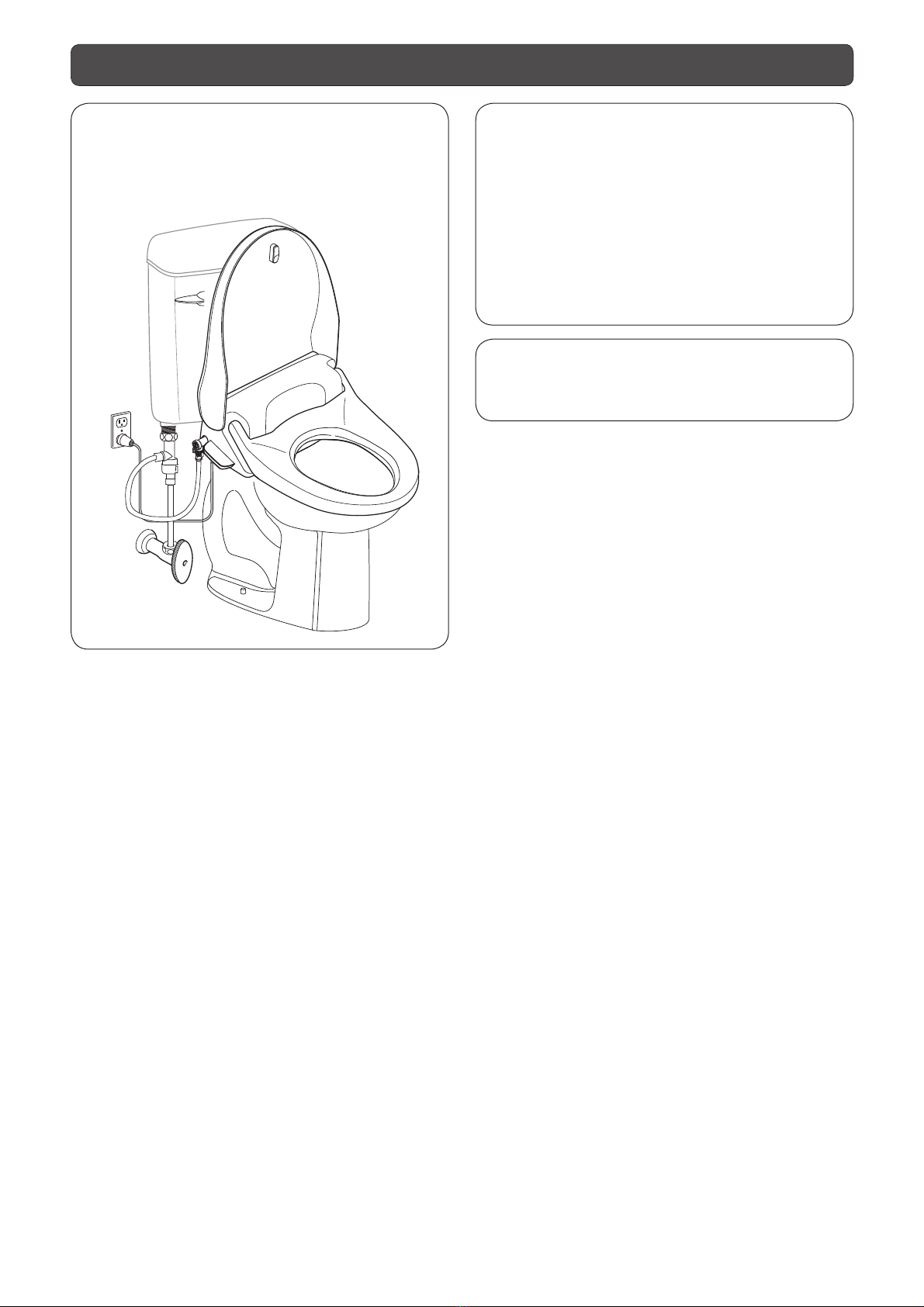

Figure
Installation

12 - EN -
WATER SUPPLY
CONNECTION SOCKET
Water
supply
socket
O-ring
Water supply
hose for
the seat
3. Installation of water supply hose to the SpaLet®seat
1)Connect the water supply hose
for the SpaLet®seat to the water
supply connection socket.
2) Insert the attachment clip onto the
water supply hose to attach it to
the SpaLet®seat and water supply
connection socket.
*The attachment clip can be attached in
any direction.
CAUTION
• Firmly insert the clip.
*If the clip is not rmly inserted,
it may cause water leaks.
3) Bend the clip end and firmly clip
together both the feeding hose for
the SpaLet®seat and the feeding
socket. After you install the clip,
twist it in both directions to verify
that it is firmly attached, then attach
the final attachment clip over the
primary clip to secure in place.
4) Insert the clip until you feel the clip
edge click.
*If not firmly inserted, it may cause
water leaks
CAUTION
• Be careful not to damage the O-ring.
*A damaged O-ring may cause water to leak.
O-ring
Installation
Figure
Water supply
joint
Clip
Plastic
Clip
Water supply
hose

13 - EN -
4. Installation of the SpaLet®seat
(1) Remove the existing seat.
1) Remove the nuts from the seat
mounting bolts, the slip washers,
and rounded packing.
2) Raise the seat and remove it by
lifting the seat mounting bolts.
References
• Some toilet seats may require
different methods of removal that
differ from our explanation.
1) Insert the bushings into
the seat mounting holes.
2) Insert the mounting
bracket into the mounting
plate and use the
mounting bolts to attach
the mounting plate to the
seat.
(2) Install the mounting plate onto the toilet.
1) Place the SpaLet®seat on the toilet and align the seat
to the mounting plate.
2) Slightly raise the front side of the SpaLet®seat, slide
it until the mounting plate is fully inserted, and then
press the locking lever to secure the SpaLet®seat.
(3) Install the SpaLet®seat.
Body
mounting
bolt
Mounting
plate
Bushing
Bracket
Seat
mounting hole
SpaLet®seat
Installation
Figure
Seat mounting bolts
Rounded packing
Existing seat
Slip washer
Nut
Loosen
Bushings
Seat mounting
holes
Mounting bolts
for the toilet
Mounting
brackets
Mounting plate
Center aligned

14 - EN -
5. Install the remote control unit
CAUTION
• Insert each battery so its positive
pole touches a positive connector
in the battery compartment and its
negative pole touches a negative
connector.
CAUTION
• Leave enough space above the
top of the remote control unit to
allow the unit to be removed and
replaced.
(2) Position the bracket on the wall
in the location you chose for
the remote control unit. Mark the
location of the mounting holes on
the wall. Fasten the bracket to the
wall, drilling holes and using the
fasteners appropriate for the wall
material, as described below.
(1) Open the back cover of the
remote control unit and insert the
2 size AA batteries.
If mounted in plywood paneling
0.20 in. (5 mm) or greater in
thickness:
Fasten the bracket to the wall with the
mounting screws.
100mm
200mm
Mounting Screw
Bracket
Battery
BackCover

15 - EN -
If mounted either in plywood
paneling 0.20 in. (5 mm) or less in
thickness or in gypsum board:
1) In plywood paneling, drill holes with a
diameter of 0.24 in. (6 mm); in gypsum
board, drill holes with a diameter of 0.20
in. (5 mm):
2) Using a hammer, gently drive the
plastic anchors into the holes.
3) Fasten the bracket securely to the
anchors using mounting screws. As you
tighten the screws, they are hard to turn
at first, then gradually get easier to turn,
and then are hard to turn again.
If mounted in concrete:
1) Drill holes with a diameter of 0.24 in.
(6 mm) and a depth of approximately
1.30 in. (33 mm).
2) Using a hammer, gently drive the
plastic anchors into the holes.
3) Fasten the bracket securely to the
anchors using mounting screws.
(3) Align the remote control unit with the
bracket and then push it down onto the
bracket.
Plastic Anchor
Plywood paneling : 0.24 in. (6 mm)-dia.
Gypsum board : 0.20 in. (5 mm)-dia.
Bracket
Mounting Screw
Bracket
Mounting Screw
Plastic Anchor
0.24 in.
(6 mm)-dia.
1.30 in.
(33 mm)
Bracket
Remote

16 - EN -
Press here
on seat
Confirm that the LED on the seat unit is lit.
1. Insert the power plug into the outlet.
2.Check the Back and Front
nozzle spray.

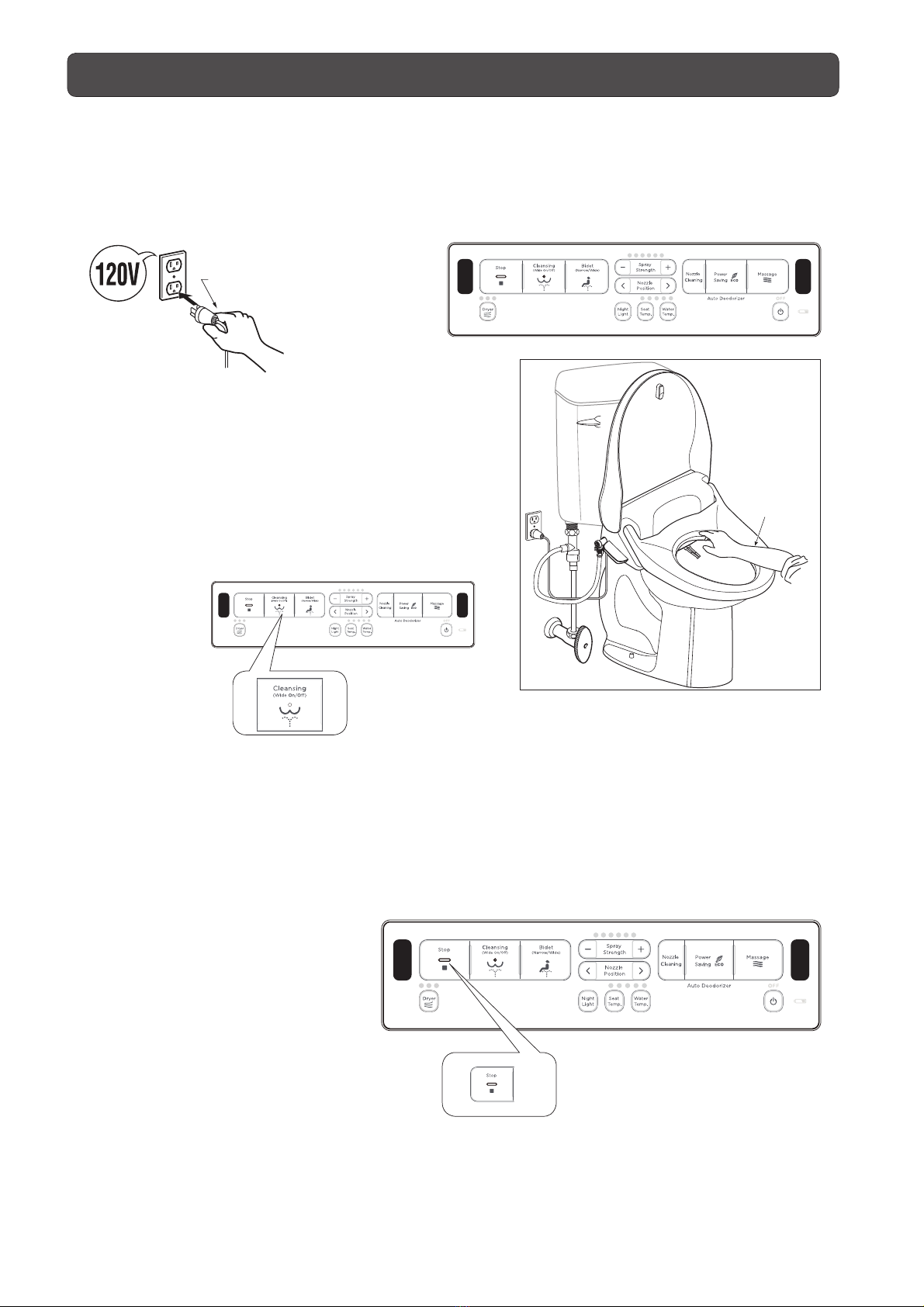

Follow the procedure below after the installation work has
been completed.
(1) Check the cleansing operation.
1) With your forearm resting on the toilet seat, press the
cleansing button.
The nozzle spray automatically stops two minutes
after the switch is turned on.
2) When the nozzle extends, cover the tip of the nozzle
with your hand to catch the spray.
3) Press the STOP button to stop the nozzle spray.
(2) Perform the same check using the
front nozzle spray function.
Power
plug
Operational Check

17 - EN -
OPERATIONAL MANUAL
TABLE OF CONTENTS
Additional Important Information.....................................................................................18
Product Functions....................................................... .... ......................19
Remote Control...............................................................................................................19
Preparations Before Use...........................................................................
............. ........20
How to Use the Basic Functions
................................................................ ........ .. .......... 21
Warm air dryer................................................................................................................23
How to Use the Convenient Functions
........................................................................... 24
Other convenient functions.......................................................................
............. ........25
If freezing weather or long term absence is anticipated, drain the water..
............. ........26
Maintaining This Product......................................................................28
Cleaning the Seat Unit......................................................................... .......... ................28
Cleaning the Nozzles..................................................................................................... 28
Cleaning & Maintenance of the Deodorizing Filter......................................................... 29
Cleaning the Inlet Strainer..............................................................................................30
Cleaning Areas Covered by the Toilet Seat Lid & Unit............................................
... .....31
Change Batteries for the Remote Control.......................................................................32
Troubleshooting............................................................. ..... ..................33
Specifications.............................................................................
..... ......35
Warranty information & After-sales Support..............................
...... ...36

When the toilet is new, a slight odor may come
from the deodorizer. This will go away in a short
time.
Before and after cleansing and when the water
temperature adjustment button is pressed, etc.,
water is sprayed from the nozzle. This occurs by
design and is not a cause for concern.
If water sprays while under any other
configuration, or sprays constantly, close the
water shutoff valve and remove the power plug
from the wall outlet. Then, contact cutomer
service.
Additional Important Information
This product is equipped with a seat sensor that
prevents the water from spraying if nobody is
sitting on the toilet seat. This prevents activation
if the SpaLet®seat button is pressed when the
toilet seat is unoccupied.
18 - EN -

19 - EN -
Product Functions
Remote
CLEANSING
For back cleansing only.
Press twice for oscillating function.
SPRAY STRENGTH
Adjusts spray strength for
cleansing and bidet settings.
NOZZLE POSITION
Nozzle position adjustment
for optimal cleansing.
SEAT TEMPERATURE
Adjust warm seat temperature
DRYER
Dry wet part after cleaning.
NIGHT LIGHT
Turn on or off the illumination
night light.
WATER TEMPERATURE
Adjust warm water temperature
BIDET
For front cleansing.
Press twice for oscillating function.
Press threetimes for super oscillating
function.
FOR DETAILED FUNCTIONS SEE OPERATION SECTION
POWER
Power On/Off
STOP
Stop function
ECO
Power saving Mode.
Save energy while
the toilet is not in use.
MASSAGE
Water spray strength
changes rhythmically to
create pulsating effect.
(only for back cleansing)
NOZZLE CLEANING
Nozzle self-cleaning.

20 - EN -
Press the STOP button to turn the power ON or OFF.
*
If the power is ON, the power LED on the indicator panel will light up.
be on.
STOP (Turning the power on/off)
Performing the following operations before using the product allows you to use
the SpaLet®comfortably.
Adjust the temperature of the toilet
seat using the Seat Temp. switch.
Adjust the temperature of the spray
using the Water Temp. switch.
The water temperature can be set to one of 5
settings
Set it to your preferred temperature.
* The indicator LED cycles through the temperature
settings each time the temperature button is pressed.
* The indicator LED stays on to indicate water
temperature level.
The seat temperature can be set to one of 5 settings.
Set it to your preferred temperature.
* The indicator LED cycles through the temperature
settings each time the temperature button is pressed.
* The indicator LED goes out after several seconds.
• The toilet seat will not become warm instantly. To achieve
a comfortable seat temperature, set the seat to the desired
temperature about 10 to 15 minutes prior to use.
• This product is equipped with an ECO function that
automatically switches the seat heater off when it is
not occupied.
• The default setting for the seat temperature is "MID". The seat
temperature can be increased or decreased incrementally.
Reference
Preparations Before Use
Seat Temp. Water Temp.
