Amico ATA-8-32 User manual

User Manual

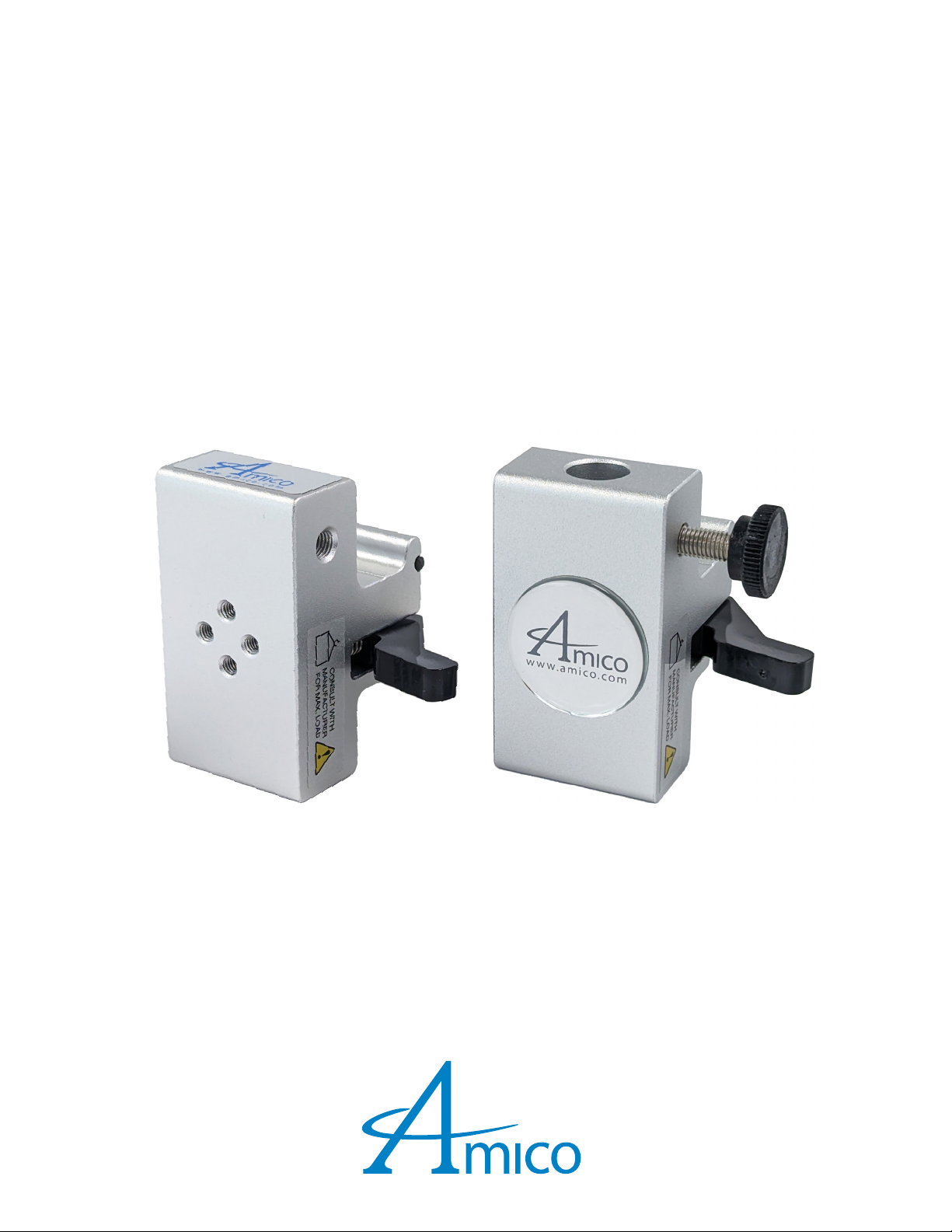

Amico Horizontal Rail Adapter

2
Preface
Important, Please Read Carefully
Thank you for your purchase with Amico.
The Amico Horizontal Rail Adapter is designed for long lasting performance, provided the user complies with assembly and
maintenance procedures. This instruction manual is your guide to ensuring that you get the best performance out your
equipment. Amico Accessories is not responsible for any damage as a result of, but not limited to, abuse and other malfunctions
that may be a direct or indirect result of failure to comply with the instructions provided in this manual.
Glossary of Warning Symbols
The meaning of symbols appearing in this Guide, on the Workstation, or on the Battery System are shown on the chart below.
These symbols alert you to safety conditions that demand your attention. You should take proper precaution and follow the
instructions on the label and/or this guide to minimize the risk of injury or damage to the equipment.
Symbol Signal Word/Color Level of Hazard
WARNING Steps where extra care should be taken to prevent injuries and damage.
NOTE Steps that point out helpful information.
Medical Facility Responsibilities
Preventive maintenance checks must be performed regularly to maintain the quality and performance of this product. Any parts
that may be broken, missing, worn, distorted, or contaminated in any way should not be used and all affected parts should be
replaced immediately. Should the necessity of any repair be suspected; please contact your local distributor or call 877-264-2697.
Precautions
WARNING: IT IS THE INSTALLER’S RESPONSIBILITY TO ENSURE ALL COMPONENTS ARE PROPERLY ASSEMBLED AND
INSTALLED USING THE PROVIDED INSTRUCTION MANUAL.
WARNING: EXCEEDING WEIGHT CAPACITIES CAN RESULT IN SEVERE PERSONAL INJURY OR DAMAGE TO YOUR
EQUIPMENT. IT IS THE INSTALLER’S RESPONSIBILITY TO ENSURE THE COMBINED WEIGHT OF ALL COMPONENTS DOES
NOT EXCEED THE WEIGHT CAPACITY LISTED IN PRODUCT SPECIFICATIONS ON PAGE 4 OF THIS MANUAL.

3
Section 1: Product Specifications 4
Features 4
Specifications 4
Section 2: Installation Preparation 4
Tools 4
Pre-installation Information (PLEASE READ CAREFULLY BEFORE STARTING) 4
Section 3: Installation on Mounting Platform 5
Installation Instructions 5
Section 4: Device Installation 6
For ATA-8-32 6
For ATA-05 6
Section 5: Adjustments 7
Section 6: Troubleshooting, Preventative Maintenance & Cleaning 8
Troubleshooting Guide 8
Preventive Maintenance 8
Cleaning 8
Warranty 9
Table of Contents

4
Section 1: Product Specifications
Features
Compatible to Amico Horizontal Rail System (ARS) for use with custom accessories application
Specifications
Amico Part Number ATA-8-32 ATA-05
Physical dimension 2.5" W x 2" D x 2.75" H 2.5" W x 2" D x 2.75" H
Weight 0.40 lbs (0.18 kg) 0.43 lbs (0.195 kg)
Max load 2.5 lb.ft. 2.5 lb.ft.
Total weight of all the equipment
attached 15 lbs (6.80 kg) 15 lbs (6.80 kg)
Mounting platform for use with
custom accessories application 4x 8-32 threaded holes ½" apart ½" socket with thumb knob
Compatible to Amico Horizontal Rail
System (ARS) Yes Yes
Section 2: Installation Preparation
Tools
Installation of this product can be completely tool-free.
Pre-installation Information (PLEASE READ CAREFULLY BEFORE STARTING)
WARNING: THE ATA05 AND ATA832 HAVE A MAXIMUM LOAD RATING OF 2.5 LB.FT, APPROXIMATELY 15 LBS, 2"FROM
THE CENTER OF THE CROSSSECTION OF THE MOUNTING SURFACE OF THE ADAPTER. HENCE THE TOTAL WEIGHT OF
ALL THE EQUIPMENT ATTACHED SHOULD NOT EXCEED 15 LBS. ATTACHING MORE WEIGHT CAN LEAD TO FAILURE AND
HENCE CAUSE DAMAGE TO EQUIPMENT AND/OR INJURIES TO PEOPLE NEARBY.

5
Installation Instructions
WARNING: DO NOT MOUNT THE AMICO HORIZONTAL RAIL ADAPTER ATA____ ABOVE THE PATIENT’S HEAD.
WARNING: ENSURE RAILING IS STABLE AND PROPERLY INSTALLED BEFORE MOUNTING THE AMICO HORIZONTAL RAIL
ADAPTER ATA____.
WARNING: ENSURE XHBLOCKARM IS PUSHED BACK TO ORIGINAL POSITION WHEN MOUNTED OR ELSE ATA____
MAY BE DISLODGED WHEN AN UPWARD FORCE IS APPLIED TO IT.

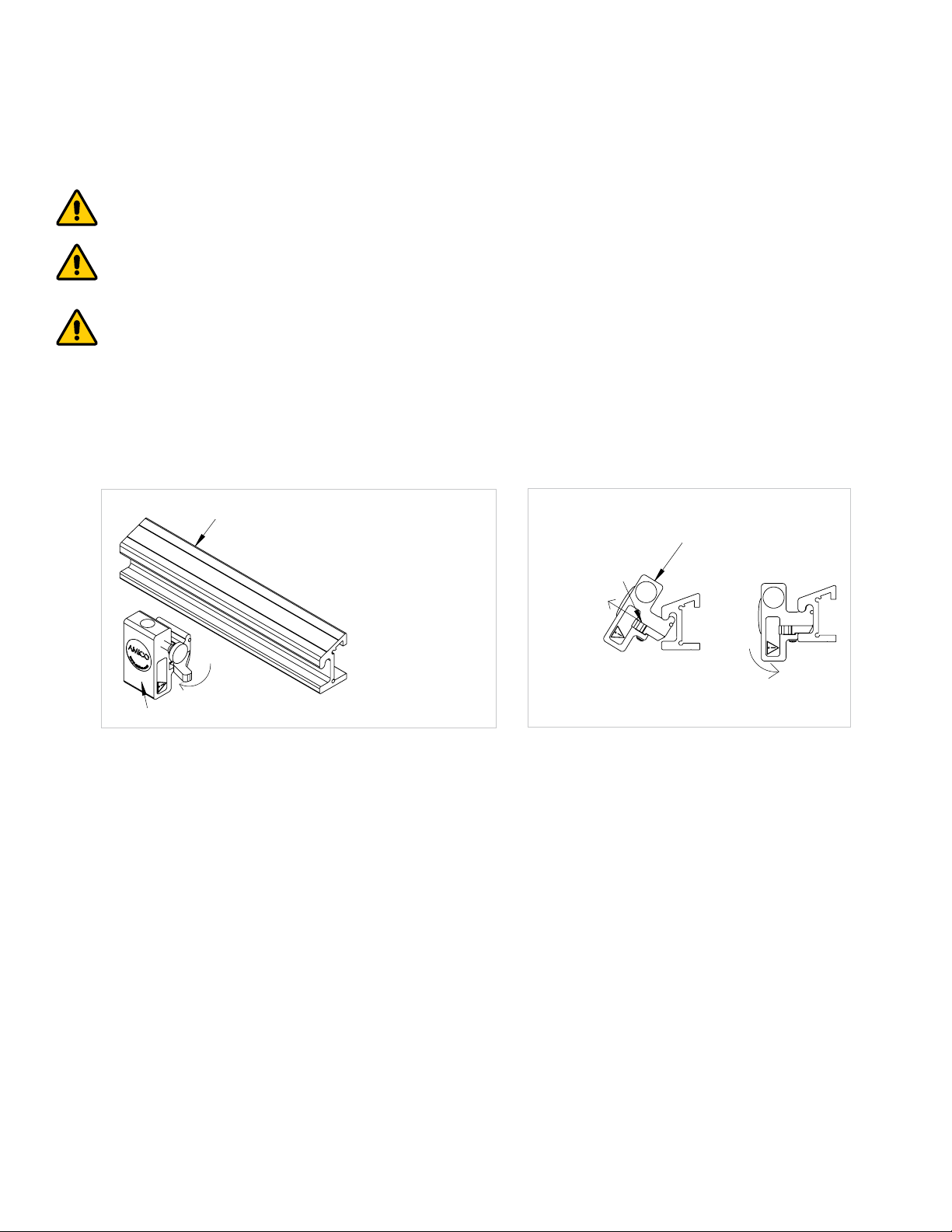

1. Locate a compatible rail.
2. Determine the position the ATA-__-__ will mount to.
3. Install the ATA-__-__ by pulling X-HBLOCK-ARM (Figure 1) and wedging the top of the ATA-__-__ in, as shown in step 1. With
X-HBLOCK-ARM pulled, push the ATA-__-__ into the rail as shown in step 2. (Figure 2)
ATA-__-__
X-HBLOCK-ARM
ATA-__-__
ARS-___ / AMICO HEADWALLS /
HORIZONTAL RAILS ON MODULAR HEADWALLS
(TOLERANCE MAY VARY FOR MODULAR RAILS)
PULL DIRECTION
TO INSTALL:
LOCATE A COMPATIBLE RAIL 1.
DETERMINE THE POSITION THE ATA-__-__ WILL MOUNT TO. 2.
INSTALL THE ATA-__-__ BY PULLING X-HBLOCK-ARM AND WEDGING THE TOP OF THE ATA-__-__ IN, AS SHOWN IN STEP 1. 3.
WITH X-HBLOCK-ARM PULLED, PUSH THE ATA-__-__ INTO THE RAIL AS SHOWN IN STEP 2.
RELEASE X-HBLOCK-ARM AND PUSH IT BACK TO ORIGINAL POSITION. CHECK THE ATA-__-__ TO ENSURE IT IS SECURELY 4.
MOUNTED BY PULLING UP/DOWN ON IT AND ENSURING IT DOES NOT PULL OFF THE RAIL.
STEP 1 STEP 2
*WARNING*:
DO NOT MOUNT THE ATA-__-__ ABOVE THE PATIENT'S HEAD 1.
ENSURE RAILING IS STABLE AND PROPERLY INSTALLED BEFORE MOUNTING THE ATA-__-__ 2.
ENSURE X-HBLOCK-ARM IS PUSHED BACK TO ORIGINAL POSITION WHEN MOUNTED OR ELSE ATA-__-__ MAY BE DISLODGED 3.
WHEN AN UPWARD FORCE IS APPLIED TO IT
PROJECT #: 0257
FOR USE WITH ATA-__-__
REVISIONS
REV. DESCRIPTION DATE APPROVED
- See Sheet1 - -
5
4
3
2
1
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, CANADA
Tel: [phone]
Fax: [phone]
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
070711-A03B
NTS
2
4
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
JT OCT/05/2012
HM
MAR/20/2013
CUSTOMER DRAWING
ATA ADAPTER
ATA-05 OR ATA-8-32
Figure 1
ARS___ / AMICO HEADWALLS /
HORIZONTAL RAILS ON MODULAR HEADWALLS
TOLERANCE MAY VARY FOR MODULAR RAILS
ATA____
ATA-__-__
X-HBLOCK-ARM
ATA-__-__
ARS-___ / AMICO HEADWALLS /
HORIZONTAL RAILS ON MODULAR HEADWALLS
(TOLERANCE MAY VARY FOR MODULAR RAILS)
PULL DIRECTION
TO INSTALL:
LOCATE A COMPATIBLE RAIL 1.
DETERMINE THE POSITION THE ATA-__-__ WILL MOUNT TO. 2.
INSTALL THE ATA-__-__ BY PULLING X-HBLOCK-ARM AND WEDGING THE TOP OF THE ATA-__-__ IN, AS SHOWN IN STEP 1. 3.
WITH X-HBLOCK-ARM PULLED, PUSH THE ATA-__-__ INTO THE RAIL AS SHOWN IN STEP 2.
RELEASE X-HBLOCK-ARM AND PUSH IT BACK TO ORIGINAL POSITION. CHECK THE ATA-__-__ TO ENSURE IT IS SECURELY 4.
MOUNTED BY PULLING UP/DOWN ON IT AND ENSURING IT DOES NOT PULL OFF THE RAIL.
STEP 1 STEP 2
*WARNING*:
DO NOT MOUNT THE ATA-__-__ ABOVE THE PATIENT'S HEAD 1.
ENSURE RAILING IS STABLE AND PROPERLY INSTALLED BEFORE MOUNTING THE ATA-__-__ 2.
ENSURE X-HBLOCK-ARM IS PUSHED BACK TO ORIGINAL POSITION WHEN MOUNTED OR ELSE ATA-__-__ MAY BE DISLODGED 3.
WHEN AN UPWARD FORCE IS APPLIED TO IT
PROJECT #: 0257
FOR USE WITH ATA-__-__
REVISIONS
REV. DESCRIPTION DATE APPROVED
- See Sheet1 - -
5
4
3
2
1
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, CANADA
Tel: [phone]
Fax: [phone]
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
070711-A03B
NTS
2
4
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
JT OCT/05/2012
HM
MAR/20/2013
CUSTOMER DRAWING
ATA ADAPTER
ATA-05 OR ATA-8-32
Figure 2
ATA____
XHBLOCKARM
PULL
DIRECTION
4. Release X-HBLOCK-ARM and push it back to original position. Check the ATA-__-__ to ensure it is securely mounted by pulling
up/down on it and ensuring it does not pull off the rail.
Section 3: Installation on Mounting Platform

6
WARNING: THE ATA05 AND ATA832 HAVE A MAXIMUM LOAD RATING OF 2.5 LB.FT, APPROXIMATELY 15 LBS, 2"FROM
THE CENTER OF THE CROSS SECTION OF THE MOUNTING SURFACE OF THE ADAPTER. HENCE THE TOTAL WEIGHT OF
ALL THE EQUIPMENT ATTACHED SHOULD NOT EXCEED 15 LBS. ATTACHING MORE WEIGHT CAN LEAD TO FAILURE AND
HENCE CAUSE DAMAGE TO EQUIPMENT AND/OR INJURIES TO PEOPLE NEARBY.

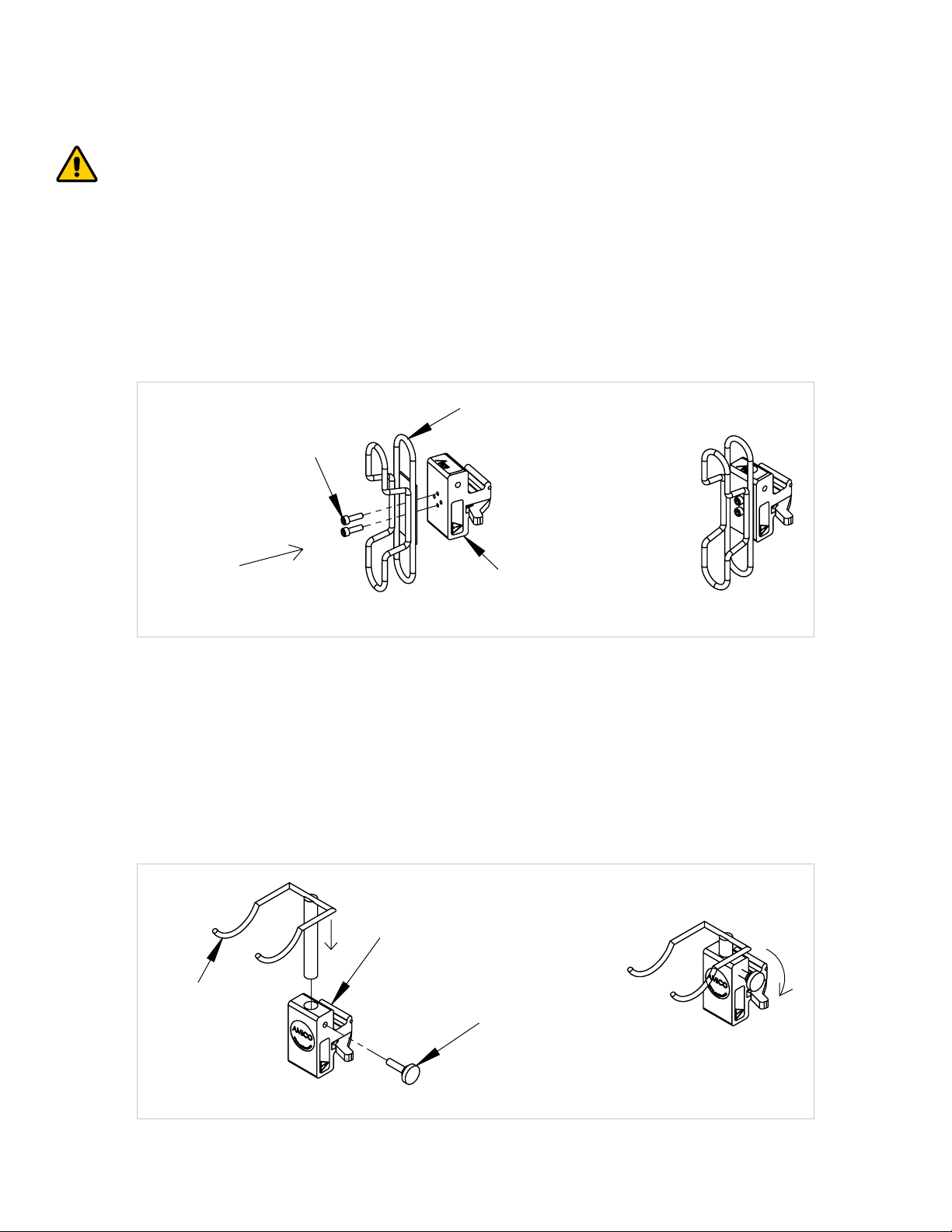

For ATA-8-32
1. Align device with 2x #8-32 clearance holes with ATA-8-32’s threaded holes as shown in step 1. (Figure 3)
2. Recommend to apply thread sealant or add lock washers to screws.
3. Screw device into ATA-8-32 to secure as shown in step 2. (Figure 3)
ATA-8-32
DEVICE WITH TWO #8-32
CLEARANCE HOLES (NOT
PROVIDED BY AMICO)
STEP 1
#8-32 HARDWARE (SCREWS,
LOCK-WASHERS AND THREAD SEALANT
NOT PROVIDED BY AMICO)
STEP 2
ATA-05
H-THUMB-KNOB-34
DEVICE WITH
0.5" DIAMETER POST
(NOT PROVIDED BY
AMICO)
*WARNING*:
THE ATA-05 AND ATA-8-32 HAVE A MAXIMUM LOAD RATING OF 2.5 LB.FT, APPROXIMATELY 15 LBS, 2 INCHES FROM THE CENTER
OF THE CROSS SECTION OF THE MOUNTING SURFACE OF THE ADAPTER. HENCE THE TOTAL WEIGHT OF ALL THE EQUIPMENT
ATTACHED SHOULD NOT EXCEED 15 LBS. ATTACHING MORE WEIGHT CAN LEAD TO FAILURE AND HENCE CAUSE DAMAGE TO
EQUIPMENT AND/OR INJURIES TO PEOPLE NEARBY
STEP 1
PROJECT #: 0257
FOR USE WITH ATA-__-__
STEP 2
FOR ATA-8-32:
ALIGN DEVICE WITH TWO #8-32 CLEARANCE HOLES WITH ATA-8-32'S THREADED HOLES AS SHOWN IN STEP 1 1.
RECOMMEND TO APPLY THREAD SEALANT OR ADD LOCK WASHERS TO SCREWS 2.
SCREW DEVICE INTO ATA-8-32 TO SECURE AS SHOWN IN STEP 2 3.
FOR ATA-05:
TURN H-THUMB-KNOB-34 COUNTER-CLOCKWISE TO LOOSEN AND ALLOW CLEARANCE IN HOLE TO SLIDE DEVICE WITH 1.
0.5" DIAMETER POST INTO ATA-05 'S SOCKET AS SHOWN IN STEP 1
SET DEVICE TO DESIRED HEIGHT (SLIDE THE DEVICE SLOWLY TO ALLOW ENOUGH POST TO BE TIGHTENED IN ATA-05, 2.
LIMITED BY DEVICE POST LENGTH)
SECURE DEVICE IN ATA-05 WITH THE H-THUMB-KNOB-34 BY TURNING IT CLOCKWISE AS SHOWN IN STEP 2 3.
REVISIONS
REV. DESCRIPTION DATE APPROVED
- See Sheet1 - -
5
4
3
2
1
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, CANADA
Tel: [phone]
Fax: [phone]
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
ATA-05 OR ATA-8-32
070711-A03B
NTS
3
4
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
ATA-ADAPTER
JT OCT/05/2012
HM
CUSTOMER DRAWING
MAR/20/2013
ATA832
STEP 1 STEP 2
#832 HARDWARE SCREWS,
LOCK WASHERS AND THREAD SEALANT
NOT PROVIDED BY AMICO
DEVICE WITH 2x #832
CLEARANCE HOLES NOT
PROVIDED BY AMICO
Figure 3

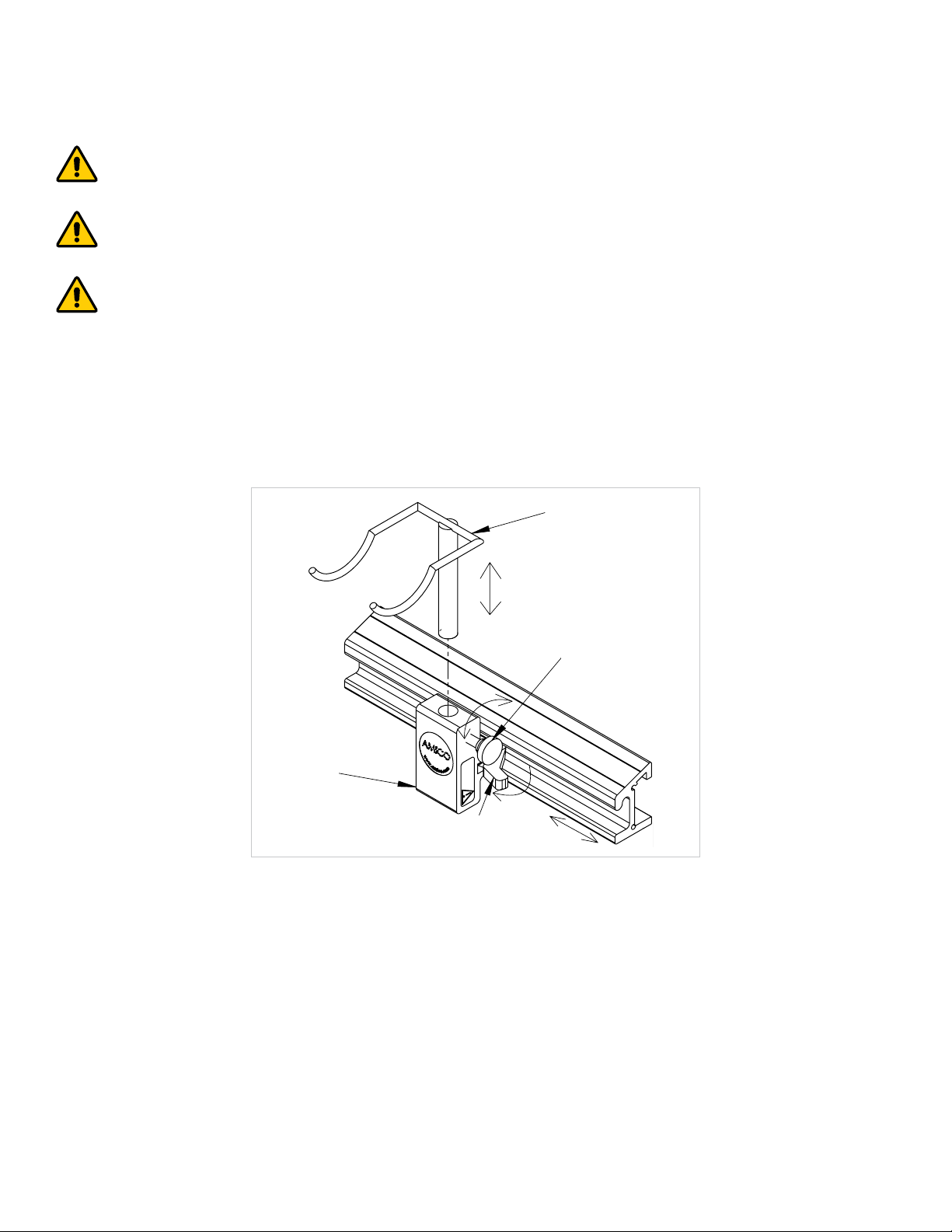

For ATA-05
1. Turn H-THUMB-KNOB-34 counter-clockwise to loosen and allow clearance in hole to slide device with 0.5" diameter post into
ATA-05’s socket as shown in step 1 (Figure 4).
2. Set device to desired height (slide the device slowly to allow enough post to be tightened in ATA-05, limited by device post
length). (Figure 4)
3. Screw device in ATA-05 with the H-THUMB-KNOB-34 by turning it clockwise as shown in step 2. (Figure 4)
ATA-8-32
DEVICE WITH TWO #8-32
CLEARANCE HOLES (NOT
PROVIDED BY AMICO)
STEP 1
#8-32 HARDWARE (SCREWS,
LOCK-WASHERS AND THREAD SEALANT
NOT PROVIDED BY AMICO)
STEP 2
ATA-05
H-THUMB-KNOB-34
DEVICE WITH
0.5" DIAMETER POST
(NOT PROVIDED BY
AMICO)
*WARNING*:
THE ATA-05 AND ATA-8-32 HAVE A MAXIMUM LOAD RATING OF 2.5 LB.FT, APPROXIMATELY 15 LBS, 2 INCHES FROM THE CENTER
OF THE CROSS SECTION OF THE MOUNTING SURFACE OF THE ADAPTER. HENCE THE TOTAL WEIGHT OF ALL THE EQUIPMENT
ATTACHED SHOULD NOT EXCEED 15 LBS. ATTACHING MORE WEIGHT CAN LEAD TO FAILURE AND HENCE CAUSE DAMAGE TO
EQUIPMENT AND/OR INJURIES TO PEOPLE NEARBY
STEP 1
PROJECT #: 0257
FOR USE WITH ATA-__-__
STEP 2
FOR ATA-8-32:
ALIGN DEVICE WITH TWO #8-32 CLEARANCE HOLES WITH ATA-8-32'S THREADED HOLES AS SHOWN IN STEP 1 1.
RECOMMEND TO APPLY THREAD SEALANT OR ADD LOCK WASHERS TO SCREWS 2.
SCREW DEVICE INTO ATA-8-32 TO SECURE AS SHOWN IN STEP 2 3.
FOR ATA-05:
TURN H-THUMB-KNOB-34 COUNTER-CLOCKWISE TO LOOSEN AND ALLOW CLEARANCE IN HOLE TO SLIDE DEVICE WITH 1.
0.5" DIAMETER POST INTO ATA-05 'S SOCKET AS SHOWN IN STEP 1
SET DEVICE TO DESIRED HEIGHT (SLIDE THE DEVICE SLOWLY TO ALLOW ENOUGH POST TO BE TIGHTENED IN ATA-05, 2.
LIMITED BY DEVICE POST LENGTH)
SECURE DEVICE IN ATA-05 WITH THE H-THUMB-KNOB-34 BY TURNING IT CLOCKWISE AS SHOWN IN STEP 2 3.
REVISIONS
REV. DESCRIPTION DATE APPROVED
- See Sheet1 - -
5
4
3
2
1
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, CANADA
Tel: [phone]
Fax: [phone]
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
ATA-05 OR ATA-8-32
070711-A03B
NTS
3
4
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
ATA-ADAPTER
JT OCT/05/2012
HM
CUSTOMER DRAWING
MAR/20/2013
HTHUMBKNOB34
STEP 1 STEP 2
DEVICE WITH 0.5"
DIAMETER POST
NOT PROVIDED
BY AMICO
Figure 4
ATA05
Section 4: Device Installation

7
Section 5: Adjustments
WARNING: IT IS RECOMMENDED THAT THE LOAD IS REMOVED FROM THE DEVICE BEFORE LOOSENING HTHUMB
KNOB34 OR THE LOAD MAY FALL.
WARNING: CARE MUST BE TAKEN WHILE ADJUSTING THE DEVICE SO AS NOT TO DISLODGE AND DROP THE DEVICE
FROM THE ATA05.
WARNING: ENSURE XHBLOCKARM IS PUSHED BACK IN ORIGINAL POSITION AFTER ADJUSTMENT OR ELSE ATA____
MAY BE DISLODGED AND FALL WHEN AN UPWARD FORCE IS APPLIED TO IT.
1. To adjust device on ATA-05, loosen H-THUMB-KNOB-34 by turning it counter-clockwise, adjust ATA-05 device to desired height
(slide the device slowly and ensure enough post is tightened by THE H-THUMB-KNOB-34) and rotate H-THUMB-KNOB-34 in
clockwise direction to lock device position. (Figure 5)
2. To adjust ATA-__-__ position on rail, pull the X-HBLOCK-ARM and slide the ATA-__-__ left or right to desired position (Figure
5) and release the X-HBLOCK-ARM and push to original position to lock ATA-__-__ in place. Check the ATA-__-__ to ensure it is
securely mounted by pulling up/down on it and ensuring it does not pull off the rail.
H-THUMB-KNOB-34
X-HBLOCK-ARM
ATA-05 DEVICE
ATA-__-__
ADJUSTMENT PROCEDURE:
TO ADJUST DEVICE ON ATA-05, LOOSEN H-THUMB-KNOB-34 BY TURNING IT COUNTER-CLOCKWISE, ADJUST ATA-05 1.
DEVICE TO DESIRED HEIGHT (SLIDE THE DEVICE SLOWLY AND ENSURE ENOUGH POST IS TIGHTENED BY THE H-THUMB-KNOB-34)
AND ROTATE H-THUMB-KNOB-34 IN CLOCKWISE DIRECTION TO LOCK DEVICE POSITION
2. TO ADJUST ATA-__-__ POSITION ON RAIL, PULL THE X-HBLOCK-ARM AND SLIDE THE ATA-__-__ LEFT OR RIGHT TO DESIRED
POSITION AND RELEASE THE X-HBLOCK-ARM AND PUSH TO ORIGINAL POSITION TO LOCK ATA-__-__ IN PLACE. CHECK THE
ATA-__-__ TO ENSURE IT IS SECURELY MOUNTED BY PULLING UP/DOWN ON IT AND ENSURING IT DOES NOT PULL OFF THE RAIL.
FOR USE WITH ATA-__-__
PROJECT #: 0257
*WARNING*:
1. IT IS RECOMMENDED THAT THE LOAD IS REMOVED FROM THE DEVICE BEFORE LOOSENING H-THUMB-KNOB-34 OR THE LOAD MAY FALL.
2. CARE MUST BE TAKEN WHILE ADJUSTING THE DEVICE SO AS NOT TO DISLODGE AND DROP THE DEVICE FROM THE ATA-05.
3. ENSURE X-HBLOCK-ARM IS PUSHED BACK IN ORIGINAL POSITION AFTER ADJUSTMENT OR ELSE ATA-__-__ MAY BE DISLODGED AND FALL
WHEN AN UPWARD FORCE IS APPLIED TO IT.
REVISIONS
REV. DESCRIPTION DATE APPROVED
- See Sheet1 - -
5
4
3
2
1
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, CANADA
Tel: [phone]
Fax: [phone]
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
ATA-05 OR ATA-8-32
070711-A03B
NTS
44
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
ATA-ADAPTER
JT OCT/05/2012
HM
MAR/20/2013
CUSTOMER DRAWING
XHBLOCKARM
ATA____
HTHUMBKNOB34
ATA05 DEVICE
Figure 5

8
Troubleshooting Guide
Symptom Possible Cause Solution
Adapter is wobbly in the
rail.
1. Adapter is not fully wedged into the rail, or
2. X-HBLOCK-ARM is not pushed to the original
position to lock the adapter in place.
Remove adapter from rail and follow
the installation instructions to
complete the install properly.
ATA-05 device does not
stop from swiveling.
1. H-THUMB-KNOB-34 is not tightened enough, or
2. Not enough post is tightened by the H-THUMB-
KNOB-34.
Tighten H-THUMB-KNOB-34, or lower
the device
Preventive Maintenance
WARNING: THE INTERVALS SHOWN ARE RECOMMENDED. MAINTENANCE SCHEDULES SHOULD BE MORE FREQUENT
FOR HIGHERUSE AREAS.
It is recommended that once every month, all locks, bolts, and screws are visually inspected for signs of product wear and tear or
damage. Check the device for looseness in the mount or orientation, and ensure the adapter is secured to the rail system.
Ensure the X-HBLOCK-ARM is push to original position to lock ATA-__-__ in place, the screws and thumb knob are fastened to the
tightest possible position and ensure device is secure.
Cleaning
WARNING: THE CLEANING CHEMICALS AND METHODS BELOW ARE NOT MEANT FOR CONTROLLING ANY INFECTIONS.
IT SHALL BE THE RESPONSIBILITY OF THE HOSPITAL OR THE HOSPITAL’S INFECTION CONTROL OFFICER TO SANITIZE
THE EQUIPMENT.
WARNING: PLEASE DO NOT SPRAY ANY CHEMICALS DIRECTLY ONTO THE AMICO HORIZONTAL RAIL ADAPTER. APPLY
ONTO A SOFT CLOTH AND WIPE CLEAN TO PREVENT CHEMICALS FROM GETTING INTO THE INTERNAL COMPONENTS
OF THE AMICO HORIZONTAL RAIL ADAPTER.
The mounting assembly may be cleaned with the most mild, non-abrasive solutions commonly used in the hospital environment
(e.g. diluted bleach, ammonia, or alcohol solutions). The surface finish will be permanently damaged by strong chemical and
solvent such as acetone and trichloroethylene. Steel wool or other abrasive material should never be used. Damaged caused by
the use of unapproved substances or processes will not be warranted. It is recommended that you test any cleaning solution on
a small area of the Amico Horizontal Rail Adapter that is not visible to verify compatibility. Never submerge the Amico Horizontal
Rail Adapter and do not allow liquids to enter it. Wipe any cleaning agents off the Amico Horizontal Rail Adapter immediately
using a water-dampened cloth. Dry the Amico Horizontal Rail Adapter thoroughly after.
NO ACETONE
Acetone is a colorless, mobile,
flammable liquid.
Acetone
NO TRICHLOROETHYLENE
Trichloroethylene is a
chlorinated hydrocarbon
commonly used as an
industrial solvent.
Trichloroethylene
Section 6: Troubleshooting, Preventative Maintenance
& Cleaning

9
Warranty
www.amico.com
Amico Accessories Inc. warrants all mounting accessories to be free from defects in material and workmanship for a period of
twelve (12) months from the date of shipment. Within this period Amico Accessories Inc. will repair or replace any part which is
proven to be defective.
Amico Accessories Inc. will warrant its materials to be free from defect for an additional period of four (4) years, (five [5] years from
the date of shipment). Within this period, Amico Accessories Inc. will replace any part which is proven to be defective, at no charge.
Shipping and Installation costs after the first twelve (12) months will be borne by the Customer.
This warranty is valid only when the product has been properly installed according to Amico Accessories Inc. specifications, used
in a normal manner and serviced according to factory recommendations. It does not cover products that are not manufactured by
Amico Accessories Inc. It does not cover failures due to damage which occurs in shipments or failures which result from accidents,
misuse, abuse, neglect, mishandling, alteration, misapplication or damage that may be attributable to acts of God.
Amico Accessories Inc. shall not be liable for incidental or consequential damages resulting from use of equipment.
All claims for warranty must first be approved by Amico Accessories Inc. A valid Return Goods Authorization (RGA) number must
be obtained from Amico Accessories Inc. prior to commencement of any service work. Warranty work, which has not been pre-
authorized by Amico Accessories Inc., will not be reimbursed.
AMICO ACCESSORIES INC. DOES NOT HONOR VERBAL STATEMENTS CONCERNING THE WARRANTY.
The distributor and/or dealer are not sanctioned to create verbal warranties about the product described in this agreement. Any
statements will not be honored or be made part of the agreement of sale. This document is the final complete and exclusive terms
of the agreement.
THIS WARRANTY IS INCLUSIVE AND REPLACES ALL OTHER WARRANTIES.
Amico Accessories Inc. shall not, under any circumstances be liable for incidental or consequential damages including, but not
limited to, profit, loss of sales or injuries to person(s) or property. Correction of noncompliance as noted above will result in
completion of all liabilities of Amico Accessories Inc., whether based on agreement, neglect or changed materials, designs or
specifications without notice.
All claims for warranty must first be approved by Amico Accessories Inc. Service Department: [e-mail] or
1.877.264.2697. A valid Return Goods Authorization number must be obtained from Amico Accessories Inc. prior to commencement
of any warranty claim.
Amico Accessories Inc. | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada
Tel: [phone] | Fax: [phone]
Warranty Policy - Equipment Mounting Solutions
AA-WARRANTY 08.16.2017

10
Notes

11
Notes

Amico Accessories Inc. | 122 East Beaver Creek Road, Richmond Hill, ON L4B 1G6, Canada
Toll Free Tel: [phone] | Tel: [phone] | Fax: [phone]
Email: [email protected] | www.amico.com
www.amico.com
AA-IM-HORIZONTAL-RAIL-ADAPTER-ATA 06.12.2023
