Amrotec MiB-9 User manual

Ver. 1.00
Service Manual
MiB-9 Currency Discriminator
Leading Image Processing Technology
We've been there when you needed

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
2
-
Important Safety Information
Always be careful when using the machine. To reduce the risk of fire, electrical shocks, and other injuries, keep
these safety considerations in mind when installing, using, and maintaining your machine:
Stability : Place the machine on a secure, stable surface. The machine can be seriously damaged if it falls.
Power Supply : Provide correct power to the machine, as listed on the back of the machine. If you are not sure
of the type of power that is supplied to your office, call your electric company.
Grounding : If the plug has three prongs, it must be plugged into a grounded (three hole) outlet. Grounded
plugs and outlets are designed for your safety - do not try to make a three-prong plug fit into a
two-prong outlet by modifying the plug or outlet in any way. If you cannot insert the plug into your
wall outlet easily, then a qualified electrician should inspect the outlet.
Overload : Do not plug too many electrical devices into a wall outlet or an extension cord. An overloaded
outlet could be a reason of a fire and electrical shock hazard. Power stripe must have surge
protector or anywhere machine is connected to.
Cleaning : Before cleaning the machine, unplug it from the power outlet. Clean exposed parts with a soft
cloth slightly dampened with water. Do not use aerosol cleaners.
Gas Leaks : Never use any machine close to a gas leak. If you think gas is leaking, shut off the machine and
unplug immediately and contact the gas company or provider immediately. A small electrical
spark in the machine could cause a fire or explosion.
Precaution
When using the machine, these precautions must be always followed:
1. Never push objects of any kind into your machine through the case or cabinet openings.
2. Do not use your machine near water, in wet locations, or outdoors.
3. Do not allow anything to rest on the power cord, line cord, or PC interface cable. Do not locate your machine
where the cords can be damaged by persons’ walking on them.
4. Do not allow pets to chew on the power cord or PC interface cable.
5. Use supplies or cleaning materials only as directed. Keep all supplies and materials out of the way of children.
6. The power supply turns this machine on and off. Make sure that your machine is installed near an outlet and is
easily accessible.
7. Never remove covers or guards that require a tool for removal. There are no operator serviceable areas inside
your machine. Refer servicing to authorized service personnel of AMROTEC® or AMROTEC® Authorized
service provider.
8. Never defeats interlock switches. This machine is designed to restrict operator access to unsafe areas. Covers,
guards and interlock switches are provided to ensure that the machine will not operate with covers opened.

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
3
-
Managing the performance of the machine
This unit has many sophisticated sensors. Without proper maintenance, machine cannot provide better performance
as intended. Please read the “Daily Maintenance” section of this manual carefully and follow through every day.
When the performance is declining, please clean all the sensors, inside and out and calibrate all sensors first before
contacting AMROTEC team.
Safety Notes
Your machine and the supplies are designed and tested to
meet strict safety requirements. Included are safety agency
examination and approval and compliance to established
environmental standards. Please read the following
instructions carefully before operating your machine and refer
to them as needed to ensure the continued safe operation of your machine.

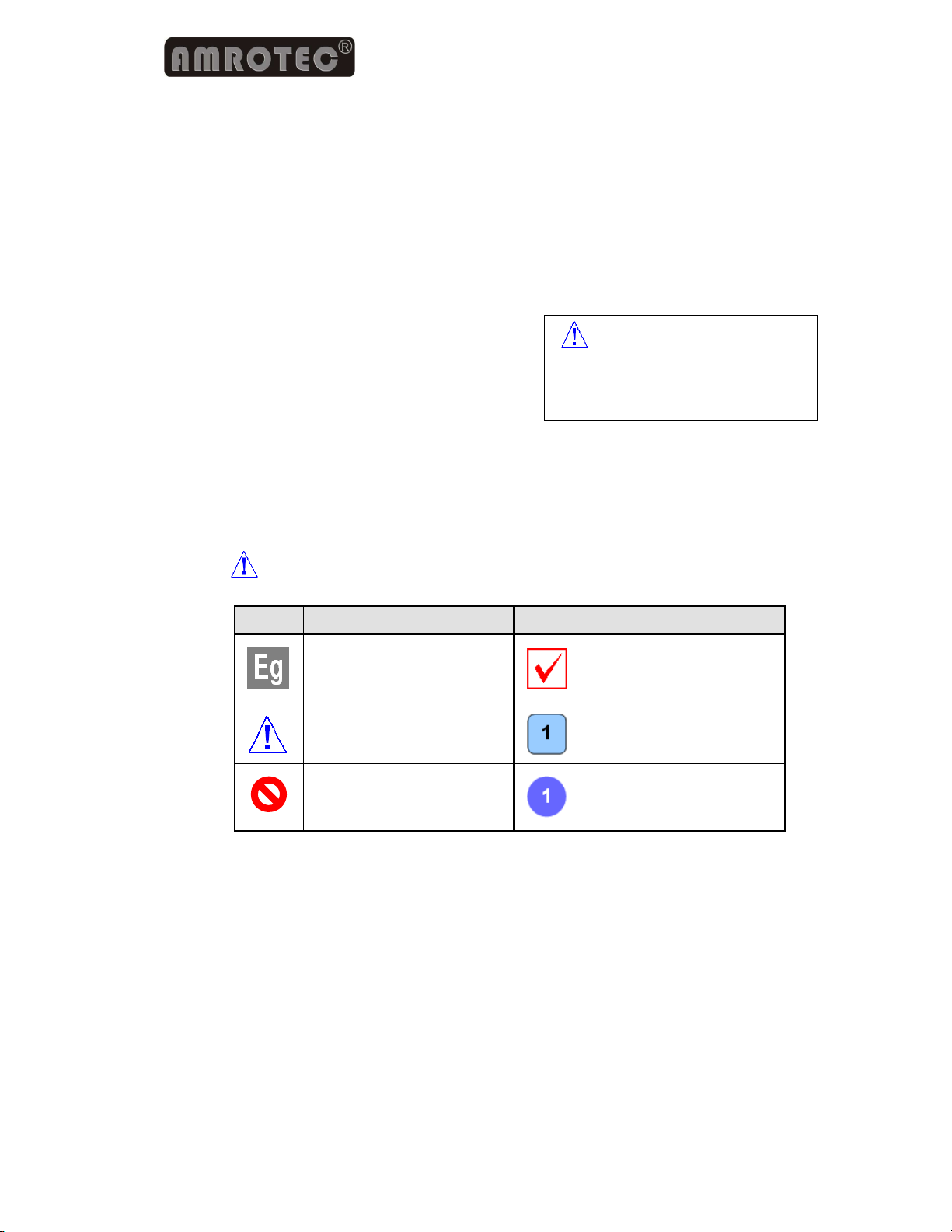

Refer to the below Icons before reading Manual.
Icon Explanation Icon Explanation
Language of Service Manual
(English)
Check
Caution Button on Control Panel
prohibition In order of process
WARNING
Hazardous moving parts!
Keep fingers and other body parts
away

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
4
-
Recommended Tools
Picture Description and Size Picture Description and Size
L Wrench
Ø1.5
Hexagonal Screwdriver
5mm
L Wrench
Ø2
Screwdriver(-)
6mm
Spanner
7mm
Screwdriver(-)
1.5mm
Nipper
Screwdriver(-)
2.5mm
Long-nose
Screwdriver(+)
Ø6

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
5
-
Table of Contents
Chapter 1 Installation --------------------------------------------------------------------------------------------- 7
Unpacking List ------------------------------------------------------------------------------------------- 7
Choosing a Location ----------------------------------------------------------------------------------- 7
Handling the Machine -------------------------------------------------------------------------------- 7
Power Cord ----------------------------------------------------------------------------------------------- 8
Printer ------------------------------------------------------------------------------------------------------ 8
Chapter 2 Description of the Parts ----------------------------------------------------------------------------- 9
Out Side -------------------------------------------------------------------------------------------------- 9
Interface port --------------------------------------------------------------------------------------------- 9
Sensors ---------------------------------------------------------------------------------------------------- 10

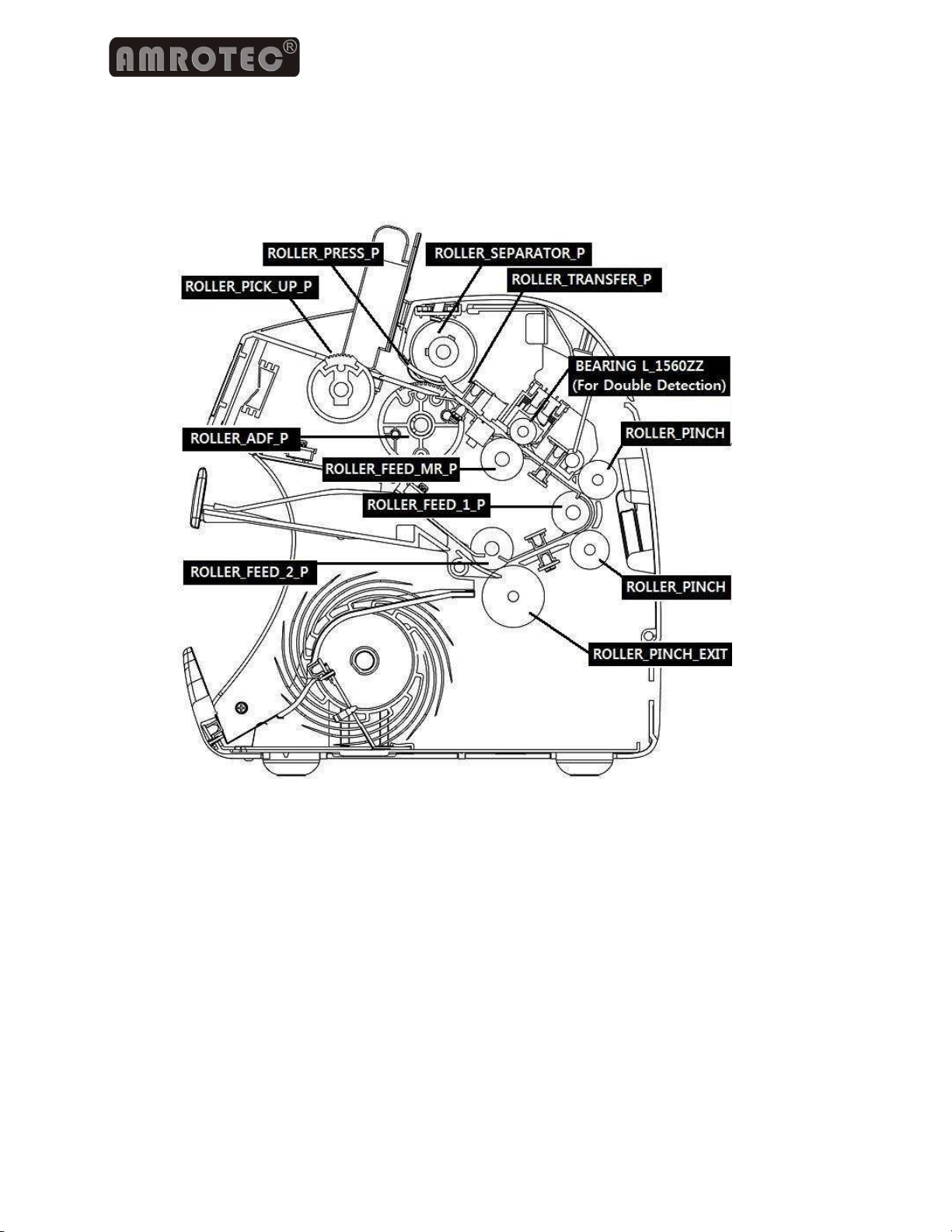

Rollers ----------------------------------------------------------------------------------------------------- 11

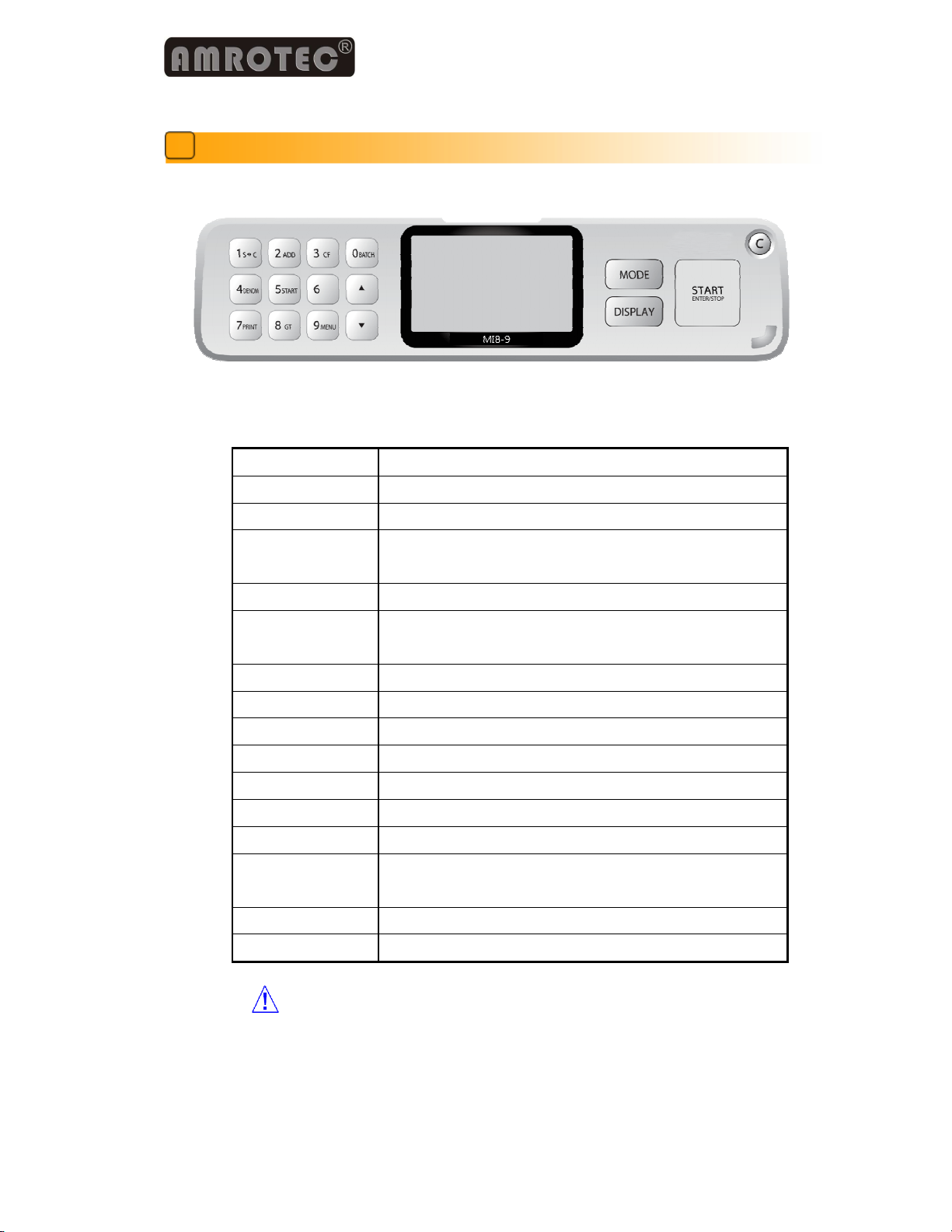

Chapter 3 Overview of Control Panel ----------------------------------------------------------------------- 13
Operation Panel ----------------------------------------------------------------------------------------- 13
Key Define ---------------------------------------------------------------------------------------------- 13
Chapter 4 Reject Reason and Error Message -------------------------------------------------------------- 14
Reject Reason ------------------------------------------------------------------------------------------- 14
LCD Error Messages ----------------------------------------------------------------------------------- 15
Chapter 5 Connection Diagram --------------------------------------------------------------------------------- 16
Chapter 6 S/W Version Check ----------------------------------------------------------------------------------- 17
Chapter 7 SERVICE MENU1 -------------------------------------------------------------------------------------- 18
Chapter 8 SERVICE MENU2 -------------------------------------------------------------------------------------- 21
Chapter 9 Shading --------------------------------------------------------------------------------------------------- 24
UV SHADING -------------------------------------------------------------------------------------------- 26
MR SHADING ------------------------------------------------------------------------------------------ 28
CIS SHADING ------------------------------------------------------------------------------------------ 31
IR SHADING -------------------------------------------------------------------------------------------- 33
ERROR ---------------------------------------------------------------------------------------------------- 34
Chapter 10 Adjustment ---------------------------------------------------------------------------------------------- 36
Gap of ADF ----------------------------------------------------------------------------------------------- 36
ADF & Pickup Roller Timing -------------------------------------------------------------------------- 37
Guide Selector ------------------------------------------------------------------------------------------- 37
LCD (Back light) ----------------------------------------------------------------------------------------- 39
Hopper Sensitivity -------------------------------------------------------------------------------------- 40
Reject Pocket Sensor Level -------------------------------------------------------------------------- 41
Double Sensor Level ----------------------------------------------------------------------------------- 43
Chapter 11 Program Update --------------------------------------------------------------------------------------- 45
Chapter 12 Assembly Drawings ---------------------------------------------------------------------------------- 47

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
6
-
Cover Exp View ----------------------------------------------------------------------------------------- 48
Ass'y Exp View ------------------------------------------------------------------------------------------ 49
Frame Exp View ----------------------------------------------------------------------------------------- 50
Roller Exp View ------------------------------------------------------------------------------------------ 51
Cover Door Top ------------------------------------------------------------------------------------------ 52
Cover Door Top Upper --------------------------------------------------------------------------------- 52
Housing Pocket ------------------------------------------------------------------------------------------ 53
Ass'y Ope ------------------------------------------------------------------------------------------------- 54
Plate Side R ---------------------------------------------------------------------------------------------- 55
Plate Side L ----------------------------------------------------------------------------------------------- 56
Base Exp View ------------------------------------------------------------------------------------------ 57
Bkt Stacker Sensor ------------------------------------------------------------------------------------- 58
Cover Top ------------------------------------------------------------------------------------------------- 59
Shaft Case Detector ------------------------------------------------------------------------------------ 60
Case Detector With MR ------------------------------------------------------------------------------- 61
Double Sensor ------------------------------------------------------------------------------------------ 62
Plate Reinforce ------------------------------------------------------------------------------------------ 63
Plate Guide Upper -------------------------------------------------------------------------------------- 64
Plate Guide Lower -------------------------------------------------------------------------------------- 65
Exp Guide Lower-P ------------------------------------------------------------------------------------- 66
Bkt Smps Bottom --------------------------------------------------------------------------------------- 67
Bkt Smps Top -------------------------------------------------------------------------------------------- 68
Chapter 13 Specifications ------------------------------------------------------------------------------------------ 69

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
7
-
1 Installation
1-1. Unpacking List
1. Machine 1 Unit
2. Bill Guide 2 pcs. ( Left / Right)
3. AC Power Code 1 pc.
4. User's Manual 1 pc.
5. Serial/Printer Cable 1 pc.
1-2. Choosing a Location
To facilitate trouble-free operation of your machine, place it on a flat, stable surface near your workstation.
Do not place your machine:
In direct sunlight.
Near heat sources or air conditioners.
In dusty or dirty environments.

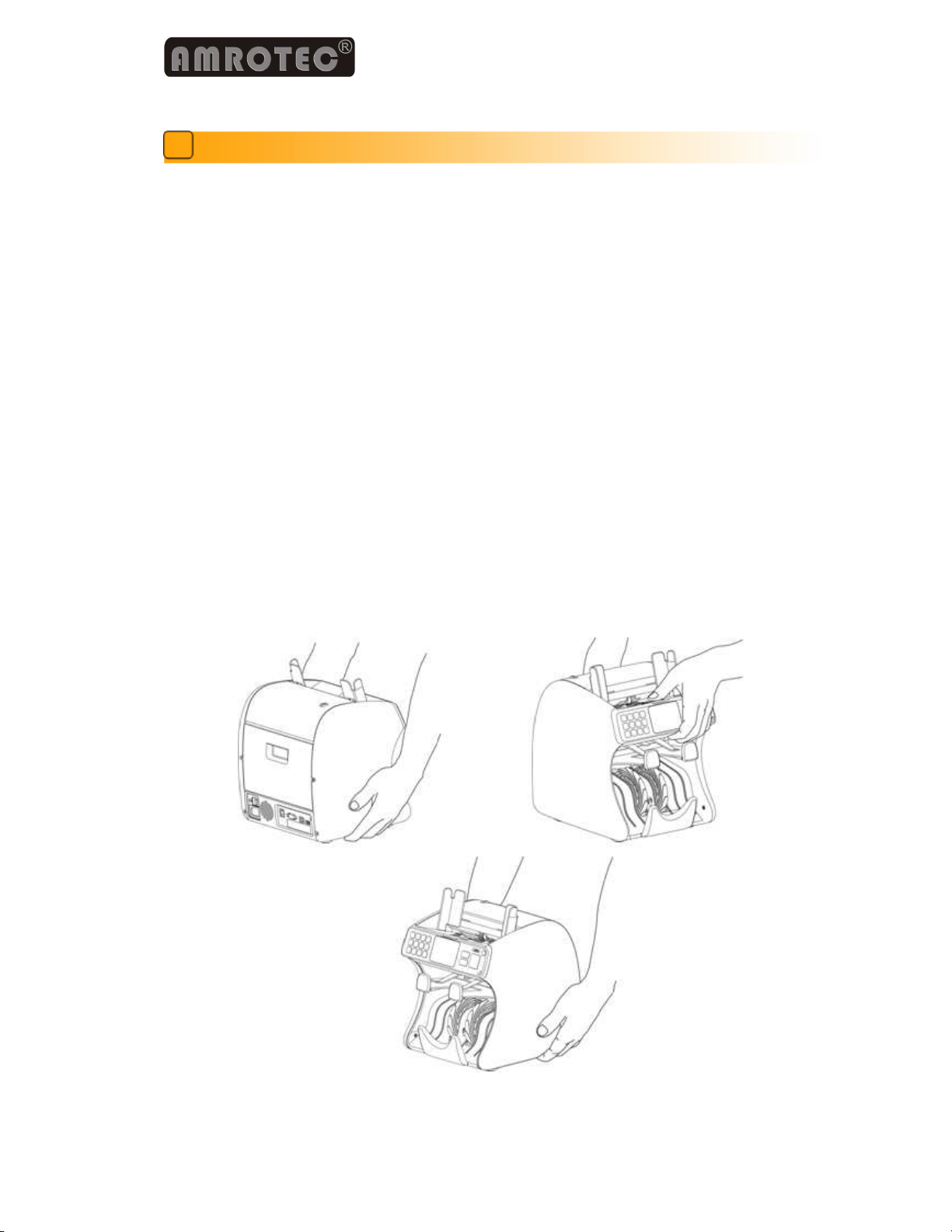

1-3. Handling the Machine
When handling or moving the machine, do not lift with grasping the Reject Pocket. The picture shows how to lift the
machine correctly.
(X) (X)
(O) Correct way to lift the machine

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
8
-
1-4. Setting Up Your Machine
1-4-1. Power Cord
Plug one end of the cord into the rear of the machine and the other
end into a standard AC power outlet with surge protector embedded
with.
When turning on the power switch, the machine will display version
and checksum. If there is Service Call number saved by a service
provider, the Call number will be displayed.
1-4-2. Printer
Your MIB-9 has a serial interface port, which allows you to connect to an external printer as recommended by
AMROTEC® to print out counting result. To connect the printer to the machine, follow the steps below:
1. Make sure that both the MIB-9 and the printer are turned off.
2. Plug the cable of printer into the Serial port of MIB-9 .
3. Turn on the Printer and MIB-9 .
CAUTION
In case that another port is used to avoid electrical shock, turn off MIB-9 and turn on
the machine after Port is connected.

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
9
-
2 Description of the Parts
2-1. Out Side
2-2. Interface Port
RJ-11 LAN RS232C USB A
(9P D-SUB) SD card Slot
PORT INTERFACE
RS232C (RJ-11) Customer Display
LAN (RJ-45) Network (100M BPS)
RS232C (9P D-SUB) Printer or PC
USB(Type A) USB MEMORY (Firmware Upgrade )
SD Image capturing or data sampling

CURRENCY DISCRIMINATION COUNTER MiB-9 SERVICE MANUAL
-
10
-
2-3. Sensors
This machine uses various sensors to detect the malfunction of the machine and the status of the notes in the
machine and to recognize the denominations of the notes. The sensors are very sensitive and if they are not
cleaned correctly everyday, this may negatively affect performance of the machine.
