Argos 461/8144 User manual

Assembly Instructions - Please keep for future reference 461/8144
Dimensions
Width - 204.5cm
Depth - 126cm
Height -111.5cm
Important
Version 1 Date: 20/10/15
Qubrick Storage MidSleeper
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please read these instructions fully before starting assembly
461/6517

1
WARNING
IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
• The ventilation of the room is necessary in order to keep the humidity low and to prevent mould in
and around the bed.
• Be aware of the risk of injury of young children falling from the upper bunk bed.
• This bed complies the European Standard BS EN 747-1:2012+A1:2015 and BS EN 747-2:2012+
A1:2015.
• Follow the information on the warnings appearing on the upper bunk bed and do not remove the
warning label.
• Warning: “Children can become trapped between the bed and the wall. To avoid risk of serious
injury the distance between the top safety barrier and the wall shall not exceed 75mm or shall be
more than 230mm”.
• Warning: “Bunk beds and high beds can present a serious risk of injury from strangulation if not
used correctly. Never attach or hang items to any part of the bunk bed that are not designed to be
used with the bed, for example, but not limited to ropes, strings, cords, hooks, belts and bags”.
• The top of the mattress shall be at least 160mm below the upper edge of guardrails.
• Recommended use only mattress which is L190 x W90 cm, 17cm or less in thickness on upper
bunk bed.
• Always use the recommended size mattress to prevent the likelihood of entrapment or falls.
• The use of water or sleep flotation mattress is prohibited.
• Prohibit more than one person on the upper bunk bed and do not allow horseplay on or under the
bed and prohibit jumping on the bed.
• Warning: “High beds and the upper bed of bunk beds are not suitable for children under six years
due to the risk of injury from fails”.
• Always use the ladder for entering and leaving the upper bunk bed.
• Warning: Do not use the bunk bed/high bed if any structural part is broken or missing.
• Use of a night light may provide added safety precaution for a child using the upper bunk bed.
• Always follow the manufacturer’s instructions.
• Periodically check and ensure that the guardrail, ladder, components and all assembly fastenings
are in their proper position and that care should be taken that no fittings are loose.
• The maximum child weight : 75 Kgs.

2
Important –Please read these instructions fully before starting assembly
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• Do not use this item if any
components are missing or
damaged.
• Parts of the assembly will be
easier with 3~4 people.
• During assembly children
should be kept away from the
product due to possible risk of
injury.
.
Safety and Care Advice
Important –Please read these instructions fully before startingassembly
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
Handy Hints
• Argos Ltd. MK9 2 NW. • This product is intended for
children in the age 6 or above.
• Maximum load: 75 kgs.
• Assembly of this product must
be carried out by a competent
adult.
IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• Regularly check and ensure
that all bolts and fittings are
tightend properly.

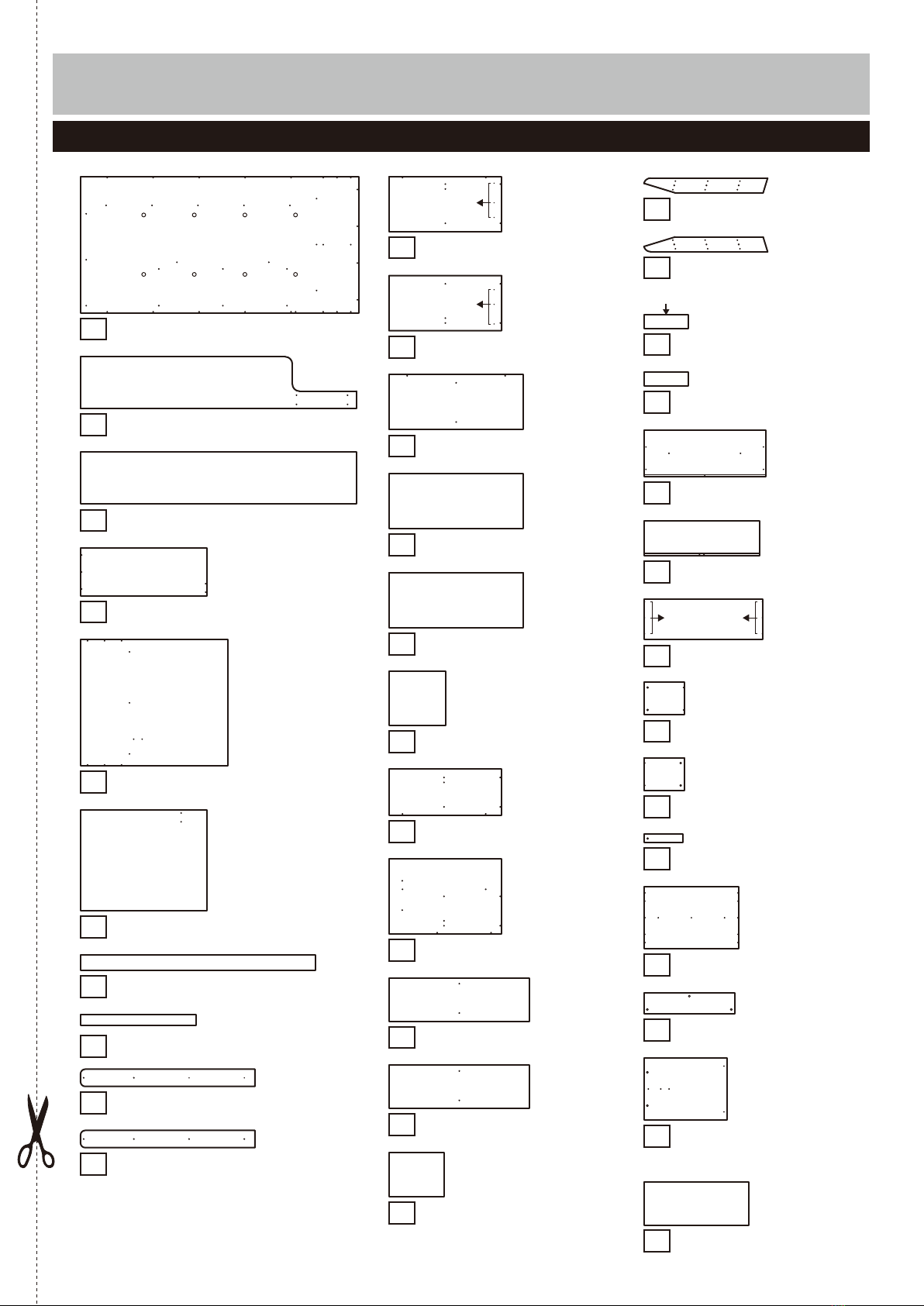

Components -Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline:
Argos = 0345 6400800
3
Bed panel (193.6 x 95cm) 1
Cube left (73.5 x 49cm)
18
Cube shelf (91.9 x 28.4cm)19
Cube bottom (91.9 x 28.4cm)
20
Cube support x 2
(35.2 x 28.3cm)
21
Back support panel (163.6 x 11cm)7
Mid right (73.5 x 36cm)
11
Mid left (73.5 x 36cm)12
Mid shelf (87.7 x 36cm)13
Mid back panel (87.7 x 36cm)15
Mid support (36 x 34.3cm)
16
Front bed frame (192 x 36cm)2
Bed frame (192 x 36cm)3
Right panel (95 x 36cm)4
Cube back panel (91.9 x 73.5cm)6
Front left panel (111.2 x 11.1cm)10
Left support panel (74 x 7cm)8
Front right panel (111.2 x 11.1cm)9
Cube right (73.5 x 30cm)17
Ladder right (92.1 x 11.1cm)
22
Ladder left (92.1 x 11.1cm)23
Top ladder (33 x 10.2cm)24
Ladder x2 (33 x 10.2cm)25
Drawer front (87.1 x 33.6cm)26
Drawer back (82.8 x 25cm)27
Drawer bottom (85.2 x 28.6cm)
28
Drawer right (29 x 23.3cm)
29
Drawer left (29 x 23.3cm)30
Drawer support (27.7 x 6cm)31
Table top (73.6 x 48.1cm)32
Table support (70.3 x 16.5cm)33
Table side panel x2
(64 x 47.8cm)
34
Bottom back panel (90.4 x 37cm)35
Left panel (111.2 x 95cm)5
Mid bottom (87.7 x 36cm)14
Unfinished back edge
Pilot holes for
guidance only
Pilot holes for
guidance only
Pilot holes for
guidance only

4

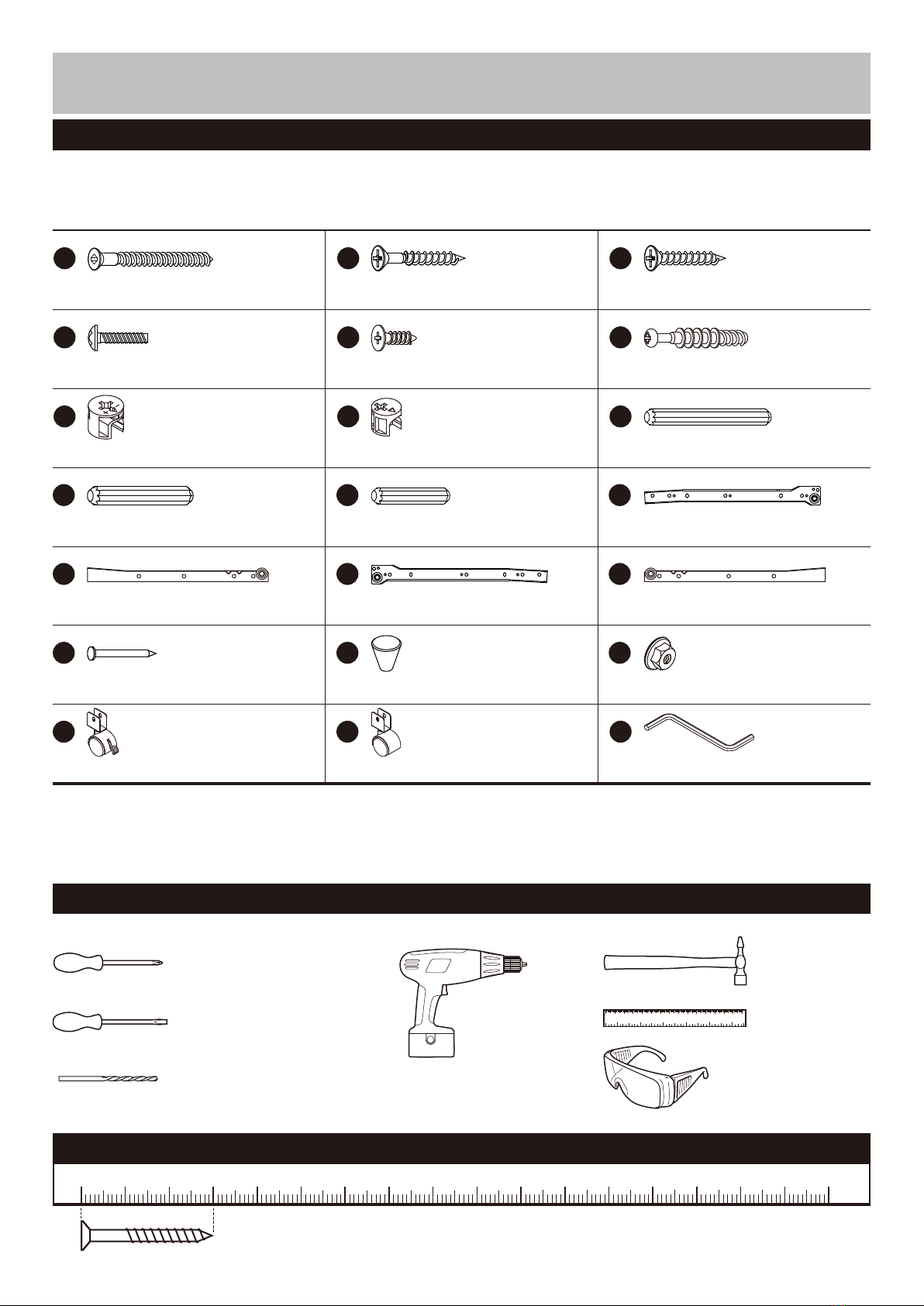

Please check you have all the fittings listed below
Components - Fittings
Ruler - Use this ruler to help correctly identify the screws
Tools required
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Small
hammer
Ruler/tape
measure
Drill
Eye protection
(when using a
hammer or glue)
7mm Suitable drill bit
(for use with wall plug)
The screws length is measured from the head to the point (30mm screw shown).
A B C
D
G
E F
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
H
12mm Screw x 12
50mm Screw x 107 25mm Screw x 230mm Screw x 9
24mm Screw x 4
12mm Locking nut x 515mm Locking nut x 7
39mm Dowel x 12
I
J K L
Right outside runner x 130mm Dowel x 1440mm Dowel x 6
50mm Dowel x 7
M N O
P Q R
Left outside runner x 1Right inside runner x 1 Left inside runner x 1
Handle x 3Nail x 16 Nut x 4
S T
Castor x 2Front castor x 2
U
Allen key x 1
(This screw is included in
the runners bag)

Use Screws to fix the
Right outside runner
onto the Mid right .

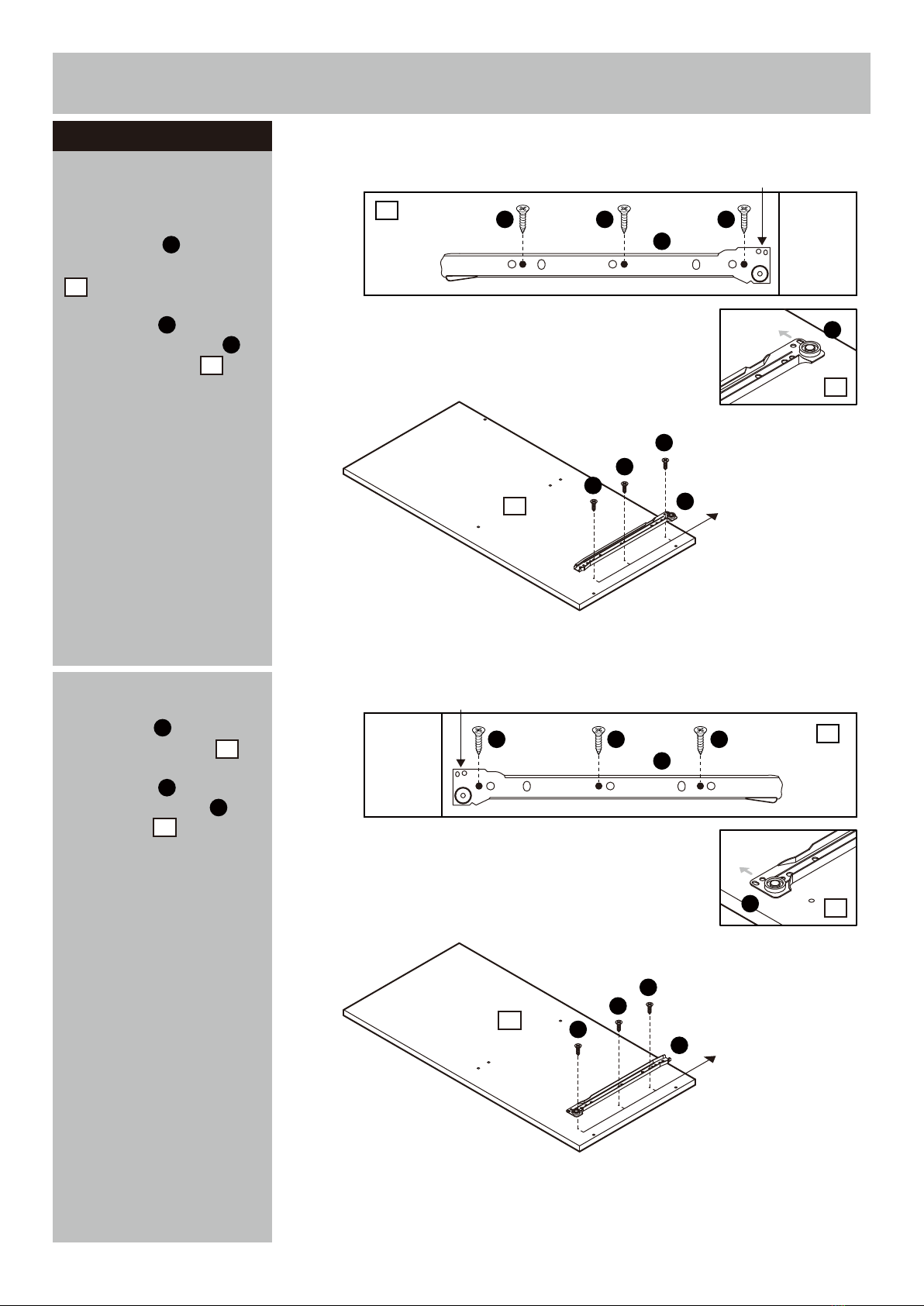

Assembly Instructions
Step 1
a:
b:
5
a: Position the Right out-
side runners in from
front edge of the Mid right
.
11
11
N
N
E
b: Position the Left out-
side runner in from front
edge of the Mid left .
12
L
Use Screws to fix the
Left outside runner onto
the Mid left .
E
L
Attaching runners
12
Pilot holes for
runner position
Pilot holes for
runner position
11
E E
N
E
2 Holes upside
12
E E E
L
2 Holes upside
11
N
12
L
N
L
E
E
E
11
12
E
E
E

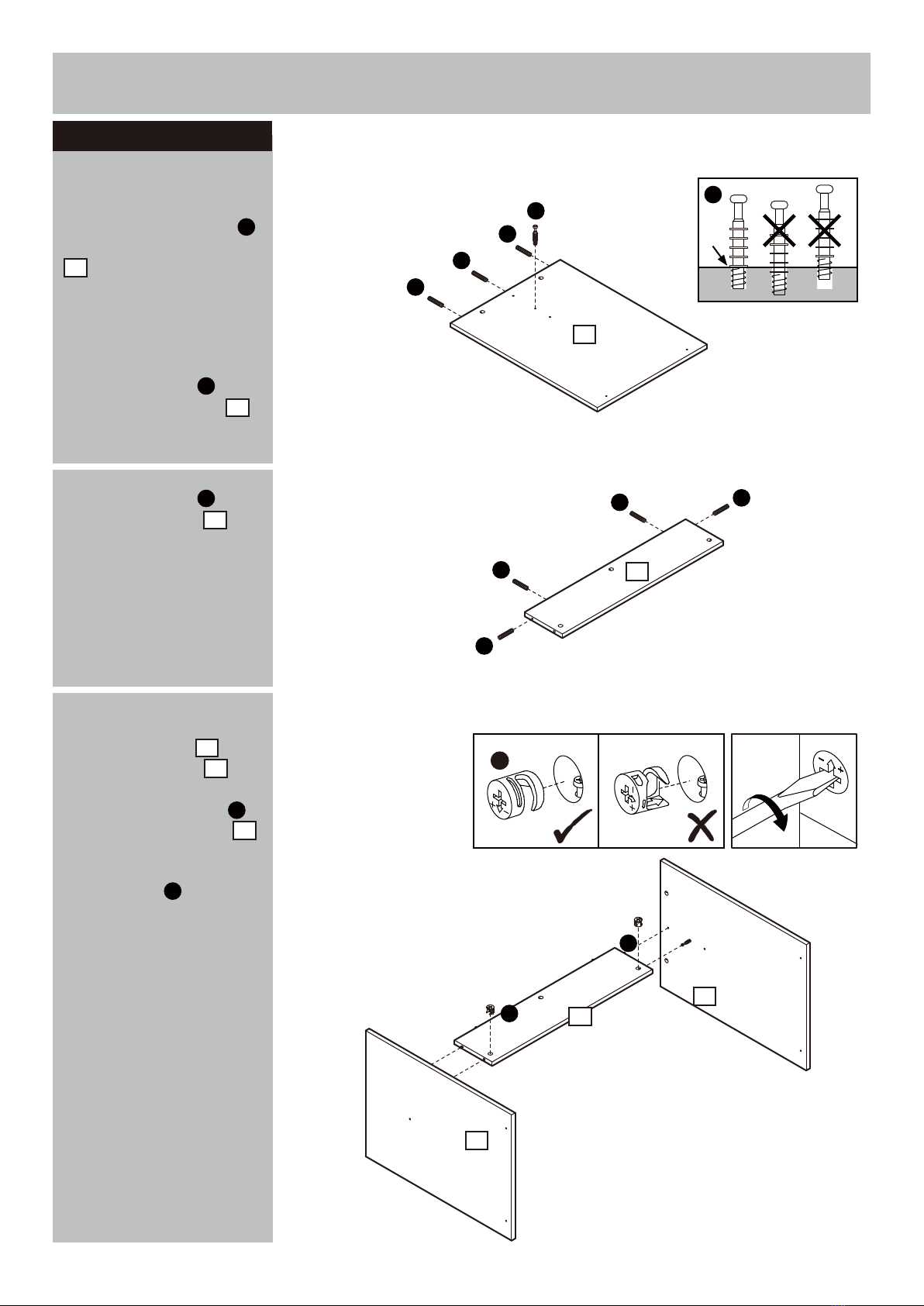

Assembly Instructions
Step 2
b:
a:
6
Fitting the middle
shelves
a: Use 2 Screws by
Allen key to fix the Mid
support onto the Mid
shlef .
A
U
16
13
b: Use 2 Screws by
Allen key to fix the Mid
back panel onto the
Mid shlef .
A
U
15
c:
c: Use 8 Screws by
Allen key to fix the
Mid right and Mid left
onto the Mid shlef
and Mid bottom .
A
U
11
12 13
14
Insert Dowels into Mid
shlef .
K
13
13
A
A
A
A
A
A
A
A
16
13
15
13
15
13
14
11
12
13
A
U
13
A
U
11 12
A
U
K
K
A
A
A
A
Unfinished back surface
Unfinished
back surface
Unfinished
back surface
Unfinished
back edge
Unfinished
back edge

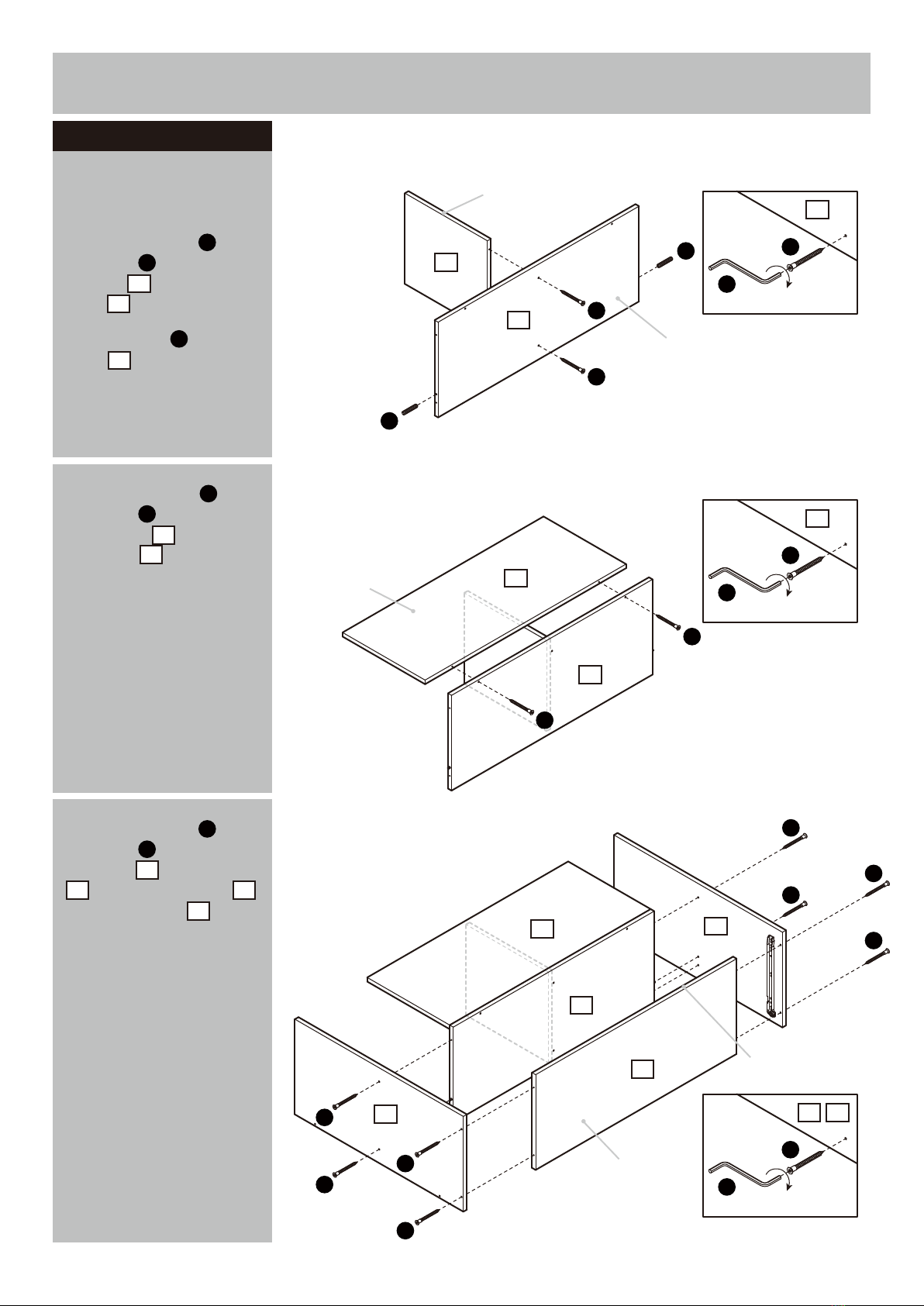

Assembly Instructions
Step 3
a:
a:
b:
Continued on next page.
7

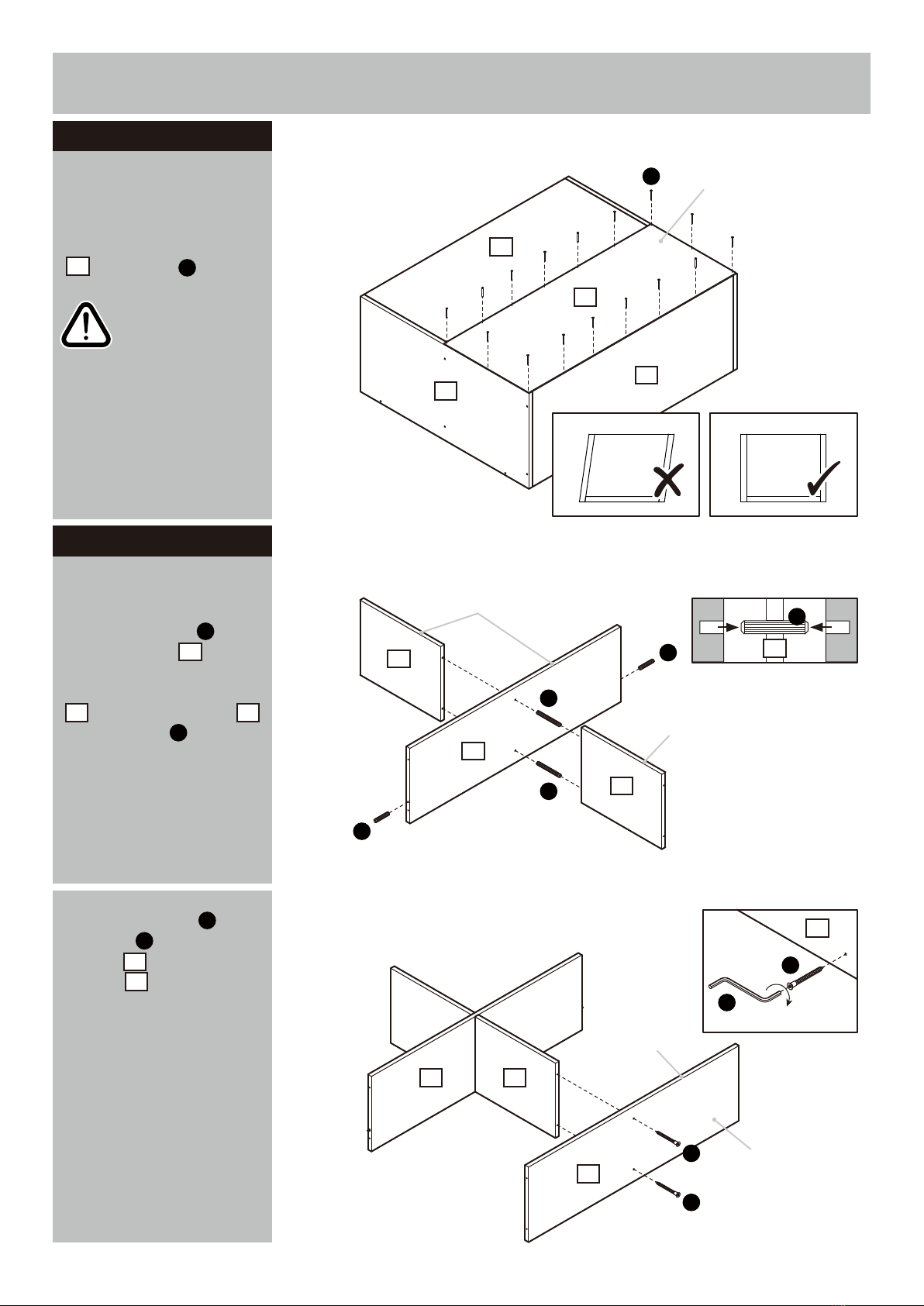

Attach Bottom back panel
using nails .
P
35
Fixing bottom back
panel
Step 4
Fixing 4 cubes
Important:
The unit MUST
be ‘square’ when
back is attached.
a: Insert Dowels into
the Cube shelf .
Position the Cube support
onto the Cube shelf
using Dowels .
21
19
K
19
I
b: Use 2 Screws by
Allen key to fix the Cube
bottom onto the Cube
support
.
A
U
20
21
I
19
21
35
15
11
14
21
21
19
19
20
I
I
K
A
A
K
20
A
U
Unfinished
back surface
P
Unfinished
bottom surface
Unfinished back edge
Unfinished
back edge
Unfinished back edge

Assembly Instructions
Step 4 - continued
c:
Fasten 12 Screws by
Allen key to fix Cube
right and Cube left
onto the Cube back panel
, Cube shelf and
Cube bottom .
U
17 18
6
20
19
A
b:
b: Fasten 12 Screws
by Allen key to fix Ladder
right and Ladder left
onto the Top ladder
and Ladder .
U
22
23 24
25
A
a:
Continued on next page.
Step 5
Fitting the ladder
8
a: Insert Dowels into
the Top ladder and
Ladder .
J
24
25
c: Carefully locate the
Cube back panel onto
the unit.
6
A
A
A
A
A
A
A
6
20
1917
18
17 18
A
U
22 23
A
U
A
AA
A
A
A
A
A
A
A
A
J
J
J
J
24
24
25
25 22
23
25
X 2

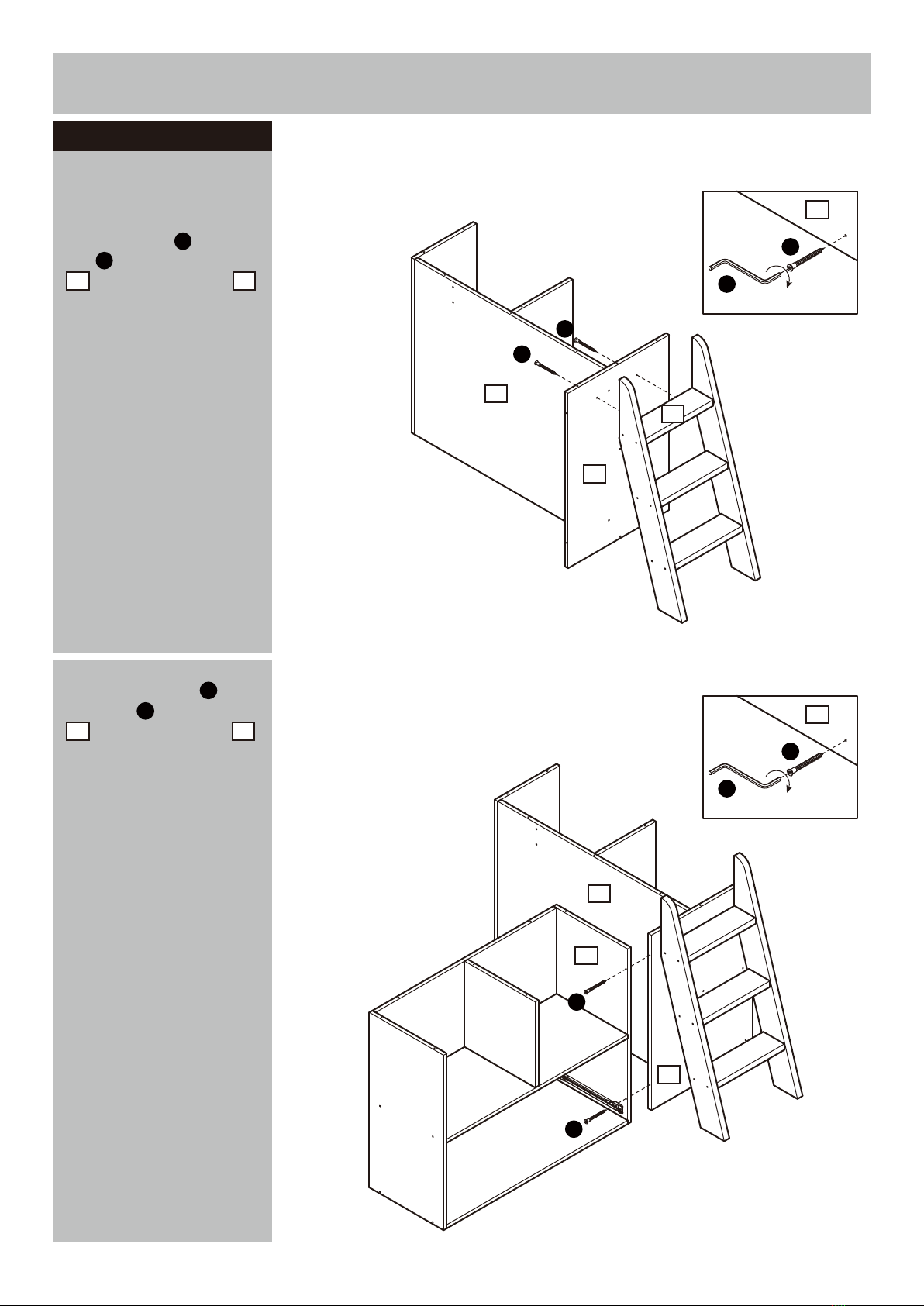

Assembly Instructions
Step 5 - continued
d: Use 2 Screws by
Allen key to fix Mid right
onto the Cube left .
d:
c:
A
U
11 18
c: With help, upright down
the cube unit.
Use 2 Screws by Allen
key to fix Top ladder
onto the Cube left .
24 18
A
U
9
11
6
11
A
U
18
A
U
A
A
A
A
6
18
18
24

Continued on next page.
Assembly Instructions
Step 6
Step 7
Fitting the left panel
a:
Use 4 Screws by Allen
key to fix the Back
support panel onto the
Left panel and Cube
back panel .
Insert Dowels into the
Cube right and Cube
left .
A
U
I
7
5
6
17
18
a: Use 5 Screws by
Allen key to fix the
Right panel onto Front
bed frame and Bed
frame .
A
U
4
2
3
Note: It would be useful
to ask someone to help
you at this stage.
10
Fitting the bed panel
4
4
A
U
5 6
A
U
A
I
I
I
I
I
A
A
A
A
A
5
2
3
6
18
17
7

Assembly Instructions
Step 7 - continued
b:
c:
11
b: Use 3 Screws by
Allen key to fix the Left
support panel onto the
Bed panel .
A
U
8
1
c: Use 16 Screws by
Allen key to fix the Bed
panel onto the Front
bed frame , Bed frame
and Right panel .
A
U
1
2
43
Continued on next page.
1
A
U
1
A
U
A
A
A
A
1
8
1
2
3
4

Assembly Instructions
Step 7 - continued
d: Upside down Bed
panel carefully.
d:
Use 18 Screws by Allen
key to fix the Bed panel
onto the unit.
A
U
1
12
e:
e: Use 9 Screws by
Allen key to fix the Left
panel onto the unit.
A
U
5
Use 4 Screws by Allen
key to fix the Ladder
right and Ladder left
onto the unit.
A
U
22
23
1
A
U
A
5
715
6
1
3
2
25
A
U
A
A
A
A
A
A
A
A
A
A
1
5
2
3
4
23
22

Continued on next page.
Assembly Instructions
Step 8
Use 6 Screws by Allen
key to fix the Front right
panel and Front left
panel onto the unit.
13
Use 2 Screws to fix the
Front right panel onto
the Cube left .
C
A
U
9
9
10
18
Step 9
a:
a: Screw Locking pins
into the Drawer front .
26
Note: Insert locking pins
as far as shown.
Do not over tighten.
Drawer assembly
F
Fitting the front panels
109
A
U
F
A
A
A
A
A
F
F
F
F
F
A
C
C
3
1
4
5
18
2
26
9
10
18
9
20
C
C

b: Fix Drawer right ,
Drawer support and
Drawer left onto Drawer
front .
29
26
31
30
Insert 5 Locking nuts
into the Drawer right ,
Drawer support and
Drawer left panel .
H
Use a screwdriver to turn
Locking nuts clockwise
to lock.
H
29
31
30
Assembly Instructions
b:
14
c: Carefully slide the
Drawer bottom into the
grooves.
c:
28
Continued on next page.
d:
d: Position the Drawer
back onto the unit
using Screws .
27
B
Step 9 - continued
H
Unfinished back surface
H
H
B
B
B
B
B
H
H
H
27
28
29
31
26
31
30
29
31
28
29

Assembly Instructions
Step 9 - continued

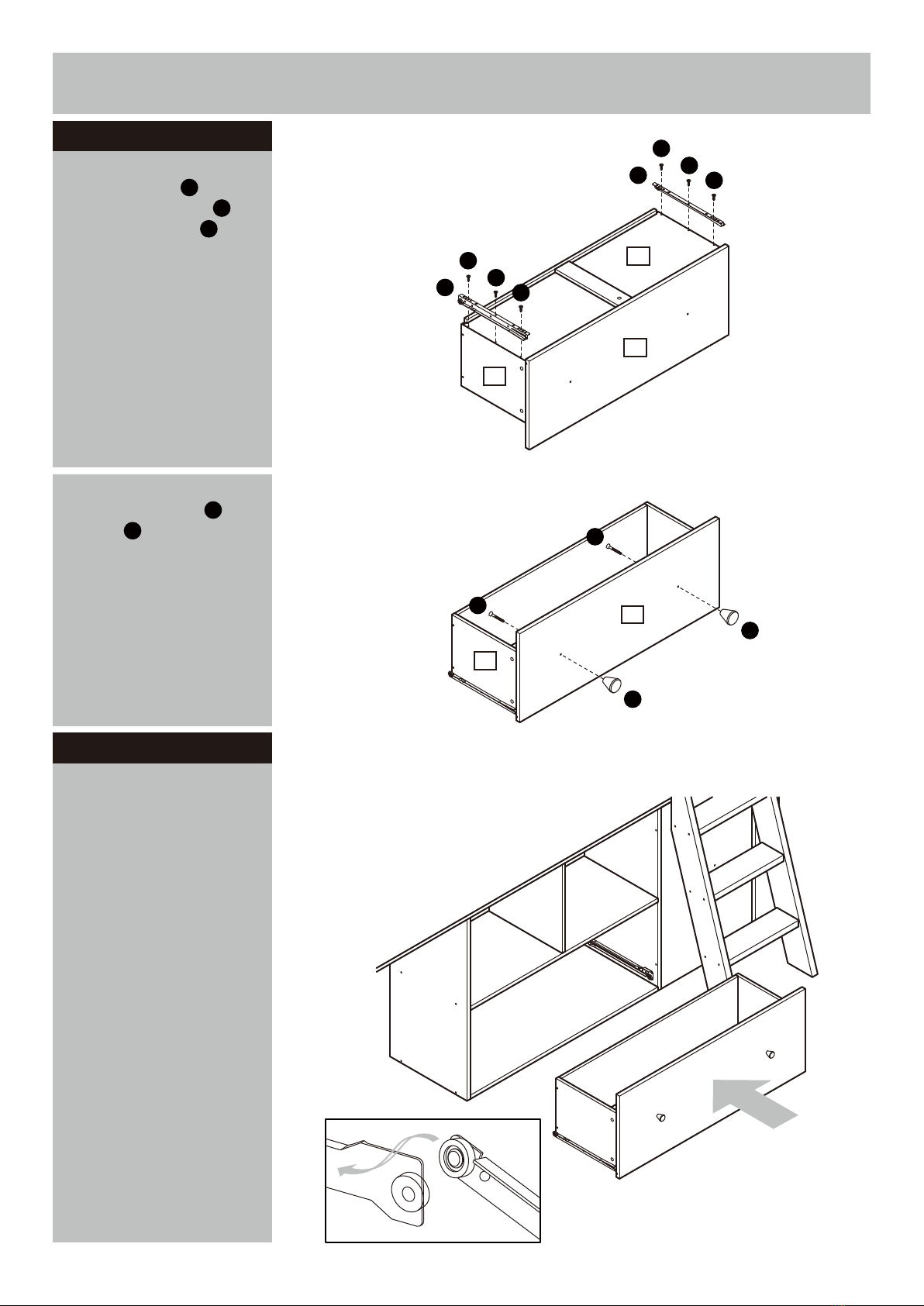

Step 10
15
e:
f:
f: Attach Handles using
Screws .
Q
B
Inserting drawer
Slide the drawer fully onto
runners.
e: Use Screws to fix the
Right inside runner and
Left inside runner onto
the unit.
E
O
M
E
B
B
Q
Q
E
E
E
O
ME
E
28
29
30
26
26

Assembly Instructions
b:
c:
16
a: Screw Locking pins
into the Table side panel
.
34
Note: Insert locking pins
as far as shown.
Do not over tighten.
Fitting the table
F
a:
a: Insert Dowels into
the Table side panel .
K
34
b: Insert Dowels into
the Table support .
K
33
c: Carefully locate the
Table side panel onto
the Table support .
34
33
Insert 2 Locking nuts
into the Table support .
G
Use a screwdriver to turn
Locking nuts clockwise
to lock.
G
33
Continued on next page.
Step 11
F
G
K
K
K
G
G
K
K
K
F
K
34
33
34
33
34
X 2

Assembly Instructions
d:
e:
17
d: Screw Locking pins
into the Table top .
32
Note: Insert locking pins
as far as shown.
Do not over tighten.
F
e: Carefully locate the
Table top onto the unit.
32
Insert 5 Locking nuts
into the Table side panel
and Table support .
G
Use a screwdriver to turn
Locking nuts clockwise
to lock.
G
34 33
Continued on next page.
Step 11 - continued
F
G
G
G
G
G
G
F
F
F
F
F32
32
34
33
34

Assembly Instructions
Step 11 - continued
g: Slide the table fully into
the unit.
g:
f:
18
Note:
The Front castors
feature a locking arm.
We recommend you lock
the castors when you have
finally positioned the unit
in place.
Use Screw and Nut
to fix the Front castors
and Casters onto the
unit.
DR
S
S
T
f:
Attach Handle using
Screws .
Q
B
R
S
D
T
D
R
R
R
S
S
T
T
D
Q
B
D
D
D
R
R
34
34
32

19
Assembly Instructions
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Step 12
Note: It would be useful
to ask someone to help
you at this stage.
With help, place the unit
in the intended position.
Finishing the unit
Warnung:
Be aware of the
danger of young
children under six
years old falling
from the upper
bunk. Top bunk
beds are not
recommended for
children under six
years old.
Complies BS EN
747-1:2012+
A1:2015 and BS
EN 747-2:2012+
A1:2015.
Assembly is complete.
