Argos Aurora 158/9544 User manual

MADE IN
BRITAIN
Dimensions
Width - 120cm
Depth - 49.5cm
Height - 43.5cm
Aurora - TV Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 4 - 26/05/15
Important - Please read these instructions fully before starting assembly
ALR2940
158/9544
146/4195
413/9953
Issue 2 - 05/02/14 - Added 8 wedgefixes to secure the drawer bases.
Note added on the last page to remove protective film from panels.
Issue 3 - 14/04/14 - Screws for the feet replaced with 55mm screws.
Issue 4 - 26/05/15 - Added new Argos code to front page - 413/9953.
Updated helpline number.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 33kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

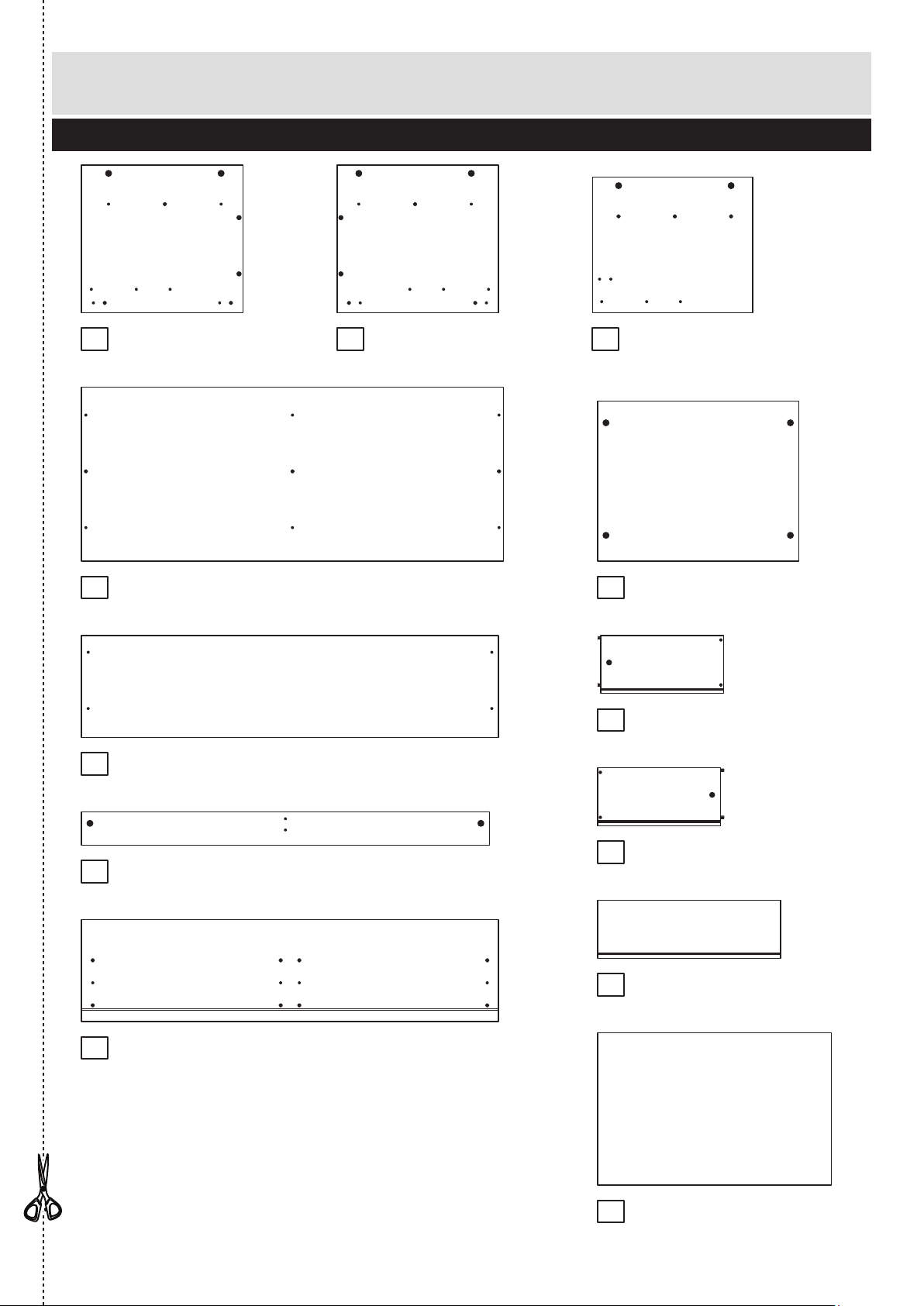

Components - Panels
Please check you have all the panels listed below
2
12 3
80%
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Top (D2637A)
(1200 x 495mm)
Left Side (D2645A)
(420 x 459mm)
4
6
Right Side (D2646A)
(420 x 459mm)
Horizontal (D2647A)
(572.5 x 455mm) x 2
Divider (D2648A)
(385 x 456mm)
Back (D2649A)
(1186 x 290mm)
5
8
7Rail (D2651A)
(1160 x 95mm) x 2
Drawer Front (D2650A)
(1186 x 290mm)
Drawer Base (T532-347)
(532 x 347mm) x 2
Left Drawer Side (W350-165LH)
(350 x 165mm) x 2
Right Drawer Side (W350-165RH)
(350 x 165mm) x 2
Drawer Back (W521-165)
(521 x 165mm) x 2
9
10
11
12

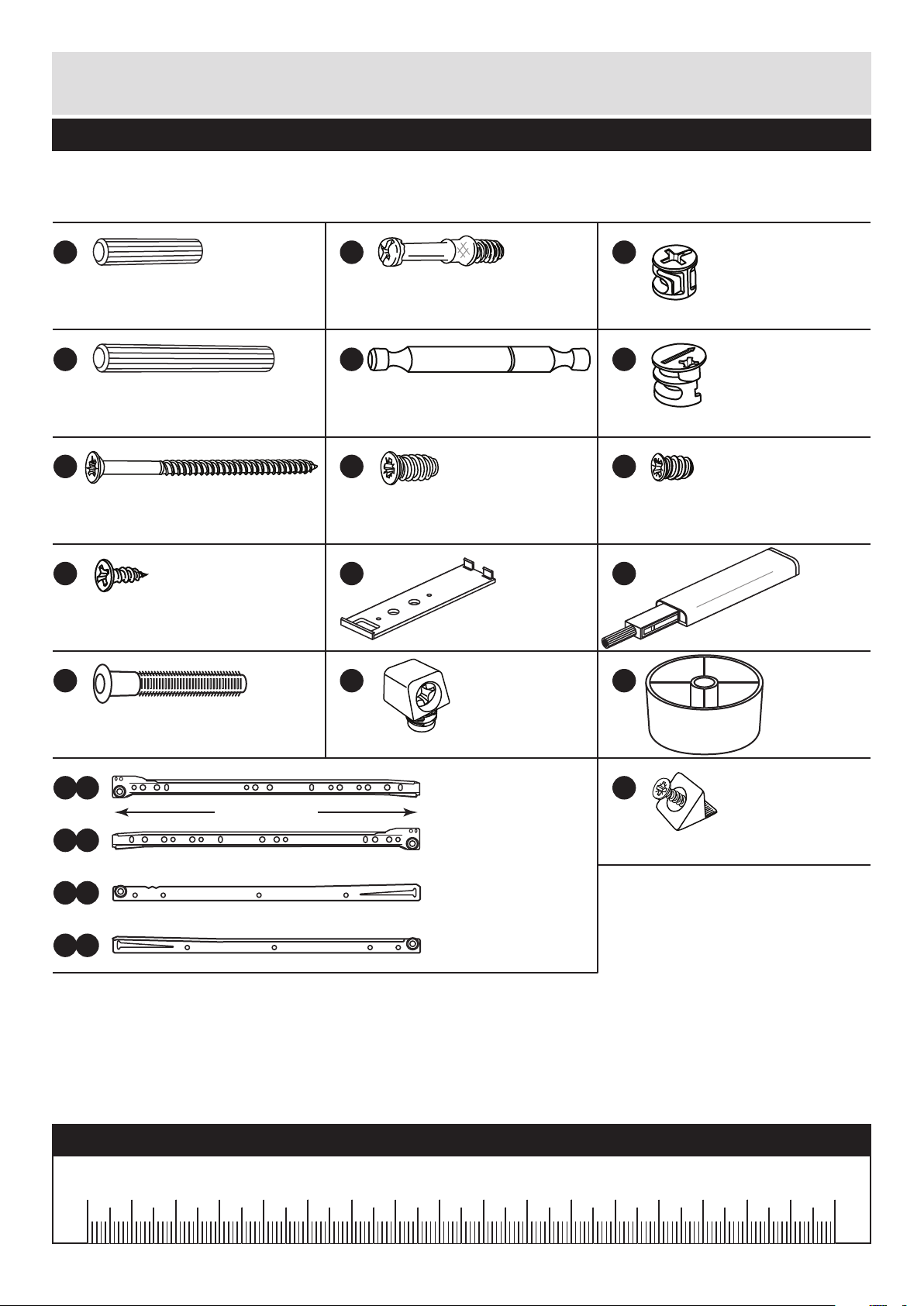

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 9
B
Metal dowel (F901) x 18
C
D E
Large locking
nut (F900) x 18
F
O
G H I
M
Small locking
nut (F3) x 4
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J K
9mm Screw (F73) x 12
Door Plate (F259) x 1
13mm Screw (F52) x 2
13mm Screw (F63) x 12
L
Door Push (F258) x 1
Feet (F854) x 2
Knock-in Peg (F171) x 8
PR Runner (F160) x 2
b
L Runner (F161) x 2
Pc
L Runner (F159) x 2
Pa
R Runner (F162) x 2
Pd
350mm long
Double metal dowel (F566) x 2
Large wooden dowel (F40) x 1
N
Mini block (F25) x 4
Q
Wedgefix (F639) x 8
55mm Screw (F898) x 2

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
Step 2
Fit the drawer sides
to the drawer back
Make sure that the
grooves on the inside of
the drawer assembly line
up.
a: With the drawer back
. in an upright position
tap 2 knock-in pegs
through the holes in the
left drawer side .
Turn the assembly over
b: Hold the drawer back
. in position and tap 2
knock-in pegs
through the holes in the
right drawer side .
Step 3
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
back .
b:a:
Turn the
assembly over
Prepare the 4 drawer
sides
Insert a small locking
nut into the hole
shown on each of the 2
left drawer sides and
2 right drawer sides .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
C
8
9
C
x 2
x 2 x 2
x 2 x 2
11
M
8
11
M
9
12
8 9
11
CC
M
M
M
M
89
9
8
11 11
12
8
911

Assembly Instructions
5
Step 4
Fit the drawer front
Lower the 2 drawer
assemblies down onto
the back of the drawer
front .
Use a screwdriver to
tighten the 4 small
locking nuts fitted to
the drawer sides.
Note: Turn the small
locking nuts as far as
they will go - more than
1/2 a turn.
Step 5
B
Prepare the drawer
front
Screw 4 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
B
10
1
C
B
10
C
C
B
B
B
B
10
10
10
Step 6
Fit the wedgefixes
Turn the drawer
assembly over.
Slide the wedgefixes
into the small groove in
the drawer front and
the drawer backs , as
shown.
Once in place, tighten up
the screws.
Q
10
11
Q
Q
Q
Q
Q
Q
Q
Q
Q
11
11

Assembly Instructions
6
Step 7

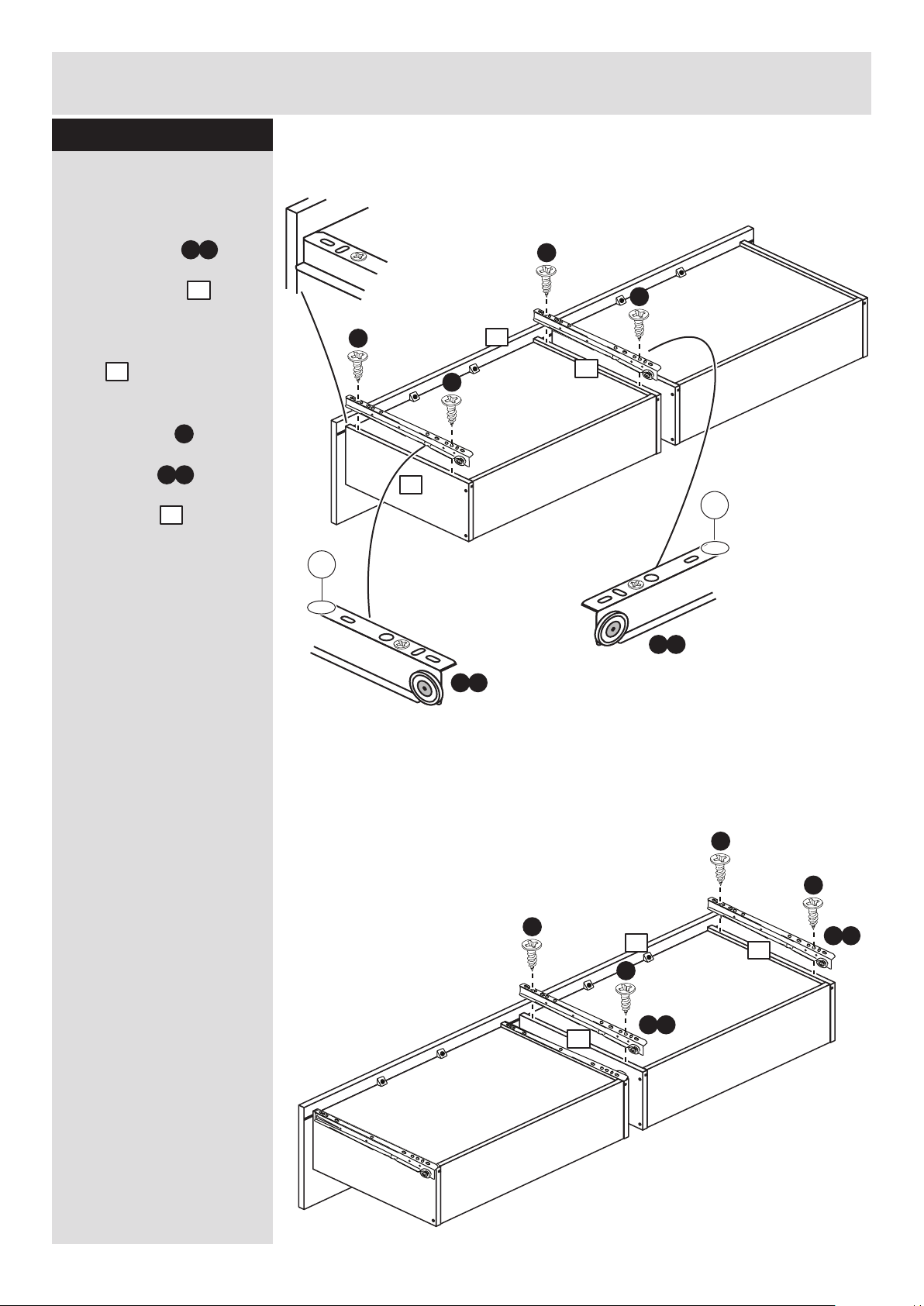

Fit the runners to the
drawer sides
a: Fit a runner to
the bottom edge of the
left drawer side , as
shown, making sure that
it is pushed up against
the back of the drawer
front . Use a bradawl
to mark the fixing
positions, then secure
with 2 screws .
Fit a runner to the
bottom edge of the right
drawer side using the
same method.
b: Repeat the
instructions above to fit
the runners to the other
drawer sides.
9
P c
8
10
J
P d
a:
b:
b:
Runners must be
pushed up against
the drawer front
L
P c
L
P d
P d
R
R
J
J
J
J
J
J
J
J
P c
9
8
10
9
8
10

A
Assembly Instructions
7
Step 8
a:
b:
c:

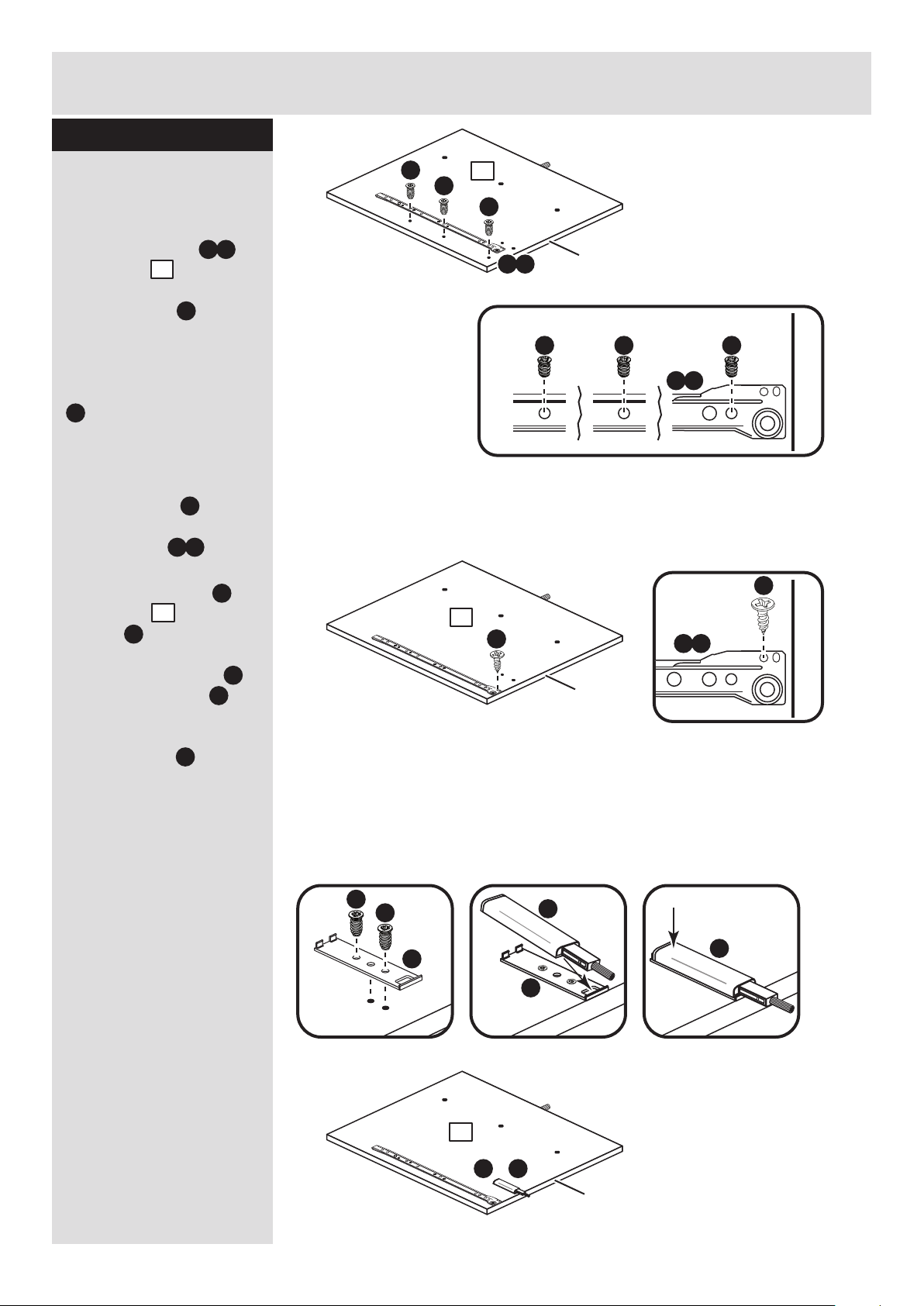

Prepare the right side

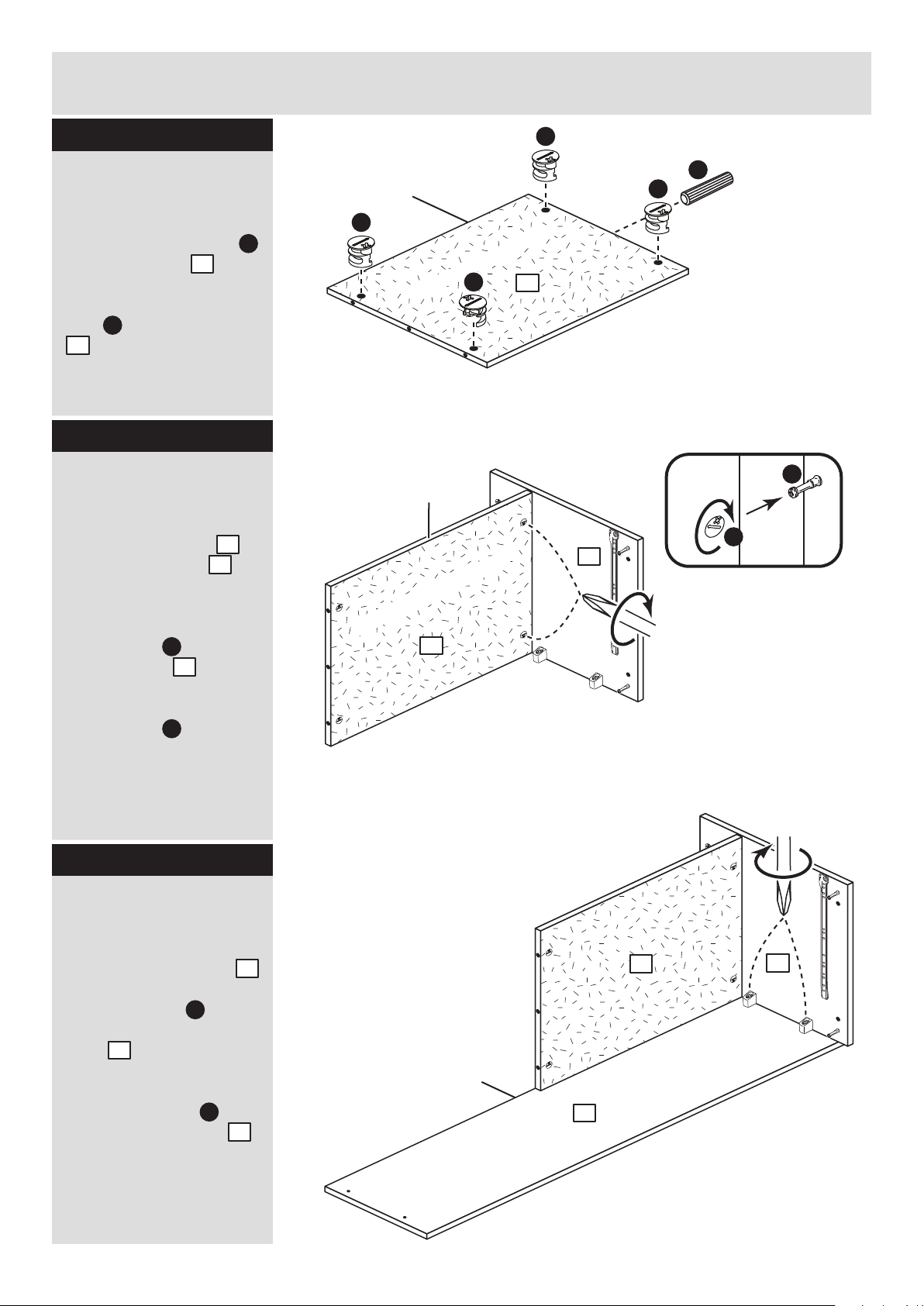

a: Tap a wooden dowel
. into the right side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 4 metal dowels
into the right side .
b: Insert 2 large locking
nuts into the right
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit the runner to the
right side .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
c: Fit a screw into
the 2nd hole in at the top
of the runner .
Gently tap 2 mini blocks
. into the right side ,
orientated as shown.
I
I
A2
2
F
2
J
P b
2
P b
Finished front edge
1st
screw
2nd
screw
3rd
screw
P b
Finished front edge
J
P b
B
B
B
B
B
I
I
P b
I
F
F
J
N
N
N
Finished
front edge
Finished
front edge
Finished
front edge
N2
2
2
2
10mm
A
F
III

A
Finished
front edge
Finished
top edge
Assembly Instructions
8
Step 9
Prepare one of the
horizontals
Tap a wooden dowel
into a horizontal .
Insert 4 large locking
nuts into a horizontal
. .
A
5
5
F
Step 10
Fit the horizontal to
the right side
Push the horizontal
onto the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 11
Fit the back to the
right side
Position the right side
so that the screws from
the mini blocks are
over the holes in the
back . .
Tighten up the screws in
the 2 mini blocks into
the holes in the back .
5
plain chipboard surface
Finished
front edge
5
22
F
F
5
2
6
6
N
N6
2
5
plain chipboard surface
F
F
F
F
5
D
B

Finished
front edge
Finished
front edge
Finished
front edge
A
Assembly Instructions
9
Step 12
Prepare the divider
a: Tap a wooden dowel
. into the divider .
Insert 2 large locking
nuts into the divider
. .
b: Fit the runner to
the divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
c: Fit a screw into
the 2nd hole in at the top
of the runner .
5
F
F
I
P a
I
I
P a
Finished front edge
J
J
P a
Finished front edge
1st
screw
2nd
screw
3rd
screw
3
3
A
F
P a
3
I
I
J
P a
3
3
3
a:
b:
c:
I I I

Assembly Instructions
10
Step 13
Prepare the other
surface of the divider
a: Fit the runner to
the divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
c: Fit a door plate to
the divider using 2
screws .
Press the door push
into the door plate .
Press down the back of
the door push to click
into place.
Prepare the right side
a: Tap a wooden dowel
. into the right side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 4 metal dowels
into the right side .
b: Insert 2 large locking
nuts into the right
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit the runner to the
right side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
c: Fit a screw into
the 2nd hole in at the top
of the runner .
Gently tap 2 mini blocks
. into the right side ,
orientated as shown.
I
I
J
P b
2
P b
I
I
P b
I
Finished
front edge
N2
P b
Finished front edge
J
J
K
K
L
L
KL
+
P b
3
I
I
J
P b
K
H
L
K
L
3
a:
b:
c:
3
3
3
Finished
front edge
Finished
front edge
P b
Finished front edge
1st
screw
2nd
screw
3rd
screw I I I
H
H

Assembly Instructions
11
Step 14
Fit the divider
Position the divider
against the horizontal
and line up their holes.
Gently tap the large
wooden dowel
through the divider
and into the horizontal
until it ‘’bottoms out’’.
Gently tap the 2 double
metal dowels through
the divider and into
the horizontal until
they ‘’bottom out’’.
5
3
D
E
E
3
5
3
5
D
3
5
E
3
5
Step 15
Secure the divider
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
F
5

A
Assembly Instructions
12
Step 16
Prepare the right side
a: Tap a wooden dowel
. into the right side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 4 metal dowels
into the right side .
b: Insert 2 large locking
nuts into the right
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit the runner to the
right side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
c: Fit a screw into
the 2nd hole in at the top
of the runner .
Gently tap 2 mini blocks
. into the right side ,
orientated as shown.
I
I
J
P b
2
P b
N2
Prepare the other
horizontal
Tap a wooden dowel
into the horizontal .
Insert 4 large locking
nuts into the
horizontal .
A
5
5
F
3
Step 17
Fit the horizontal
Push the horizontal
onto the divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
Step 18
Finished
front edge
5
3
F
55
plain chipboard surface
Finished
front edge
F
F
F
F
A
plain chipboard surface
Finished
front edge
5
x 2
plain chipboard surface
F
F
F
F
5
A
F
A
Prepare the 2 rails
Tap 2 wooden dowels
into each of the rails .
Insert 2 large locking
nuts into each of the
rails .
A
7
7
F
7
x 2

Finished
front edge
Finished
front edge
Finished
front edge
A
Assembly Instructions
13
Step 19
Prepare the left side
a: Tap a wooden dowel
. into the left side .
Screw 4 metal dowels
into the left side .
b: Insert 2 large locking
nuts into the left side
. .
Fit the runner to the
left side .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
c: Fit a screw into
the 2nd hole in at the top
of the runner .
Gently tap 2 mini blocks
. into the left side ,
orientated as shown.
I
I
A1
1
F
1
J
P a
1
P a
B
N1
P a
Finished front edge
J
B
B
B
B
H
P a
H
H
J
N
N
F
F
1
1
1
N
a:
b:
c:
P a
Finished front edge
1st
screw
2nd
screw
3rd
screw
I I I

Assembly Instructions
Step 20
Prepare the right side
a: Tap a wooden dowel
. into the right side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 4 metal dowels
into the right side .
b: Insert 2 large locking
nuts into the right
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit the runner to the
right side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
c: Fit a screw into
the 2nd hole in at the top
of the runner .
Gently tap 2 mini blocks
. into the right side ,
orientated as shown.
I
I
J
P b
2
P b
N2
3
Step 21
Fit the 2 rails
Push the 2 rails onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
2
7
3
5
Fit the left side
Push the left side
onto the horizontal
and the 2 rails .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
Tighten up the screws in
the 2 mini blocks into
the holes in the back .
5
7
1
6
N
F
7
F
7
7
7
2
7
7
6
1
14
Note: Support this rail
until the left side has been
fitted in the next step.

Assembly Instructions
15

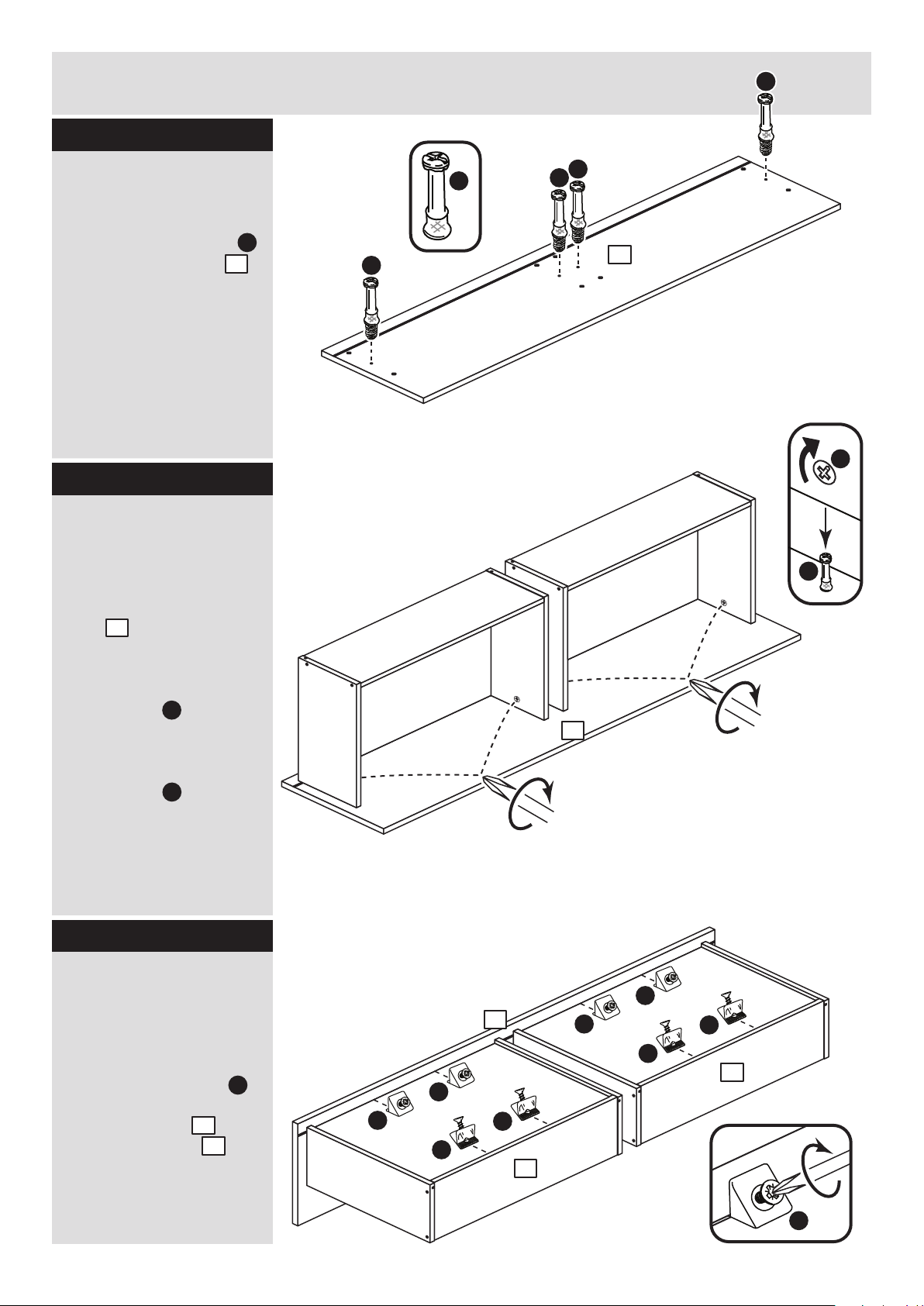

Step 22
3
5
3
Secure the left side
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
F
5
Warning: The
unit is heavy.
Lift with care.
G
O
G
O
Fit the 2 feet
Screw a foot onto
each of the 2 rails
and on into the bottom
edge of the divider
using screws .
Carefully stand the
unit up for the next
step.
O
G
7
3
Step 23
7
7
3

Assembly Instructions
Step 24
Prepare the right side
a: Tap a wooden dowel
. into the right side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 4 metal dowels
into the right side .
b: Insert 2 large locking
nuts into the right
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit the runner to the
right side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
c: Fit a screw into
the 2nd hole in at the top
of the runner .
Gently tap 2 mini blocks
. into the right side ,
orientated as shown.
I
I
J
P b
2
P b
N2
Step 25
16
Prepare the top
Screw 6 metal dowels
into the top .
B
4
B
B
B
B
B
B
4

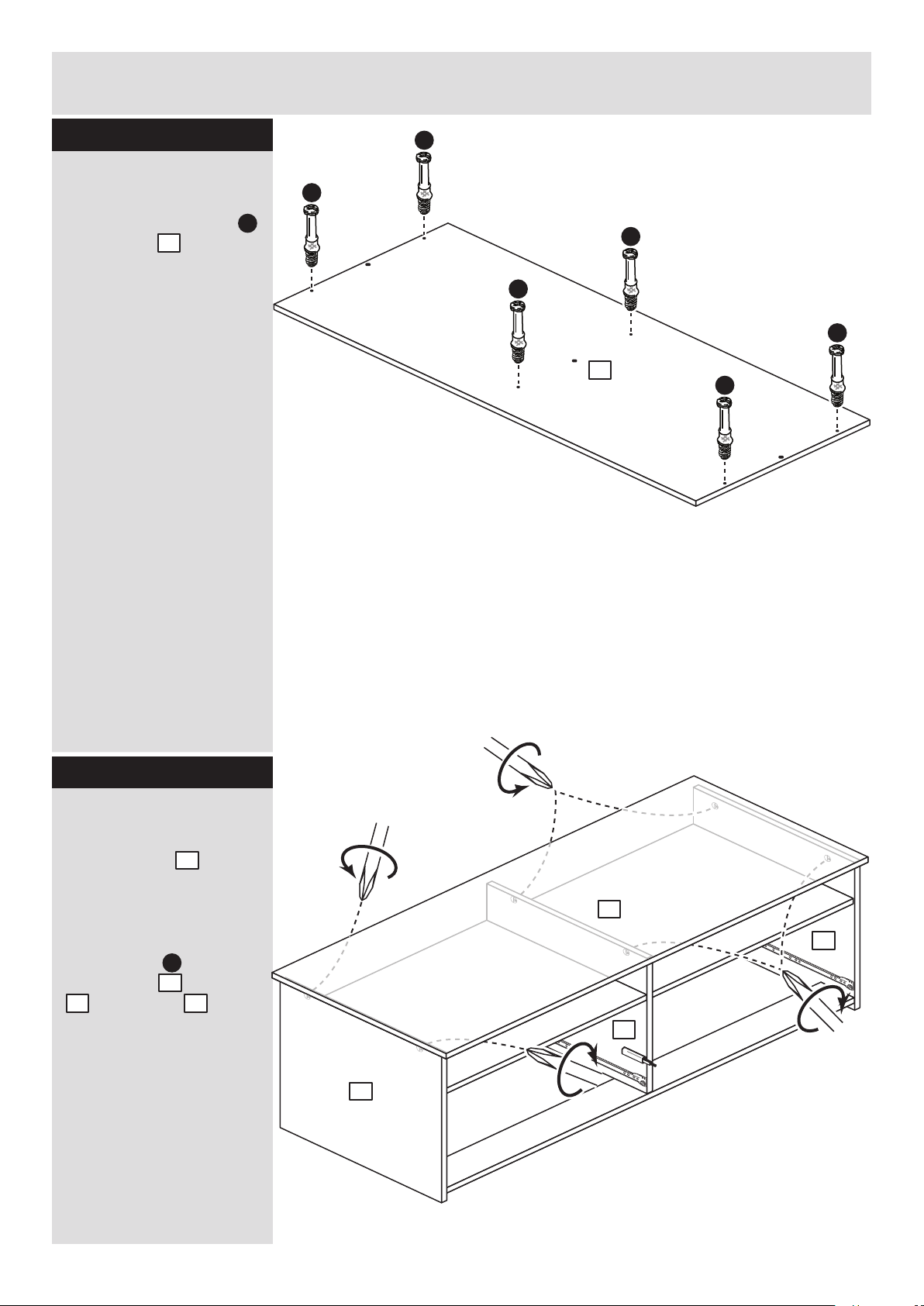

Fit the top
Lower the top down
onto the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the left side ,right side
. and divider .
F
1
2 3
4
1
2
3
4

Assembly Instructions
17
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 26
Step 27
Fit the drawer
Slide the wheels of the
runners fitted to the
drawer, over the wheels
of the runners fitted to
the side and divider
panels and push the
drawer into position.

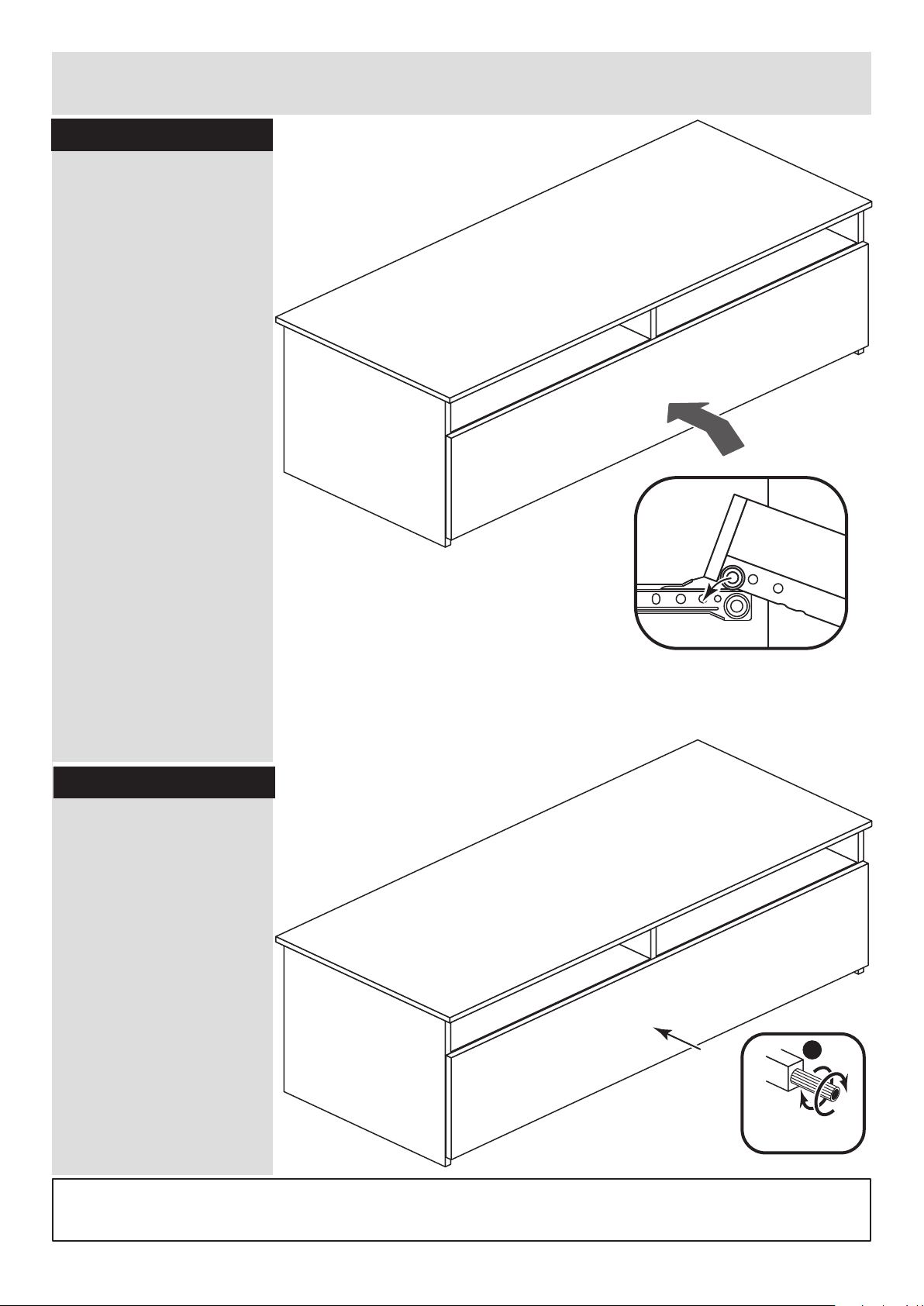

Assembly is complete
Panel
Drawer
Opening the drawer
To open and close the
drawer, press where the
door push is located.
You can adjust the door
push, in or out, by
turning it clockwise or
anti-clockwise to suit
your requirements.
Adjustment
L
Note: Now the assembly has finished you can
remove any protective film from the panels.

ALR2940
