Argos Capella 615/6831 User manual

MADE IN
BRITAIN
Dimensions
Capella - 3 Door Mirror Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 3 - 16/05/12
Important - Please read these instructions fully before starting assembly
615/6831
615/6848
615/5997
615/6855
ALR2603
Width - 115cm
Depth - 49cm
Height - 181cm
Issue 2 28/7/11 Change size of robe rail from 723 to 722mm and code to FHR722
Issue 3 - 16/05/12 - New Argos Code added

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 75kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1Left Side (D1013A)
(1808 x 490mm)
2Right Side (D1014A)
(1808 x 490mm)
Top/Base (D1018A)
(1119 x 471mm) x 2
Plinth (D1024A)
(1119 x 85mm)
8Standard Door (D1017A)
(1701 x 369mm) x 2
9
4
5
7Loose Shelf (D1023A)
(369.5 x 469mm) x 3
Long Divider (D1021A)
(1685 x 470mm)
3
1110 Small Back (X831A)
(1711 x 392mm)
Large Back (X830A)
(1711 x 753mm)
Hanging Rail (FHR722)
(722mm long)
6
Mirror Door (D1017MA)
(1701 x 369mm) x 1
(Mirror - SG13 - 1696 x 311mm
4mm Safety Back SAR)

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 10
C
D E
Large locking
nut (F900) x 10
F
G H I
Nail (F51) x 40
see malibu fitment mk2 for large number of panels and fittings
25mm Screw (F50) x 6 13mm Screw (F79) x 11
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
J
13mm Screw (F63) x 18
K
Rail holder
(F1014) x 2
L
O
Shelf stud (F110) x 12
Handle (F930) x 3
Bracket (F327) x 1
N
Hinge (F522) x 6
40mm Screw (F910) x 4
Important: The hinge
plates used in this
step are in the bag
marked as AHP1546.
AHP1546
AHP1043
Important: The hinge
plates used in this
step are in the bag
marked as AHP1043.
AHP1043
AHP1546
Hinge (F518) x 3
M
Hinge plate
(F523) x 9
Tools required
Rule
Scissors
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Square
mm 10 20 30 40 50 60 70 80 90 100 mm 10 20 30 40 50 60 70 80 90 100

Finished
front edge
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

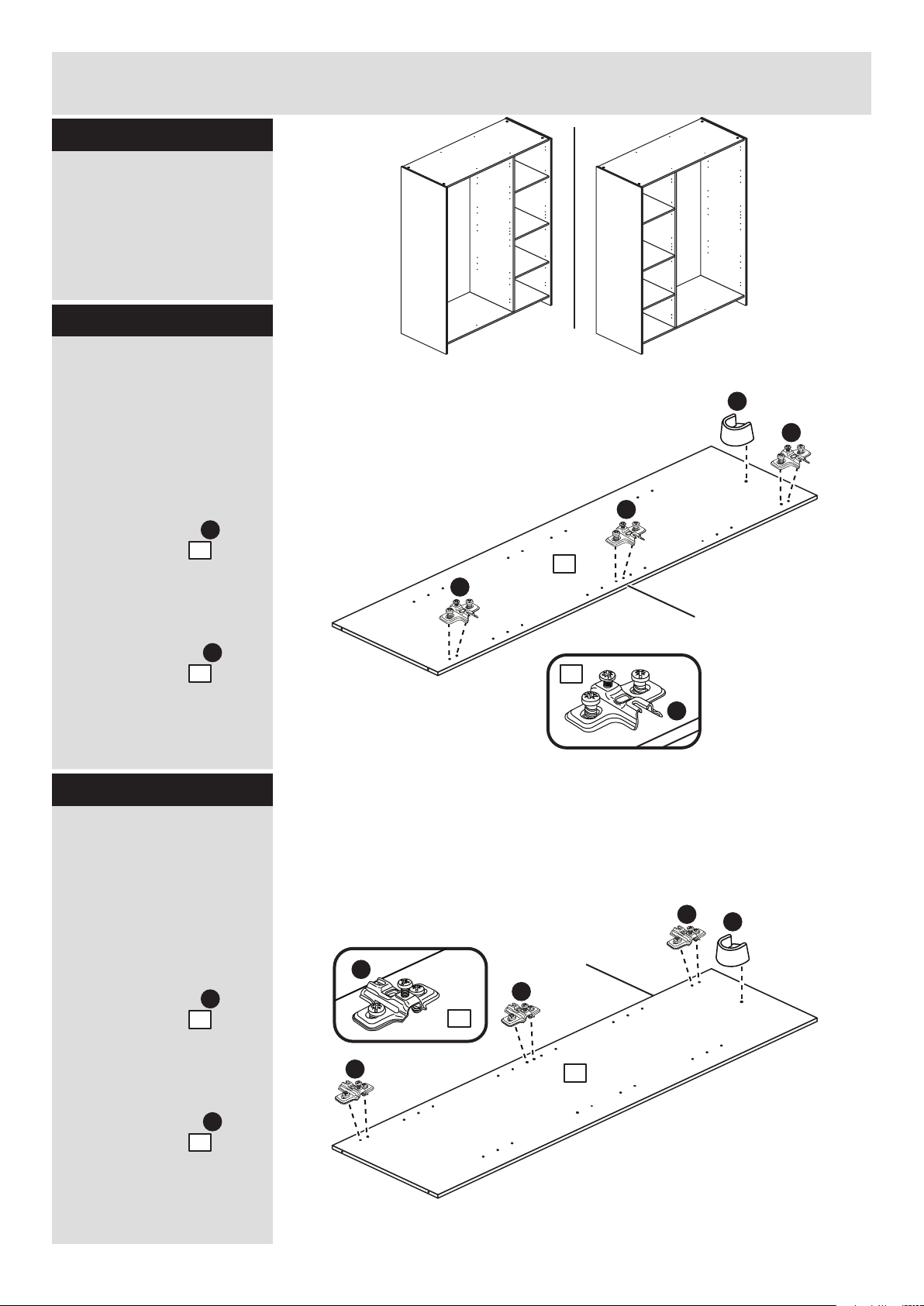

Step 1
Prepare the long
divider
Only carry out this step
if you have chosen to
fit the shelves on the
right side.
Fit 3 hinge plates onto
the long divider ,
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the long divider .
Make sure that it is fitted
straight, in line with the
panel edges.
M
3
J
3
Step 2
Prepare the long
divider
Only carry out this step
if you have chosen to
fit the shelves on the
left side.
Fit 3 hinge plates onto
the long divider ,
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the long divider .
Make sure that it is fitted
straight, in line with the
panel edges.
M
3
J
3
Step 3
M
M
M
M
3
3
J
Choose which side
you would like the
shelves Shelves on
the right side
Shelves on
the left side
3
M
M
M
M
J
Finished
front edge
3

Assembly Instructions
5
Step 4
Step 5
Prepare the top and
base
Tap 4 wooden dowels
into the top and base
. as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top
and base as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
D
A
A
A
A
10mm
A
A
4
4
4
4
4
D
Finished
front edge
x 2 D
D
DImportant: If one of the top/base
panels has a plain chipboard surface
this must be used as the base.
E
Finished
front edge
Finished
front edge
Finished
front edge
E
4
Fit top and base to
the long divider
Only carry out this step
if you have chosen to
fit the shelves on the
right side.
Attach the top to the
long divider using 2
screws .
Attach the
base to
the long
divider
using 2
screws .
E
E
4
3
4
3
E
4
3
E
Important: If one of the top/base
panels has a plain chipboard surface
this must be used as the base.

Finished
front edge
Finished
front edge
Assembly Instructions
6
Step 6
Step 7

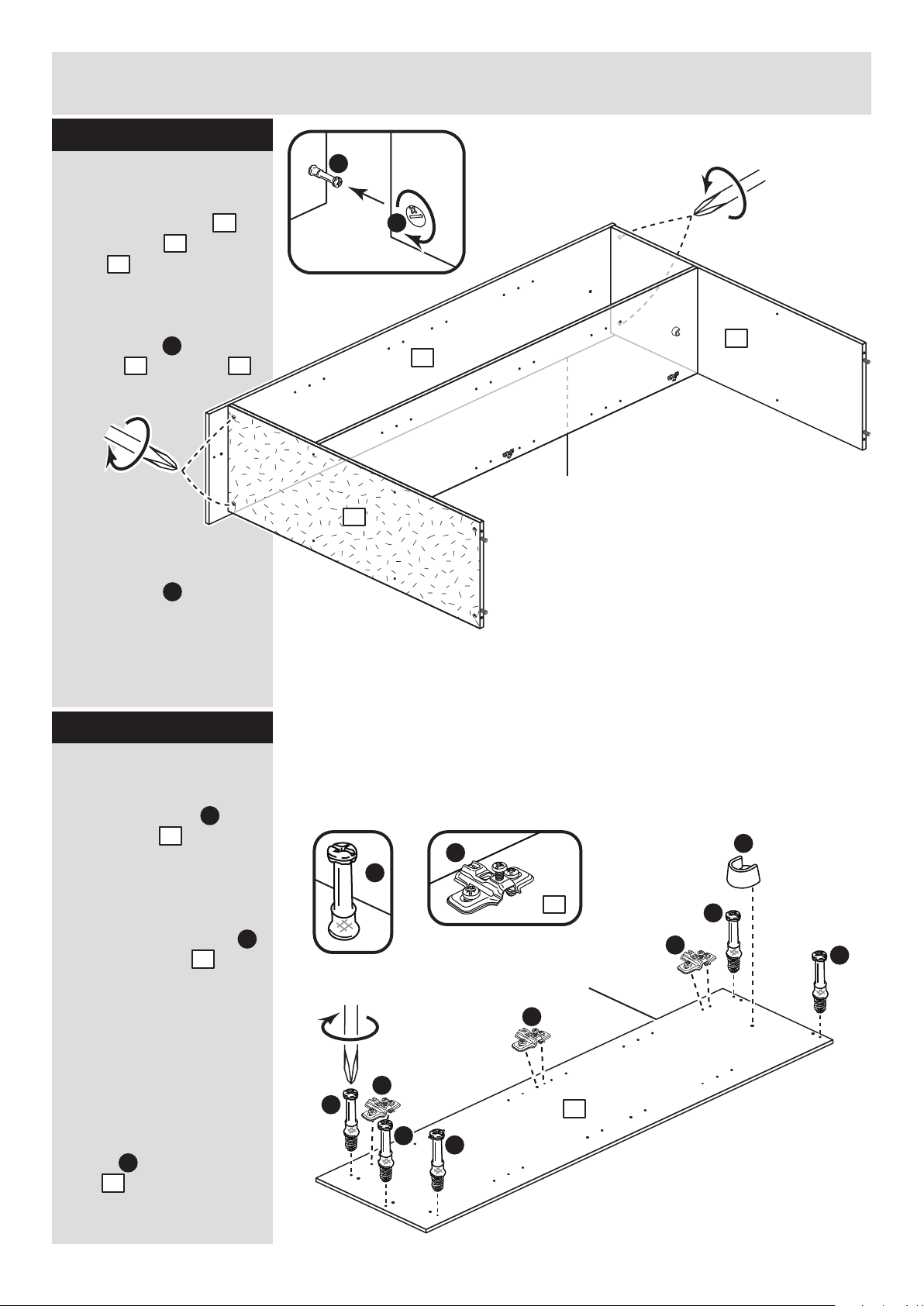

Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Insert 2 large locking
nuts into the plinth
. .
D
A
A
D
5
A
5
5
D
Plain chipboard
surface
Step 6
E
Finished
front edge
E
4
Fit top and base to
the long divider
Only carry out this step
if you have chosen to
fit the shelves on the
left side.
Attach the
top to the
long divider
using 2
screws .
Attach the
base to the
long divider
using 2 screws .
E
E
4
3
4
3
E
4
3
E
Important: If one of the
top/base panels has a plain
chipboard surface this
must be used as the base.
Profiled
front edge
Prepare the right side
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
Screw 5 metal dowels
into the right side .
Note: Tighten the metal
dowels up fully against
the panels.
Refer to step 1 and, only
if you have chosen to
put the shelves on the
left side, push a rail
holder into the right
side . Make sure that
it is fitted straight, in line
with the panel edges.
M
2
B
2
2
M
M
M
M
B
B
B
B
B
2
Shelves on
the right side
Shelves on
the left side
J
Prepare the left side
Refer to step 1 and, if
required, fit 2 hinge
plates onto the left
side , making sure
that they face the same
way as the diagram.
Insert 2 large locking
nuts into the left side
. as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
J
2

Assembly Instructions
7
Step 8
Step 9
Profiled
front edge
1
M
M
M
M
Prepare the left side
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Screw 5 metal dowels
into the left side .
Note: Tighten the metal
dowels up fully against
the panels.
Refer to step 1 and, only
if you have chosen to
put the shelves on the
right side, push a rail
holder into the left
side . Make sure that
it is fitted straight, in line
with the panel edges.
B
B
B
BB
B
J
B
B
M
1
1
B
1
J
1
Profiled
front edge
of right side
Fit the right side
Push the right side
onto the top and
base as shown.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the top and base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
D
B
4
4
2
2
4
4
4 4
D
D
Note: From now on the
diagrams show the long
divider on the right side
of the unit. You may have
fitted it to the left side.

Assembly Instructions
8
Step 10
11
Finished
front edge
Fit the left side
Push the left side
onto the top , base
and plinth .
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top , base and
plinth .
2
4
1
1
4 4
5
4 4
5
D
5
Step 12
5
Fit the left side
Push the left side
onto the top , base
and plinth .
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top , base and
plinth .
Step 11
1
4 4
5
D
4 4
5
1
4
4
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Insert 2 large locking
nuts into the plinth
. .
D
A
A
D
5
A
5
5
D
Plain chipboard
surface
Fit the plinth
Push the plinth onto
the right side .
Use a
screwdriver to
tighten the
large locking
nut fitted to
the plinth .
5
2
D
5
5
2
Note: Support the plinth
until the left side has been
fitted in the next step.

Assembly Instructions
9
Step 13
Fit the back panels
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the small back
. and large back
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs and are
pushed up tight against
each other and that they
meet in the centre of the
long divider’s back
edge.
Nail around the
outside edges of the 2
backs and .
Note: Do not nail where
the 2 backs meet.
Nails should be spaced
out evenly.
c: Using 10 screws ,
screw down between the
2 backs and into
the long divider’s
back edge.
Stand the unit up for
the next step.
C
10 11
11
H
10
3
10 11
10
3
11
Warning: The
unit is heavy.
Lift with care.
y
x
y
y
x
H
10
10
11
11
c:
Note: Only use 10 screws .
You will need 1 for a later step.
I
b:
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
H
3
Impotant: If you have fitted the long divider on the left side of the
unit the backs will need to go the opposite way around i.e. the
small back on the left side and the large back on the right side.
Left side
Right side

Assembly Instructions
10
Step 14
F
F
F
Fit the hanging rail
and shelves
Push the hanging rail
into the rail holders
fitted to the left side
and long divider .
For each of the 3
shelves , insert 4 shelf
studs at the required
height.
Lower the 3 shelves
down onto the shelf
studs .
1
6
3
J
6
J
67
7
7
13
13
M
M
7
7
F
F
1
3
Note: You may have fitted the long
divider to the left side therefore the
shelves will go on the left and the
hanging rail on the right.

Assembly Instructions
11
Step 15
Prepare the 2
standard doors
Important: The 6 hinges
used in this step are in
the bag marked as
AHP1546.
Push fit 3 hinges into
each standard door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
90
O
O
O
I
I
O
I
I
O
I
I
8
8
I
x 2
x 1
AHP1546
AHP1043
Step 16
Prepare the mirror
door
Important: The 3 hinges
used in this step are in
the bag marked as
AHP1043.
Push fit 3 hinges into
the mirror door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
N
9
AHP1043
AHP1546
N
I
I
90
N
IN
I
I
N
I
I
AHP1043
AHP1546
9
Warning:
Glass! Handle
with care

L
Assembly Instructions
12
Step 17

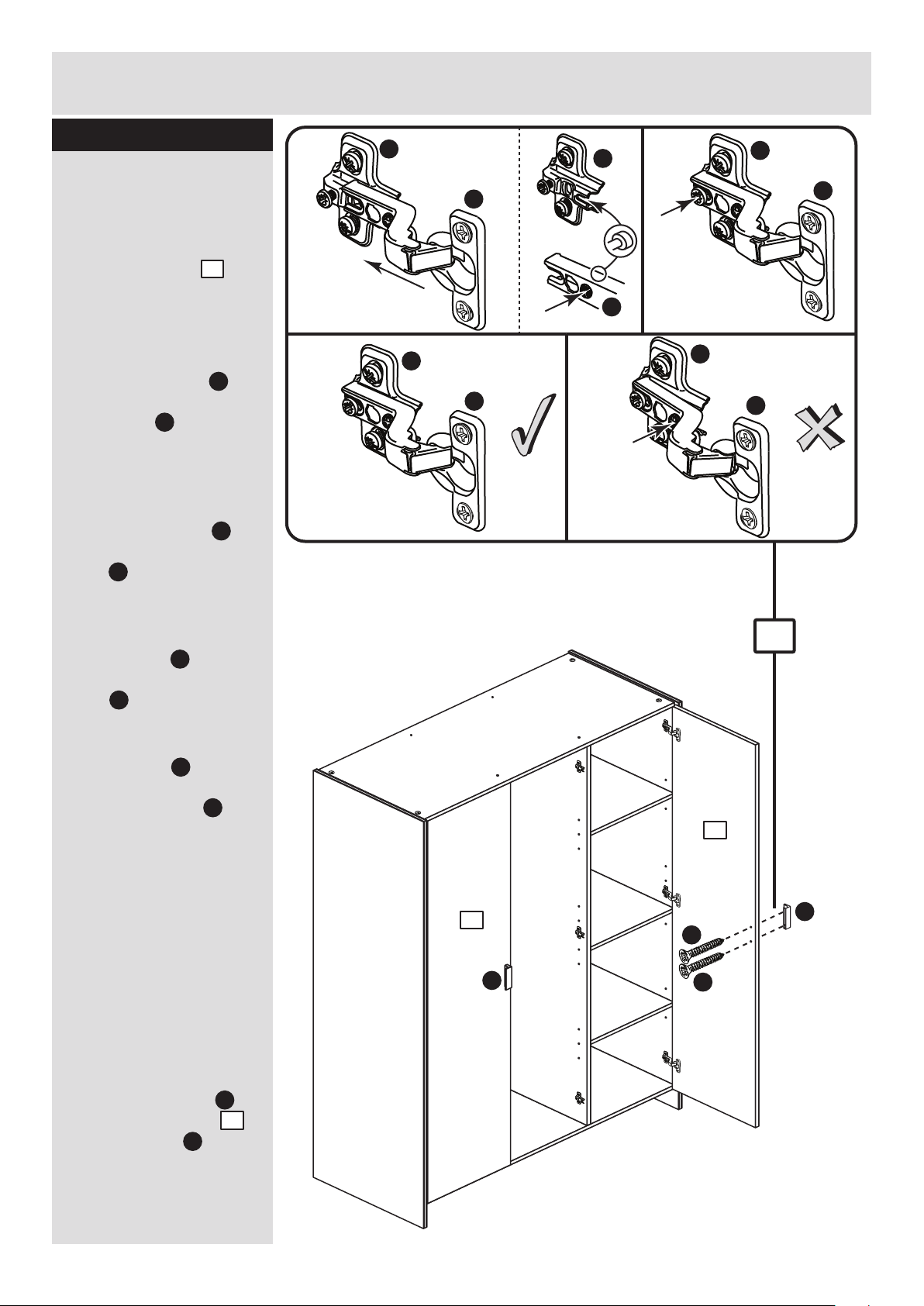

Fit the standard doors
and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each standard door
using 2 screws .
O
O
O
M
M
M
O
M
L
G
8
8
e:
a: b:
c: d:
M
O
M
M
B
M
O
O
O
A
O
M
B
8
8
L
G
G
Note: This diagram
shows the long divider on
the right side of the unit.
You may have fitted it to
the left side.

Assembly Instructions
13
Step 18
AHP1043
AHP1546
L
G
G
Fit the mirror door
and handle
Note: The easiest way to
attach the mirror door
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the mirror door using
2 screws .
N
N
N
M
M
M
N
M
L
G
9
9
e:
a: b:
c: d:
M
N
M
M
B
M
N
N
N
A
N
M
B
8
Warning:
Glass! Handle
with care
Note: This diagram shows
the mirror door being fitted to
the long divider on the right
side of the unit. You may
have fitted the long divider to
the left side.

Assembly Instructions
14
Step 19
b:
c:
d:
a:

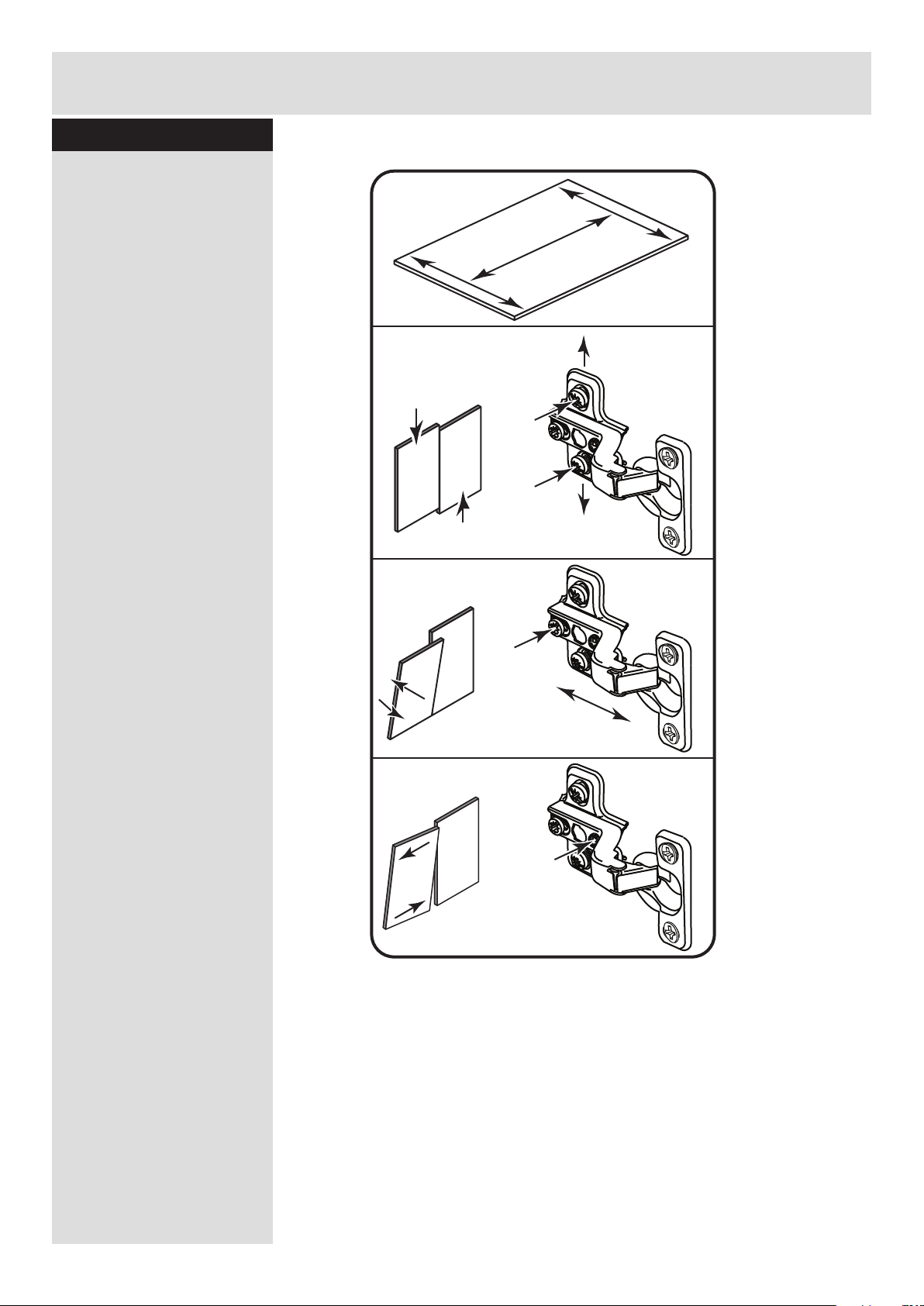

Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
This shows the hinge and plate that is
fitted to the standard doors.
The ones fitted to the mirror door are
adjusted in the same way.

Assembly Instructions
15
Step 20
AHP1043
AHP1546
Top of Unit
WALL WALL
Back of Unit
Fit the bracket
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
Screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
unit is heavy.
Lift with care.
K
K
H
K
K
I
K
H
K
K

Assembly Instructions
16
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 21
Assembly is complete
IMPORTANT INFORMATION ABOUT THIS PRODUCT
This product complies with the requirements of BS 7449:1991 and has been
manufactured by DECORATIVE PANELS FURNITURE LTD, TEESSIDE
INDUSTRIAL ESTATE, THORNABY-ON-TEES, CLEVELAND, TS17 9LT .
The product code for this unit and the item code(s) for the glass
components are listed in the Assembly Instructions along with a description
of the type of glass used. All clear/tinted glass complies with the
requirements of BS 6206 Class A. All mirrors comply with the requirements
of BS 6206 Class C. If the glass component contained in this unit is chipped
or broken consult the furniture manufacturer, retailer, or agent with regard to
obtaining a manufacturing specification and shape for replacement glass
quoting the unit description and batch number or date of manufacture.
Do not place very hot or very cold items against or in close proximity to
glass surface(s) unless adequately thick insulating material is used to
prevent such items coming in contact with the glass.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
When cleaning glass panels use a damp cloth or leather with washing up
liquid or soft soap if necessary - do not use washing powders or any other
substance containing abrasives since these substances scratch glass.
If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.
KEEP THESE INSTRUCTIONS FOR FUTURE USE

ALR2603
