New Hallingford - Dresser, Stool & Mirror
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 16/12/14
Important - Please read these instructions fully before starting assembly
ALR3138
346/9727
357/1268
356/3537
357/0290
330/6086
Dresser
Dimensions
Width - 99.5cm
Depth - 40cm
Height - 78.5cm
Stool
Dimensions
Width - 51.5cm
Depth - 35.5cm
Height - 45cm

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 34kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance kit supplied.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
12
7
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (DF1861)
(762 x 372mm)
Right Side (DF1862)
(762 x 372mm)
Divider (DF1865)
(162 x 355mm)
Top (DF1863)
(995 x 396mm)
Modesty (DF1864)
(960 x 163.5mm) x 2
Left Mirror
Support (DF1868)
(147 x 250mm)
Mirror Back (DF1869)
(496 x 327mm)
Drawer Base (T434-347)
(434 x 347mm) x 2
3
Right Drawer
Front (DF1967)
(489 x 162mm)
Left Drawer
Front (DF1866)
(489 x 162mm)
Right Mirror
Support (DF1968)
(147 x 250mm)
Drawer Back (W423-124)
(423 x 124mm) x 2
Left Drawer
Side (W350-124LH)
(350 x 124mm) x 2
Right Drawer
Side (W350-124RH)
(350 x 124mm) x 2
6
4 5
8
9 10
11 12 1413
15 Stool Top (D2332A)
(513 x 353mm)
Stool Base (D2336A)
(478 x 308mm)
Stool Drawer
Front (D2338A)
(472 x 126mm)
Stool Left Side (D2333A)
(395 x 350mm)
19
16 Stool Right Side (D2334A)
(395 x 350mm)
17
Stool Rail (D2335A)
(478 x 124mm) x 2
20 Stool Drawer
Back (W445-95)
(445 x 95mm)
Stool Drawer Base (T456-297)
(456 x 297mm)
Stool Left
Drawer Side
(W300-95LH)
(300 x 95mm)
Stool Right
Drawer Side
(W300-95RH)
(300 x 95mm)
Stool Seat Pad (FHALPAD)
(458 x 300mm)
18
21 22 23
24 25
Stool
Dresser
(Mirror - SG25
460 x 300mm
Safety Back SAR)

3
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)
B C
D E F
G
P
H
Small locking
nut (F3) x 6
L
13mm Screw (F63) x 12
I
A
Wooden dowel (F22) x 11 Metal dowel (F901) x 36
Large locking
nut (F900) x 30 Knock-in Peg (F171GY) x 12
MR Runner (F160) x 2
b
L Runner (F161) x 2
Mc
L Runner (F159) x 2
Ma
R Runner (F162) x 2
Md
350mm long
K
9mm Screw (F73) x 16
J
9mm Screw (F74) x 2
N
O
Q
Handle (F278) x 2
25mm Screw (F50) x 4
Plastic Nail (F91) x 8
Wedgefix (F639) x 6
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
Mini block (F25) x 4
19mm Screw (F461) x 4
280mm long
Drawer runner (F1004) x 2

9 10
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
x 2
x 2
x 2
B
B
B
C
C
CC
11 12
Step 2
Prepare the 2 drawer
fronts
Screw 2 metal dowels
into the left drawer front
. and the right drawer
front .
Note: Tighten the metal
dowels up fully against
the panels.
B
9
10
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
11
12
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts and .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
11
12
9 10
C
C
11
12
B
B
11
12
B
B
Note: The small right
drawer fronts have an
identification mark hole.
9
10

9 10
Assembly Instructions
5
Step 4
E
E

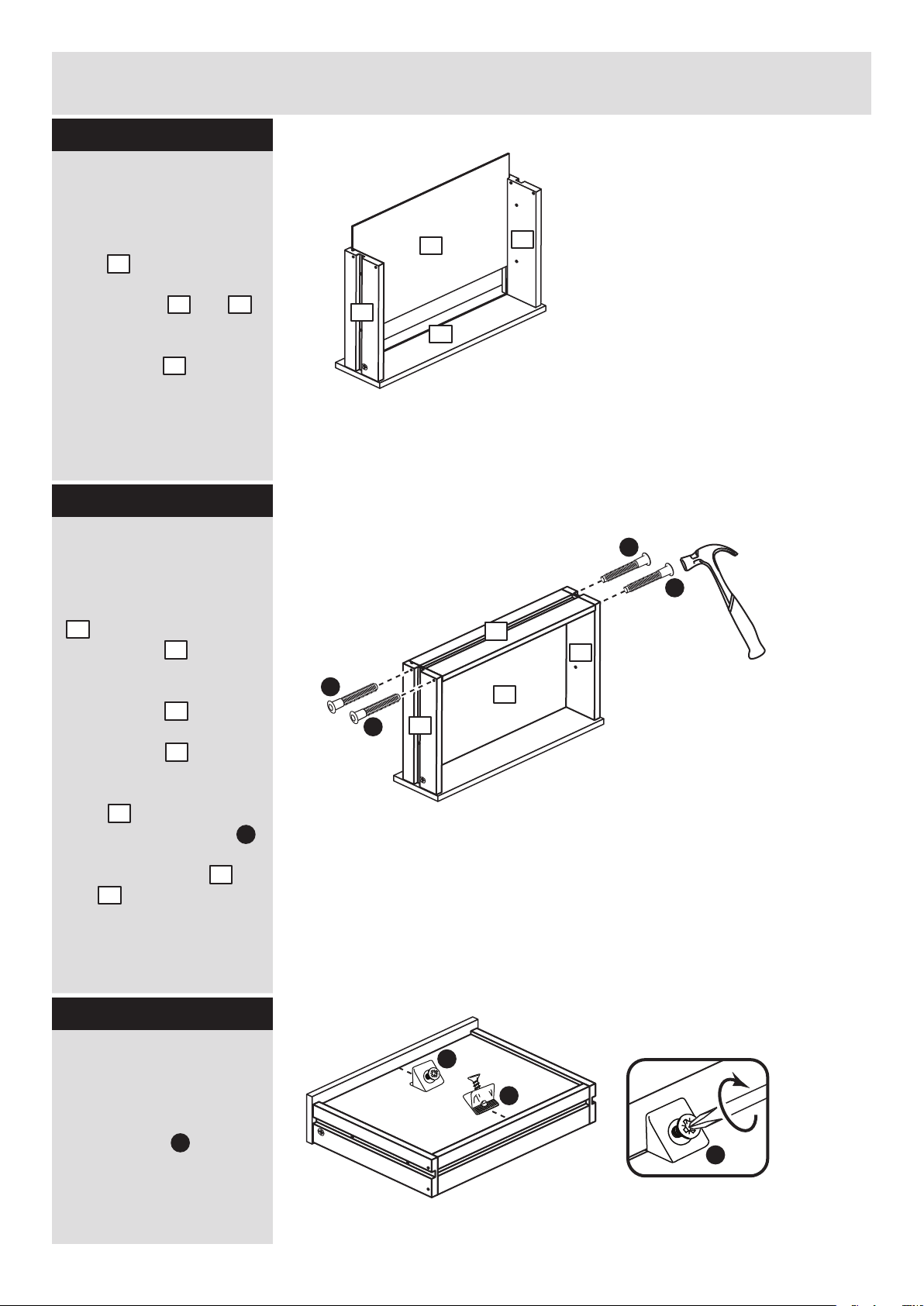

Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front and .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
14
11 12
9 10
13
11 12
14
13
13
E
Attach the handles
Attach a handle to
each of the drawer fronts
. and using screw .
H
9 10
11 12
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
F
x 2
x 2
x 2
E
E
x 2
F
F
F
14
11
13
11
12
14
12
O
O
H
H
9 10

Assembly Instructions
6
Step 8

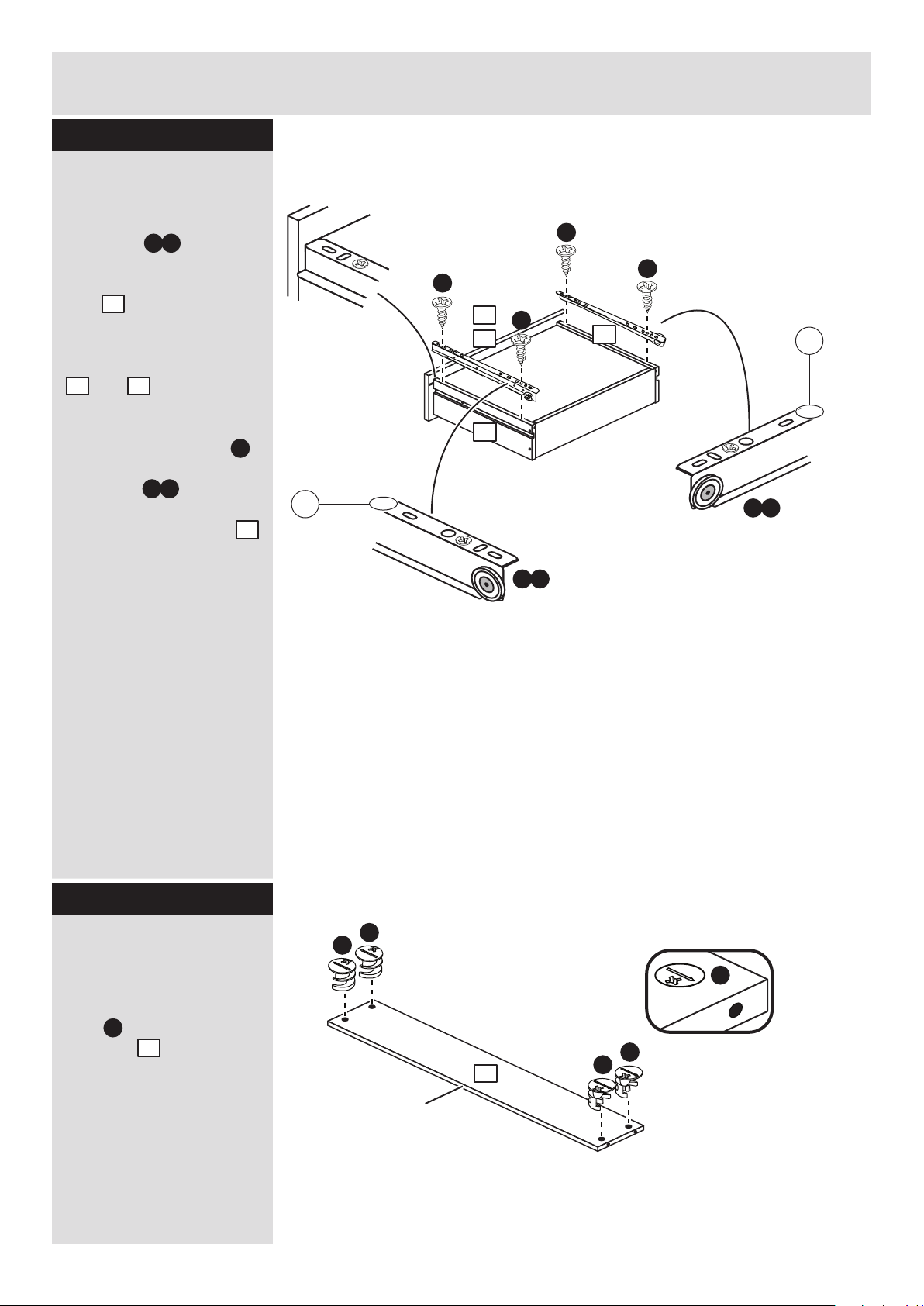

Fit runners to the
drawers
Fit runner , marked
with ‘R’, to the bottom
edge of the right drawer
side , as shown,
making sure that it is
pushed up against the
back of the drawer fronts
. and . Use a
bradawl to mark the
fixing positions, then
secure with 2 screws .
Fit runner , marked
‘L’, to the bottom edge
of the left drawer side
using the same method.
11
M d
12
9 10
I
M c
M d
R
R
I
I
I
I
L
M c
L
Runners must be
pushed up against
the drawer front
11
12
9
10
D
Prepare the 2
modesty panels
Insert 4 large locking
nuts into each
modesty .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 9
D
6
D
D
D
D
x 2
x 2
Finished
front edge
6

Finished
front edge
A
Finished
front edge
Finished
front edge
Assembly Instructions
7
Step 10

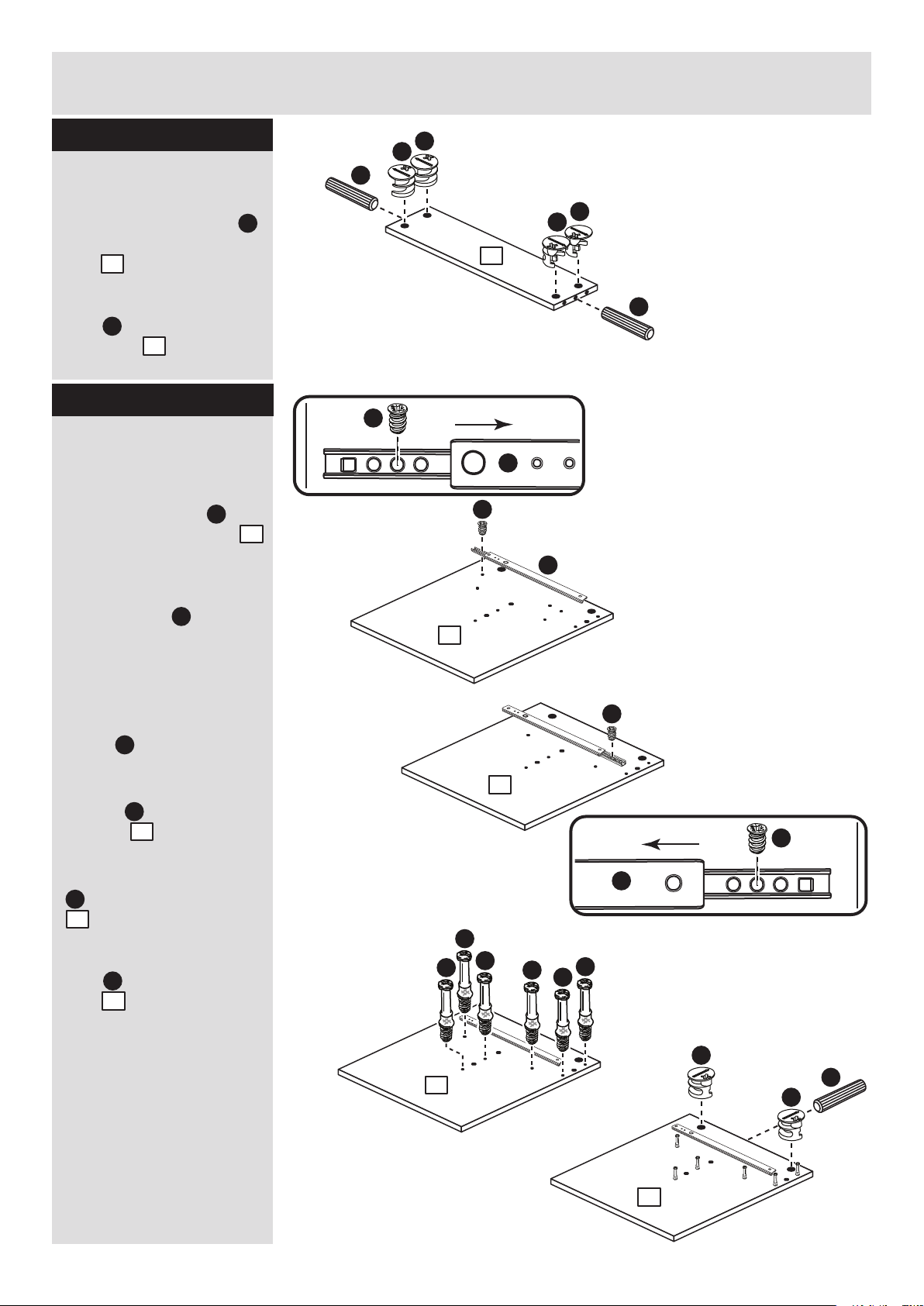

Prepare the left side
a: Fit a runner to
the left side .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runners .
Tap a wooden dowel
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 2 large locking
nuts into the left side
. .
c: Screw 4 metal
dowels into the left
side .
D
1
M a
1
K
K
I
M a
B
1
M a
K K
1st
screw
2nd
screw K
3rd
screw
Finished
front edge
M a
I
Finished
front edge
a:
b:
c:
K
M a
KK
I
B
BB
B
D
D
Prepare the left side
Tap a wooden dowel
into the left side.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
A
10mm
A
1
1
1
10mm
A
A
1

Assembly Instructions
8
Step 11
M b
I
Prepare the right side
a: Fit a runner to
the right side .
The 1st screw uses
the 1st hole in from the
front of the runners.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runners .
Tap a wooden dowel
into the right side .
Insert 2 large locking
nuts into the right
side . .
c: Screw 4 metal
dowels into the right
side .
M b
2
K
K
I
M b
M b
KK 1st
screw
2nd
screw
K3rd
screw
A
2
a:
b:
c:
K
K
M b
K
Finished
front edge
Finished
front edge
Finished
front edge
A
D
D
I
B
BB
B
2
2
2
D
2
B
2

Assembly Instructions
9

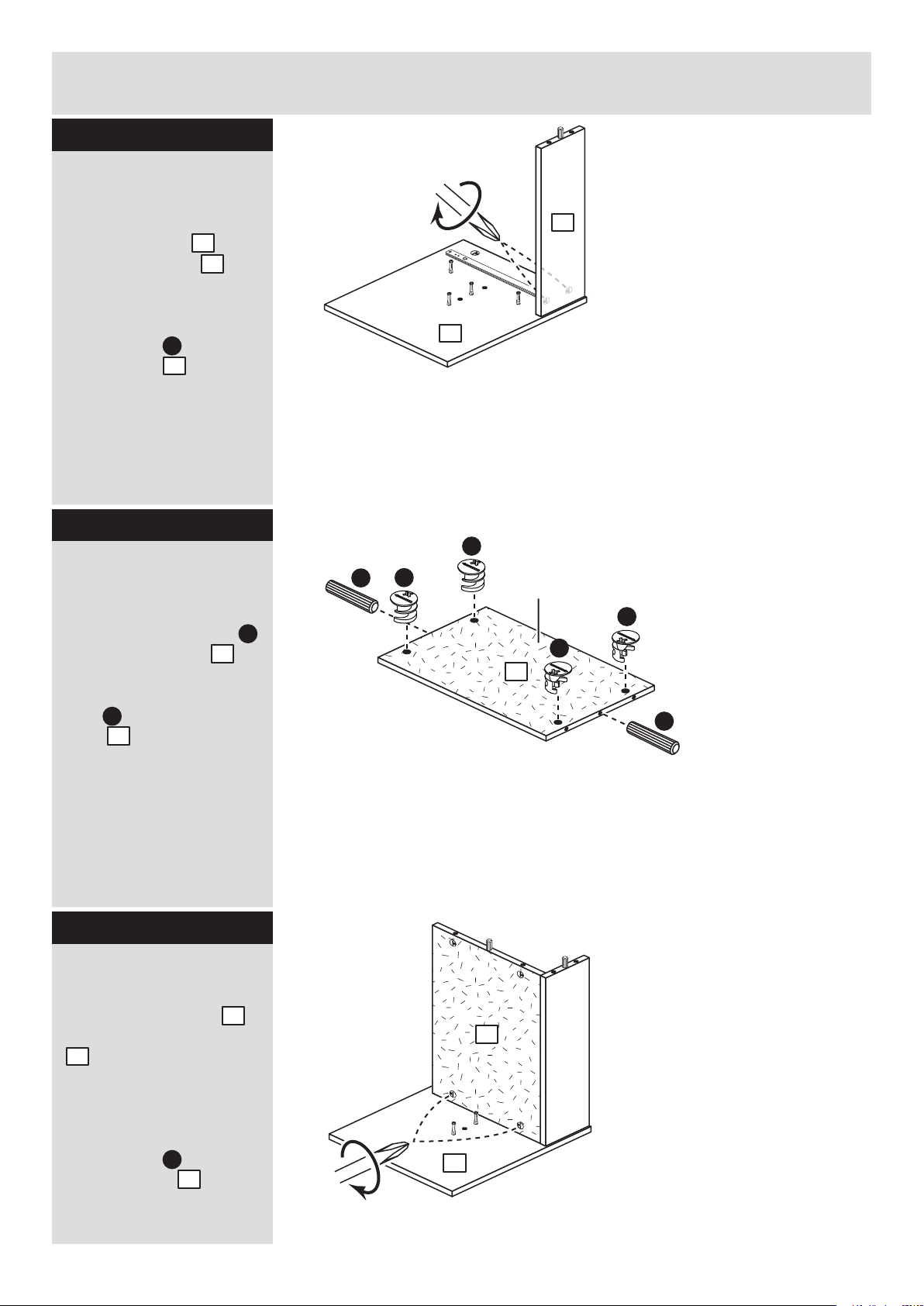

Step 12
D
B
26
6
Finished
front edge
6
6
Fit the modesty panels
to the right side
Push the 2 modesty
panels onto the right
side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the modesty
panels .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
D
D
6
6
2
Step 13
Fit the left side

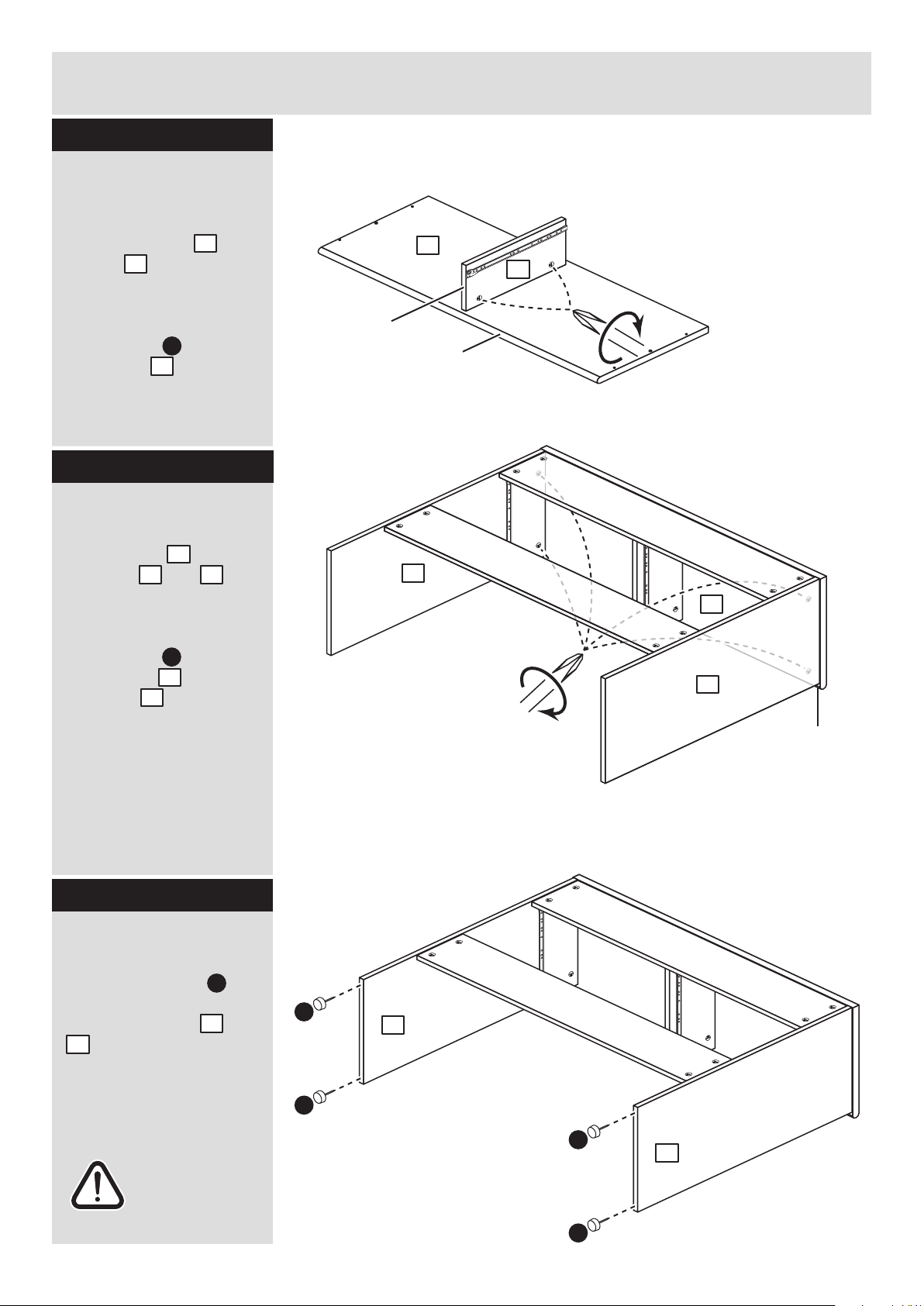

Push the left side onto
the 2 modesty panels .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the modesty
panels .

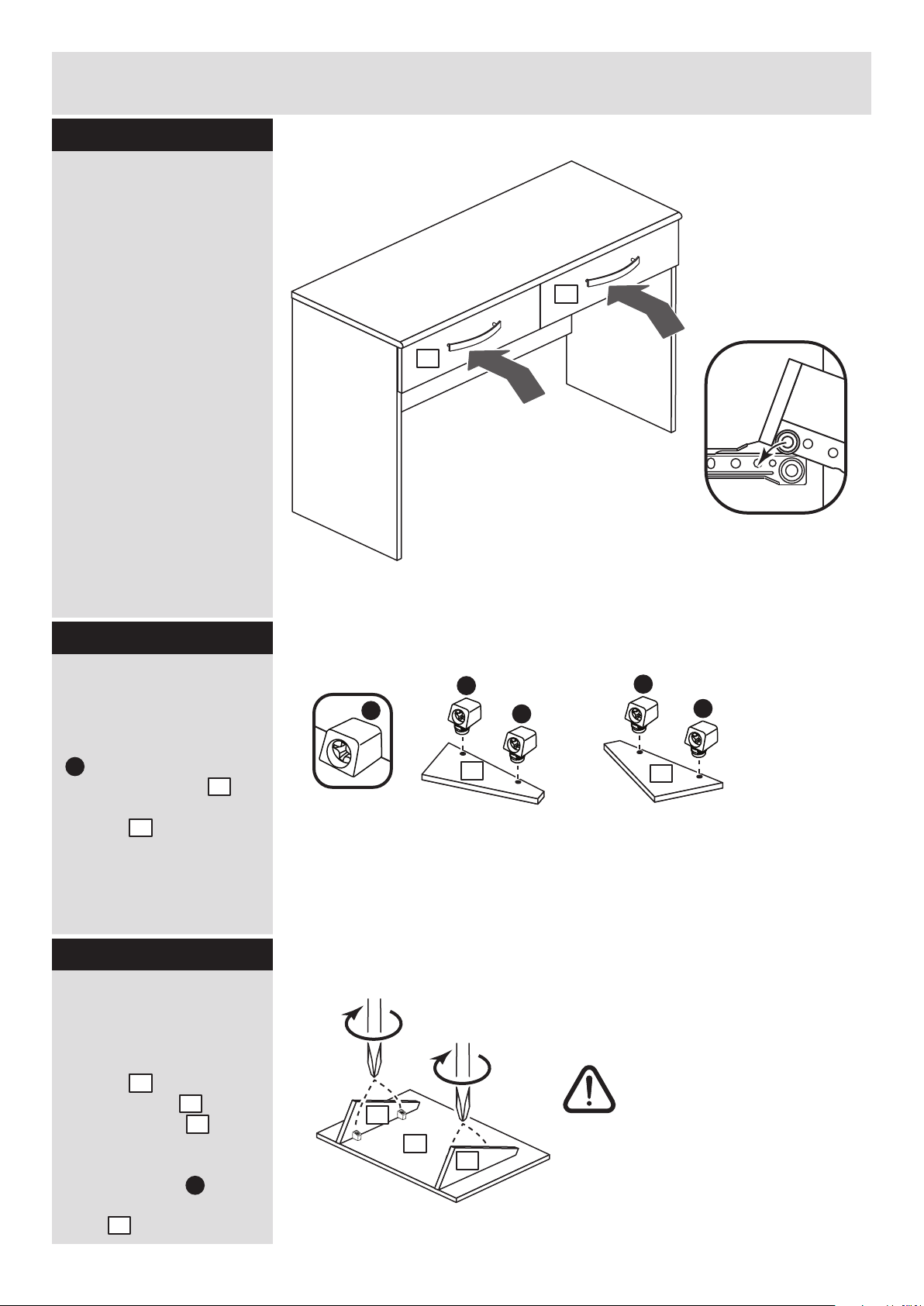

Step 14
D
6
6
1
Prepare the top
Screw 6 metal dowels
into the top .
B
B
7
B
B
B
B
B
Rounded
front edge
7
Note: Support the 2
modesty panels until the
left side has been fitted
in the next step.
1

Finished
front edge
Finished
front edge
Assembly Instructions
10
Step 15
a: b:
c: d:
K
M a
KK
A
I
K
K
M b
K
Finished
front edge
Finished
front edge
I
Prepare the divider
a: Fit a runner to
the divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runners .
Tap a wooden dowel
into the divider .
Turn the divider over
c: Fit a runner to
the divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
d: Fit a screw into
the 2nd hole in at the top
of the runners .
Insert 2 large locking
nuts into the divider
. .
D
3
M a
3
K
K
I
M a
M b
3
K
K
I
M b
Note: Due to the manufacturing process, the 2 holes for
the large locking nut can be on either surface of the divider.
M a
K K
1st
screw
2nd
screw K
3rd
screw
Finished
front edge
M a
I
Finished
front edge
M b
I
M b
KK 1st
screw
2nd
screw
K3rd
screw
Turn the divider over
A
3
D
D
3 3
3
3

Assembly Instructions
11
Step 16
Fit the divider onto
the top
Push the divider onto
the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider . Rounded
front edge
Reminder: The 2 large
locking nuts may be on
either surface of the divider
Finished
front edge
3
7
D
3
3
7
Step 17
Fit the top
Push the top onto
the sides and .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left side and the
right side .
D
1
2
1 2
7
1
2
7
Rounded
front edge
Step 18
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Carefully stand the
unit up for the next
step.
L
1
2
L
L
L
L
1
2
Warning: The
unit is heavy.
Lift with care.

Assembly Instructions
12
Step 19
Fit the drawers
Slide the wheels of the
runners fitted to the
drawers, over the wheels
of the runners fitted to
the side panels and push
the drawers into position.
Side
panel Drawer
Remember: The small
right drawer front has an
identification mark hole.
9
10
N
N
N
5
Step 20
Prepare the left and
right mirror supports
Gently tap 2 mini blocks
. into the holes on the
left mirror support
and the right mirror
support , orientated
as shown.
Step 21
4
5
N
N
N
4
Fit the mirror supports
to the mirror back
Place the left mirror
support and right
mirror support onto
the mirror back .
Tighten up the screws in
the mini blocks into
the holes in the mirror
back .
Warning:
Glass! Handle
with care
5
4
8
N
8
4
5
8

Assembly Instructions
13
Step 22
Prepare the stool
drawer front
Screw 2 metal dowels
into the stool drawer
front .
B
20
B
B
20
Step 24
Prepare the stool
drawer sides
Insert a small locking
nut into the hole
shown on the stool left
drawer side and stool
right drawer side .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
C
21
22
20
22
B
B
C
Attach the stool
drawer sides to the
stool drawer front
Push the stool left
drawer side and stool
right drawer side
onto the back of the
stool drawer front .
Turn the small locking
nuts on the stool left
drawer side and stool
right drawer side .
21
22
20
C
21
22
Small
Groove
20
22
Step 23
C
CC
21 22
21

Assembly Instructions
14
Step 25
Step 26
Fit the stool drawer
base
Slide the stool drawer
base down the
grooves in the stool
drawer sides . and
and down into the
groove in the stool
drawer front .
25
21 22
20
20
21
22
25
Step 27
F
F
F
E
E
Fit the stool drawer
back
Fit the stool drawer back
. down onto the stool
drawer base .
Make sure that the stool
drawer base fits into
the groove in the stool
drawer back .
Hold the stool drawer
back in position and
tap the knock-in pegs
through the holes in the
stool drawer sides
and .
23
25
25
23
23
E
21
22
E
E21
22
25
23
Fit the wedgefixes
Turn the drawer
assembly over and slide
2 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
F

Assembly Instructions
15
Step 28
A
Prepare the stool rails
Tap 2 wooden dowels
into each of the stool
rails .
Insert 4 large locking
nuts into each of the
stool rails .
D
19
A
19
D
D
A
D
D
19
x 2
K
N
A
Prepare the stool left
side
a: Place a runner
onto the stool left side .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
c: Screw 6 metal
dowels into the stool
left side .
d: Tap a wooden dowel
. into the stool left side
.
Insert 2 large locking
nuts into the stool left
side .
Q
15
K
K
Q
K
Q
a:
b:
c:
d:
B
BB
B
B
B
D
D
K
B
15
15
A
D
15
15
15
15
15
K
Q
K
Step 29

Assembly Instructions
16
Step 30
A
Prepare the stool right
side
a: Place a runner
onto the stool right side
. . Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
c: Screw 6 metal
dowels into the stool
right side .
d: Tap a wooden dowel
. into the stool right
side .
Insert 2 large locking
nuts into the stool
right side .
Q
16
K
a:
b:
c:
d:
K
B
16
16
A
D
16 B
B
B
B
B
B
D
D
K
Q
K
Q
16
16
16
16
Q
N
K

Assembly Instructions
17
Step 31
Step 32
Step 33
15
18
Fit the stool base
Push the stool base
onto the stool left side
. .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
18
15
D
18
15
19
Fit a stool rail to the
stool left side
Push a stool rail onto
the stool left side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool rail .
19
15
D
19
A
Prepare the stool
base
Tap 2 wooden dowels
into the stool base .
Insert 4 large locking
nuts into the stool
base .
D
18
D
D
D
Plain
chipboard
surface
A
A
18
18
D

Assembly Instructions
18
Step 34
Step 35
Step 36
16
18
Secure the stool base
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
Stand the stool up for
the next step.
D
18
19
19
Fit the stool right side
Push the stool right side
. onto the stool base
and the 2 stool rails .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the stool rails .
16 18
19
D
19
16
15
19
Fit the other stool rail
Push the other stool rail
. onto the stool left
side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool rail .
19
15
D
19
18

Assembly Instructions
19
Step 37
Step 38
Step 39
16
15
Fit the stool seat pad
Fit the stool seat pad
to the stool top using
4 screws .
Note: Make sure that
you screw into the hard
surface of the stool seat
pad.
24
17
G
G
G
Hard
surface
Soft
surface
24
17
G
G
Prepare the stool top
Screw 4 metal dowels
into the stool top .
B
B
B
B
17
Plain
chipboard
surface
17
B
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the stool sides
and . .
L
15
16
L
L
L
L
