Argos Tolga-22R User manual

Dimensions
Assembly Instructions - Please keep for future reference
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
Height - 180cm
Depth - 51,75cm
Width - 75cm
Tolga - 22R
499/8754
455/2200
459/2765
459/2765 PINK
455/2200 OAK
499/8754 BLUE
Issue 1 - 04/11/15
DR8252100
Important–Please read these instructions fully before starting assembly
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: [email protected] (quoting your original order number)

1
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
•
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
Handy Hints
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
Glue safety - Take care when using glue, please follow the advice below•
Important – Please read these instructions fully before starting assembly
Safety and Care Advice
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Check you have all the
components and tools listed
on the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
•To reduce the
likelihood of
damaging your
product please
ensure that your
• Dispose of all packaging
carefully and responsibly.
power drill is set on a low torque
setting.
Warning: Only use a manual
screwdriver to attach the hinges.

For damaged or missing parts, please visit:
www.argos-support.co.uk or email: [email protected]
Please check you have all the panels listed below
Components - Panels
2
Left Side x 1
(1800 x 497 x 15mm)
1
P2053B
Back x 1
(1754 x 746 x 2.5mm)
3
BO2553
Shelf x 2
(720 x 496 x 18mm)
6
P1487
Right Side x 1
(1800 x 497 x 15mm)
2
P2044B
Plinth x 2
(720 x 70 x 15mm)
9
P7058
Drawer Front x 2
(747 x 247 x 18mm)
7
P4133
Door x 1
(1242 x 372 x 18mm)
4
P3468
Top x 1
(720 x 496 x 18mm)
5
P1488
Drawer Base x 2
(681 x 343 x 2.5mm)
8
BO2540
Right Drawer Side x 2
(350 x 140 x 12,5mm)
12
LA1615
Left Drawer Side x 2
(350 x 140 x 12,5mm)
10
LA1614
Drawer Back x 2
(670 x 140 x12.5mm)
11
LA1617
Door x 1
(1242 x 372 x 18mm)
13
P3469

For damaged or missing parts, please visit:
www.argos-support.co.uk or email: [email protected]
Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
7mm Suitable drill bit
(for use with wall plug)
0102030405060708090 100 110 120 130 140 150
0123456
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
The screwslength ismeasured from thehead to the point (30mm screw shown).
3
V
U
T
S
R
Q
P
O
NM
L
KJ
IHG
F
E
D
CB
A
Locking screw x 26 (5x24mm)
FK1011
12mm
Locking nut x 4 (12x10mm)
FK1010
15mm
Large locking nut x 22 (15x12mm)
FK1012
12.5mm Pozi screw x 42
FK1309
10mm Fixing screw drawer x 8
FK1301
Screw x 7 (4x15mm)
FK1400
Nail x 60
FK1515
Wood dowel x 4 (5x30mm)
FK1410
Drawer base support x 12
FK1250
L-Bracket x 1
FK1235
Peg, brown x 1
FK1234
Nail holder x 1
FK1415
Glue x 2
FA1510
Runner left part A x 2
PM1517 LA
Runner left part B x 2
PM1517 LB
Wall plug (6mm) and parkerscrew x 1
ZF99936
Runner right part A x 2
PM1517 RA
Runner right part B x 2
PM1517 RB
Hanger rail support x 2
FK1223
Hinge door x 6
FK1263
Hinge back x 6
FK1262
Hanger rail large x 1 (712mm)
PM1829
Drill
Setsquare
Spirit level

Step - 1
Step - 2
Assembly Instructions
2x
a:
b:
4
Finished
front edge
Finished
front edge
9
H
HH
LC
C
C
A
A
A
A
A
A
A
A
AA
A
A
E
EE
E
P
P
R
D
D
DD
D
D
D
T
T
T
2
2
P
P
DD D
E E
P
Insert large locking nuts C
into plinth 9.
Make sure the ‘arrow’ on
locking nuts Cpoints
towards the hole in the
edge of 9.
Put drop of glue Linto the
2 holes of plinth 9.
Put dowels Finto the
holes of plinth 9.
Do this step twice
Attaching runners
a: Fix runner right part A P
on right side 2as shown
usesing 10mm fixing screw
drawer Einto right side 2.
Note: look carreful for the
right postion.
Screw 24mm locking
screw Ainto right side 2.
Note: Insert 24mm locking
screw Aas far as shown.
Do not over tighten.
Attach hanger rail support
Rusing 12.5mm pozi
screw Donto right side
2.
b: Insert 12,5mm pozi
screw Das shown into
right side the 2to fix
runner right part A P.
Screw hinge back Tonto
right side 2.
Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.

Assembly Instructions
a:
b:
Step - 4
5
Step - 3
2x
6
C
C
C
C
C
C
C
A
A
A
A
A
A
A
A
A
A
A
AE
EE
E
N
N
R
D
DD
DD
D
D
T
T
T
1
1
N
N
Finished
front edge
Finished
front edge
E E
D DD
Attaching runners
a: Fix runner left part A N
on left side 1as shown
usesing 10mm fixing screw
drawer Einto left side 1.
Note: look carreful for the
right postion.
Screw 24mm locking
screw Ainto left side 1.
Note: Insert 24mm locking
screw Aas far as shown.
Do not over tighten.
Attach hanger rail support
Rusing 12.5mm pozi
screw Donto left side
1.
b: Insert 12,5mm pozi
screw Das shown into
left side the 1to fix
runner left part A N.
Screw hinge back Tonto
left side 1.
Insert large locking nuts C
into shelf 6.
Make sure the ‘arrow’ on
locking nuts Cpoints
towards the hole in the
edge of 6.
Do this step twice
Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.

Assembly Instructions
Step - 6
6
Step - 5
5
C
C
C
C
C
C
C
L1
2
1
2
5
6
9
9
6
Insert large locking nuts C
into top 5.
Make sure the ‘arrow’ on
locking nuts Cpoints
towards the hole in the
edge of 5.
Attaching panels
Put drop of glue Linto the
2 holes of left side 1and
right side 2on the bottom
of the sides.
Position left side 1and
right side 2onto plinth 9,
shelf 6and top 5.
Use a screwdriver to turn
locking nuts clockwise to
lock.

Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.
Assembly Instructions
Step - 8
7
Step - 7
M
M
F
F
F
F
FF
G
G
GG
GG
G
G
GG
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
2
9
9
3
1
4
U
D
D
U
D
D
U
D
D
13
U
D
D
U
D
D
U
D
D

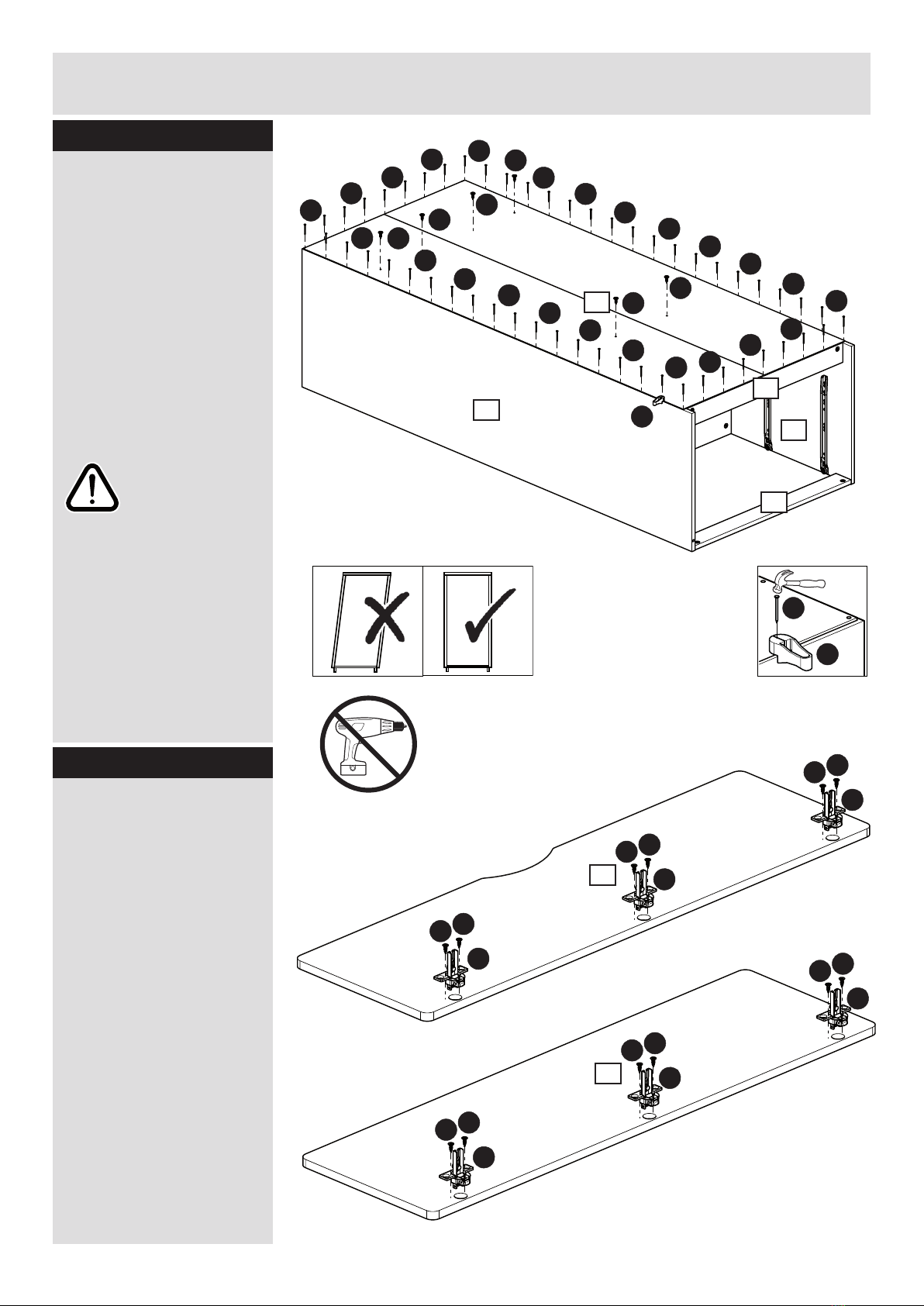

Fitting back panel
Attach back 3to the back
with the coloured surface
facing the inside using nails
G.Use nail holder Mto
hold the nails Gvertical
and at correct distance as
you secure the back 3.
Nails Gshould be spaced
about 150mm apart.
Use screw Finto the holes
of back 3to attach the
shelf 6.
Fitting hinges to doors
Fix hinge door Uto doors
4,#using 12,5mm
screw Dinto the holes of
doors 4,#.
Important:
Furniture MUST
be ‘square’ when
back is attached.

Assembly Instructions
Step - 10
Step - 11
Step - 9
B
B
B
A
8
8
11
10
10
7
10
12
11
12
12
11
L
A
A7
2x
2x
2x
8

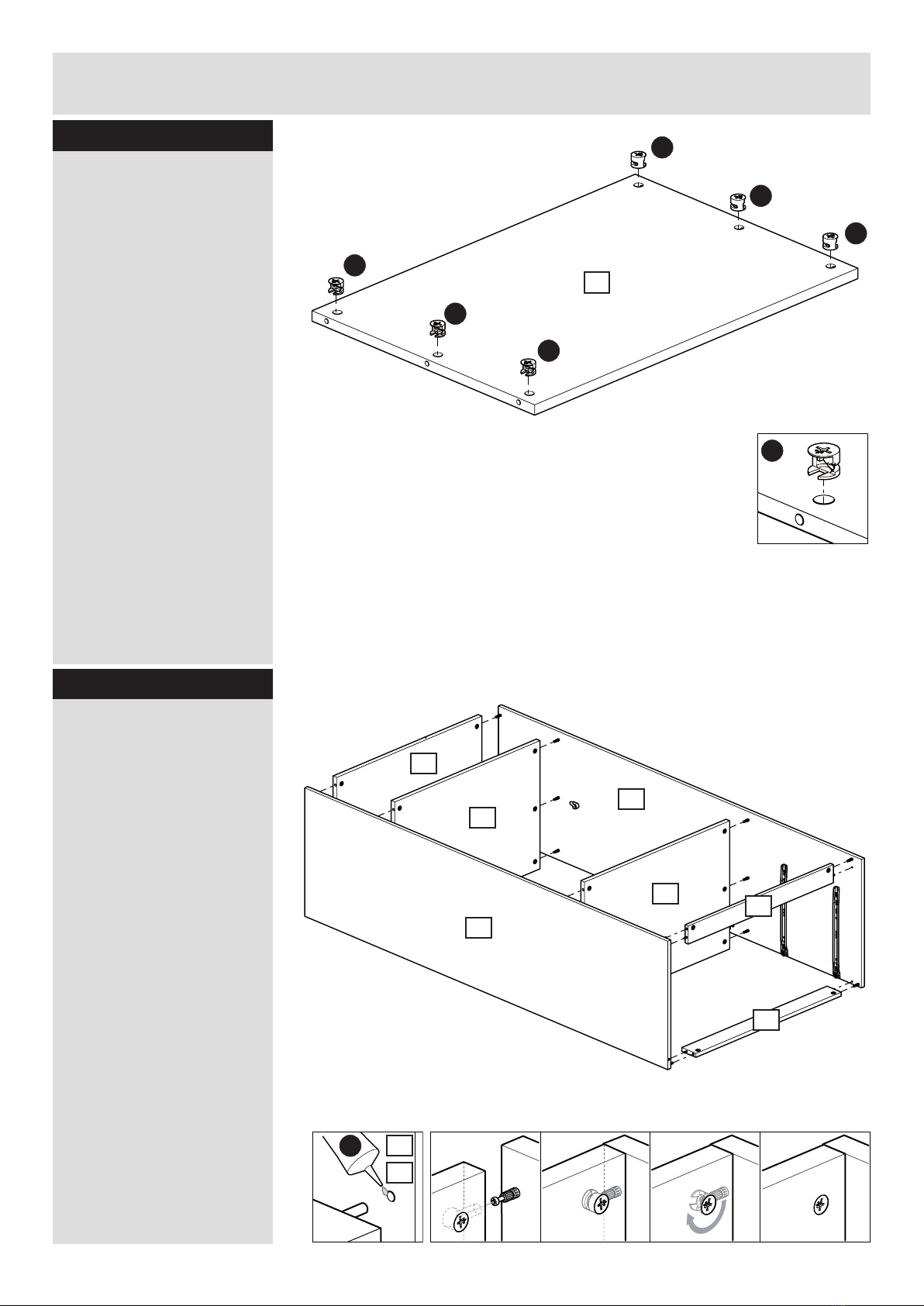

Preparing drawer
Insert locking nuts Binto
left drawer side 0and
right drawer side @.
Make sure the ‘arrow’ on
locking nuts Bpoints
towards the hole in the
edge of 0and @.
Put drop of glue Linto the
3 holes of left drawer side
0and right drawer side @.
Attach left drawer side 0
and right drawer side @
onto drawer back !.
Insert drawer back 8.
Do this step twice
Screw 24mm locking
screw Ainto drawer front
7.
Note: Insert 24mm locking
screw Aas far as shown.
Do not over tighten.
Do this step twice
Position drawer onto
drawer front 7.
Use a screwdriver to turn
locking nuts clockwise to
lock.
Do this step twice

2x
2x
Assembly Instructions
b:
a:
9
Step - 12
II
O
D
D
D
D
D
D
Q
8
11
10
12
8
11
10
I
I
I
II
I
D
D
O
Q
12

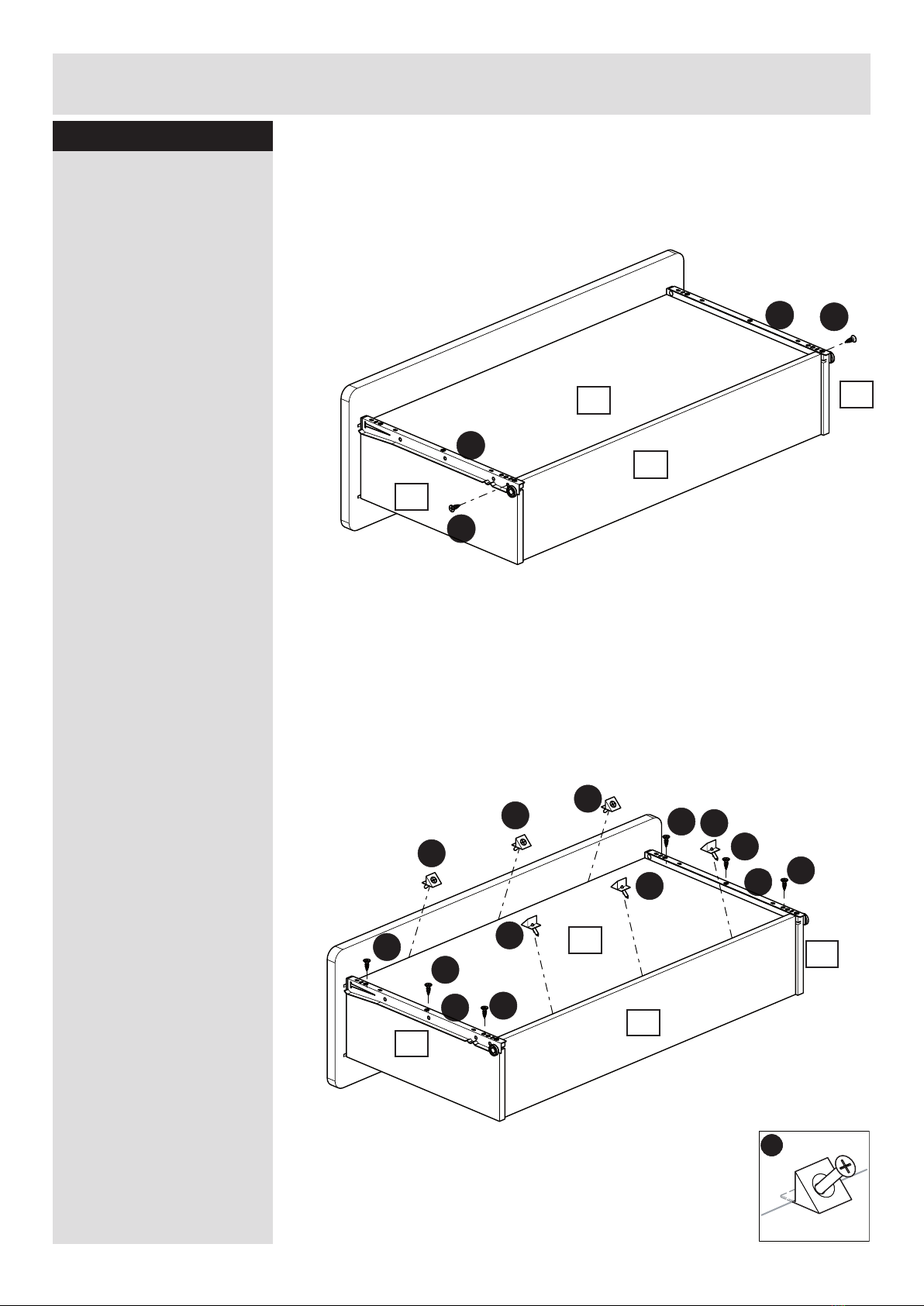

a: Turn over drawer.
Fix runner left part B O
on left drawer side 0as
shown using 12,5mm pozi
screw D.
Fix runner right part B Q
on right drawer side @as
shown using 12,5mm pozi
screw D.
b: Fix runner left part B O
and runner right part B Q
using 12,5mm pozi screw
D. Slide drawer base
support Iin corner as
shown and fix them, using
the attached nail.
Do this step twice

20kg
20kg
Assembly Instructions
10
Step - 13
S
1
2
4
13
5
6
6
9
9
U
T
U
T
U
T
M
M

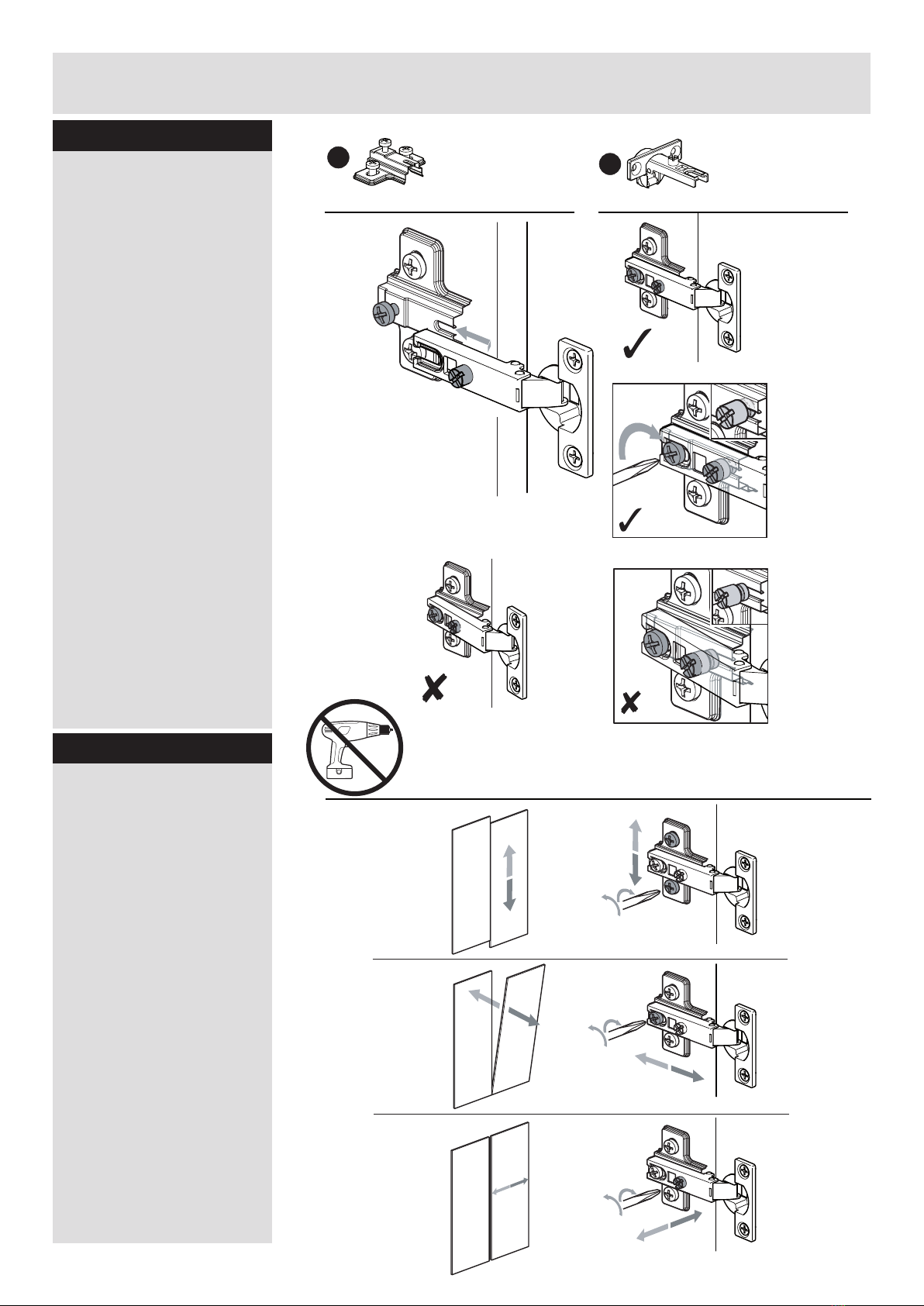

Hanging doors
With help, slot hinge door
Uonto hinge back T.
Note: Look first to
‘assemble’ on page ‘hinge
instructions’
For adjusting the doors 4,
#see ‘adjustment’ on
page ‘hinge instructions’
Inserting hanger rail
Insert hange rail large S
into hanger rail support M.

Assembly Instructions
11
Step - 14
!
5
K
JF
K
J
F
V
Inserting drawers
as shown.
Position L-bracket Jon
top 5as shown, fix using
screw F.
Note: there is no pre-drilled
hole for screw F.
Use Vto fix on the wall,
please see last page for
more information.
Use peg Kto square your
furniture. Knock peg Kin,
as far as you require, under
the end of the side of the
forniture. Then snap off flush
with the side.

A Guide to - Hinge instructions
12
Assemble
U
T
Hinge door x 6
Hinge back x 6
Adjustment
b:
a:
c:
b:
a:
a: Hook hinge door
correctly to the hinge back
as shown.
b: Tighten screw to lock
hinges in position.
Note: The nick screw of
hinge door should slide
into the recess of hinge
back.
a: To move doors up or
down: loosen screws
shown and move doors to
suit.
Once doors are aligned,
re-tighten.
b: To move doors in or out:
loosen screw shown and
move doors to suit.
Re-tighten screws.
C: To move doors left or
right: loosen screw shown
and move doors to suit.
Re-tighten screws.
Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.

13
A Guide to - Wall Mounting & Fixings
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hamemr fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
