Argos Tamar Bathroom 833/7146 User manual

MADE IN
BRITAIN
Dimensions
Width - 40cm
Depth - 29cm
Height - 86cm
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 24/04/13
Important - Please read these instructions fully before starting assembly
ALR2874
833/7146
Tamar Bathroom - 1 Drawer 2 Door Unit

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 15kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

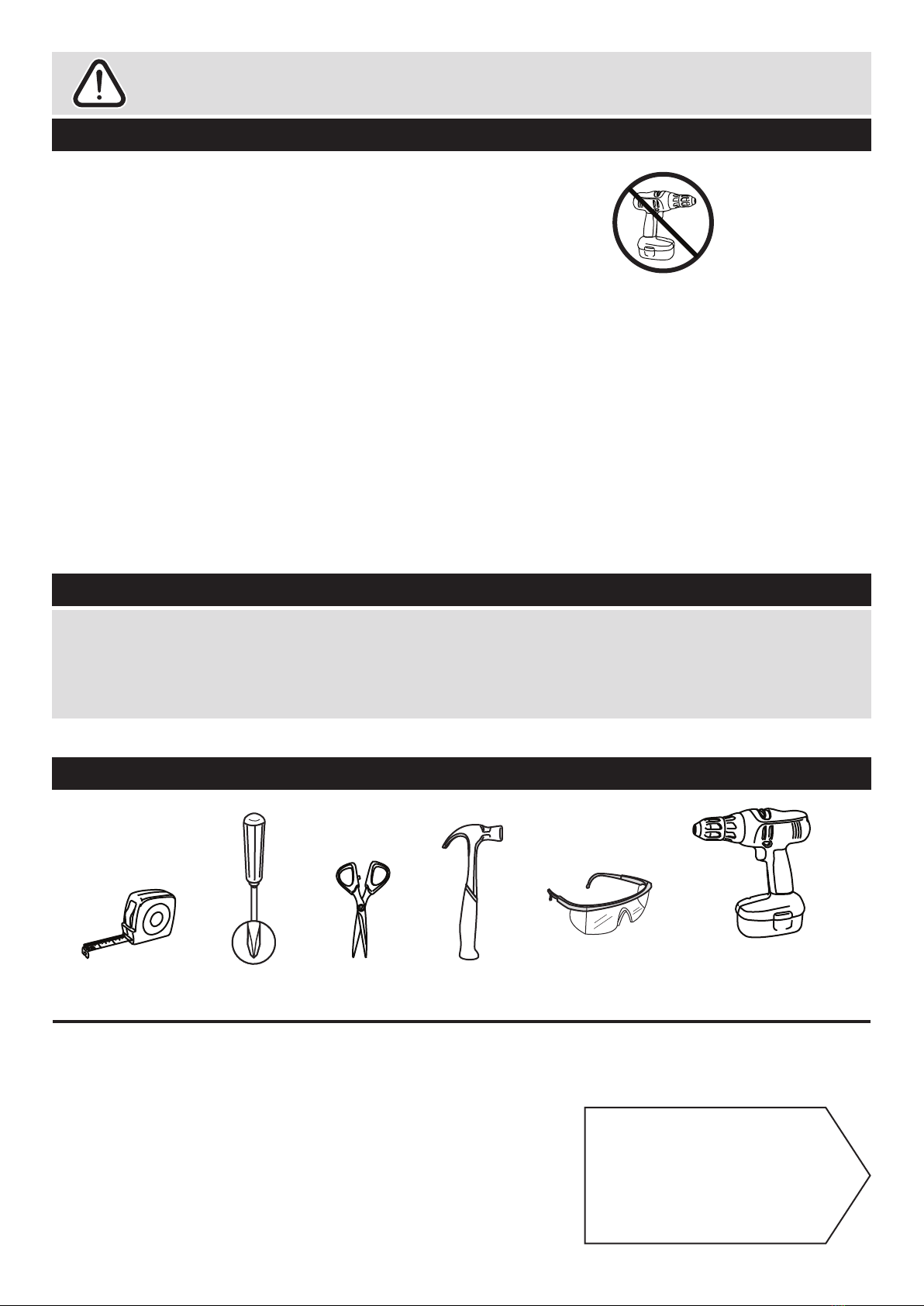

Tools required
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)

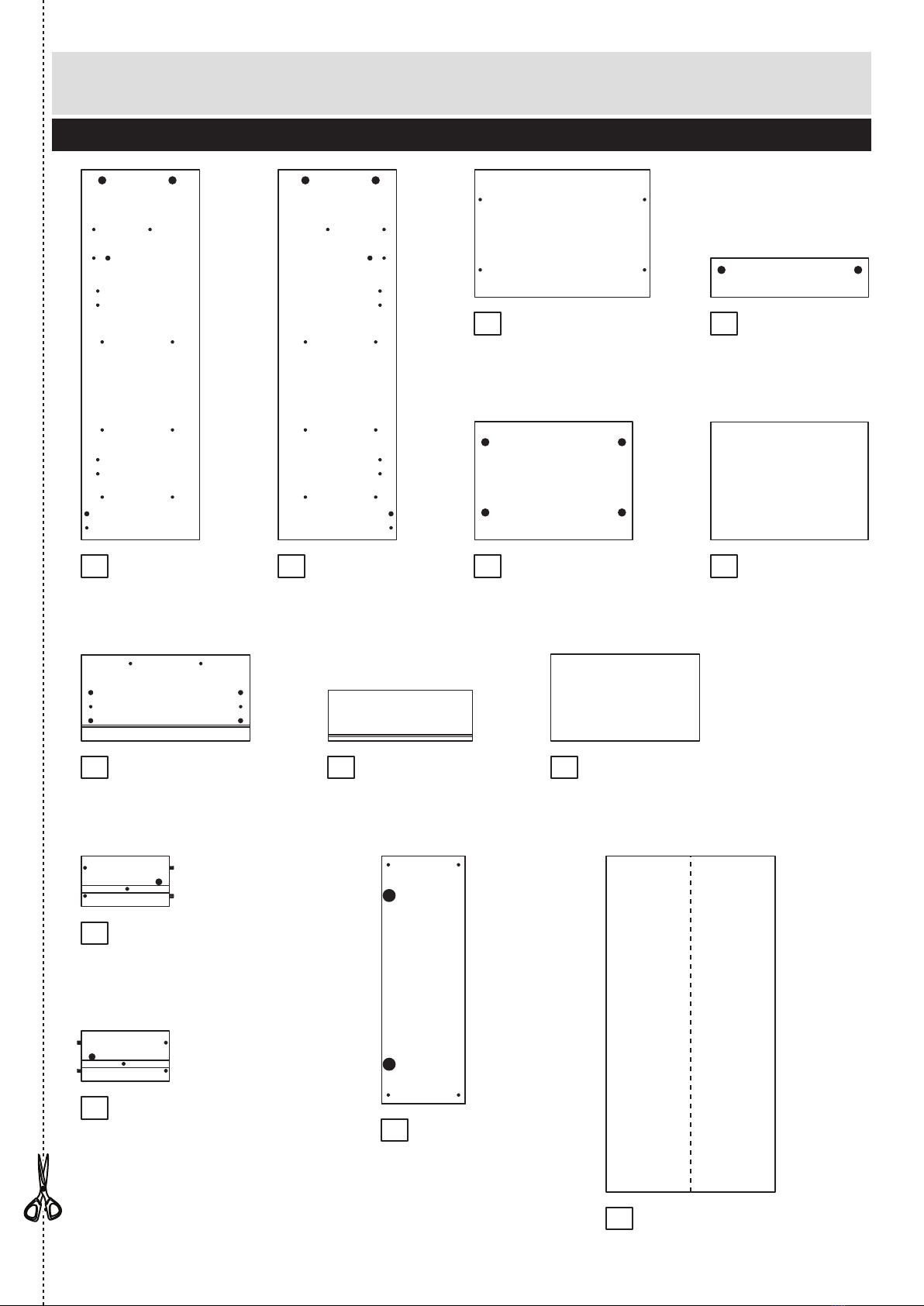

Components - Panels
Please check you have all the panels listed below
2
1
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left End (D2157A)
(842 x 269mm)
Shelf (D2161A)
(358 x 268mm) x 2
Back (X969)
(765 x 385mm)
Drawer Base (T339-197)
(339 x 197mm)
Door (D2163A)
(564 x 190mm) x 2
Base (D2164A)
(359 x 269mm)
Drawer Front (D2162A)
(383 x 196mm)
7
2Right End (D2158A)
(842 x 269mm)
5
3Rail (D2160A)
(359 x 89mm) x 2
8
12
13
9
6
4
Left Drawer Side (W454LH)
(200 x 115mm)
Right Drawer Side (W454RH)
(200 x 115mm)
Drawer Back (W328-115)
(328 x 115mm)
Top (D2165A)
(399 x 290mm)
10
11

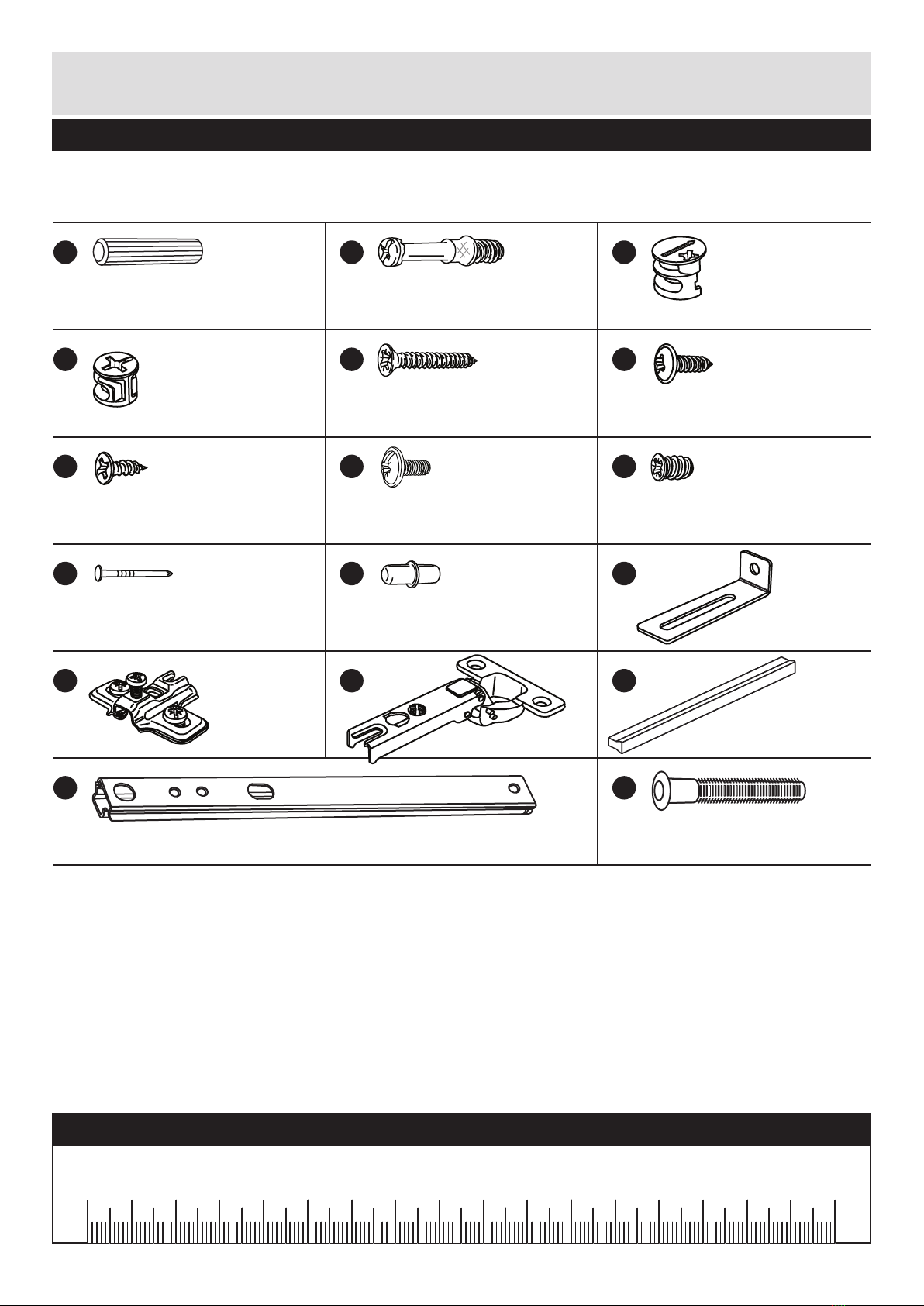

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 4
B
Metal dowel (F901) x 14
C
D E
Large locking
nut (F900) x 12
F
IG H
Small locking
nut (F3) x 2
Nail (F51) x 18
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
9mm Screw (F74) x 2
K
9mm Screw (F73) x 4
L
Bracket (F327) x 1
OM N
25mm Screw (F50) x 6
13mm Screw (F63) x 8
Handle (F262) x 3
Hinge (F518) x 4
Hinge plate
(F523) x 4
13mm Screw (F79) x 1
Shelf stud (F110) x 8
P
Drawer runner (F307) x 2
Q
Knock-in Peg (F171WH) x 4

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

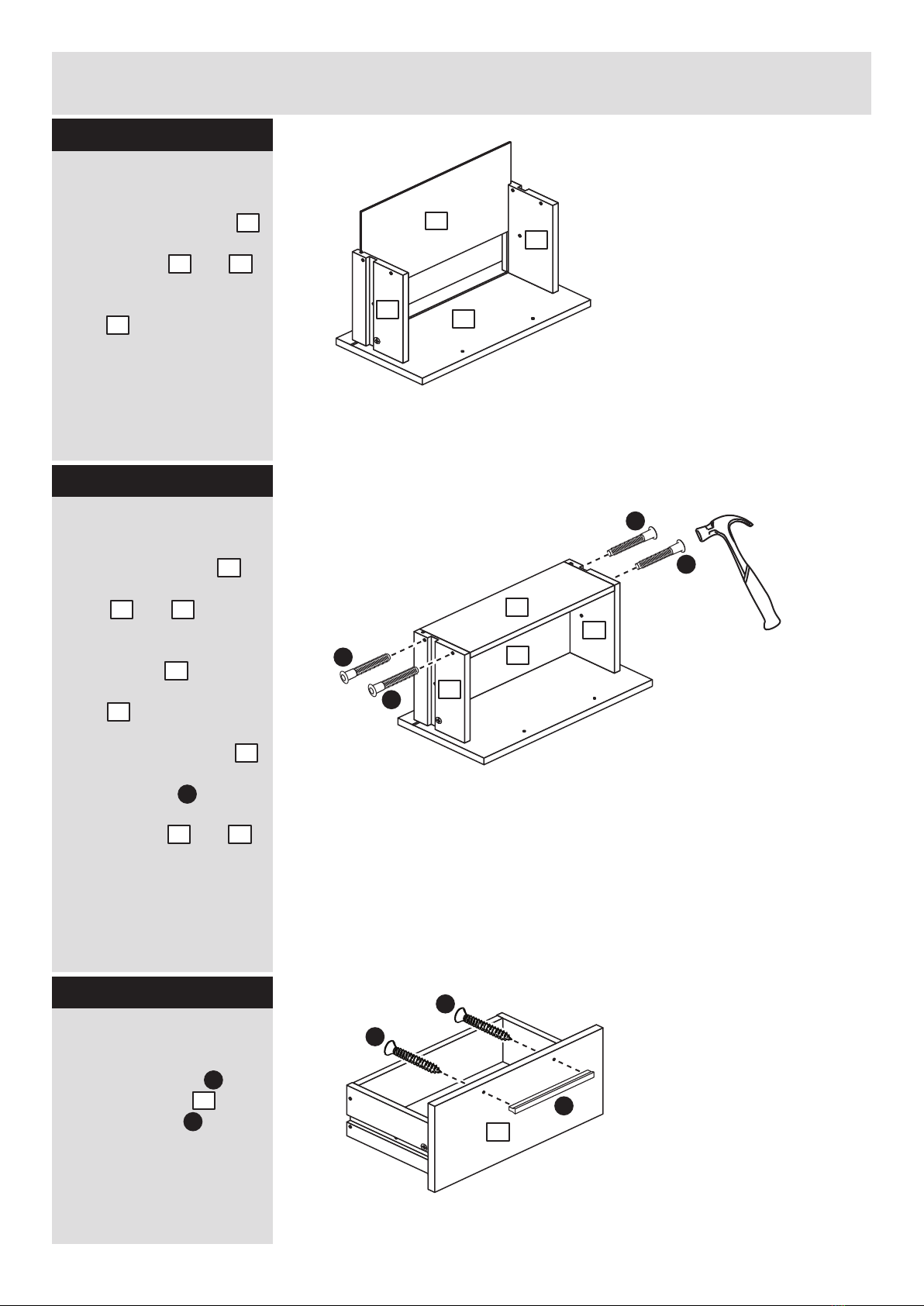

Step 1
B
B
B
D
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the holes shown on
the back of the drawer
front .
Note: Tighten the metal
dowels up fully against
the panels.
B
7
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: Arrow on locking
nut must point towards
hole in edge of panel.

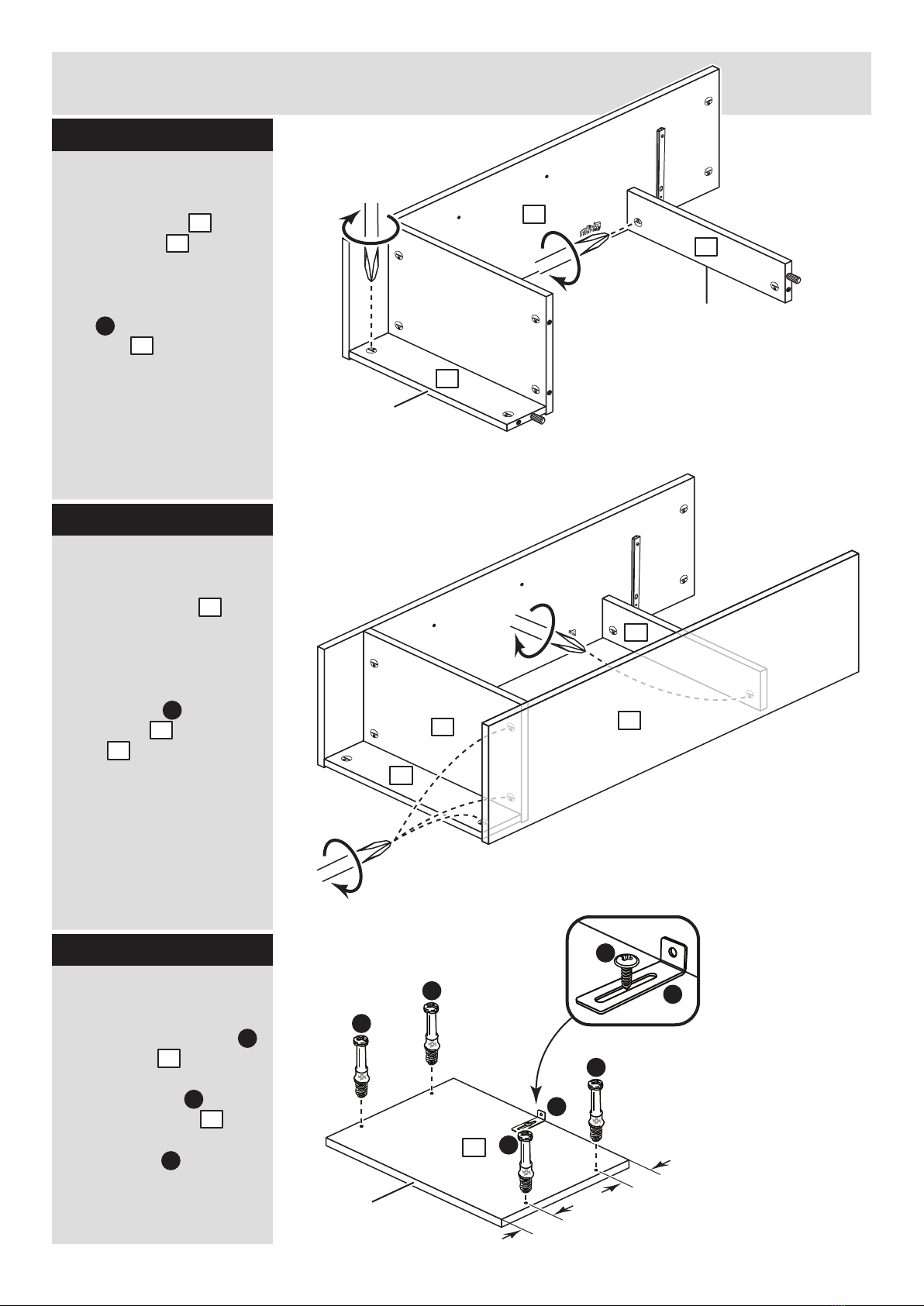

Step 3
D
10
11
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
10
11
7
D
10
11
Small Groove
D
B
B
7
DD
10 11
D
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
10
11
7

Q
Q
Assembly Instructions
5
Step 4
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
9
10 11
7
8
10 11
9
8
8
Q
10 11
9
10
11
7
9
11
10
Q
Q
8
E
O
E
Attach the handle
Attach the handle to
the drawer front
using 2 screws .
O
E
Step 6
7
7

Assembly Instructions
6

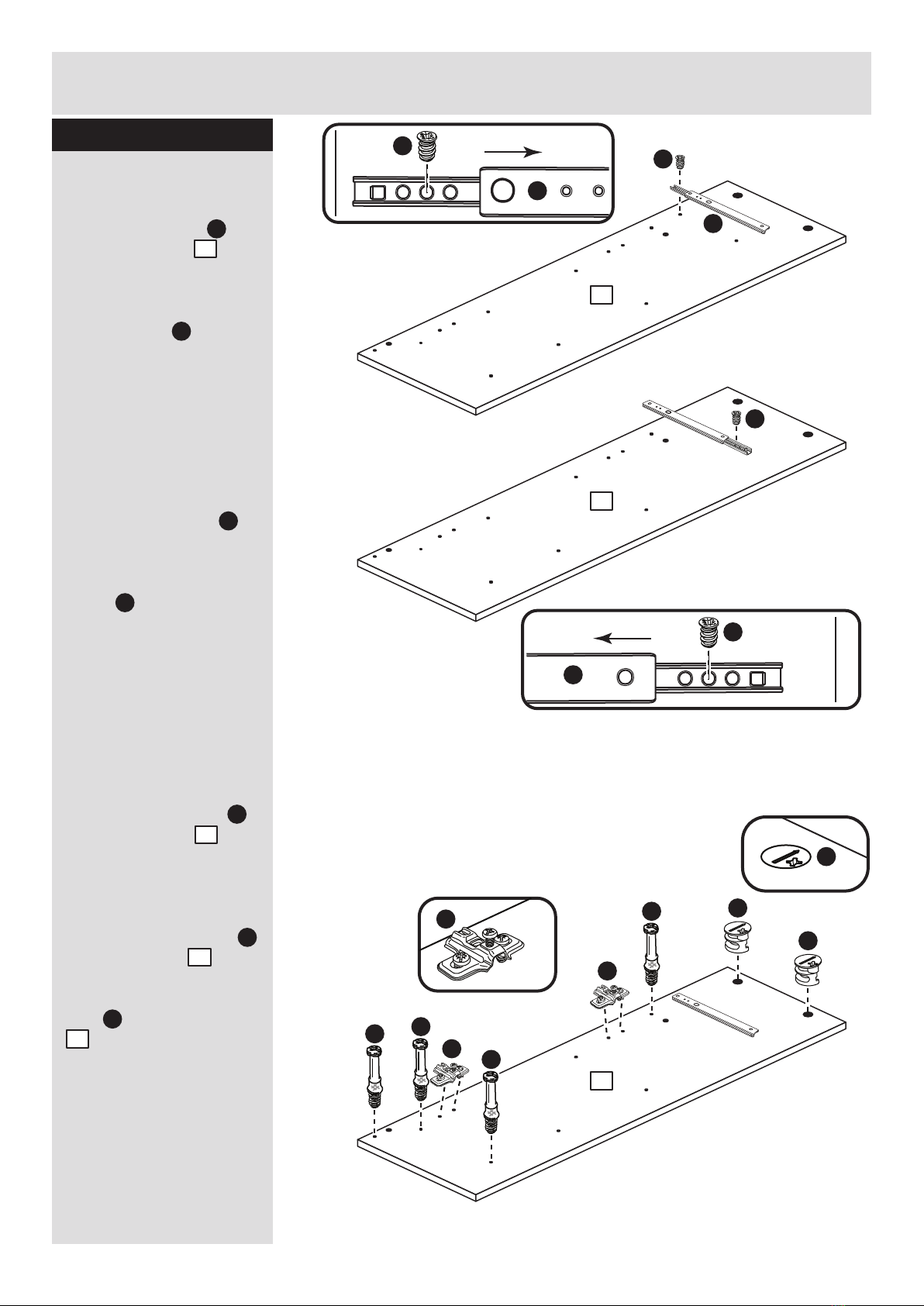

Step 7
C
C

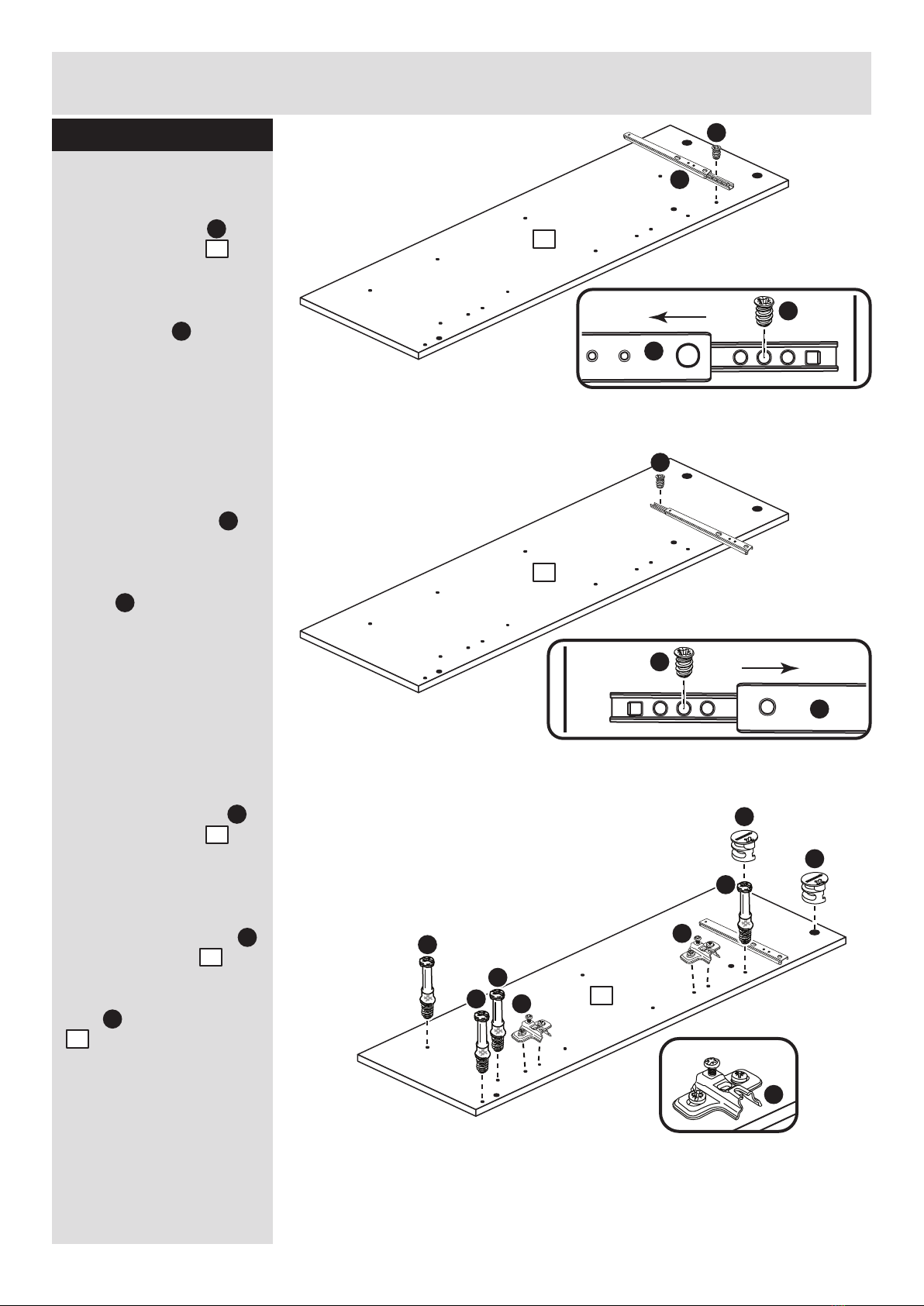

Prepare the left end
a: Place a runner
onto the left end .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
c: Fit 2 hinge plates
onto the left end ,
making sure that they
face the same way as
the diagram.
Screw 4 metal dowels
into the left end .
Insert 2 large locking
nuts into the left end
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
P
1
I
P
I
I
P
I
P
a:
b:
c:
I
P
I
B
BB
B
M
M
1
1
1
C
M
B
1
C
1
M
1

Assembly Instructions
7

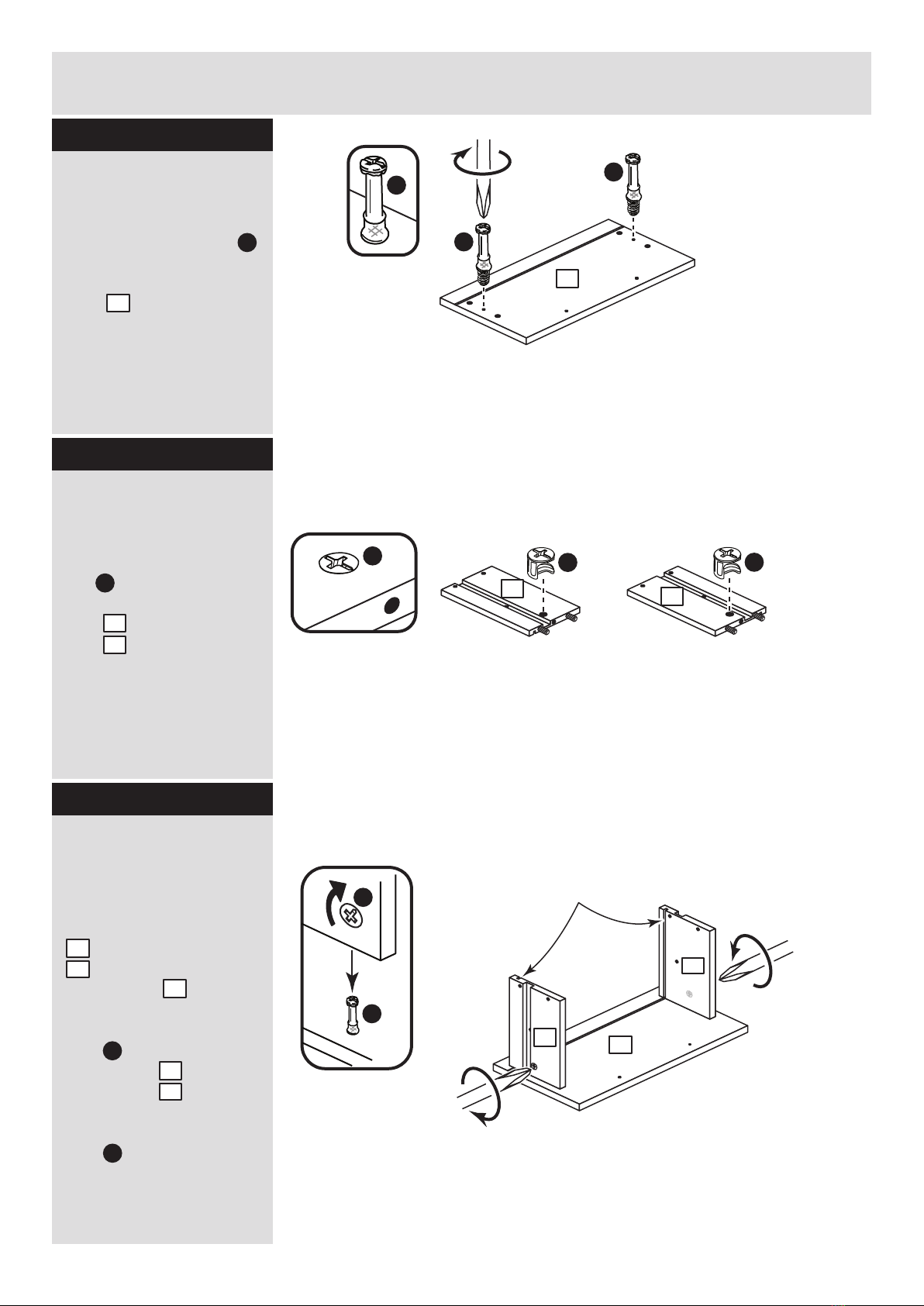

Step 8
Prepare the right end
a: Place a runner
onto the right end .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
c: Fit 2 hinge plates
onto the right end ,
making sure that they
face the same way as
the diagram.
Screw 4 metal dowels
into the right end .
Insert 2 large locking
nuts into the right end
. .
P
2
I
P
I
a:
b:
c:
B
2
C
2
M
2
I
P
I
P
C
I
P
I
B
B
B
B
M
M
M
2
2
2
C

Assembly Instructions
8

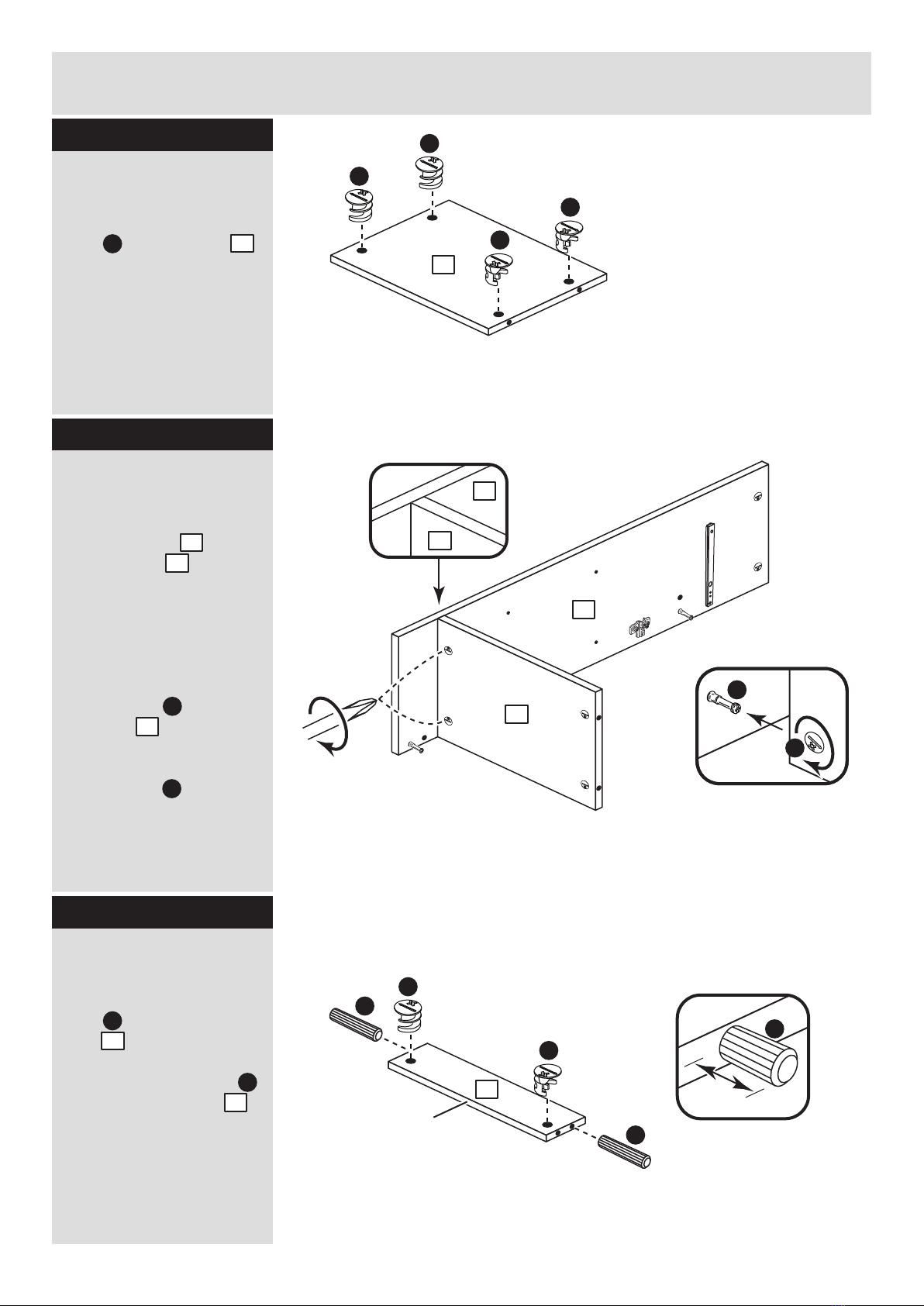

Step 9
Prepare the base
Insert 4 large locking
nuts into the base .
C
C
C5C
C
5
Join the right end and
base
Push the base onto
the right end .
Note: The back and front
edges must be flush.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
C
5
2
5
C
B
C
Step 10
5
2
Step 11
Prepare the 2 rails
Insert 2 large locking
nuts into each of the
rails .
Tap 2 wooden dowels
into each of the rails .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.A
C
4
A
410mm
A
C
C
A
A
4
Finished
front edge
x 2
2
5

Assembly Instructions
9
Step 12
2
4
Finished
front edge
4
Finished
front edge
Fit the 2 rails
Push the 2 rails onto
the right end .
Use a screwdriver to
tighten the large locking
nut fitted to each of
the rails .
C
4
2
4
Fit the left end
Push the left end
onto the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the plinths and the
base .
Stand the unit up.
Step 13
4
4
51
1
C
4
5

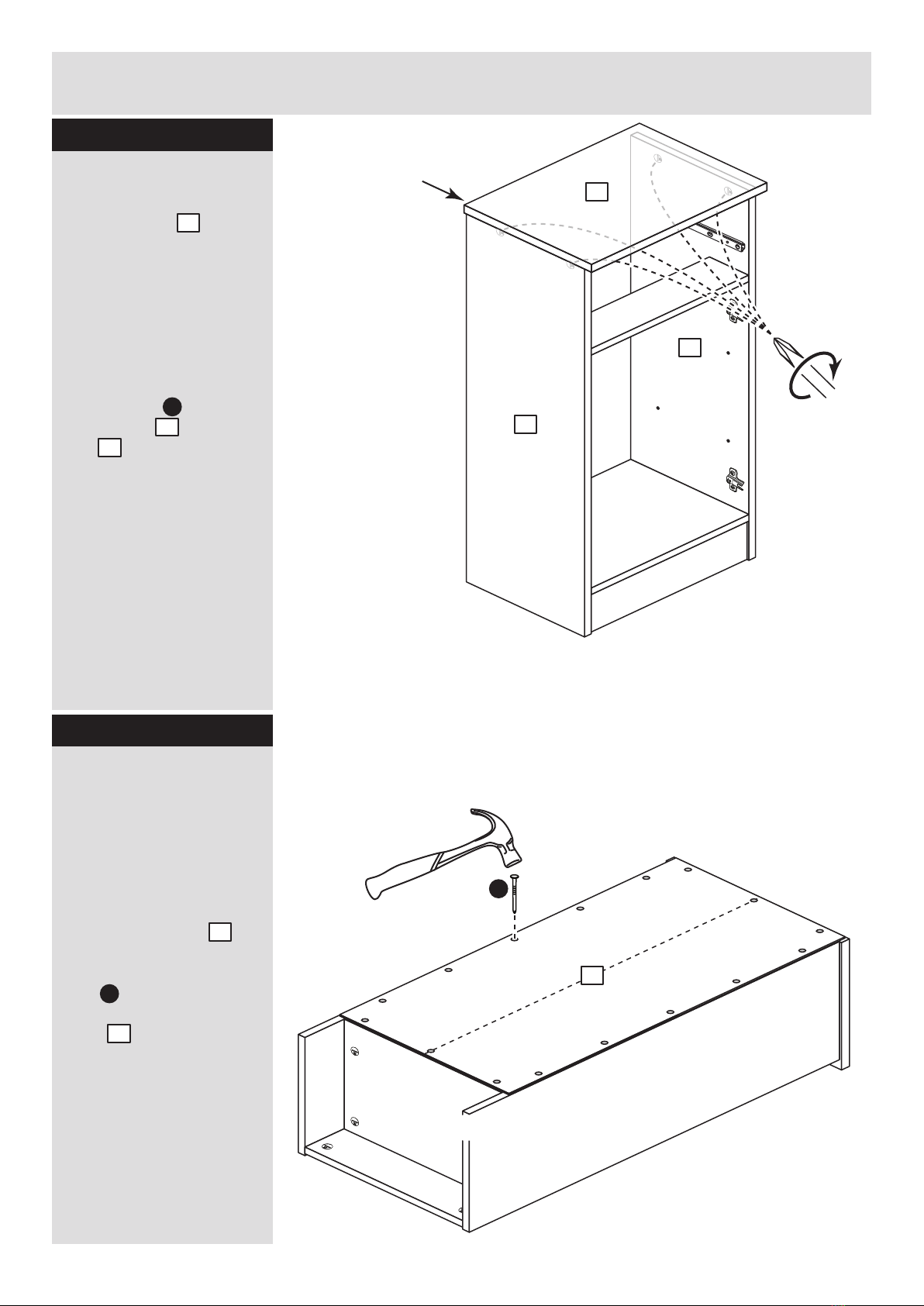

Step 14
B
B
B
Prepare the top
Screw 4 metal dowels
into the top .
Fix the bracket in the
middle of the top ,
flush to the back edge
using screw .
B
3
3
L
3
F
F
L
L
B
62mm
68mm
Front edge
Note: The holes
nearest the back
are 62mm in from
the edge.
The holes nearest
to front are 68mm
in from the edge.

Assembly Instructions
10
Step 15
Step 16
Fit the top
Lower the top onto
the assembly.
Note: The top must be
flush with the back edge
of the left and right end.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the left end and right
end .
Lay the unit back
down onto its front.
C
3
1
2
3
1
2
y
y
x
x
b:
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
13
J
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
13
J
Note: To make it easier to fit
the top, place polystyrene
blocks from the packaging
underneath the end panels to
raise the assembly.
Polystyrene
block
Polystyrene
block
13
Note: The back
edge of the top
must be flush with
the end panels

Assembly Instructions
11

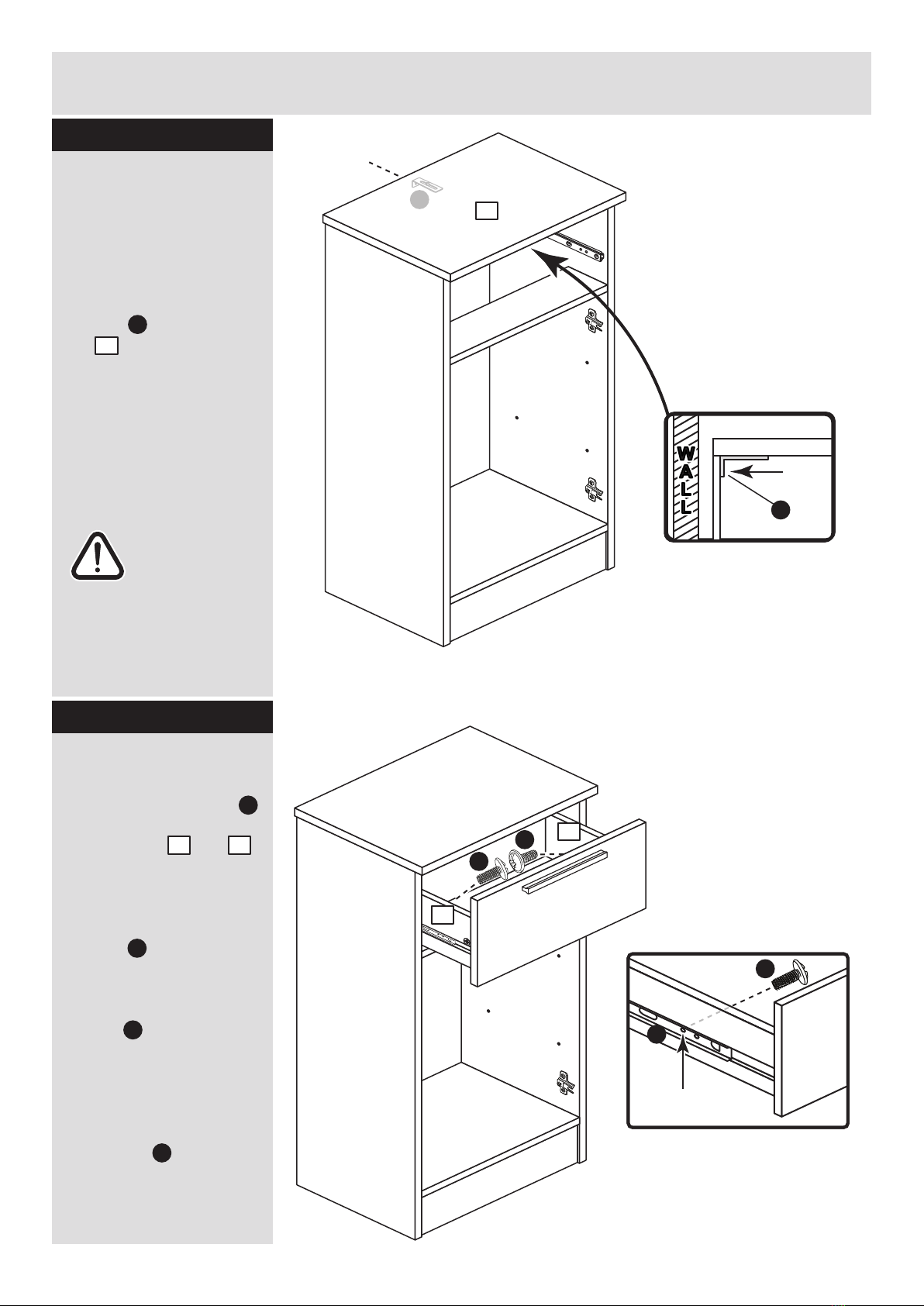

Step 17
Step 18
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
H
P
P
H
2nd threaded
hole
P
H
10 11
H
H
10
11
L
Secure unit to a wall
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by use of the metal
bracket fitted to the
top of the unit.
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.
Warning: Take
care when
drilling the wall that you
do not drill into any
pipes, wires etc. If in
doubt, consult an expert.
WALL
WALL
3
Top of unit
L
3
L

Assembly Instructions
12
Step 19

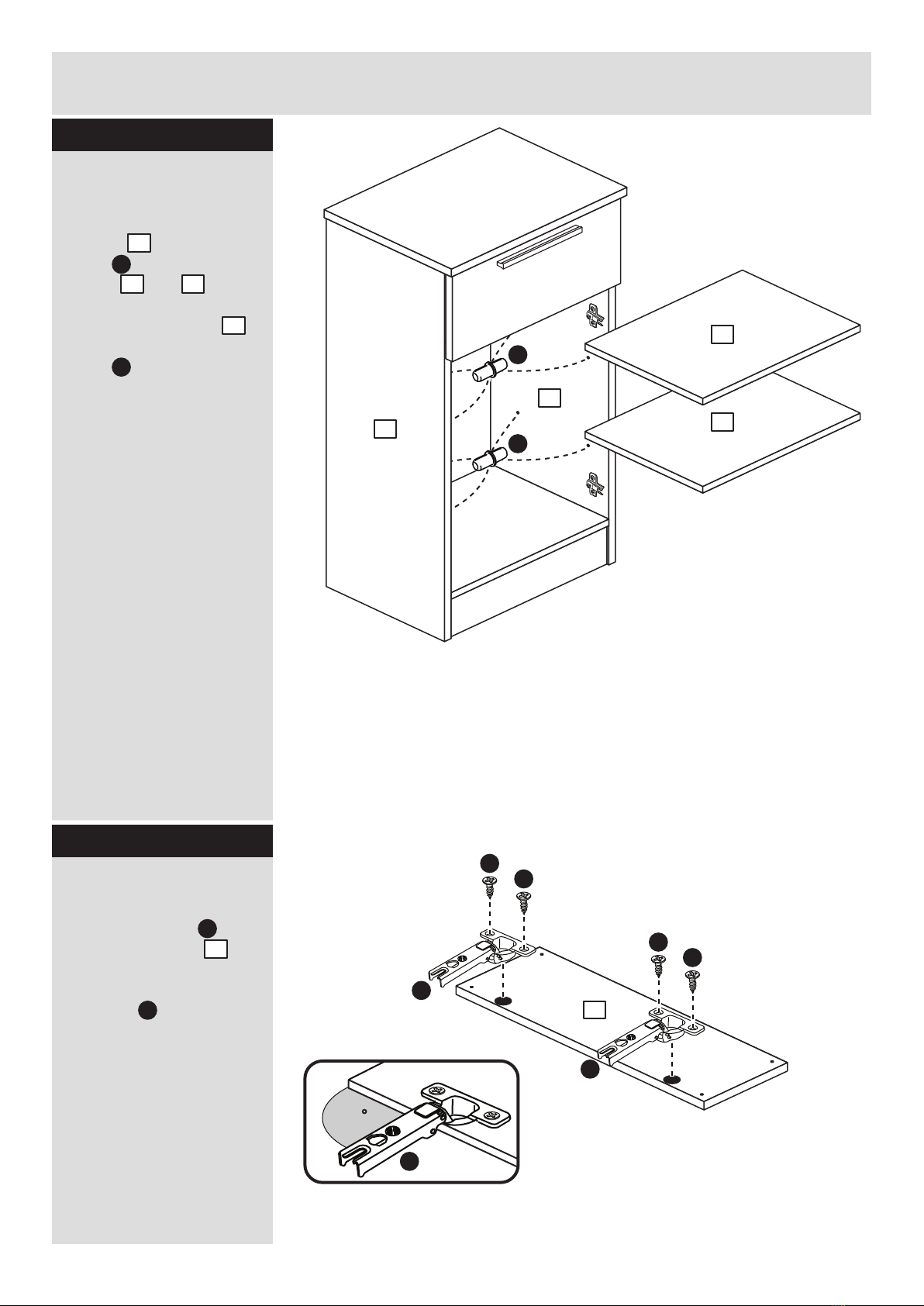

Fit the shelves
For each of the 2
shelves , insert 4 shelf
studs into the end
panels and .
Lower the 2 shelves
down onto the shelf
studs .
Kx 4
Kx 4
K
6
1
2
1 2
6
K
6
6
Step 20
90
N
Prepare the 2 doors
Push fit 2 hinges into
each of the doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
G
N
12
N
G
G
N
G
G
12
x 2

Assembly Instructions
13
Step 21
Small piece of
waste wood
12

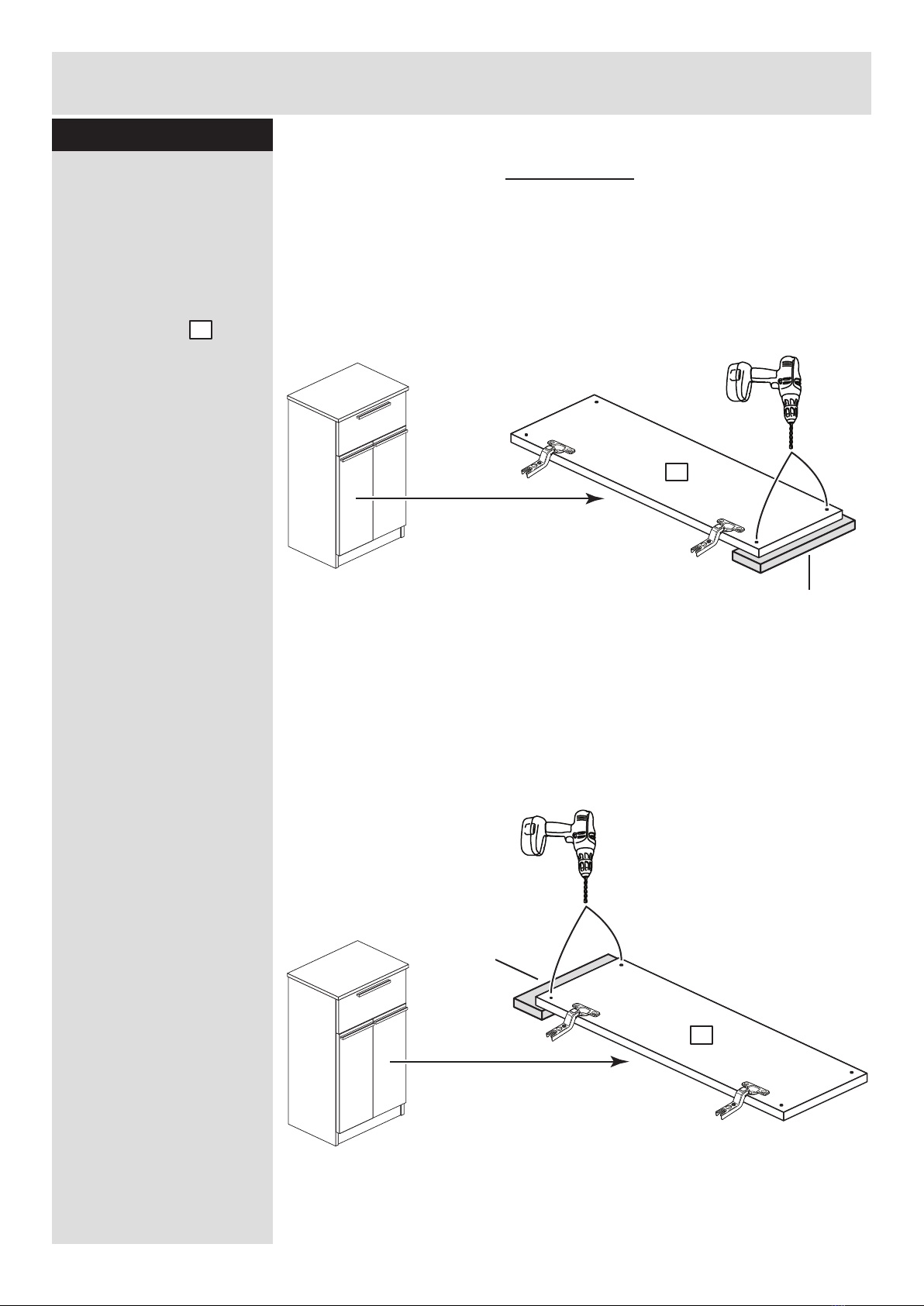

Drill 2 handle holes in
each of the doors
Important: Please follow
these instructions
carefully.
Lay the 2 doors
down onto a smooth
surface.
Check that the hinges
and holes are in the
same place as the
diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the holes while
drilling, to reduce the
possibility of any
breakout.
Using the pilot holes in
the rear face of the door,
drill through the 2 holes
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
Note: Drill bits are not
provided.
IMPORTANT
Carefully choose which 2 holes
you need to drill in each door
ONLY drill these
2 holes in 1 door
12
This will be the
left hand door
Small piece of
waste wood
12
This will be the
right hand door
ONLY drill these
2 holes in 1 door

Assembly Instructions
14

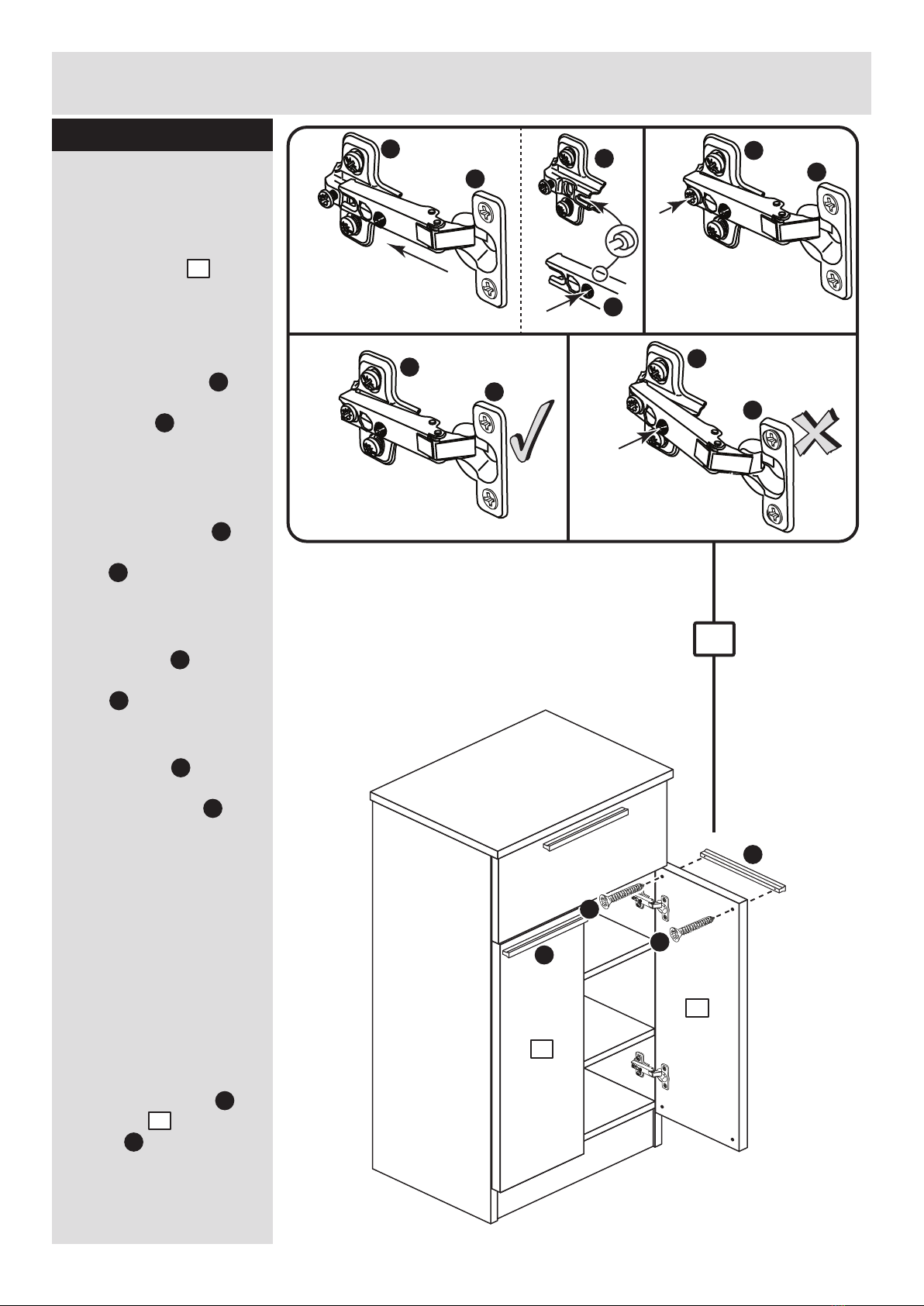

Step 22
Fit the door and the
handle
Note: The easiest way to
attach the door is to
fit the top hinge first,
then align and fit the
other hinge.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using 2
screws .
N
N
N
M
M
M
N
M
O
E
12
12
e:
a: b:
c: d:
M
N
M
M
B
M
N
N
NN
A
H
M
B
E
O
O
12
12
E

Assembly Instructions
15
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR2874
Step 23

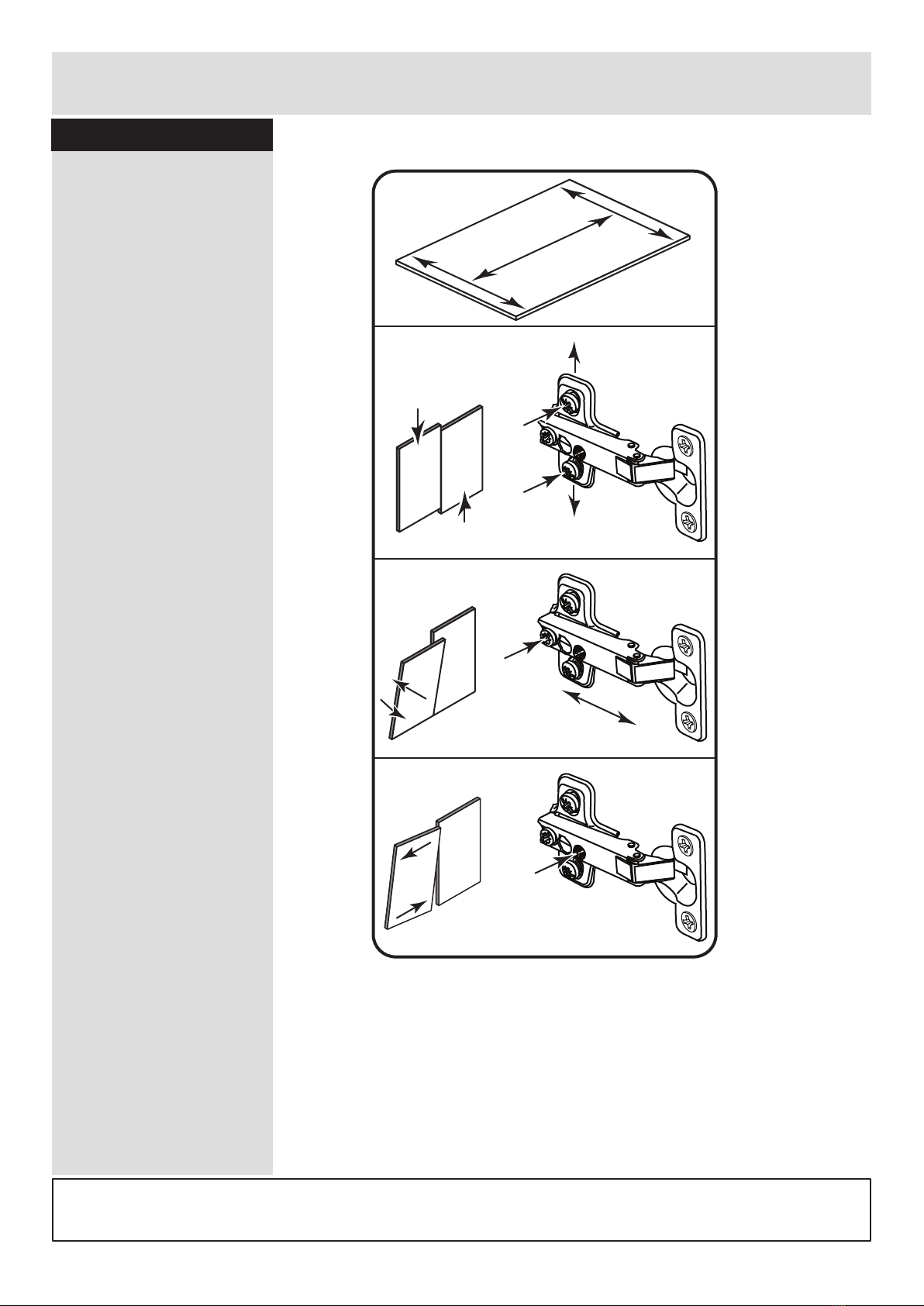

Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
Assembly is complete
b:
c:
d:
a:
A
A
B
C
