Asoni CAM646M-PoE User manual

12M-IR H.264 2 Mega-Pixel
3-Axis CMOS Network Dome
CAM646M / CAM646M-PoE
User’s Manual
Date: 7/20/2012
Firmware Version: V1.0.32

1
Content
Content .......................................................................................................................................1
1. Preface.................................................................................................................................3
2. Product Specifications.......................................................................................................3
3. Product Installation ............................................................................................................6
A. Hardware Installation......................................................................................................6
Cable Connections................................................................................................................6
I/O Connections....................................................................................................................7
3-Axis Gimbals Adjustment...................................................................................................9
B. Monitor Setting..............................................................................................................10

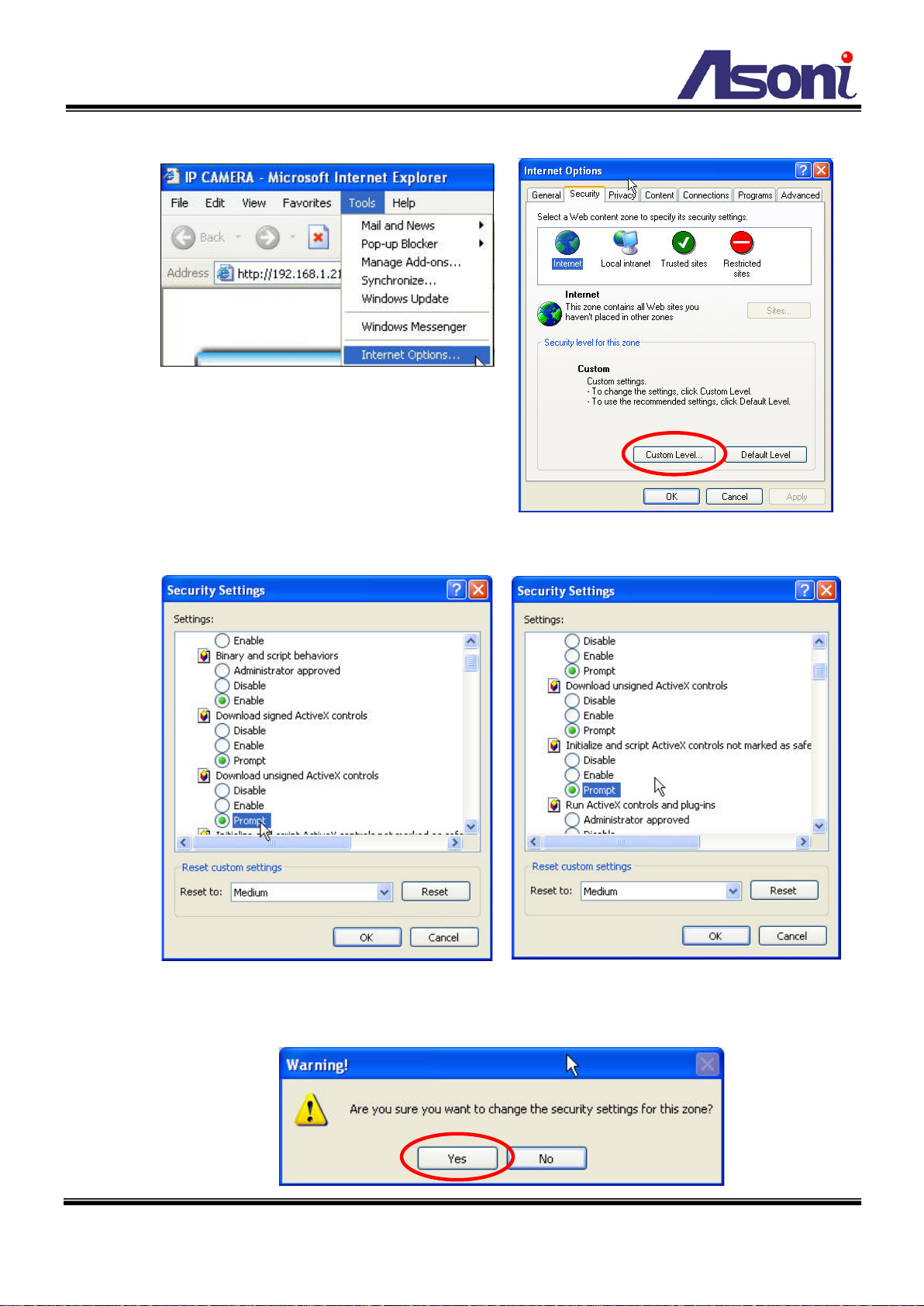

C. IP Assignment................................................................................. 錯誤!尚未定義書籤。

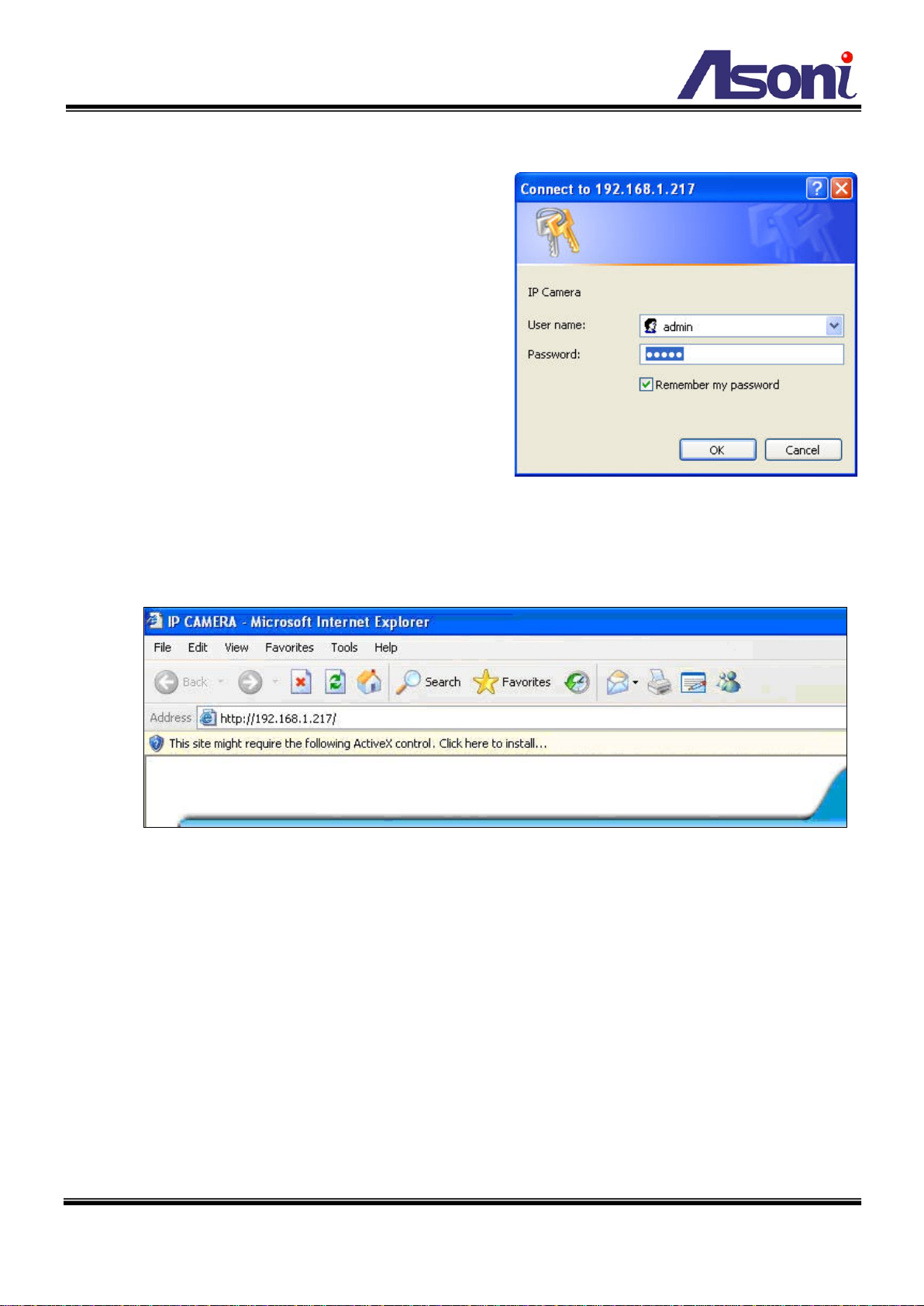

4. Live Video..........................................................................................................................13
5. Configuration ....................................................................................................................18
A. System ...........................................................................................................................18
System Information.............................................................................................................18
User Management..............................................................................................................22
System Upgrade.................................................................................................................24
System Logs.......................................................................................................................25
B. Video/Audio Setting ......................................................................................................26
Video Format ......................................................................................................................26
Image Setting......................................................................................................................31
Audio Setting ......................................................................................................................33
C. Network Setting.............................................................................................................34
Network Setting ..................................................................................................................34
Mail / FTP / Samba Setting.................................................................................................38
PPPoE Setting....................................................................................................................41
DDNS Setting .....................................................................................................................42
D. Event Handling..............................................................................................................44
Event Setting ......................................................................................................................44
I/O Setting...........................................................................................................................50
Schedule.............................................................................................................................52
SD Card..............................................................................................................................54

2
6. Network Configuration.....................................................................................................57
A. Intranet Only..................................................................................................................57
Connects to PC Directly......................................................................................................57
Connects to an Exist LAN...................................................................................................58
B. Internet Only..................................................................................................................59
Connects toADSL with Fixed Public IPAddress.................................................................59
Connects toADSL with Floating Public IPAddress (PPPoE)..............................................60
C. Intranet + Internet..........................................................................................................62
Connects to Internet with Fixed Public IPAddress..............................................................62
Connects to Internet with Floating Public IPAddress..........................................................64
7. Factory Default..................................................................................................................65
Compatible List of SD Card.....................................................................................................66

3
1. Preface
This camera is a professional 2 Mega-Pixel CMOS network camera which builds in web
server. User views real-time video via IE browser. It supports H.264, JPEG and MPEG4
(3GPP Only) video compression which provides smooth and high quality video. The event
video can be stored in the SD card, and can be playback remotely.
This camera equips infrared illuminator to provide good image quality, even in darkness.
The PoE model built-in support for Power over Ethernet allows the camera to receive both
data and power over a single Ethernet cable.
This camera is an easy-to-use IP camera which is designed for security application.
2. Product Specifications
2 Mega-Pixel CMOS Sensor
H.264 / MJPEG / MPEG4 (3GPP Only) compression formats.
Supports resolution up to 1600x1200
H.264 / MJPEG / MPEG4 (3GPP Only) triple streaming.
Self-Contained HTTP Web Server providing Internet capability for remote access
3-Axis gimbals adjustment
Day & Night functionality for 24-hours surveillance, auto activate IR illuminator in low
illumination
Infrared radiant distance up to 12 meters
Built-in PoE splitter, support for Power over Ethernet (PoE model)
Supports SD card for local event recording
2-way audio
Online firmware upgrade
Recorded files compatible with Microsoft Windows Media Player
Hardware
CPU / RAM / ROM ARM 9, 32 bit RISC / 256MB / 16MB
Image Sensor 1/3” CMOS, 2 Mega-Pixel
Lens 1/3”, Vari-focal 2.7~9mm, Mega-Pixel lens
IR Distance 12 Meters

4
IR LED Built-in 18 IR LEDs
Illumination Normal:0.5 lux IR On: 0 lux
Day / Night Mechanism IR Cut Filter (ICR)
Video Out 1 Analog video out (BNC connector)
Audio In 1 Microphone in (3.5mm phone jack for connecting external passive-type of
microphone)
Audio Out 1 Line out (3.5mm phone jack for connecting external amplified speaker)
Digital I/O 1 Digital in / 1 Relay out
3-Axis Gimbals
Adjustment
Rotation: 300o
Pan: 360o
Tilt: 75o
Power Supply Normal model: DC 12V, 1A
PoE model (built-in PoE Splitter):
Use PoE: PoE Injector (IEEE 802.3af)
Or, use Power Adaptor: DC 12V, 1A
Power Consumption Max. 8 Watt
Dimensions Φ132 x H108.4 mm
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP
System
Video Resolution 1600x1200, 1280x1024, 1280x960, 1280x720
800x592, 640x480, 320x240, 176x144
Compression Format H.264 / MJPEG / MPEG-4 (3GPP only)
Frame Rate Up to 15FPS@1600x1200, 22FPS@1280x1024, 25FPS@1280x960,
30FPS@1280x720
Triple Streaming Yes (2 for live view, 1 for 3GPP)
3GPP Yes, Live view with 3G mobile phone
Video Bitrate Adjustment CBR, VBR
Video Adjustment Brightness, Contrast, Sharpness, BLC, Frame Rate at Night, Video
orientation
Image Snapshot Yes
Privacy Mask Yes, 3 different areas
Motion Detection Yes, 3 different areas
Event Trigger Motion Detection, Digital In
Triggered Action Send Email, Send to FTP, Save to SD Card, Relay Out
Pre/ Post Alarm Yes, configurable

5
Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Connection Up to 10 clients simultaneously
Audio Yes, 2-way
SD card management
Recording Trigger Motion Detection, Digital In, IP Check, Network Disconnect
Schedule Snapshot with schedule
Video Format Video (AVI), Snapshot (JPEG)
Video Playback Yes
Web browsing requirement
OS Windows 2000, XP, Vista, Windows 7
Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera
V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above
Suggested Hardware Intel Core 2 Duo 1.66GHz, RAM: 1GB
Graphic card: 128MB onboard RAM
* Specifications are subject to change without notice

6
3. Product Installation
A. Hardware Installation
Cable Connections
Power Jack:
To connect the DC 12V power adapter.
Digital I/O:
Digital In and Relay Out.
Video Output: The BNC connector allows connect to the analog display to
output analog video for locally monitoring.

Microphone Input (Red): The 3.5mm phone jack allows connect to a passive-type of
microphone, the audio will be heard at the remote site.

Audio Output (Green): The 3.5mm phone jack allows connect to an amplified
speaker, you can hear the voice of the remote site from the
speaker.
Network Connector:
The RJ-45 connector allows connect the Ethernet cable.

Micro-SD Card Slot
(inside of the camera): Insert a Micro-SD card if you want to do the event recording in the camera.
1. Connect the cable of Digital I/O, Video output,Audio output and Microphone input if
you want to use these functionalities.
2. Connect Ethernet cable for network connection.






Power Jack (DC 12V)
Digital I/O
Analog Video Output
(
Red) Microphone Input
(
Green) Audio Output
Network Connector


7
3. Connect power adapter to turn on the camera.
4. If the camera is PoE model, the power adapter is not necessary. The camera will get
the power from the PoE injector or PoE switch.
PoE (Power over Ethernet) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as an IP
phone or a network camera, using the same cable as that used for network connection.
It eliminates the need for power outlets at the camera locations. Please follow the
below figure for the connection.
5. Set up the network configurations according to the network environment. For further
explanation, please refer to Network Configuration chapter.
I/O Connections
I/O connector – used in application, for e.g., motion detection, event triggering, alarm
notifications. It provides the interface to:
1 set of Digital Input (Alarm + GND) – The digital inputs for connecting devices
that can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
1 set of Relay Output (N.O. + COM or N.C + COM) – The output to Relay switch of
the alarm device such as LEDs, Sirens, etc.
GND
ALARM
N.C.
COM
N.O.
Digital In
Relay Out
PoE Switch or PoE Injector
Ethernet Cable
Data only
Ethernet Cable
Mixed data and power
PoE Network Camera
To Network

8

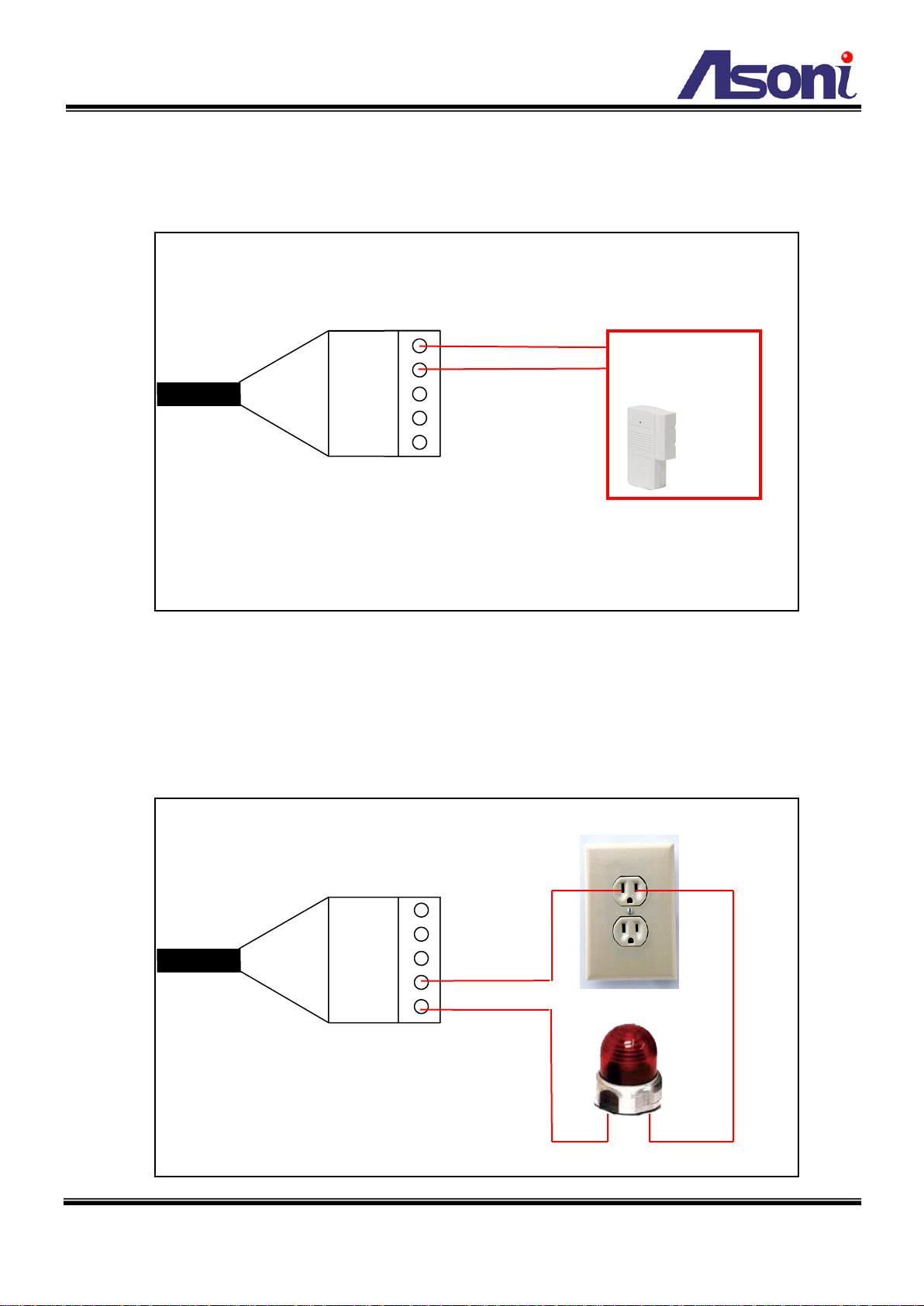

Digital Input (Alarm Input)
GND (Ground): Initial status is LOW.
Alarm: Max. 50mA, 12VDC.
Relay Output
COM: Common pin.
N.O. (Normally Open): Max. 1A/ 24VDC or 0.5A / 125VAC.
N.C. (Normally Close): Max. 1A/ 24VDC or 0.5A / 125VAC.
GND
ALARM
N.C.
COM
N.O.
Door/Window
Contacts
GND
ALARM
N.C.
COM
N.O.

9
Screw 3 and 4
Screw 1
Screw 2
Rotation
Gimbals
Pan
Gimbals
Tilt
Gimbals
3-Axis Gimbals Adjustment
The gimbals adjustment offers the convenience method to install on the ceiling or wall.
You can open the case, and adjust the lens to the direction as wished. The pan, tilt and
rotation adjustments are provided in this model. You can adjust the gimbals with Pan 360o,
Tilt 75o, and Rotation 300orespectively.
Rotation Adjustment
1. Loosen “Screw 1”.
2.Adjust “Rotation Gimbals” as wished.
3. Fasten “Screw 1” to fix the gimbals.
Pan Adjustment
1. Loosen “Screw 2”.
2.Adjust “Pan Gimbals” as wished.
3. Fasten “Screw 2” to fix the gimbals.
Tilt Adjustment
1. Loosen “Screw 3” and “Screw 4”.
2.Adjust “Tilt Gimbals” as wished.
3. Fasten “Screw 3” and “Screw 4” to fix
the gimbals.
300
o
360
o
75o
