Assa Abloy Sargent FM-PE8700 Series User manual

1-800-727-5477 • www.sargentlock.com
Installation Instructions
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
WARNING
This product can expose you to
lead which is known to the state of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65warnings.ca.gov.
Attention Installer: Improper
installation may result in damage
to the product and void the factory
warranty.
WARNING

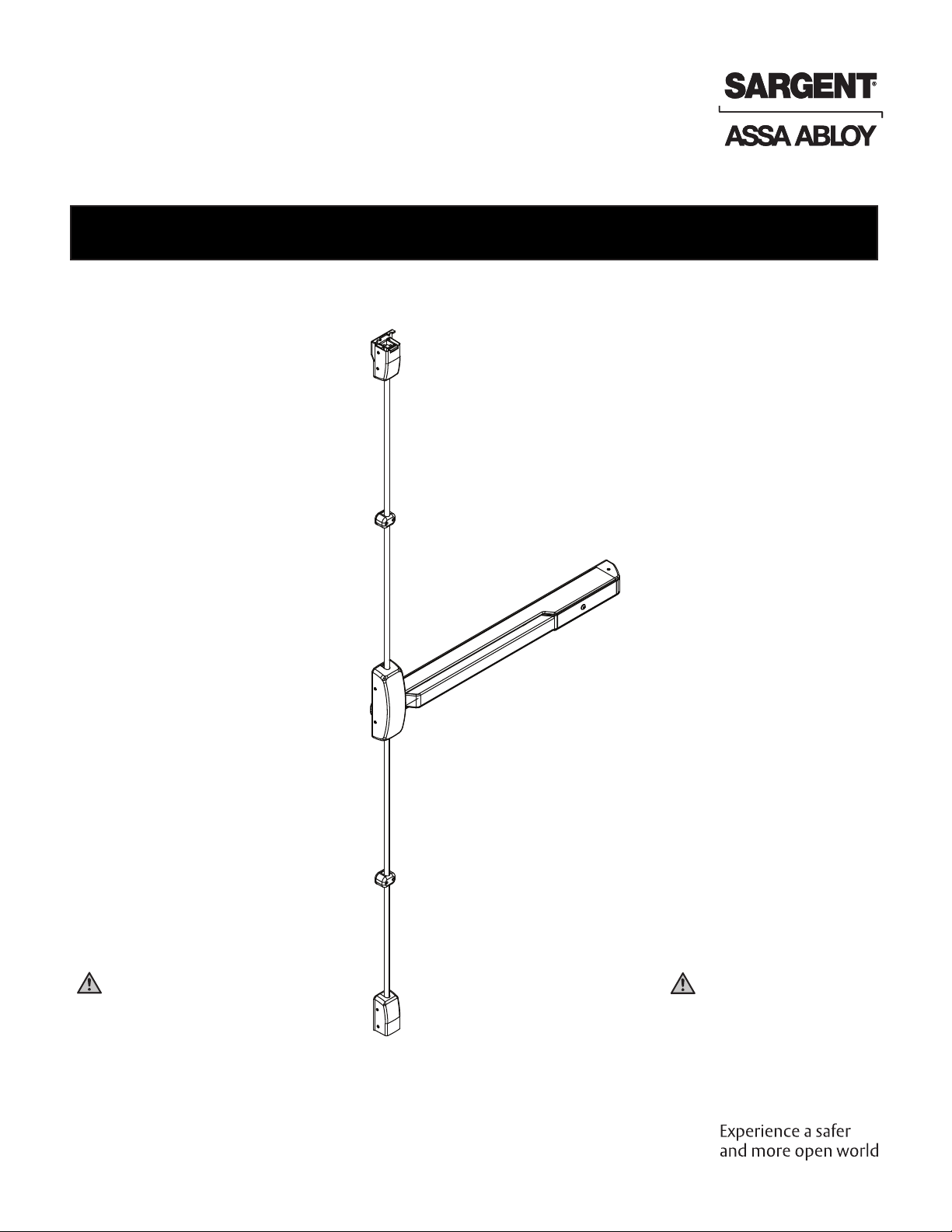

FM-PE8700 Series (12- and Standard)
Surface Vertical Rod Exit Devices
A8319-1 5/23

2
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device

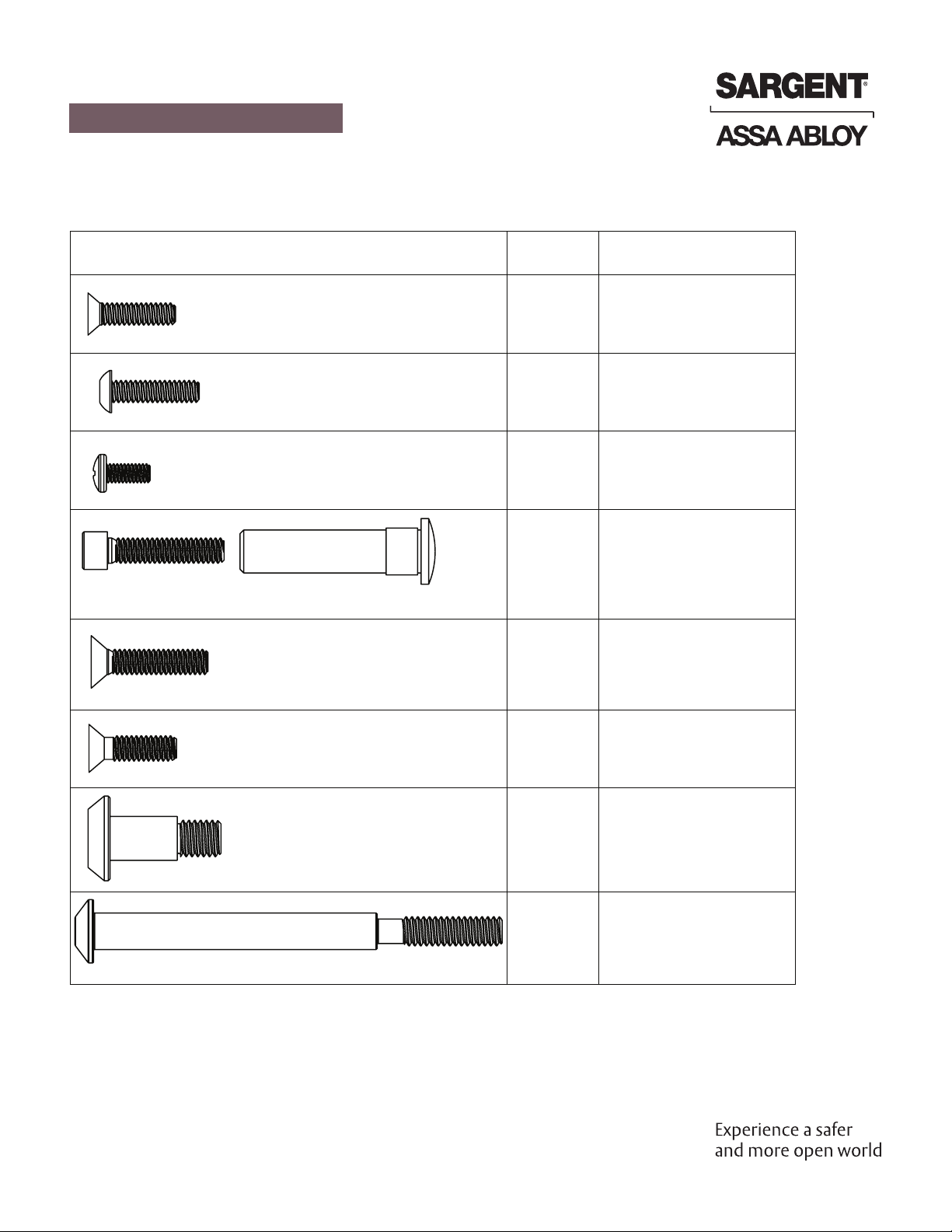

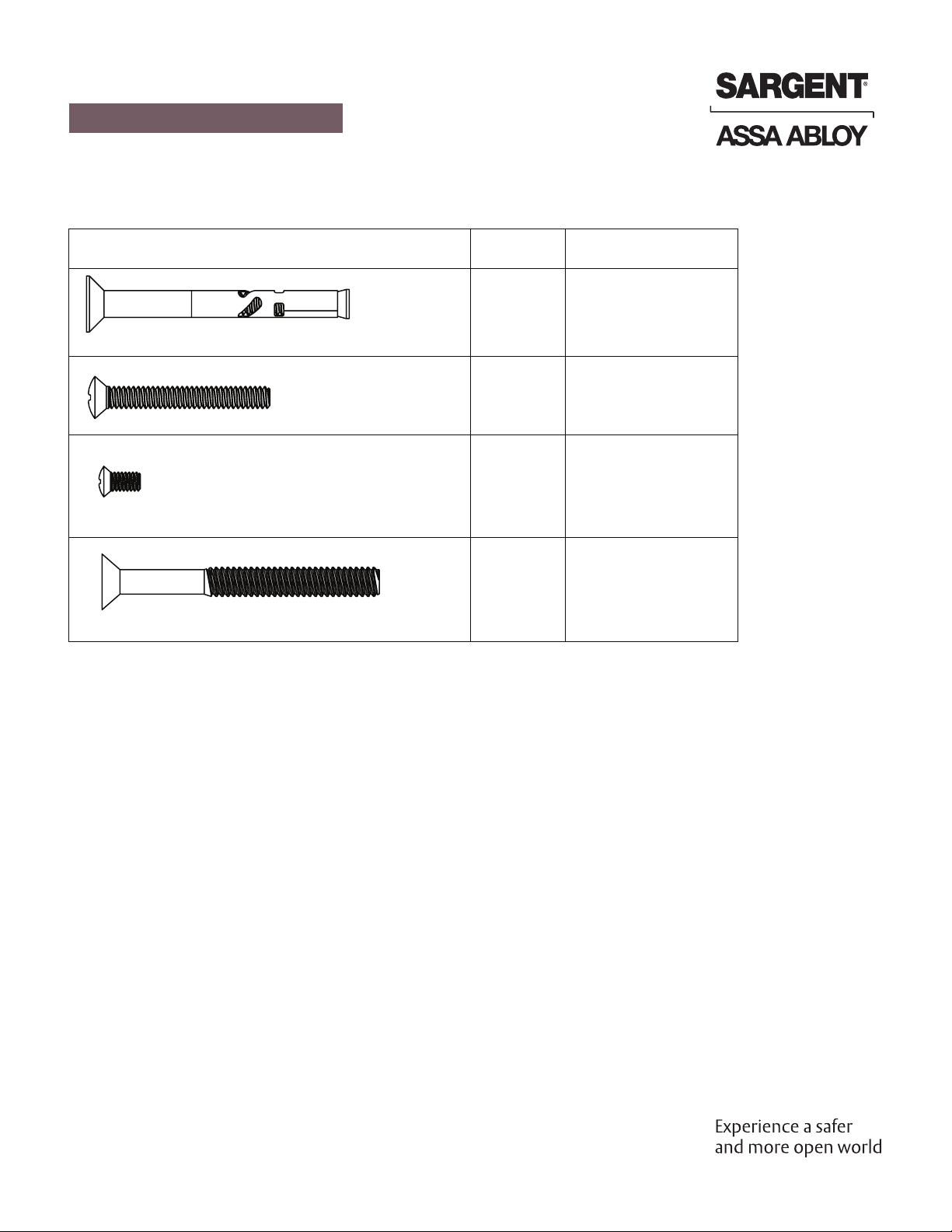

Screw Chart
DESCRIPTION
TOTAL QTY
SUPPLIED
WHERE USED
#10-24 X 3/4" FLAT HEAD
MACHINE SCREW
4
(4) CHASSIS
CORNER MOUNTING HOLES
#10-24 X 3/4" ROUND HEAD
SOCKET SCREW
2 (2) REAR MOUNTING PLATE
#8-32 X 3/8" TRUSS HEAD
MACHINE SCREW
2 (2) CHASSIS TO MOUNT RAIL
#12-24 X 3/4" SOCKET HEAD
CAP SCREW WITH MORTISE NUT
4
(2) TOP CASE
TOP MOUNTING HOLES
(2) BOTTOM CASE
BOTTOM MOUNTING HOLES
#12-24 X 1" FLAT HEAD
SOCKET SCREW
4
(2) TOP CASE
BOTTOM MOUNTING HOLES
(2) BOTTOM CASE
TOP MOUNTING HOLES
#12-24 X 3/4" FLAT HEAD
MACHINE SCREW
5
(1) TOP CASE SHIM
(4) 659 TOP LATCH STRIKE
RAIL RETAINER BOLT
1
(1) MOUNT RAIL / CARRIER
TO DOOR
1/4"-20 SHOULDER BOLT
1 (1) THRU INSERT

3
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
Screw Chart
DESCRIPTION
TOTAL QTY
SUPPLIED
WHERE USED
1/4" SLEEVE ANCHOR
3 (3) 653 BOTTOM STRIKE
#10-24 X 1-1/2" OVAL HEAD
MACHINE SCREW
4
(2) TOP ROD GUIDE
(2) BOTTOM ROD GUIDE
#8-32 X 5/16" W/ #6 OVAL HEAD
MACHINE SCREW
14
(4) CHASSIS COVER
(2) END CAP
(4) TOP CASE COVER
(4) BOTTOM CASE COVER
1/4"-20 X 2-3/8" KNURLED FLAT HEAD
MACHINE SCREW
2
(2) EXIT TRIM
(IF USED)

4
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device

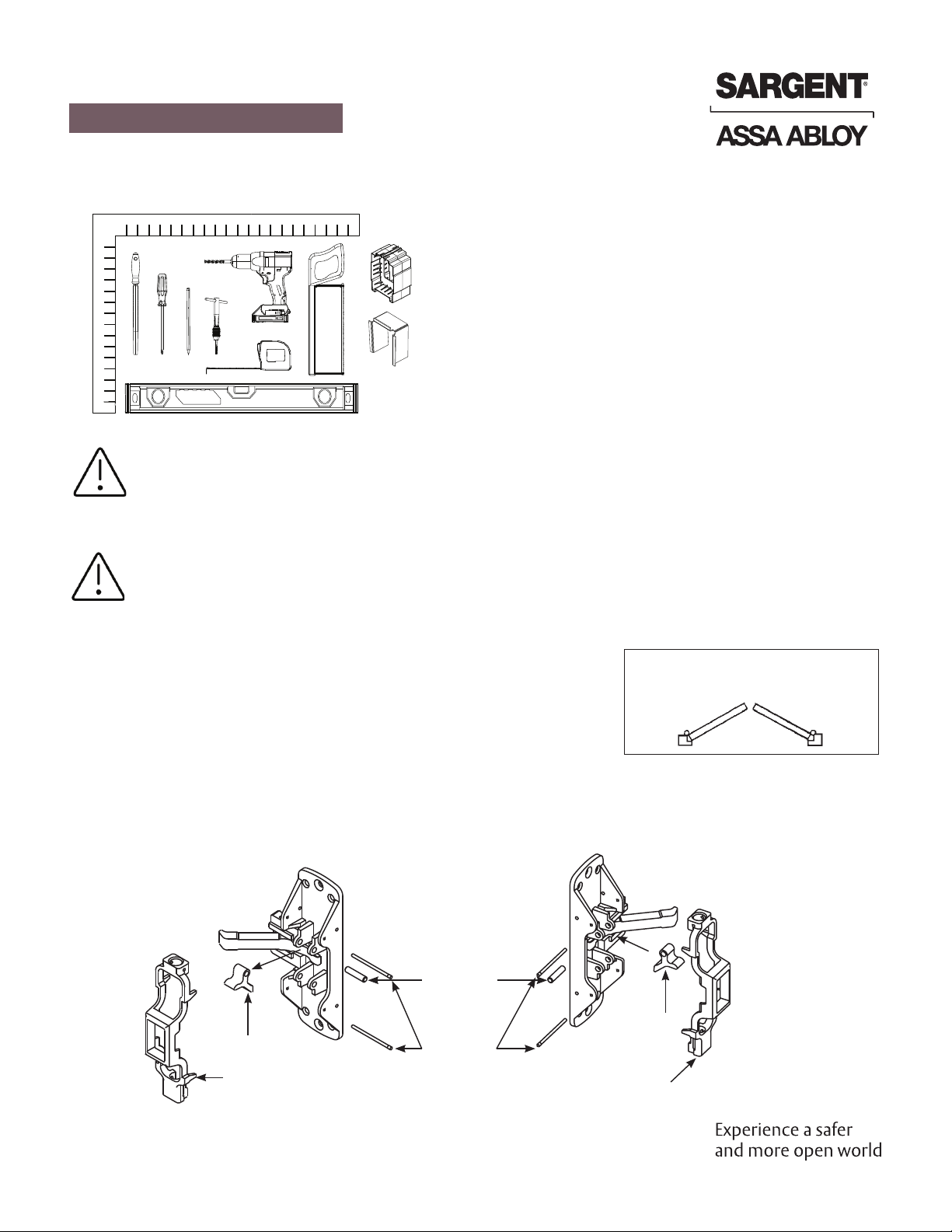

Rail Cutting Guide (Provided)
Support Block (Provided)
Tools Needed
Before installation:
1. Install mullion, if used.
2. Fit and hang door.
3. Check the box’s label for the size of the exit device.
The surface of the door where the exit device is to be applied
must be flush. Clear away any raised projections to allow
exit device to rest on the flat surface of the door. If shim kit is
required, contact your distributor.
Note: Please refer to trim and
other installation instructions
provided in the box.
INSIDE
LEFT HAND
REVERSE
BEVEL
RIGHT HAND
REVERSE
BEVEL
THIS EXIT DEVICE IS HANDED
CHECK HAND OF DEVICE AGAINST APPLICATION
OUTSIDE
Handing
All FM-PE8700 series exit devices are handed, except the FM-PE8710,
which is field reversible. The FM-PE8710 is shipped as LHR unless ordered
as RHR.
To Change Hand of an FM-PE8700 Exit Device:
1. Remove both chassis pins and main slide.
2. Remove lift lever pin and lift lever.
3. Rotate chassis 180° and reposition lift lever and lift lever pin as shown below
4. Position main slide with large end of main slide at the bottom and retain with chassis pins.
Lift lever pin
Chassis pin
Lift lever
Main slide
Large end
Chassis
Left Hand
Reverse
Right Hand
Reverse
Main Slide
Large end
Lift lever

5
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
End Cap
Mounting Plate
Push Rail Assembly

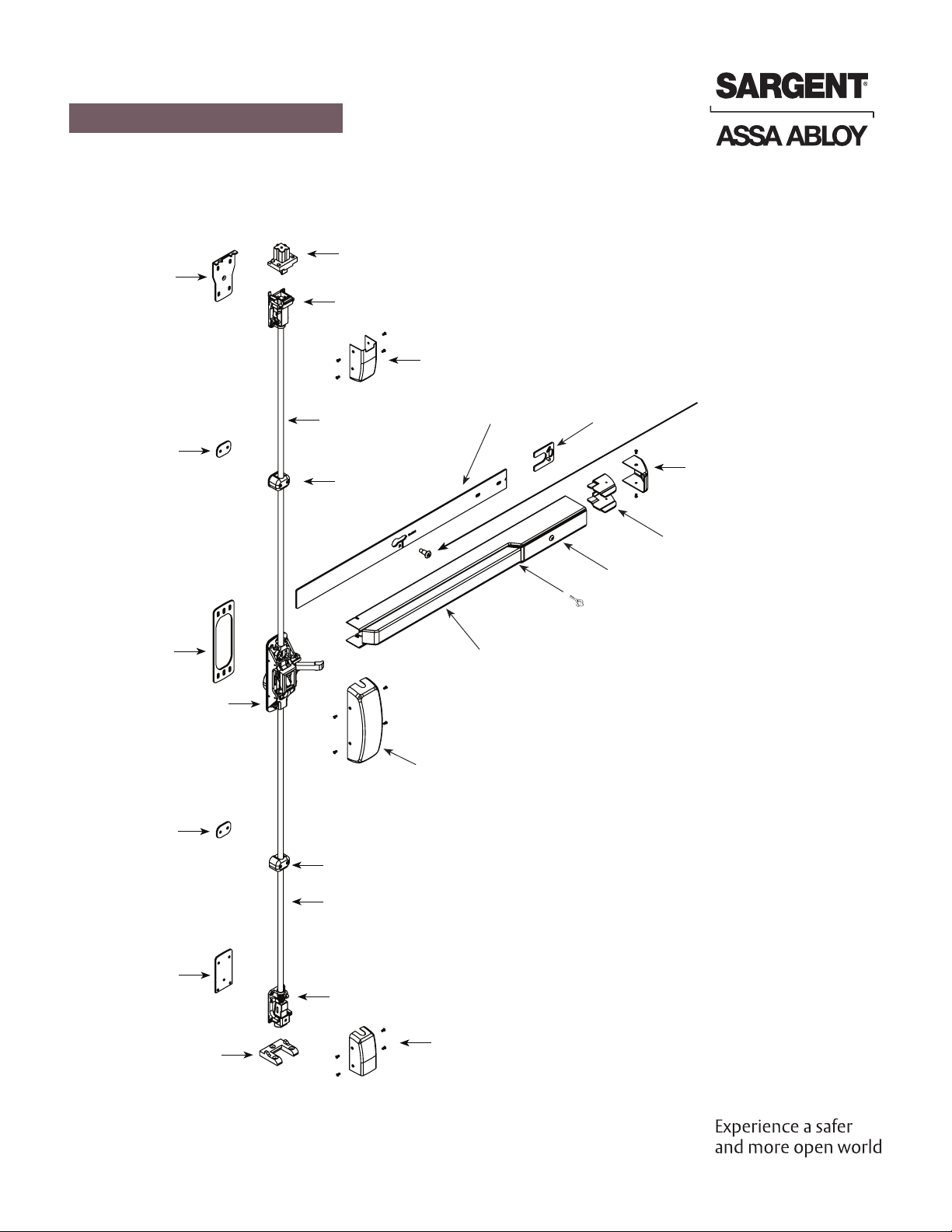

Product Overview
"Lock Down Key"
To operate: Depress push rail; Insert hex
key, and turn counter clockwise.
Chassis Cover
Bottom rod guide
Bottom rod
Bottom case
Bottom case cover
Shim
Shim
Shim
Shim
Interlock Shim
Top case
Top case cover
Top rod guide
Top rod
Shim
Rail shim
Top strike
Bottom strike
Rail retainer bolt
Insert retainer bolt
Chassis

6
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device

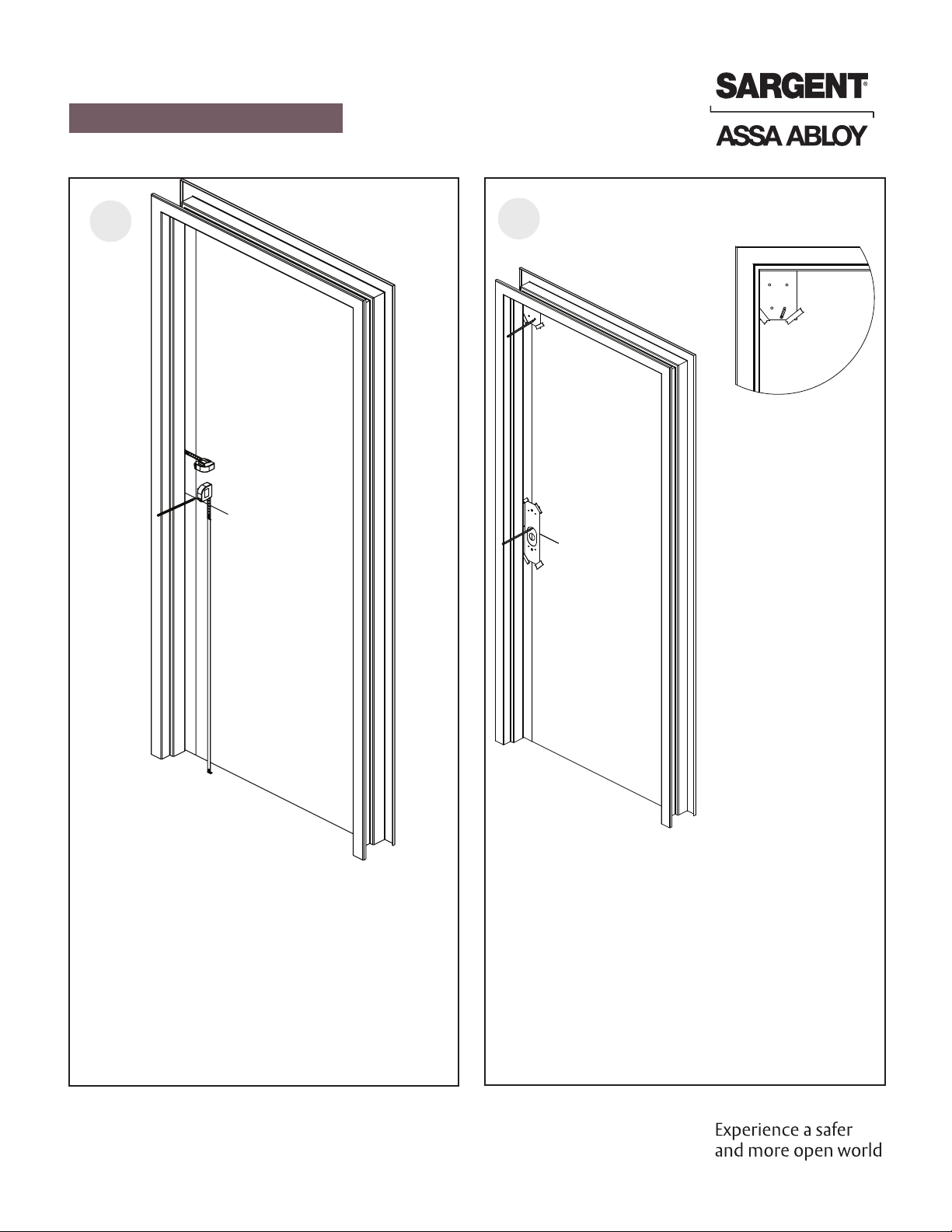

A
12
• With door closed, tape template for
chassis / trim on inside of door, along vertical
and horizontal reference lines.
• Fold top case / top strike template and tape
on inside of door along vertical reference
lines.
• With door closed, measure and mark 2-3/4”
to locate the vertical reference center line of
the chassis, top case, and bottom case.
• Horizontal reference line is rail centerline
height. Standard rail centerline height is 39-
5/8” above the finished floor.

7
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
3
NOTE: Any holes drilled from the outside need
pilot holes drilled from the inside to ensure good
alignment.
NOTE: For electrical trim applications, ensure
access to a raceway from the trim to the electric
hinge or armored door loop.
2X
3
8
"
THRU BOTH SIDES
2X #12-24
TAPPED HOLES
THIS SIDE ONLY

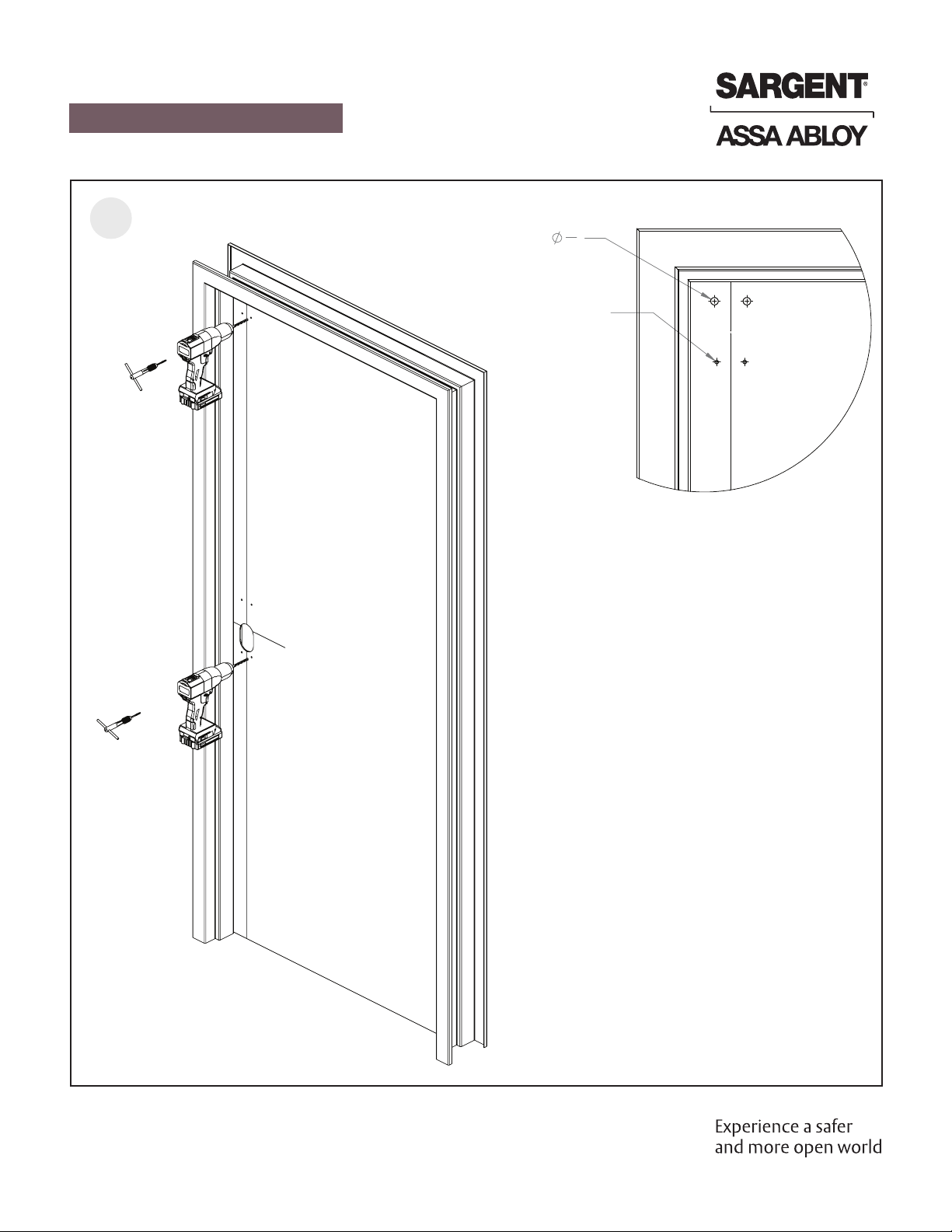

• Spot and drill all holes from inside of door.
• If needed, prepare pockets for outside
trim. See installation instructions supplied
with trim for details.

8
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
4
1 3
4
"
13
16
" 1
2
"
(4) #12-24
TAPPED HOLES
3
16
"
1 1
8
"
1 5
16
"
ALIGN WITH
C
L
OF VERTICAL
ROD EXIT DEVICE
DOOR
STOP

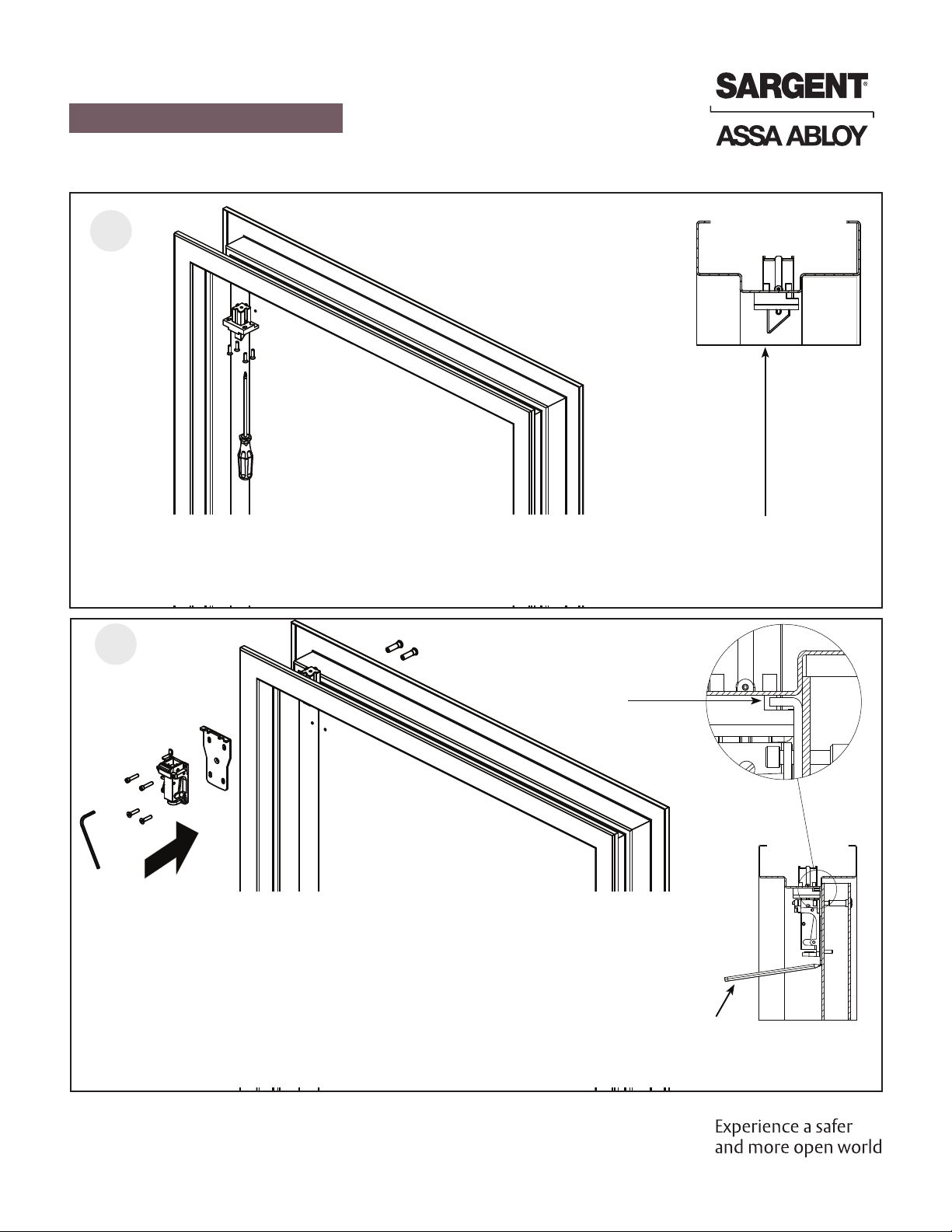

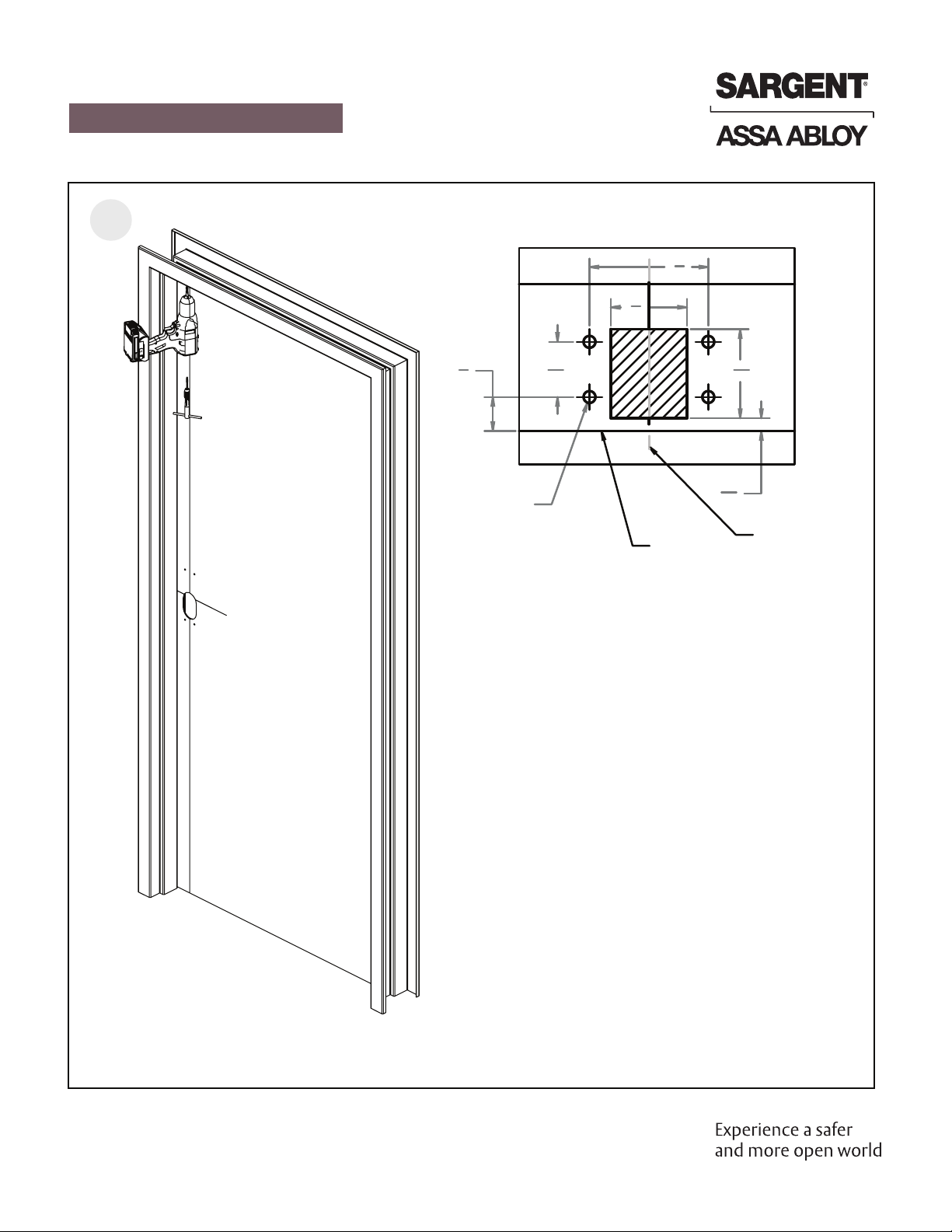

Frame Cutout
RECOMMENDED CUT-OUT IN FRAME FOR 659 TOP BOLT/STRIKE.
THIS CUT OUT IS LARGE ENOUGH FOR FUTURE ADJUSTMENT.
• Transfer vertical centerline to door frame.
Prepare rectangular cut-out in frame for top
strike.
• Insert top strike. With door closed, align the
interlocking shim with the top strike and
place on the vertical reference line. Mark and
drill four mounting holes using 11/64” drill
and #12-24 tap.

9
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device

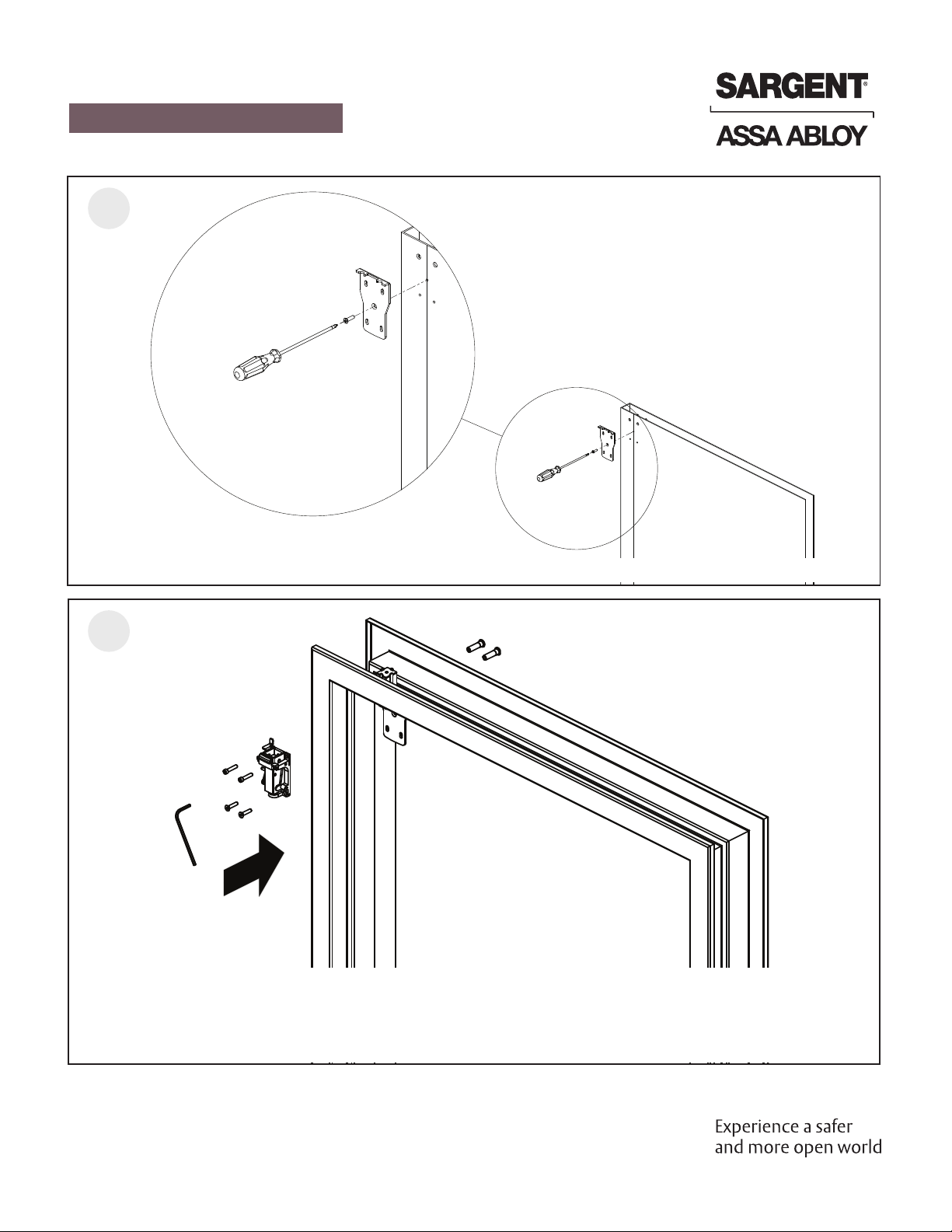

5
6
Mount top strike, (4) #12-24 x 3/4” phillips flat head machine screws. Flat side of top bolt should be facing
away from the door.
Note: All four fasteners required. DO NOT TIGHTEN FULLY.
• Attach top case and interlocking shim using (2) sex nuts from the outside door
surface with (2) #12-24 x 3/4 socket head cap screws from inside in the two
top holes and (2) #12-24 x 3/4 flat head socket head screws in two bottom
hole (1/8” Allen wrench).
• With the top chassis and interlocking shim secured, the top strike should en-
gage the top case and interlocking shim when the door is closed (A).
• Trace the outline of the interlocking shim (B).
A
B

10
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
7
8
Remove the top case to expose the center hole on the Interlocking shim. Ensure the interlocking shim is
aligned with the tracing from Step 6.
Mark and tap center hole with #12-24 thread.

11
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
9
10
Attach interlocking shim with (1) #12-24 x 3/4” flat head socket head screw.
• Reinstall top case.
• Check for top case and top strike engagement.
• Tighten all screws.

12
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
11

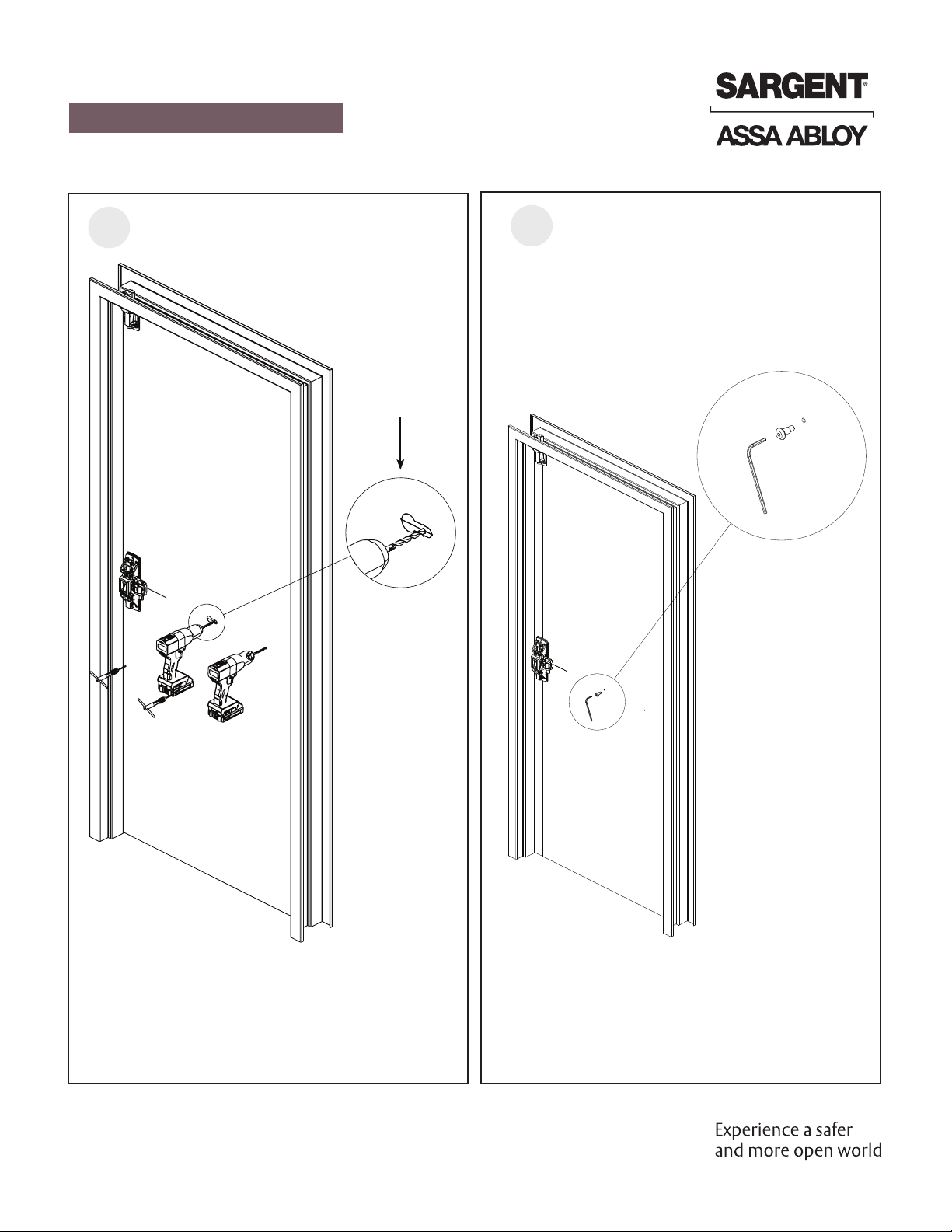

• Secure chassis and shim to door
with (4) #10 flat head screws, using
corner mounting holes.
• If trim is used, refer to step 11a.
Position ET trim on door. Align spindle with bell
housing. Thru-bolt chassis to ET trim with (2) 1/4-20
flat head screws.
11a P700 Series ET Trim
Chassis
P700 Series
Trim
Use breaking lines to shorten shim to the needed rail size
12
Refer to rail size listed on the box the device was
shipped in. Break rail shim to the length that
corresponds to the rail size.
Note: If shim needs to be cut, always cut shim from
the end closest to the hinge edge.

13
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device

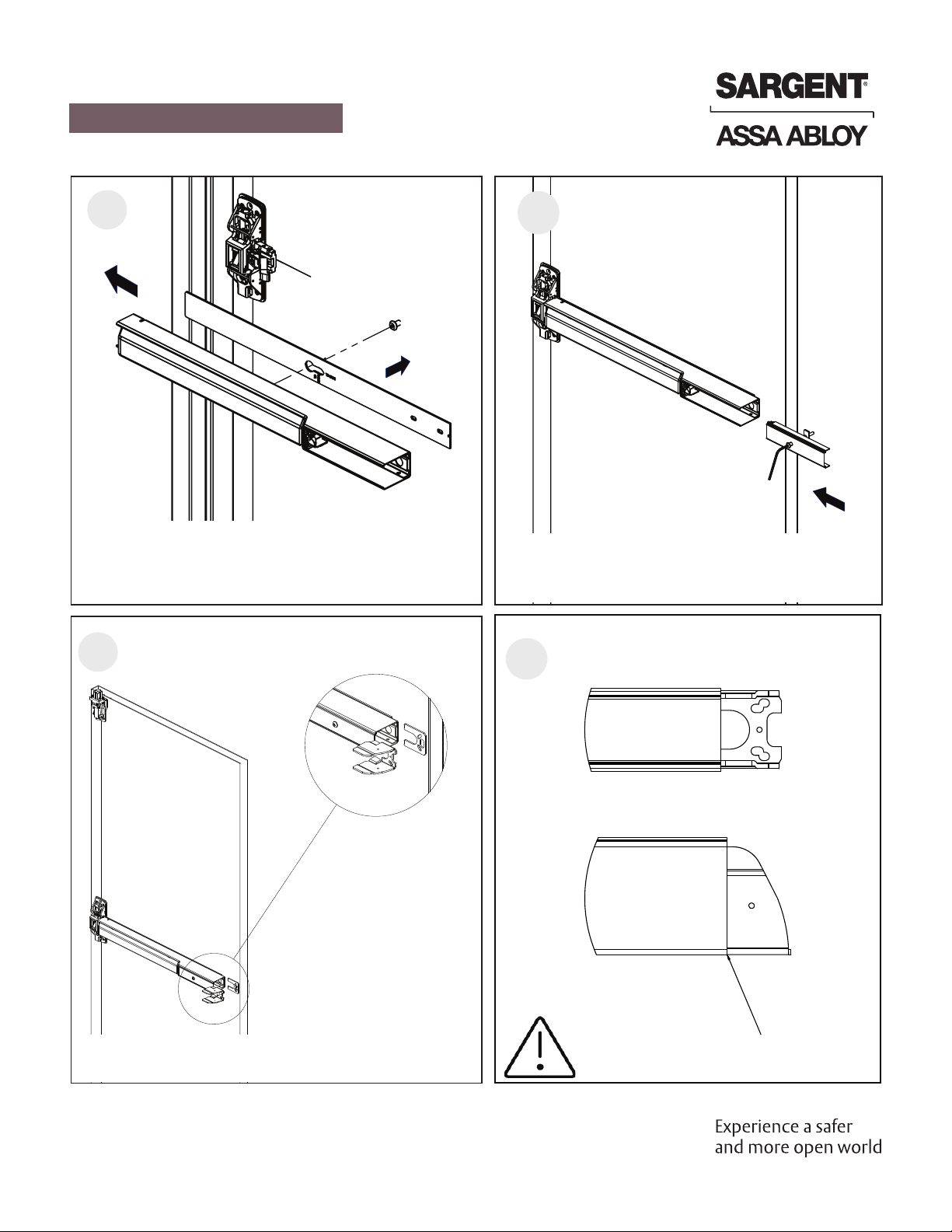

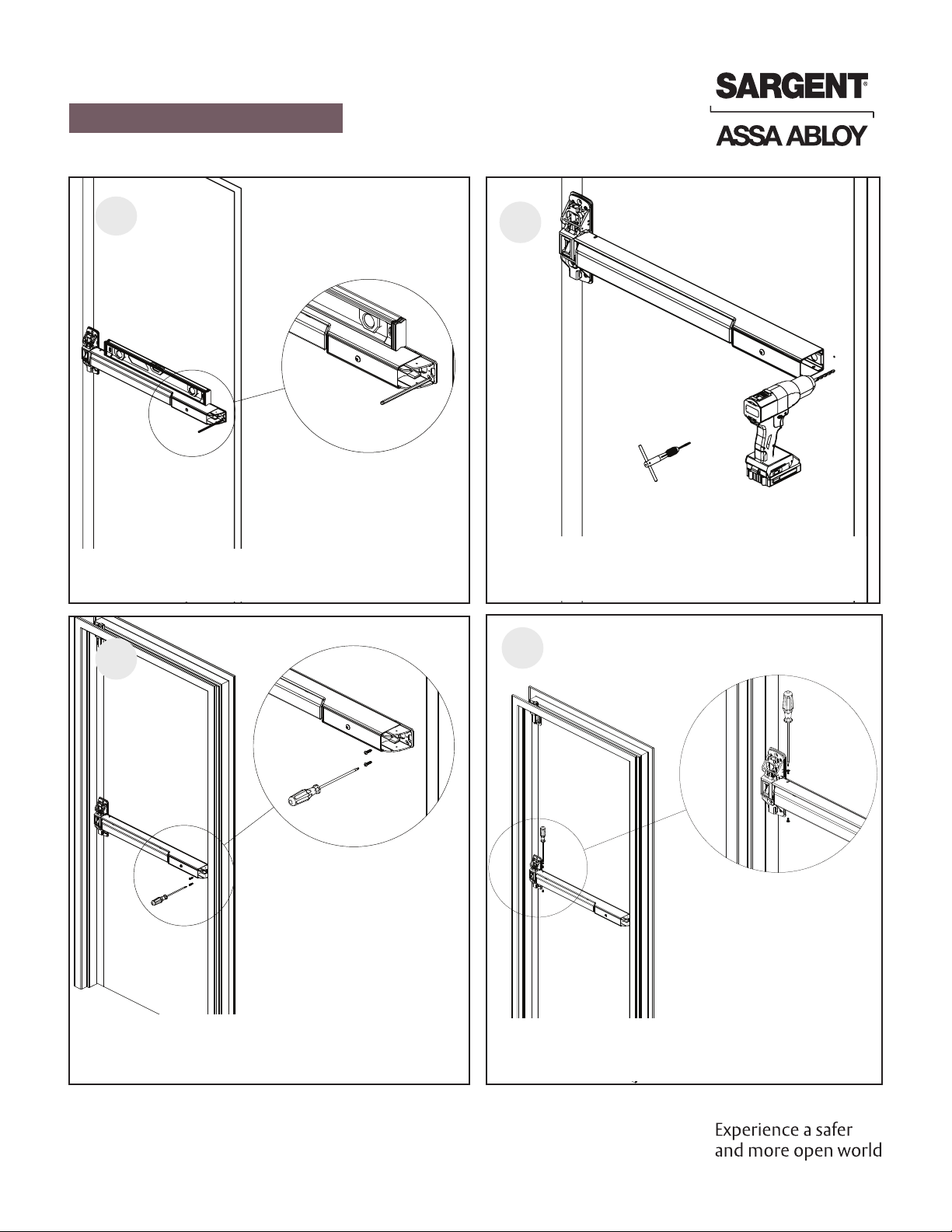

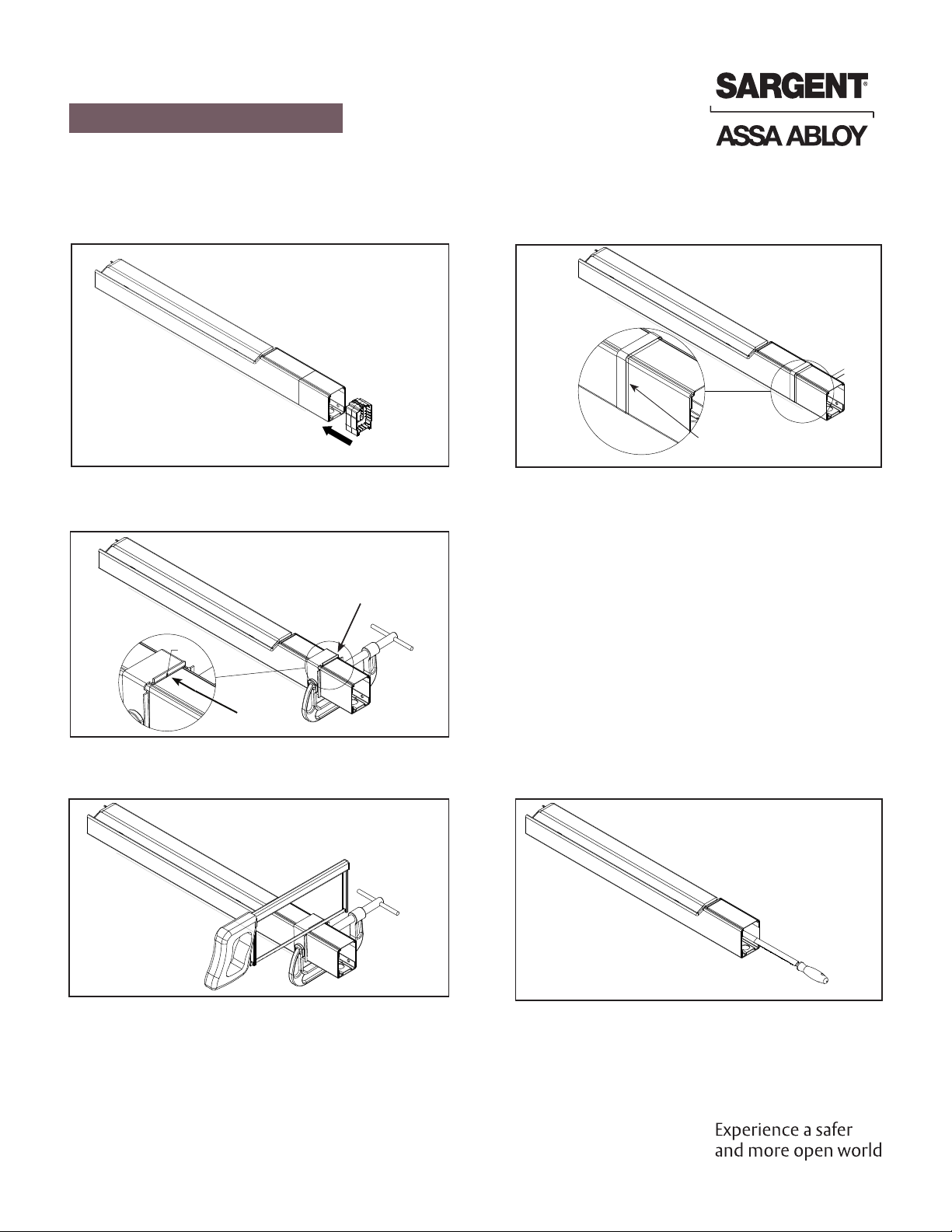

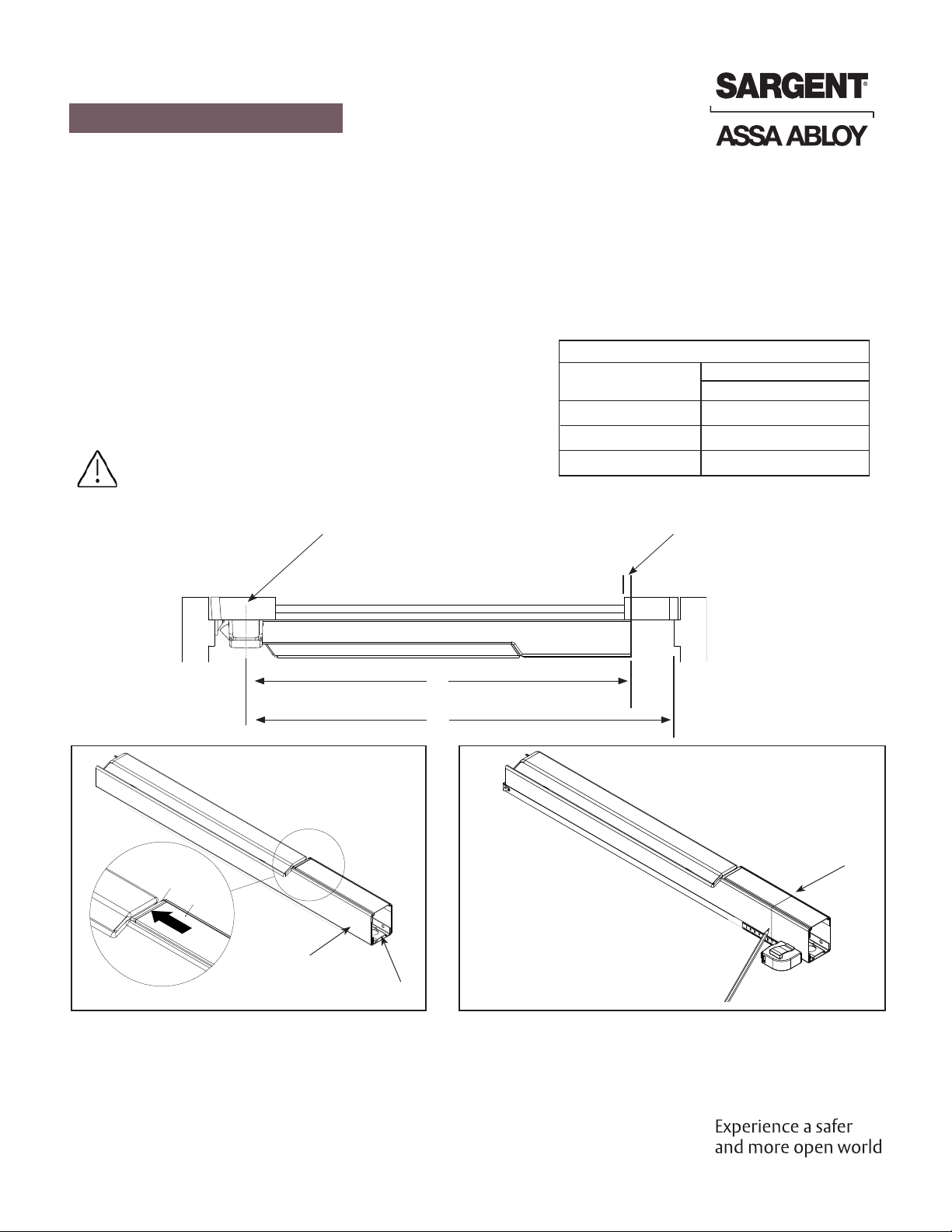

If the rail doesn’t need to be cut, continue to page 15 step 13.
If the rail must be cut, follow these steps on page 13 and 14:
Refer to the individual exit device installation instructions for rail cutting requirements / restrictions.
Instructions will vary based on device type and options.
Do not cut closer than 4” from the
the front edge of the rail insert.
• Determine cut off dimension “X” by subtracting 2-7/8”
from dimension “Y”. Mark cut off point on mounting rail.
(See below.)
Verticle reference line (C of chassis)
L
2-7/8”
min.
For doors with stile rail, the stile must overlap by 5/16” min.
X
Y
A. Ensure there isn’t a gap between the
insert and the dogging slope, and the
carrier is flush with the mount.
DOGGING
SLOPE
INSERT
B. Mark rail at the required cut length.
Insert
Dogging
slope
Cut line
Mount
Carrier
Information for Cutting Rails
Rail Sizes Door Widths
Standard Minimum
F 36" 33"
J 42" 37"
G 48" 43"
Rail cutting guide

14
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
CUT LINE
F. Using a hack saw with a new blade or
a chop saw with a metal cutting blade,
cut the rail, ensuring that the blade stays
pressed against the rail cutting guide.
G. Deburr and smooth all cut edges with a file.
D. Wrap the rail and insert in masking tape,
as shown.
E. Place the rail cutting guide over the masking tape and align it with the cut line. Clamp the cut guide to
the rail using a C-clamp.
C. Ensure plastic insert support is installed under
the cut line.
Rail Cutting Guide
Rail cutting guide, continued.
Cut line
Cut line

15
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
13
Level rail shim on the door and use it as a template. Mark the slot centerlines shown and punch locations for
threaded holes where the centerlines intersect.

16
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
15
14
Remove rail shim from door to expose tracing.
Drill and tap (2) holes as shown in door surface.
(“I” drill with 5/16-24 tap for hole at the middle of
the door, #7 drill with 1/4-20 tap for hole closer to
hinge.
Install rail retainer bolt (3/16” wrench).
Tracing from
Step 13

17
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
16
19
Ensure mounting rail bracket is against
the rail without a gap.
Depress chassis lift arm, and slide rail assemby with
rail shim onto chassis. Ensure rail retainer bolt engages
properly with slot in rail shim and rail assembly.
17
Install rail insert / shoulder bolt sub-assembly. Do not
fully tighten shoulder bolt.
18
Insert the end cap bracket into the rail assembly
with shim.

18
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device
20
Verify the rail is level and mark mounting holes,
using the bracket as a guide.
21
Drill and tap end cap bracket holes #10-24
(2 Places).
22
Install end cap bracket using round head socket cap
#10-24 x 3/4” screws, supplied. Tighten the insert
shoulder bolt.
23
Attach rail assembly to chassis with (2) #8 truss
head machine screws.

19
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device

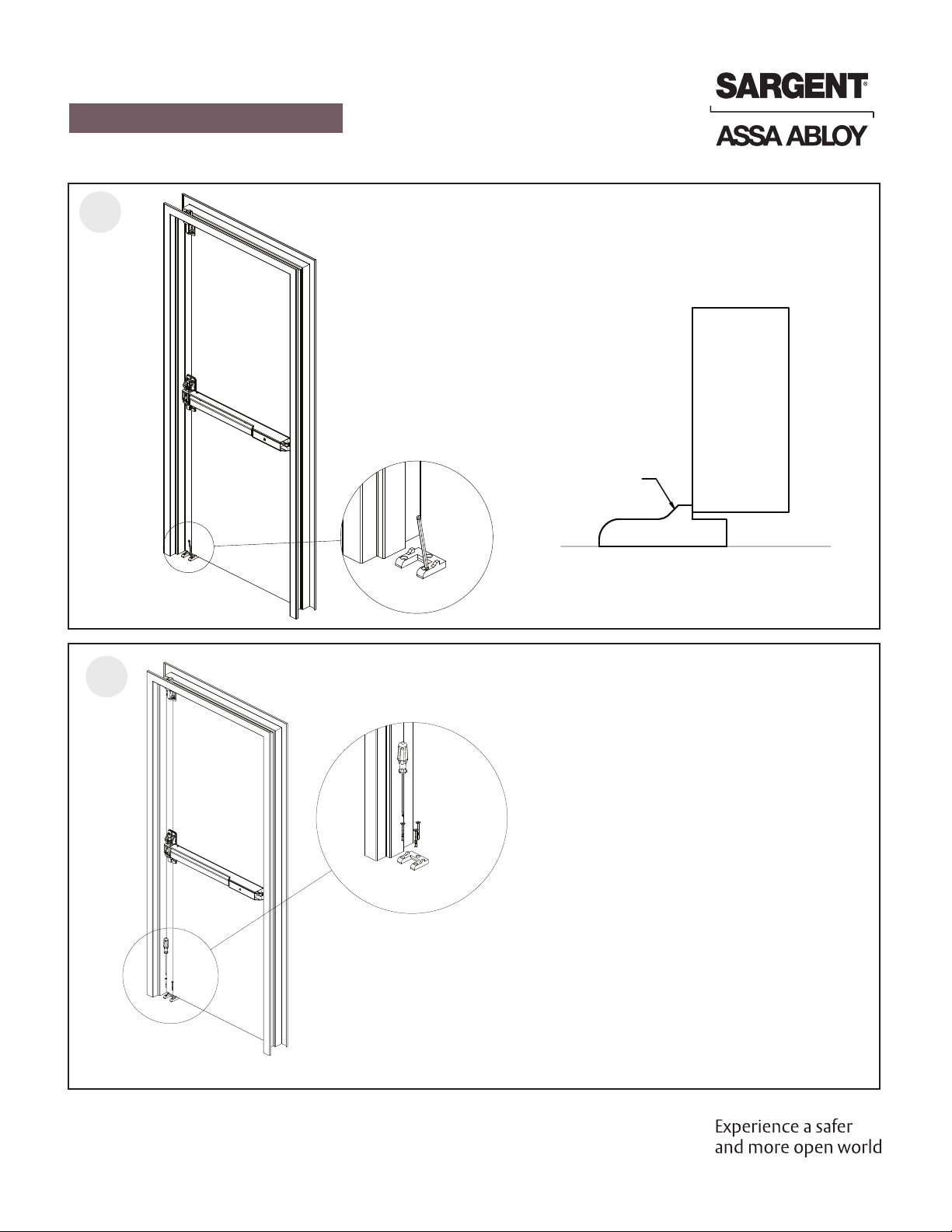

24 • Transfer vertical centerline to threshold.
• Align bottom strike.
• Mark and drill holes 1-5/8” to 1-3/4” deep for (3) 1/4” sleeve anchors.
Note: No clearance in floor is required.
25 • Disassemble anchors and drop lower
portion into the hole with threads facing
towards the top of the hole.
• Align holes in strike with holes in floor.
• Screw the top half of the anchor onto
the installed piece through the holes in
the strike. Tighten the anchors.
Ensure stop is
against the door.

20
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8319-1 5/23
FM-PE8700 Series
Installation Instructions
Surface Vertical Rod Exit Device

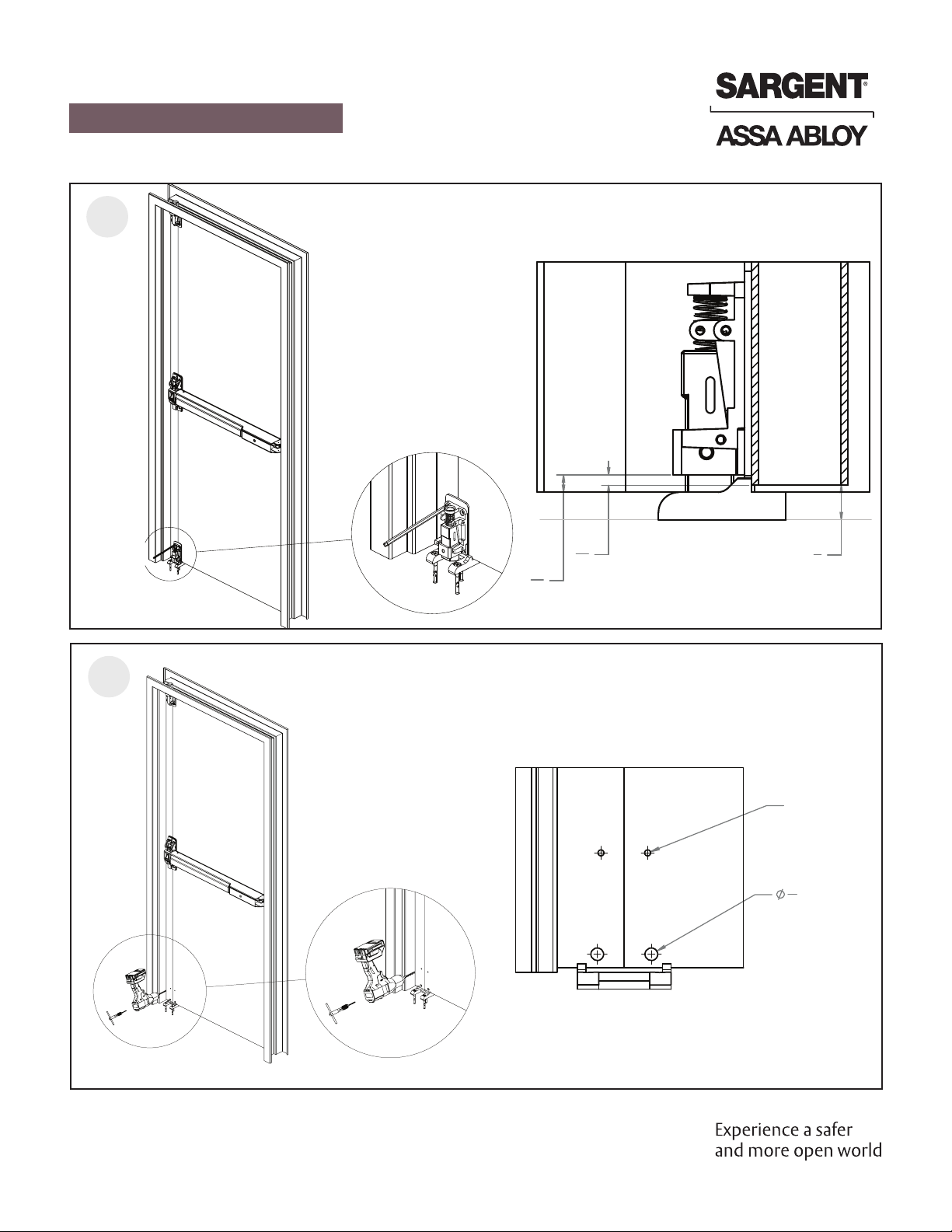

26 Using the vertical reference line, with the bottom case as a template, align
bottom case as shown. Mark (4) mounting hole locations.
5
8
"
3
16
"
5
16
"
27 • Drill and tap top mounting holes for (2) #12-24 x 3/4” flat head socket
screws, using 11/64” drill and #12-24 tap.
• Use 3/8” drill bit to drill two bottom mounting holes through door.
2X #12-24
TAPPED HOLES
THIS SIDE ONLY
3
8
"
THRU BOTH SIDES
