M670/M680BD MAGNALOCK
®
SERIES
Installation Instructions

PN# 500-10550
Page 2 Rev. D, 12/14
Table of Contents
Package Contents......................................................................................................................................... 3
Mounting Hardware....................................................................................................................................... 3
Recommended Tools .................................................................................................................................... 3
M670 / M680BD Specifications..................................................................................................................... 4
Performing a Pre-Installation Survey ............................................................................................................ 4
Preparing the Magnalock .............................................................................................................................. 4
Locating and Setting the Components in the M670 and M680BD................................................................ 5
Documenting the Configuration Settings ...................................................................................................... 8
Installing the Magnalock................................................................................................................................ 9
Installing the Strike...................................................................................................................................... 13
Assembling the Lock to the Bracket and Adjusting, as Necessary............................................................. 15
Performing the Final Installation ................................................................................................................. 17

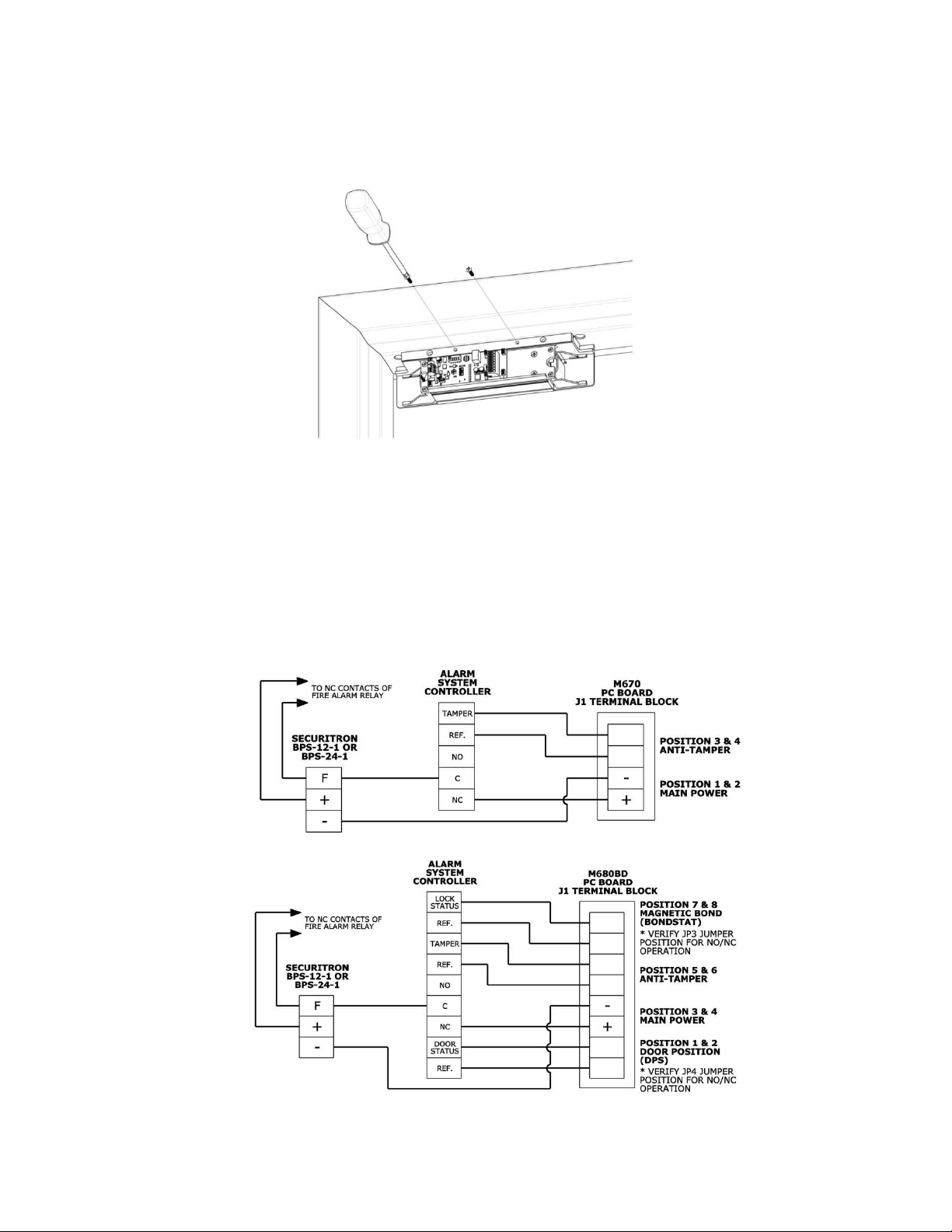

Performing the Final Wiring......................................................................................................................... 18
Performing Magnalock Maintenance .......................................................................................................... 19
Using Proper Cleaning Methods ................................................................................................................. 19
Troubleshooting Guide................................................................................................................................ 20
LED Error Codes......................................................................................................................................... 20
Problems with Installation? ......................................................................................................................... 20

PN# 500-10550
Page 3 Rev. D, 12/14
Package Contents
Mounting Hardware
(2) x Bracket
Spacer
(2) x 1/4-20 Blind Nut (1) x – Blind Nut
Installation Tool
(2) x 1/4-20 x 1”
Phillips Pan Head
(4) x #12 x 1-1/2”
Type A Phillips Pan Head
(2) x 1/4” x 1-1/4”
Roll Pin (1) x 5/16-18 x 1-3/4”
Flat Head Socket
(3) x – Neoprene
Washer
(1) x Plastic Strike
Bushing
(4) x #14 x 3”
Type A Phillips Pan Head
Recommended Tools
Masking Tape #1 and #2 Phillips Screwdrivers Hammer
Measuring Device 1/2” Open End or Crescent Wrench Pencil/Pen
Center Punch Wire Strippers/Cutter Multimeter
Fish Tape or Lead Wire 3/16” Hex (Allen) Wrench
Drill bits: 3/16”, 7/32” (wood frames only), 3/8”, 1/2”
Mounting Hardware
M670/M680BD
Sex Bolt
Template Strike Plate
Mounting Bracket
End caps provided for Model M680 only.

PN# 500-10550
Page 4 Rev. D, 12/14
M670 / M680BD Specifications
Mechanical Electrical
Environmental
(Recommended)
Physical Size:
Height: 2.20” [56mm]
Depth: 2.45” [62mm]
Length: 10.00” [254mm]
Shipped Weight:
Weight: 6 lb
Holding Force (Maximum):
600 lbs [272 kg]
UL Tested Ratings:
Static Holding Force: 500 lbs [227 kg]
Dynamic Holding Force: 50 ft-lbs [68 J]
Endurance: 250,000 cycles
Input Voltage:
12/24 VDC
Current
M670
12 VDC/500 mA (±10%)
24 VDC/275 mA (±10%)
M680BD
12 VDC/530 mA (±10%)
24 VDC/310 mA (±10%)
Tamper Switch Rating
Voltage – 30 VDC (Maximum)
Current – 1 Amp
DPS Rating (M680 only)
Voltage – 30 VDC
(Maximum) Current – 125 mA
Operating Temperature
32ºF to 110ºF [0ºC to 43ºC]
Humidity
10% to 90% RH
Magnalock Preparation and Installation
Performing a Pre-Installation Survey
1. Before installing the Magnalock, DETERMINE and ASSESS the mounting location for
the following:
• Physical strength of the frame—it should be strong enough to meet or exceed
the holding force of the Magnalock.
• Frame and vicinity—it should offer protection for the wiring to prevent vandalism.
• Door inspection—it should be inspected for any obstacles that may interfere when
mounting the strike plate.
• Proper mounting—The Magnalock M670/M680 comes with factory default
mounting for use with an out swing door. Securitron should be contacted for
available brackets for other installation configurations.
Preparing the Magnalock
NOTE: Removing the cover provides access to the circuit board and on the back of the
magnet.
1. Using a Phillips screwdriver, REMOVE the two (2) screws securing the cover, as shown
in Figure 1, “Removing the Cover Screws.”
2. SET the screws aside to re-attach the cover later.

PN# 500-10550
Page 5 Rev. D, 12/14
Figure 1. Removing the Cover Screws
Locating and Setting the Components in the M670 and M680BD
1. LOCATE and SET the components in the M670 and M680BD using Figure 2, “M670
SW3 and J1 Locations,” Figure 3, “M680BD SW3, JP3, JP4, and J1 Locations,” and
Table 1, “Component Label, Name, Selection, and Position.”
Figure 2. M670 SW3 and J1 Locations
Figure 3. M680BD SW3, JP3, JP4, and J1 Locations

PN# 500-10550
Page 6 Rev. D, 12/14

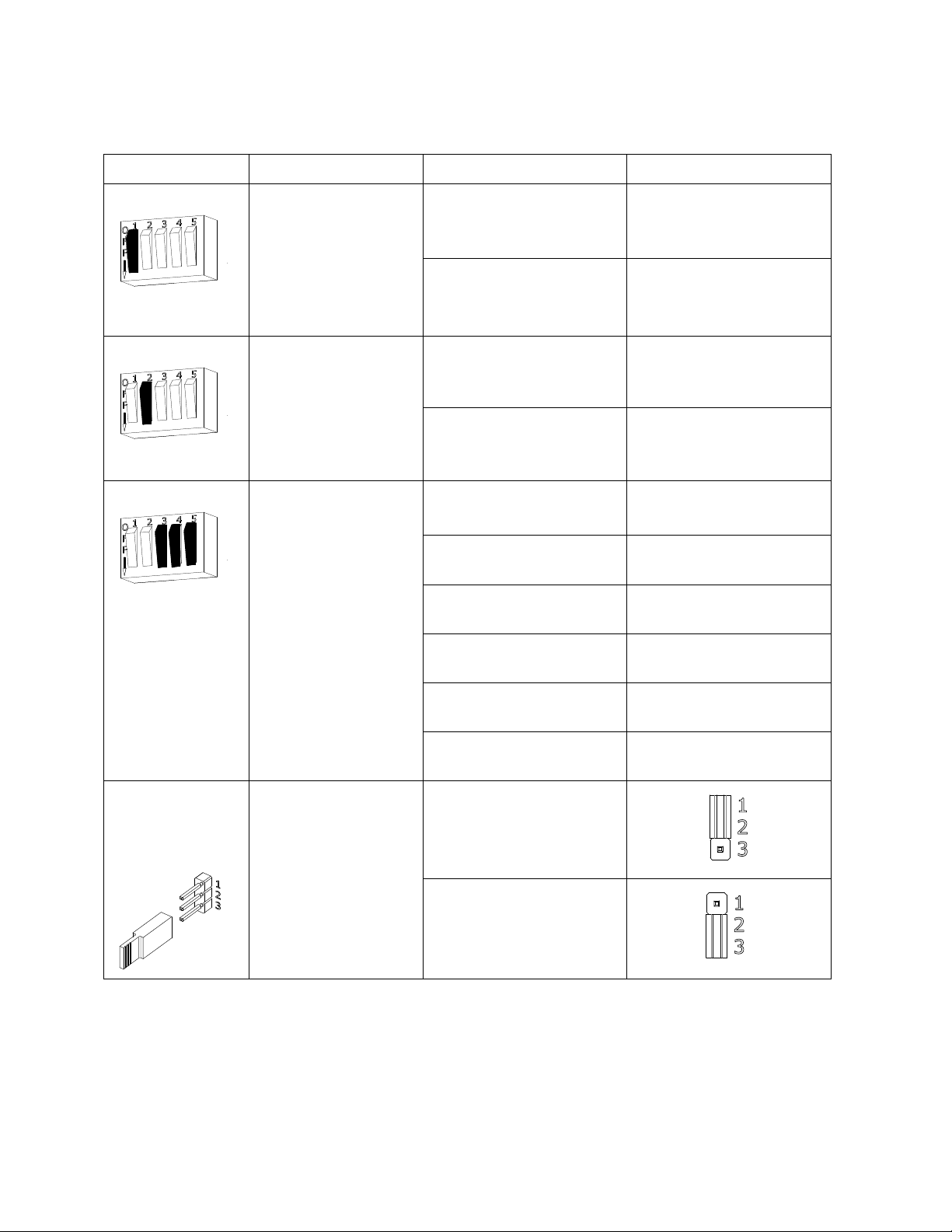

Table 1. Component Label, Name, Selection, and Position
Component Label Component Name Selection Position
SW3
(M670 has a
2-position DIP)
DIP Switch SW3.1:
LED Enable
Position 1 setting of
the DIP switch enables
or disables the display
of the LED for lock
status.
ON = LED ENABLED Position 1 ON (default)
OFF = LED DISABLED
(default setting) Position 1 OFF
SW3 DIP Switch SW3.2:
LED Color Select
Position 2 setting of
the DIP switch controls
the color of the LED
output. Output options
are red or green.
ON = SECURE = RED Position 2 ON
OFF = SECURE = GREEN
(default setting) Position 2 OFF (default)
SW3
(Auto Relock
Timer available on
M680 models
only)
DIP Switch SW3.3,
SW3.4 and SW3.5:
Auto Relock Timer
Enable and Delay
Selection
The Auto Relock
Delay Timer is
disabled by default.
The delay can be
enabled by setting the
position 3 switch of
SW3 to ON, and then
selecting a time delay
with Position 4 and
Position 5 of SW3.
DISABLE Delay Timer Position 3 OFF (default)
ENABLE Delay Timer Position 3 ON
5 second delay Position 4 OFF
Position 5 OFF
10 second delay Position 4 OFF
Position 5 ON
20 second delay Position 4 ON
Position 5 OFF
30 second delay Position 4 ON
Position 5 ON
JP3
(available on
M680 models
only)
Jumper 3:
BondSTAT
Mode Select
A 3-pin jumper that
controls the output
setting for the
BondSTAT in Terminal
Block J1 Position 7 &
8.
(NC) Normally Closed
Circuit Closed when Bond
is secure (default setting)
(NO) Normally Open
Circuit Open when Bond is
secure

PN# 500-10550
Page 7 Rev. D, 12/14

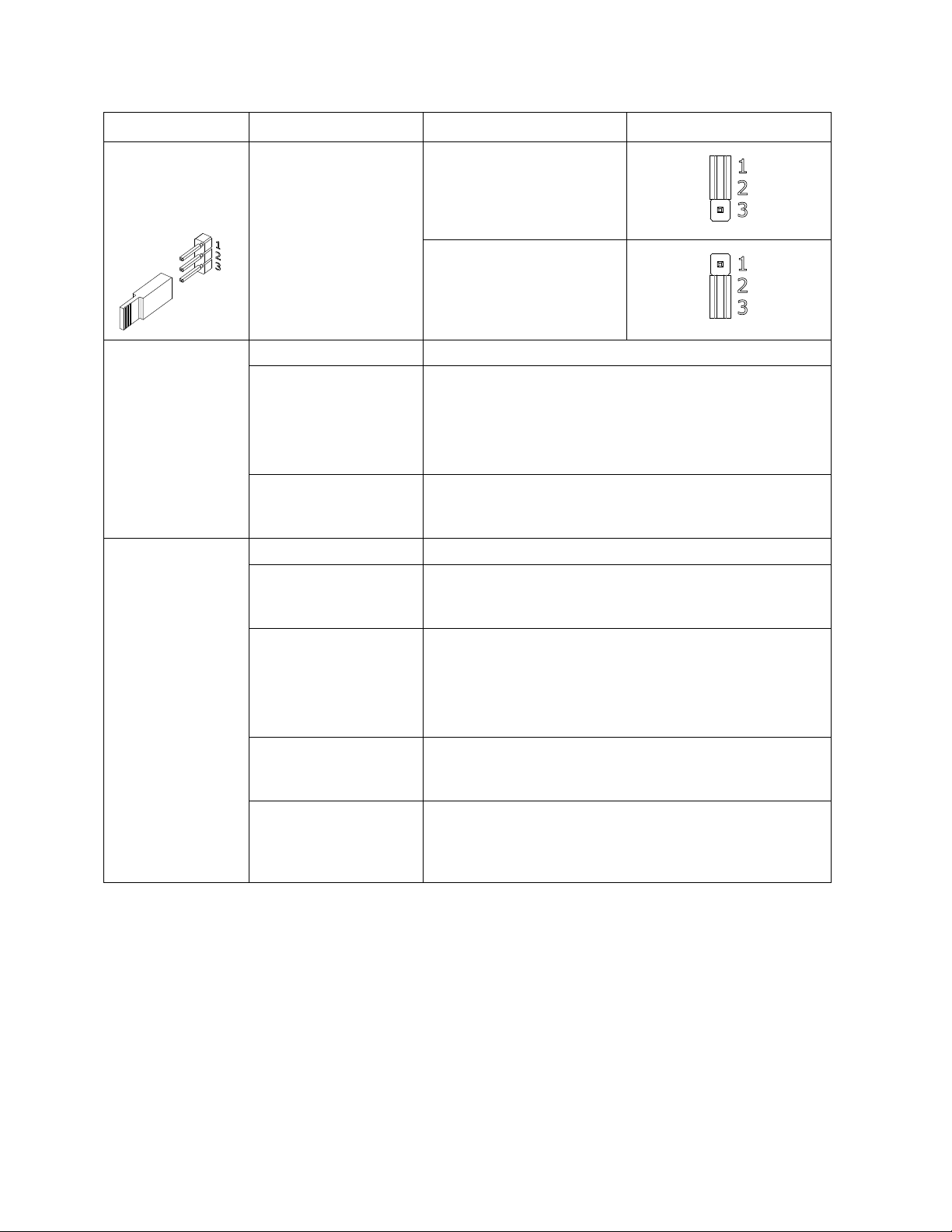

Component Label Component Name Selection Position
JP4
(available on
M680 models
only)
Jumper 4:
Door Position
Mode Select
A 3-pin jumper that
controls the output
setting for the Door
Position Switch (DPS)
in Terminal Block J1
Position 1 & 2.
(NC) Normally Closed
Circuit Closed when Door
is Closed (default setting)
(NO) Normally Open
Circuit Open when Door is
Closed
J1 (M670) Terminal Block 1 (M670 has a 4-position terminal block)
Position 1 & 2:
Input Power
Terminal positions 1 & 2 provide a connection point for
positive (+) and negative (-) 12 and 24 VDC power
connection.
Position 1 = (+) Positive
Position 2 = (-) Negative
Position 3 & 4:
Tamper Indication
Terminal positions 3 & 4 of the terminal block provide
connection for tamper sensing. Signal continuity is
disrupted whenever the cover is removed.
J1 (M680) Terminal Block 1 (M680 has an 8-position terminal block)
Position 1 & 2:
Door Position Switch
Terminal positions 1 & 2 provide a set of contacts of
which state change is determined by Jumper 4 (JP4)
based on the strike plate’s proximity to the lock face.
Position 3 & 4:
Input Power
Terminal positions 3 & 4 provide a connection point for
positive (+) and negative (-) 12 and 24 VDC power
connection.
Position 3 = (+) Positive
Position 4 = (-) Negative
Position 5 & 6:
Tamper Indication
Terminal positions 5 & 6 provide connection for tamper
sensing. Signal continuity is disrupted whenever the
cover is removed.
Position 7 & 8:
BondSTAT
Terminal positions 7 & 8 provide a set of contacts of
which state change is determined by Jumper 3 (JP3)
based on the strike plate’s magnetic bond to the lock
face under power.

PN# 500-10550
Page 8 Rev. D, 12/14
Documenting the Configuration Settings
NOTE: The Board Settings are now complete.
1. COPY the settings onto the adhesive-backed circuit board settings label enclosed with the mounting
hardware packet. (See Figure 4, “M670/M680 Settings”).

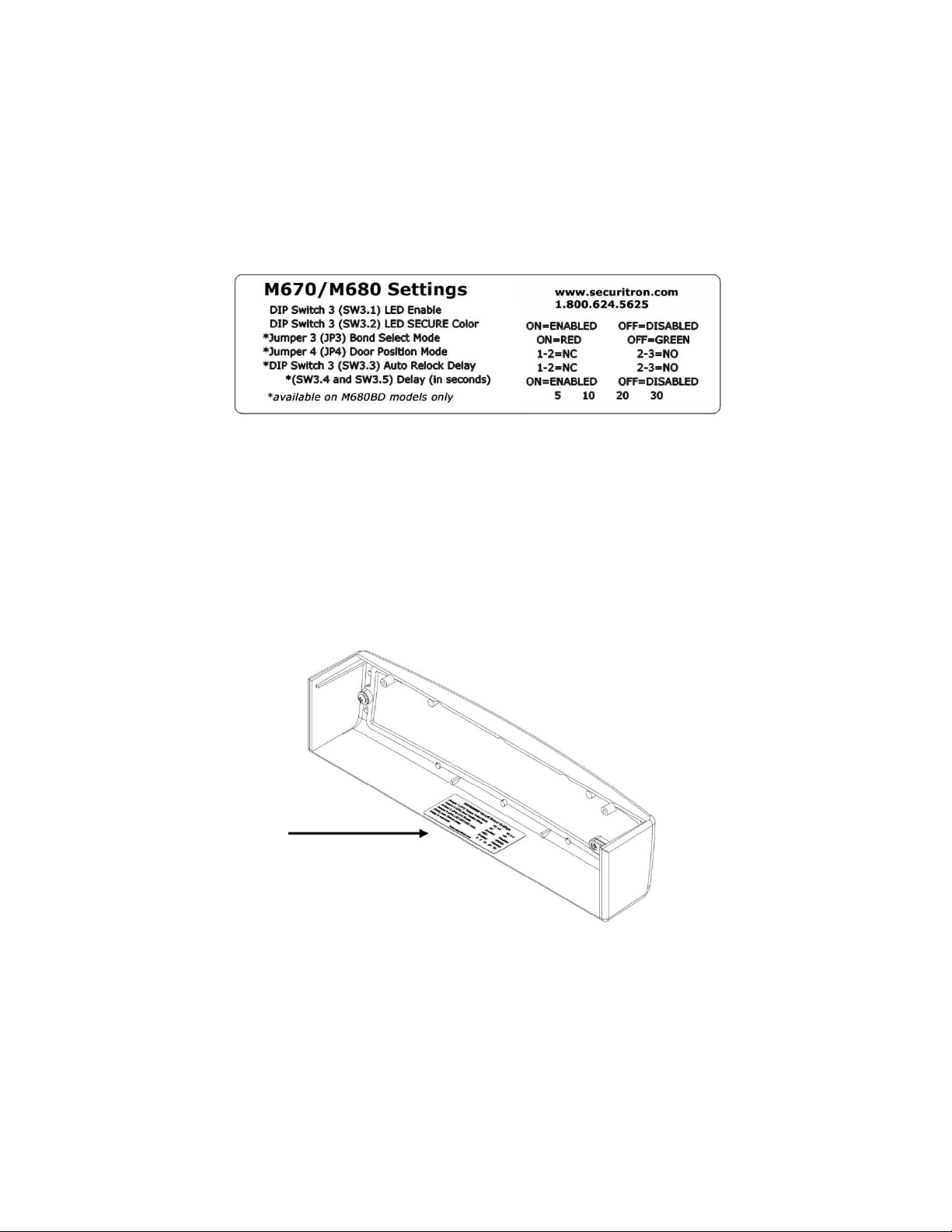

Figure 4. M670/M680 Settings
NOTE 1: The figure above shows the Default settings. Settings may vary based on checklist.
NOTE 2: The settings information is required if the Magnalock needs to be inspected, serviced, or
replaced.
2. COMPLETE the label and AFFIX to the inside cover of the Magnalock (see Figure 5, “Magnalock
Settings Label.”
Figure 5. Magnalock Settings Label

PN# 500-10550
Page 9 Rev. D, 12/14
Installing the Magnalock
1. REMOVE the two (2) screws securing lock to mounting bracket and SLIDE the bracket from the top of
the lock chassis.
2. PINCH and INSERT spacers flush into the dovetail slots of the lock-mounting bracket.

PN# 500-10550
Page 10 Rev. D, 12/14
3. PERFORM the following to mark the mounting holes.
a. PROTECT the door and frame surfaces from any possible damage during marking and drilling by
using masking tape.
b. PLACE the lock bracket on the secure side of the door against the frame stop, towards the side of
the door that does not have hinges, and has a minimum of 7/8” clearance from the frame.
c. CLOSE the door and ADJUST the bracket so that the spacers rest against the door.
d. MARK the frame through the two (2) oblong bracket mounting holes.
4. MARK the frame for wire feed-through hole at the end closest to where the wire run will be
accessed.
5. ENSURE these holes are toward the rear edge of the mounting bracket and adjacent to
the end of the bracket, as shown.
6. REMOVE mounting bracket from frame when drilling holes.

PN# 500-10550
Page 11 Rev. D, 12/14
NOTE: Steps 7 through 10c are performed if installing on a metal door frame.
7. DRILL two (2) 3/8” diameter holes at bracket-mounting hole marks.
8. DO NOT oversize the hole.
9. USE a step bit or pilot hole first to ensure a snug fit for the blind nuts.
NOTE 1: Blind nuts provide a highly secure and tamper resistant system for mounting and are the
mounting hardware provided for this unit.
NOTE 2: Only approved included hardware should be used for mounting.
10. INSTALL blind nuts into each 3/8” diameter hole using the provided tool.
a. HOLD the collapsing nut with a 1/2” box end wrench.
b. MAINTAIN pressure on the mounting surface, TIGHTEN the cap screw using a 3/16”
hex wrench, and COLLAPSE the blind nut.
c. GO TO Step 12.
3/8” diameter (Metal)
3/8” diameter (Metal)

PN# 500-10550
Page 12 Rev. D, 12/14

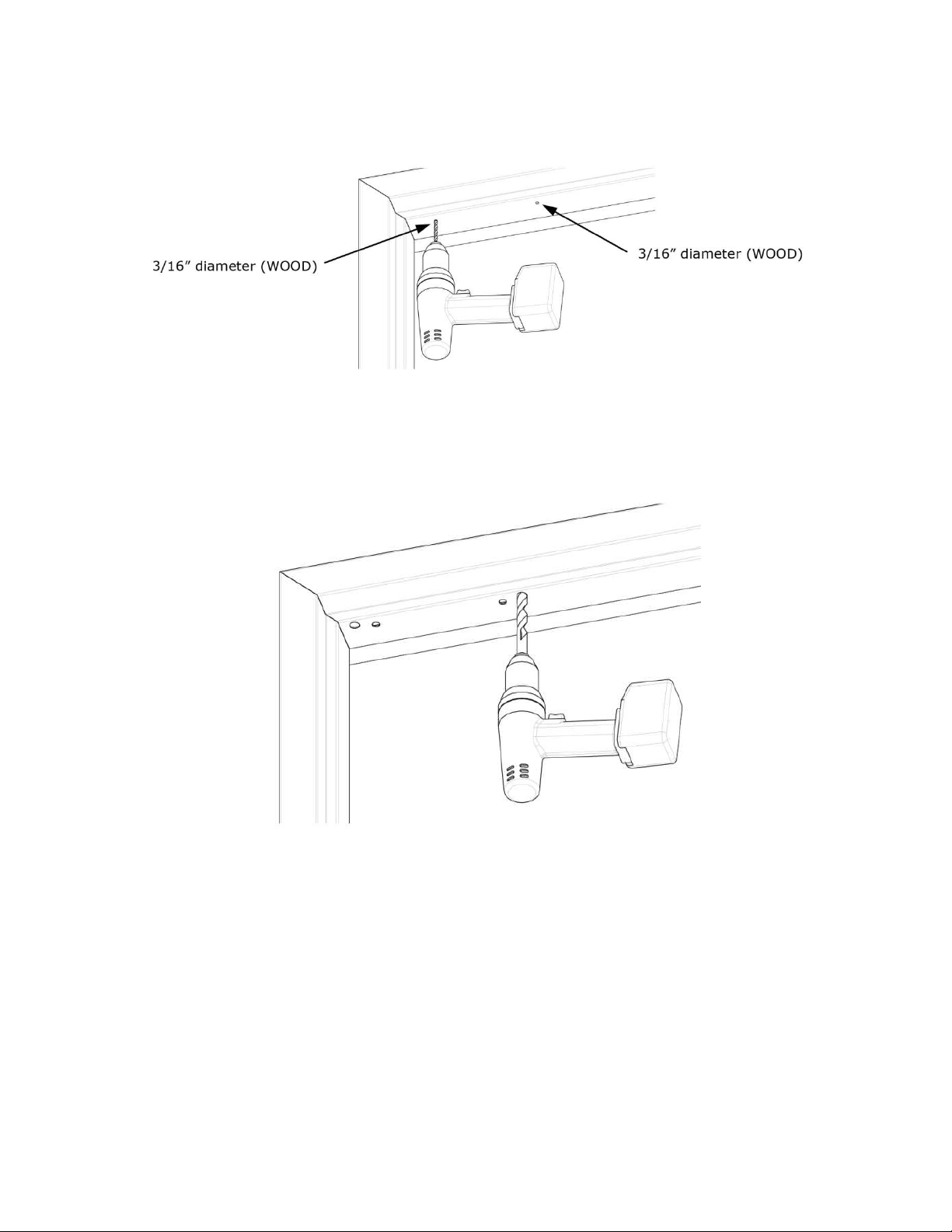

11. DRILL two (2) 3/16” diameter mounting holes by 1-1/4” deep at bracket-mounting hole marks.
12. DRILL wire access holes (1/2” recommended), as needed, on one or both sides of the bracket.

PN# 500-10550
Page 13 Rev. D, 12/14

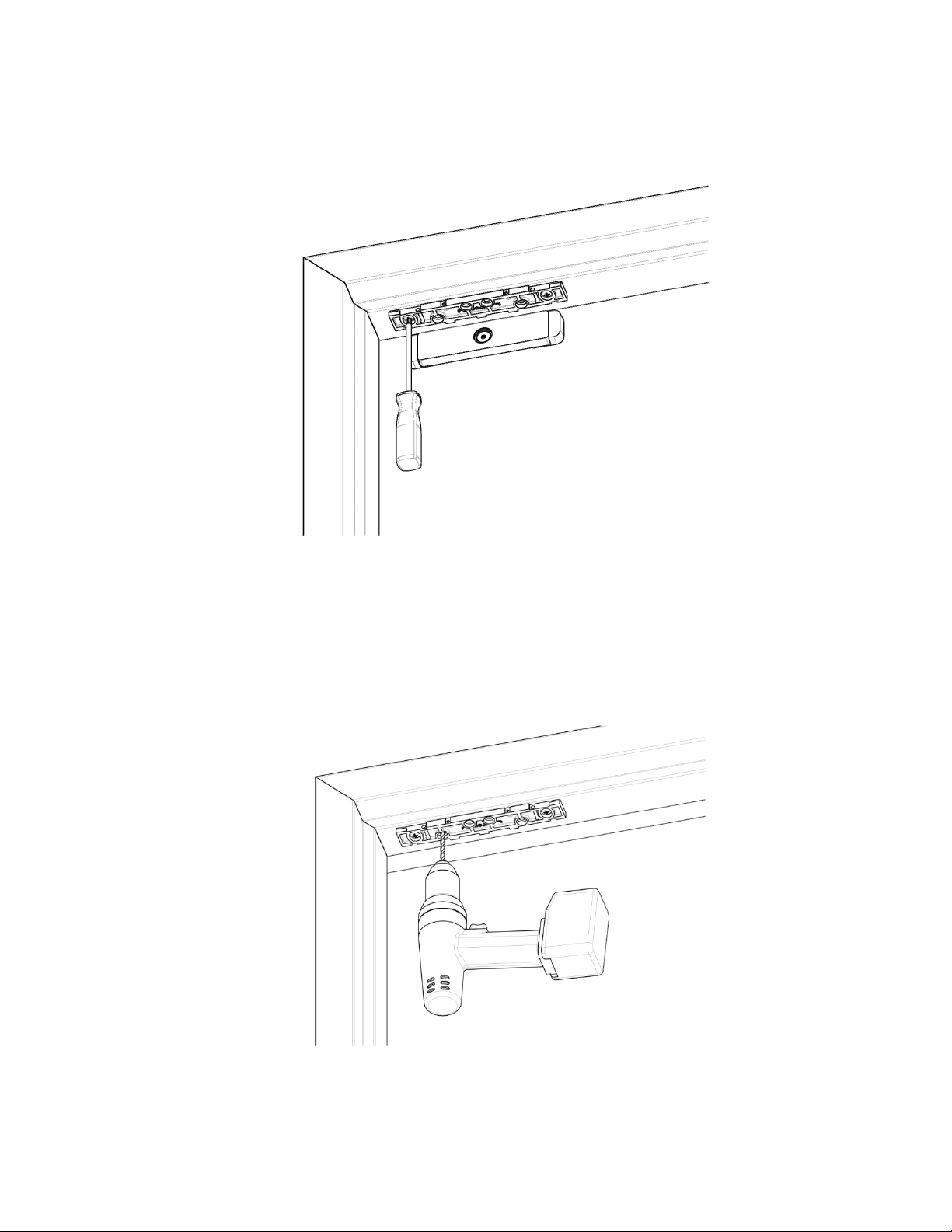

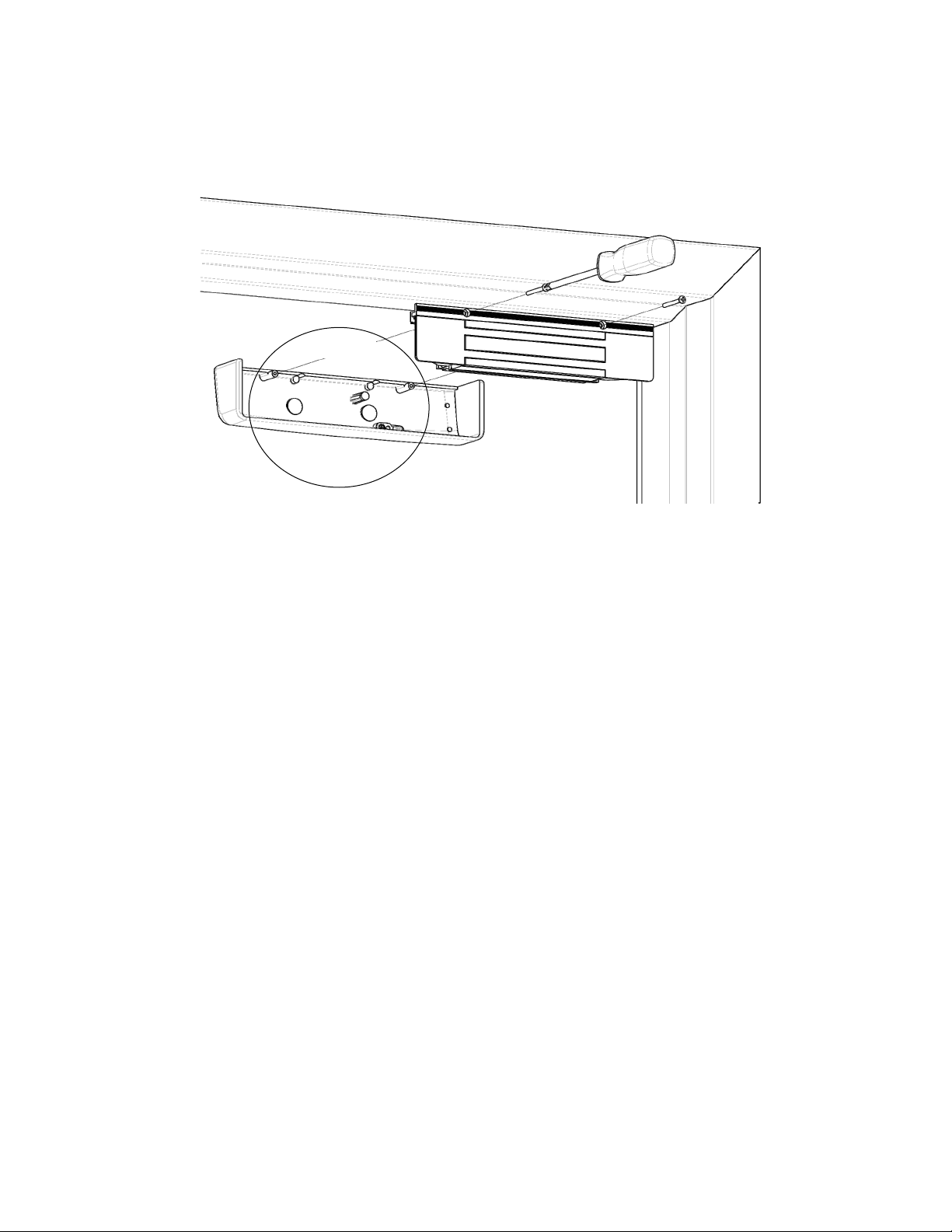

13. Temporarily INSTALL the bracket with spacers against the closed door using a Phillips
screwdriver.
NOTE: Step 13a applies to metal frames.
a. USE two (2) 1/4-20 X 1” Phillips Pan Head Screws and APPLY included thread lock to screw
threads.
NOTE: Step 13b applies to wood frames.
b. USE two (2) #12 X 1-1/2” Type A, Phillips Pan Head Screws.

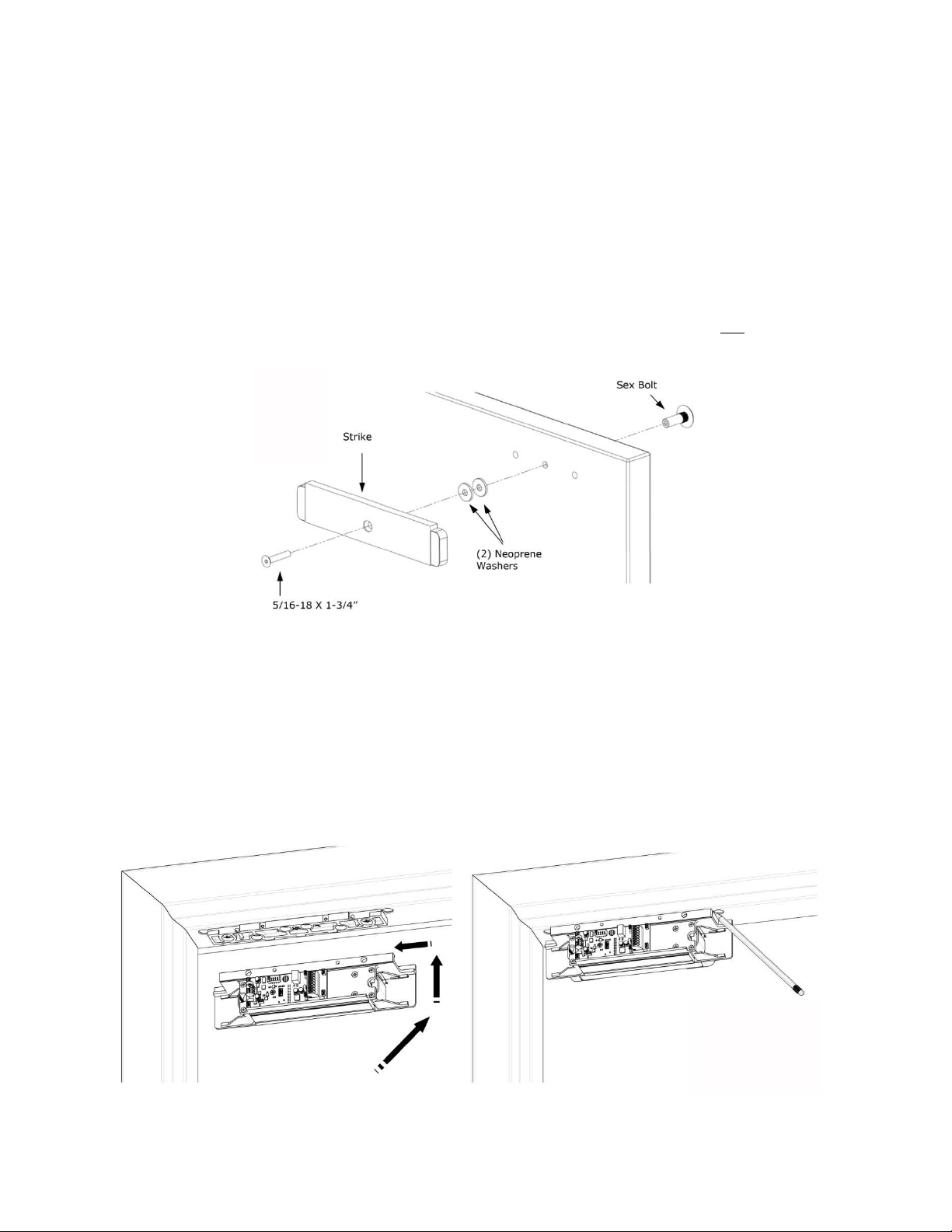

Installing the Strike
1. CLOSE the door and PLACE the template between the bracket spacers.
2. MARK the strike plate hole locations.
3. REMOVE the bracket spacers from the bracket.

PN# 500-10550
Page 14 Rev. D, 12/14
From INSIDE the door:
4. DRILL one (1) 3/8” diameter hole for the sex bolt
through the door at the strike mounting center mark.
5. DRILL two (2) 3/8” diameter x 1” deep holes at
each side mark for the strike alignment roll pins,
but DO NOT DRILL through the door.
From OUTSIDE the door:
6. For a Hollow Metal Door, DRILL out the 3/8”
diameter strike mounting hole to 1/2” diameter
in the outer wall only.
7. For a Solid Wood Door, DRILL out 3/8”
diameter strike mounting hole to 1/2” diameter;
DRILL completely through.
8. PERFORM the following to install roll pins
into strike plate.
a. REMOVE the two (2) roll pins from the
hardware packet.
b. INSERT a roll pin into each of the holes
in back of strike.
c. Gently TAP into place using a hammer.

PN# 500-10550
Page 15 Rev. D, 12/14
9. PERFORM the following to secure strike plate to the door.
a. APPLY the included thread lock compound to 5/16-18 X 1-3/4” flat head socket screw.
b. INSERT the 5/16-18 X 1-3/4” flat head socket screw through the strike bushing, strike
plate, two (2) neoprene washers, door and into the sex bolt as illustrated.
c. TIGHTEN the screw into sex bolt using a 3/16” hex wrench; and while tightening,
gently TAP the head of sex bolt until the head sits flush with the door using a hammer.
NOTE: The strike should rock on the neoprene washers for proper function and
optimal holding force.
d. DO NOT OVER-TIGHTEN the assembly; the neoprene washers should not be
compressed.
Assembling the Lock to the Bracket and Adjusting, as Necessary
1. LOOSEN the two screws securing the mounting bracket to the door frame so that the
bracket can move.
2. SLIDE the lock onto the mounting bracket and TEST FIT against the strike plate with the
door closed; SLIDE the lock so that the entire face makes contact with the strike plate.
.
MARK back edge of mounting bracket at each end and REMOVE the lock from the
bracket.

PN# 500-10550
Page 16 Rev. D, 12/14
4. ENSURE that the mounting bracket aligns with the marks, and TIGHTEN the mounting
screws.
5. DRILL Frame for anchor screws.
a. Using the mounting bracket as a template, DRILL the four remaining holes in the
frame for the anchor screws as follows:
• Metal Frames have 3/16” diameter holes.
• Wood Frames have 7/32” diameter holes.

PN# 500-10550
Page 17 Rev. D, 12/14
6. INSTALL the four (4) anchor screws using a Phillips screwdriver:
• Metal Frames use #12 X 1-1/2” Type A, Phillips Pan Head Screws
• Wood Frames use #14 X 3” Type A, Pan Head Screws
Performing the Final Installation
NOTE: The edge of the lock chassis must be flush with the end of the mounting bracket
when centered (see inset).
1. INSERT the top of the Magnalock chassis at the end of the mounting bracket, and SLIDE
the lock chassis to the center of the bracket.

PN# 500-10550
Page 18 Rev. D, 12/14
2. INSTALL the three (3) 6-32 X 3/4” Phillips pan head screws to secure the lock chassis to
the mounting bracket using a Phillips screwdriver.
Performing the Final Wiring
NOTE 1: The end user and installer are liable for Fire and Building code compliance.
NOTE 2: A small screwdriver has been included to help make connections to the terminal
blocks, as required.
1. PULL wires/cables through the wire feed-through hole(s) that are drilled in the frame, and
CONNECT wiring using the two diagrams below as a guide.
M670
M680

PN# 500-10550
Page 19 Rev. D, 12/14
2. After installation and wiring have been completed, RE-INSTALL the lock cover through the
lock chassis using the two (2) phillips screws.
Performing Magnalock Maintenance
1. PERFORM the following to complete a visual inspection.
a. INSPECT the rubber washers for elasticity and proper pivoting; and TIGHTEN, as
required.
b. INSPECT for build-up of debris on the Magnalock and strike armature.
c. INSPECT for rust on the Magnalock and strike plate armature; CLEAN, as required.
Using Proper Cleaning Methods
1. APPLY rubbing alcohol onto a clean cloth and thoroughly WIPE DOWN the Magnalock and
strike plate armature.
NOTE 1: Cleaning once a year is recommended.
NOTE 2: Petroleum-based products should never be used for cleaning.
NOTE 3: Steel wool-based scrub pads or sandpaper should never be used for cleaning.
2. CLEAN every three to six months where rusting occurs.
3. USE a plastic dishwashing scrub pad to aid in the removal of rust.
Front View

PN# 500-10550
Page 20 Rev. D, 12/14
Troubleshooting Guide
POSSIBLE ISSUES TROUBLESHOOTING TIPS
No power or low power CONFIRM voltage and current at Magnalock to spec
CHECK that the DC Power Source is Full Wave Rectified
(Half wave Rectified or AC power is unacceptable).
Reduced Holding Force CHECK strike plate position and orientation.
CLEAN surfaces and CHECK for obstructions.
LED Error Codes
NOTE: The position 1 switch of DIP switch SW3 must be set to the ON position (LED
ENABLED) for error codes to be visible.
CODE STATE SOLUTION
SECURE selected color, on
continuously
Normal Operation with Door
Closed
System working normally, SECURE selected color
can be selected with position 2 switch of SW3.
See page 4.
NON-SECURE selected
color, on continuously
Normal Operation with Door
Open
System working normally.
RED/GREEN continuous
flash
Processor Error CHECK all connections, if error persists replace
unit.
3 Fast Flashes of SECURE
color every 5 seconds
Magnet Voltage has dropped
below 85%
CHECK voltage and current at Magnalock
connections. CHECK DC Power Source is Full
Wave Rectified.
Single Flash Amber every 5
seconds
Bond Error – Left Side CHECK strike plate position and orientation.
CLEAN surfaces and check for obstructions.
Double Flash Amber every 5
seconds
Bond Error – Right Side CHECK strike plate position and orientation.
CLEAN surfaces and check for obstructions.
Off LED disabled CHECK voltage and current at Magnalock
connections. CHECK that LED is enabled with
position 1 switch of SW3 is in the OFF position.
Problems with Installation?
Call Securitron: 1.800.MAGLOCK
For warranty information: www.securitron.com/warranty
Email: [email protected]
© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
