1 Items Supplied with Exit Device
Items included in your KP8877 and KP8977 Series Exit Device carton:
• Outside Escutcheon with Keypad
• Outside motorized Trim Assembly
• Exit Device
• Mortise cylinder for KP8977
• Rim cylinder for KP8877
• Inside Escutcheon with Circuit Board and Battery Pack
• 4 ‘C’ alkaline batteries
• Screw Pack
Items included in your KP8878 and KP8978 Series Exit Device Carton:
• Outside Escutcheon with Keypad
• Outside Motorized Trim Assembly
• Exit Device
• Inside Escutcheon with Circuit Board and Battery Pack
• 4 ‘C’ alkaline batteries
• Screw Pack
Remote
unlocking
connector
placement
Inside of
door
• Printer Paper (6 Rolls) - 52-0034 used for infrared printers
• Auxiliary Power Unit (APU) 52-2065 - used to unlock unit if
batteries are too weak and cylinder is not used
• Infrared Printer - 52-2069 - used to download the user and
transaction type
• Remote Unlocking - 52-2071 - used for remote unlocking
of motorized “ET” outside trim
Optional Equipment
4 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
2 Parts Breakdown
ITEM # PART # DESCRIPTION QTY
152-2340 *Outside Escutcheon Assembly (with keypad assy) 1
52-0004 *Outside Escutcheon only 1
1a 52-2299 Keypad (with ribbon cable) less escutcheon 1
1b 52-2303 Screw Pack (Includes 1c, 1d, 2d, 2e) 1
1c 52-0033 Fire Stop Plate 1
1d 01-1500 Fire Stop Plate screws 2
52-0254 Optional Keypad Weatherseal Gasket (exterior use),
not shown
1
252-2302 *Inside Escutcheon Assembly (with controller assy) 1
52-0087 *Inside Escutcheon only 1
2a 52-2561 Controller Assembly (with battery housing) 1
2b 52-0069 Battery Cover 1
2c 01-1212 Security Screw 1
2d 01-0297 Security Tool 1
2e 01-1119 Top Escutcheon thru-bolt 1
*3 Consult
Factory
*ET Assembly (with cylinder & motor assy) 1
*ET Assembly (without cylinder & motor assy) 1
3a 68-7546 Motor Actuator Assembly 1
52-5654 Ecoflex ET Harness 2
3b 01-4451 ET thru-bolts 2
3c 13-0074 Cylinder Retaining screws 1
52-0263 Optional ET Trim Weatherseal Gasket (exterior use),
not shown
468-4261 Center Case Assembly - LHRB & RHRB (standard) 1
4a 68-4263 Center Case Assembly - LHRB (12-) & RHRB (12-) 1
4b 68-0406 *Chassis Cover 1
97-0052 *Chassis Cover screws 4
* Specify finish
3
1a
8877
ONLY
(#34)
1
Door
3a
2a
1b
2a
Outside of door Inside of door
2
4
3b
2
1b
2e
2b
1b
3b
3c
4b
2d
4a
1b 1c 1d
2c
5 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
2
* Specify finish
3
1a
8877
ONLY
(#34)
2c
Door
3a
2a
1b
2a
Outside of door Inside of door
5
2
4
3b
1b
2e
2b
1b
3b
4b
2d
4a
Parts Breakdown (Continued)
3
ITEM # PART # DESCRIPTION QTY
1 52-2340 *Outside Escutcheon Assembly (with keypad assy) 1
52-0004 *Outside Escutcheon only 1
1a 52-2299 Keypad (with ribbon cable) less escutcheon 1
1b 52-2303 Screw Pack (Includes 1c, 1d, 2d, 2e) 1
1c 52-0033 Fire Stop Plate 1
1d 01-1500 Fire Stop Plate screws 2
- 52-0254 Optional Keypad Weatherseal Gasket (exterior use),
not shown
1
2 52-2302 *Inside Escutcheon Assembly (with controller assy) 1
52-0087 *Inside Escutcheon only 1
2a 52-2561 Controller Assembly (with battery housing) 1
2b 52-0069 Battery Cover 1
2c 01-1212 Security Screw 1
2d 01-0297 Security Tool 1
2e 01-1119 Top Escutcheon thru-bolt 1
3 Consult
Factory
*ET Assembly (with cylinder) 1
*ET Assembly (without cylinder) 1
3a 68-7546 Motor Actuator Assembly 1
3b 52-5654 Ecoflex ET Harness 1
- 52-0263 Optional ET Trim Weatherseal Gasket for exterior use,
(not shown)
1
468-2172 Center Case Assembly - LHRB (standard and 12-) 1
68-2173 Center Case Assembly - RHRB (standard and 12-) 1
4a 68-0407 *Chassis Cover 1
4b 97-0052 *Chassis Cover screws 4
5 99-2401 Mortise Lockbody - LHRB 1
99-2402 Mortise Lockbody - RHRB 1
1c
1b 1d
1
6 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
3 Rim Installation Instructions for KP8800 Series
NOTE: BEFORE STARTING
• This device is non-handed
• Door should be fitted and hung
• Verify box label for size of exit device, function and hand
• Install mullion in frame, if used
Step #1 Exit Hardware & Door Prep
Prep door according to installation instruction sheet A6770.
Left Hand
Reverse Bevel
“LHRB” Outside
Right Hand
Reverse Bevel
“RHRB”
Inside
7 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
3 Rim Installation Instructions for KP8800 Series (Continued)
(#34)
Cylinder
Outside
of door
Wire
harness ET control
Outside
of door
Inside of
door
(2) 1/4 - 20 x 2 3/8’’
Flat head machine
screws
Wire harness
Exit chassis
Exit chassis
Wire harness
(4) #10 Wood screws or
#10-24 machine screws
(2) #12-24 x 1- 7 ⁄ 8 ‘’
connecting screws
Inside
of door
1. Outside Trim
• Route harness through under cut of cylinderhole
and out to other side of door
• Mount “ET” control onto door
Center line for
(2) 1/4 - 20 x 2-3/8’’
flat head
machine screws
3. Cylinder Installation (KP8877 & 12-KP8877)
• Insert cylinder into “ET” control
• Mate cylinder tailpiece into hub of exit device
chassis
• Make sure “ET” harness is clear of cylinder and
cylinder tailpiece
C For (2) #12-24 x 1-7/8”
connecting screws
2. Inside Trim
• Route “ET” harness along track cutout for wood doors andac-
cess hole for metal doors
• Mount exit chassis carefully. DO NOT PINCH HARNESS WIRES
• “ET” spindle will engage into the hub of exit device chassis
• Secure chassis with (2) 1/4-20 x 2-3/8” flat head-
machine screws
4. Securing Cylinder
• Secure cylinder to exit chassis using (2) #12-24
x 1-7/8” connecting screws
• Fasten exit chassis to door using (4) #10 wood
screws or #10-24 machine screws
5
Step #2 Install Outside & Inside Trim
8 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
CL OF 1-1/2” Dia.
1-1/2’’
1-1/2’’ Dia.
(2) 1/8” Dia. hole can be
drilled if the door is not
supplied with them
7/8’’
Slot
(2) Self tapping
screws #8 x 1/2”
for wood & metal
doors
Step #3 Apply Fire Stop Plate
1. Fire stop plate for 12-devices
• Fire stop plate required in all fire rated doors (12-)
• Drill (2) 1/8” diameter holes if the door is not supplied with them
• Secure fire stop plate to door with (2) #8 x 1/2” self tapping screws
Inside of
door
NOTE: Fire stop plate is required
on all fire rated doors
Outside of
door
3 Rim Installation Instructions for KP8800 Series (Continued)
9 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
3
1. Insert wires and connector from the outside of the
door,through the fire stop plate (if required)
• For non-12- exit devices, feed wire harness from
keypad assembly through hole in door
Inside
of door
C
Lower
lug
Fire
stop
plate
Connector & Wires
go through fire stop
plate
Lower
lug
Outside
of door
Inside of
door
Connector &
wires through
fire stop plate
Flat
washer
#8-32 Pan head
screw
Inside
of door
Outside
of door
Rim Installation Instructions for
KP8800 Series (Continued)
• From the inside of the door, use the
#8-32 x 1-1/4” pan head screw
with the flat washer to attach the
escutcheon using the lower lug
• Straighten keypad escutcheon
and tighten the #8-32 x 1-1/4”
pan head screw
Step #4 Outside Keypad Escutcheon
10 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
3
•Plug keypad connector into inside
escutcheon as shown.The back
plate can be removed to feed the
large connector through slot into
the circuit board to be assured of
proper fit. If connector is not fully
and properly seated on pins,
unit will not function properly.
•Plug smaller connector as shown
into inside escutcheon
NOTE: Both connectorsin-
stall only one way. Donot
offset the connectors.Be
sure connectors areseated
completely.
Small
connector
from ET
Control
Inside
of door
Back-
plate Keypad
connector
Inside
Escutcheon
#8-32 x 1-1/2’’ Flat
head machine
screw
52-0086
Bracket
#8 x 1’’ Screw
Inside
of door
Keypad
Outside
of door
• Securely fasten top of
inside escutcheon to top
of keypad using a #8-32 x
1-1/2” machine screw
• Securely fasten bottom of
escutcheon (52-0086) to
door using #8 x 1” screw
Outside
of door
Rim Installation Instructions for
KP8800 Series (Continued)
Step #5 Inside Controller Assembly
11 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
Inside
Escutcheon
Inside of
door
#8-32 x 3/8” Long
flat head screw
(security screw)
Step #6 Rail Assembly
Install rail according to installation instruction sheet A6770
Step #7 Battery Installation
• Place (4) C size batteries into the compartment
• Attach battery cover to inside escutcheon and secure
with #8-32 3/8” long flat head security screw
Battery
cover
3 Rim Installation Instructions for
KP8800 Series (Continued)
Keypad
Outside
of door
12 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
Left Hand
Reverse Bevel
“LHRB” Outside
Right Hand
Reverse Bevel
“RHRB”
4
NOTE: BEFORE STARTING
• Check hand of door - this device is not reversible
• Door should be fitted and hung
• Verify box label for size of exit device, function and hand

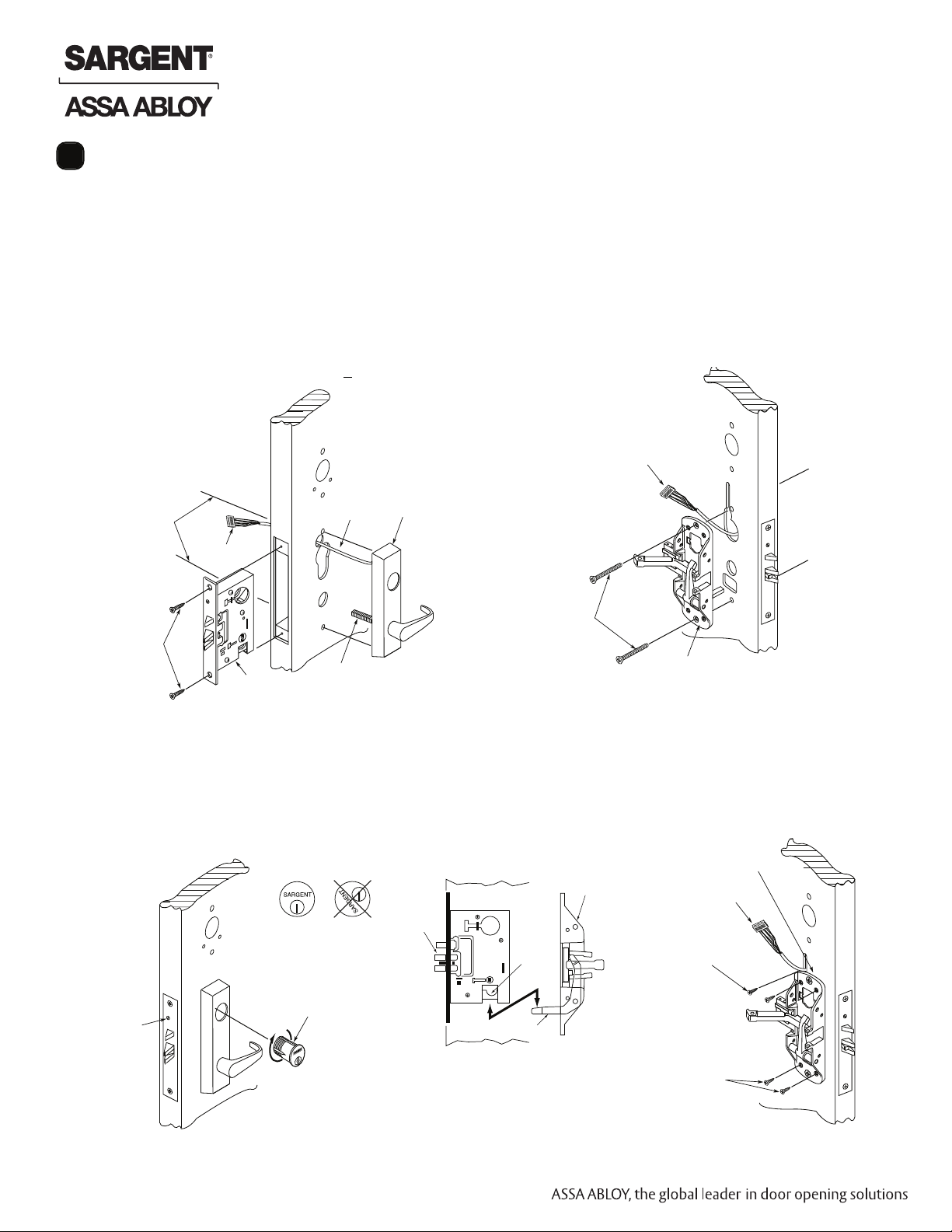

Step #1 Exit Hardware & Door Prep
Prep door according to installation instruction sheet A6705
13 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
Centerline for
(2) 1/4 - 20 x 2-3/8’’
flat head
machine
screws
(2) Flat head
wood screws
Connector
Mortise lock
Wire
harness ET Control
ET Spindle Outside
of door
Cylinder
set screw
Figure 1
Correct Incorrect
Cylinder
Outside
of door
Latchbolt
Lever
Lever Arm
Chassis
Inside
of door
Exit chassis
Wire harness
(4) #10 Wood screws or
#10-24 machine screws
(4) #10 Wood
screws or #10-24
machine screws
Wire harness
Exit chassis
Step #2 Install Outside & Inside Trim
3. Cylinder Installation (KP8977 & 12-KP8977)
• Insert cylinder into “ET” control. Back out the
cylinder set screw in mortise lock
• Thread cylinder clockwise into mortise lock
until the cylinder sits flush and correct on
“ET” control (see Figure 1)
• Tighten cylinder set screw
2. Inside Trim
• Route “ET” harness along track cutout for wood doors
and access hole for metal doors.
• Mount exit chassis carefully. Do not pinch
harness wires
• Secure chassis with (2) 1/4-20 x 2-3/8” flat head
machine screws
(2) 1/4 - 20 x 2 3/8’’
Flat head ma-
chine screws
Inside
of door
4. Securing Chassis to Door
Inside of
door
• Position exit chassis on door so that lever arm is
under rear section of mortise lock lever. Then lift up
until latchbolt is completely retracted.
• Fasten exit chassis to door using (4) #10 wood
screws or #10-24 machine screws
4
• Mount “ET” control onto door
• Route harness through wire cutout and out to
other side of door
• Slide mortise lock into door and securely fasten to
door with (2) flat head screws
• “ET” spindle will engage into mortise lock
1. Outside Trim
14 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
C of 1-1/2” Dia.
1-1/2’’
1-1/2’’ Dia.
(2) 1/8” Dia. holes can be
drilled if the door is not
supplied with them
7/8’’
Slot
(2) Self tapping
screws #8 x 1/2”
wood & metal doors
Step #3 Apply Fire Stop Plate (Required for 12-)
5. Fire Stop Plate for 12- Devices
• Fire stop plate required on all fire rated doors (12-)
• Drill (2) 1⁄8” diameter holes if the door is not supplied with them
• Secure fire stop plate to door with (2) #8 x 1/2” self tapping screws
Inside
of door
NOTE: Fire stop plate is required
on all fire rated doors
Outside
of door
L
4 Mortise Installation Instructions for
KP8900 Series (Continued)
15 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
Lower
lug
Fire
stop
plate
Wires & connector
go through fire stop
plate
Lower
lug
Outside
of door
Connector &
wires through
fire stop plate
Flat
washer
#8-32 x 1-1/4’’
Pan head screw
Inside of
door
Outside
of door
• From the outside of the door through
the Fire Stop Plate (if required)
• For non 12- exit devices feed wire
harness from keypad assembly through
hole in door
Inside
of door
• From the inside of the door, use
the #8-32 x 1-1/4” pan head
screw with the flat washer to
attach the escutcheon using the
lower lug
• Straighten keypad escutcheon
and tighten the #8-32 x 1-1/4”
pan head screw
13
C
L
4 Mortise Installation Instructions for
KP8900 Series (Continued)
6. Insert Wires and Connector
16 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
•Plug Keypad connector into inside
escutcheon as shown.The back
plate can be removed to feed the
large connector through slot into
the circuit board to be assured of
proper fit. If connector is not fully
and properly seated on pins,
unit will not function properly.
•Plug smaller connector as
shown into inside escutcheon
NOTE: Both connectorsgo on
only one way. Donot offset the
connectors.Be sure connectors
areseated completely.
Back-
plate
Small
connector
from ET
Control
Keypad
connector
Inside
of door
Keypad
Outside
of door
Inside
Escutcheon
#8-32 x
1-1/2’’Flat head
machine
screw
52-0086
Bracket
#8 x 1’’
Screw
Inside
of door
Step #5 Inside Controller Assembly
• Securely fasten top of inside
Escutcheon to top of keypad
using a #8-32 x 1-1/2” machine
screw
• Securely fasten bottom of
Escutcheon (52-0086) to door
using #8 x 1” screw
Outside
of door
4 Mortise Installation Instructions for
KP8900 Series (Continued)
17 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
Inside
Escutcheon
Inside of
door
Outside of
door
Installation Instructions for KP8900 Series (Continued)
Step #6 Rail Assembly
Install Rail according to installation instruction A6705
Battery
cover
Step #7 Battery Installation
• Place (4) C size batteries into the compartment
• Attach battery cover to inside Escutcheon and secure with #8-32 3/8” head
flat security screw.
#8-32 x 3/8”
Flat head screw
(security screw)
4 Mortise Installation Instructions for
KP8900 Series (Continued)
18 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
5 Programming Instructions
The Keypad Exit Device Lock can support 100 users. Each user is assigned a User Number
in addition to the code used for entry.
Example:
This Keypad Exit Device Lock has 99 User Codes available for programming purposes.
• The Master Code is always User “01”. The Master Code assigns the Emergency and Supervisory Codes. It is also used
for programming. Users are deleted through the Master Programming Code only.
• The Emergency Code is always User “02”. The Emergency Code will override the deadbolt in the mortise lock and has
an unlock time of 10 seconds.
• The Supervisory Code is always User “03”. The Supervisory Code allows temporary lockout of selected users, changes
duration of unlock time, requests infrared interrogation output, and may add additional User Codes.
• The first User Code will be User “04” or higher. User numbers do not have to be used or entered sequentially.
• User codes “98” and “99” have a factory-set unlock time of ten seconds. This allows a handicapped person extra time
which would not be required by other users.
To Begin Programming:
The Keypad Exit Device Lock is preset at the factory with Master Code “1234”.
Entering 1234* the lever handle to retract the latchbolt.
Initial Set-Up Procedures:
• The following are typical procedures to follow when setting up your KP Exit Series Keypad.
• If a mistake is made during any of procedures, depress the several times until the yellow LED goes out.
• If no keystroke is made in a 30sec time frame the programming up to that point will default and you will have to start over.
• If after the last “ *” is depressed, the yellow LED does not go out, depress “*” once more.
Change the Master Code:
99# 1234
50# 1# 01# New Master Code
*
New Master Code
This example uses the Factory Default Master Code
* * *
To Enter the Emergency Code:
99# Master Code
50# 1# 02# Emergency Code
*
Emergency Code
** *
Yellow LED begins to blink slowly
Yellow LED blinks quickly
Yellow LED blinks slowly
Yellow LED goes out
Yellow LED begins to blink slowly
Yellow LED blinks quickly
Yellow LED blinks slowly
Yellow LED goes out
USER
TYPE
USER
NUMBER
USER CODE
(2-6 DIGITS)
Master
Emergency
Supervisor
01
02
03
1 2 3 4
2 2 2 2 2
3 0 3 0 3 0
Standard 04-97 2 6 5
Special Factory
10 Sec. Time Preset
98
99 1 3 6 8
“*”
19 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18

KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
99# Master Code
50# 1# 03# Supervisory Code
*
Supervisory Code
* *
To Enter a User Code:
*
99# Supervisory or Master Code
50# 1# User Number (04-97)# User Code
User Code
* *
* *
Yellow LED begins to blink slowly
Yellow LED blinks quickly
Yellow LED blinks slowly
Yellow LED goes out
Yellow LED begins to blink slowly
Yellow LED blinks quickly
Yellow LED blinks slowly
Yellow LED goes out
To Enter a Passage (Maintained Mode) Code:
When Passage Mode is used, the same User Code must be used to re-lock the lock.
99# Supervisory or Master Code
50# 2# User Number (04-97)# User Code
User Code
* *
*
To Enter a One-Time User Code:
99# Supervisory or Master Code
50# 3# User Number# User Code
User Code
* *
* *
*
To Deactivate “Beep” with the Depression of Each Key:
99# Supervisory or Master Code
30# 0# 0# Yellow LED continues to blink slowly
*
*
*
*
Yellow LED begins to blink slowly
Yellow LED blinks quickly
Yellow LED blinks slowly
Yellow LED goes out
Yellow LED begins to blink slowly
Yellow LED blinks quickly
Yellow LED blinks slowly
Yellow LED goes out
Yellow LED begins to blink slowly
To Reactivate “Beep” with the Depression of Each Key:
99# Supervisory or Master Code
30# 0# 1# Yellow LED continues to blink slowly
*
*
*
To Clear the Entire Memory:
99# Master Code
*
Yellow LED blinks quickly
No beep on depression and yellow LED blinks slowly
No beep on depression and yellow LED goes out
46# 00000# 00000# Yellow LED continues to blink slowly
*
PAUSE Yellow LED begins to blink slowly again
*
*
*
Yellow LED blinks quickly
Beep on depression and yellow LED blinks slowly
Beep on depression and yellow LED goes out
Yellow LED begins to blink slowly
Yellow LED blinks quickly
No beep on depression and yellow LED goes out
Yellow LED goes out
NOTE: This deletes ALL codes, including Master, Emergency and Supervisory. The Master Code is set back to 1234, Door Number to 0001 and Unlock
timeto 5 sec. If the Master Code is not known, Factory Assistance will be required to clear the memory. 1-800-810-WIRE.
To Program Door Numbers into Keypad:
99# Master Code
43# 0# Door Number# (Must be four digits) Yellow LED blinks slowly
*
*
*
* Yellow LED begins to blink slowly
Yellow LED begins to blink quickly
Yellow LED blinks slowly
Yellow LED goes out
5Programming Instructions (Continued)
To Enter the Supervisory Code:
20 A7137C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
