Installation Instructions For
Profile Series v.G1 Exit Device
A7757C
Copyright © 2004, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of
Sargent Manufacturing Company is prohibited.
FOR ASSISTANCE, CONTACT SARGENT AT800-727-5477 or www.sargentlock.com

800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Table of Contents
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced TV technician for help
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme avec la norme NMB-003 du Canada.
Warning
1Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Warning
General Description...........................................................................1
Specifications....................................................................................1
Features .............................................................................................1
Parts Breakdown .............................................................................2-5
Installation Instructions–Rim Type Device.....................................6-9
Installation Instructions–Mortise Type Device ............................10-13
Operational Check............................................................................14
Installation of the RF Technology Lock (G1-TU, G1-TA, G1-TP)......14
1
2
3
4
5
6
7
Page
8
Warning
!To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
9

1
800-810-WIRE (9473) • www.sargentlock.com • A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
The SARGENT Profile Series v. G1 Rim/Mortise Exit Device is designed for areas
which require stand alone authorized entry. It is a self-contained microprocessor-
controlled keypad with non-volatile memory. The keypad will hold a total of 100
(LK)/2000 (GI-LU, GI-PK, GI-PA, G1-TU, G1-TP, G1-TA) different user codes. User
locations “01” & “02” are utilized for Master and Supervisory Codes, respectively.
This product is operated by six (6) “AA” alkaline batteries. SARGENT exit devices
locks are designed with high quality components to provide high security,
performance and durability.
General Description
2
Items Supplied with Exit Device
Items included in your 8877 and 8977 Series Exit Device
carton:
• Outside Escutcheon with Keypad
• Outside motorized Trim Assembly
• Exit Device
• Mortise cylinder for 8977
• Rim cylinder for 8877
• Inside Escutcheon with Circuit Board and Battery Pack
• 6 “AA” alkaline batteries
• Screw Pack
Items included in your 8878 and 8978 Series Exit Device
carton:
• Outside Escutcheon with Keypad
• Outside Motorized Trim Assembly
• Exit Device
• Inside Escutcheon with Circuit Board and Battery Pack
• 6 “AA” alkaline batteries
• Screw Pack
Specifications
Profile Series Rim Exit
• Latch – 3/4" throw, stainless steel
• Outside motor driven “ET” lever controlled by keypad
• Push bar retracts latch from inside
• Fire stop provided on all lever handle designs
• Profile Series exit devices furnished for 1-3/4" doors
• UL Listed
• Accepts all SARGENT rim cylinders (8877 only)
• Key retracts latch (8877 only)
• Available in “ET” lever handle designs only
Profile Series Mortise Exit
• Latch – 3/4" throw, anti-friction, brass
• Outside motor driven “ET” lever controlled by keypad
• Push bar retracts latch from inside
• Fire stop provided on all lever handle designs
• Profile Series exit devices furnished for 1-3/4" doors
• UL Listed
• Accepts all SARGENT mortise cylinders (8977 only)
• Key retracts latch (8977 only)
• Available in “ET” lever handle designs only
Features
• Low battery alert – 4 chirps after code entry
• External remote “request to enter” connector
• Master, Emergency or Supervisory code will unlock door
when low battery has expired
• Programming done at keypad or with a PDA using
SofLink™ Plus software and a PC (software required for
G1-PA & G1-TA)
• Entry of three wrong User Codes disables all codes for
ten seconds. Yellow LED on solid
• Last 15 transactions can be output to portable printer
via infrared link (LK Only)
• Last 2000 (Except LK) transactions can be output to
PC using a PDA and SofLink™ Plus software
3
4

2
800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

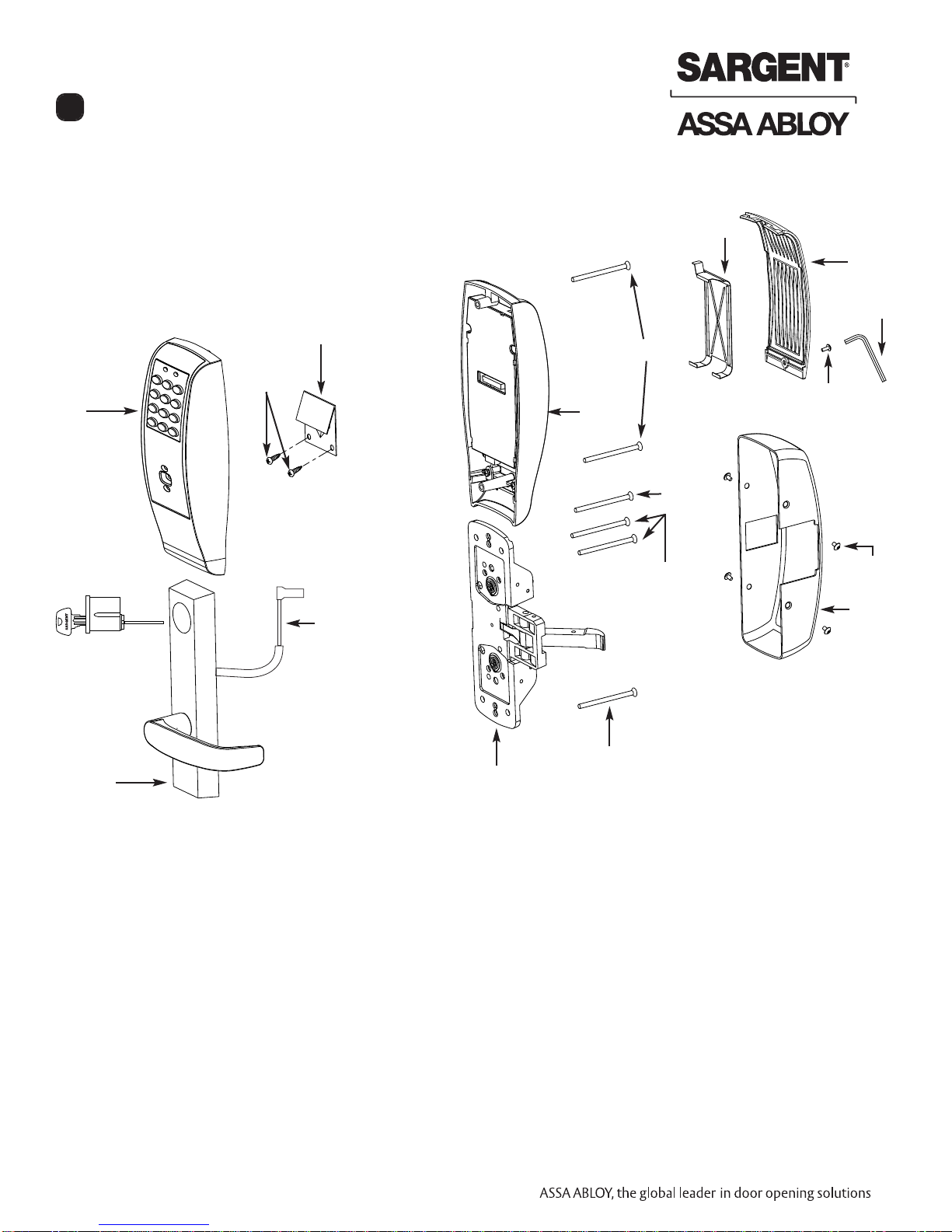

Parts Breakdown
8877/8878 x ET x Lever Design
Profile Series Rim Exit Device
5
1
7
6
12
11 14
13 (X2)
13 (X2)
13
15
2
9
3
5
4
18 (X4)
17

3
800-810-WIRE (9473) • www.sargentlock.com • A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
ITEM PART No. DESCRIPTION REQ’D
1 52-2839 Outside Escutcheon (Prox Only) Assembly (G1-PA, G1-TA) 1
52-2474 Outside Escutcheon (Keypad Only) Assembly (LK)
1 52-2838 Outside Escutcheon (Keypad/Prox) Assembly (G1-LU, G1-PK, G1-TU, G1-TP) 1
52-2704 Key Pad and Proximity Assembly (G1-LU, G1-PK, G1-TU, G1-TP) 1
52-2432 Keypad/Proximity Bezel Assembly w/ Harness (LK) 1
52-2706 Proximity Only Assembly (G1-PA, G1-TA) 1
68-1397 Outside Escutcheon Housing Only 1
52-0176 Outside Escutcheon End Cap 1
2 52-2460 Inside Escutcheon Assembly with 100 User Controller (LK) 1
2 52-2833 Inside Escutcheon Assembly with 2000 User Controller (G1-LU) 1
2 52-2834 Inside Escutcheon Assembly with Prox/Key Pad Controller (G1-PA, G1-PK) 1
52-2836 Inside Escutcheon Assembly (Keypad Only)
with RF Technology Controller (G1-TU)
52-2835 Inside Escutcheon Assembly (Keypad/Prox or Prox Only)
with RF Technology Controller (G1-TA, G1-TP)
68-1396 Inside Escutcheon Housing Only 1
52-0175 Inside Escutcheon End Cap Only 1
52-2441 100 User Controller Assembly (LK) 1
52-2783 2000 User Controller Assembly (G1-LU) 1
52-2784 2000 User Controller Assembly (G1-PA, G1-PK) 1
52-2786 2000 User (Keypad/Prox or Prox Only) Controller Assembly w/ RF Technology (G1-TA, G1-TP)
52-2785 2000 User (Keypad Only) Controller Assembly w/ RF Technology (G1-TU)
3 52-0170 Battery Cover 1
52-2309 Battery Cover – RF Technology (G1-TU,G1-TP, G1-TA)
4 01-1212 Security Screw 1
5 01-0297 Security Tool 1
6 52-0033 Fire Stop Plate 1
7 01-1500 Fire Stop Screws #8 x 1/2” Type “AB” Phillips Pan Head Self Tap 2
01-0803 Battery Alkaline (“AA” Cell) 6
9 52-0253 Battery Keeper 1
52-0344 Battery Keeper – RF Technology (G1-TU, G1-TP, G1-TA)
10 52-2425 Screw Pack (Includes item numbers 5, 6, 7, 15) 1
11 Consult Factory Motorized ET Lever Trim 1
12 Consult Factory Motor and Harness Assembly 1
13 01-4451 ET Through-bolts 2
14 13-0074 Cylinder Retaining Screws 2
15 77-0685 Escutcheon Through-bolts 2
16 68-4261 Center Case Assembly LHRB & RHRB (Std.) 1
68-4263 Center Case Assembly LHRB (12-) & RHRB (12-) 1
17 68-0406 Chassis Cover 1
18 97-0052 Chassis Cover Screws 4

4
800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Parts Breakdown
8977/8978 x ET x Lever Design
Profile Series Mortise Exit Device
5
Door
9
3
5
15
19 (X4)
18
13
16
17
12
11
7
6
1
4
2

5
800-810-WIRE (9473) • www.sargentlock.com • A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
ITEM PART No. DESCRIPTION REQ’D
1 52-2839 Outside Escutcheon (Prox Only) Assembly (G1-PA, G1-TA) 1
1 52-2838 Outside Escutcheon (Keypad/Prox) Assembly (LK, G1-LU, G1-PK, G1-TU, G1-TP) 1
52-2432 Keypad/Proximity Bezel Assembly w/ Harness (LK) 1
52-2704 Key Pad and Proximity Assembly (LK, G1-LU, G1-PK) 1
52-2706 Proximity Assembly (G1-PA, G1-TA) 1
68-1397 Outside Escutcheon Housing Only 1
52-0176 Outside Escutcheon End Cap Only 1
2 52-2460 Inside Escutcheon Assembly with 100 User Controller (LK) 1
2 52-2833 Inside Escutcheon Assembly with 2000 User Controller (G1-LU) 1
2 52-2834 Inside Escutcheon Assembly with Prox/Key Pad Controller (G1-PA, G1-PK) 1
52-2836 Inside Escutcheon Assembly (Keypad Only)
with RF Technology Controller (G1-TU)
52-2835 Inside Escutcheon Assembly (Keypad/Prox or Prox Only)
with RF Technology Controller (G1-TA, G1-TP)
68-1396 Inside Escutcheon Housing Only 1
52-0175 Inside Escutcheon End Cap Only 1
52-2441 Enclosure (LK) Assembly 1
52-2783 Enclosure (G1-LU) Assembly 1
52-2784 Key Pad/Proximity Only Controller (G1-PA, G1-PK) Assembly 1
52-2786 2000 User (Keypad/Prox or Prox Only) Controller Assembly (G1-TA, G1-TP)
52-2785 2000 User (Keypad Only) Controller Assembly (G1-TU)
01-0803 Battery Alkaline (“AA” Cell) 6
3 52-0170 Battery Cover 1
52-2509 Battery Cover – RF Technology (G1-TU,G1-TP, G1-TA)
4 01-1212 Security Screw 1
5 01-0297 Security Tool 1
6 52-0033 Fire Stop Plate 1
7 01-1500 Fire Stop Screws #8 x 1/2” Type “AB” Phillips Pan Head Self Tap 2
9 52-0253 Battery Keeper 1
52-0344 Battery Keeper – RF Technology (G1-TU, G1-TP, G1-TA)
10 52-2425 Screw Pack (Includes item numbers 5, 6, 7, 15) 1
11 Consult Factory Motorized ET Lever Trim 1
12 Consult Factory Motor and Harness Assembly 1
13 01-4451 ET Through-bolts 2
15 77-0685 Escutcheon Through-bolts 2
16 68-2172 Center Case Assembly LHRB (Standard and 12-) 1
16 68-2173 Center Case Assembly RHRB (Standard and 12-) 1
17 99-2401 Mortise Lock LHRB 1
17 99-2402 Mortise Lock RHRB 1
18 68-0407 Chassis Cover 1
19 97-0052 Chassis Cover Screws 4

6
800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Installation Instructions for Rim Type
Exit Device 8877/8878
Inside
Outside
Left Hand
Reverse Bevel
"LHRB"
Right Hand
Reverse Bevel
"RHRB"
IMPORTANT: BEFORE STARTING
•This device is non handed
•Door should be fitted and hung
•Verify box label for size of exit device, function and hand
Step #1 – Exit Hardware & Door Prep
1. If using a mullion, install in frame.
2. Prep door according to Exit installation instructions A6770 and template 4640 (metal and wood doors).

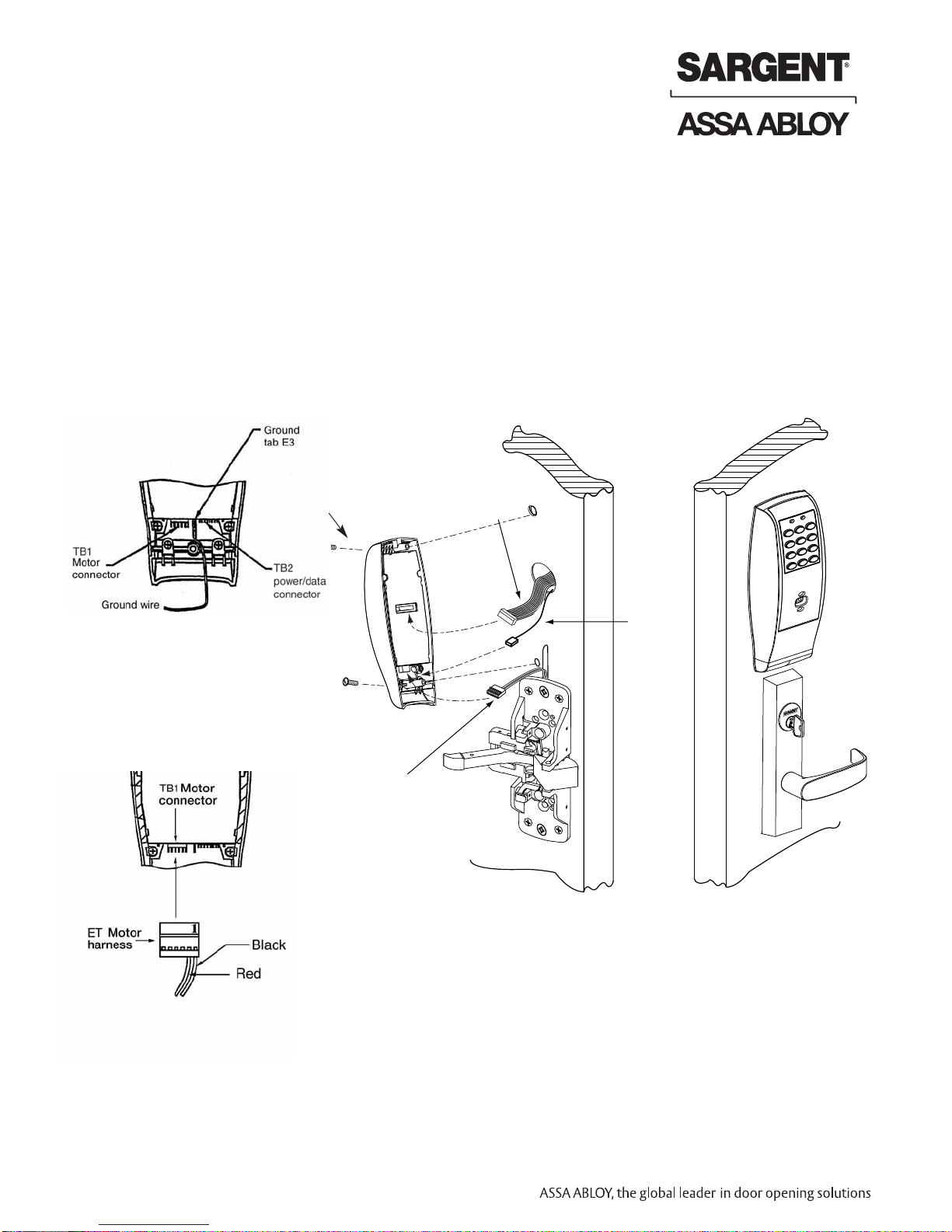

Step #2 – Installation of Outside Trim, Exit Chassis and Cylinder
A. Outside Trim
1. For exterior applications “ET” gasket (52-0263)
should be used to seal between “ET” escutcheon
and outside door surface
2. Route harness through under cut of cylinder hole
and out to other side of door
3. Place “ET” control onto door
B.Inside Trim
1. Route “ET” harness along track cutout for wood
doors and access hole for metal doors
2. Mount exit chassis carefully. DO NOT PINCH
HARNESS WIRES
3. “ET” spindle will engage into the hub of exit device
chassis
4. Secure chassis and “ET” with (2) 1/4 -20 x 2-3/8"
flat head machine screws
C. Cylinder Installation
NOTE: For devices without cylinder, go to Step D2.
1. Insert cylinder into “ET” control
2. Mate cylinder tailpiece into hub of exit device
chassis
3. Make sure “ET” harness is clear of cylinder and
cylinder tailpiece
D. Securing Cylinder
1. Secure cylinder to exit chassis using (2) #12-24 x
1-7/8" connecting screws
2. Fasten exit chassis to door using (4) #10 wood
screws or #10-24 machine screws
#34
Cylinder
ET Control
Wire
harness
Wire harness
(2) 1/4-20 x 2-3/8"
Flat head
machine screws
secures ET Exit Chassis
(2) #12-24 x 1-7/8"
Flat head connecting
screws for cylinders
(4) #10 Wood
screws or #10-24
machine screws
Outside
of door ET gasket
Inside
of door
Outside
of door
Inside
of door
6

7
800-810-WIRE (9473) • www.sargentlock.com • A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Step #3 – Attach Fire Stop Plate
Installation Instructions (Continued)
Outside
of door
1-1/2'' Dia.
7/8''
NOTE: Required for 12- Fire Rated doors only
1. Drill (2) 1/8" diameter holes if the door is not supplied with them
2. Secure fire stop plate to door with (2) #8 x 1/2" self tapping screws
Outside
of door
Wires & connector
go through fire
stop plate
Keypad ribbon
cable/connector
12 3
456
789
0
*
#
Step #4 – Installation of Outside Escutcheon
Insert connector and wires
1. For exterior applications gasket (68-1400) should be
used to seal between escutcheon and outside door surface
2a. For 12- fire rated devices feed keypad ribbon cable/connector
from outside of door through gasket then fire stop plate
2b. For non-12- exit devices, feed keypad ribbon cable/connector
through gasket then conduit hole in door
3. Place escutcheon against door surface
For exterior applications.
gasket (68-1400) should
be placed between the
escutcheon and door surface
-
+
-
+
-
+
-
+
+
-
+
-
Non Fire Rated Exterior Doors-
Install Weather Conduit
(P/N 52-2847) as shown below

8
800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Rim Installation Instructions (Continued)
1. Connect ground wire to terminal E3 (Fig. 1), keypad harness to controller (Fig. 2), and ET motor harness to motor
connector (Fig. 3).
2. Place extra wire inside door hole and/or outside escutcheon being careful not to pinch wires.
3. Connectors go on only one way, do not offset connector and be sure they are completely seated.
4. Insert #8-32 x 1-1/4" screws through inside escutcheon and thread into outside escutcheon. Straighten
escutcheons and tighten securely.
Ground
wire
ET Motor
harness
Keypad
harness
Outside
of door
Inside
of door
Step #5 Installation of Inside Escutcheon
Fig. 1
Fig. 3
Fig. 2
Note : For RF Technology versions (G1-TU, G1-TP, G1-TA) refer to Section 9 to install through bolt screws.
Note: For RF Technology
version refer to Section 9.

9
800-810-WIRE (9473) • www.sargentlock.com • A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Rim Installation Instructions (Continued)
-
+
-
+
-
+
-
+
+
-
+
-
Security
screw
Security tool
01-0297 included
Battery keeper
Battery cover
- Polarity + Polarity
Bottom slots
Top tab
Tabs
Top slots

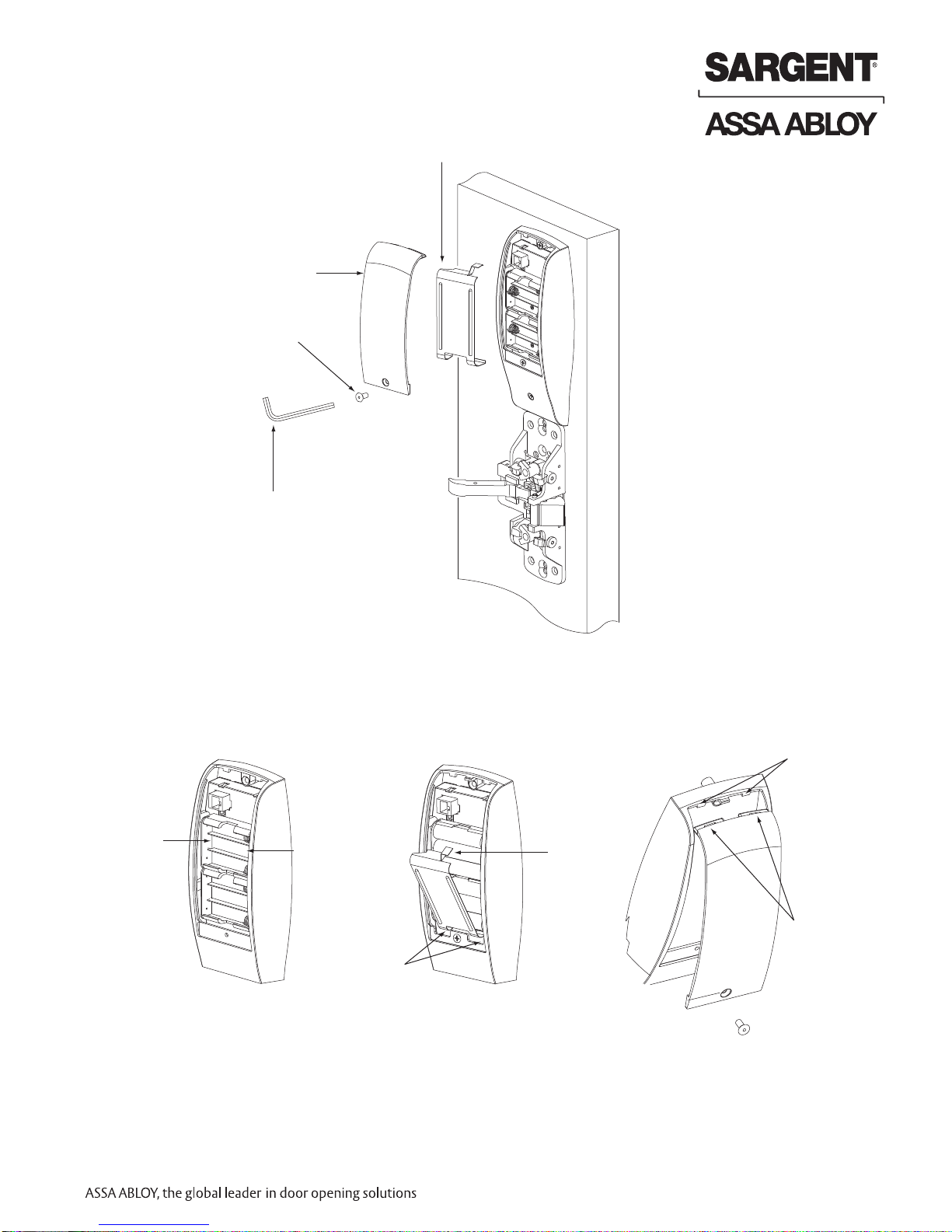

Step #6 Rail Assembly
Attach rail assembly according to exit installation instructions A6770
Fig. 4
Fig. 5 Fig. 6 Fig. 7
1. Place (6) “AA” batteries into
the compartment, being
careful to align polarity
properly (Fig. 5).
2. Install battery keeper clip
by inserting tabs into
bottom slots first (Fig. 6). To
remove keeper, pull on top
tab. For RF Technology
version refer to Section 9.
3. Attach battery cover to inside
escutcheon, making sure to
line up tabs with retaining
slots in battery cover. Secure
with security screw (Fig. 7).
Note: For RF
Technology versions
(G1-TU, G1-TP, G1-TA)
refer to Section 9 when
installing/removing
battery keeper.

10
800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Installation Instructions for Mortise Type Exit Device 8977/8978
Inside
Outside
Left Hand
Reverse Bevel
"LHRB"
Right Hand
Reverse Bevel
"RHRB"
IMPORTANT: BEFORE STARTING
• Check hand of door - this
device is not reversible
• Door should be fitted and hung
Verify box label for size of exit
device, function and hand
Step #1 - Exit Hardware & Door Prep
Prep door according to Exit installation instructions A6705 and template 4641 (metal and wood doors).
Step #2 - Install Outside Trim, Exit Chassis and Cylinder
A. Outside Trim
1. Slide mortise lock into door and securely fasten with (2) flat head screws
2. For exterior applications gasket (52-0263) should be used to seal
between “ET” escutcheon and outside door surface
3. Route “ET” harness through wire cutout and out other side of door
4. Place “ET” control on door with spindle inserted through mortise lock
Outside of door
(2) Flat
head
wood
screws ET Spindle
ET Control
Wire
harness
Mortise lock
Connector
Centerline for
(2) 1/4 - 20 x 2-3/8''
flat head
machine
screws
ET gasket
7

11
800-810-WIRE (9473) • www.sargentlock.com • A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Mortise Installation Instructions (Continued)
Step #2 – Install Outside Trim, Exit Chassis and Cylinder
Exit Chassis
(2) 1/4 - 20 x 2 3/8''
Flat head
machine screws
Wire
harness
Outside of
door
Cylinder
set screw
Cylinder
Correct Incorrect
Chassis
Lever
Latchbolt
Lever arm
Inside of
door
(4) #10 Wood
screws
or #10-24
machine
screws
B. Exit Chassis:
1. Route “ET” harness along track cutout for wood doors and access hole for metal doors
2. Mount exit chassis carefully. Do not pinch harness wires
3. Position exit chassis on door with lever arm under rear section of mortise lock
4. Using (2) 1/4-20 x 2-3/8" flat head screws attach chassis to “ET” control
5. Fasten exit chassis to door using (4) #10 wood screws or #10-24 machine screws
C. Cylinder Installation
NOTE: For devices without cylinders, skip this section.
1. Back cylinder set screw out of mortise lock
2. Insert cylinder through “ET” control and thread into
mortise lock until cylinder is flush with “ET”
3. Tighten cylinder set screw
Outside of door

12
800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Step #3 – Attach Fire Stop Plate
C
LOF 1-1/2" Dia.
(2) Self tapping
screws #8 x 1/2"
long for wood &
metal doors
(2) 1/8" Dia.
holes required
Slot
1-1/2" Dia.
7/8"
1-1/2"
Fire stop
plate
NOTE: Fire stop plate
is required on all fire
rated doors only
NOTE: Required for 12- Fire Rated doors only
1. Drill (2) 1/8" diameter holes if the door is not supplied
with them
2. Secure fire stop plate to door with (2) #8 x 1/2" self
tapping screws
Mortise Installation Instructions (Continued)
A. Insert Wires and Connector
1. For exterior applications gasket (68-1400) should be used
to seal between escutcheon and outside door surface
2. For 12- fire rated devices feed keypad ribbon cable/connector
from outside of door through gasket then fire stop plate
3. For non-12- exit devices, feed connector and wires through
gasket then hole in door
4. Place escutcheon against door surface
Wires & Connector
go through fire
stop plate
Ground wire
Keypad ribbon
cable/connector
Step #4 – Installation of Outside Escutcheon
For exterior applications
gasket (68-1400) should be
placed between the
escutcheon and the
door surface
-
+
-
+
-
+
-
+
+
-
+
-
Non Fire Rated Exterior Doors-
Install Weather Conduit
(P/N 52-2847) as shown below

13
800-810-WIRE (9473) • www.sargentlock.com • A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Mortise Installation Instructions (Continued)
1. Connect ground wire to terminal E3 (Fig. 1), keypad harness to controller (Fig. 2), and ET motor
harness to motor connector (Fig. 3).
2. Place extra wire inside door hole and/or outside escutcheon being careful not to pinch wires.
3. Connectors go on only one way, do not offset connector and be sure they are completely seated.
4. Insert #8-32 x 1-1/4" screws through inside escutcheon and thread into outside escutcheon.
Straighten escutcheons and tighten securely.
NOTE : For RF Technology versions (G1-TU, G1-TP, G1-TA) refer to Section 9 to install through bolt screws.
5. Install batteries and cover according to instructions on page 9.
Step #6 – Rail Assembly
Attach rail assembly according to Exit installation instructions A6705
1 2 3
456
789
0
*
#
Ground
wire
ET Motor
harness
Keypad
harness
Outside
of door
Inside
of door
For RF Technology
refer to Section 9.
Step #5 – Installation of Inside Escutcheon
Fig. 1
Fig. 3
Fig. 2

14
800-810-WIRE (9473) • www.sargentlock.com •A7757C
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Operational Check
Installation of the RF Technology Lock
1. For devices without cylinder go to step 4
2. For devices with cylinders, insert key into cylinder and rotate
3. The key will retract the latch, the key should rotate freely
4. Depress inside rail to retract latch
5. Enter 1234* to unlock outside lever handle and retract latch
6. If Prox only (G1-PA) or RF Technology with Prox (G1-TA)
- refer to keypad programming instructions (A7716)
123
45 6
789
0
*
#
Key/Cylinder, Code
Verification
8
9

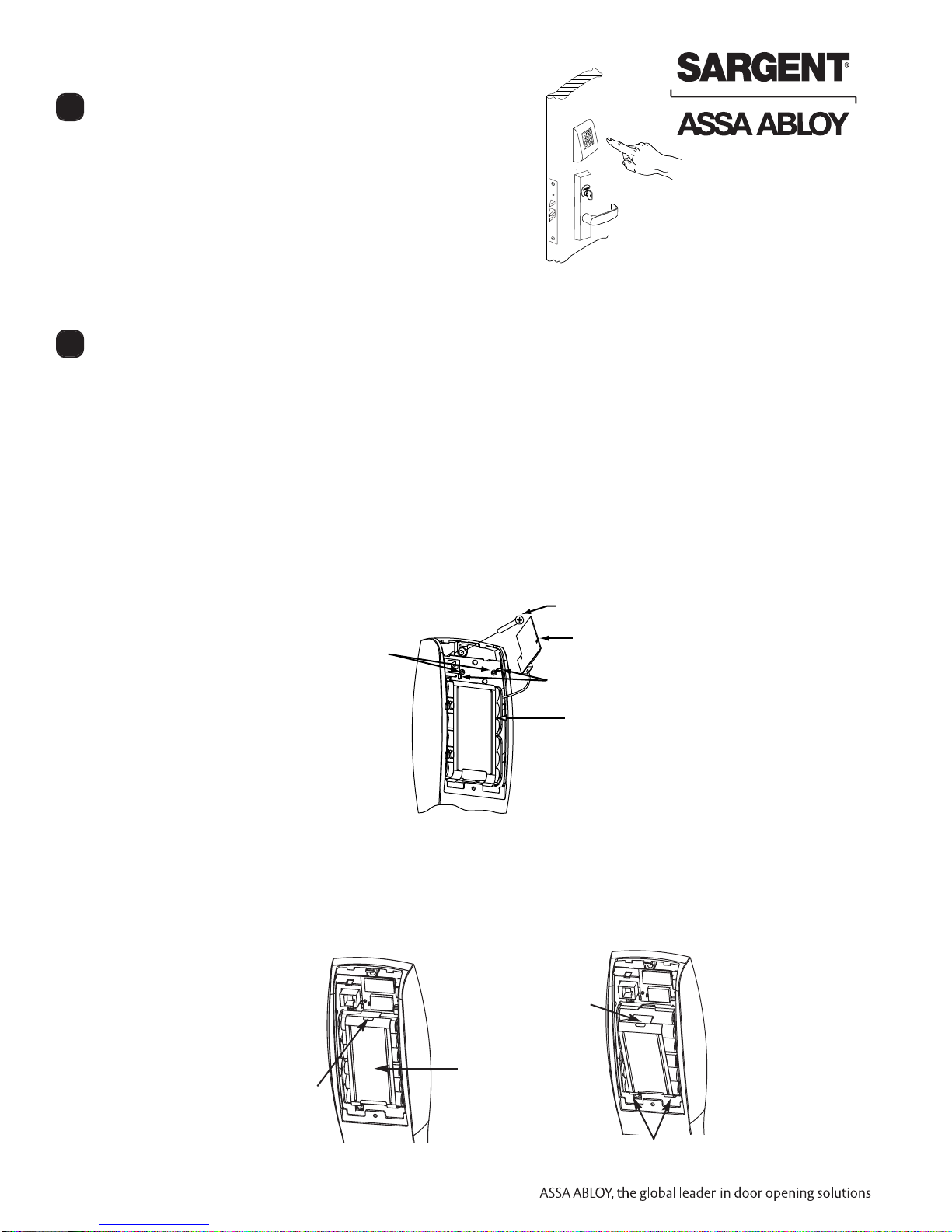

The antenna board must be carefully moved to access the upper through-bolt screw. Care should be taken
to prevent damage to the antenna retaining tabs during this process.
Press the two tabs away from the antenna board and lift the board off the mounting posts. Insert the flat head
through-bolt and secure the escutcheon in place. After tightening the top through-bolt, replace the antenna board
by placing it on the mounting posts and pressing into the retaining tabs.
A. Installation of the top through-bolt screw:
To remove the battery keeper, a flat bladed screwdriver or similar tool must be used.
Insert the screwdriver into the slot at the top of the battery keeper, lift up and pull the top of the keeper
away from the batteries.
To install, insert the tabs on the bottom of the keeper into the battery compartment slots and press the
keeper tightly against batteries.
B. Removal procedure for the Battery Keeper:
Flathead through-bolt
Antenna
Board
Retaining
Tabs
Mounting
Posts
Controller
Assembly
Insert screwdriver
tip and lift up
Battery
Keeper
Tip out
Keeper tabs
The RF Technology Lock (G1-TU, G1-TA, G1-TP) is installed as described in sections 1-8 with the
following exceptions: • Installation of the top through-bolt screw
• Removal process for the battery keeper
