Assa Abloy Norton 5700 Series Quick guide

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
6
2
31
4
87912 10
5
11
ASSA ABLOY
80-9357-0001-020 (09-13)
Tools required:
• 1/8” allen wrench (included)
• Flat blade screwdriver (potentiometer & terminal size)
• Screwdriver (Phillips size 2)
• Tape ruler
• Power drill and set of drill bits
• Center punch
• Wire stripper
• #7 drill 1/4-20 tap (metal frame install)
5700 Series
Power Operator
Installation and Instruction Manual
Item No. Description
1 Back plate
2 Door Closer (1601LAP or 1601BFLAP)
3 Motor Assembly (5700M)
4 Inverter (5700IN)
5 Cover (5700COV)
6 On/Off switch
7 Circuit Breaker
8 120VAC Electrical Connections
9 Activation Inputs
10 Door Open/Closed Position Magnets
11 Optional RF Receiver
12 Power Supply - 1.1A 24V
Always disconnect the main power to the operator prior to
servicing or cleaning.
To reduce the risk of injury or person, use the operator only with
Pedestrian Swing doors.
This operator is for indoor use only.
120VAC power supplied to the operator must be a dedicated
circuit from the main circuit breaker panel and must NOT be
connected into any building lighting system that operates
flourescent lights.
Maximum door size: 48 in (1219mm) wide x 250 lb (113.4kg).
WARNINGS
!
Patents 5,881,497; 7,316,096; 7,484,333

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
Page 2
Hollow Metal Door Frame Reinforcing
Frame
Material
12 Ga.
.1046 (2.66)
14 Ga.
.0747 (1.90)
16 Ga.
.0598 (1.52)
18 Ga.
.0478 (1.21)
12 Ga.
.1046 (2.66)
10 Ga.
.1343 (3.41)
10 Ga.
.1343 (3.41)
8 Ga.
.1644 (4.18)
18 Ga.
.0478 (1.21)
12 Ga.
.1046 (2.66)
12 Ga.
.1046 (2.66)
10 Ga.
.1343 (3.41)
Reinforcing
Recommended Min. Required
Contents
General Information
UL labeled fire or smoke barrier door assemblies require that
the 120VAC (60Hz) power input to the LEO door operator be
supplied through normally closed alarm contacts of the alarm
system / alarm panel.
Power input to LEO door operator must be 120VAC (60Hz) to
terminals HOT and COM at terminal strip T1. Earth ground
(GND) to green screw on backplate.
All wiring must conform to standard wiring practice in
accordance with national and local wiring codes.
Note: Unless otherwise noted, all dimensions are given in
inches (millimeters).
Minimum suggested and required material thickness for
hollow metal frames (skin plus reinforcement) is charted on
below.
Unit is Non-Handed.
Door must be hung on butt hinges [5” (127mm) max. width]
or 3/4” (19mm) offset pivots. A separate door and frame
preparation template will be supplied for other conditions.
Door must swing freely through the entire opening and
closing cycle before beginning the installation.
Use of an auxiliary door stop (by others) is always
recommended.
An incorrectly installed or improperly adjusted door operator
can cause property damage or personal injury. These
instructions should be followed to avoid the possibility of
misapplication or misadjustment.
WARNING: Make sure 120VAC (60Hz) input power is turned
off at facility’s main circuit breaker before proceeding with
installation.
General Templating Information:
Before beginning the installation, verify that the door frame is
properly reinforced and is well anchored in the wall.
Unreinforced hollow metal frames and aluminum frames
should be prepared and fitted with 1/4-20 blind rivet nuts,
furnished by others.
Concealed electrical conduit and concealed switch or sensor
wires should be pulled to the frame before proceeding.
Fasteners for Frame:
1/4-20 machine screws for hollow metal and aluminum.
No. 14 x 2-3/4” (70mm) long sheet metal screws for wood.
Fasteners for Door:
1/4-20 machine screws.
3/8” diameter x 1-5/8” (41mm) long sex nut.
Electrical Information:
Maximum current draw of unit is 0.6 amps.
Breaker Switch protects the motor assembly and inverter;
and has a 5 amp rating.
Maximum wire size is:
12AWG at terminals HOT and COM (120VAC; 60Hz) on
“T1” Power Input Terminal.
14AWG at terminals 1 thru 4 on Accessory Terminal .
18AWG at terminals 22 thru 25 on “T1” Power Input
Terminal.
Frame Reinforcement Table
General 2
Frame Reinforcement Table 2
Component Layout 3
ADA / ANSI / UL 3
Hinge (Pull) Side Mounting 4
Hinge (Pull) Side Installation 4
Stop (Push) Side Mounting 6
Stop (Push) Side Installation 6
Electrical Installation 7
Input Power Configuration 8
Inverter Details 9
Accessory / Typical Installations 9
Troubleshooting 11

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
BACKPLATE
REED SWITCH
CHAIN
OPEN / CLOSE
POSITIONING
MAGNETS
“T1” POWER INPUT
TERMINAL (3-POSITION)
ACCESSORY
TERMINAL
(4-POSITION)
PINION EXTENSION /
CLUTCH ASSEMBLY
INVERTER
MOTOR ASSEMBLY
POWER SWITCH
BREAKER SWITCH 1600 SERIES
CLOSER BODY
CONNECTING LINK
BUSHING ASSEMBLY
SHOE
SHOE / ADJUSTING
ROD ASSEMBLY
FOREARM
SCREW
MAIN ARM
ADJUSTING
TUBE
MAIN ARM / SLIDE
UNIT ASSEMBLY
Included with 5710 and 5740 Included with 5730 and 5740
Component Layout
SLIDE TRACK
ASSEMBLY
SLIDER
BUFFER STOP
9/64” HEX
DRIVE SOCKET
SCREW
SLIDE ARM
TUBE SLIDE ARM
ROD
ADA / ANSI / UL Information
Americans With Disabilities Act (A.D.A.)
These door operators can be installed and adjusted to conform with
A.D.A. regulations.
ANSI Standards
ANSI A117.1 – These door operators permit door
assemblies to conform to the requirements of this
specification "for buildings and facilities – providing
accessibility and usability for physically
handicapped people".
• ANSI A156.19 – These products are designed to conform to this
specification "for power assist and low energy power
operated doors".
– "PAS" Function is designed to meet or exceed all of the
requirements for the "Power Assist Door".
– "POR" Function is designed to meet or exceed all of the
requirements for the "Low Energy Power Operated Door".
U.L. Listing
Underwriters Laboratories, Inc. listed for use on
fire and smoke barrier door assemblies when the
120VAC (60Hz) power input is supplied through
the normally closed alarm contacts of a
compatible UL Listed alarm system or alarm
panel.
Page 3

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
Note: Door must be visible by person
operating activation switch(es)
Door Opening
Angle Dim “A”
Up to 110°
111° to 180°
15-1/2 (394)
13-1/4 (337)
Notes:
• All dimensions are given in inches (mm).
• Thickness recommended for reinforcements in hollow
metal doors and frames is charted on Page 2.
• Do not scale drawing.
• Right hand door shown.
• This template information based upon use of 5"
(127mm) maximum width butt hinges. A separate
template is required for other conditions.
• Maximum frame reveal is 6-7/8” (175mm) for this
application.
• Conduit hole nearest the hinge is suggested for 120
VAC power input.
2” (51mm)
Min.
Frame Face
1-1/8”
(29)
1-1/4
(32)
1-7/16
(37)
11
(279)
22
(559)
7-9/16
(192)
13-7/16
(341)
1-1/8
(29)
C
LHinge
1/4-20 Machine Screws
or No. 14 Wood Screws
(6 Places)
7/8 (23) Dia.
(2 Places)
3/8 Dia.
Sex Nuts
(3 Places)
Frame
Rabbet
Frame
Stop/Soffit
3
(76)
13-13/16
(350)
1/2
(13)
A
11-11/16
(297)
6”
(152mm)
Min.
Clearance
14-3/16
(360)
12-15/16
(329)
13-13/16
(351)
Right Hand Door
opening to 110° shown.
5/8
(15.9) Stop
1. Hinge (Pull) Side Mounting Instructions
Step 1: Determine hand of door from illustration on upper right of this
page.
Step 2: Using template above locate and prepare holes in the frame &
door:
Frame
A. Prepare six (6) holes for 1/4-20 machine screws or
No. 14 x 2-3/4" (70mm) wood screws. Blind rivet nuts (by others)
are suggested for unreinforced hollow metal frames or for
aluminum frames.
B. Concealed Wired Units Only: Two (2) 7/8" (22mm) diameter
holes for conduit, for power input and for switch/sensor wires.
NOTE: On new construction these holes will generally be drilled
by the frame supplier at their shop or at the time the frame is
installed in the wall.
Door
C. Prepare three (3) holes for 3/8" diameter sex nuts. Standard units
are supplied with sex nuts and screws for 1-3/4" (44mm) thick door.
Sex nuts and screws for other door thicknesses are available to
order.
Step 3: Remove cover from the unit and set cover & cover screws aside.
Step 4: Mount unit to door frame. Select A or B below.
A. Concealed Wired Units Only: Connect conduit to frame side of
backplate. Fasten unit to door frame (seven screws).
B. Surface Wired Units Only: Fasten unit to door frame (seven
screws). Mount conduit bracket (found in screw pack) to unit’s
backplate with two screws provided. Connect wiring conduit to
bracket.
Step 5: Mount track assembly to door using 3 1/4-20 screws & sex nuts
with buffer assembly toward hinge. Open part of track to face
top of door.
(Continue to next page.)
1A. Installation Sequence
Page 4
Left
Hand
Door
Right
Hand
Door
2” (51mm)
Min. Frame Face
Frame
Reveal
Door
6” (152mm)
Min. Ceiling
Clearance
1-3/4” (44mm) Min.
2-1/4” (57mm) Max.
Door Thickness
Please verify desired mounting
requires Hinge (Pull) Side
application as shown on this
template.

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)

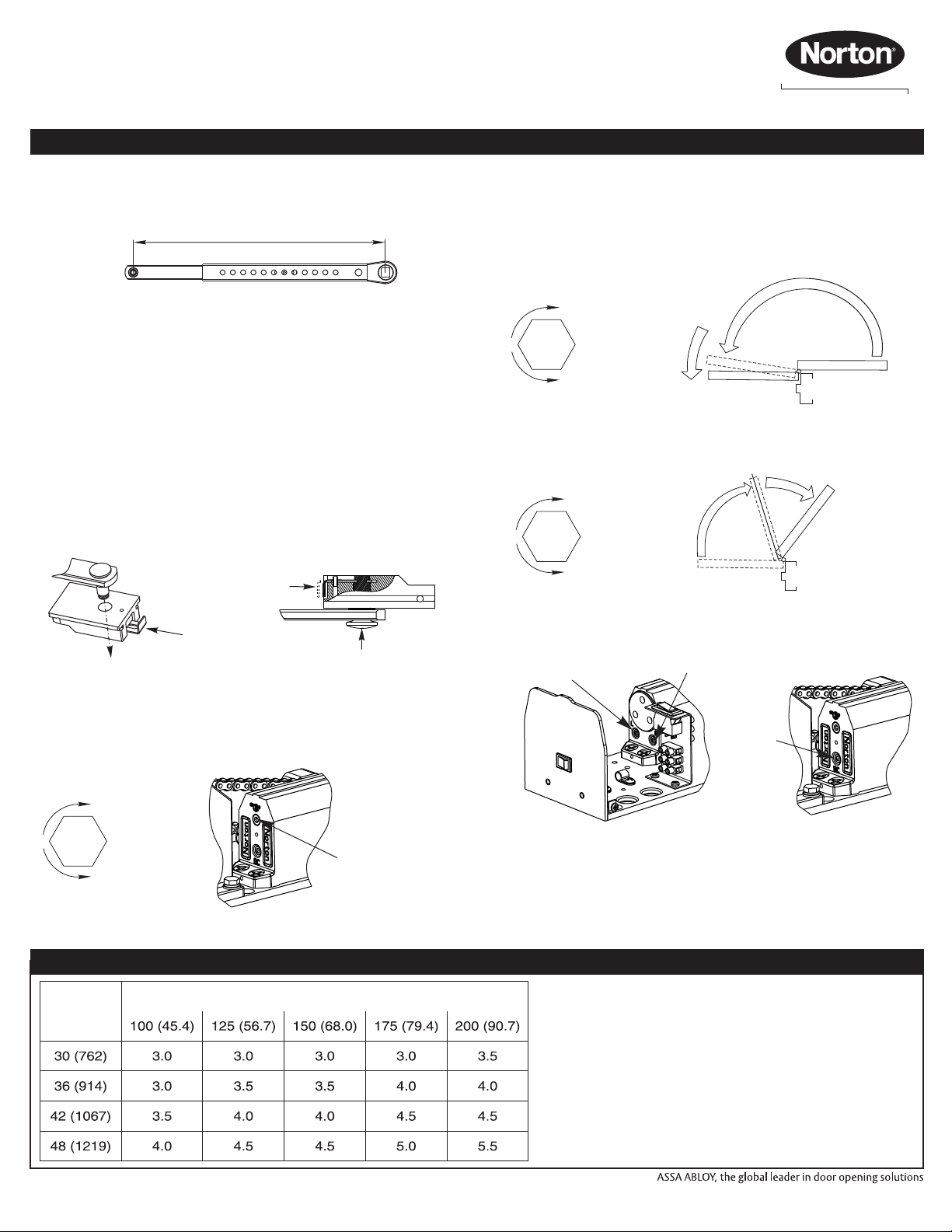

1A. Installation Sequence Continued
Step 6: Insert slide arm rod into slide arm tube setting the distance
between the pinion square and the slide stud at 13-1/2”
(343). Install 9/64” hex drive socket head screw from screw
pack. (See illustration below)
Step 7: Using an adjustable wrench, rotate pinion 45° toward hinge,
as shown below. With the arm assembly parallel to the
door, secure arm to pinion when square of the pinion aligns
with the square in the arm. Secure with countersunk
washer and 1/4-20 Flat Head Screw (with thread lock)
provided. Tighten screw with 7/16” wrench or socket.
Step 8: Insert arm stud into slide block in track assembly. Secure by
pushing in on the retainer clip that extends from the slide
block in the track, until it is flush with the slide block (see
illustration below).
Step 9: Adjust closing power of unit (See Fig. 1) - Using a 1/8” allen
wrench, turn the power adjustment shaft clockwise to
increase door closing power. Door control is shipped set at
midpoint of power setting. Maximum closing power can be
achieved with 8 (360°) clockwise turns of the power
adjustment screw.
Step 10: Adjust Hydraulic valves using a 1/8” hex wrench to obtain
proper door closing speeds. See following illustrations.
Refer to Table 1 below for recommended minimum opening /
closing times per ANSI/BHMA A156.19.
Closing Cycle – Make adjustments, as necessary, to the Sweep Speed
"S" valve and Latch Speed "L" valve. See Fig. 2 below for
location of valves. Turn valves clockwise to reduce speed,
counter clockwise to increase speed.
Opening Cycle – Adjust Backcheck, "B" valve, as
necessary, for hydraulic resistance to door opening in the
backcheck range. See illustration in Fig. 2 for location of
valve.
NOTE: Too much Backcheck, "B" valve, can affect the
operation of the units pump, preventing units from
fully opening the door. This valve may require fine
tuning after all other adjustments have been made.
Note: A.D.A. requires that from an open position of
70°, the door will take at least 3 seconds to move to a
point 3” (75mm) from the latched position, measured
at the leading edge of the door.
Step 11: Make wiring connections using Wiring Instructions on Page 7.
2
1
Attaching Arm Stud to Slide
Retainer Clip
Power Adjustment
1/8"
Hex
Key
Increase
Power
Decrease
Power Figure 1
1/8"
Hex
Key
Slower
Closing
Faster
Closing Closing Cycle
Closed
10°
e
g
n
a
R
h
c
t
a
L
e
g
n
a
R
p
e
e
w
S
Sweep Valve
Latch Valve
Backcheck
Valve
Figure 2
1A. Installation Sequence Continued
13-1/2
(343)
Note: Center threaded hole of slider arm should align
with seventh hole of the slider tube. Stud in slider
arm should point to same side as holes in slider
tube (see illustration on Page 3).
1/8"
Hex
Key
Increase
Cushion
Decrease
Cushion
Opening Cycle
B
a
c
k
c
h
e
c
k
g
n
i
n
e
p
O
Table 1 - Minimum Opening / Closing Times for ANSI/BHMA A156.19
Backcheck - adjust the backcheck valve to have a
minimum opening time to backcheck or 80 degrees
(whichever comes first) based on Table 1.
Closing Time - adjust Latch and Sweep valves to have a
minimum closing time from 90 degrees to Latch Check or
10 degrees (whichever comes first) based on Table 1.
Door Weight in Pounds (kg)
Door Leaf
Width -
Inches (mm)
Matrix values are in seconds.
Page 5

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
Door Opening
Angle Dim “A” Dim “B”
Up to 110°
111° to 170°
12 (305)
9-1/2 (241) 13-1/4 (337)
15-3/4 (400)
Notes:
• All dimensions are given in inches (mm).
• Thickness recommended for reinforcements in
hollow metal doors and frames is charted at the
left of this page.
• Do not scale drawing.
• Left hand door shown.
• This template information based upon use of 5"
(127mm) maximum width butt hinges or 3/4"
(19mm) offset pivots. A separate template will
be supplied for other conditions.
• Maximum frame reveal is 7” (178mm) for this
application.
• Conduit hole nearest to hinge is suggested for
120 VAC power input.
1-11/16
(43)
1-1/4
(32)
11/16
(17.5)
1-3/4
(44)
12-15/16
(329)
7-9/16
(192)
13-7/16
(341)
3/8
(10)
C
LHinge or Pivot
1/4-20 Machine Screws
or No. 14 Wood Screws
(6 Places)
7/8
(22)
(Conduit Holes -
2 Places)
Dia.
Frame
Rabbet
Frame
Stop/Soffit
A
13-13/16
(351)
1/2
(13)
B
5-1/4”
Min.
Clearance
11-11/16
(297)
3/8
(19)
14-3/16
(360)
13-13/16
(351)
Left Hand Door
open to 110° shown.
5/8
(15.9) Stop
Sex Nuts
(2 Places)
2. Stop (Push) Side Mounting Instructions
2A. Installation Sequence
Left
Hand
Door
Right
Hand
Door
1-1/2” (38mm)
Min. Frame Face
Frame Reveal*
Door
5-1/4” (133mm)
Min. Ceiling
Clearance
1-3/4” (44mm) Min.
2-1/4” (57mm) Max. Door Thickness
*For frame reveals less than 3" (76mm) the
arm adjusting rod can be field cut to a
length of 9-1/2" (241mm) measured from
centerline of connecting link bushing
assembly.
Note: Door must be visible by person operating activation switch(es)
Step 1: Determine hand of door from illustration on upper right of this
page.
Step 2: Using template above locate and prepare holes in the frame &
door:
Frame
A. Prepare six (6) holes for 1/4-20 machine screws or No.
14 x 2-3/4" (70mm) wood screws. Blind rivet nuts (by others) are
suggested for unreinforced hollow metal frames or for aluminum
frames.
B. Concealed Wired Units Only: Two (2) 7/8" (22mm) diameter
holes for conduit, for power input and for switch/sensor wires.
NOTE: On new construction these holes will generally be drilled
by the frame supplier at their shop or at the time the frame is
installed in the wall.
Door
C. Prepare two (2) holes for 3/8" diameter sex nuts. Standard units
are supplied with sex nuts and screws for 1-3/4" (44mm) thick
door. Sex nuts and screws for other door thicknesses are
available to order.
Step 3: Remove cover from the unit and set cover & cover screws
aside.
Step 4: Mount unit to door frame. Select A or B below.
A. Concealed Wired Units Only: Connect conduit to frame side of
backplate. Fasten unit to door frame (six screws).
B. Surface Wired Units Only: Fasten unit to door frame (six screws).
Mount conduit bracket (found in screw pack) to unit backplate
with two screws provided. Connect wiring conduit to bracket.
Please verify desired mounting
requires Stop (Push) Side
application as shown on this
template.
Page 6

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
2A. Installation Sequence Continued
Step 5: Install main arm onto pinion shaft of unit at a 90° angle to the
door frame. Align arm mark “S” with the flat corner of the
pinion shaft square. (See Fig. 3 below.)
Step 6: Secure main arm to pinion with 1/4-20 Flange Head Screw
provided. Tighten screw with 7/16" wrench or socket.
Step 7: Mount arm shoe to door using 2 1/4-20 screws & sex nuts
provided with screw pack.
Step 8: PRELOAD ARM (See Fig. 4, below): Remove 1/4-20 hex
head screw on adjusting rod and insert adjusting rod into
arm slide. Reinstall 1/4-20 screw and leave loose. Rotate
main arm in direction away from the hinge edge until the
adjusting rod and arm slide are perpendicular (at a 90°
angle) to the door frame. Tighten the 1/4-20 hex head screw
on the adjusting rod to secure arm in this new position.
Step 9: Adjust closing power of unit (See Fig. 5) - Using a 1/8” allen
wrench, turn the power adjustment shaft clockwise to
increase door closing power. Door control is shipped set at
midpoint of power setting. Maximum closing power can be
achieved with 8 (360°) clockwise turns of the power
adjustment screw.
Step 10: Adjust Hydraulic valves using a 1/8” hex wrench to obtain
proper door closing speeds. See following illustrations. Refer
to Table 1 on page 5 for recommended minimum opening /
closing times per ANSI/BHMA A156.19.
Closing Cycle – Make adjustments, as necessary, to the
Sweep Speed "S" valve and Latch Speed "L" valve. See
Fig. 6 below for location of valves. Turn valves clockwise to
reduce speed, counter clockwise to increase speed.
Opening Cycle – Adjust Backcheck, "B" valve, as
necessary, for hydraulic resistance to door opening in the
backcheck range. See illustration at bottom of this page for
location of valve.
NOTE: Too much Backcheck, "B" valve, can affect the
operation of the units pump, preventing units from fully
opening the door. This valve may require fine tuning
after all other adjustments have been made.
Note: A.D.A. requires that from an open position of 70°,
the door will take at least 3 seconds to move to a point
3” (75mm) from the latched position, measured at the
leading edge of the door.
Step 11: Make wiring connections using Wiring Instructions on Page
below and on Page 8.
R
L
Y
S
Z
Arm Mark Pinion Flat
Figure 3
Figure 4
Adjusting
Rod
Arm
Slide
Door
Shoe
Main
Arm
Power
Adjustment
1/8"
Hex
Key
Increase
Power
Decrease
Power Figure 5
1/8"
Hex
Key
Slower
Closing
Faster
Closing Closing Cycle
Closed
10°
e
g
n
a
R
h
c
t
a
L
e
g
n
a
R
p
e
e
w
S
1/8"
Hex
Key
Increase
Cushion
Decrease
Cushion
Opening Cycle
B
a
c
k
c
h
e
c
k
g
n
i
n
e
p
O
Sweep Valve
Latch Valve
Backcheck
Valve
Figure 6
3. Electrical Connections and Final Setup
Step 1: Confirm all mechanical adjustments have been made and
wiring connected per Page 8.
Step 2: Turn on facility’s main circuit breaker.
Step 3: Turn power to unit on at the Unit Power Switch and turn the
Breaker Switch to “RESET”.
Step 4: Using a short jumper cable, jump terminals 1 and 2, see Fig.
2 below, to activate unit. When door reaches 20°, switch
Breaker Switch to “OFF” position cutting power to the unit.
Allow door to fully close (door may be manually pulled
closed).
(Continue to next page.)
Breaker
Switch
Unit Power Switch
1
2
3
4
1
2
3
4
Figure 2
Figure 1
Page 7

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
3. Electrical Connections and Final Setup Continued
Step 5: Adjust Closing Position Magnet (See Fig. 3) - With door in
the closed position, use finger to slide Closed Position
Magnet so it aligns directly with the Reed Switch.
Step 6: Adjust Open Position Magnet - Use fingers to slide Open
Position Magnet 180° from Open Position Magnet.
Step 7: Flip Breaker Switch to “RESET” to turn power on. Jump
terminals 1 and 2 (as shown in Fig. 2) to activate door. Note
open position of the door. Allow door to close.
Step 8: Use finger to readjust the Open Position Magnet to desired
door open position.
Step 9: Repeat Step 7 to verify door open position.
Step 10: Make all connections necessary for any accessories to the
4-position Accessory Terminal (see Pages 9 - 11).
Step 11: Make necessary adjustments to inverter (see Page 9).
Replace cover and cover screws.
Reed Switch
Closed Position
Magnet
Open Position
Magnet
Position Ring
Figure 3
Low Voltage
Control
Wiring
Incoming
Power
Input Power Configurations
CONCEALED WIRING SURFACE WIRING
Optional Bracket
(for surface wiring)
Ground
Lead
Power
Leads
Ground
Screw
(Green)
Cable
Clamps Conduit
by Others
(from top)
“T1” Power
Input
Terminal
Ground Wire Connection – Ground wire must be secured to backplate
under head of (green) ground screw nearest to “T1” Power Input
Terminal. Screw labeled “GND”.
Terminal Description
HOT
25
23
24
22
COM Common power lead
Hot power lead
Circuit Breaker
Switch
Circuit Breaker
Common connection to Circuit Breaker /
Inverter
Thread conduit fitting(s) into backplate as shown. A second
conduit fitting is required for low voltage control wiring. CHECK
LOCAL CODES. Pull conduit out of header and attach to conduit
fittings before mounting Operator to door frame. Attach
incoming ground wire to backplate with ground screw as
illustrated in “Surface Wiring” illustration to the Right.
An optional bracket is provided for use with surface wiring.
Remove the two cable clamps screws and slip the bracket under
the cable clamps. Push the cable clamp screw through the
bracket holes and tighten. ½” conduit fittings can now be
installed on the bracket. Attach incoming ground wire to
backplate with ground screw as illustrated below.
24
23
22
25
HOT
COM
Breaker Switch
T1 Terminal
Block
Page 8

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
Standard Function with Switches
1
2
3
4
1
2
3
4
Notes:
1. Power input to Door Operator Unit
is at “T1” Power Input Terminal (not
shown) 120VAC 60Hz.
Wall Switch, Card
Reader, Key Switch,
etc.
1
2
3
4
1
2
3
4
Door 1 Door 2
Inverter Adjustments:
Based on function
adjustment desired,
use table above to
determine which POT
is to be adjusted.
POT FUNCTIONDESCRIPTION
OBSTR SENS Obstruction Detection on Open CW - Increase
CCW - Decrease
M/DLY Motor Delay on Opening CW - Increase
CCW - Decrease
P1 Closing Speed CW - Increase
CCW - Decrease
H/O TM Hold Open Time (5 - 30 Seconds) CW - Increase
CCW - Decrease
P2 Opening Speed CW - Increase
CCW - Decrease
H/O TQ Motor Torque at Hold Open
Position
CW - Increase
CCW - Decrease
ON
12
WARNING
120 HIGH VOLT POTENTIAL PRESENT. MAKE
SURE POWER IS TURNED OFF DURING
INSTALLATION PROCEDURE.
Dip Switch Settings
1. Door Mounting -
2. Push Recognition -
ON - pull
OFF - push
ON - active
OFF - inactive
WARNING
Electric
Shock Risk
Operation:
Doors are normally closed.
Activating either switch will open both doors. Door will
close after hold open time delay has elapsed.
(Adjustments made in the shaded
area should be performed by
Authorized Factory Personnel.)
L2
115Y
L1 115/230VAC IN
MOTOR OUT
L2
230Y
U
V
W
STATUS LEDS
H/O TQ
H/O TM
OBSTR
SENS
P1
M/DLY P2
1 6
COM
SNS
COM
PB
K1
K2
11
JMP503
NC
NO
TB501
PULL PUSH
SW501
ON
12
Inverter Details
Page 9
Wall Switch, Card
Reader, Key Switch,
etc.
Normally Open Momentary
dry contacts
Normally Open Momentary
dry contacts

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
Radio Frequency Function Option
1 2 3 4
1 2 3 4
Optional Door 2
1 2 3 4
1 2 3 4
Door 1
ORANGE
BLACK
BROWN/WHITE
RED
RF
RECEIVER
BOARD
(PART OF
OPERATOR
UNIT)
WIRING FOR
MOMENTARY
HOLD OPEN
FUNCTION
Notes:
1. Power input to Door Operator Unit is at
“T1” Power Input Terminal (not shown)
120VAC 60Hz.
2. Radio Frequency Feature can be
purchased as a separate kit.
Fail Secure / Fail Safe Electric Strike Wiring
120VAC
Supplied by
Others
-+
DC or AC
Output
AC or DC
Electric Strike
+
-
Wall Switch, Card
Reader, Key Switch,
etc.
Normally Open Momentary
dry contacts
Notes:
1. Power input to Door Operator Unit is at “T1” Power
Input Terminal (not shown) 120VAC 60Hz.
2. Unit’s Relay Rating for strike interface: 30VDC @ 1A
or 125VAC @ .5A
Operation:
Door is normally closed and latched.
Activating switch will unlock the electric strike and the door will
automatically open. Door will close after hold open time delay
has elapsed.
For Fail Secure Strike - The door will remain locked during
power failure.
For Fail Safe Strike - The door will remain unlocked during
power failure.
1
2
3
4
1
2
3
4
JMP503
NC
NO
Jumper Settings
Place jumper to upper position
for normally closed operation
or to lower position for
normally open operation.
Operation:
Door is normally closed.
Activating wireless switch or hand held wireless
transmitter will open the door.
Door will close after hold open delay elapses.
120
VAC
Ground
COM
HOT
L N
(AC) -V +V ADJ
+
Optional 1.1A 24V Power Supply
Page 10

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
Fail Safe Electromagnetic Lock 24VDC Wiring
1
2
3
4
1
2
3
4
Wall Switch, Card
Reader, Key Switch,
etc.
Normally Open Momentary
dry contacts
+
-
24VDC Electromagnetic Lock
(Fail Safe)
Troubleshooting
Operation:
Door is normally closed and latched.
Activating switch will cut power to mag lock and
the door will automatically open. Door will close
after hold open time delay has elapsed.
The door will unlock during power failure.
Notes:
1. Power input to Door Operator Unit is at “T1” Power
Input Terminal (not shown) 120VAC 60Hz.
2. Unit’s Relay Rating: 30VDC @ 1A or 125VAC @ .5A
Jumper Settings
Place jumper to upper position
for normally closed operation
or to lower position for
normally open operation.
JMP503
NC
NO
Jump activation input
Change the setting of the ON/OFF switch
Flip Door Mounting Dip Switch to other direction
Remove object
Re-time and re-install arm.
Increase spring tension per preceding instructions
Remove object
Fault Possible reasons why Remedies/Explanations
The door does not open
- The motor does not start
Control switch is set to OFF position
Electrical power is missing Check the electrical power switch
Activation unit does not function
- The motor starts Motor is driving in wrong direction
Something jammed beneath the door
Arm has come loose
The door does not close Spring tension too low
Arm has come loose Re-time and re-install arm.
Something jammed beneath the door
Circuit breaker is set to OFF position Reset circuit breaker to the ON position
120
VAC
Ground
COM
HOT
L N
(AC) -V +V ADJ
+
Optional 1.1A 24V
Power Supply
Page 11

Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
80-9357-0001-020 (09-13)
Page 12
3000 Highway 74 East • Monroe, NC 28112
Tel: (877)- • Fax: [phone]-2255
www. no r to nd oo rc ont ro ls. co m
ASSA ABLOY
