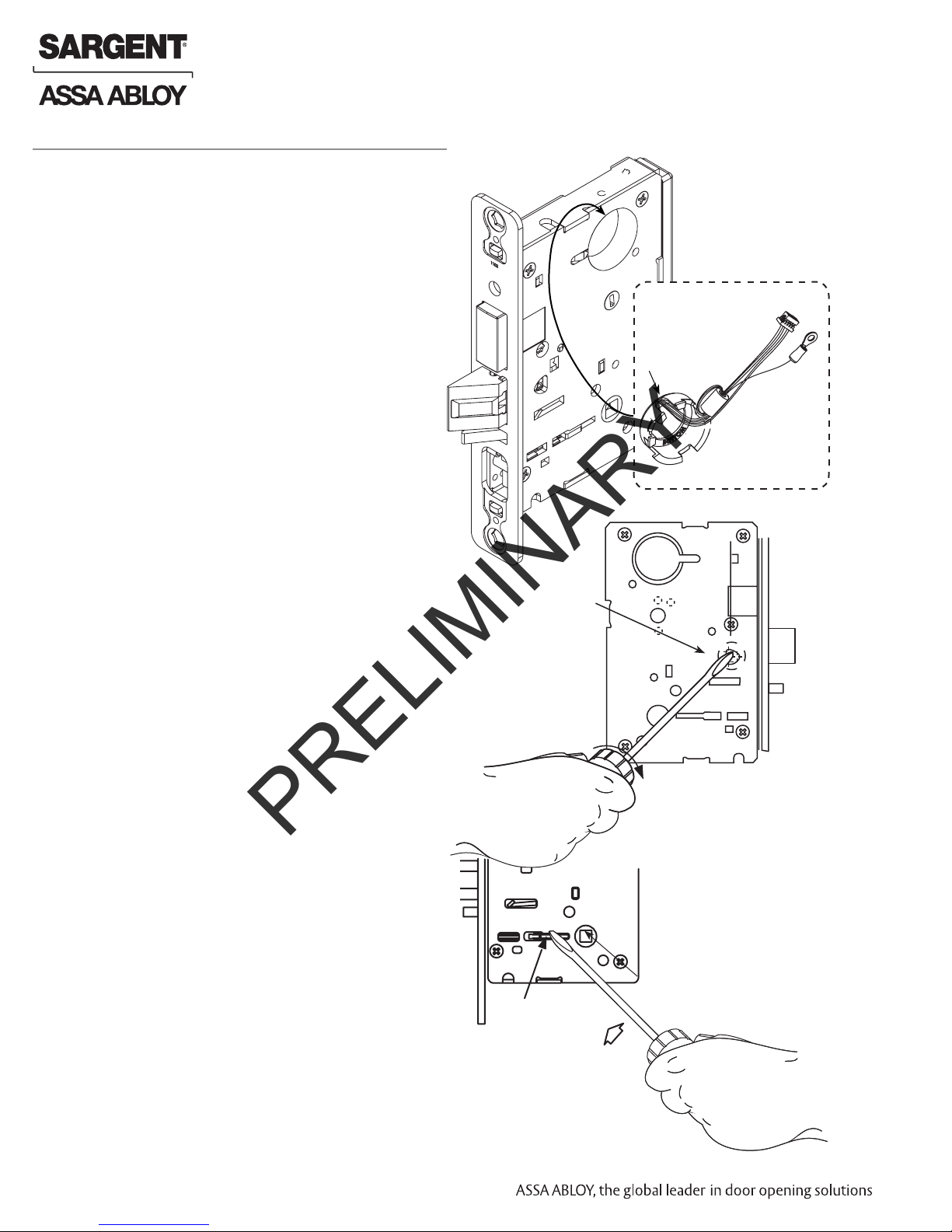

PASSPORT 1000
Mortise Lock
Installation Instructions
P1
PRELIMINARY

1-800-810-WIRE • www.sargentlock.com • A8078A
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
10/10/10
Warning
!
1
Observe precautions for handling electrostatic sensitive devices.
1
2
3
4
5
6
7
Table of Contents
Warning ...................................................................................2
General Description .................................................................3
Hardware Specifications .........................................................3
Electronic Specifications .........................................................3
Installation Wiring Overview ...................................................3
Installation Wiring ...................................................................4
Parts Breakdown .....................................................................7
Installation Instructions ..........................................................7
Operational Check ................................................................17
8
9
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Warning SARGENT Mfg. Co. v.P Series locksets utilizing a door position switch (DPS) are not rated for,
or intended for use in life safety applications.
FCC
This equipment has been tested and found to comply with the limits for a Class A digital device, pur-
suant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Industry Canada:
The term “IC:” before the radio certification number only signifies that Industry Canada technical
specifications were met.
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulations. Operation is subject to the following two conditions: (1) this device may not cause harm-
ful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Cet appareillage numérique de la classe A répond à toutes les exigences de l’interférence canadienne
causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce
dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle
interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 3
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
Installation Wiring
Overview
5
General Description
2
Hardware Specifications
3
• Inside lever retracts latch
• Locks furnished for 1-3/4” doors only
• Grade 1; UL Listed
• Outside lever controlled by any combination of
keypad, magnetic keypad, iCLASS, prox (prox-
imity) reader, or mechanical cylinder
• Complete locksets with on-board memory
• Magnetic swipe standard with optional 125 kHz
Proximity Reader (specify PRX-), 13.56 MHz
reader (specify IKM-), and/or keypad (specify KP-)
• ADA Compliant
• Easily retrofits existing Passport 1000 door preps
(cylindrical locks)
• Latch 1/2” standard
3/4” throw fire-rated double doors
(optional) (41- prefix)
• Guarded latch
• Outside lever is unlocked through access
control credentials only
Electronic Specifications
4
• 2,400 users per lock; 10,000 event audit trail
• Multiple time zone and holiday access scheduling
• Centralized lock management
• Real time door status monitoring
• First-In unlock configuration, either by time or by
user (selectable)
• Lock down capable
• Input Power: PoE Class 2 Device, as defined
by IEEE 802.3af, requires up to 7 watts
over structured cabling
• Uses existing Magstripe keycards (track 2)
• Magnetic Stripe Card Coercivity: HiCo (4000 Oersted) or
LoCo (300 Oersted)
• Supports HID 125 kHz prox or 13.56 MHz iCLASS
credentials (26 - 39 bit); supports CSN reads for other
common 13.56 MHz cards, including MiFare, DesFire, and
Felica
The SARGENT Passport Series v.P1 cylindrical lock is available with either an HID® Prox 125 kHz or 13.56 MHz
iCLASS® technology reader. It utilizes existing infrastructure and IEEE 802.3af PoE (Power over Ethernet) providing
access control with Magnetic swipe and optional Proximity Reader and/or Keypad, as well as detailed audit capabilities-
technology as a proven alternative to traditional access control installations. The v.P1 is a self-contained microproces-
sor-controlled access control product with non-volatile memory. It uses the existing network cable to communicate with
access control systems. The v.P1 lock holds a total of 2400 different user codes.
Using PoE technology coupled with third party software, this v.P1 online lock offers a complete, integrated
access control system.
The Passport Series v.P1 cylindrical lock may be used for both indoor and outdoor applications. A weather-
protective gasket is recommended for outdoor applications.
HID and iCLASS are registered trademarks of HID Global Corporation.
* Lockdown and real-time door
status monitoring available
only when lock is hard-powered
SARGENT Passport Series PoE
v.P1 Typical Application
LMT: Lock Management Tool
A. PoE frame harness assembly
B. PoE data hinge from McKinney
(patent pending)
C. PoE door harness* from McKinney
D. DPS: Door Position Switch
(Cylindrical and Exits only)
E. Passport Series v.P1 PoE Lock
* Door width determines length
Network Cable
Network Switch (802.3af) Surface Mount RJ45
A
B
C
D
E
Supplied by Others
PRELIMINARY

4 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
Installation Wiring
6
JST
4-Pin
Molex-F Molex-F Molex-M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
RJ45-M
Molex-M
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
B-Splice
Crimp Connector
PoE
Lock
Ceiling
Supplied by CI
Ground
Ring Terminal
Secured to Lock
Mounting Plate
4-Pin
Molex
A. PoE Frame harness assembly
(From McKinney)
B. PoE data hinge (Patent Pending)
(From McKinney)
C. PoE Door harness*
D. Passport 1000 Online P1 PoE Lock
* Order of installation may vary.
Refer to appropriate sections for instructions.
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Drain
Wire for
Earth
Ground in
15' Frame
Harness
Cable
drain wire
concealed in
shrink tubing
Patch Panel
Drain Wire Terminated on Rack
Cable: CAT 5e or higher
24 AWG shielded with drain wire
RJ45-F Jack
Approved Software
Certified Integrator (CI) supplies and terminates
the B-Splice connector and the
Male RJ45 connector from harness to
end user provided facility cable
Supplied by End User
PoE Switch
Drain Wire
PoE Switch is
Terminated to
Earth Ground
Patch Cable
Patch Panel to
PoE Switch
Wiring to TIA-568-B Standard
A
Notes:
• Connectors go on only
one way. They cannot
be placed in an incorrect
position.
• Do not force and do not
offset connectors.
• Be sure they are com-
pletely seated (flush).
B
C
D
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 5
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
Components and wire harness supplied by McKinney: Suggested installation.
RJ45-M
Molex-M
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
B-Splice
Crimp Connector
Ceiling
Supplied by CI
Cut end / ceiling-side PoE harness:
TIA/EIB-568-B Standard Wiring
1
2
3
4
5
6
7
8
Pair Number Wire PIN
1 White/Blue White/Blue 5
Blue 4
2 White/Orange White/Orange 1
Orange 2
3 White/Green White/Green 3
Green 6
4 White/Brown White/Brown 7
Brown 8
Do not confuse pair numbers with pin numbers. A pair number is
used for reference only (eg: 10BaseT Ethernet uses pairs 2 & 3). The
pin numbers indicate actual physical locations on the plug and jack.
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Drain
Wire for
Earth
Ground in
15' Frame
Harness
Cable
drain wire
concealed in
shrink tubing
AFrame Harness Installation
1. Feed cut end of harness into hole on hinge-side through single access hole.
2. Push one connector back through the hole and feed into the other access hole.
Each of the hinge-side harness connectors should end up threaded through
a different access hole and matched to the same size pin connector from
the door harness:
• 4-pin male molex connector.
• 6-pin male molex connector with ground wire.
Hinge side of PoE harness:
6-pin F
4-pin M
6-pin M
4-pin F
Frame PoE Hinge (Patent Pending)
PoE Data Hinge
Hinge-side harness connectors:
• 4-pin male molex connector
• 6-pin male molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors
B
Installation Wiring (Continued)
PRELIMINARY

6 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
Order of installation may vary. Refer to appropriate sections for in-
structions.
1. Prop door open.
2. Tape the two lock-side 4-pin connectors to the ring terminal.
3. Using the ring terminal, carefully fish the assembly through the
door channel to the lock.
4. Remove tape from ring terminal and door harness connectors.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors:
• 4-pin Molex connector
• 4-pin connector
Notes:
• Connectors go on only one way. They cannot be plugged to
incorrect position.
• Do not force and do not offset connectors.
• Be sure they are completely seated (flush).
Order of installation may vary. Refer to appropriate sections for instructions.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors:
• 4-pin Molex connector
• 4-pin connector
Notes:
• Connectors go on only one way. They cannot be plugged to incorrect position.
• Do not force and do not offset connectors.
• Be sure they are completely seated (flush).
PoE Data Hinge
PoE Lock
JST
4-Pin
4-pin M 4-pin F4-pin F
4-Pin
Molex
6-pin F 6-pin F 6-pin M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
Drain Wire
PoE Door Harness
C
D
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 7
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
Parts Breakdown
P1 PoE Lock with Magnetic Card Swipe With or Without Keypad
8
9
10
12
13
10
1
2
4
6
7
P2
3
5
5
Inside
10
11
Outside
5
8
Inside
9
10
12
13
10
1
2
4
6
7
P2
3
5
5
Inside
10
11
Outside
5
8
9
11
10
12
13
14
Outside
ITEM No. PART No. DESCRIPTION
1 52-0757 Lens (Cliplite)
252-0738 Outside Passport Escutcheon Only (Magnetic Swipe and Keypad)
52-0739 Outside Passport Escutcheon Only (Magnetic Swipe)
3 52-0760 Light Pipe (Cliplite)
4 52-3593 Slim Style Keypad Assembly
5 01-9299 #4-40 x 3/16” Phillips Pan Head Screw
6 52-3591 Swipe Reader Assembly
7 52-0745 Online Interface PCB
8 52-3209 Harness Assembly
9 52-0748 Inside Mounting Plate
10 77-0168 #8-32 x 1-7/8” Phillips Flat Head Screw
11 01-1146 #8-32 x 3/8” Phillips Flat Head Screw
01-1176 #8 x 3/8” Phillips Flat Head Wood Screw
12 52-4246 Modular Component
13 52-3592 Inside Escutcheon Assembly
14 01-4421 #8-32 x 1/2” T-20 Torx Pan Head Screw
PRELIMINARY

8 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
P1 PoE Lock with Magnetic Card Swipe , 125 kHz Prox and Keypad
9
10
12
13
10
1
2
4
6
7
P2
3
5
5
Inside
10
11
Outside
5
8
1
2
3
43
7
9
5
6
3
8
3
Inside
Outside
10
11
ITEM No. PART No. DESCRIPTION
1 52-1103 Outside Passport Escutcheon only
(Magnetic Swipe, Keypad and Proximity Reader)
2 52-3593 Slim Style Keypad Assembly
3 01-9299 #4-40 x 3/16” Phillips Pan Head Screw
4 52-4243 Swipe Reader Assembly
5 52-1106 Prox Reader Gasket
6 52-4206 Antenna Assembly
7 52-0745 Online Interface PCB
8 52-3209 Harness Assembly
9 52-1109 Back Plate
10 52-0748 Inside Mounting Plate
11 77-0168 #8-32 x 1-7/8” Phillips Flat Head Screw
12 01-1146 #8-32 x 3/8” Phillips Flat Head Screw
01-1176 #8 x 3/8” Phillips Flat Head Wood Screw
13 52-4246 Module Assembly
14 52-3592 Inside Escutcheon Assembly
15 01-4421 #8-32 x 1/2” T-20 Torx Pan Head Screw
Parts Breakdown (Continued)
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 9
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
Parts Breakdown
8
1
2
3
4
5
10
4
4
4
9
8
7
6
Magnetic Card Swipe With 13.56 MHz iCLASS and Keypad
4
ITEM No. PART No. DESCRIPTION
1 52-4402 Outside Mask Assembly
2 52-1255 Outside Escutcheon - iCLASS
3 52-3593 Slim Style Keypad Assembly
4 01-9299 #4-40 x 3/16” Machine Screw
5 52-4243 Swipe Reader Assembly
6 52-4401 iCLASS Module Assembly
7 52-3209 Harness Assembly
8 52-4410 iCLASS Harness
9 52-1109 Back Plate
10 01-9300 #4-32 x 5/16” Plastite Screw
PRELIMINARY

10 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
8200 Series Mortise Lock
ITEM PART No. DESCRIPTION
1 See catalog #41 Cylinder (1-1/8” Minimum Length)
2 13-0140 Cylinder Compression Spring
3 See catalog 1KB-1 Cylinder Rosette
4 See catalog Mortise Lockbody
5 77-2592 130 KB Thumbturn for Deadbolt Functions Only
6 See catalog Inside Lever Handle
7 See catalog Outside Lever Assembly
8 82-0368 Spindle
9 82-3088 Inside Lever/Knob Adapter Plate Assembly
10 01-1495 #8-32 X 5/8 Machine Screw
11 82-0612 Non Loosening Wave Washer
12 See catalog Mortise Rose
13 82-0347 Spindle Spring
14 01-1019 #12-24 X 1/2” Machine Screw
15 01-2299 12 X 1-1/4 Wood Screw
16 82-0578 Outside Front Plate (Electrical, Latchbolt & Guardbolt)
82-0579 Outside Front Plate (Electrical, Deadbolt, Latchbolt and Guardbolt)
17 01-1028 #8-32 X 1/4 Machine Screw
5
6
7
8
9
10
11
12
13
14
15 16 17
4
3
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 11
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
1 Door Preparation
Installation Instructions
9
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward.
“RHRB”
A. Verify Hand and Bevel of Door
• (KP-) P1- (PRX- or IKM) 82276 x Rose & Lever x Finish x Hand
• (KP-) P1- (PRX- or IKM) 82277 x Rose & Lever x Finish x Hand
• (KP-) P1- (PRX- or IKM) 82278 x Rose & Lever x Finish x Hand
• (KP-) P1- (PRX- or IKM) 82279 x Rose & Lever x Finish x Hand
Note: KP- is for the optional Keypad and PRX- is for the optional Proximity Reader
• (IKM-) P1- (PRX) 10G77 x Rose & lever x Finish x Hand
Note: IKM- is for the 13.56 MHz Reader option
B. Verify Product Label
C. Door Preperation
• Field template: A7950 for wood and metal doors.
• Door manufacturers template: 4651.
Outside of Door Inside of Door
Through Bolt Holes
Inside Mounting Plate
Mounting Holes
Controller Cutout
Thumb Turn Location
(Deadbolt Functions Only)
Lever Handle Holes
Through Bolt Holes
Controller Cutout
Cylinder Hole
Lever Handle Holes
Mortise
Pocket
(8200)
Raceway for Power
Raceway for Power
PRELIMINARY

12 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
2 How to Change Hand of Lockbody
A. Reverse Lock Hand
Red surface of locking piece must face the outside/
locked side of door. To rotate locking piece (Fig. 2A):
1. Position lock body with red surface of locking
piece visible.
2. Insert blade type screwdriver into locking piece
slot to rotate locking piece toward back of lock
body.
3. Rotate the locking piece 180° until RED surface is
on opposite side.
Note: Red indicates locked side (outside). Wire
harness MUST exit through
the inside/non-cylinder side of the lockbody.
Inside of Door
Plastic
Retaining
Ring
Connector
Ring Terminal
Slot
B. Retaining Ring
Make sure the plastic retaining ring is seated cor-
rectly (Fig. 2B):
1. The wires and the plastic retaining ring must
be located on the non-cylinder side.
2. Orient the plastic retaining ring so that the
word
Bottom is located at the bottom of the cylinder
hole.
3. Route the wires from the top of the cylinder
hole
into the slot on the top of the plastic retaining
ring,
NOT through the retaining ring.
Locking Slide
Red on locked side
Push In
Fig. 2A
Right Hand
Lock Shown
Beveled surface of latchbolt must face strike.
The deadlatch is self adjusting.
To change the hand of the latchbolt:
1. Insert the blade of a slotted screwdriver (>1/4”)
into the spade shape slot behind latch.
2. Rotate the screwdriver 90° to push latchbolt out
until back of bolt clears lock case front.
3. Rotate latchbolt 180° until the latchbolt
drops back into the lockbody.
Note: Latch cannot be unscrewed.
C. Reverse Latch Hand
Latchbolt
(2) #12-24 x 1/2” Long
Flat Head Machine Screw
for Metal Doors
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 13
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
Fig. 8A
3 Install Lock Body
1. Feed the wires first through the mortise pocket
and out the inside prep, followed by the
lockbody (Fig. 3A).
2. The wires from the lockbody exit the inside
door prep through the mortise pocket (Fig. 3B).
3. Loosely secure the lockbody in the door with
two #12 x 1-1/4” wood screws or
#12-24 x 1/2” machine screws.
Must feed
the harness first,
followed by
the lock body.
Feed wire
into mortise slot.
(2) #12 x 1-1/4” Long
Flat Head Wood Screw
for Wood Doors
(2) #12-24 x 1/2” Long
Flat Head Machine Screw
for Metal Doors
Fig. 3A
PoE Cables
Fig. 3B
Mortise Lock Body
Connector and Ground
Ring Terminal
4 Install Cylinder
1. Slide cylinder through the spring and ro-
sette/collar and screw into lockbody, rotat-
ing the cylinder clockwise.
Cylinder should be flush with rosette/collar.
Note: SARGENT logo must be horizontal
and on the top of the cylinder (Fig. 4B).
2. Secure the cylinder by tightening cylinder
clamp screw located above the deadbolt.
3. Using the key, verify that the key retracts
the
latchbolt (and deadbolt).
Position cylinder so that the SAR-
GENT logo is right-side up.
Correct Incorrect
Fig. 4B
Align cylinder groove
with tapped hole,
then tighten set screw
to hold lock cylinder.
PRELIMINARY

14 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
5 Install Inside and Outside Levers
6 Deadbolt Functions Only (82276 & 82277)
1. Insert alignment tool (supplied) into lock body thumb
turn.
2. Slide back plate over tool and make level.
3. Secure back plate to door with two (2) #6 x 3/8”
round head
wood screws or #6-32 x 3/8” round head machine
screws.
4. Dispose of tool, position thumb turn over back plate
(Fig. 6A) and secure with #6-32 x 1/4” flat head
screw.
Note: Thumb turn should cover screw head when
deadbolt is retracted.
Refer to instructions (A5675G) included in package
included with lock.
1. Slide the outside lever and spindle assembly through the door and lockbody.
2. Using the inside adapter plate and spindle, secure loosely with (2) #8-32 screws.
Note: Position threaded hole on the inside adapter to align with lever hole.
3. Tighten the lockbody screws on edge of door.
4. After the lockbody screws are tightened, tighten both inside adapter screws.
5. Position and attach rose over inside adapter.
6. Position and secure inside lever to the
inside adapter with set screw.
Fig. 5A
Mortise Lock Body
Connector and Ground
Ring Terminal
Outside Lever Assembly
Inside Adapter Plate
Rose
PoE Cables
Inside Lever
Back Plate
#6 x 3/8” Round Head
Wood Screws
#6-32 x 3/8" Round
Head Machine Screws
#6-32 x 1/4"
Flat Head Screw
Thumb Turn
Fig. 6B Detail
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 15
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
7 Install Gasket (Optional)
Note: Optional, for non-fire rated doors only.
For non-fire rated door applications, an optional gasket may be
used as a weather seal between the escutcheon and the outside
door surface.
Peel off adhesive backing and attach to outside escutcheon.
Fig. 7A
Outside
Passport
Trim
Gasket
8 Install Outside Escutcheon and Mounting Plate Assembly
1. Insert the mounting posts through holes as shown.
2. On the inside of the door, position the mounting plate
over the indicated holes.
3. Feed PoE and reader cables through side opening (Fig. 8A).
Cable from lockbody feeds from bottom (Fig. 8A and 8B).
4. Attach 2 ground ring terminals, one from controller and
one from lock body to bottom right corner using one
#8-32 x 1-7/8” flat head machine screw.
Make sure they are positioned upright (Fig. 8A).
5. Insert other three #8-32 x 1-7/8” flat head machine
screws and tighten, fastening the outside escutcheon
to the door (Fig. 8B).
IMPORTANT: If the following step is skipped,
the product will not be UL-compliant:
6. Attach two (2) #8 x 3/8” flat head wood screws for
wood doors or (2) #8-32 x 3/8” flat head machine
screws for metal doors (Fig. 8C).
(4) #8 - 32 x 1-7/8”
Flat Head
Machine Screws
Mounting Plate
Fig. 8B
Attach ground wires to
bottom right screw
a
Outside
Passport
Trim
PoE Reader Cables
Fig. 8C
(2) #8 - 3/8”
Flat Head
Wood Screws OR
(2) #8 - 3/8”
Flat Head
Machine Screws
e
d
c
b
(2) 4-Pin PoE
connectors
e
d
b
c
24-pin from reader
10-pin from lock body
a
Ground wires and PoE and
Lock body harnesses
Reader cable (iCLASS only)
f
Reader cable (iCLASS only)
f
Reader cable (iCLASS
only)
Controller /
Reader
Cables
Lockbody Cables
Lock Ground
Position
ground ring
terminal
upright,
then
tighten
screw.
Reader cable
(iCLASS only)
PRELIMINARY

16 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
9 Install Inside Module Component Assembly
Insert bottom of Module Component Assembly first (Fig.
9A), then clip top of Assembly to backplate, verifying
both tabs attached securely.
Outside of Door
Fig. 9A
Tabs
Detail 10B
(2) 4-Pin PoE
connectors
e
d
b
c
24-pin from reader
10-pin from lock body
e
d
c
b
10 Attach Connectors
Secure the following connectors onto the circuit board (Fig.
10A and 10B):
1. Secure the 10-pin lock body assembly connector (e).
2. Secure the 24-pin keypad/card reader connector (d).
3. Secure two 4-pin PoE connectors (b and c).
4. Secure the iCLASS reader cable (f).
Route wires from behind backplate through battery com-
partment.
Notes:
• Connectors go on only one way.
• Do not force and do not offset connectors.
• Be sure the connectors are completely seated (flush).
f9-pin reader cable (iCLASS only)
f
PRELIMINARY

12/15/10
1-800-810-WIRE • www.sargentlock.com • A8032D 17
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 Series P1 PoE Mortise Lock
11 Install Inside Escutcheon
1. Position inside escutcheon as shown (Fig. 11A).
Verify that all wires are positioned within the
escutcheon
to avoid pinching.
2. Attach escutcheon with (2) #8-32 x 1/2”
T-20 Torx pan head screws.
3. Straighten escutcheon and tighten securely.
DO NOT OVERTIGHTEN.
Fig. 11A
(2) #8-32 x 1/2”
Torx Screws
Attach front plate with (2) #8-32 X 1/4” flat head
screws (Fig. 12A).
12 Attach Outside Front Plate
Fig. 12A
(2) #8-32 x 1/4”
Flat Head Screws
PRELIMINARY

18 1-800-810-WIRE • www.sargentlock.com • A8032D
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
12/15/10
Passport 1000 Series P1 PoE Mortise Lock
Operational Check
9
IMPORTANT: Be sure to test functions prior to closing door.
In all cases, perform the following checks:
1. Ensure that inside lever retracts latch (and deadbolt for dead-
bolt functions).
• For units with cylinders, the following checks apply:
Insert key into cylinder and rotate:
a. There should be no friction against lock case, wire
harness, or any other obstructions. If friction or bind-
ing occurs, re-adjust cylinder and wiring harness to
eliminate issues.
b. The key should retract the latch and the key should
rotate freely.
c. The key should extend and retract the deadbolt.
• For units without a keypad, add card using LCT
software and test.
• For units with a keypad, add pin and card using LCT
software and test.
2. LED signalling:
• After using a valid credential, a green flash followed by
three fast amber flashes indicates a low power condition.
Check the input voltage.
If the input voltage is low, disconnect the lock from the
power source and check the power source
voltage. If the power source voltage is correct,
inspect the lock wiring for a possible short.
• If the lock loses power, it will flash rapid amber
for approximately one minute.
After that, the lock will no longer be functional.
3. When you have completed the tests, close the door, ensuring
latchbolt and deadbolt fully extend into strike plate without
binding.
PRELIMINARY

SARGENT Manufacturing
100 Sargent Drive
New Haven, CT 06511 USA
800-810-WIRE (9473) • www.sargentlock.com
Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices,
electro-mechanical products and access control systems for new construction, renovation, and replacement applications.
The company’s customer base includes commercial construction, institutional, and industrial markets.
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
ASSA ABLOY is the global leader in door opening solutions, dedicated to
satisfying end-user needs for security, safety and convenience. A8032D -12/10
PRELIMINARY
