Atlas Equipment 408-SL Super Deluxe User manual

Replace This With Cover PDF

Revised 6/29/2020
Read this entire manual before operation begins.
Record below the following information which is located on the serial number
data plate.
Serial No.
Model No.
Date of Installation

Contents
General Information. . . . . . . . . . 5
Product Identification . . . . . . . . . 8
Packing, Transport, Storage . . . . . . 9
Lift Description . . . . . . . . . . . .11
Technical Specification. . . . . . . . .12
Safety . . . . . . . . . . . . . . . .17
Installation . . . . . . . . . . . . . .21
Operation And Use . . . . . . . . . .31
Maintenance . . . . . . . . . . . . .34
Troubleshooting. . . . . . . . . . . .36
Parts List . . . . . . . . . . . . . . .37
Warranty . . . . . . . . . . . . . . .46

4
408-SL
Printing Characters And Symbols
Throughout this manual, the following symbols and
printing characters are used to facilitate reading:
Indicates the operations which need proper care
Indicates prohibition
Indicates a possibility of danger for the operators
Indicates the direction of access for motor
vehicles to the lift
BOLD TYPE Important information
WARNING: before operating the lift and carrying out any
adjustment, read carefully chapter 7 “installation” where all
proper operations for a better functioning of the lift are shown.

General Information 5
408-SL
General Information
This chapter contains warning instructions to operate the lift properly and
prevent injury to operators or objects. This manual has been written to be used
by shop technicians in charge of the lift (operator) and routine maintenance
technician (maintenance operator). The operating instructions are considered to
be an integral part of the machine and must remain with it for its whole useful
life. Read every section of this manual carefully before operating the lift and
unpacking it since it gives helpful information about:
• Safety Of People
• Safety Of The Lift
• Safety Of Lifted Vehicles
The company is not liable for possible problems, damage, accidents, etc.
resulting from failure to follow the instructions contained in this manual. Only
skilled technicians of AUTHORIZED DEALERS or SERVICE CENTERS AUTHORIZED
by the manufacturer shall be allowed to carry out lifting, transport, assembling,
installation, adjustment, calibration, settings, extraordinary maintenance,
repairs, overhauling, and dismantling of the lift.
The manufacturer is not responsible for possible damage to people,
vehicles or objects if said operations are carried out by unauthorized
personnel or the lift is improperly used.
Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.
1.1 Manual Keeping
For a proper use of this manual, the following is recommended:
• Keep the manual near the lift, in an easily accessible place.
• Keep the manual in an area protected from the damp.
• Use this manual properly without damaging it.
• Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.

General Information 6
408-SL
This manual is an integral part of the lift: it shall be given to the new owner if
and when the lift is resold.
1.2 Obligation In Case Of Malfunction
In case of machine malfunction, follow the instructions
contained in the following chapters.
1.3 Cautions For The Safety Of The Operator
Operators must not be under the influence of sedatives, drugs or alcohol when
operating the machine.
Before operating the lift, operators must be familiar with
the position and function of all controls, as well as with the
machine features shown in the chapter “Operation And Use”
1.4 Warnings
Unauthorized changes and/or modifications to the machine
relieve the manufacturer of any liability for possible damages to
objects or people. Do not remove or make inoperative the safety
devices, this would cause a violation of safety at work laws and
regulations.
Any other use which differs from that provided for by the
manufacturer of the machine is strictly forbidden.
The use of non genuine parts may cause damage to people or
objects

General Information 7
408-SL
1.5 Scrapping
When your machine’s working life is over and it can no longer be used, it must
be made inoperative by removing any connection to power sources.
These units are considered as special waste material, and should be broken
down into uniform parts and disposed of in compliance with current laws and
regulations.
If the packing are not polluting or non-biodegradable, deliver them to
appropriate handling station.
Declaration Of Warranty And Limitation Of Liability
The manufacturer has paid proper attention to the preparation of this
manual. However, nothing contained herein modifies or alters, in any way,
the terms and conditions of manufacturer agreement by which this lift was
acquired, nor increase, in any way, manufacturer’s liability to the customer.
To The Reader
Every effort has been made to ensure that the information contained in this
manual is correct, complete and up-to date. The manufacturer is not liable
for any mistakes made when drawing up this manual and reserves the right
to make any changes due the development of the product, at any time.

Product Identification 8
408-SL
Product Identification
The identification data of the machine are shown in the serial plate placed on the
power side column.
The removal of the serial plate is strictly forbidden.
Machines may be updated or slightly modified from an aesthetic point of view
and, as a consequence, they may present different features from these shown,
this without prejudicing what has been described herein.
2.1 Warranty Certificate
The warranty is valid for a period of 12 months starting from the date of the
purchase invoice.
The warranty will come immediately to an end when unauthorized modifications
to the machine or parts of it are carried out.
The presence of defects in workmanship must be verified by the Manufacturer’s
personnel in charge.
2.2 Technical Servicing
For all servicing and maintenance operations not specified or shown in these
instructions, contact your Dealer where the machine has been bought or the
Manufacturer’s Commercial Department.

Packing, Transport, Storage 9
408-SL
Packing, Transport, Storage
Only skilled personnel who are familiar with the lift and this manual shall be
allowed to carry out packing, lifting, handling, transport and unpacking operations.
3.1 Packing

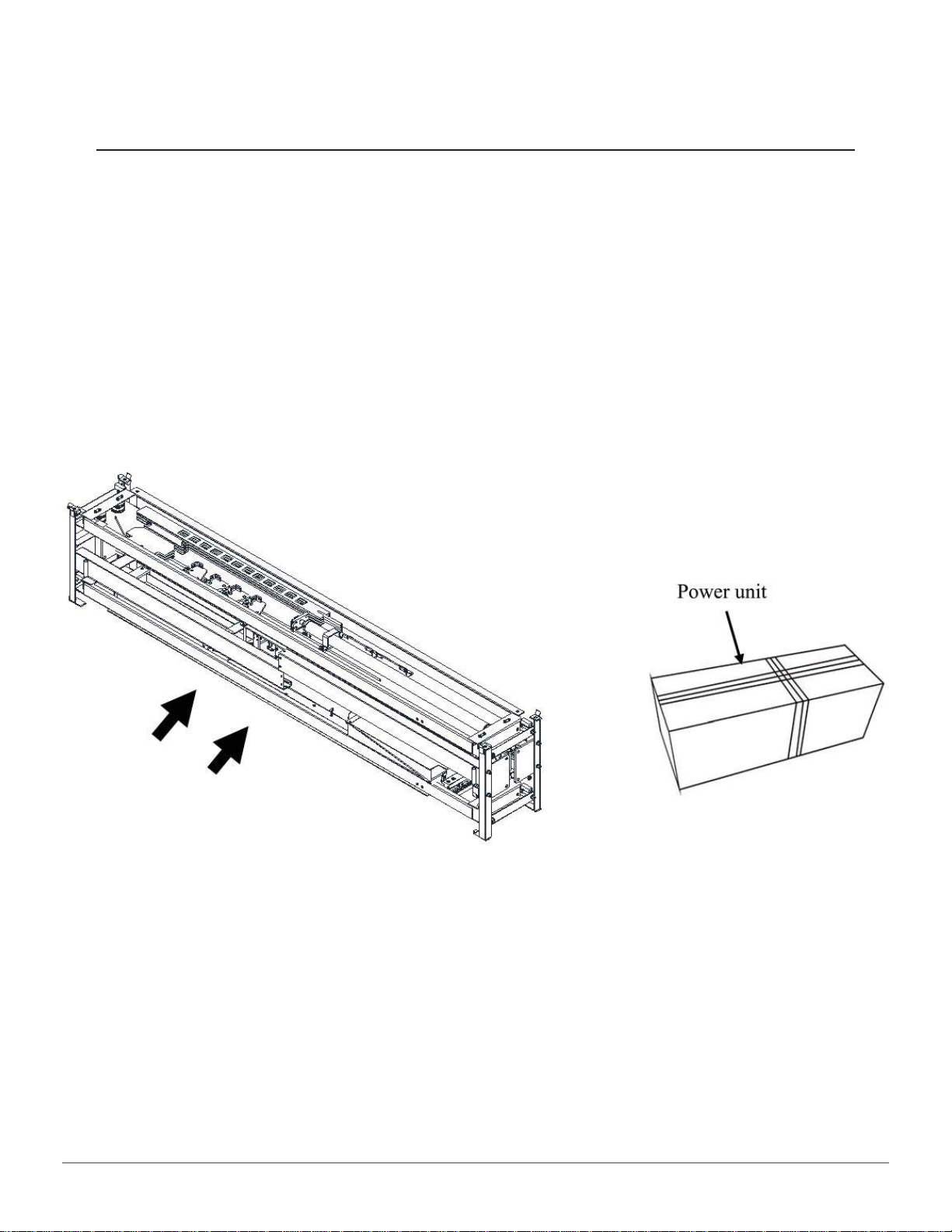

The packing of the lift is shown in the figure 1. Base unit packed in a steel
frame, wrapped up in non-scratch material. Power unit packed in a carton box.
The package weight is about 1984 LBS. If requested, optional accessories are
available to satisfy each customer’s requirements.
Figure 1 – Package
3.2 Lifting And Handling
When loading/unloading or transporting the equipment to the site, be sure to use
suitable loading (e.g. cranes, trucks) and hoisting means. Be sure also to hoist
and transport the components securely so that they cannot drop, taking into
consideration the package’s size, weight, center of gravity, and it’s fragile parts.

Packing, Transport, Storage 10
408-SL
3.3 Storage And Stacking Of Packages
Packages must be stored in a covered place, out of direct sunlight and in
low humidity, at a temperature between 14°F and +104°F. Stacking is not
recommended: the package’s narrow base, as well as its considerable weight
and size make it difficult and hazardous.
3.4 Delivery And Check Of Packages
When the lift is delivered, check for possible damages due to transport and
storage; verify that what is specified in the manufacturer’s confirmation of order
is included. In case of damage in transit, the customer must immediately inform
the carrier of the problem.
Packages must be opened paying attention not to cause damage to people (keep
a safe distance when opening straps) and parts of the lift (be careful the objects
do not drop from the package when opening).

Lift Description 11
408-SL
Lift Description
The lift is suitable for lifting motor vehicles having maximum weight as described
in the nameplate on the power side column of the lift. The electro hydraulic
operation is described in detail in chapter 8.
This chapter describes the lift’s principal elements, allowing the user to be

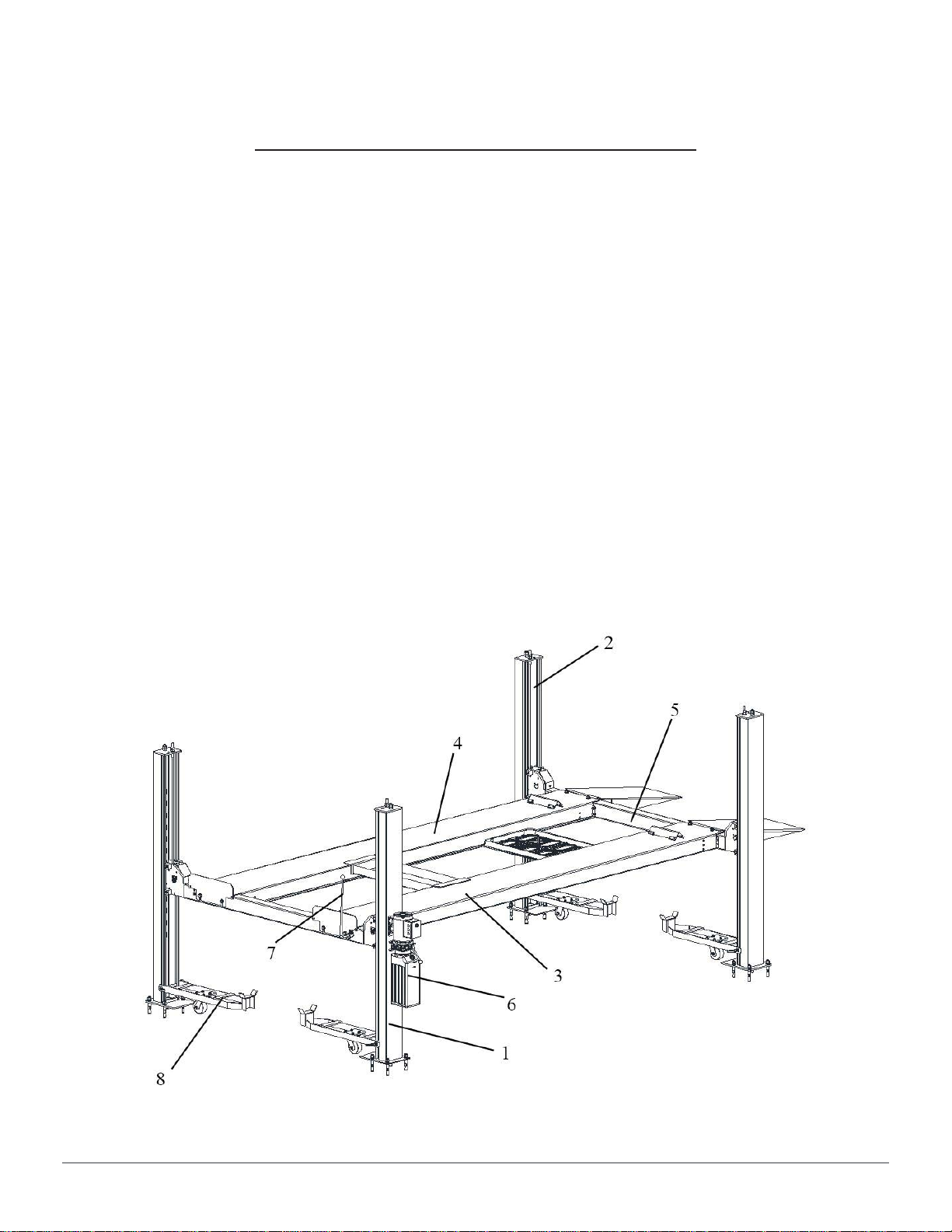

familiar with the machine. As shown in figure 2, the lift is composed of four
columns: 1 power-side column (1), 3 off-side columns (2), two platforms: the
power-side platform (3) and the off-side platform (4), and two transverse beams
(5), anchored to the ground by means of the column base plates.
Raising motion is carried out by pushing the lifting button on the power unit (6)
to operate a power unit delivering the hydraulic fluid to cylinders to act on cable
lifting system. Lowering motion is controlled by pressing the lowering lever on
the power unit and carried out under the weight of the load lifted.
The automatic back-up lock holds on the lift in the elevated position, can be
released by pressing the latch release lever (7). The slack cable lock in each
end of transverse beam can hold on the lift in event of cable slackening and/or
failure. The caster kit (8) can be ordered as an option to move the lift.
Figure 2 – Lift

Technical Specification 12
408-SL
Technical Specification
5.1 Size And Main Features
Lift Capacity 8,000lbs (3500kg)
Max. raised height 73 1/4” (1860mm)
Min. Lowered height 6 1/8” (156mm)
Runway length 167 1/2” (4256mm)
Runway width 18 3/4” (475mm)
Free width between runways 37 1/4” (945mm)
Max. overall length 205 3/8” (5217mm)
Overall height 82 7/8” (2105mm)
Overall width 109 5/8” (2786mm)
Raised time 55s
Noise level 80 dB(A)/1m
Rated pneumatic pressure 6bar – 8bar
Working temperature 5 °C - 40 °C
Average weight of package 1984 LBS (900kg)
5.2 Electric motor
Voltage 110V/60Hz/1Ph
Power 1.5HP
N° Poles 2
Speed 3450rpm
Motor enclosure type B14
Insulation class IP 54
Motor connection must be carried out referring to the attached wiring diagrams
(fig.6). The motor direction of rotation is shown in the label placed on the motor.
Before use of the lift, make sure to check if the motor specification shown in the
nameplate of the motor conforms to the local electric supply.

Technical Specification 13
408-SL
5.3 Pump
Type Gear
Flow rate 0.8 cm3/g
Continuous working pressure 160 bar

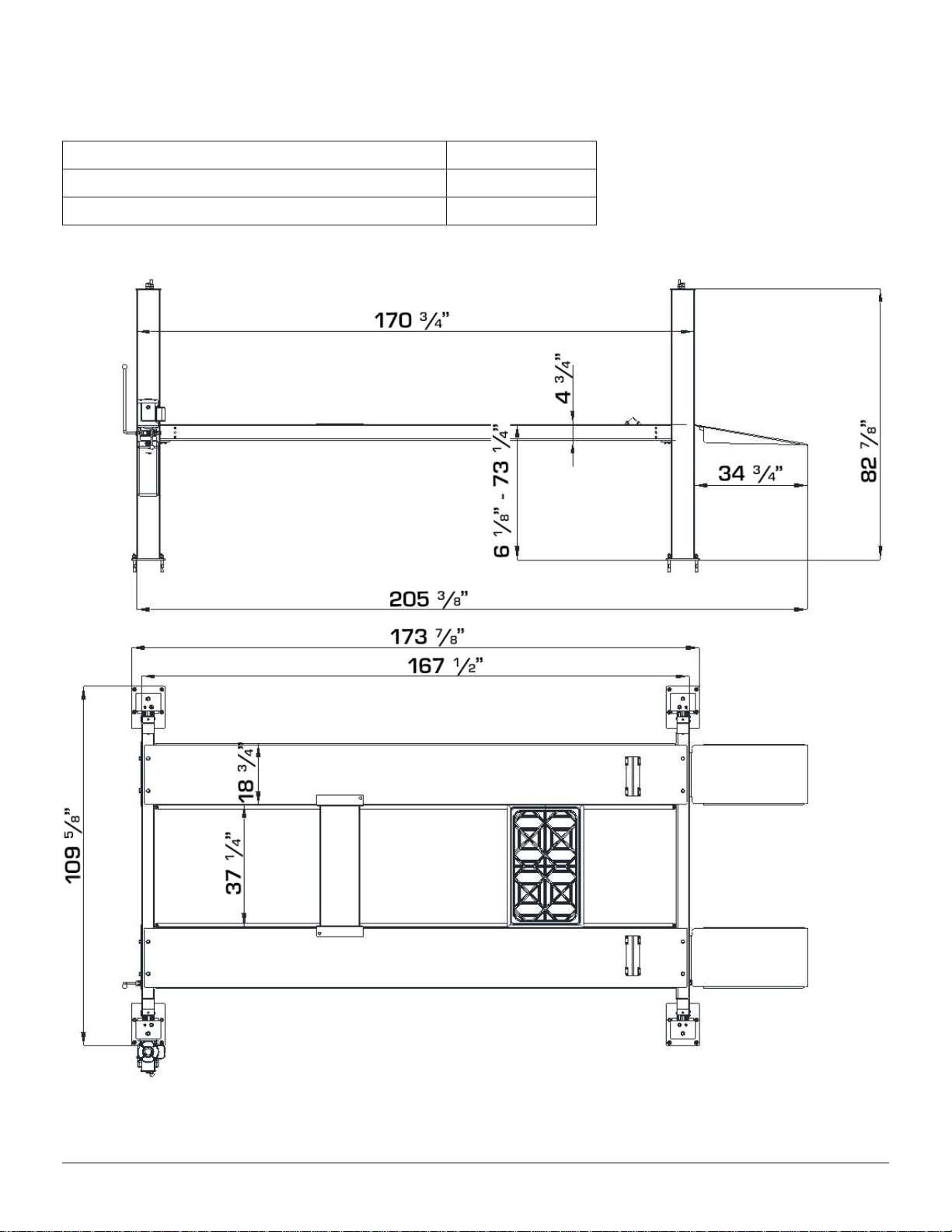

Figure 3 – Lift Layout

Technical Specification 14
408-SL
Hydraulic Power Unit
Figure 4 – Hydraulic Power Unit
5.5 Oil
Use wear proof oil for hydraulic drive, in conformity with ISO 6743/4 rules (HM
class). The oil with features similar to those shown in the table is recommended.
Test standards Features Value
ASTM D 1298 Density 20°C 0.8 kg/l
ASTM D 445 Viscosity 40°C 32 cSt
ASTM D 445 Viscosity 100°C 5.43 cSt
ASTM D 2270 Viscosity index 104 N°
ASTM D 97 Pour point ~ 30 °C
ASTM D 92 Flash point 215 °C
ASTM D 644 Neutralization number 0.5 mg KOH/g
Change hydraulic oil at 1 year intervals

Technical Specification 15
408-SL
Figure 5 – Hydraulic Plan
1 Oil filter 6 Manual lowering valve
2 Gear pump 7 Startup valve
3 Motor 8 Flow restrictor
4 Non return valve 9 Hydraulic cylinder
5 Pressure overload valve

Technical Specification 16
408-SL
Figure 6 – Electrical Diagram (110V/60Hz/1Ph)

Safety 17
408-SL
Safety
Read this chapter carefully and completely because it contains important
information for the safety of the operator and the person in charge of
maintenance.
The lift has been designed and built for lifting vehicles and
making them stand above level in a closed area, any other use
is forbidden.
The manufacturer is not liable for possible damages to people,
vehicles, or objects resulting from an improper or unauthorized
use of the lift.
For operator and people safety, a safety area at least 3 feet away from the lift
must be vacated during lifting and lowering. The lift must be operated only from
the operator’s control site in this safety area.
Operator’s presence under the vehicle, during working, is only admitted when
the vehicle is lifted and the safety lock is engaged.
Never use the lift when safety devices are off-line. People, the
lift and the vehicles lifted can be seriously damaged if these
instructions are not followed.
6.1 General Warnings
The operator and the person in charge of maintenance must follow accident-
prevention laws and rules in force in the country where the lift is installed.
Any use of the lift other than that herein specified can cause
serious accidents to people in close proximity of the machine.
They also must carry out the following:
• Neither remove nor disconnect hydraulic, electric or other safety devices;
• Carefully follow the safety indications applied on the machine and included
in the manual;
• Observe the safety area during lifting;
• Be sure the motor of the vehicle is off, the gear engaged, and the parking
brake is on;

Safety 18
408-SL
• Be sure only authorized vehicles are lifted without exceeding the maximum
lifting capacity;
• Verify that no one is on the runways during lifting or standing.
6.2 Risks For People
All risks the personnel could run, due to an improper use of the lift, are
described in this section.
6.3 Personnel Crushing Risks
During lowering of runways and vehicles, personnel must not be within the
area covered by the lowering trajectory. The operator must be sure no one is in
danger before operating the lift.
Fig. 7a Fig. 7b Fig. 7c
6.4 Risk Of The Vehicle Falling From The Lift
Vehicle falling from the lift can be caused when the vehicle is improperly placed
on platforms, and when its dimensions are incompatible with the lift or by
excessive movement of the vehicle.
In this case, keep immediately away from the working area.
Fig. 8a Fig. 8b Fig. 8c

Safety 19
408-SL
6.5 Slipping Risks
The risk of slipping can be caused by oil or dirt on the floor near the lift.
Keep the area under and around the lift clean. Remove all oil
spills.
6.6 Electrocution Risks
Avoid use of water, steam, solvent, and varnish jets in the
lift area where electric cables are placed and, in particular,
next to the electric panel.
Fig. 9
6.7 Risks Resulting From Improper Lighting
Make sure all areas next to the lift are well and uniformly lit, according to local
regulations.
6.8 Risks Of Breaking Component During Operation
Materials and procedures, suitable for the designed
parameters of the lift, have been used by the manufacturer
to build a safe and reliable product. Operate the lift only for
the use it has been designed for and follow the maintenance
schedule shown in the chapter “Maintenance”.
Fig. 10
6.9 Risks For Unauthorized Uses
The presence of unauthorized persons next to the lift and
on the platforms is strictly forbidden during lifting as well
as when the vehicle has been already lifted
Fig. 11

Safety 20
408-SL
6.10 Risks During Vehicle Lifting And Working
To avoid overloading and possible breaking during lifting and working, the
following safety devices have been used:
• A pressure valve placed inside the hydraulic unit to prevent excessive
weight.
The maximum pressure valve has been preset by the
manufacturer to a proper pressure. DO NOT try to adjust it to
overrun the rated lifting capacity.
• Automatic back-up safety holds on the lift in the elevated position.
• Slack cable lock in event of cable slackening and/or failure.
It is strictly forbidden to modify any safety device. Always
ensure the safety device for proper operation during the service.
