Axicon 12500 2D VERIFIER User manual

THE BARCODE EXPERTS
Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK
Tel: [phone] | Email: [email protected]
Web: www.axicon.com
user guide
Axicon 12000 & 12500
2D barcode verier
Industry
Partner

www.axicon.com
Page 2 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Contents
Introduction 4
Installation 6
Getting started 7
Calibration 8
Using the verier 9
Setup 12
Axicon warranty 15
Software licence agreement 16
Annual servicing 18
Certicate of conformance 19
Contact us 20
www.axicon.com
Page 3 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Introduction
An Axicon verier is a high precision quality control device and should be handled
with due care.
Only use power and data cables supplied by Axicon. Use of non-approved
accessories will invalidate the warranty.
If the verier is dropped (or subjected to similar misuse) the accuracy of the results
may be aected. The unit should be returned to Axicon immediately for servicing.
Axicon recommends that the verier is factory recalibrated annually. The unit
should be returned to Axicon or to your approved Axicon reseller for this check to
be performed.
The 12000 will read symbols up to 18 mm tall by 24 mm wide, while the 12500 will
read those up to 24 mm tall and 40 mm wide. There must also be no more than four
data regions in each symbol. In most practical applications these limitations will not
be a problem, but if you need to verify larger Data Matrix symbols please contact
us.
www.axicon.com
Page 4 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Serial Number and activation password
Verier serial number:
Camera serial number:
Activation key:
What is in the case.
• Axicon 12000 or 12500 2D verier.
• Power supply and y lead.
• Mains lead.
• Wallet containing this documentation booklet, software CD and the calibration
card.
Optional extras
Axicon also oer the following optional extras to be used in conjunction with the
system:
• Installation qualication and operational qualication procedural
documentation.
• Performance Qualication Test Kit – Comprising a set of test cards traceable to
international standards and full procedural instructions.
• Set of Reference Test Cards – traceable to international standards.
www.axicon.com
Page 5 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Installation
System requirements
Windows Currently supported Operating System (either 32 or 64 bit)
512 MB RAM minimum
USB 2.0 port
.NET Framework version 4.0 or later
The Axicon 2D Verier application requires the .NET Framework version 4.0 or later
to be installed. The Axicon software installation process will automatically check
whether the .NET framework is present, and install it if is not present.
Insert the CD into an appropriate drive and the install program should start
automatically. If not run Setup.exe. Leave the installation CD in the drive until
after the hardware has been connected so that the USB driver may be installed.
Hardware
Connect the metal connector on the end of the verier y lead to the metal
connector on the power supply lead.
Plug the mains lead into the power supply (the switching adaptor).
Connect the mains lead to the mains power supply.
Connect the USB lead from the verier to a USB2 port on the computer.
Wait for the USB2 drivers to be installed from the CD-ROM.
www.axicon.com
Page 6 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

The small green light next to the word ON will be illuminated once the application
is running. When the application is rst started, the rst screen will ask you to
enter the password for the particular verier. This is provided at the beginning of
this user guide.
The next window that appears, Axicon 2D verier, is the command window, and it
will include a message asking you to calibrate the verier.
You will need to activate the verier camera by pressing the Start button on the
verier itself, or by clicking on the Get scan icon at the top of the command
window. The lights will ash until you press the button again, when the verier will
attempt to decode and analyse the image it sees.
You will be able to see the image that the verier will use in the command window
and you can open a separate viewing window called Image. Go to View then Image
from the command window or press F9.
Getting started
www.axicon.com
Page 7 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Calibration should be carried out after
installation and at regular intervals. When
the software detects an un-calibrated
reader the following dialogue box will
appear Reader XXXX (serial number) has
not been calibrated. You must click OK to
continue. You will also need your calibration
card which should be located in your
documentation wallet.
Place the verier over a section of the
calibration card that includes all or part of
a linear barcode (It is not necessary to use
a Data Matrix symbol for the calibration).
From the command window, go to Tools then
Calibrate or press F2.
Check that the maximum and minimum
gures in the Conrm window match those
of the calibration card, and if necessary
adjust them by following the instructions
that are provided. The red lights will ash
during this process. When calibration is
successful a message will appear on the
command window.
Calibration
www.axicon.com
Page 8 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

A red cross indicates where the centre
of the camera image lies and the
verier should be placed so that the
barcode is approximately in the centre
of this view. Press the Start button
or click on the Get scan icon to turn
on the lights. Press the Start button
again or click on the Get scan icon to
ask the verier to decode the image.
If this is successful the image will now
be superimposed with a grid pattern
and the results of the decode and the
analysis will be displayed in various
reporting windows.
There are several windows that can be viewed when using the application.
• The command window, called Axicon 2D Verier, contains the menus and
controls for the application and this will always open when the application is
launched.
• The Summary window will provide the data that has been decoded, the
symbol grade, the print gain in both the x and y dimensions, the Unused
Error Correction, and the x-dimension of the symbol in µm. The print gain is
measured as a percentage of the x-dimension.
www.axicon.com
Using the verier
Page 9 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

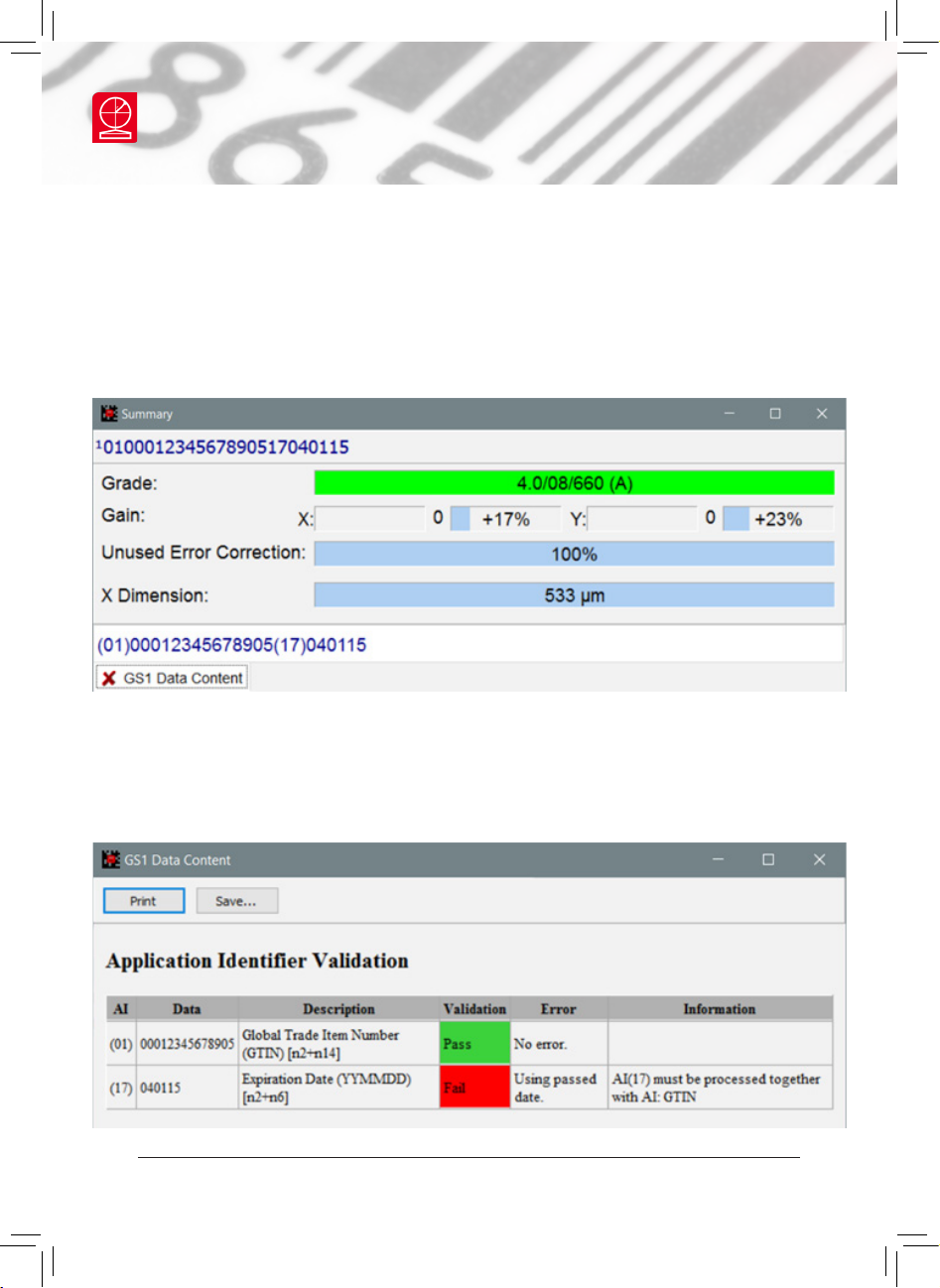

The Summary window provides a grade for the symbol and other information. If
the data shown at the top of the window if prexed with a superscript 1, like this,
¹10100012345..., the data is shown in a GS1 DataMatrix symbol, with ¹ representing
the Function 1 character.
If the plugin for checking GS1 Data Content has been selected, the lower white
panel shows the AIs in brackets, and indicates whether the data content is correct
or not. Clicking in the white panel will open another window, GS1 Data Content,
that provides more details as shown below.
Using the verier
www.axicon.com
Page 10 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

The Details window provides all the details of the parameters that have been
measured and graded by the verier. The data shown at the top of this window is
not the data content of the barcode, but is the codewords used in the symbol to
represent the encoded data. If there are too many codewords to be displayed at
the top of this window in one line, click on this area and a window, Code Words,
will appear that shows them all.
Printing verication reports
When you have veried a barcode, or opened a previously saved report, you can
print it from the command window. Go to File, and then Print or Print Setup as
required. The verication report will include the grade for the symbol expressed in
the format grade/aperture/wavelength of light, where grade is the overall symbol
grade, aperture is the aperture reference number (or the diameter in thousandths
of an inch), and wavelength of light is the peak light wavelength measured in
nanometres.
The date and time of the verication, the user name, the results of any plugin that
has been used, and a summary of all the individual parameters that have been
graded will also be provided.
www.axicon.com
Page 11 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

This window has eight dierent tabs that may be used to make changes to the
software. The rst concerns Appearance and appears below. Here you can change
the colours used to indicate pass, warning or fail, and also change the measurement
units. The default is to use metric measurements.

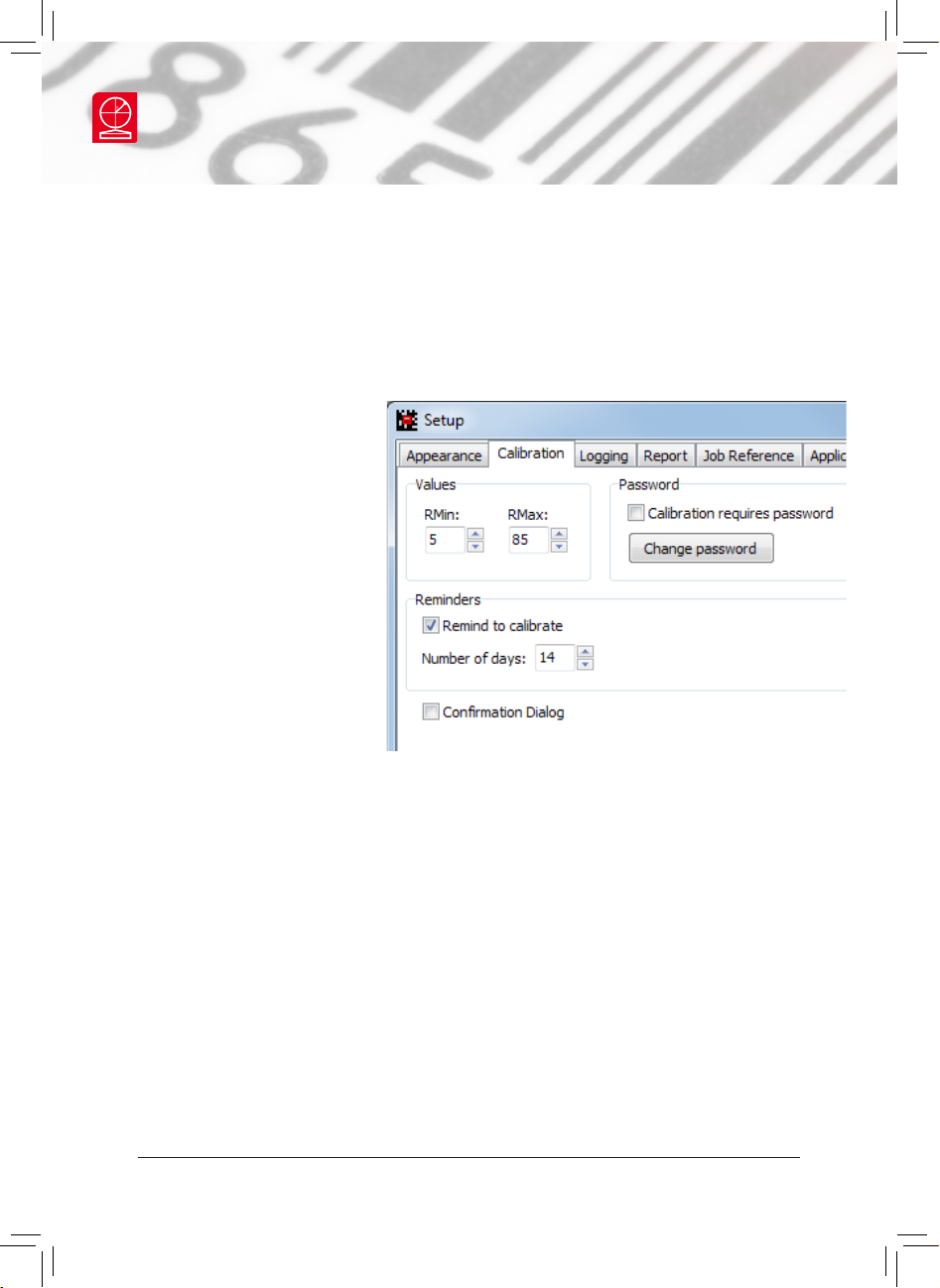

The Calibration tab allows you
to change the maximum and
minimum reectance values to
match those on the calibration
card you are using, and set the
interval between calibrations.
The Logging tab allows you to
change where saved les will
be saved. These will be in a
.a2d (Axicon 2D Verier Saved
Scan) format. The lename to
be used when les are saved
automatically can be selected
to be either a sequential
number or formed from the
decoded barcode data, and the date and time of scan.
The sequential numbering is hexadecimal and will help to meet the requirements
of FDA Title 21 CFR Part 11. Further controls are also recommended if FDA Title 21
CFR Part 11 compliance is required, and these are explained on the Axicon website.
If the Data, date & time option is chosen, the le will named like this: xxxxxx-
CCYYMMDD-HHMMSS, where xxxxxx represents the encoded data.
The Run Command when les are saved: option allows you to run any Windows
program each time a le is saved.
If Show ‘Save As...’ Dialogue is ticked, a standard Windows dialogue box will
appear when a le is automatically saved, allowing you to choose a dierent le
name from the automatically generated one.
Setup
www.axicon.com
Page 12 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

The Report tab
This is intended to be used with
a Report Generator le which you
will have specially requested from
Axicon.
The Job Reference tab allows you
to add the user’s name, or other
details about the barcodes being
veried to the saved verication
report.
The Application specication
tab allows you to change the
aperture size (in eect, the size
of the sampling area) if you do
not want to use the default for
any particular application. The
default will be 200 µm (8 mils),
as dened by the GS1 General
Specications. The pass grade may
also be changed from the default
value of 1.5.
www.axicon.com
Page 13 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

www.axicon.com
The Plugins tab allows you
to select which, if any, of
the plugins should be used
to check the data content of
the symbol. If the aicheck2d
is ticked, the data content
will be checked against the
requirements of the GS1 General
Specications. cip will check
the data content in accordance
with the French Club Inter-
Pharmaceutique requirements
for pharmaceuticals, lookup will
check the data against a database
you have established for this
purpose, and turkish will check
for compliance with the Turkish
Ministry of Health requirements.
The Advanced tab allows you to
change the password, if you require one, for the setup. The option for averaging
ve scans is now redundant as the standard, ISO/IEC 15415, no longer requires this
for the verication process.
Setup
Page 14 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Axicon warranty
The Axicon 12000 or 12500 is sold with a one year parts and labour warranty against
manufacturing defects. This is a return to bench warranty with shipping costs in one
direction being borne by the customer/distributor.
Should you need to return the unit to us the original case (plus appropriate
packaging) must be used. If the equipment is returned without the original case, we
will automatically charge an additional sum for the replacement of this packaging.
We reserve the right to charge an inspection fee for any equipment returned under
warranty for which no fault is found.
Please contact us to obtain an RMA (return to manufacturer authorisation)
number before returning any equipment. This number must be quoted on all
documentation. We cannot accept responsibility for equipment returned without a
RMA number.
www.axicon.com
Page 15 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Software licence agreement
This software is Copyright © 2008-2016 Axicon Auto ID Limited.
Use of the software is subject to the Axicon software licence terms set out below.
Using the software indicates your acceptance of these licence terms. If you do
not accept these licence terms within 14 days, you may return the entire unused
product for a full refund.
Axicon software licence terms - licence grant
Axicon grants you a licence to use the software supplied, but only in conjunction
with the Axicon hardware product that accompanied the software. Use means
storing, loading, installing, executing or displaying the software. You may not
modify the software or disable any licensing or control features of the software.
Ownership
The software is owned and copyrighted by Axicon Auto ID Limited. Your licence
confers no title or ownership in the software and is not a sale of rights in the
software.
Copies
You may not make copies of the software for any purpose whatsoever. You may not
copy the software onto a bulletin board or similar publicly accessible system.
No disassembly or decryption
You may not disassemble or decompile the software without prior written consent
from Axicon.
Transfer
Your licence will automatically terminate upon any transfer of the equipment/
software. Upon transfer, you must deliver the software, including any copies and
related documentation, to the transferee. The transferee must accept these licence
terms as a condition of the transfer.
www.axicon.com
Page 16 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

www.axicon.com
Termination
Axicon may terminate your licence upon notice of failure to comply with any of
these licence terms. Upon termination, you must immediately destroy the software,
together with all copies, adaptations and merged portions in any form.
Export requirements
You may not export or re-export the software in contravention of any applicable
laws or regulations.
This agreement should be construed in accordance with the laws of England.
Disclaimer
In the following the expression ‘verier’ means the Axicon hardware and the
associated software. We have taken care to ensure that this verier is free from
defects. However since we have no control over the circumstances in which you
might use the verier, you must satisfy yourself that its performance is suitable
for your needs. Neither Axicon Auto ID Limited nor the vendor of this verier can
accept any liability for any loss or damage (consequential or otherwise) which
may be caused by its use. If the verier or any part of it is defective in any way,
or in some other way does not meet your expectations, the liability of Axicon Auto
ID Limited is limited to the cost of the verier. You should bear this limitation in
mind if you use this verier in any situations where the acceptance or rejection of
shipments of goods or your reputation may depend upon the quality of a barcode.
Under no circumstances is this verier licensed or authorised for use in any
situation whatsoever where the health or safety of humans or animals might be put
at risk.
Page 17 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

www.axicon.com
Annual service
All veriers need servicing every year to ensure that they measure barcode quality
in accordance with the relevant ISO/IEC standards. This verier conformance and
alignment service (VCAS) ensures that the verier is internally dust-free, checks
that it is focused correctly, and adjusts the hardware to account for any change in
the brightness of the LEDs used to illuminate the barcodes.
This annual service is not the same as user calibration, as it looks at the output of
the LEDs and corrects for any variance in their evenness of illumination across the
whole eld of view. Over time the LEDs will fade but they will not fade uniformly.
User calibration ensures that the verier is measuring the darkest and brightest
reectances correctly but it cannot correct for any variance in the illumination.
After your verier has been serviced, we will return it with the latest version of the
software on CD together with a new calibration card, and a new user guide that will
include the new certicate of ISO/IEC conformance. You will then need to calibrate
the verier before you use it again. The latest software can always be downloaded
free of charge from our website, www.axicon.com.
To arrange for your verier to be serviced:
1. Contact us on
Telephone: [phone] | Fax [phone]
Email: [email protected]
2. We will provide you with an RMA number (Return to Manufacturer Authority)
and an RMA form.
3. Please ll in all details requested on the RMA form, including the RMA number.
4. Return the verier (including all cables) in its original case with the completed
RMA form, purchase order and your payment details to us at Axicon Auto ID
Ltd, Church Road, Weston on the Green, Oxfordshire OX25 3QP. We cannot take
responsibility for units returned in alternative packaging.
5. We will normally complete the service and re-calibration of your verier within
7-10 days.
Page 18 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Certicate of ISO/IEC
conformance
We, Axicon Auto ID Limited, of Church Road, Weston on the Green, Oxfordshire,
OX25 3QP, UK, hereby declare, that the following barcode verier(s):
Model number(s)
Serial number(s)
has been designed and manufactured at our address in the UK to verify barcode
quality and to conform to: ISO/IEC 15426-2 Barcode verier conformance
specication - Part 2: Two-dimensional symbols.
The equipment has been tested and calibrated using primary reference test
symbols traceable to the USA’s National Institute of Standards and Technology’s
reectance standards. We also state that this equipment, when used with the
latest verier software, and congured appropriately has the features to meet
the requirements of the United States Food and Drug Administration regulation,
Title 21 CFR Part 11.
This verier has been quality assurance checked today, and conforms to this
ISO/IEC standard. This declaration of conformity is valid for a year.
Issue date
Expiry date
Authorised signatory
Signatory Name
At or before the expiry date the verier should be returned to Axicon for its
annual servicing. This VCAS (verier conformance and alignment service) will
ensure that the verier remains conformant to ISO/IEC 15426-2 for another year.
Church Road, Weston on the Green,
Oxfordshire, OX25 3QP, UK
Page 19 of 20
Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017

Contact us
Axicon Auto ID Ltd
Church Road
Weston on the Green
Oxfordshire
OX25 3QP
UK
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.axicon.com
As Axicon continually improves its products, their specications and features are
subject to change without notice. All trademarks are acknowledged as belonging to
their respective companies.
Your Axicon distributor
