AXIOMTEK P2127-810 User manual

P2127-810
All-in-One 12.1” TFT
PANEL PC with
Versatile Stand Design
User’s Manual

ii
Disclaimers
The information in this manual has been carefully checked and is believed to be
accurate. AXIOMTEK Co., Ltd. assumes no responsibility for any infringements of
patents or other rights of third parties which may result from its use.
AXIOMTEK assumes no responsibility for any inaccuracies that may be contained in
this document. AXIOMTEK makes no commitment to update or to keep current the
information contained in this manual.
AXIOMTEK reserves the right to make improvements to this document and/or
product at any time and without notice.
No part of this document may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of AXIOMTEK Co.,
Ltd.
©Copyright 2005 by AXIOMTEK Co., Ltd.
All rights reserved.
October 2005, Version A1
Printed in Taiwan

iii
Safety Approvals
CEMarking
FCCClassA
FCC Compliance
This equipment has been tested and complies with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. If not installed and used in
accordance with proper instructions, this equipment might generate or
radiate radio frequency energy and cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measurers:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and
receiver.
3. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV
technician for help.
Shielded interface cables must be used in order to comply with
emission limits.

iv
Safety Precautions
Before getting started, read the following important cautions.
1. The P2127-810 does not come equipped with an
operating system. An operating system must be loaded
first before installing any software into the computer.
2. Be sure to ground yourself to prevent static charge when
installing the internal components. Use a grounding wrist
strap and place all electronic components in any
static-shielded devices. Most electronic components are
sensitive to static electrical charge.
3. Disconnect the power cord from the P2127-810 before
making any installation. Be sure both the system and the
external devices are turned OFF. Sudden surge of power
could ruin sensitive components. Make sure the
P2127-810 is properly grounded.
4. The brightness of the flat panel display decreases with
usage. However, hours of use vary depending on the
application environment.
5. Turn OFF the system power before cleaning. Clean the
system using a cloth only. Do not spray any liquid cleaner
directly onto the screen. The P2127-810 may come with
or w/o a touchscreen. Although the touchscreen is
chemical resistant, it is recommended that you spray the
liquid cleaner on a cloth first before wiping the screen. In
case your system comes without the touchscreen, you
must follow the same procedure and not spray any
cleaner on the flat panel directly.
6. Avoid using sharp objects to operate the touchscreen.
Scratches on the touchscreen may cause malfunction or
internal failure to the touchscreen.
7. The flat panel display is not susceptible to shock or
vibration. When assembling the P2127-810, make sure it is
securely installed.
8. Do not open the system’s back cover. If opening the
cover for maintenance is a must, only a trained
technician is allowed to do so. Integrated circuits on
computer boards are sensitive to static electricity. To

v
avoid damaging chips from electrostatic discharge,
observe the following precautions:
9Before handling a board or integrated circuit, touch an
unpainted portion of the system unit chassis for a few
seconds. This will help to discharge any static electricity on
your body.
9When handling boards and components, wear a
wrist-grounding strap, available from most electronic
component stores.
Trademarks Acknowledgments
AXIOMTEK is a trademark of AXIOMTEK Co., Ltd.
ALi is a trademark of Acer Laboratories, Inc.
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
Cyrix is a trademark of Cyrix Corporation.
IBM, PC/AT, PS/2, VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
MS-DOS, Microsoft C and QuickBASIC are trademarks of
Microsoft Corporation.
SMC is a trademark of Standard Microsystems
Corporation.
C&T is a trademark of Chips and Technologies, Inc.
SST is a trademark of Silicon Storage Technology, Inc.
UMC is a trademark of United Microelectronics
Corporation.
Other brand names and trademarks are the properties of
their respective owners.

vi
This page does not contain any information.

Table of Contents vii
Table of Contents
Chapter 1 Introduction-------------------------1
1.1 General Description ..........................................1
1.2 Specifications ...................................................2
1.2.1 Core System for P2127-810 system with SBC83810 2
1.2.2 I/O System................................................................2
1.2.3 Built-in Peripherals ...................................................3
1.2.4 System Specification...............................................3
1.3 Dimensions .......................................................5
1.4 I/O Outlets .........................................................6
1.5 Utilities Supported ............................................8
Chapter 2 System Configuration -----------9
2.1 Pedestal Versatility ...........................................9
2.1.1 Desktop Standing....................................................9
2.1.2 Vertical Wall Mounting..........................................10
2.1.3 30°Wall Mounting .................................................11
2.1.4 30oTable Standing................................................13
2.1.5 60°Table Standing ................................................14
Chapter 3 Hardware Installation ------ 15
3.1 CPU .................................................................16
3.2 DRAM...............................................................17
3.3 HDD .................................................................17
3.4 3 x Serial Ports................................................19
3.5 Parallel Port ....................................................20
3.6 VGA .................................................................20
3.7 Ethernet...........................................................20
3.8 Keyboard.........................................................21
3.9 Expansion Slot................................................21
3.10 External FDD, Keyboard and Mouse Installation
........................................................................22
3.11 System O/S and Software Installation ............23
Appendix A Power Supply Specifications25
Specifications...........................................................25
International Standards............................................26

viii
This page does not contain any information.

P2127-810 PANEL PC User’s Manual
Introduction 1
C h a p t e r 1
Introduction
This chapter contains the general information and detailed
specifications of P2127-810. Chapter 1 includes the following
sections:
General Description System Specification
Dimensions I/O Outlets
Utilities Supported
1.1 General Description
The P2127-810 super slim industrial panel PCs are mainly designed
for industrial automation and some space-constricted embedded
applications. For some space-concerned industries, a traditional PC
with a separate main system, display monitor and keyboard is simply
not integrated enough.
Ruggedly designed, the P2127-810 is 100% IBM PC/AT compatible
and it integrates super I/Os, 12.1” TFT touchscreen, Ethernet, and
packs special industrial features like watchdog timer all in a single
system. The full PC functionality coupled with its industrial-grade
construction easily tailors the system for any embedded applications
-- allowing the system to endure continuous operation in any hostile
industrial environments where stability and reliability is a must.
The P2127-810 feature a versatile stand suited for a wide variety of
applications. With the pedestal kit assembled to the main unit, both
can transform into different positions such as desktop free standing,
30°table standing, panel mount and 30°wall mounting. Its cable
management device also trims the operation environment. The NEMA
4/12 water/dust-proof front panel is specially designed for the
continuous operation in outdoor environments. Common applications
of these PANEL PCs include POS, POI terminals, KIOSK, LAN,
Hospitality, Banking, Video Conferencing, Medical instrumentation,
Industrial and Office Automation - to name just a few.

P2127-810 PANEL PC User’s Manual
Introduction
2
Designed by the PC experts for PC professionals, the P2127-810 is
virtually the ultimate one-step solution for your space-limited
applications.
1.2 Specifications
1.2.1 Core System for P2127-810 system with
SBC83810
CPU: Intel Pentium M and Celeron M (Socket 479) FSB
400MHz
System Chipset: Intel 855GME/852GM + 6300ESB
BIOS: Phoenix-Award BIOS, Y2K compliant
4Mbit Flash ROM, DMI, Plug and Play
System Memory: One 184-pin DDR DIMM Socket
Maximum of 1GB DDR Memory
200/266/333MHz ECC/non-ECC DDR
supported
L2 Cache: Integrated in CPU
Bus Clock: 400 MHz
Watchdog Timer: Interate Intel 6300ESB
Up to 1024 levels as Reset/SMI features
1.2.2 I/O System
Standard I/O:
−3 x serial ports with
power; 2 x RS-232, 1 x
RS-232/422/485 jumper
selectable
−1 x parallel port,
SPP/EPP/ECP
−1 x External FDD
Interface
−1 x Keyboard Interface
−1 x PS/2 Mouse Interface
−1 x External IDE Interface
−4 x USB Ports
−1 x VGA Port
−1 x RJ45 Port
−1 x Audio in/out, MIC

P2127-810 PANEL PC User’s Manual
Introduction 3
Ethernet:
−Realtek 8100C PCI Bus 10/100M Base-T
−RJ-45 interface equipped
VGA/Flat Panel Controller:
−Integrate Intel 855GME/852GM GMCH
−Unified Memory Architecture shares system memory up to
64MB
−LCD resolutions up to 800x600
−External Display resolution up to 1600x1200
Audio:
−Realtek ALC202A AC-97 Codec
−32-bit Sound Blaster and sound Pro compatible
−16-bit stereo ADC and DAC
−PC97/PC98 and WHQL specifications
−Full-duplex operation for simultaneous record and
playback
−Internal MIC-in, Line-in, Speaker/Line-out interface
reserved
1.2.3 Built-in Peripherals
100W power supply
2.5” hard disk
12.1” anti-glare analog resistive touchscreen with RS-
232 controller
System cooling fan
1.2.4 System Specification
12.1” TFT flat panel, resolution 800 ×600
External FDD interface
NEMA 4/12 sealed front panel
Cable management shroud
Heat dispensing design
One free slot for PCI expansion
Net weight:
−P2127-810: 4.8 kgs
Dimension (main body size):
−P2127-810: 360 x 277 x95.2 mm (WxHxD)

P2127-810 PANEL PC User’s Manual
Introduction
4
Operating Temperature Range: 0oC ~ 40oC
Relative Humidity: 20% ~ 90%; non-condensing
NOTE: For more detailed information on the system engine
board used in your PANEL PC, refer to the system board
User’s Manual that came with the system packaging.

P2127-810 PANEL PC User’s Manual
Introduction 5
1.3 Dimensions

P2127-810 PANEL PC User’s Manual
Introduction
6
1.4 I/O Outlets
The following figure shows the I/O arrangement of the P2127-810.
P2127-810SidePanel
0. Brightness VR
1. External FDD
2. PS/2 keyboard connector
3. PS/2 mouse connector
4. USB port

P2127-810 PANEL PC User’s Manual
Introduction 7

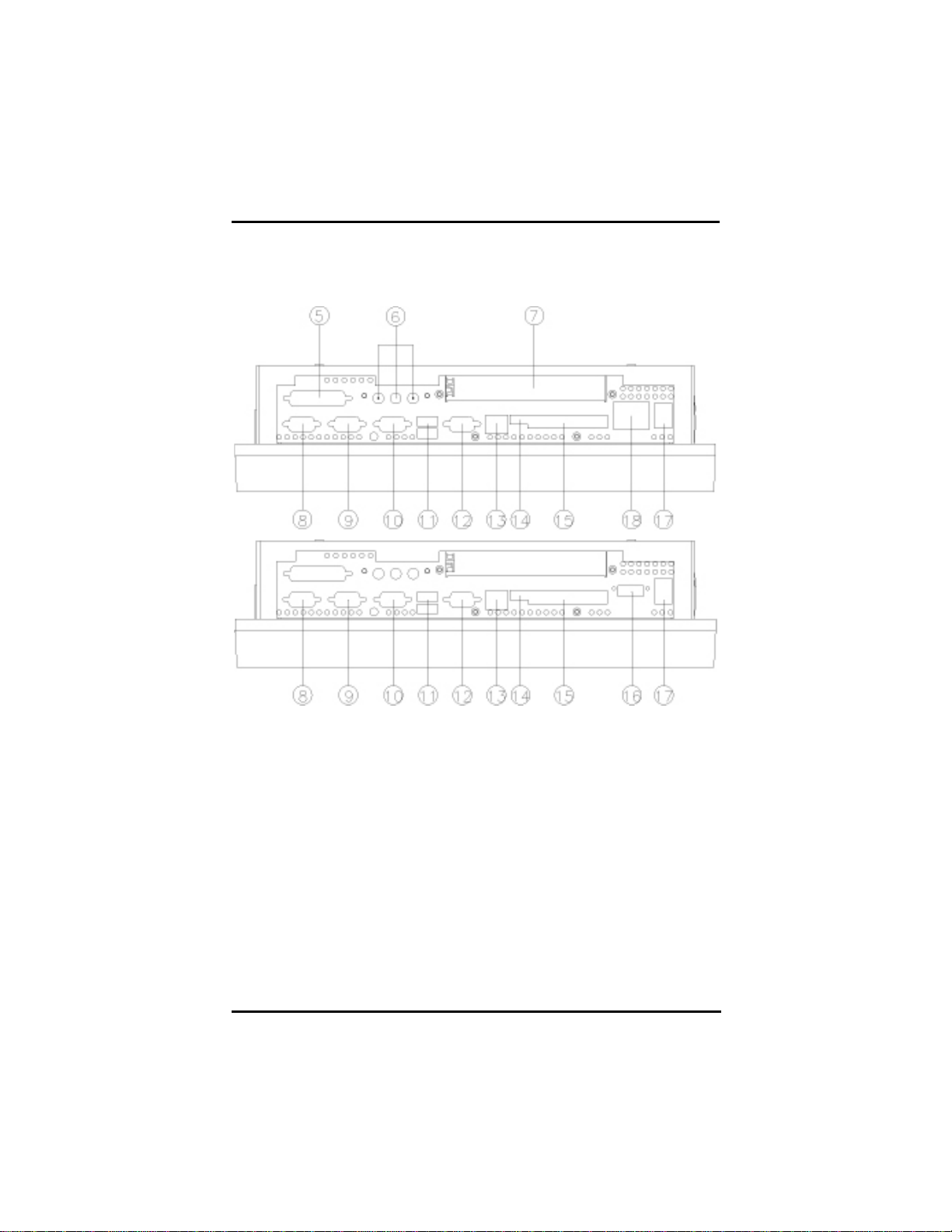

P2127-810BottomPanel
5. Parallel port 12. VGA port
6. Audio In, Out, MIC 13. Ethernet phone jack
7. Expansion outlet 14. +5V / +12V Output
8. COM3 port 15. External IDE Connector
9. COM2 port 16. DC inlet
10. COM1 port 17. Power switch On/OFF
11. USB port 18. AC inlet

P2127-810 PANEL PC User’s Manual
Introduction
8
1.5 Utilities Supported
zWatchdog Utility
zEthernet Utility
zVGA Drivers
zTouchscreen Utility

P2127-810 PANEL PC User’s Manual
System Configuration 9
C h a p t e r 2
System Configuration
2.1 Pedestal Versatility
The P2127-810 features a versatile stand designed for various
environmental applications. A complete set of pedestal is provided to
make up the various stands.
2.1.1 Desktop Standing

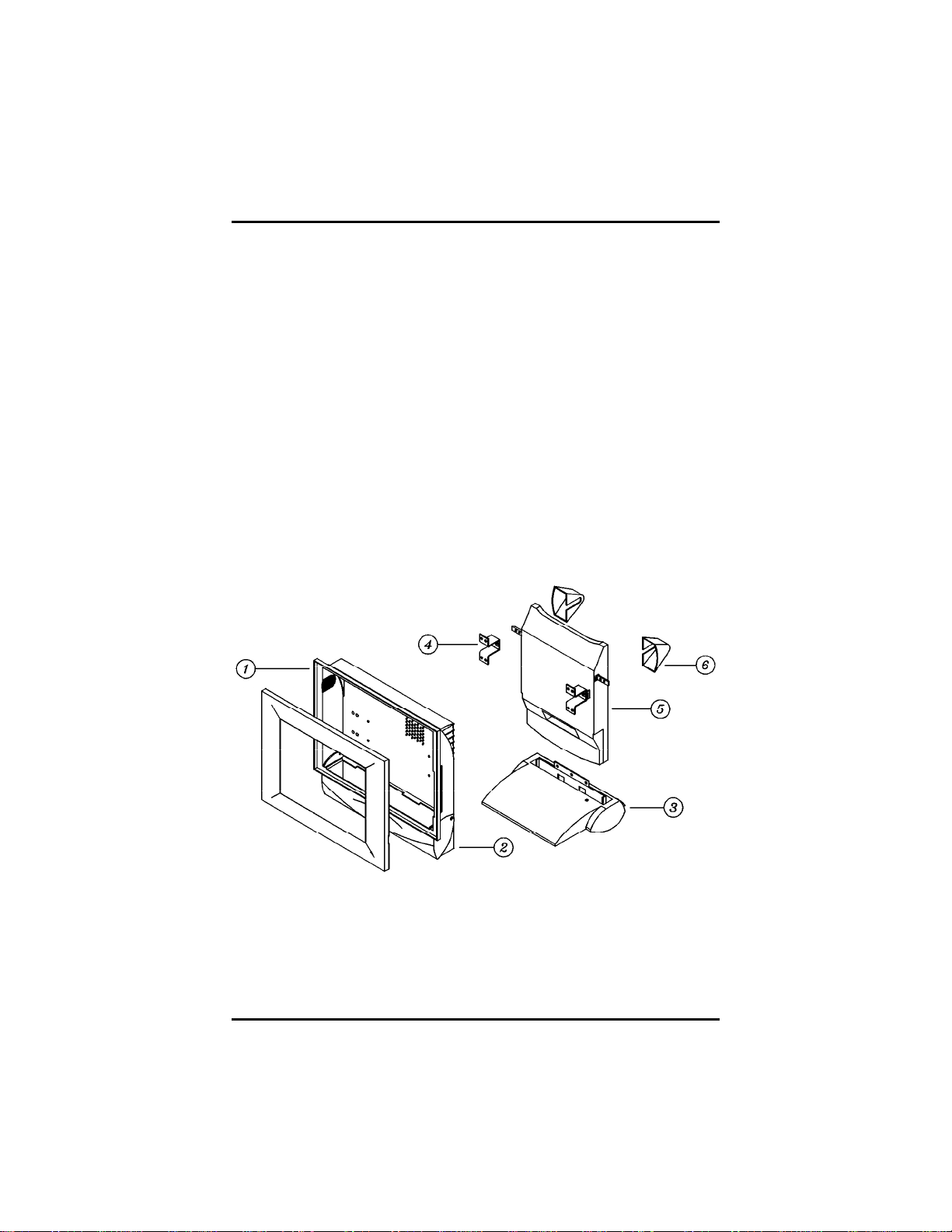

The standard kit that makes up a free-standing computer include:
1. System main body
2. Cable management shroud
3. Pedestal
4. Small back metal fixtures
5. Main prop
6. Small hinge caps

P2127-810 PANEL PC User’s Manual
System Configuration
10
By assembling these components to the main body of P2127-810, the
computer stands on the table as an independent unit. This
space-saving computer is commonly adapted for office automation,

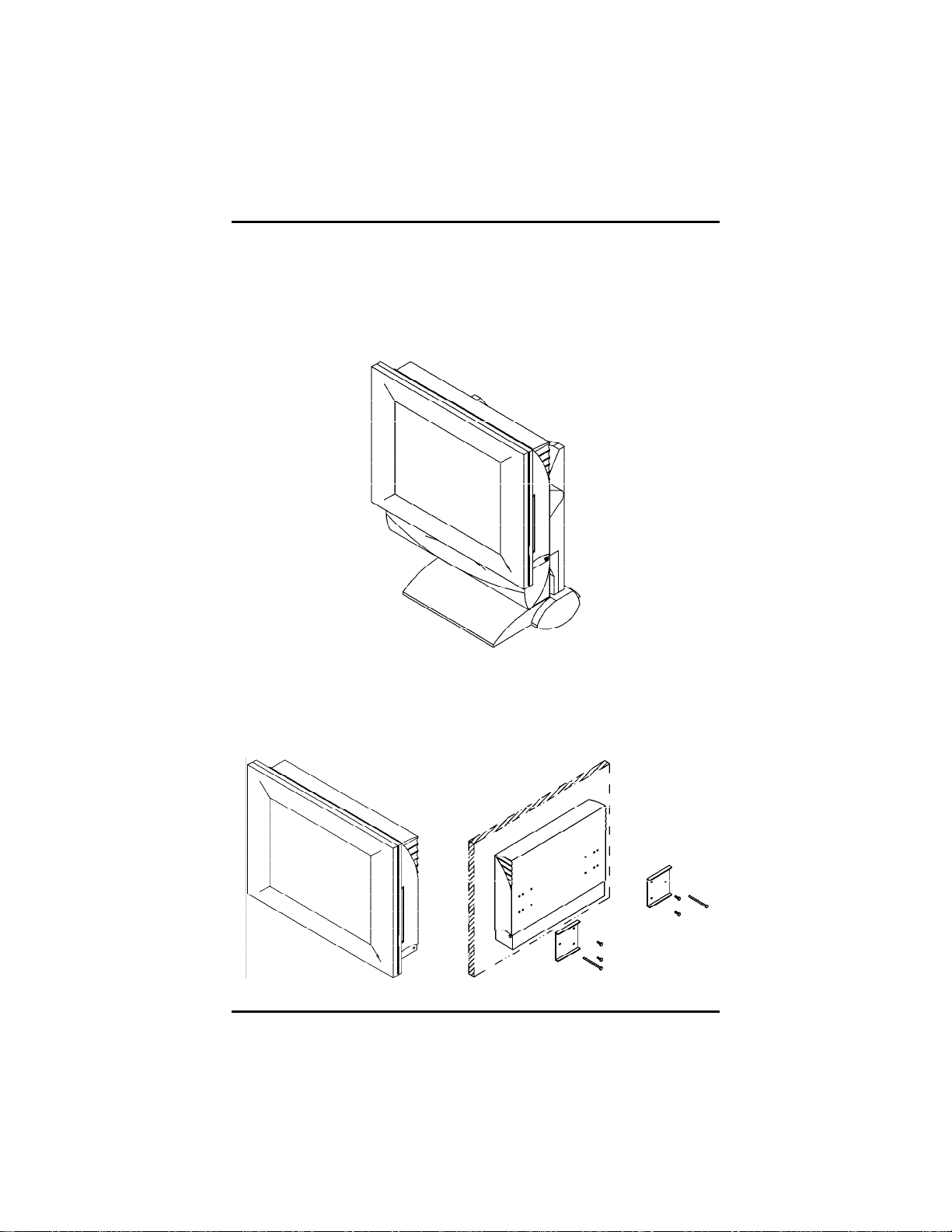

video conference and hotel information counter. The unit after proper
assembly would look as illustrated below.
2.1.2 Vertical Wall Mounting
For panel mounting only a set of mounting kit is needed, there is no
pedestal kit or cable management shroud required. Please refer to the
following figures.

P2127-810 PANEL PC User’s Manual
System Configuration 11
2.1.3 30°Wall Mounting

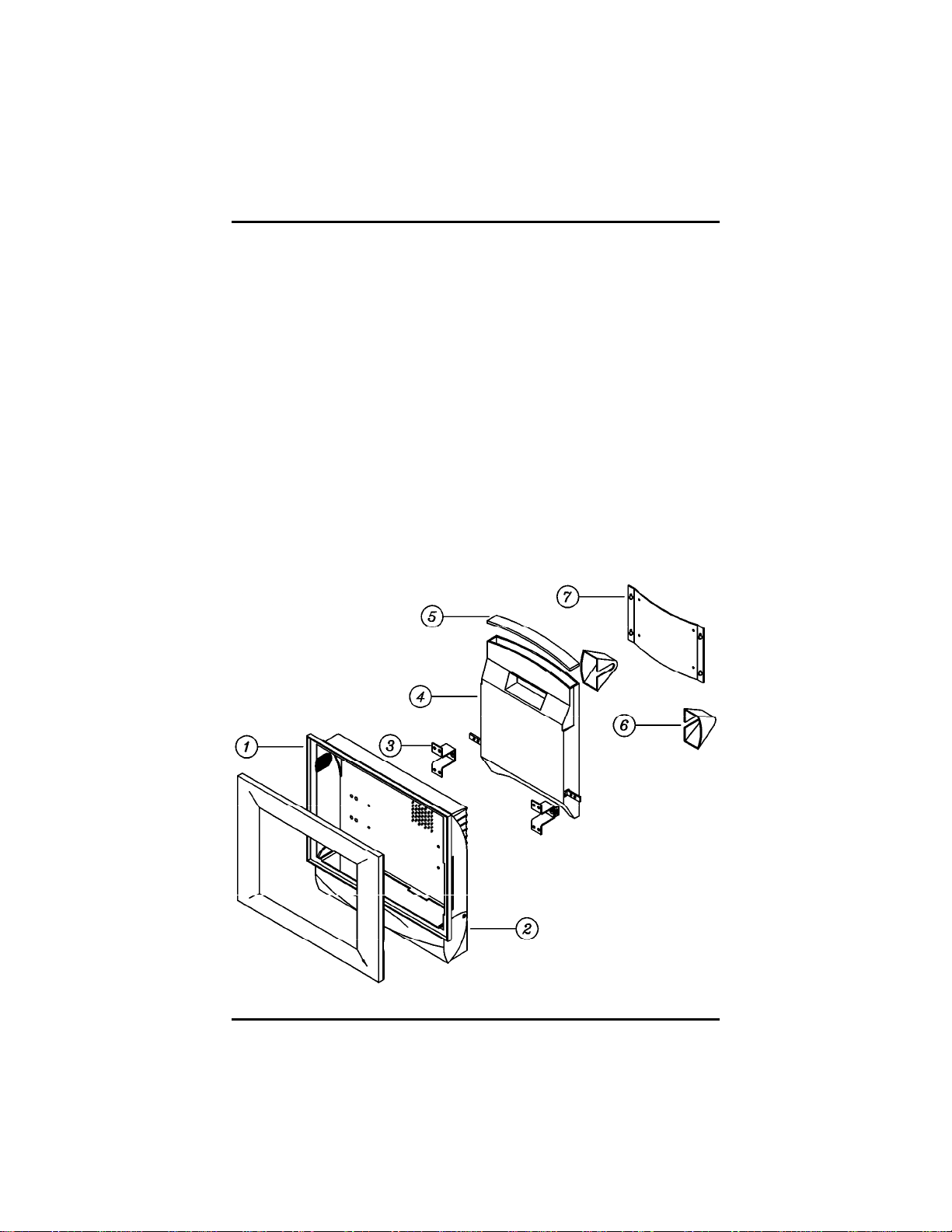

The standard kit that makes up a 30°wall-mount unit includes:
1. System main body
2. Cable management shroud
3. Small back metal fixtures
4. Main prop
5. Rubber Slip: The rubber slip has to be inserted to the top
opening of the main prop to make the whole unit look
complete and integrated.
6. Small hinge caps
7. Metal mounting kit
During assembling, the main prop has to be rotated 90°and screwed
to the system’s main body by the back metal fixture.

P2127-810 PANEL PC User’s Manual
System Configuration
12

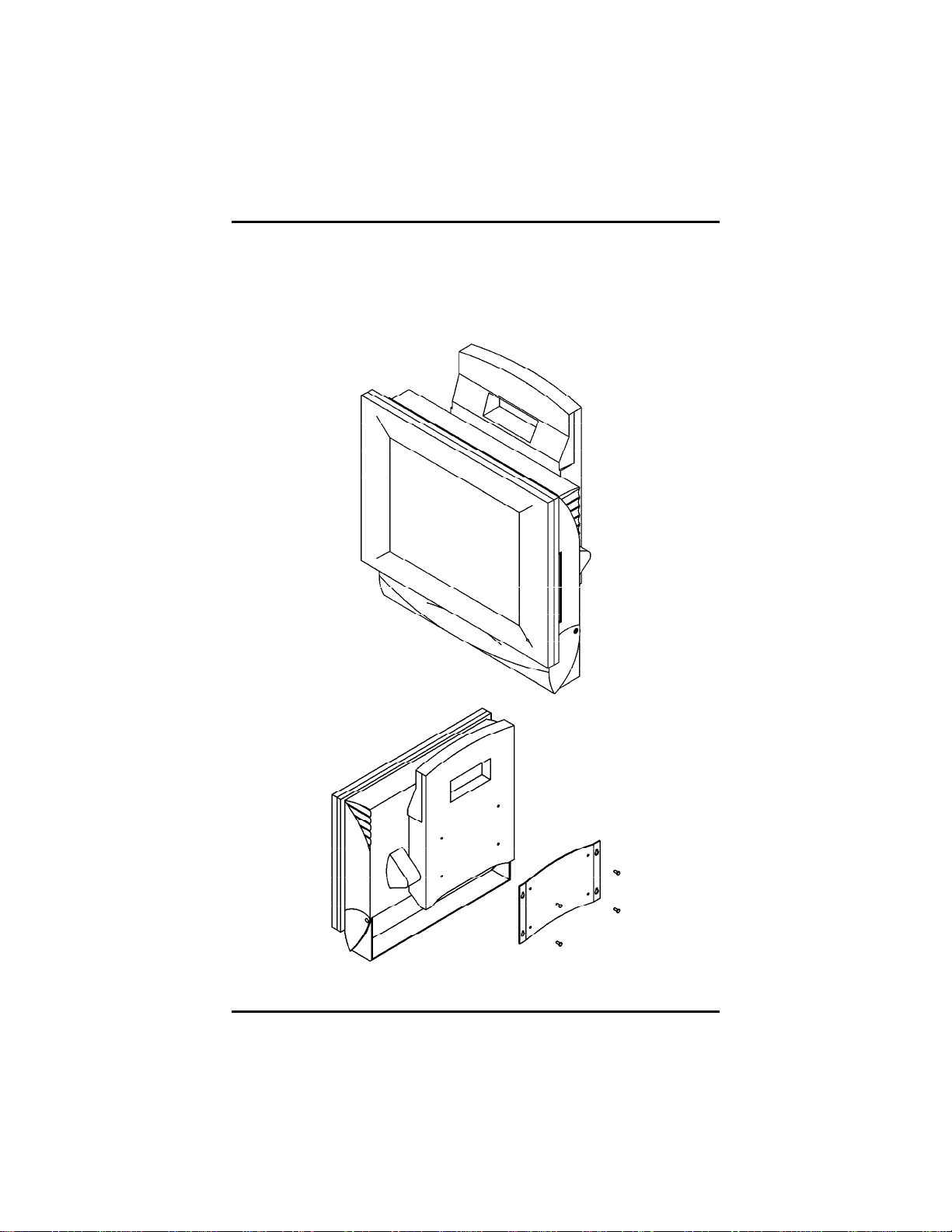

By assembling these accessories to the main body of the P2127-810,
the computer is mounted and forms a 30°angle to the wall as
illustrated below. Such unit is commonly used in medical
instrumentation, stand-alone POI, or KIOSK system.
